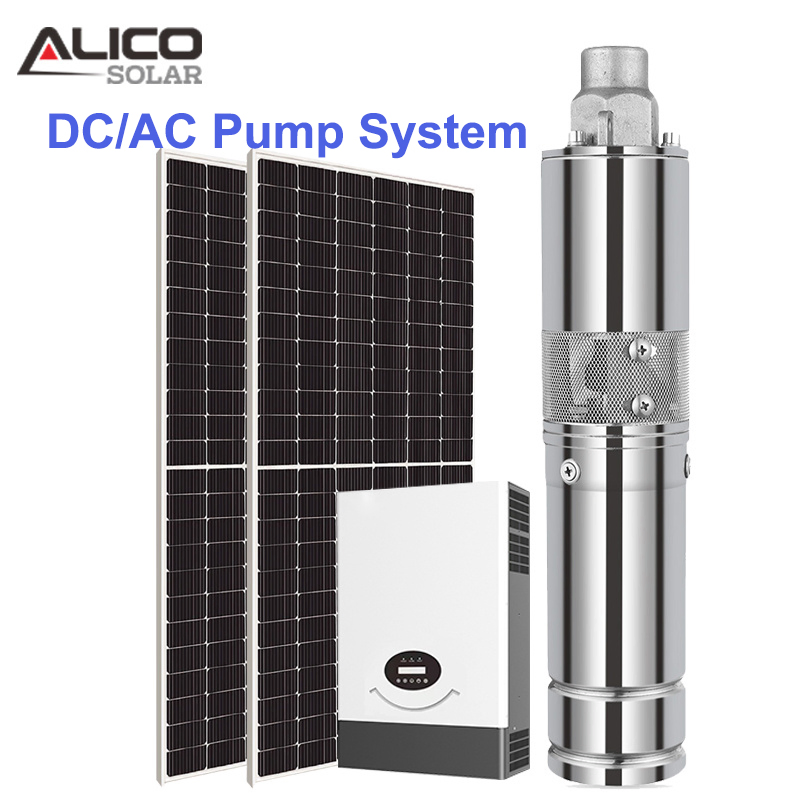

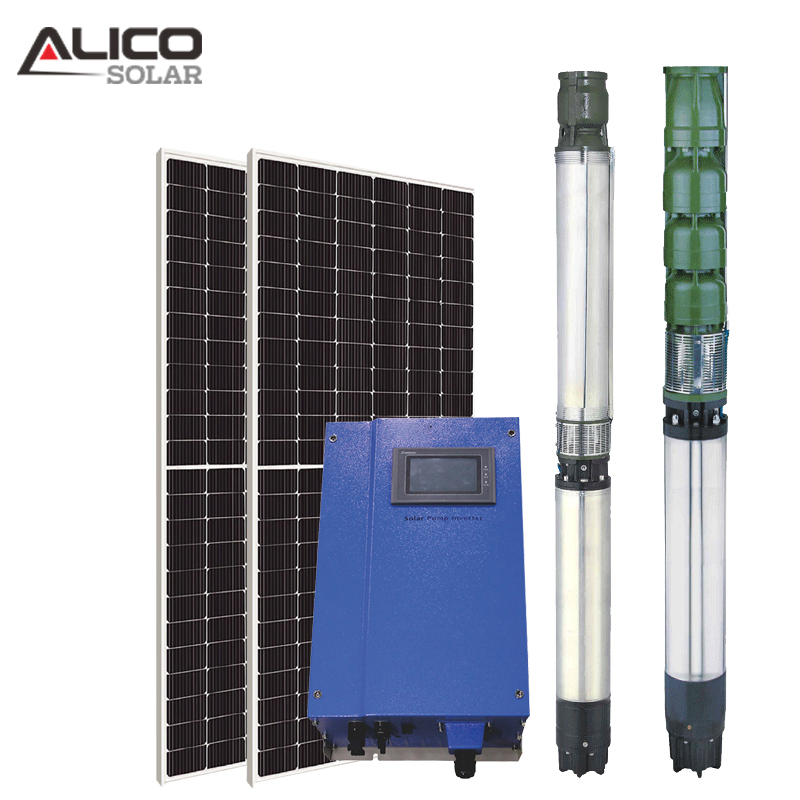

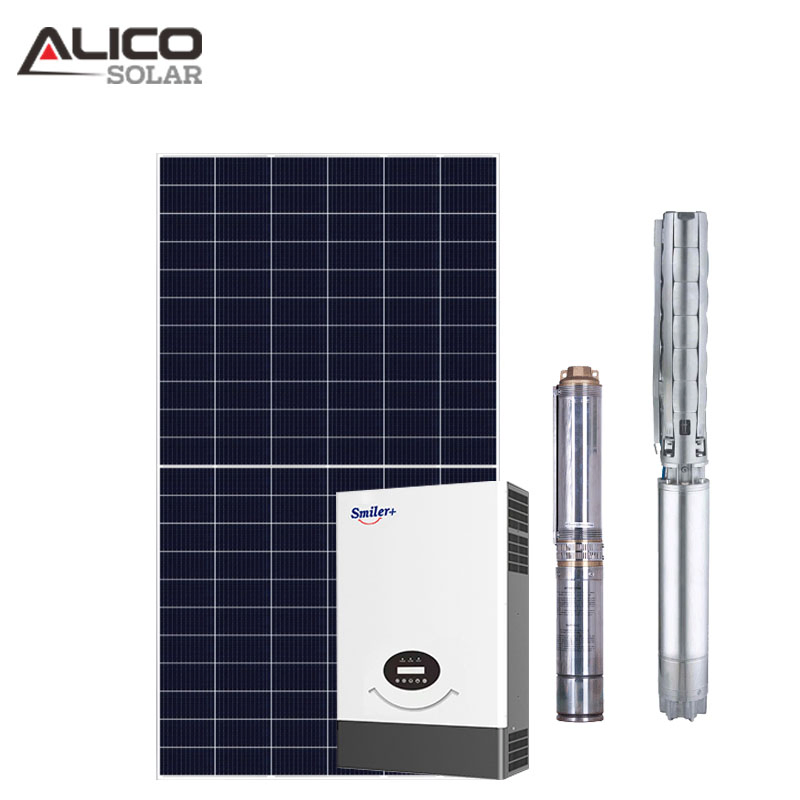

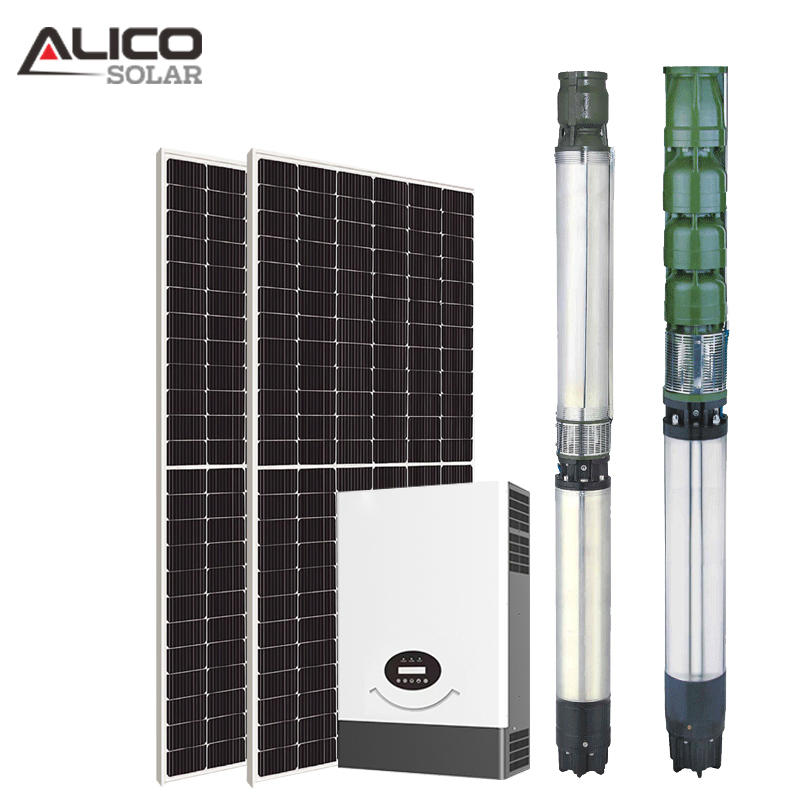

Wholesale Deep Well Submersible Solar DC/AC Pump System with Inverter MPPT Controller Kits

ℹ️

Basic Information

Model NO.

pump system

Condition

New

Certification

ISO, CB, CE

Application

Industrial, Commercial

Specification

Normal, OEM

Keywords

Solar Pumps System

Name

Submersible Solar Pump

Solar Inverter

off-Grid Inverter

Mounting Support

Roof or Ground Solar Mount Bracket

System Type

Home Solar Power System

Conveying Medium

Water Transfer

MPPT

MPPT Solar Pump Inverter 0.75 Kw

Origin

Jiangsu, China

HS Code

8501610000

📦

Product Description

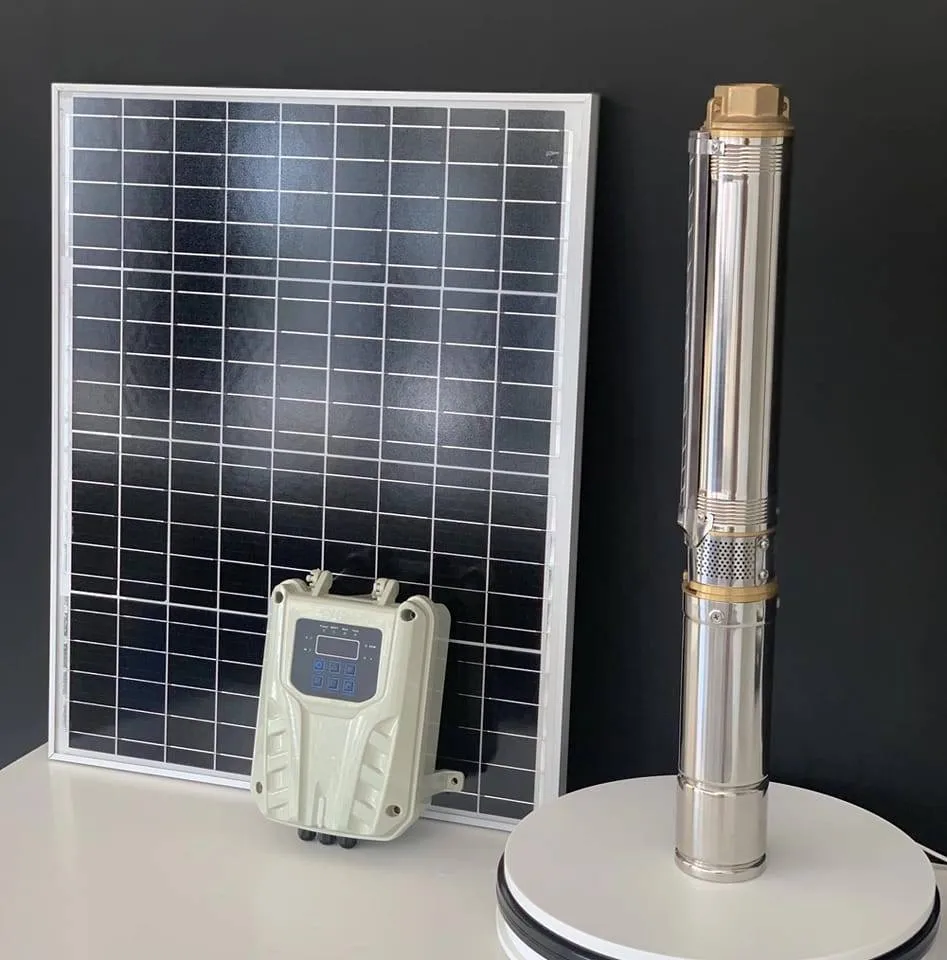

DC AC Solar Pump system for Farm

MODEL	VOLTAGE (V)	POWER (W)	MAX FLOW (m3/h)	MAX HEAD (M)	OUTLET (in)	DIAMETER (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.3-50	24	120	1.3	50	3/4"	76
JS3-1.8-60	24	180	1.8	60	3/4"	76
JS3-2.1-100	48	450	2.1	100	3/4"	76
JC3-3.2-115	72	1000	3.2	115	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JC4-14.0-33	72	1000	14	33	2"	100
JCS4-25-96	288	4000	25	96	2"	100

📊

System Parameters (30HP Example)

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1

✅ AGRICULTURAL IRRIGATION

✅ ANIMAL HUSBANDRY

✅ DESERTIFICATION CONTROL

Please inform us of the following information to select the right pump for you:

1. Application location and purpose.
2. Daily or hourly water discharge requirement (liters/m3).
3. Submersible or surface pump preference.
4. For deep wells: Borehole depth.
5. Pipe distance and slope (horizontal or inclined).
6. Storage tank height.

🛠️

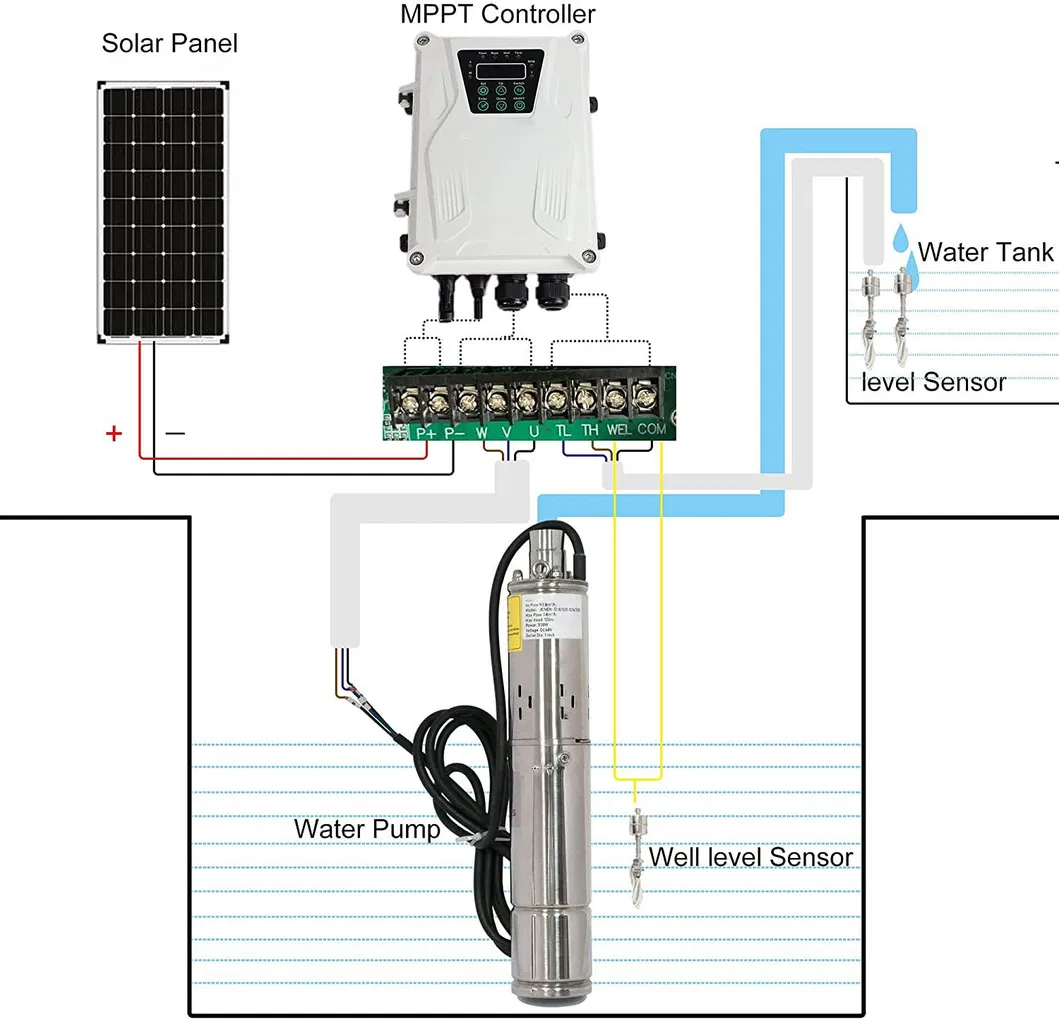

Key Components

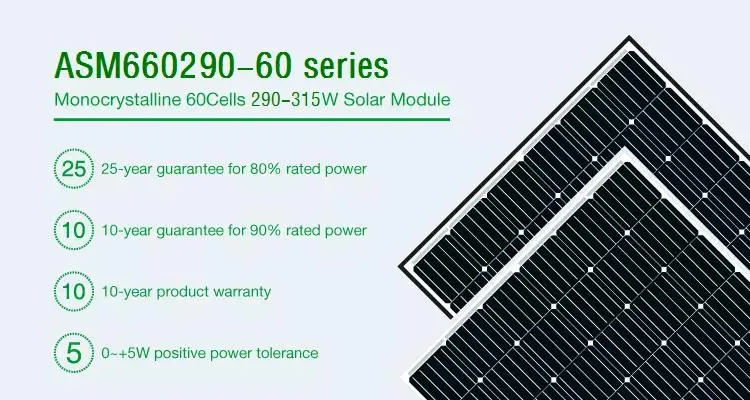

Mono Solar Panels: 290W Peak Power, High Efficiency Cell Technology.

Pump Controller: MPPT 90-520V Range, DC Input up to 8.5KW.

Pump Body: Stainless Steel 304/316, BLDC Motor, Centrifugal/Helical Type.

🌍

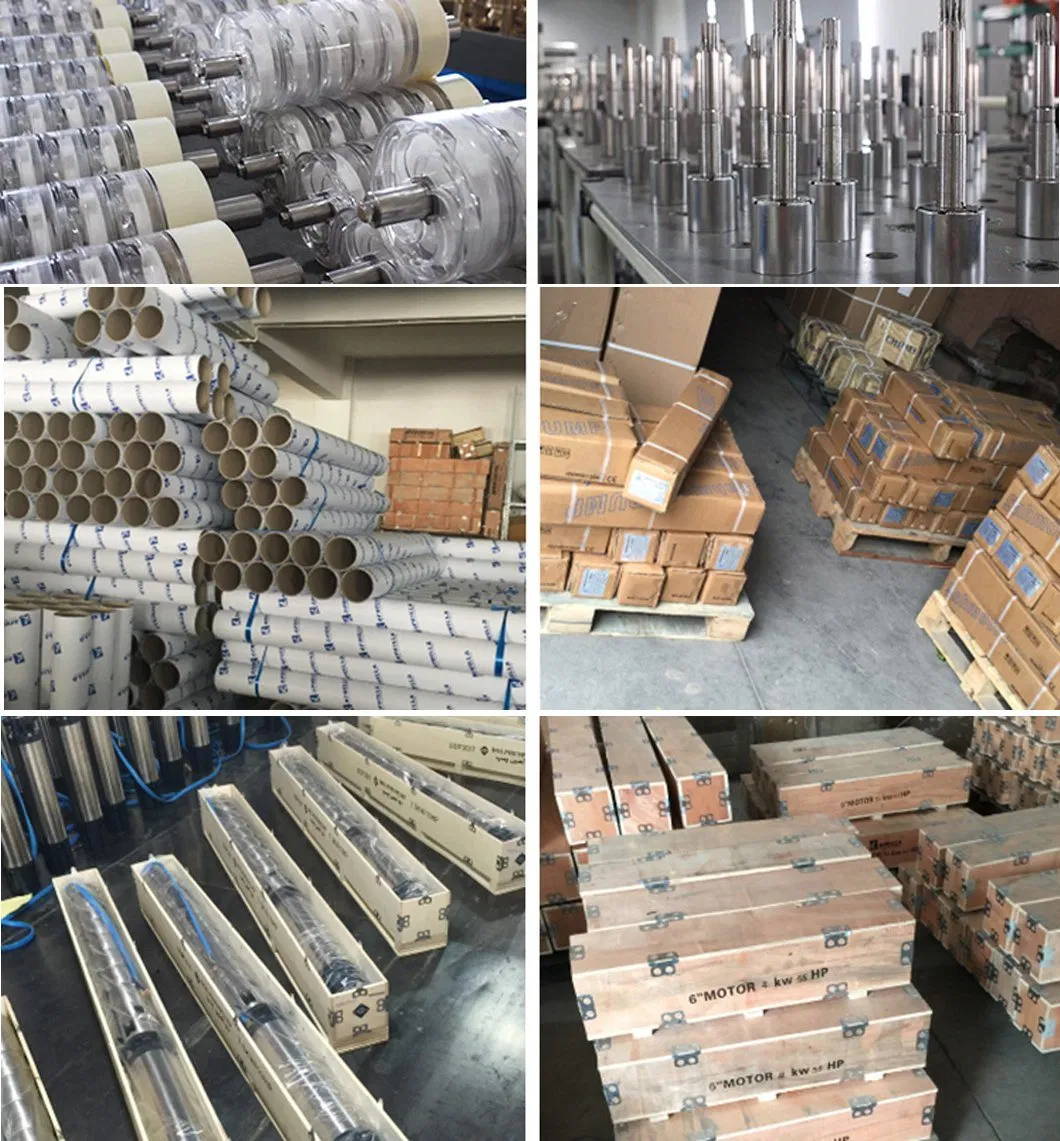

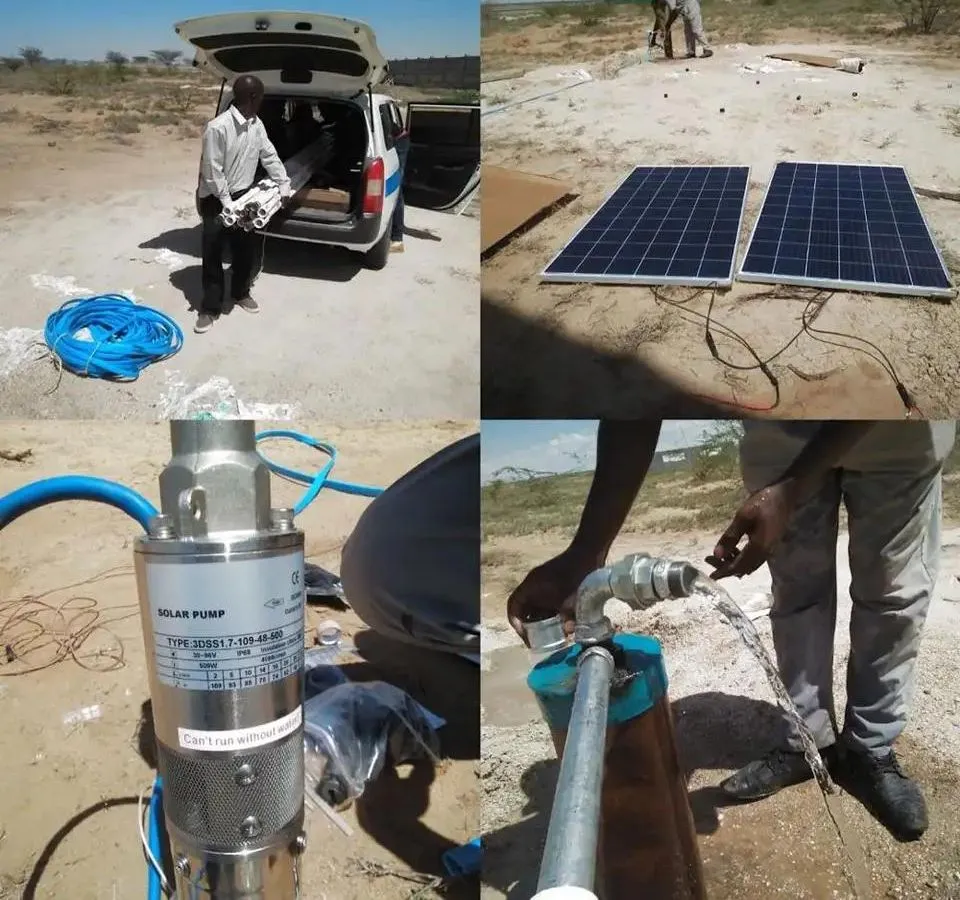

Projects & Packaging

❓

Frequently Asked Questions

Are these solar pump inverters pure sine wave output?

Yes, all of our inverters provide true pure sine wave output, which is essential for protecting sensitive electronic components and ensuring the longevity of your water pump motor.

What is the advantage of a pure sine wave inverter over a modified one?

Pure sine wave inverters are as reliable as the public power grid. They produce no harmonic pollution, making them environmentally friendly and safer for inductive loads like refrigerators, air conditioners, and water pumps.

How do I choose the right voltage (12V, 24V, or 48V) for my system?

The choice depends on the input voltage of your battery bank. Higher voltages reduce the current, allowing for smaller wiring between the solar array and the battery. It is critical that your panels, inverter, and battery bank all share the same voltage.

What appliances can these solar inverters support?

Our systems are designed for household, office, and agricultural use. They can efficiently power inductive loads including water pumps, refrigerators, and air conditioning units.

How do I calculate the required solar panel power for my pump?

As a general rule, the total power of the solar panel array should be approximately 1.3 to 1.5 times the power of the pump. The voltage of the panels must also align with the operating voltage of the pump and controller.

What happens if a component fails?

If a product is found to be faulty, we provide technical support via video or images. After evaluation, we supply necessary spare parts such as PCB boards to ensure your system returns to operation quickly.
