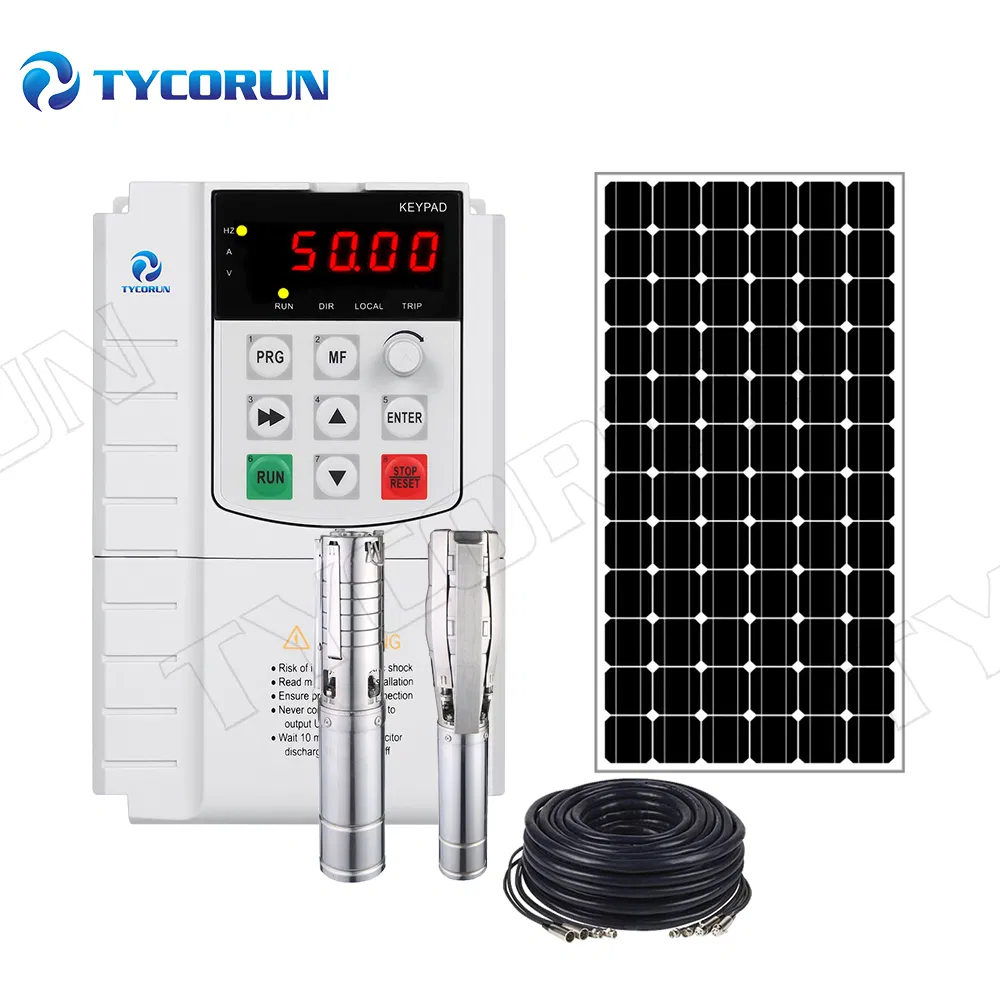

Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
1 / 5
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System
Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System

Tycorun DC AC Solar Submersible Deep Well Water Pump Solar Energy System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.Solar Water Pump System
ApplicationHome, Industrial, Commercial
SpecificationNormal, Lithium Battery Pack
Cycle Life>2000 Cycles
Charge Temp0 ~50°C
Discharge Temp-20 ~55°C
HS Code8507600090
Capacity30000PCS/Month

Product Description

DC AC Solar Submersible Deep Well Water Pump Solar Energy System

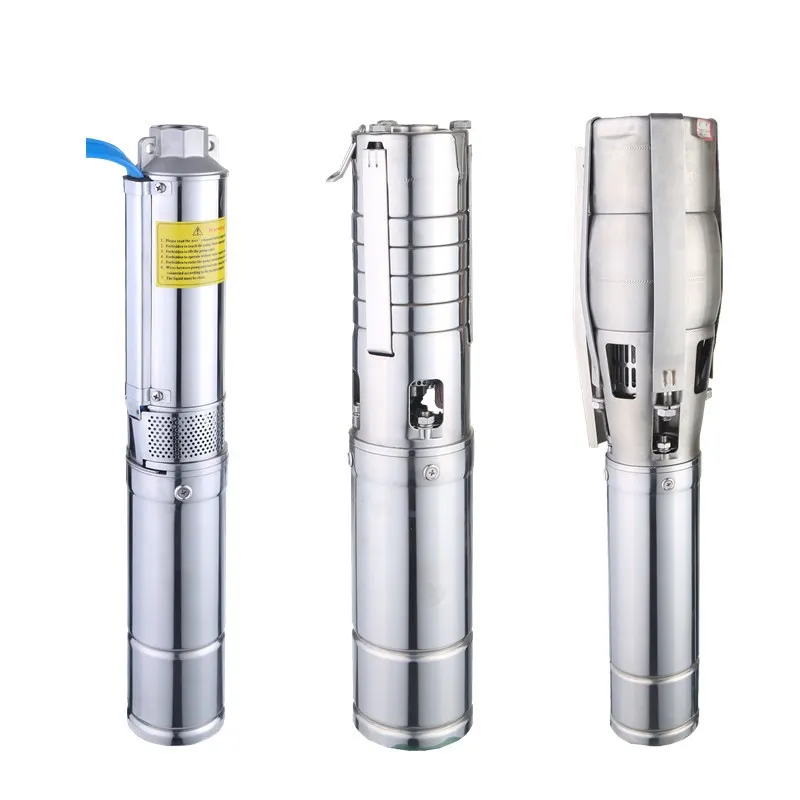

Component Specifications
Pump BodyStainless steel 304
Motor BodyStainless steel 304
Mechanical SealCeramic graphite
ImpellerStainless steel 304
Coupling and OutletStainless steel 304
Electric Motor24V~110V
Insulation ClassB
ProtectionIP ×8
Diameter of Outlet1.25"

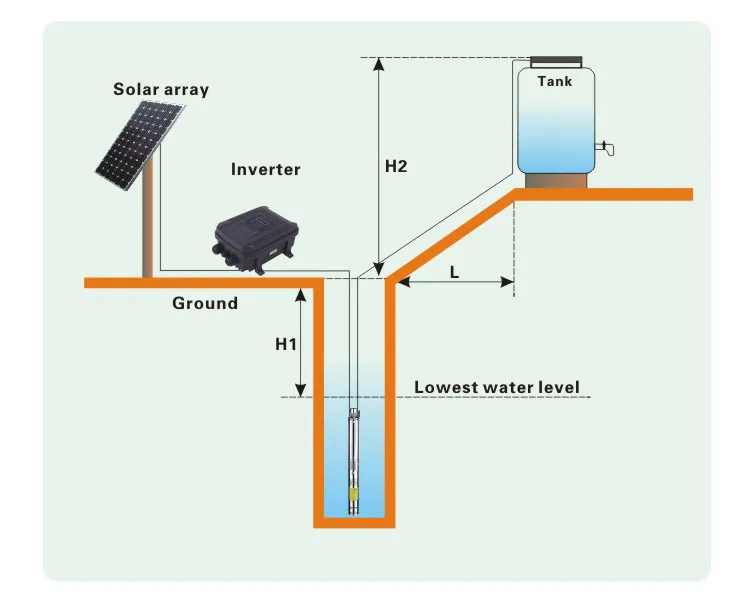

Solar Pump System 1
Solar Pump System 2

Technical Parameters

ITEM Voltage Power Max Flow Max Head
3DPC3-25-24-20024V200W3000L/H25M
3DPC3-35-24-30024V300W3000L/H35M
3DPC3.5-47-48-40048V400W3500L/H47M
3DPC3.5-80-48-60048V600W3500L/H80M
3DPC3.5-95-72-75072V750W3500L/H95M
3DPC3.8-123-110-1100110V1100W3800L/H123M
3DPC3.8-180-110-1500110V1500W3800L/H180M

Key Advantages

  • High Efficiency: Compact size, lightweight, and versatile functions.
  • Advanced MPPT: Built-in MPPT function to maximize solar energy harvesting.
  • Automatic Operation: System works automatically based on available power.
  • Hybrid Compatibility: Works with both solar panels and batteries simultaneously, prioritizing solar power.
  • Intelligent Protection: No deep well float switch needed; auto-stops if water is absent for 1 minute and tests every 30 minutes.
  • Smart Detection: Automatically detects energy sources and switches between solar and battery seamlessly.

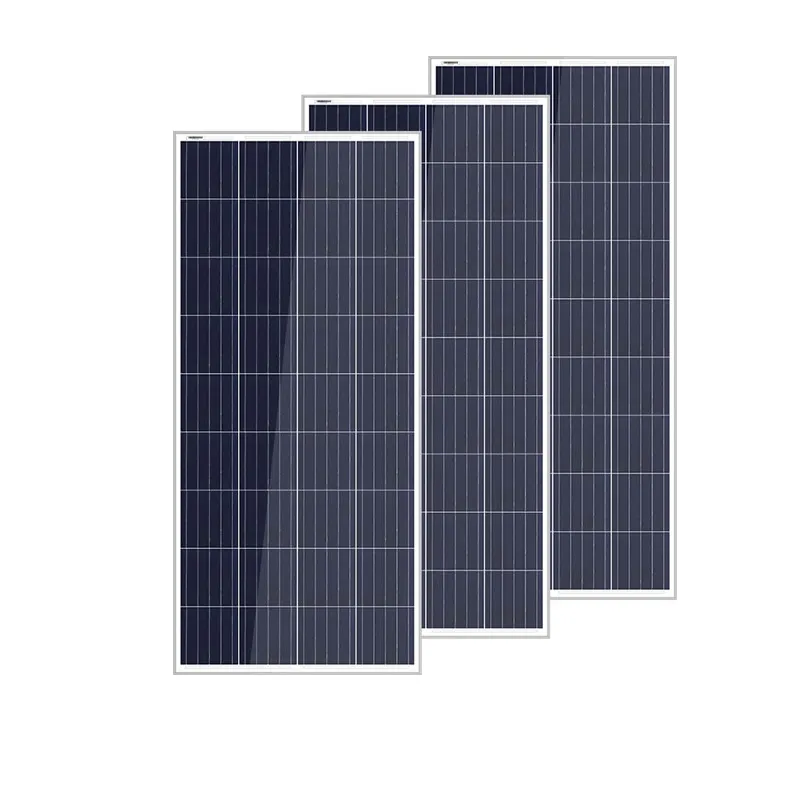

Pump Advantage

System Components

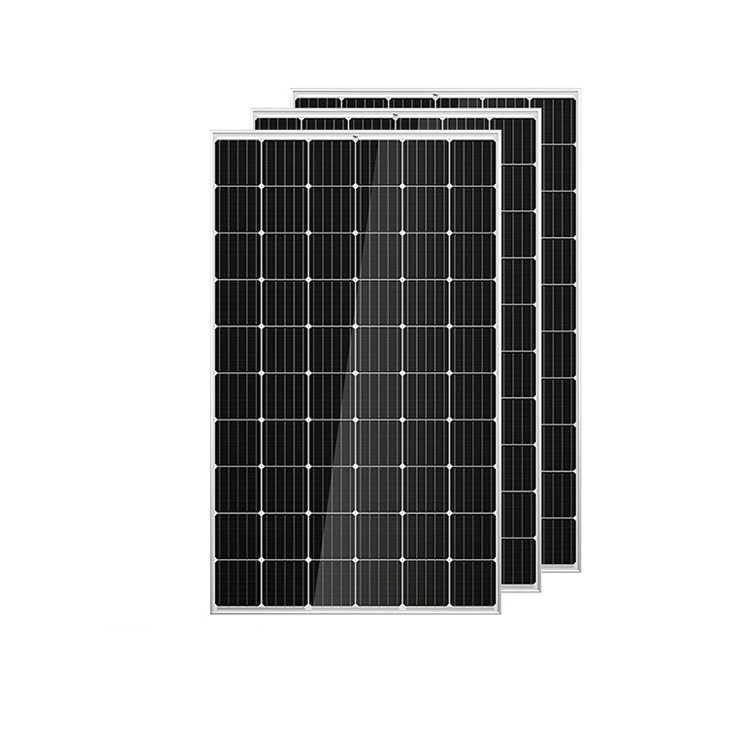

Solar Panels

> 25 years Warranty | 17% conversion efficiency | Anti-reflective surface | PID Resistant.

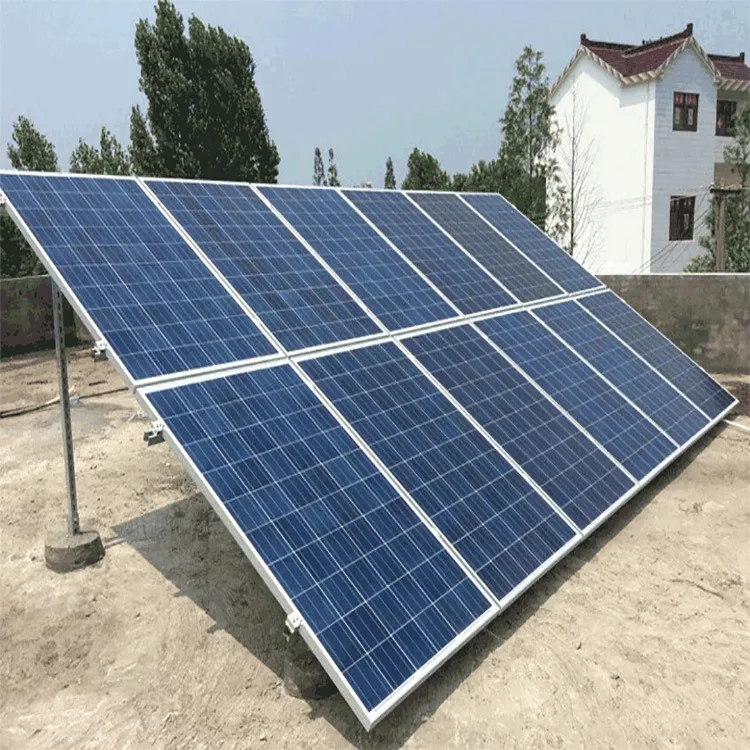

Solar Panels

Mounting Support

Options: Residential Roof, Commercial Flat Roof, Ground Solar Mounting, Vertical Wall, and Car Parking systems.

Mounting 1
Mounting 2

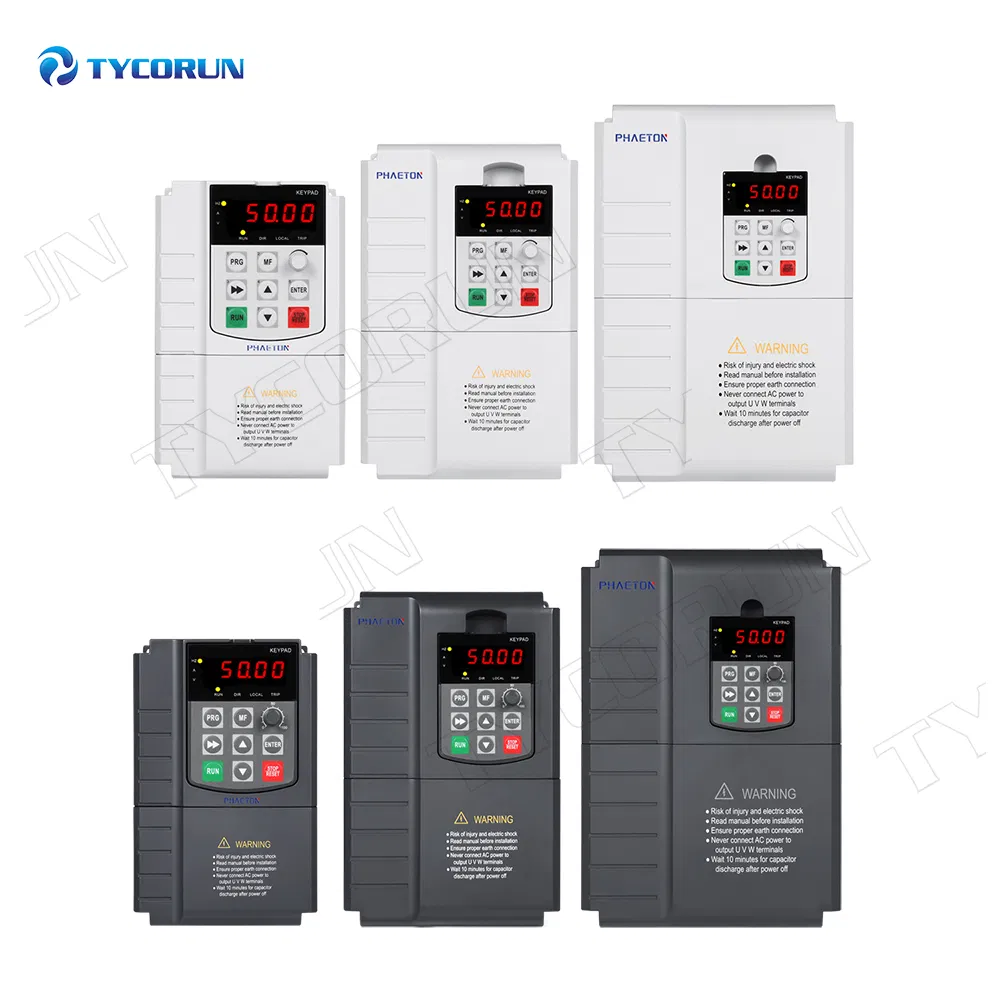

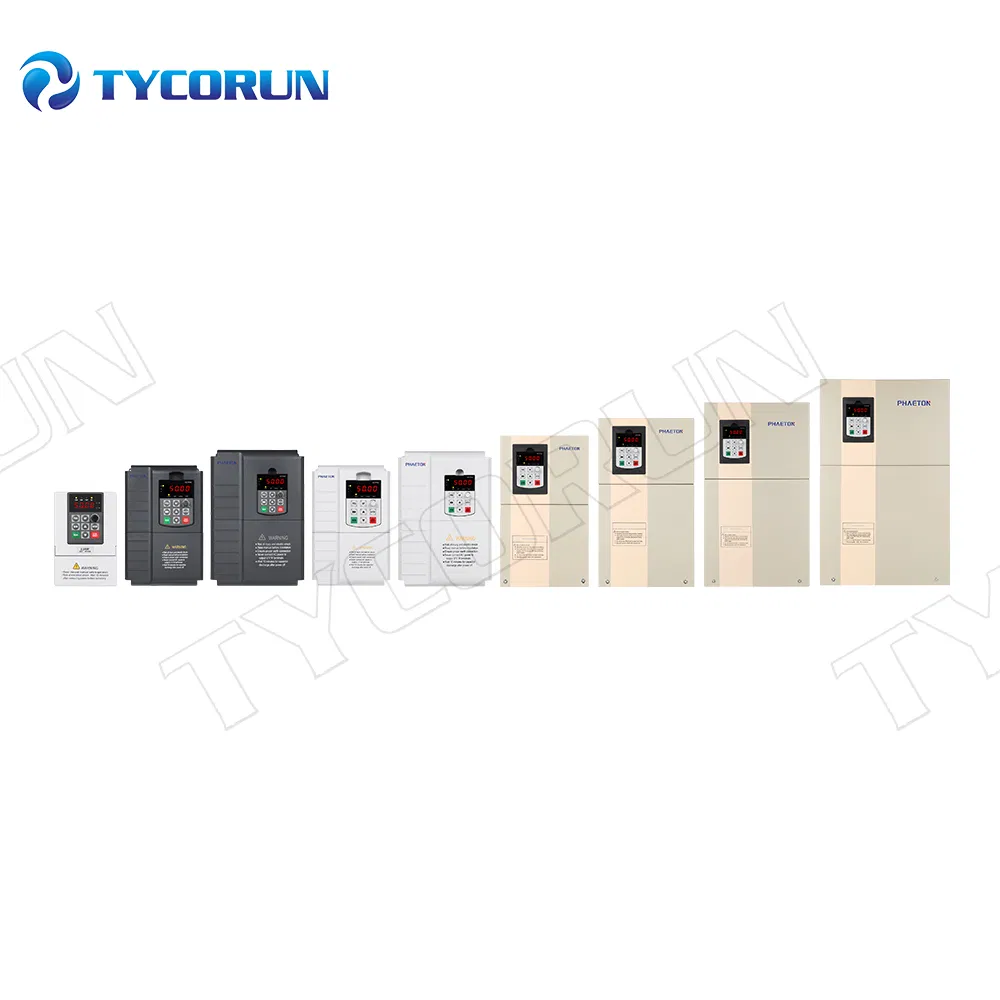

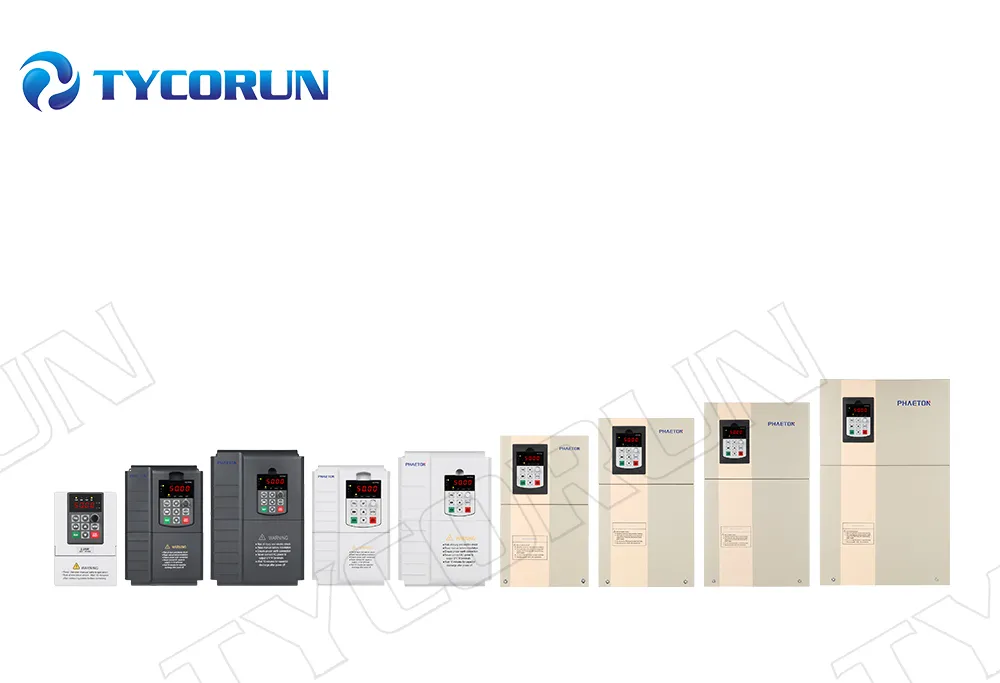

Pumping Inverter

AC/DC options available with Grid-Tie function. Supports 24V to 440VAC. 3-Year Warranty included.

Inverter

Certification & Packaging

Certifications
Packaging
Production 1
Production 2
Advantages Summary

Frequently Asked Questions

Can I have a sample order?
Yes, we welcome sample orders to test and check quality. 1~10pcs sample order is available.
What is the typical lead time?
Samples need 5-10 days, while mass production typically requires 3-5 weeks depending on the order quantity.
Is there a Minimum Order Quantity (MOQ)?
Yes, MOQ for mass production depends on part numbers, but we support low MOQ of 1pc for sample checking.
How are the goods shipped?
We usually ship via DHL, UPS, FedEx, or TNT (3-5 days). Airline and sea shipping options are also available.
Can I print my logo on the products?
Yes. Please inform us formally before production and confirm the design based on our samples.
What is the warranty for the system?
We provide a 3-year warranty for inverters, 25 years for solar panels, and 1 year for the water pumps.
