Tycorun Submersible Deep Well Pump DC Solar Power Borehole Water Pump System for Irrigation

1 / 5

Tycorun Submersible Deep Well Pump DC Solar Power Borehole Water Pump System for Irrigation

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Solar Water Pump System

Application

Home, Industrial, Commercial

Specification

Normal, Lithium Battery Pack

Cycle Life

>2000 Cycles

Charge Temp

0 ~50°C

Discharge Temp

-20 ~55°C

Case Material

Metal/ABS

OEM/ODM

Acceptable

HS Code

8507600090

Capacity

30000PCS/Month

Product Description

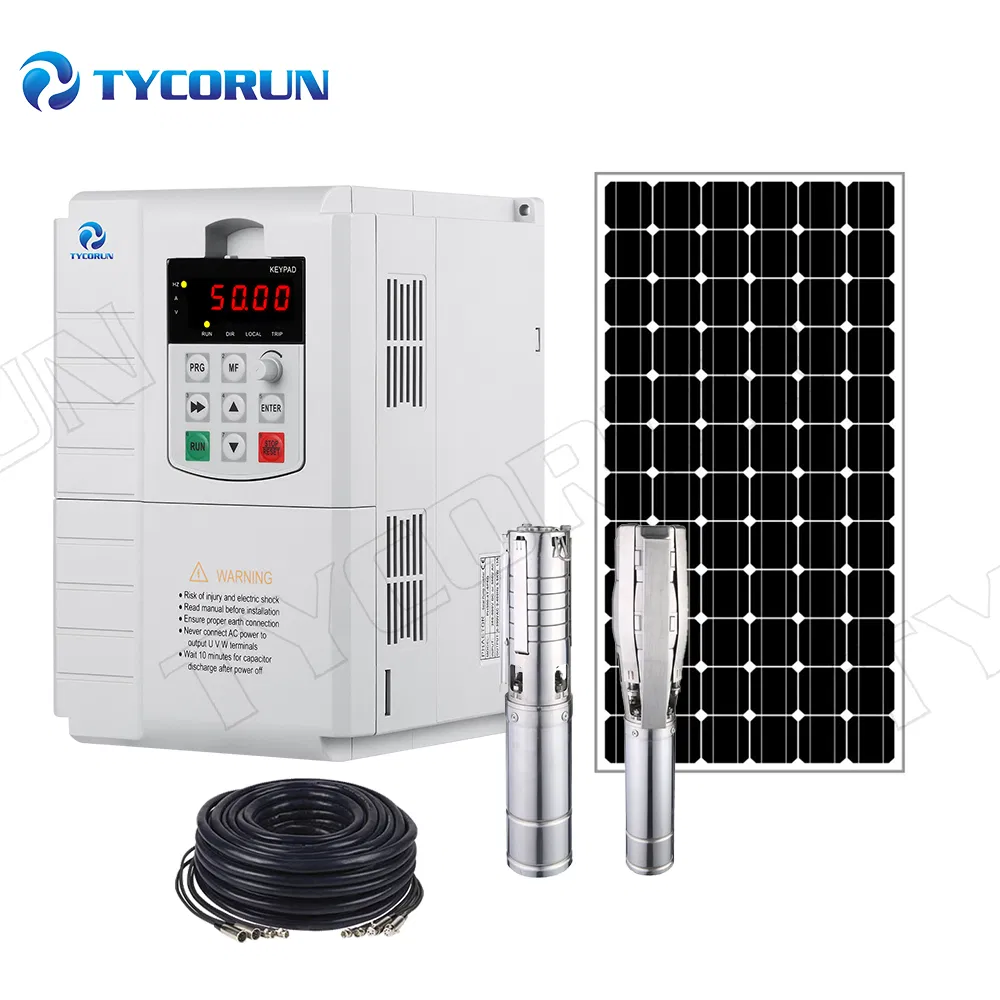

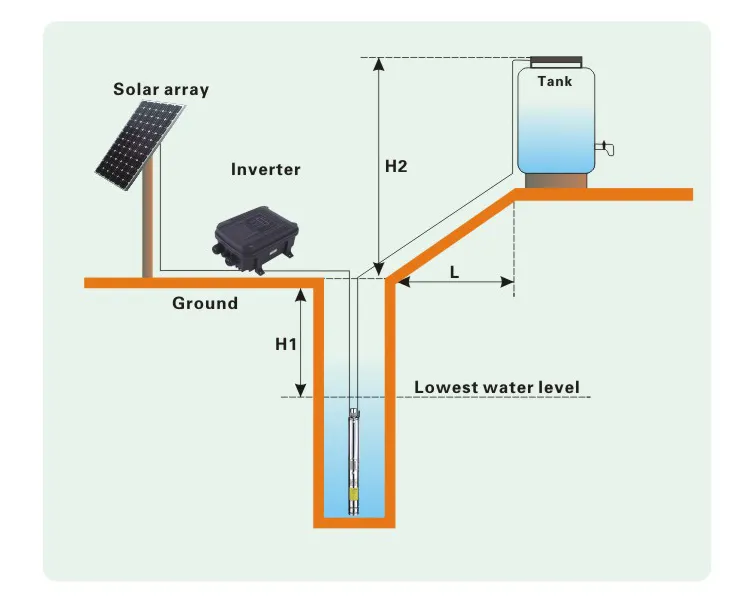

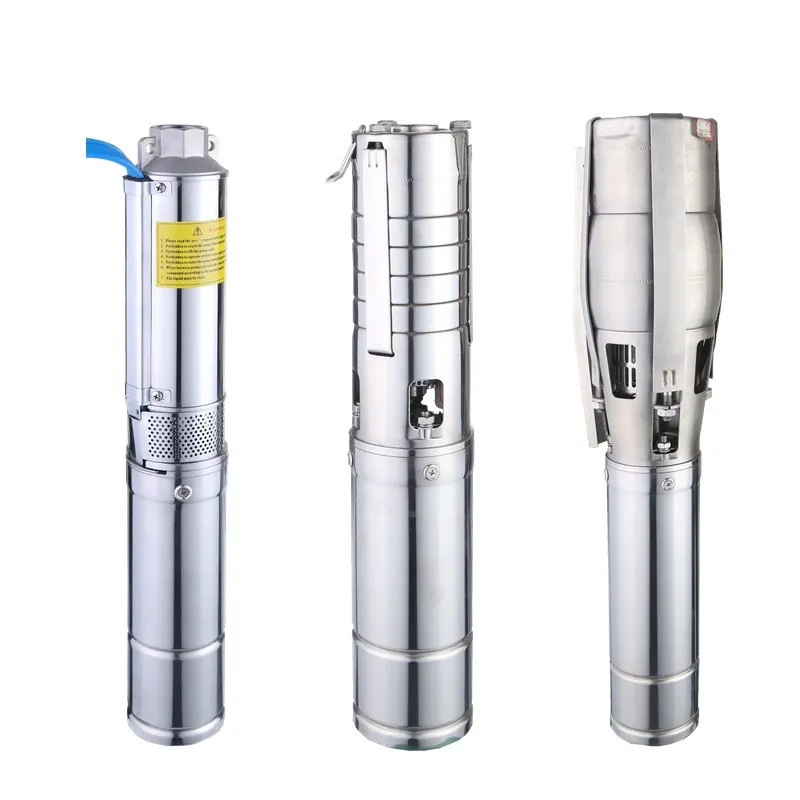

Submersible Deep Well Borehole Solar Water Pump System

System Specification		Details
Pump Body		Stainless Steel 304
Motor Body		Stainless Steel 304
Mechanical Seal		Ceramic Graphite
Impeller		Stainless Steel 304
Voltage Range		24V - 110V
Protection Class		IP x8 / Class B

ITEM	Voltage	Power	Max Flow	Max Head
3DPC3-25-24-200	24V	200W	3000L/H	25M
3DPC3-35-24-300	24V	300W	3000L/H	35M
3DPC3.5-47-48-400	48V	400W	3500L/H	47M
3DPC3.5-80-48-600	48V	600W	3500L/H	80M
3DPC3.5-95-72-750	72V	750W	3500L/H	95M
3DPC3.8-123-72-1100	72V	1100W	3800L/H	123M
3DPC3.8-180-110-1500	110V	1500W	3800L/H	180M

System Advantages

High Efficiency: Compact size and light weight with advanced brushless DC motor technology.
MPPT Function: Built-in Maximum Power Point Tracking for optimal solar energy utilization.
Automatic Operation: Intelligent sensors detect water levels and energy sources automatically.
Hybrid Power: Seamlessly switch between solar panels and batteries; prioritizes solar energy to maximize savings.
Dry-Run Protection: Automatically stops if no water is detected in the well for 1 minute to prevent motor damage.
Intelligent Detection: Controller automatically identifies energy source (PV or Battery) upon startup.

Main Components

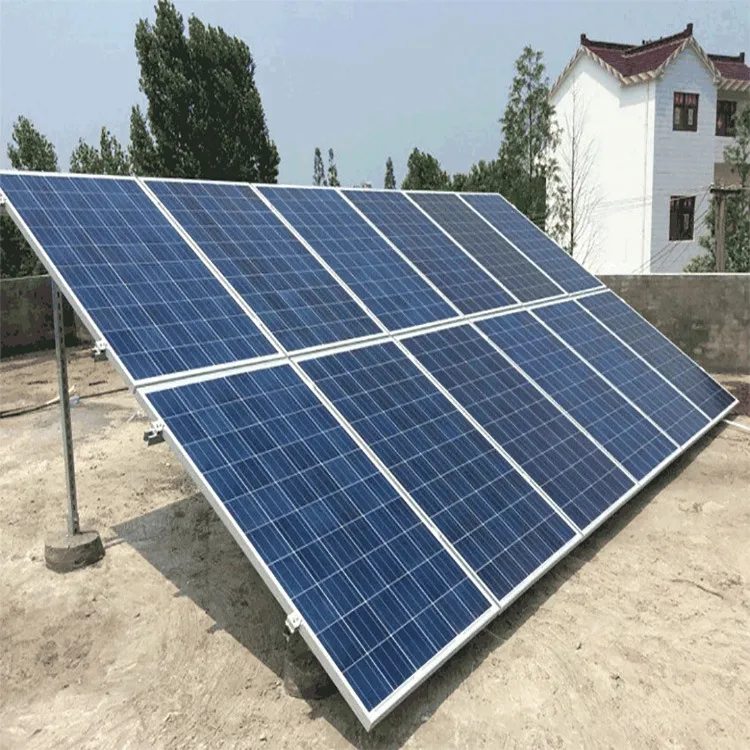

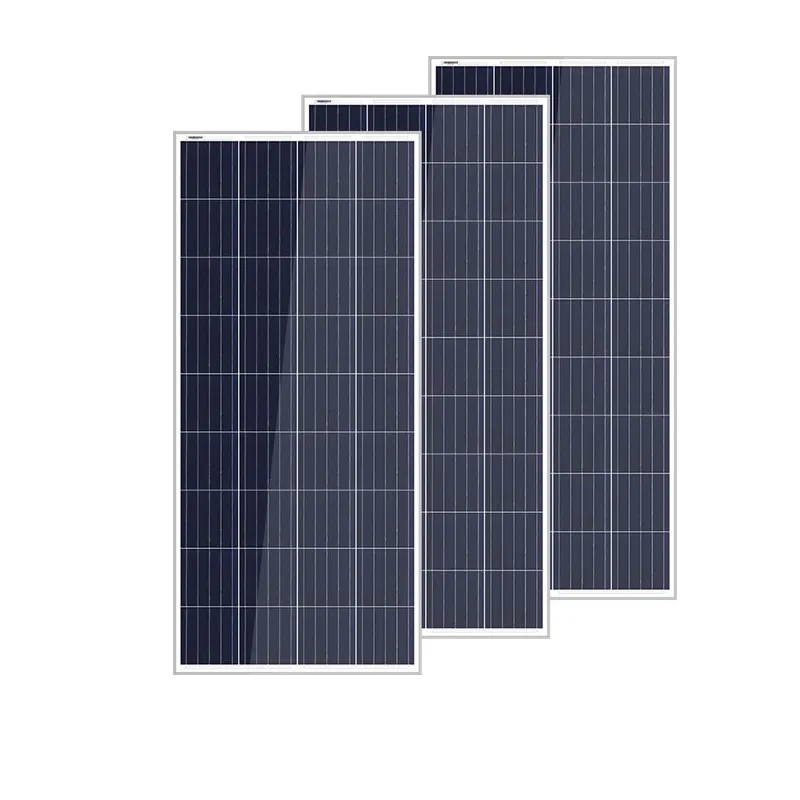

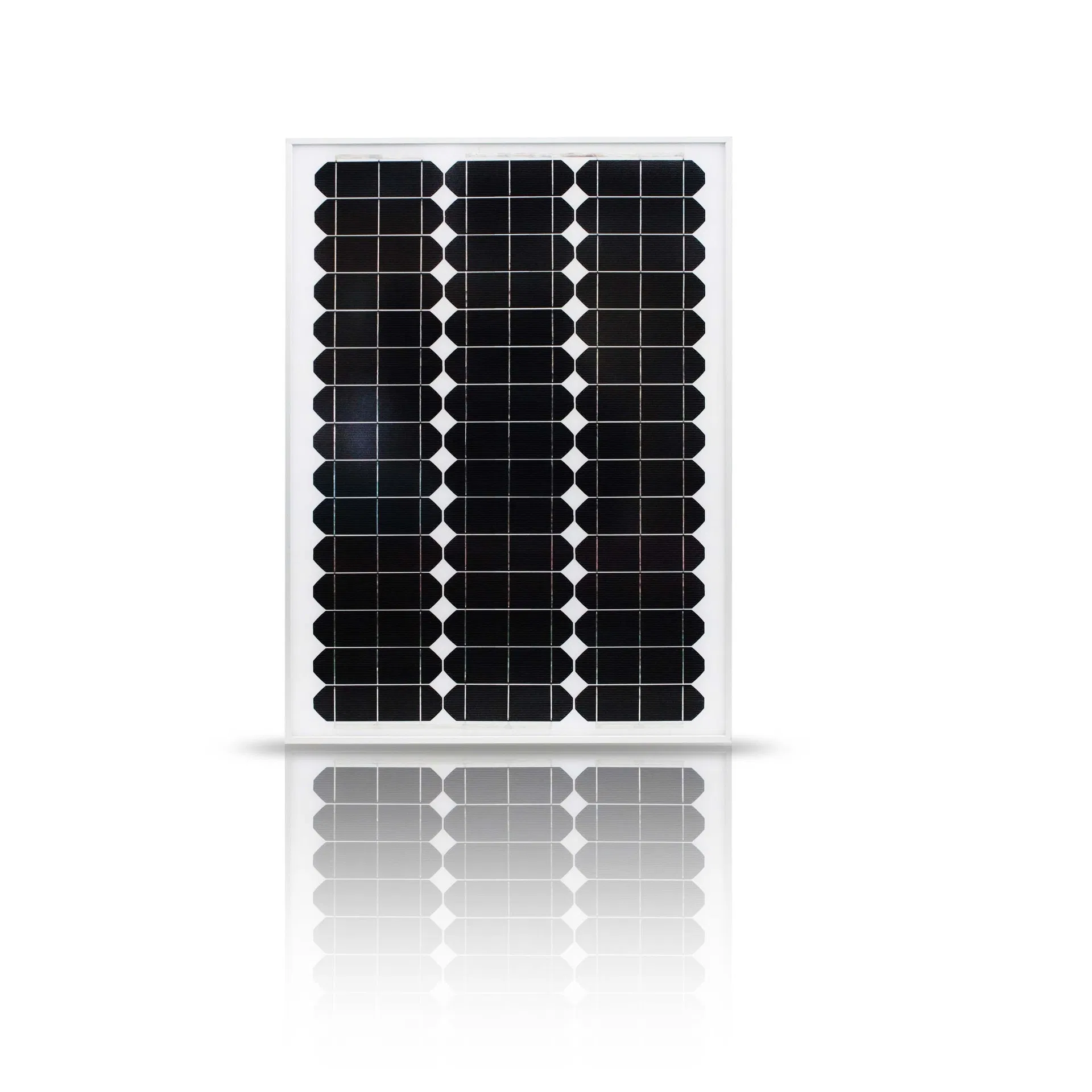

Solar Panels

Highest conversion efficiency up to 17% with PID resistance. Features anti-reflective and anti-soiling surfaces to minimize power loss from dust.

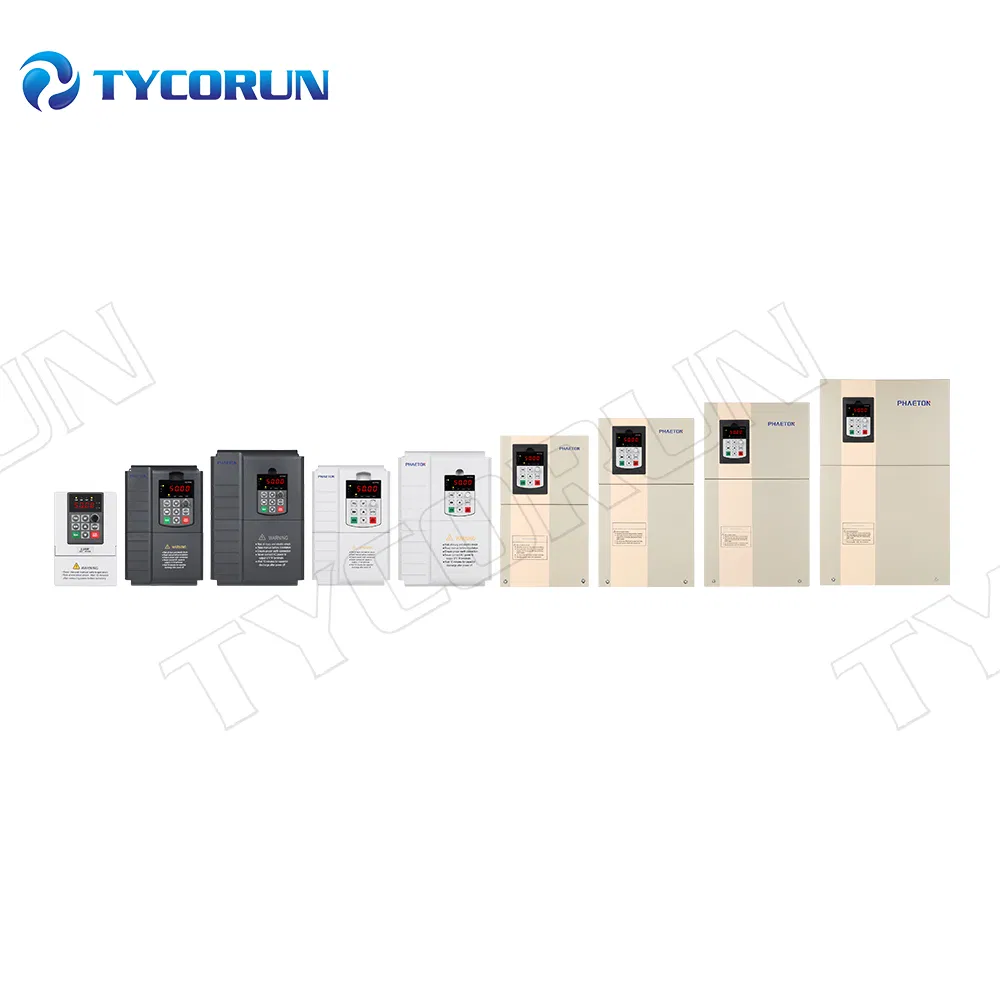

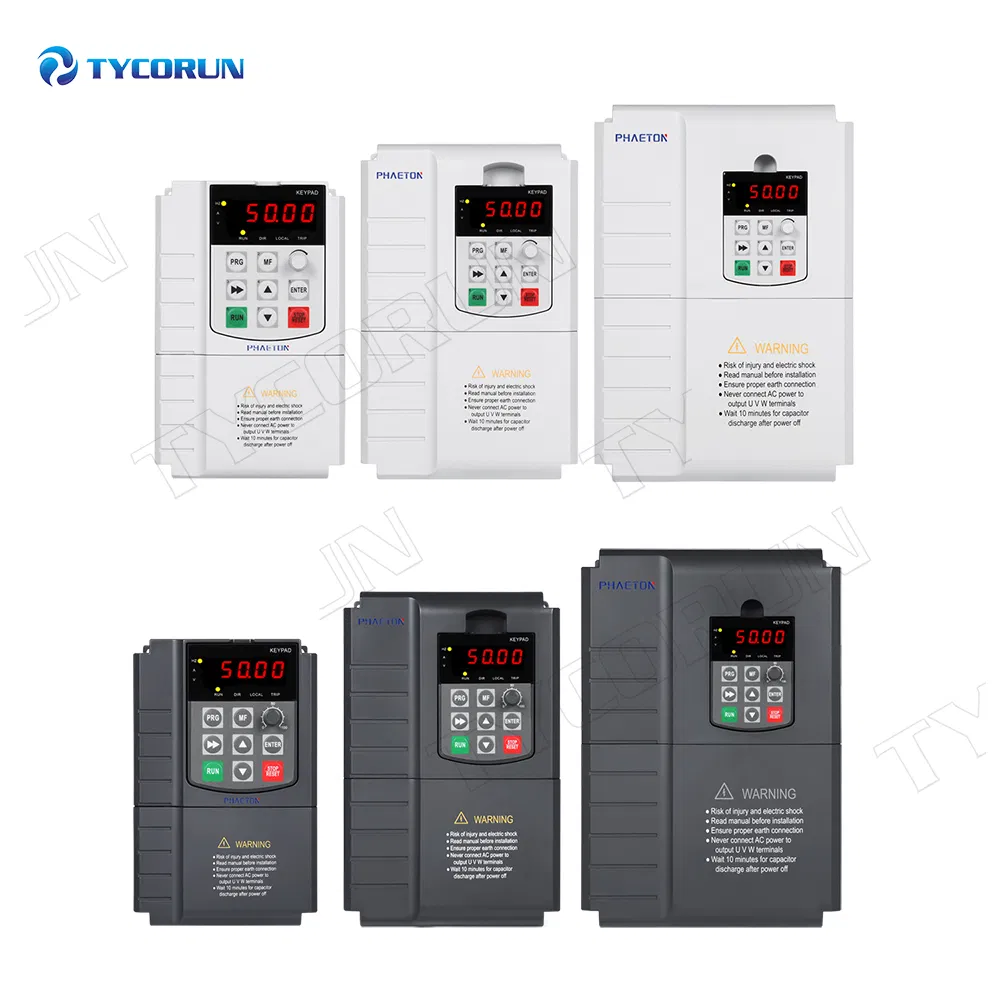

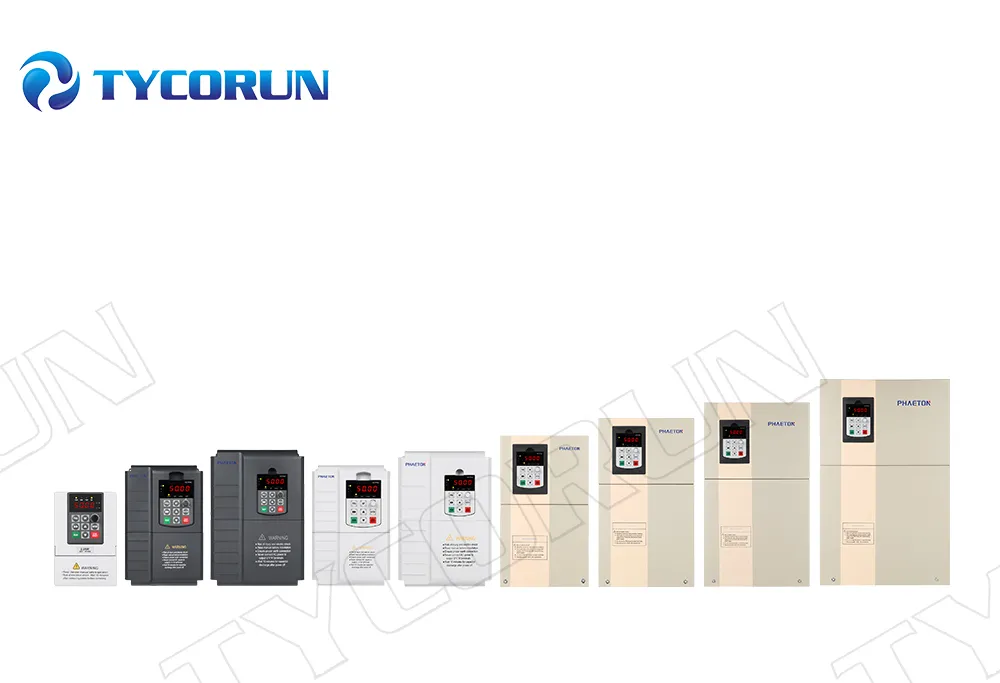

Pumping Inverter

DC Pump Inverter (24V-216V) and AC Pump Inverter (380V-440V). Includes grid-tie functionality for connecting to urban power grids.

Mounting Support

Versatile options for residential pitched roofs, commercial flat roofs, ground systems, vertical walls, and car parking solar structures.

Certifications & Shipping

Frequently Asked Questions

Q1. Can I have a sample order? Yes, we welcome sample orders to test and verify quality.

Q2. What is the typical lead time? Samples take 5-10 days, while mass production requires 3-5 weeks depending on the order quantity.

Q3. Is there a minimum order quantity (MOQ)? MOQ applies to mass production and varies by model. Sample orders of 1-10pcs are available.

Q4. How are goods shipped and how long does delivery take? We usually ship via DHL, UPS, FedEx, or TNT (3-5 days). Airline and sea shipping are also available.

Q5. How do I proceed with an order? First, share your requirements. Second, we provide a quote. Third, confirm samples and deposit. Finally, we arrange production.

Q6. Is logo customization available? Yes. Please inform us formally before production and confirm the design based on our sample.
