| Model | Solar Water Pump System | Application | Home, Industrial, Commercial |
|---|---|---|---|
| Specification | Normal, Lithium Battery Pack | Cycle Life | >2000 Cycles |
| Features | Deep Cycle Battery | Charge Temp | 0 ~ 50°C |
| Case Material | Metal / ABS | HS Code | 8507600090 |
| Capacity | 30000 PCS/Month | OEM/ODM | Acceptable |

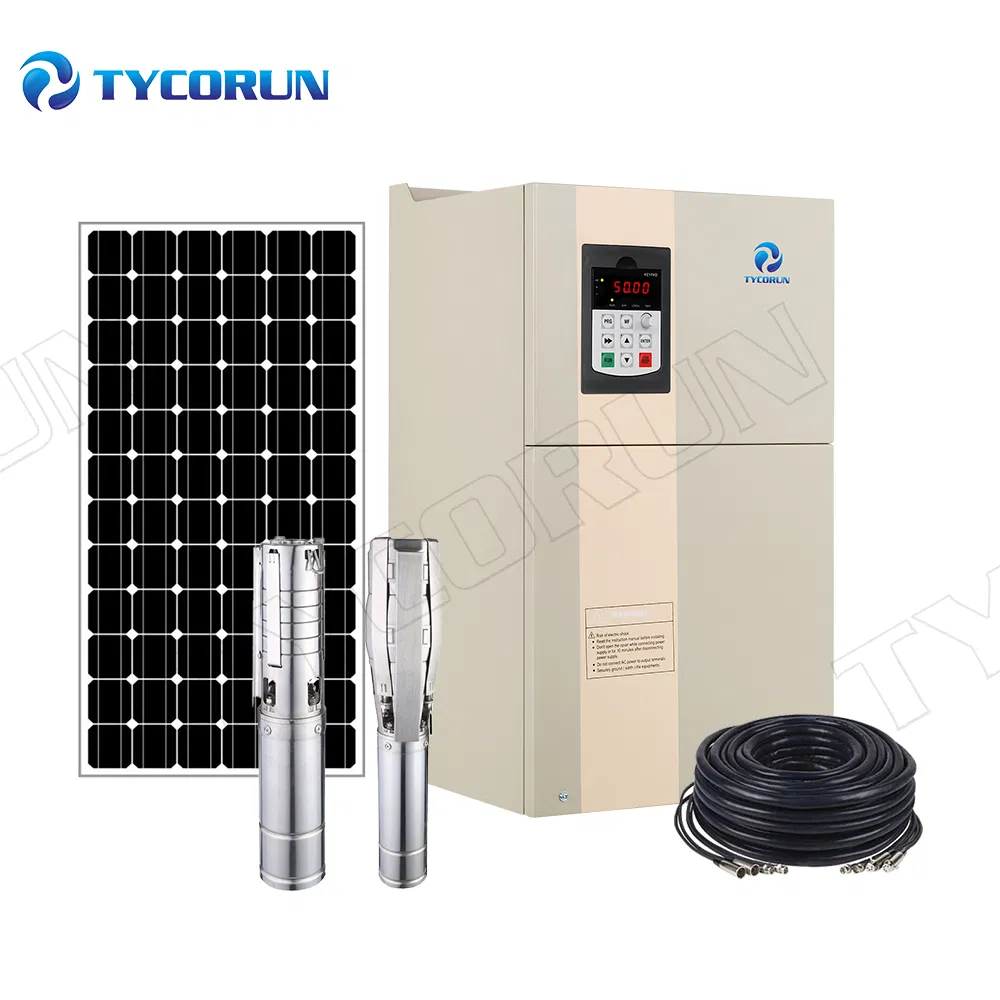

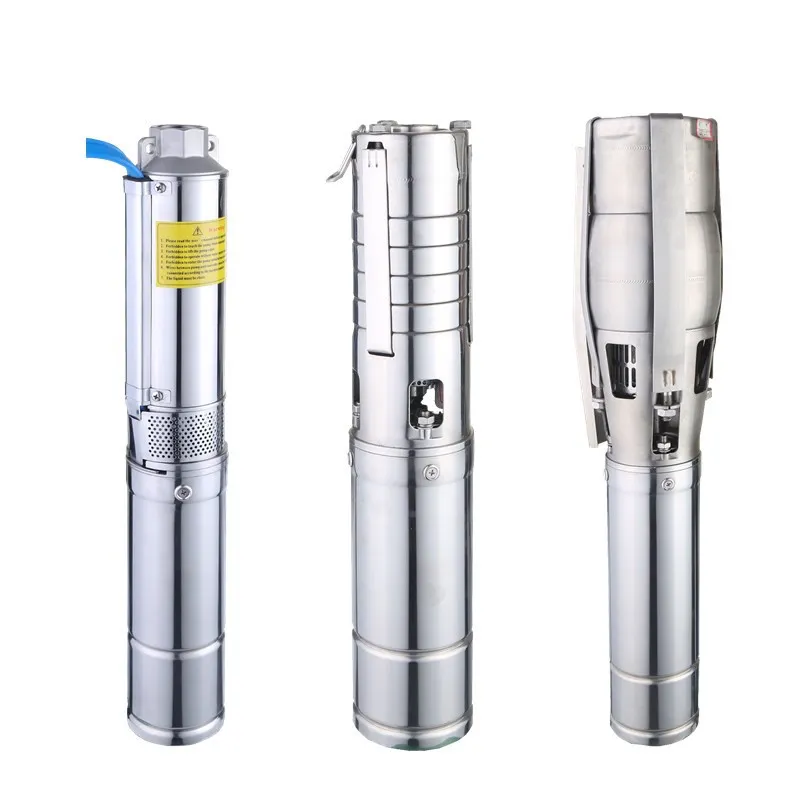

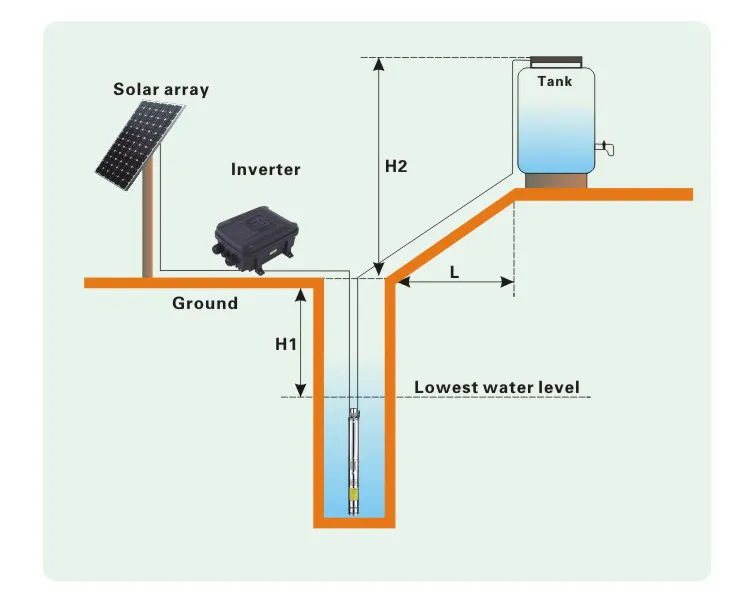

DC Submersible Pump System - Irrigation & Hot Water
| Technical Specifications | |
|---|---|
| Pump & Motor Body | Stainless Steel 304 |
| Mechanical Seal | Ceramic Graphite |
| Impeller | Stainless Steel 304 |
| Coupling and Outlet | Stainless Steel 304 |
| Voltage Range | 24V ~ 110V |
| Protection Class | IPX8 / Insulation Class B |
| Outlet Diameter | 1.25" |
| ITEM | Voltage | Power | Max Flow | Max Head |
|---|---|---|---|---|
| 3DPC3-25-24-200 | 24V | 200W | 3000L/H | 25M |
| 3DPC3.5-80-48-600 | 48V | 600W | 3500L/H | 80M |
| 3DPC3.5-95-72-750 | 72V | 750W | 3500L/H | 95M |
| 3DPC3.8-123-110-1100 | 110V | 1100W | 3800L/H | 123M |
| 3DPC3.8-180-110-1500 | 110V | 1500W | 3800L/H | 180M |

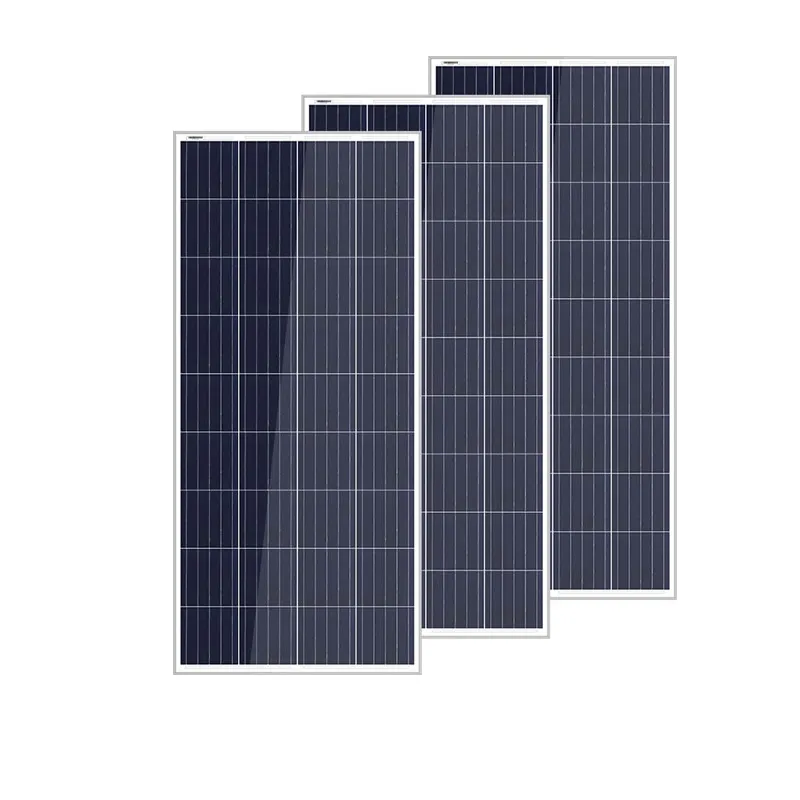

High-efficiency conversion (17%) with anti-reflective and anti-soiling surfaces. Features excellent mechanical load resistance and PID resistance.

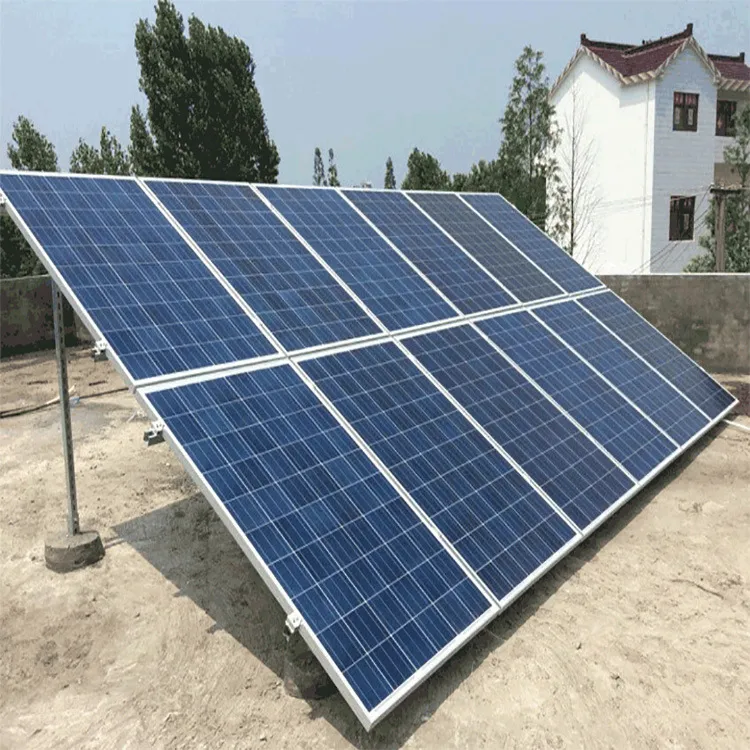

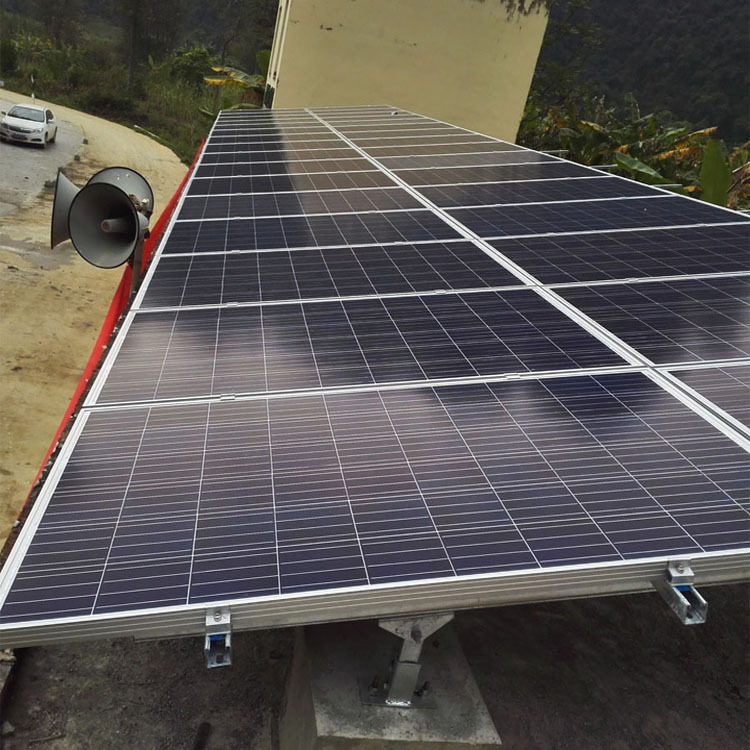

Flexible installation options including Residential/Commercial roofs, Ground mounting, Vertical walls, and Car parking structures.

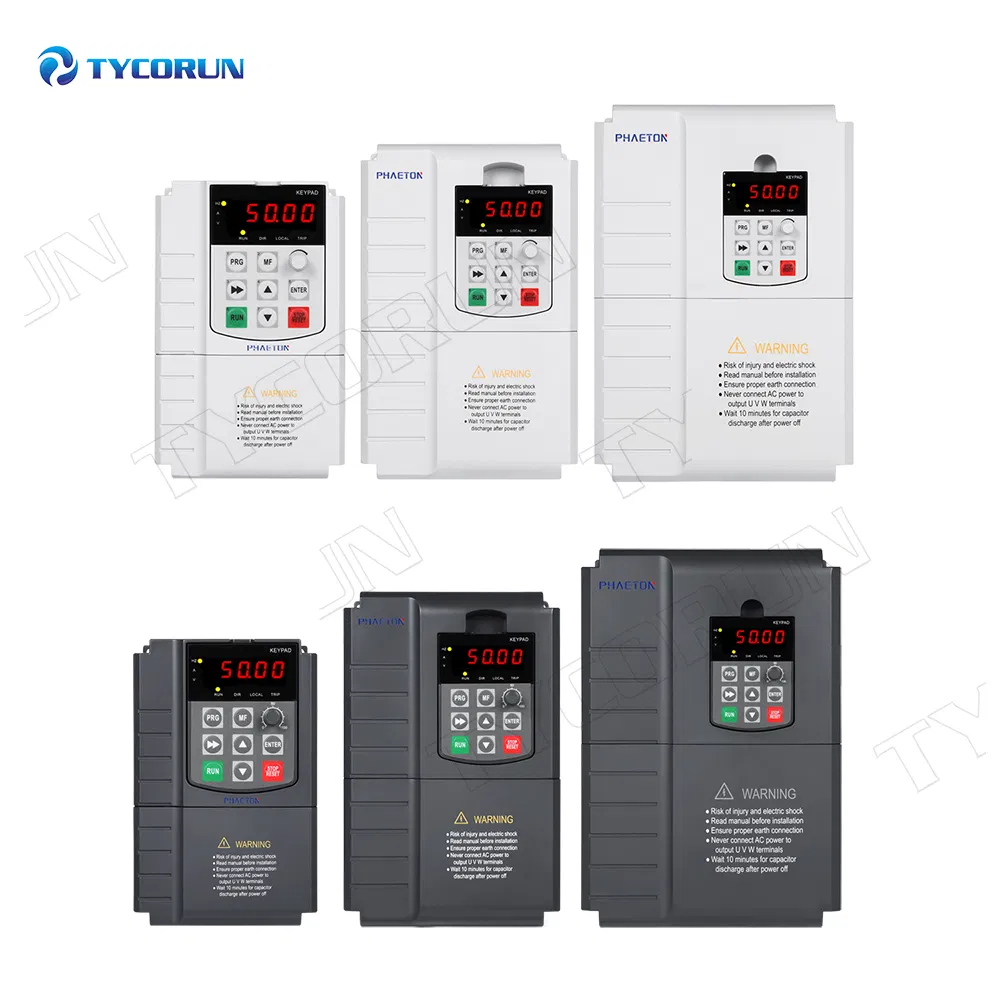

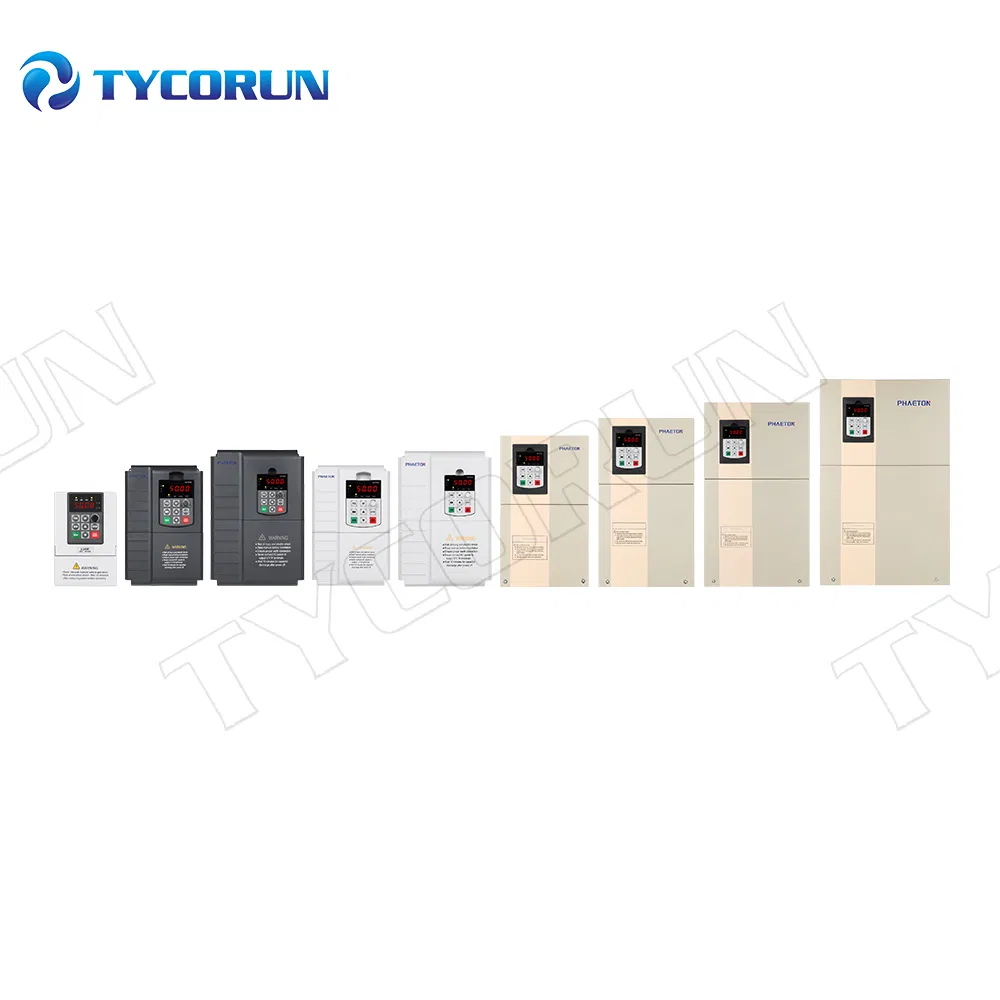

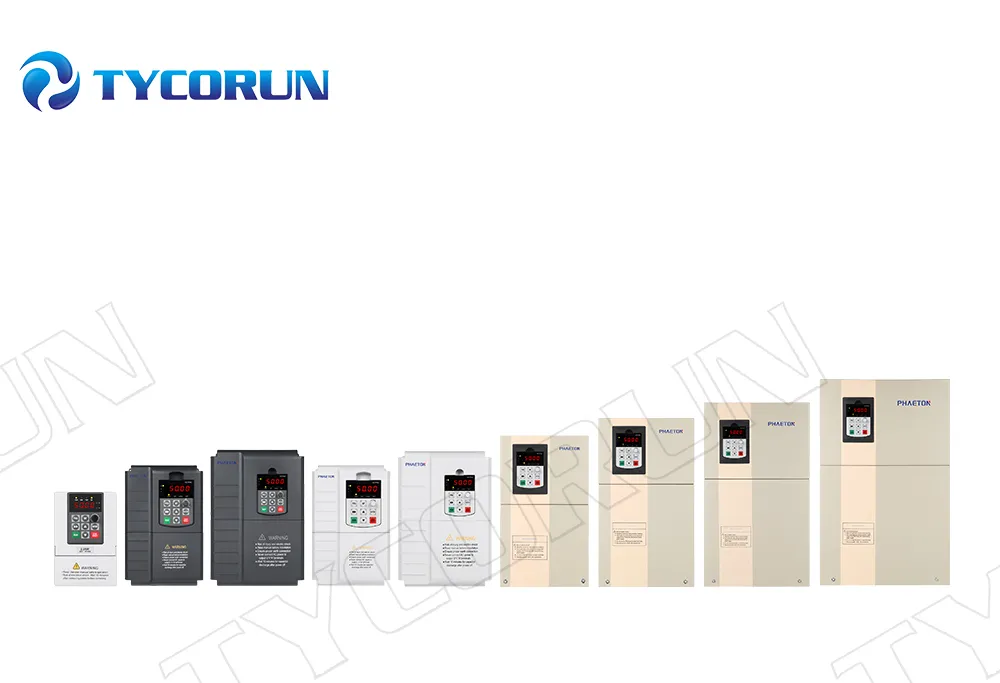

Inverters: Supports AC (380-440V) and DC (24V-216V) with Grid-Tie functionality.
Accessories: Includes Water Sensors, Electrical Resistors, PV Cables, and Connectors.
