Tycorun Solar DC Water Pump High Pressure Centrifugal Solar Powered Submersible Pumping System

📊

Basic Information

Model NO.

Solar Water Pump System

Application

Home, Industrial, Commercial

Specification

Normal, Lithium Battery Pack

Name

Solar DC Water Pump High Pressure System

Cycle Life

>2000 Cycles

Features

Deep Cycle Battery

Temperature

Charge: 0~50°C | Discharge: -20~55°C

Case Material

Metal/ABS

OEM/ODM

Acceptable

Capacity

30000PCS/Month

⚙️

Product Description

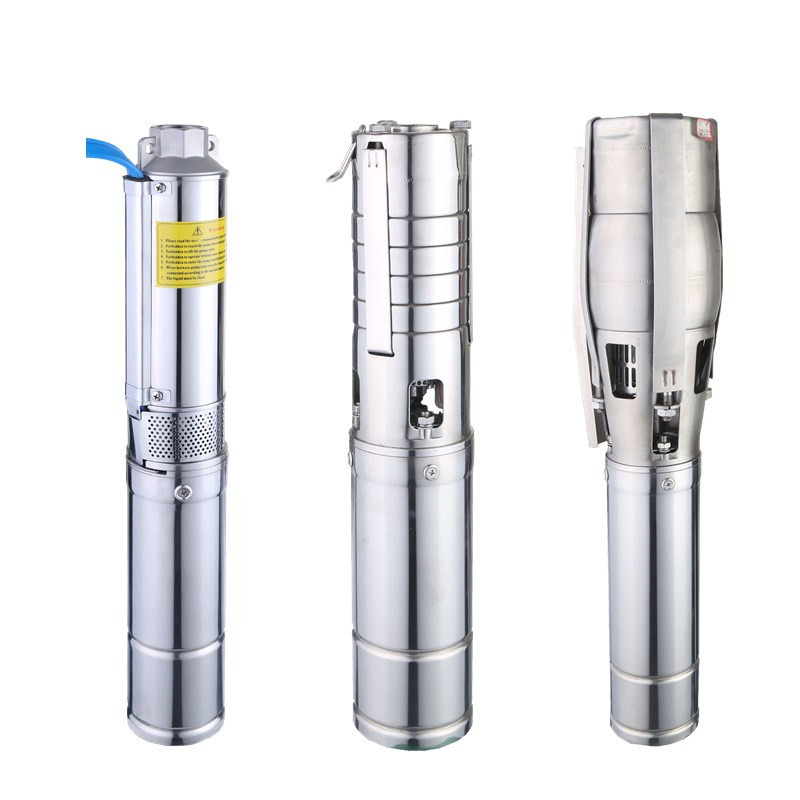

Solar DC Water Pump High pressure centrifugal Solar powered Submersible Pumping System

Component	Material / Specification
Pump body	Stainless steel 304
Motor body	Stainless steel 304
Mechanical seal	Ceramic graphite
Impeller	Stainless steel 304
Electric motor	24V~110V
Protection Class	IP X8 / Insulation B
Outlet Diameter	1.25"

ITEM	Voltage	Power	Max Flow	Max Head
3DPC3-25-24-200	24V	200W	3000L/H	25M
3DPC3-35-24-300	24V	300W	3000L/H	35M
3DPC3.5-47-48-400	48V	400W	3500L/H	47M
3DPC3.5-80-48-600	48V	600W	3500L/H	80M
3DPC3.5-95-72-750	72V	750W	3500L/H	95M
3DPC3.8-123-110-1100	110V	1100W	3800L/H	123M
3DPC3.8-180-110-1500	110V	1500W	3800L/H	180M

💎

Key Advantages

High efficiency, compact size, and light weight with advanced multi-functions.

Integrated MPPT function for maximum solar energy utilization.

Fully automatic operation with dual solar and battery connectivity.

Intelligent dry-run protection: stops if no water is detected for 1 minute; restarts automatically after 30 minutes.

Smart energy detection: prioritized solar power usage with automatic battery fallback.

🔧

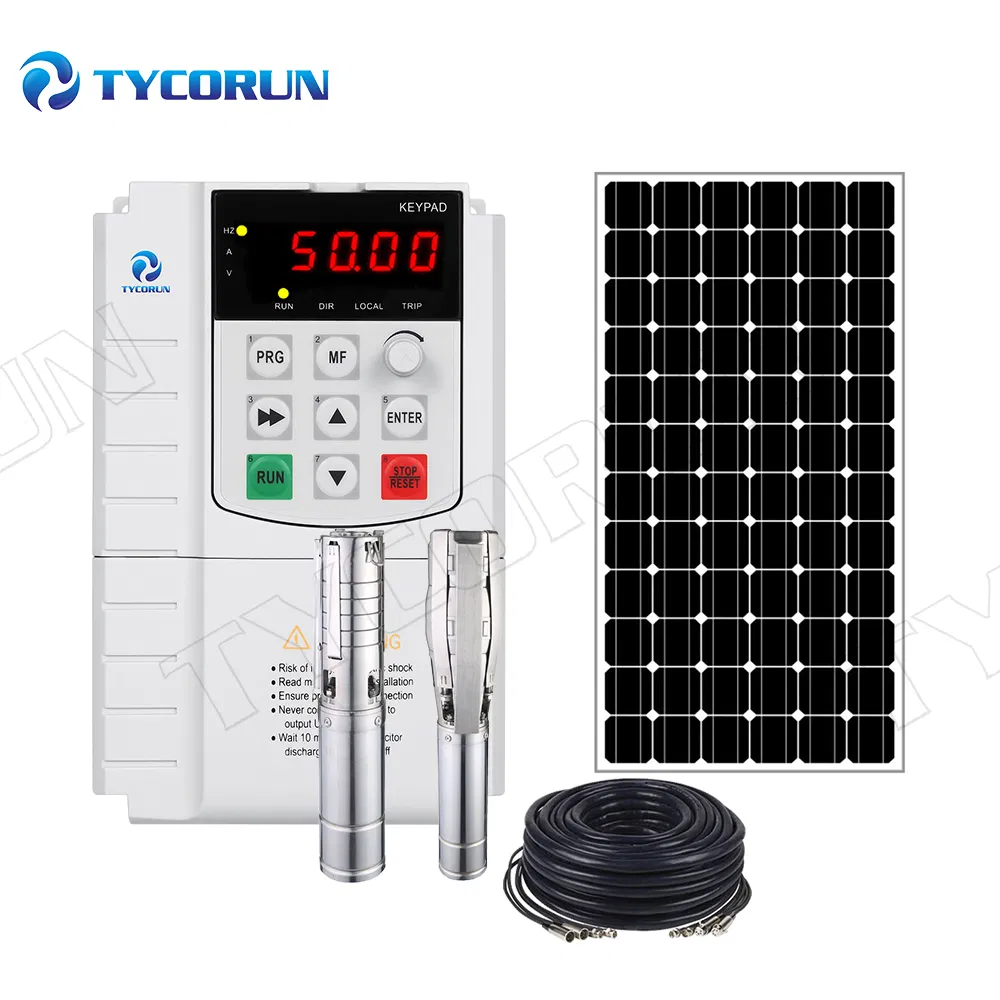

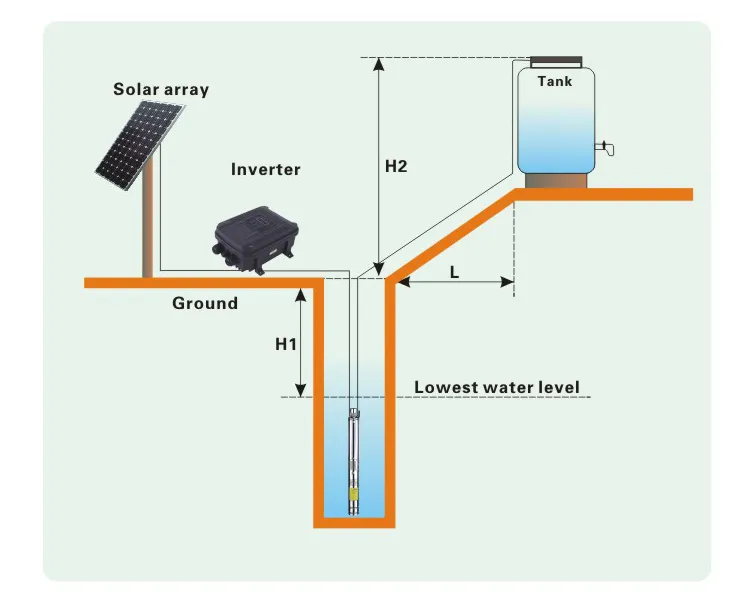

System Components

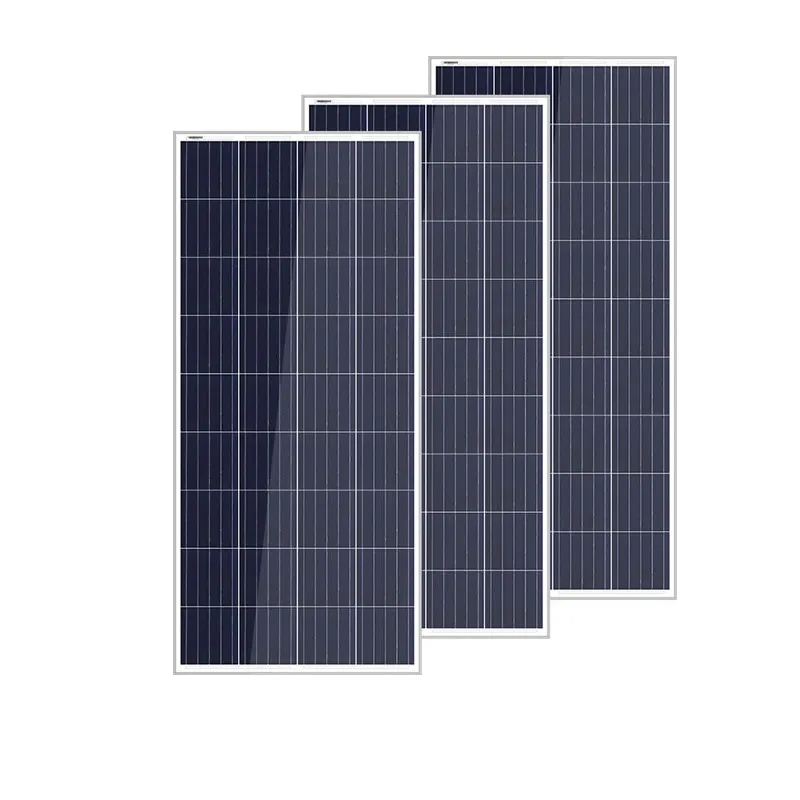

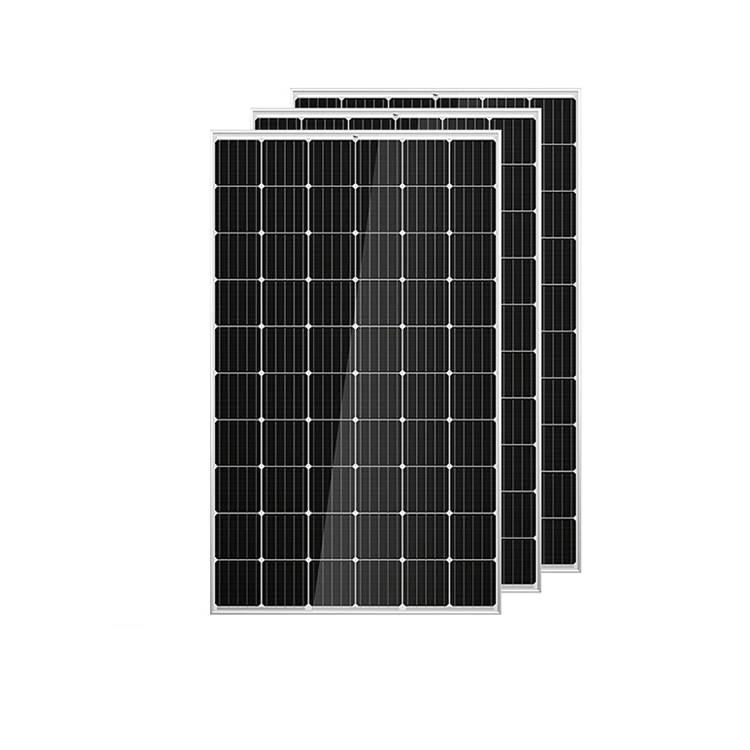

Solar Panels

> 25 years Warranty | 17% conversion efficiency | Anti-reflective & Anti-soiling | PID Resistant

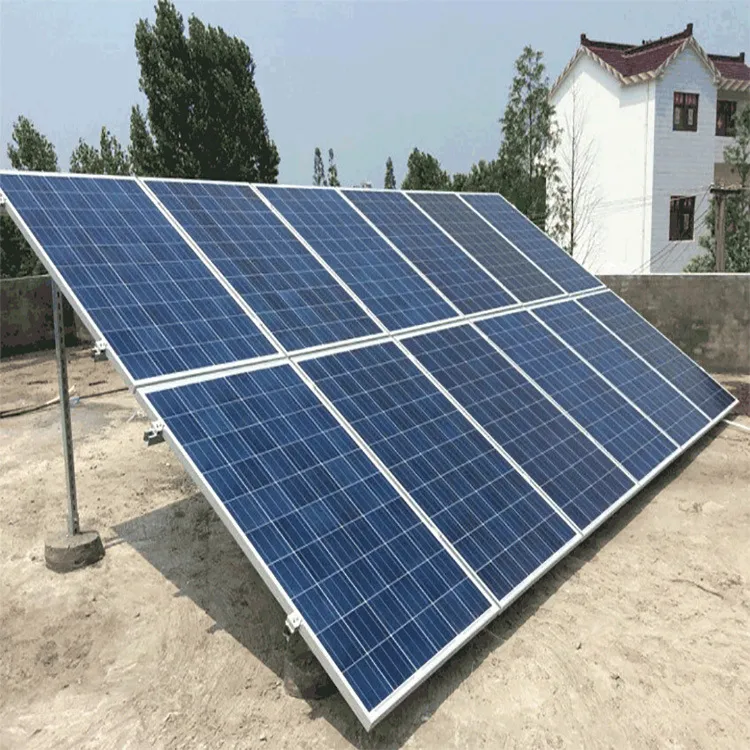

Mounting Support

> Supports for Residential (Pitched), Commercial (Flat), Ground, Vertical Wall, and Car Parking structures.

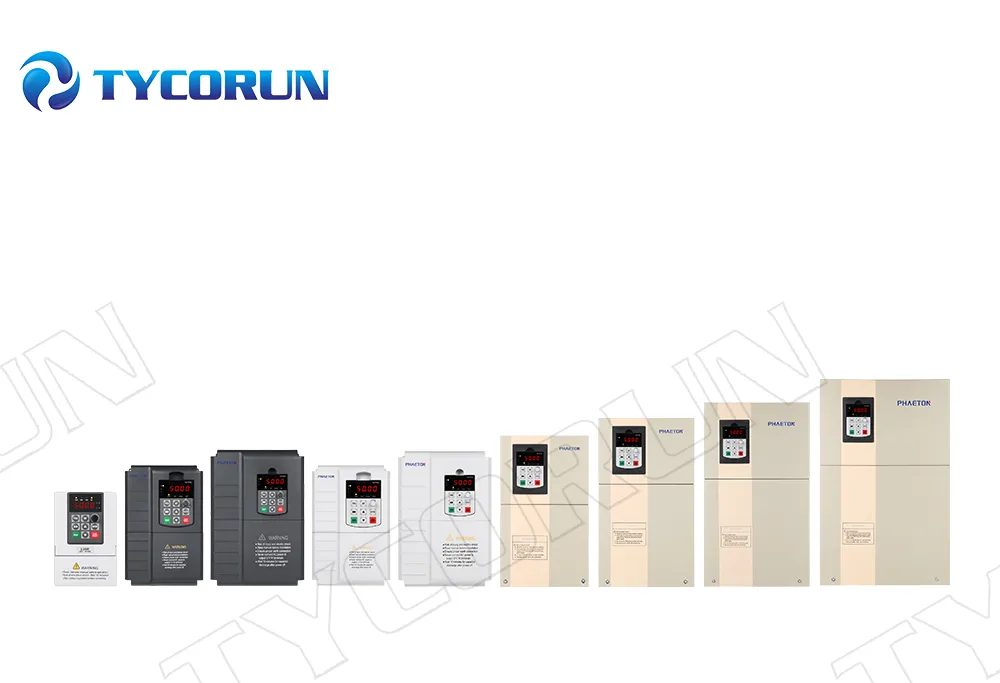

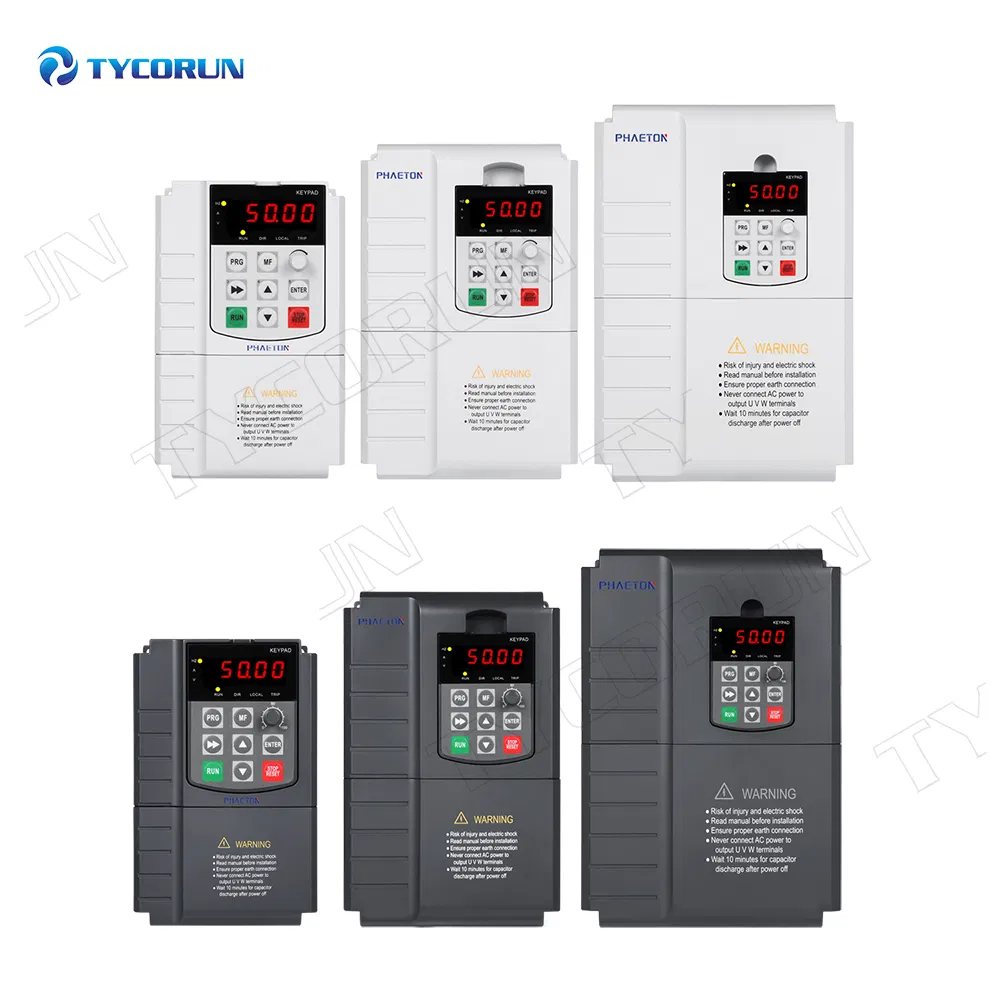

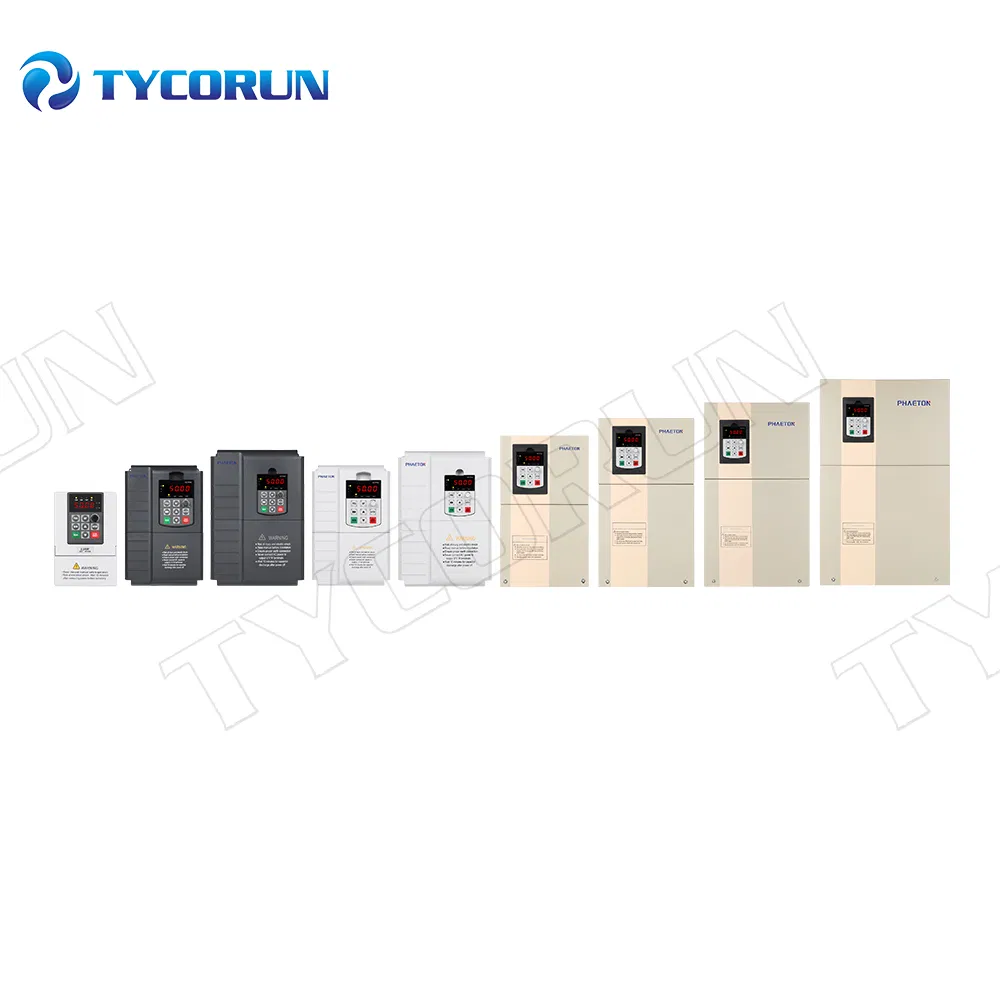

Pumping Inverter

> AC Inverter (380-440VAC) & DC Inverter (24-216VAC) | 3-Year Warranty | Grid-Tie function.

Water Pump & Accessories

> AC Submersible (0.25KW - 93KW) | DC Submersible (80W - 3000W) | Includes Water Sensors, PV Cables, and Connectors.

📜

Certifications & Quality

🚀

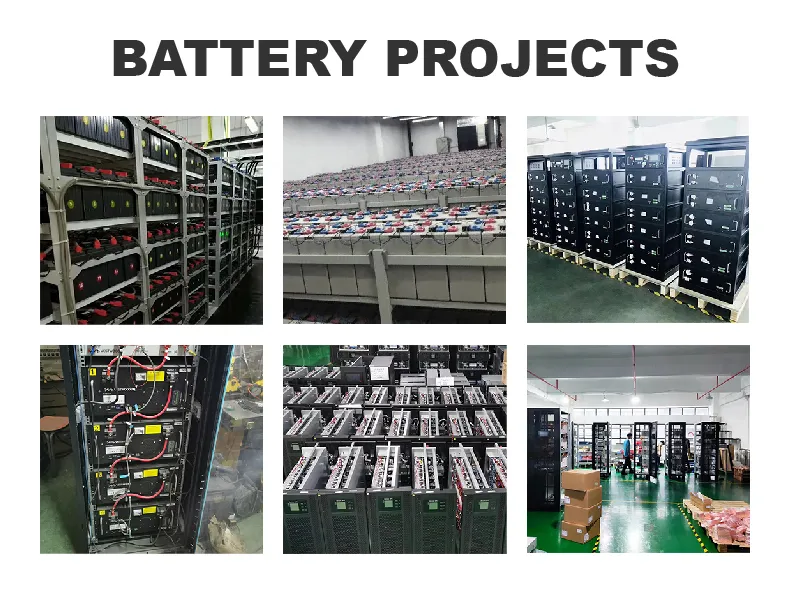

Production & Testing

❓

Frequently Asked Questions

Can I have a sample order?

Yes, we welcome sample orders to test and check the quality of our solar pumping systems.

What is the typical lead time for production?

Samples usually take 5-10 days, while mass production requires 3-5 weeks depending on the total order quantity.

Do you have a Minimum Order Quantity (MOQ)?

Yes, we have an MOQ for mass production based on the specific part numbers. Sample orders of 1-10 pieces are available.

How are the goods shipped and how long does it take?

We typically ship via DHL, UPS, FedEx, or TNT, taking 3-5 days. Airline and sea shipping are also available as options.

What is the process for placing an order?

First, share your requirements. Second, we provide a quote. Third, the customer confirms samples and makes a deposit. Finally, we arrange production.

Is logo customization available on the products?

Yes, we can print your logo. Please inform us formally and confirm the design before production begins.
