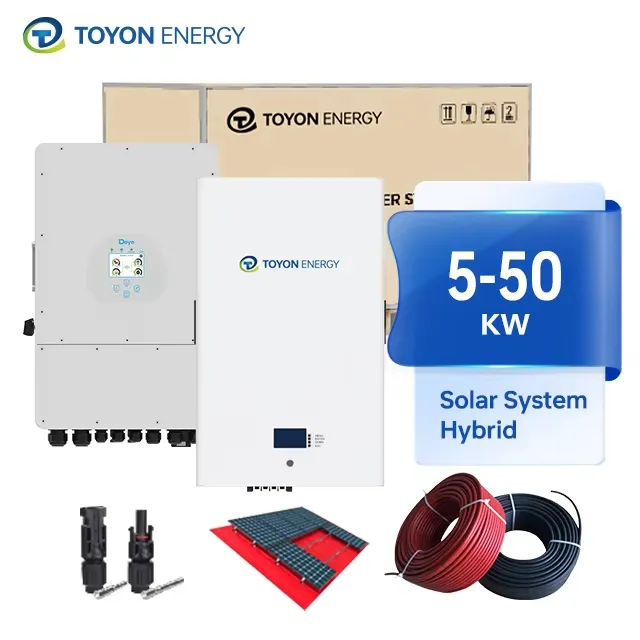

Toyon House Residential Commercial on off Grid Hybrid 1kw 5kw 6kw 7.6kw 8kw 10kw 12kw 15kw 20kw 50kw PV Solar Panel Module Kit Energy Power System

Customization:	Available
Warranty:	5 Years
Condition:	New

📊 Basic Information

Certification	CE	Application	Home
Specification	Normal	Battery Type	Lithium Ion
Mounting Type	Roof/Ground Mounting	Output Voltage (V)	110/120/220/230V
Output Frequency	50-60Hz	Pre-Sales Project Design	Yes
Work Time (H)	24 Hours	Solar Panel Type	Monocrystalline Silicon
Controller Type	MPPT	Bracket	Aluminum
Production Capacity	50000 Sets/Year	Transport Package	Wooden Box

📋 Product Description

System Model	TY5KW-HY	TY8KW-HY	TY10KW-HY	TY12KW-HY
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W)	440-700
Certifications	CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Rated Power (KW)	5	8	10	12
Max DC Power (W)	6000	10400	13000	15600
Output Voltage (Vac)	220/230		220/380, 230/400
BATTERY BANK SPECIFICATIONS
Battery Bank Power (kWh)	4.8	9.6	14.4	19.2
Battery Current (Ah)	100/200/280/304

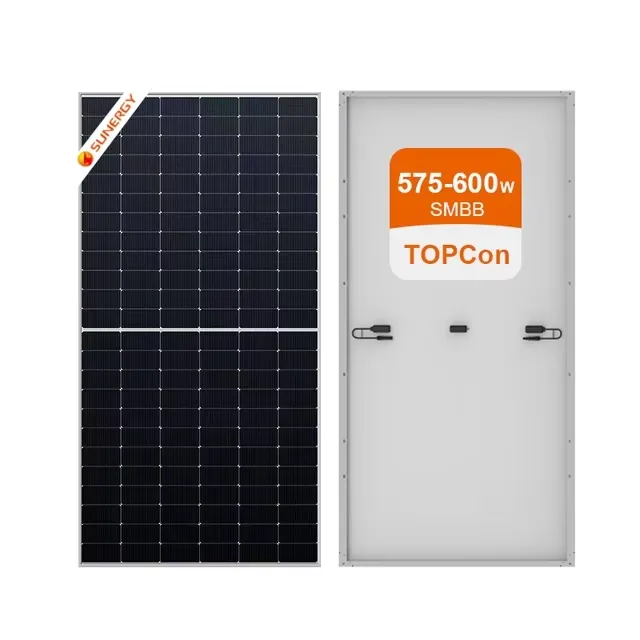

☀️ Half Cut Mono 580W Solar Panel

N-type TopCon technology
Peak Power: 580W
Maximum Power Voltage: 42.78V
Maximum Power Current: 13.56A
Dimensions: 2278*1134*35mm
Weight: 27.0kg

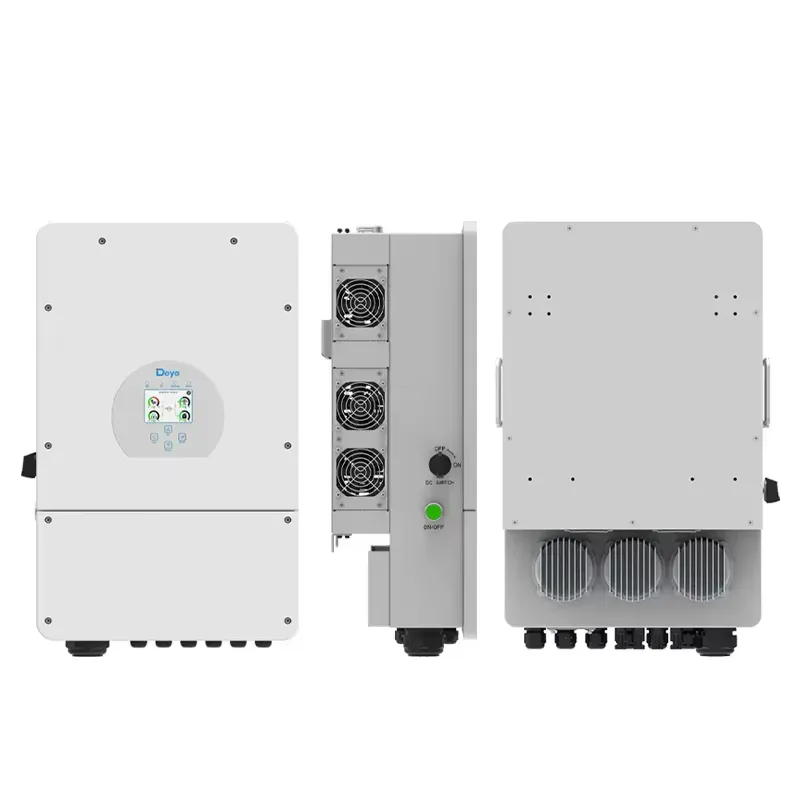

🔄 All In One Hybrid Grid Inverter

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. charging/discharging current of 250A
6 time periods for battery charging /discharging
Support storing energy from diesel generator
Max. 16 pcs parallel operation support

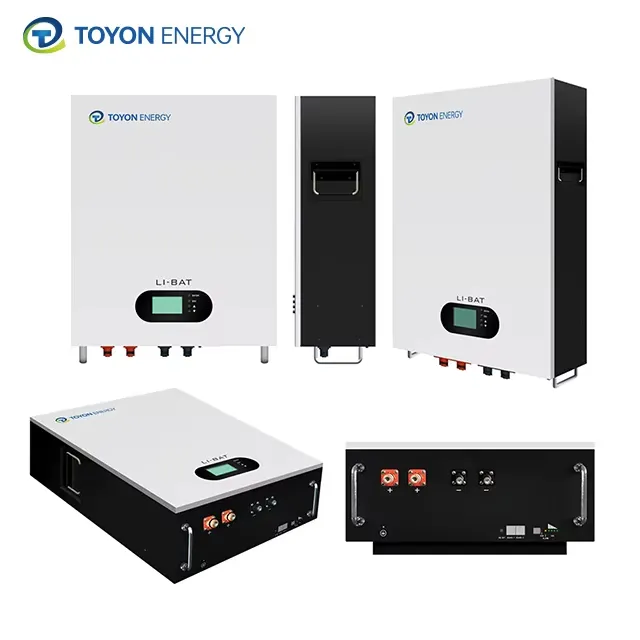

🔋 Low Voltage Lithium Battery

Rated Voltage: 48V/51.2V (Optional)
Rated Capacity: 100Ah/200Ah (Optional)
Cycle Life: 5000 cycles @ 80% DOD 0.5C
Material System: LiFePO4
Case Type: Wall Mounted

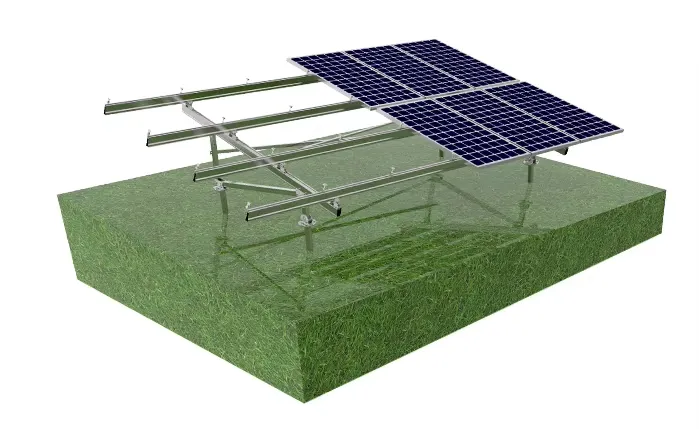

🏗️ PV Mounting System

Pitched / Flat Rooftop / Ground Brackets
10 Years Warranty
Aluminum Alloy / Galvanized Steel
Free Brackets Installation Design provided

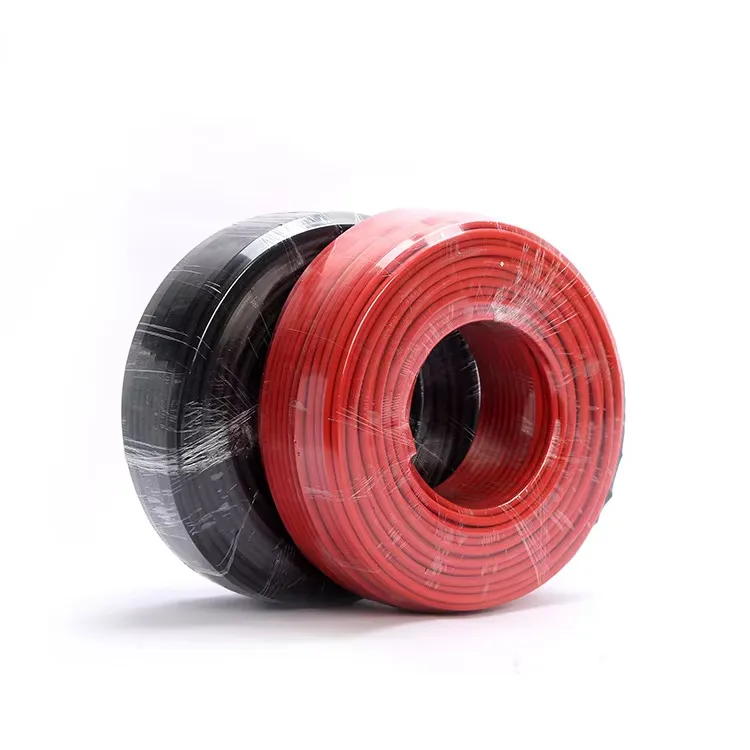

🔌 DC Cable & MC4 Connector

Cross Section: 4mm²/6mm² (Optional)
Rated Voltage: 600VDC(UL) / 1000VDC(TUV)
Rated Current: 55A / 70A
Lifetime: ≤25 Years

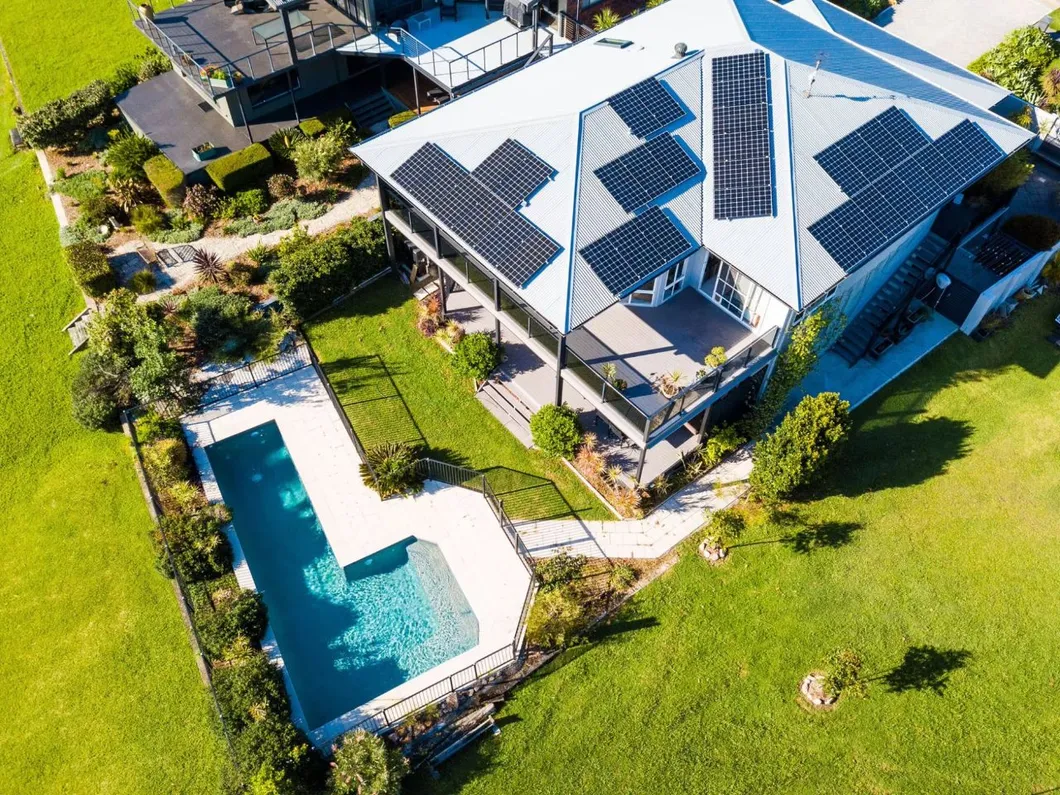

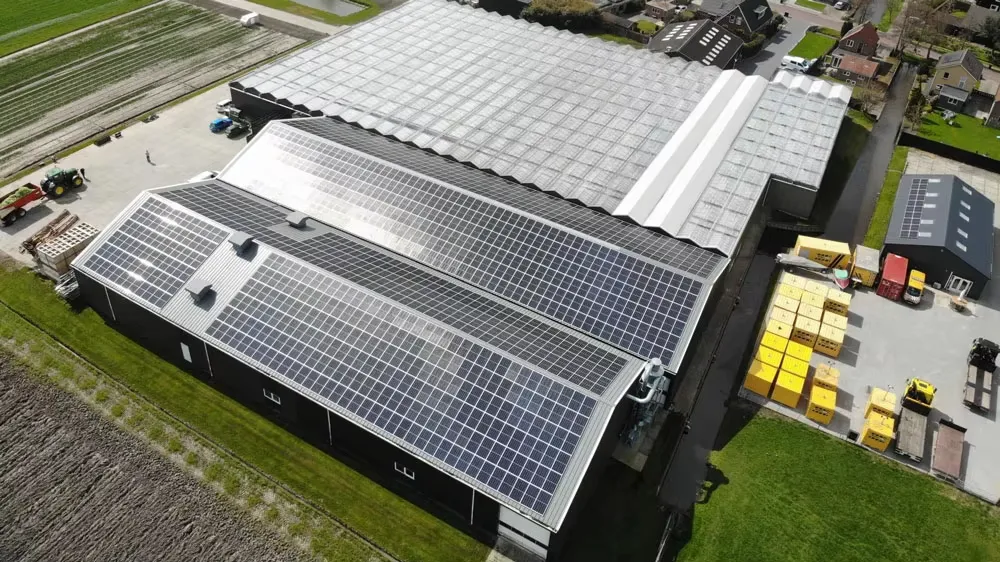

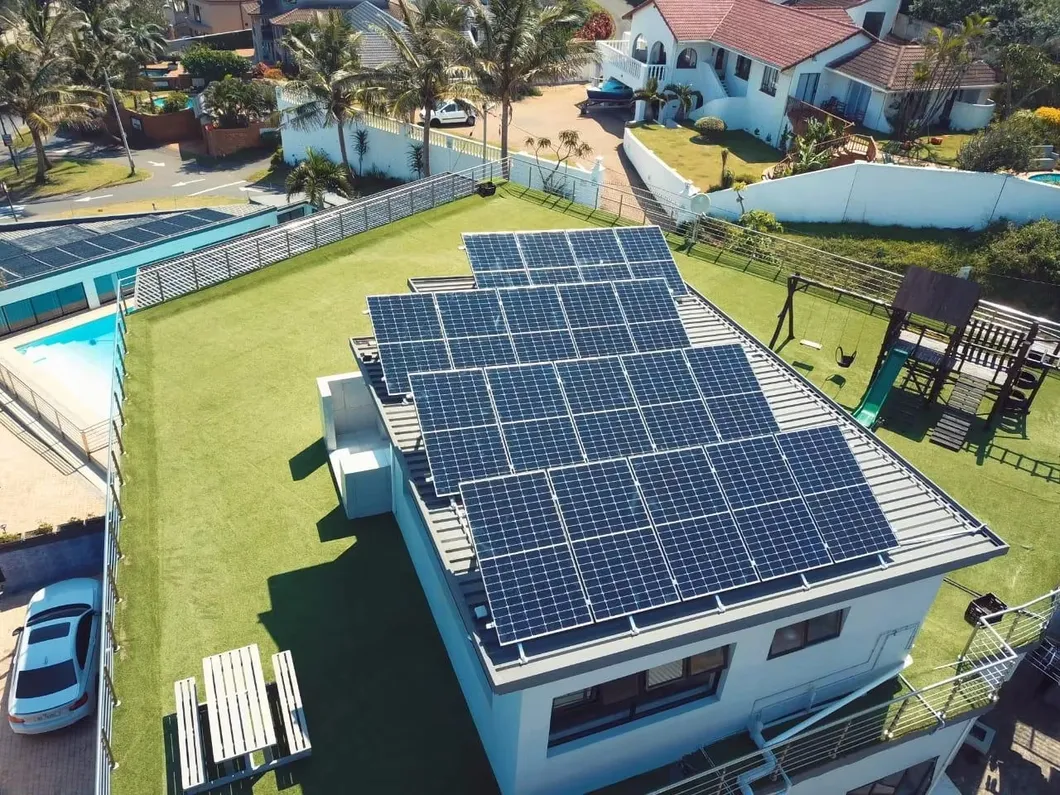

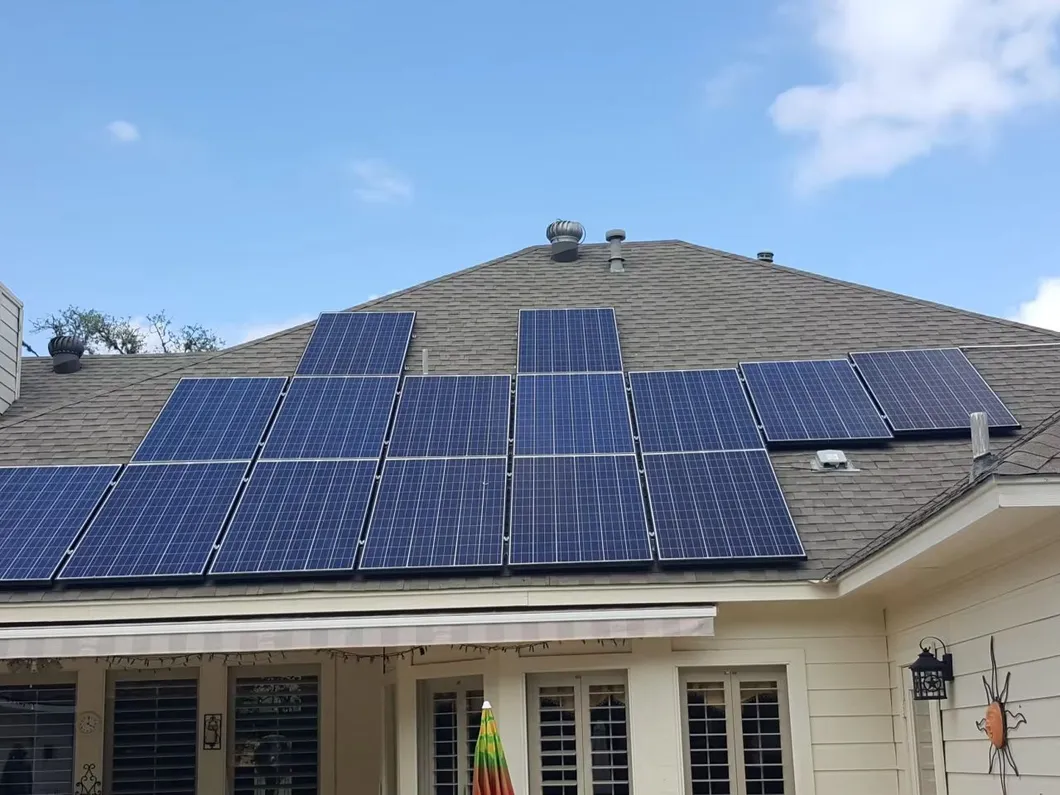

🛠️ Installation Instructions

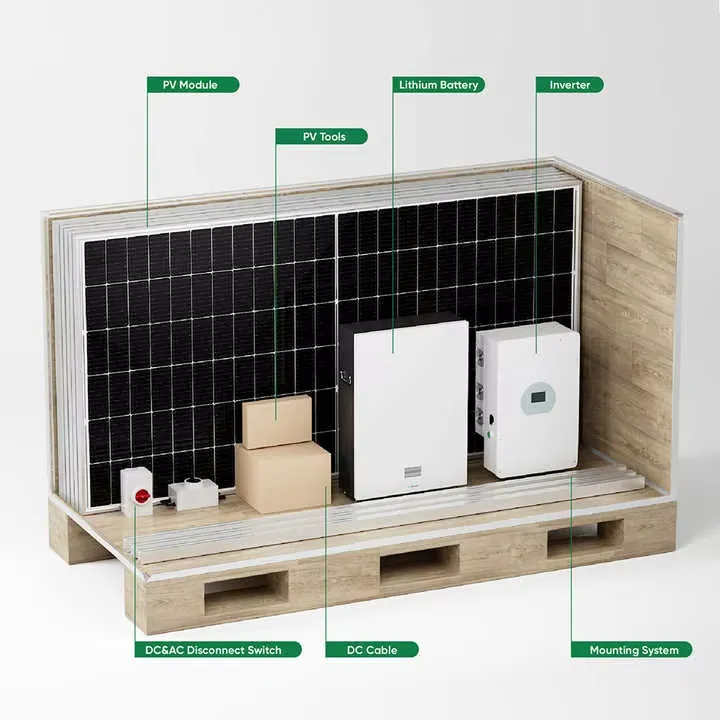

📦 Packaging & Shipping

⭐ Why Choose Us

We are a professional factory leader in the PV industry, offering solar photovoltaic all-in-one systems and one-stop services with competitive prices and fast delivery.

Higher power generation performance
Competitive factory pricing
High quality standards and inspections
Stable supply chain guarantee
Customized professional services

❓ Frequently Asked Questions

What main products can you provide?

We provide a wide series of solar products, mainly producing solar panels, solar inverters, power walls, lithium-ion batteries, gel batteries, and complete all-in-one solar system solutions tailored to your needs.

How is your technical support?

We provide lifetime online support. Should any problems arise after delivery, we offer video call assistance to solve issues promptly.

What about the lead time?

Delivery usually takes 5-15 working days. Common products are kept in stock for 15-day shipping, while large custom orders are negotiated for the best possible production time.

Can you provide OEM service?

Yes, as a professional manufacturer, we provide custom-made OEM services, including on-site installation support and comprehensive after-sales care.

How can we guarantee quality?

We provide pre-production samples before mass manufacturing and conduct a final inspection before shipment. Our 24-hour after-sales service ensures any concerns are addressed regardless of time zones.

What are the payment and delivery terms?

We accept various delivery terms including FOB, CIF, EXW, DDP, and DDU. Accepted payment methods include T/T, L/C, and PayPal.
