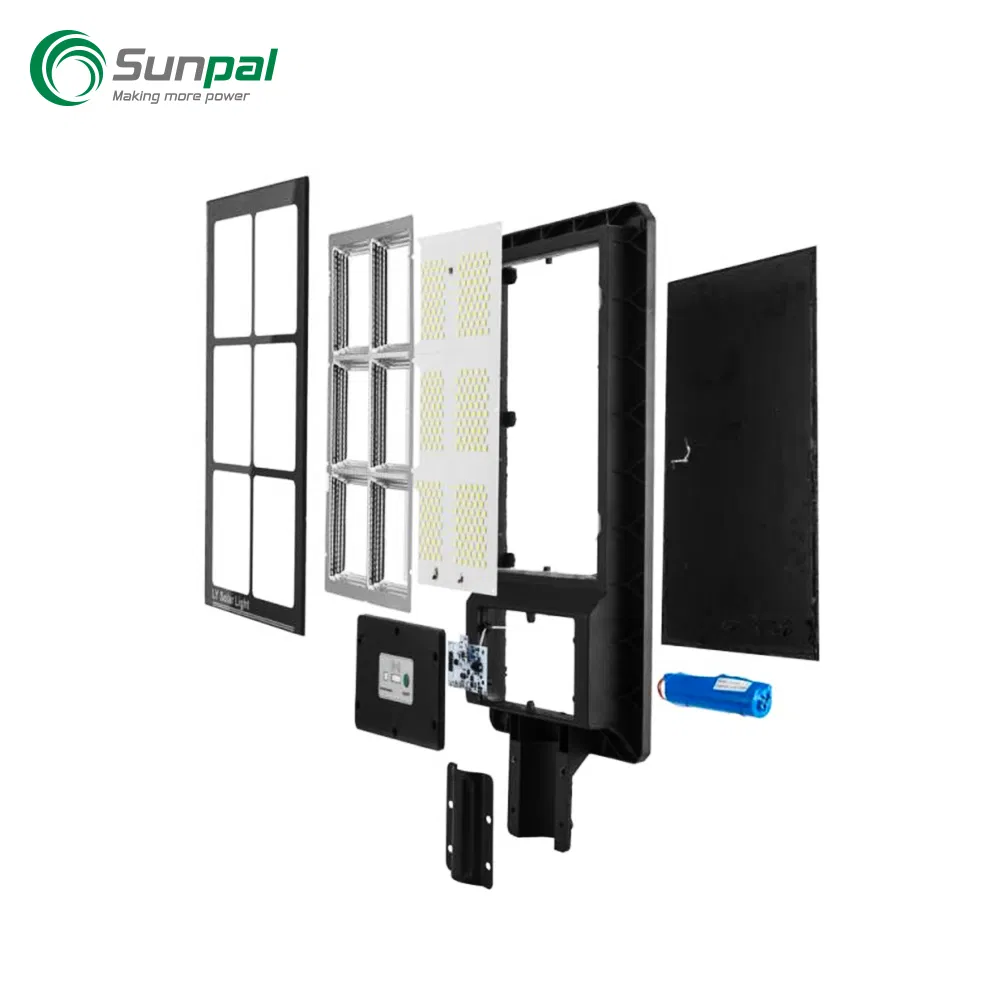

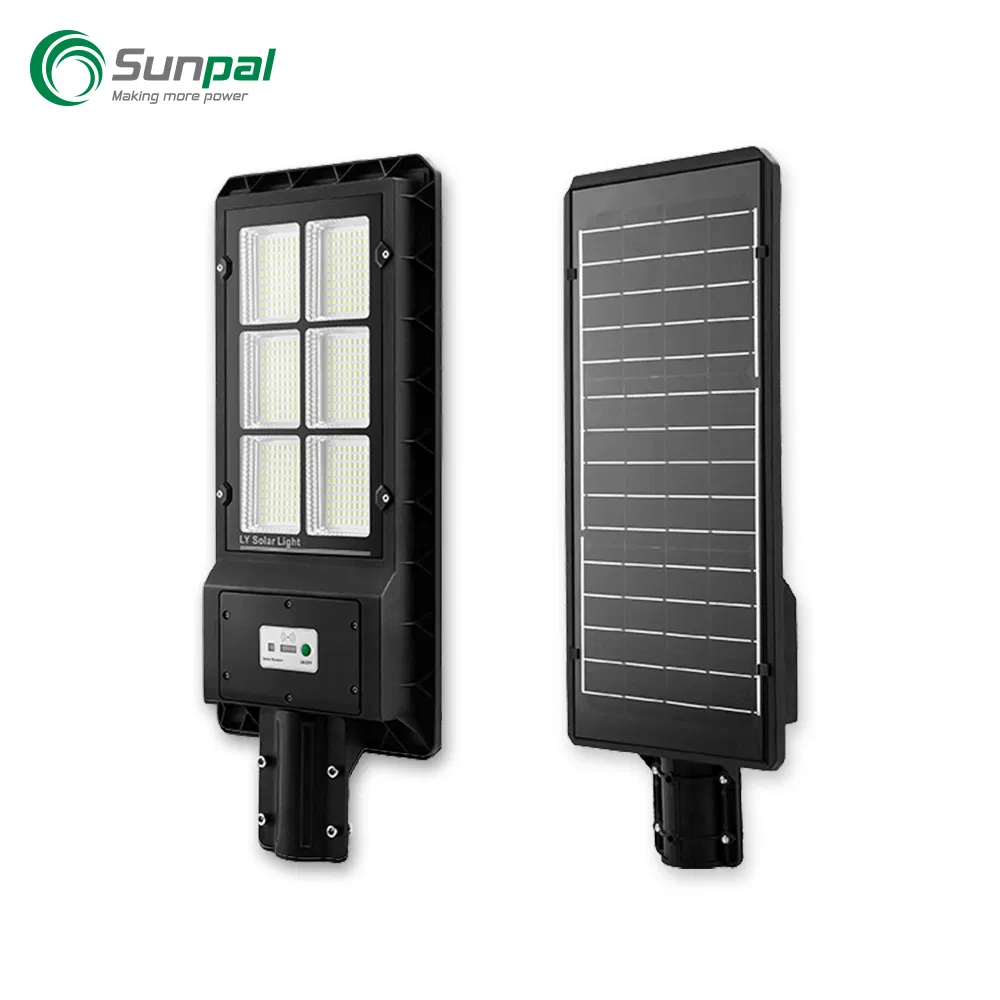

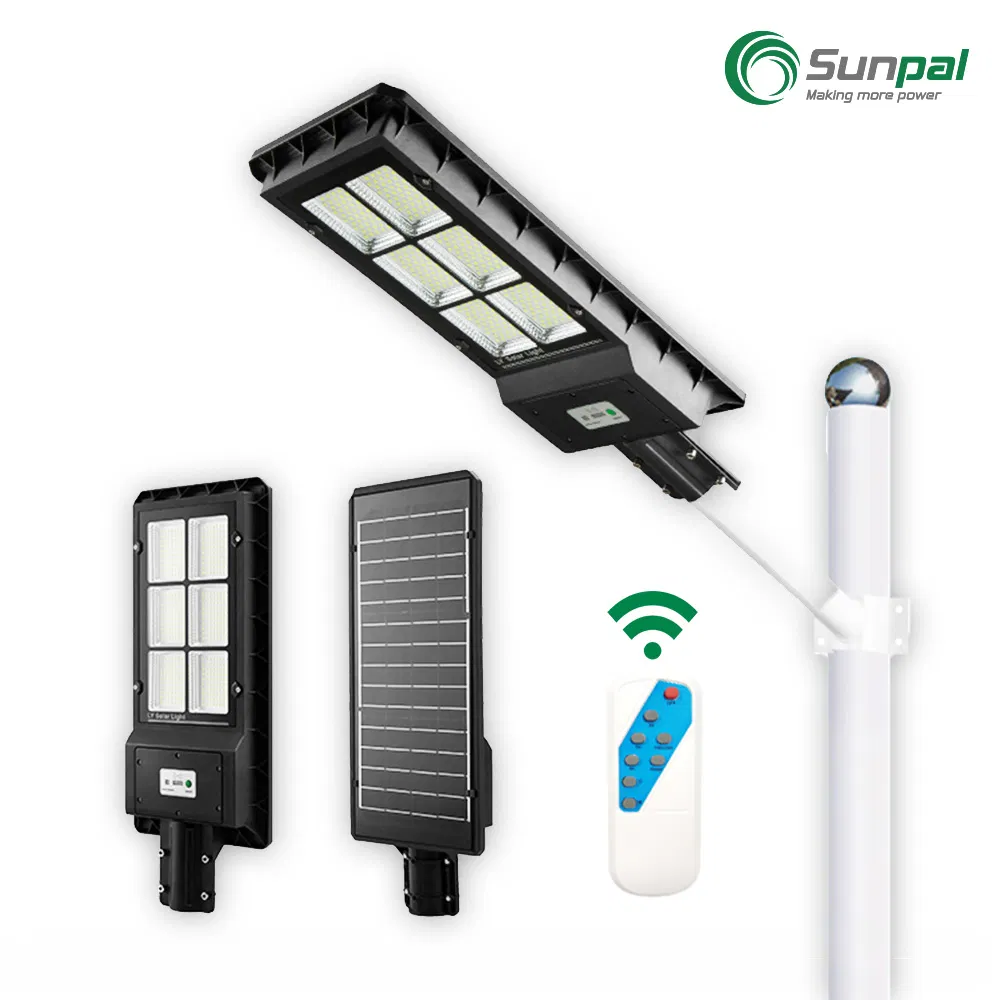

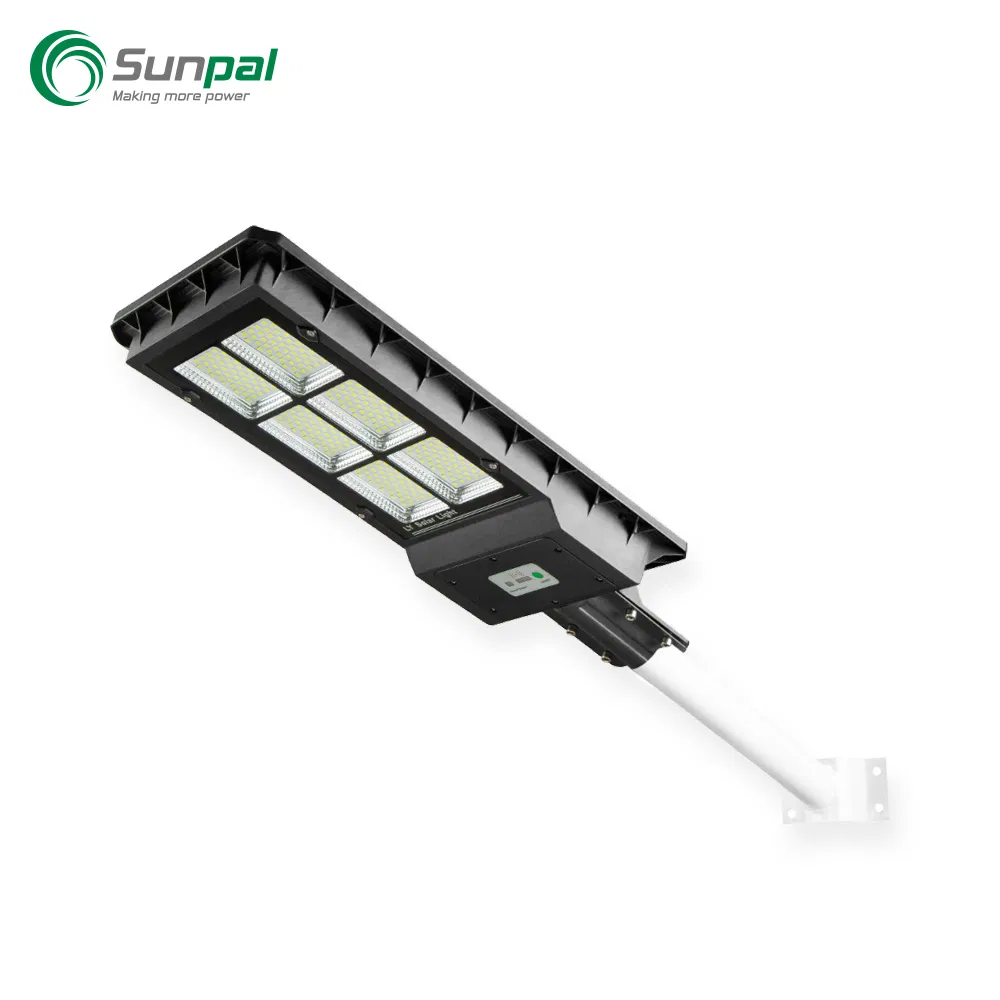

Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
1 / 5
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System
Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System

Sunpal 60W Solar Lights Outdoor Fence Led Home Wall Security Lighting System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
LY 60W-180W
Light Source
LED Lamp
Body Material
Plastic / Aluminum
Light Type
Solar
Color Temp
Warm/Cool/Pure White
Power Range
60W-180W
IP Rating
IP65
Cell Type
Lithium Battery
Charging Time
6-7 Hours
LED Lifespan
50,000 Hours
Light Efficiency
130-150LM/W
Certification
CE, RoHS, IES
✔

Product Description

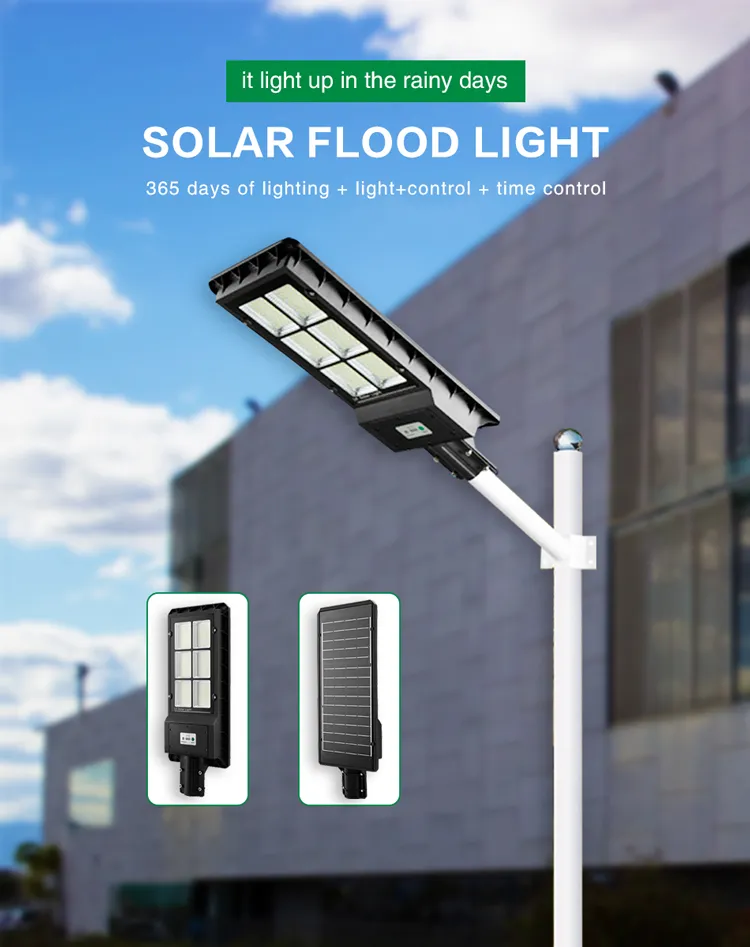

Solar Light System

All In One solar street light: Also called Integrated solar street lights, it is a combination of high-efficiency solar panels, long-life lithium batteries, high-efficiency LEDs and intelligent controllers, PIR human body sensing modules, and anti-theft mounting brackets.

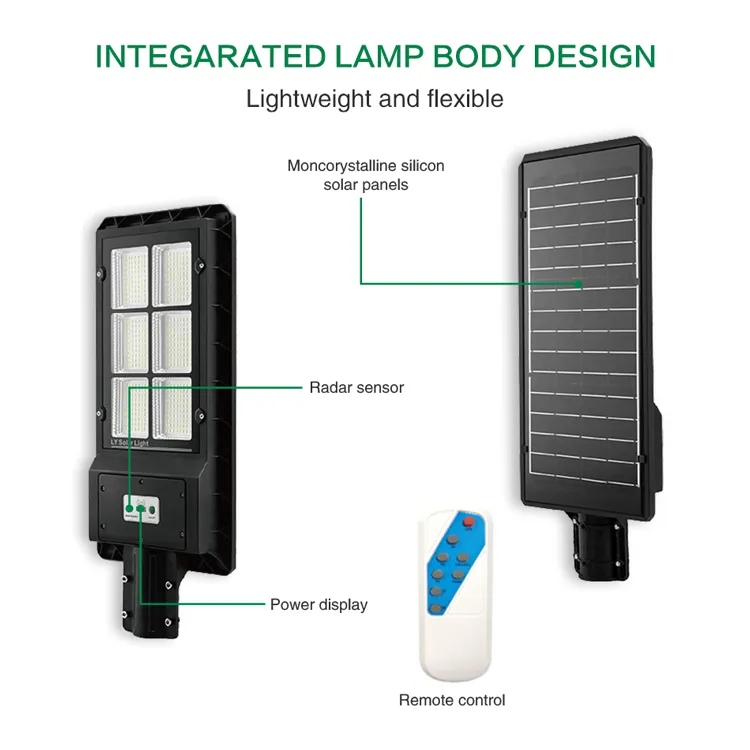

Integrated Solar Detail

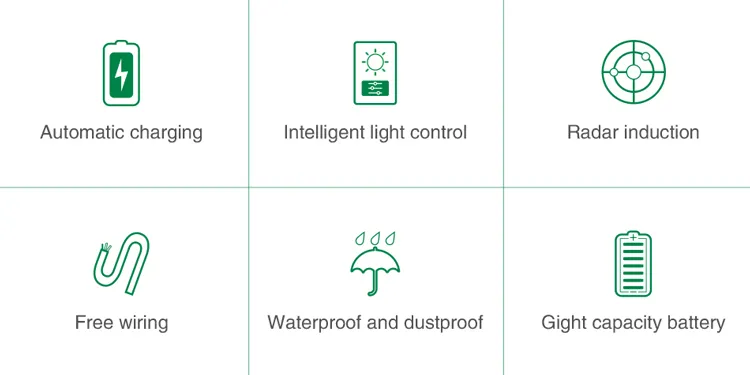

Solar Light Components
Model LY 60W LY 120W LY 180W
Power60W120W180W
Solar Power6V/12W, Poly6V/20W, Mono6V/30W, Mono
Dimension52*24*7cm65.2*26.7*6.1cm77.5*29.2*7.6cm
Battery3.2V / 10000mA3.2V / 15000mA3.2V / 20000mA
MaterialAluminum
IP RatingIP65
CCT2700-7000K
LED ChipSMD5730 or SMD5054
Charging Time6-7 hours
Discharging12-15 hours
Warranty2 years
📷

Detailed Photos

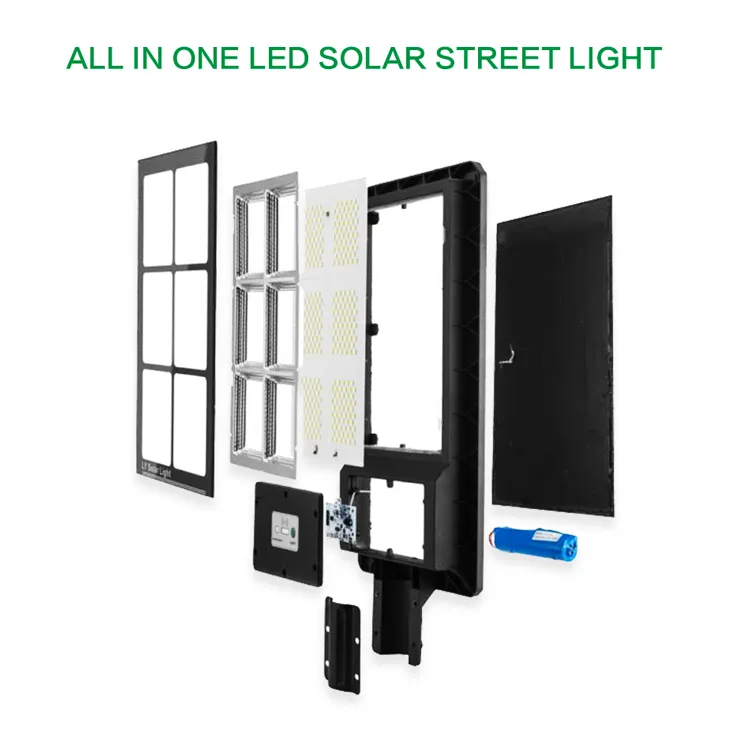

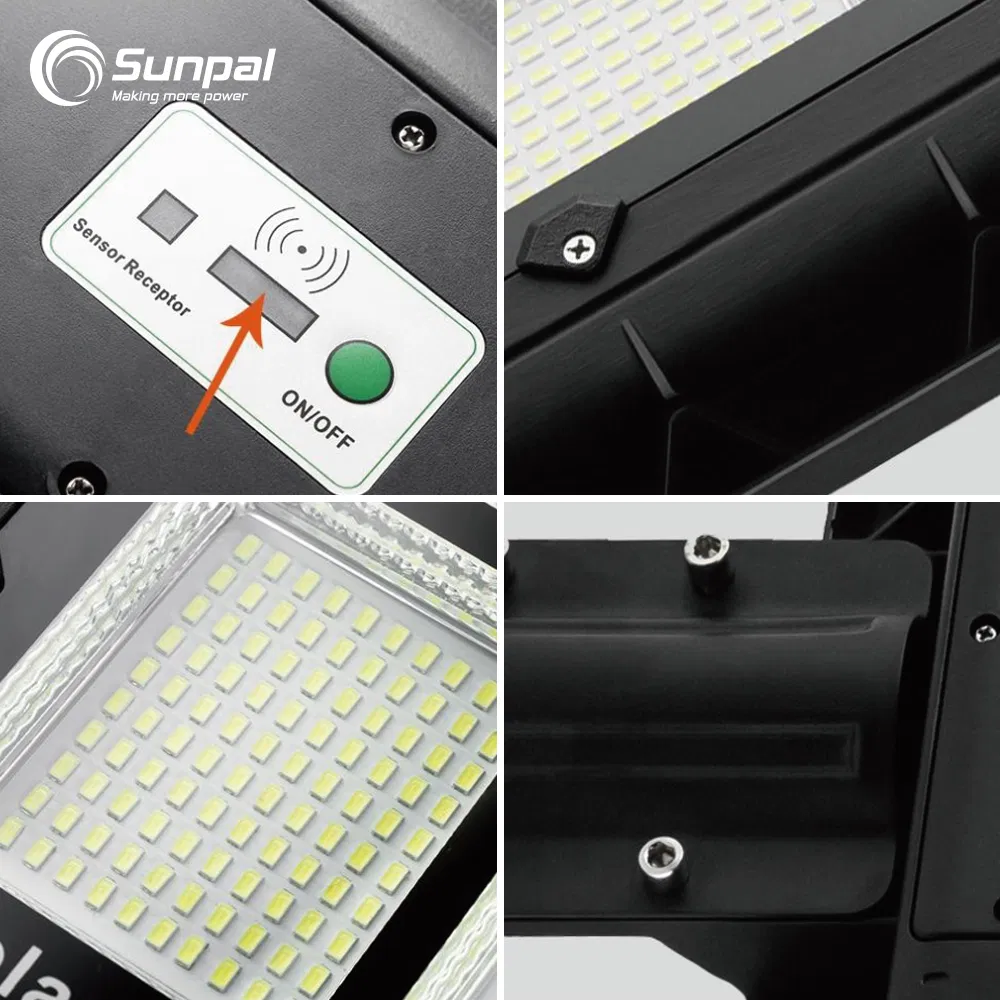

Detailed Solar Light View
⚙

Working Features

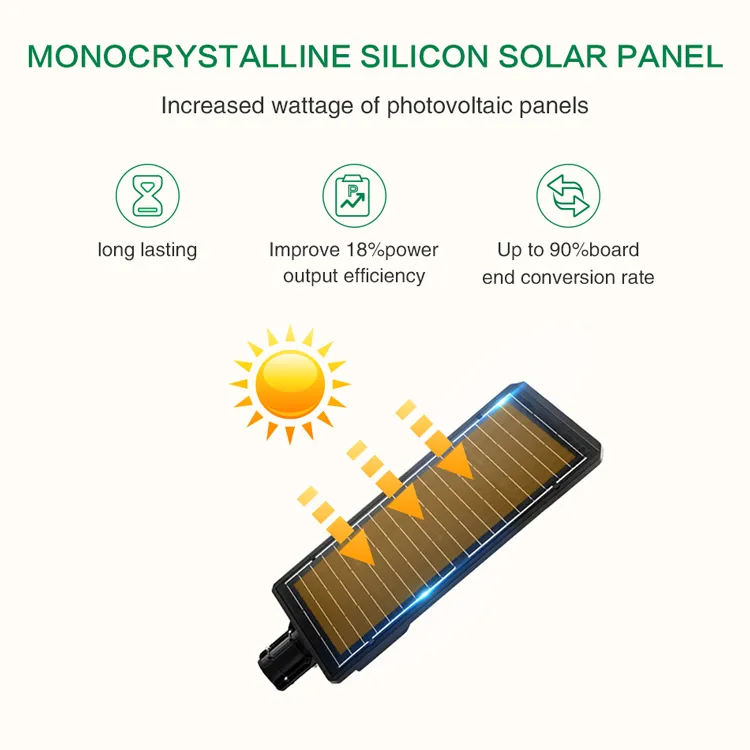

Feature 1

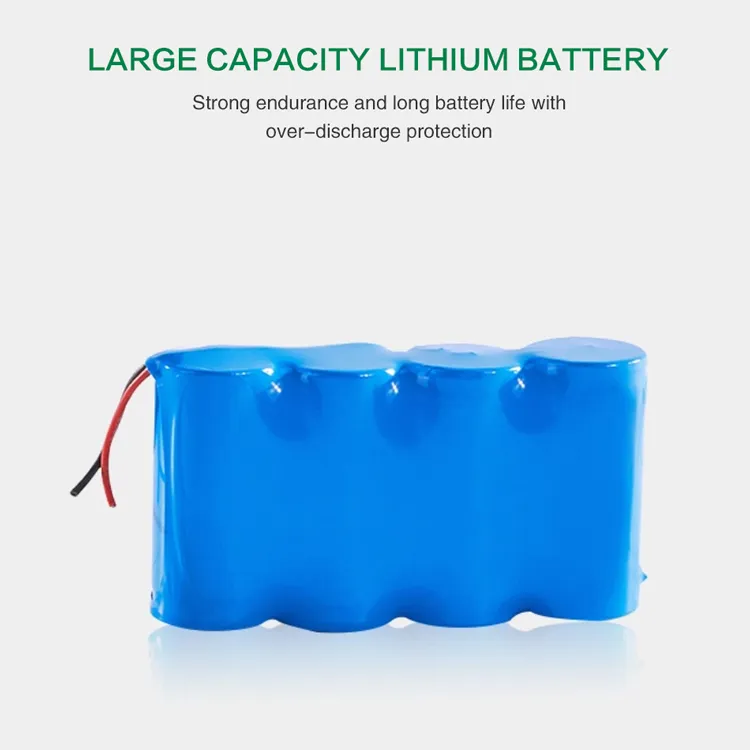

Feature 2

Working Principle:

  • ⚡ 1) Solar panel constantly absorb solar energy in daylight and convert to electricity.
  • 🧠 2) The intelligent controller precisely controls the charge and discharge, preserving electricity into the lithium battery.
  • 💡 3) LED starts to illuminate, powered by the lithium battery.
  • 🌙 4) Once illuminance drops below 15 lux or solar panel voltage drops below 5V, the controller optimizes brightness and switch-on time according to the environment.

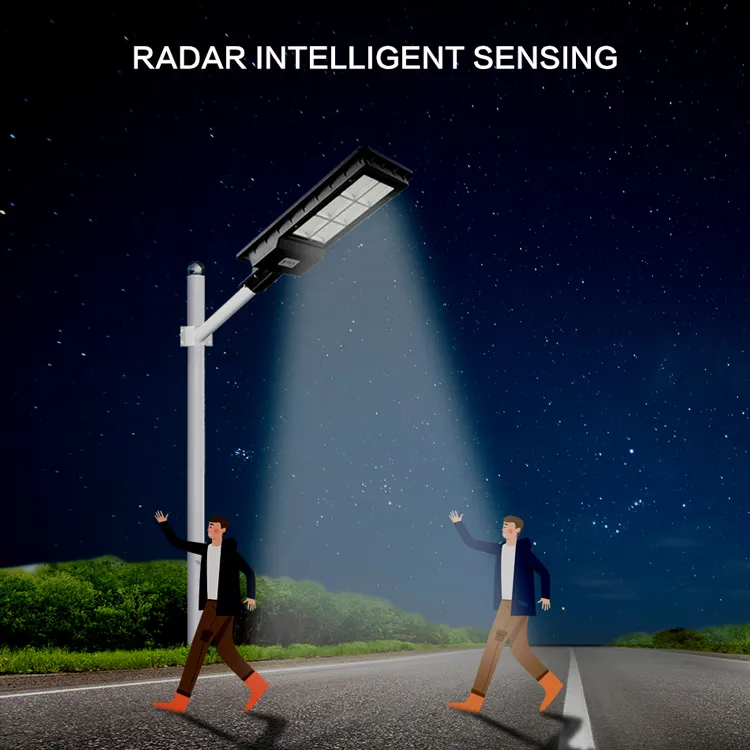

Working Process
📦

Professional Packing & Factory

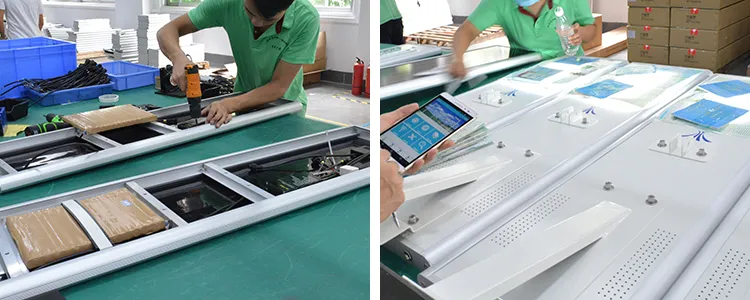

Packing 1
Packing 2

Note: Packing information is subject to change. Customized packing is available upon request.

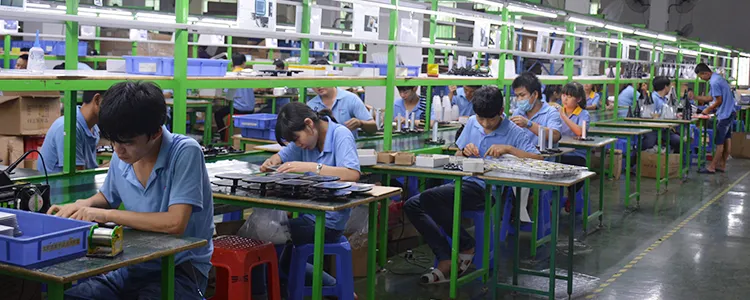

Factory 1

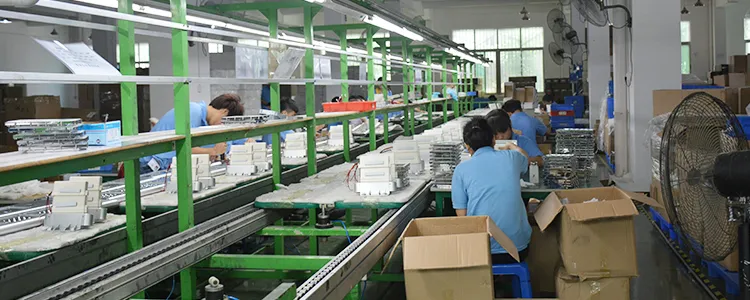

Factory 2
🏢

Project Case

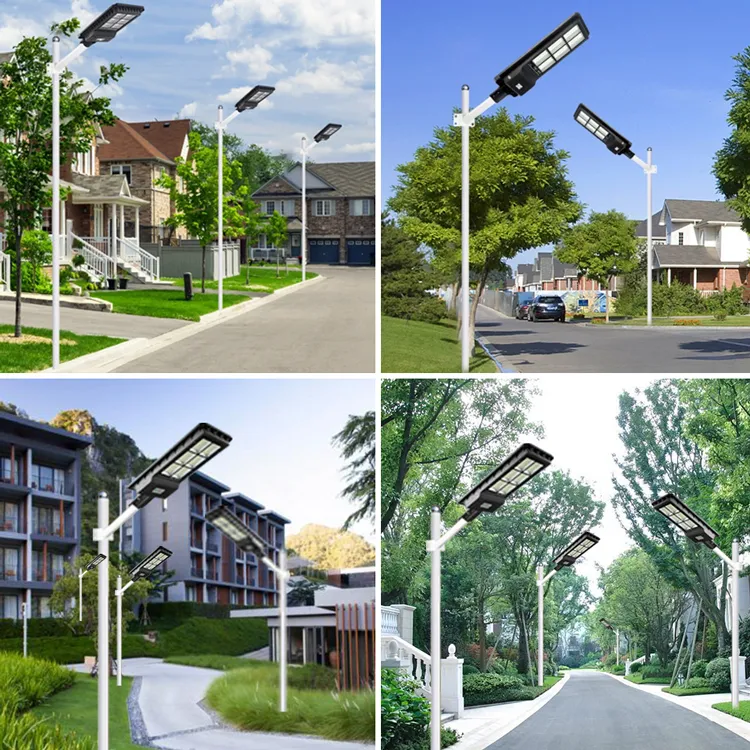

Project Case Application
?

Frequently Asked Questions

What are the main components of an integrated solar street light?
The system combines a high-efficiency solar panel, a long-life lithium battery, high-performance LED chips, and an intelligent controller with PIR motion sensing.
How long does it take to fully charge the battery?
Under standard sunlight conditions, the integrated battery requires approximately 6 to 7 hours for a full charge.
What is the typical working duration after a full charge?
The light can provide illumination for 12 to 15 hours depending on the specific model and energy management settings.
Are these lights suitable for harsh outdoor environments?
Yes, with an IP65 waterproof rating and a durable aluminum body, these lights are designed for highways, roads, courtyards, and stadiums.
How does the intelligent controller benefit the system?
The controller protects the battery from over-charging and over-discharging while optimizing light brightness according to real-time environmental conditions.
What is the expected lifespan of the LED source?
The high-efficiency LED chips used in our lights have a lifespan of up to 50,000 hours, ensuring long-term reliability.
