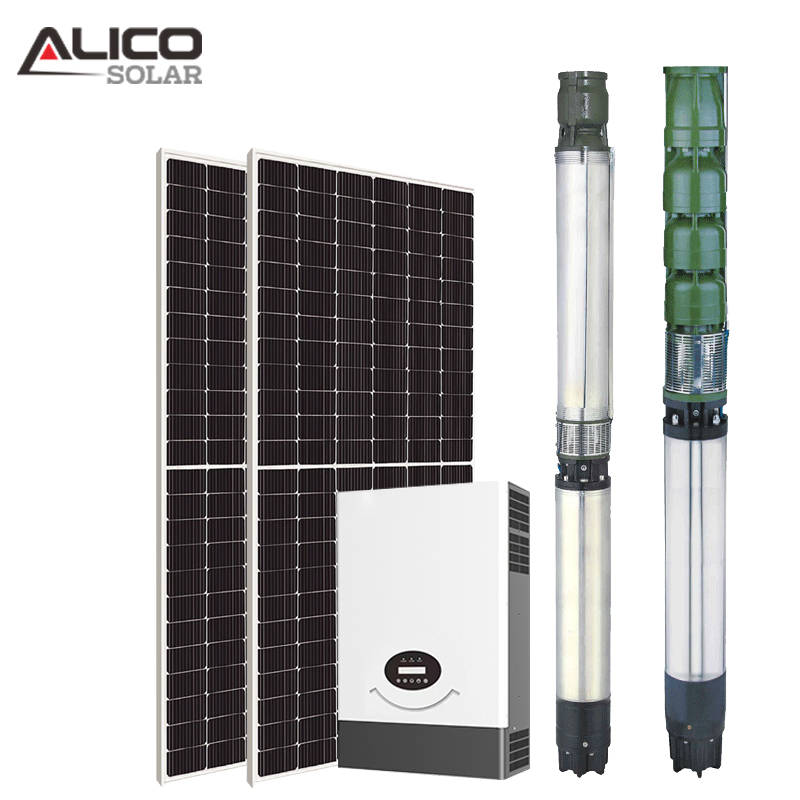

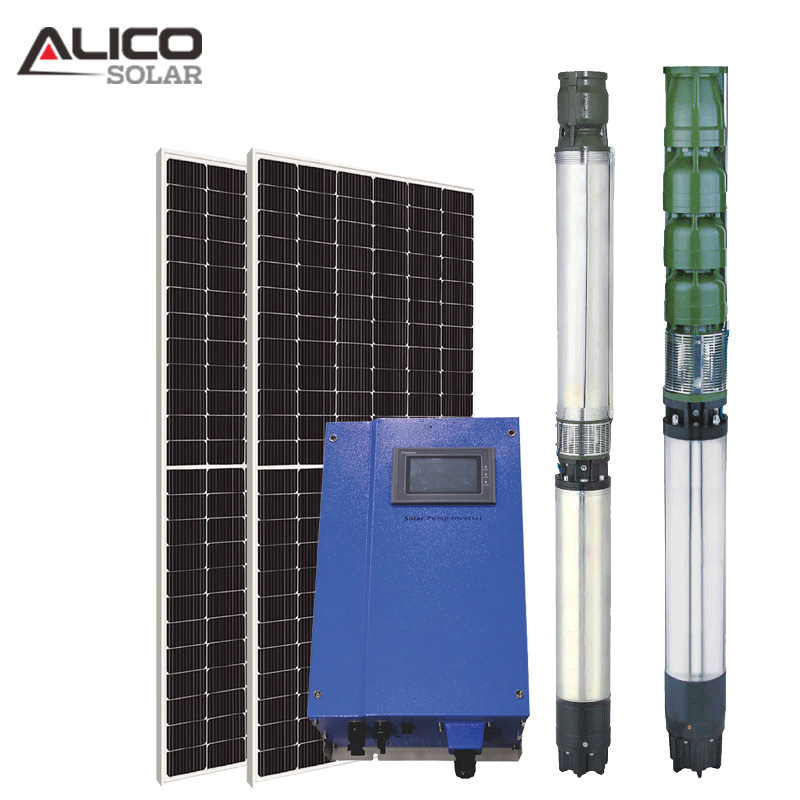

Submersible DC/AC Pumping System Deep Well Surface for Irrigation Solar Water Pump Set ODM

📊

Basic Information

Model NO.

pump

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Off-Grid Inverter

System Type

Home Solar Power System

Power

Electric

Type

Positive-Displacement Pump

Industry

Air Conditioning Pump

Theory

Centrifugal Pump

Conveying Medium

Water Transfer

Production Capacity

1.2 Gw/Year

Package Size

110.00cm * 80.00cm * 55.00cm

Gross Weight

50.000kg

💧

Product Description

DC AC Solar Pump System for Farm

Model	Voltage (V)	Rate Power (W)	Max Flow (m3/h)	Max Head (M)	Outlet Size (in)	Diameter (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.3-50	24	120	1.3	50	3/4"	76
JS3-1.8-100	24	270	1.8	100	3/4"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-70-33	288V	4000	70	33	4"	150

📋

Product Parameters (30HP System)

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1

Solar power systems have a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.

🌟

Core Applications

AGRICULTURAL IRRIGATION
ANIMAL HUSBANDRY
DESERTIFICATION CONTROL

Solar pump systems are high-quality products designed and installed for drinking water supply, livestock watering, and smaller irrigation applications without any pollution. No infrastructure or grid is required for site selection. Optional grid back-up can be used for 24/7 operation.

Please provide the following information so we can select the right pump for you:
1. Where will the pump be used?
2. Daily/Hourly water discharge required?
3. Submersible or surface pump needed?
4. Borehole depth (if applicable)?
5. Pipe distance and slope to destination?
6. Tank height?

🔧

System Components

Mono Solar Panels
Peak Power: 290W | Weight: 18.6 kg

Pump Controller
Max DC Input: 8.5KW | Warranty: 5-10 Years

Solar Water Pump
Material: 304/316 Stainless Steel

🏗️

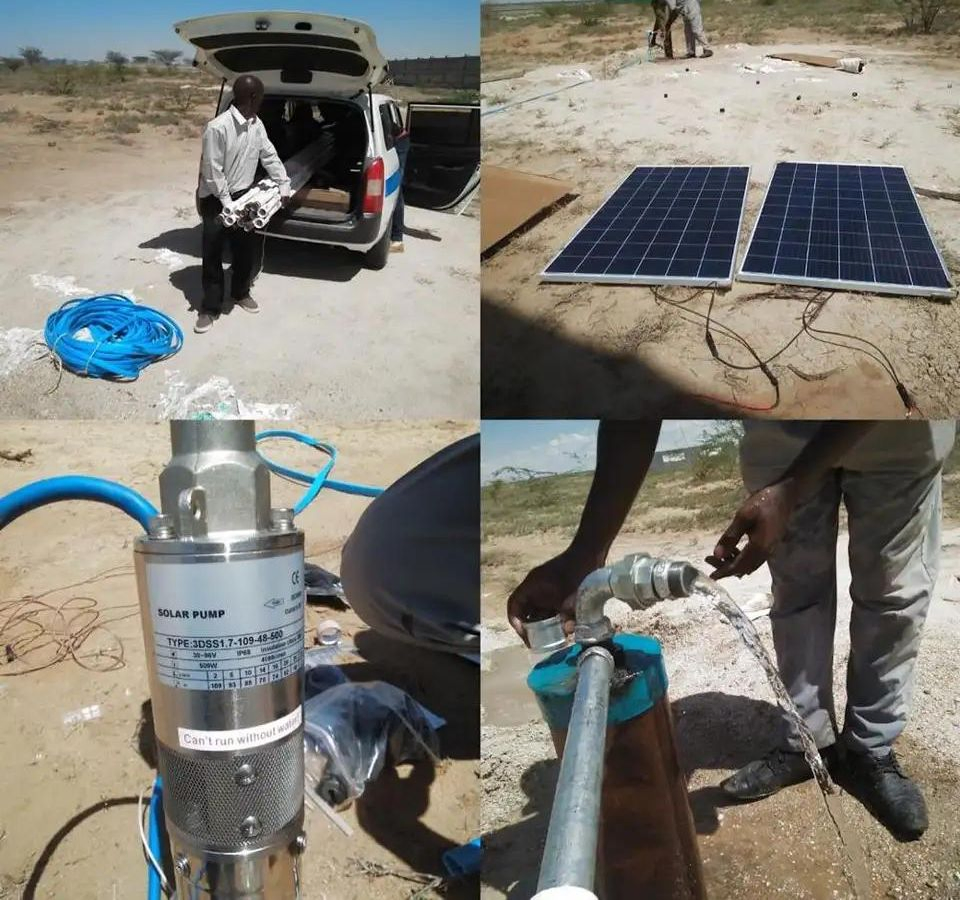

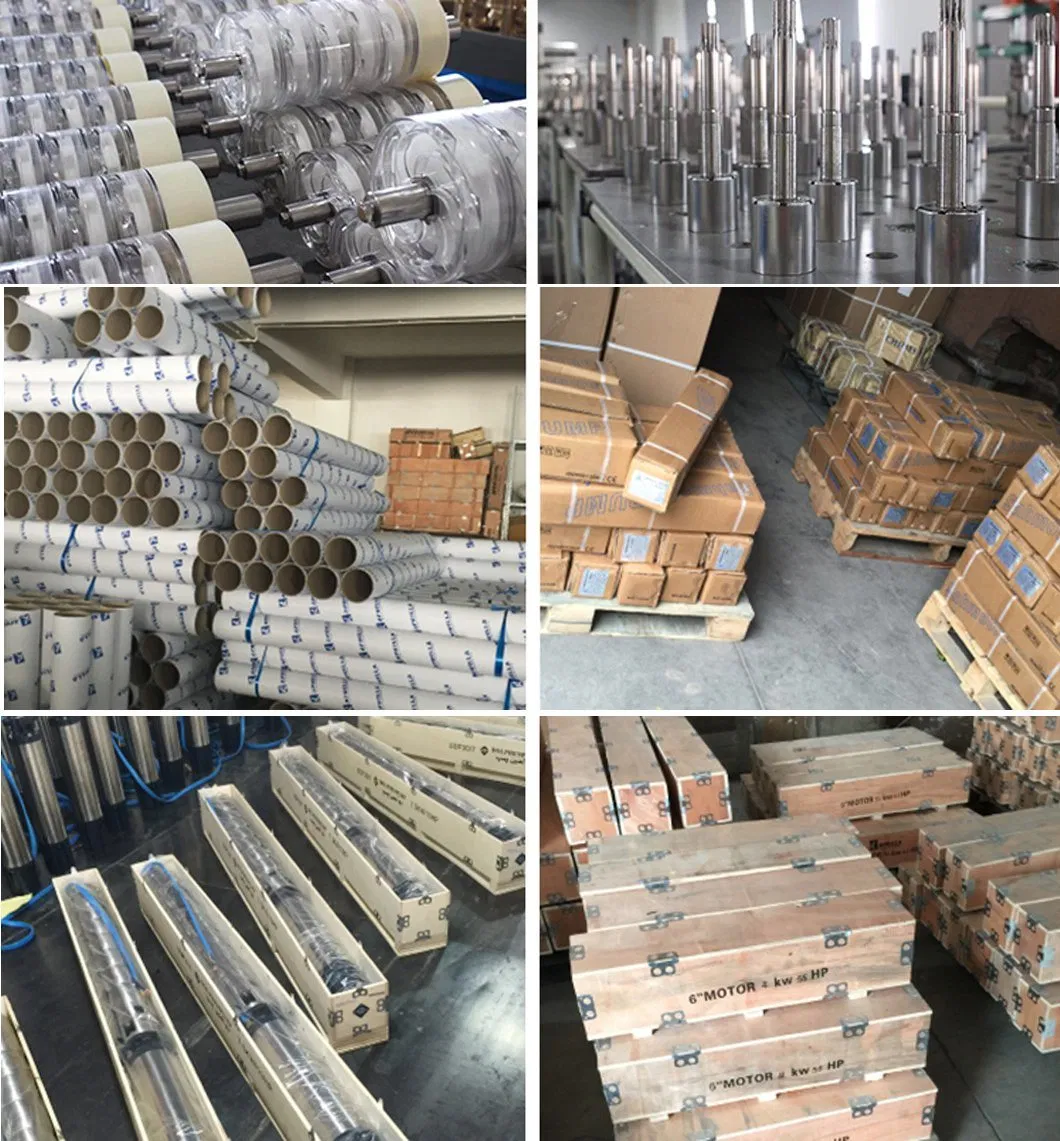

Projects & Packaging

❓

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all our inverters provide true pure sine wave output.

What's the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters are as good as the public power grid, with low repair rates and long lifespans. Modified sine wave inverters can negatively impact appliances and cannot load inductive loads like air conditioners or refrigerators.

What appliances can your inverters load?

Our inverters can be used for household, office, and agricultural appliances, including inductive loads such as refrigerators, air conditioners, and water pumps.

How do I choose the right inverter?

Tell us your specific power demand and the type of equipment you plan to run, and we will recommend the most suitable model.

What is the difference between 12V, 24V, and 48V inverters?

This refers to the battery bank input voltage. Higher voltages allow for lower current, meaning you can use smaller wires between your solar array and battery bank.

What happens if a product is faulty?

If a product is faulty, send us a picture or video. We will evaluate it and provide the necessary spare parts, such as PCB boards, for after-sales service.
