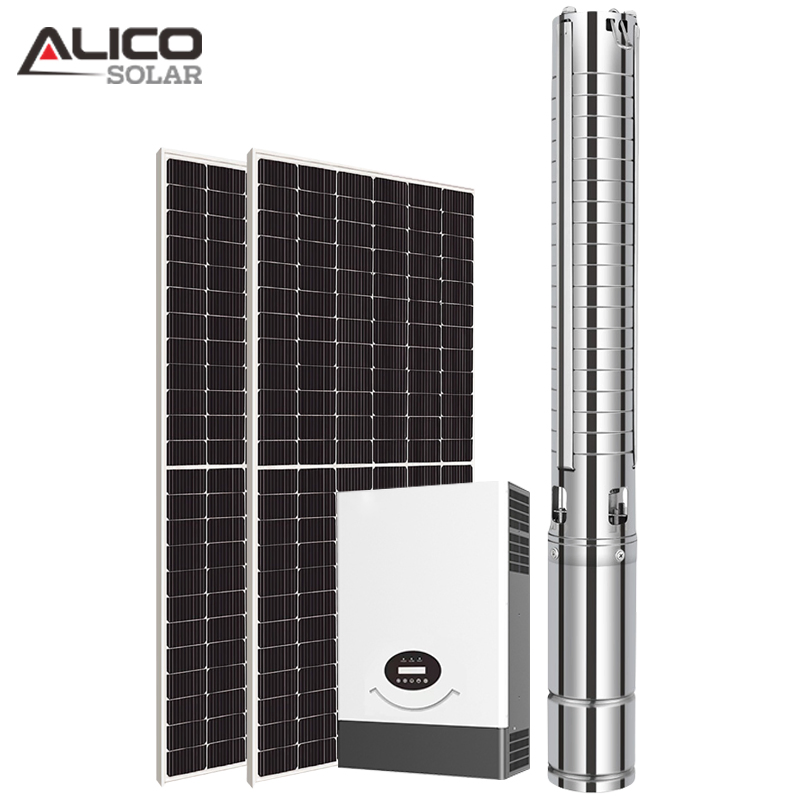

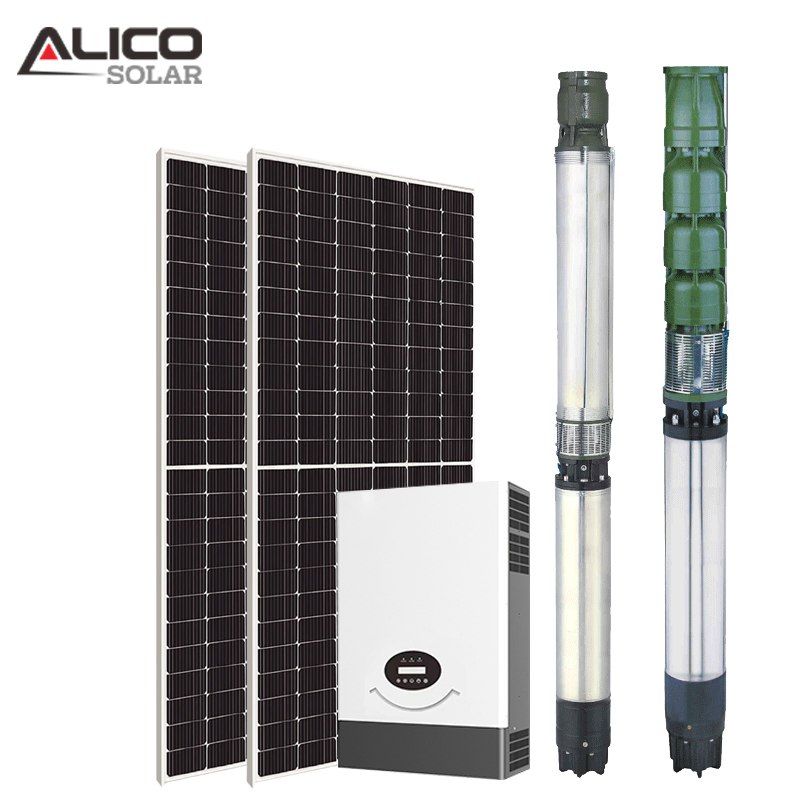

Submersible DC/AC Inverter in Pakistan Price List Solar DC Water Pump System Factory

1 / 5

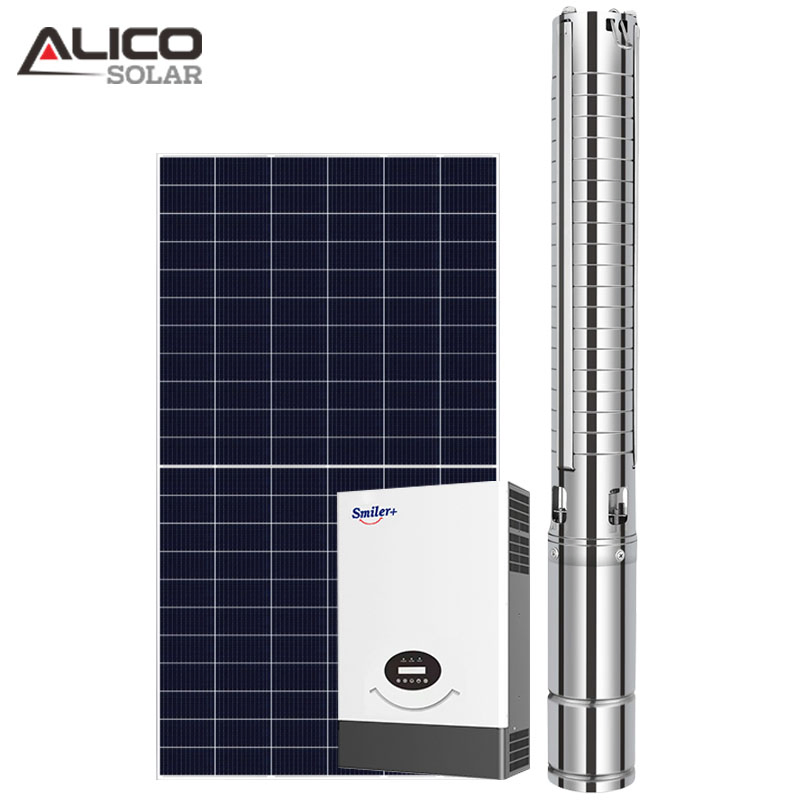

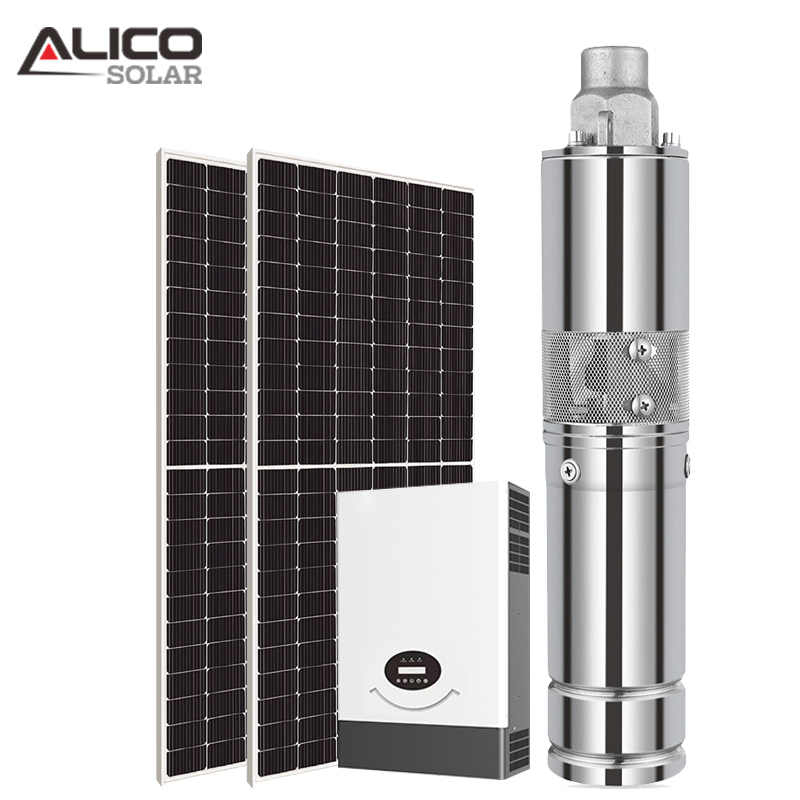

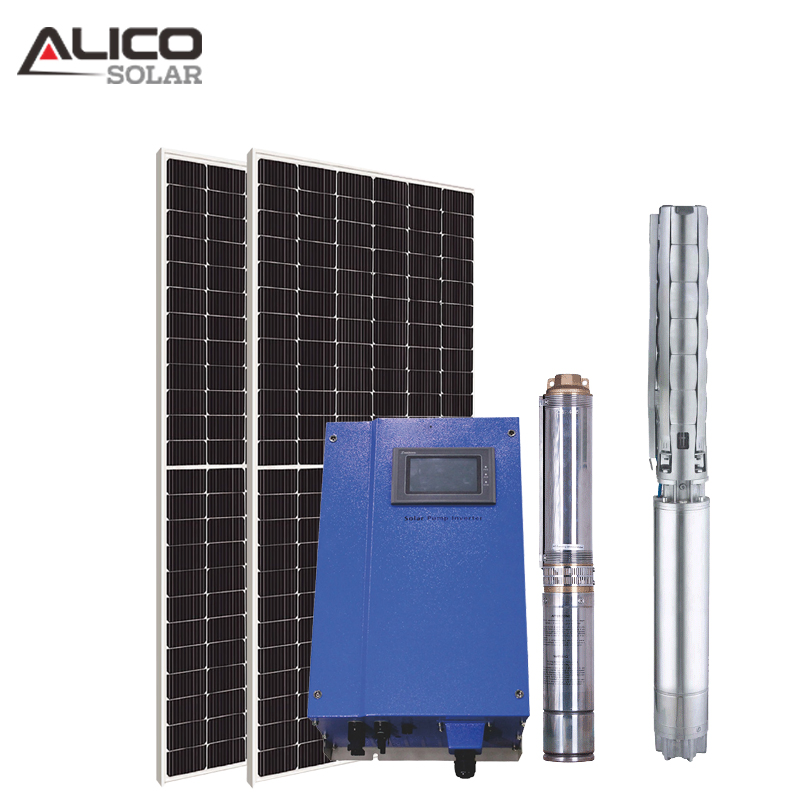

Submersible DC/AC Inverter in Pakistan Price List Solar DC Water Pump System Factory

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Pump

Certification

ISO, CE

Application

Home, Industrial, Commercial

Mounting Support

Roof or Ground Solar Mount

Solar Inverter

Off-Grid Inverter

System Type

Home Solar Power System

Power

Electric

Theory

Centrifugal Pump

Transport Package

Carton/Wooden Box

Production Capacity

1.2 Gw/Year

★

Product Description

DC AC Solar Pump system for Farm Irrigation

Model	Voltage (V)	Rate Power (W)	Max Flow (m3/h)	Max Head (M)	Outlet (in)
JS3-0.9-32	24	100	0.9	32	3/4"
JS3-1.8-80	24	210	1.8	80	3/4"
JS4-3.6-80	48	750	3.6	80	1"
JC4-8.0-55	72	1000	8	55	1.5"
JCS4-25-72	288	3000	25	72	2"
JQB-2.2-35	36	210	2.2	35	1"*1"

📋

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
PV cables	4mm2, 400m	set	1

✔

Applications & Features

🚜AGRICULTURAL IRRIGATION

🐎ANIMAL HUSBANDRY

🌵DESERTIFICATION CONTROL

Solar pump systems are high quality products designed for drinking water supply, livestock watering, and irrigation without any pollution. No grid infrastructure is required, making it ideal for remote site selection.

How to Select the Right Pump?

1. Where will the pump be used?
2. Required water discharge (liters/m3) per day or hour?
3. Do you need a submersible or surface pump?
4. If borehole, what is the depth?
5. Pipe distance and height of the destination tank?

⚙

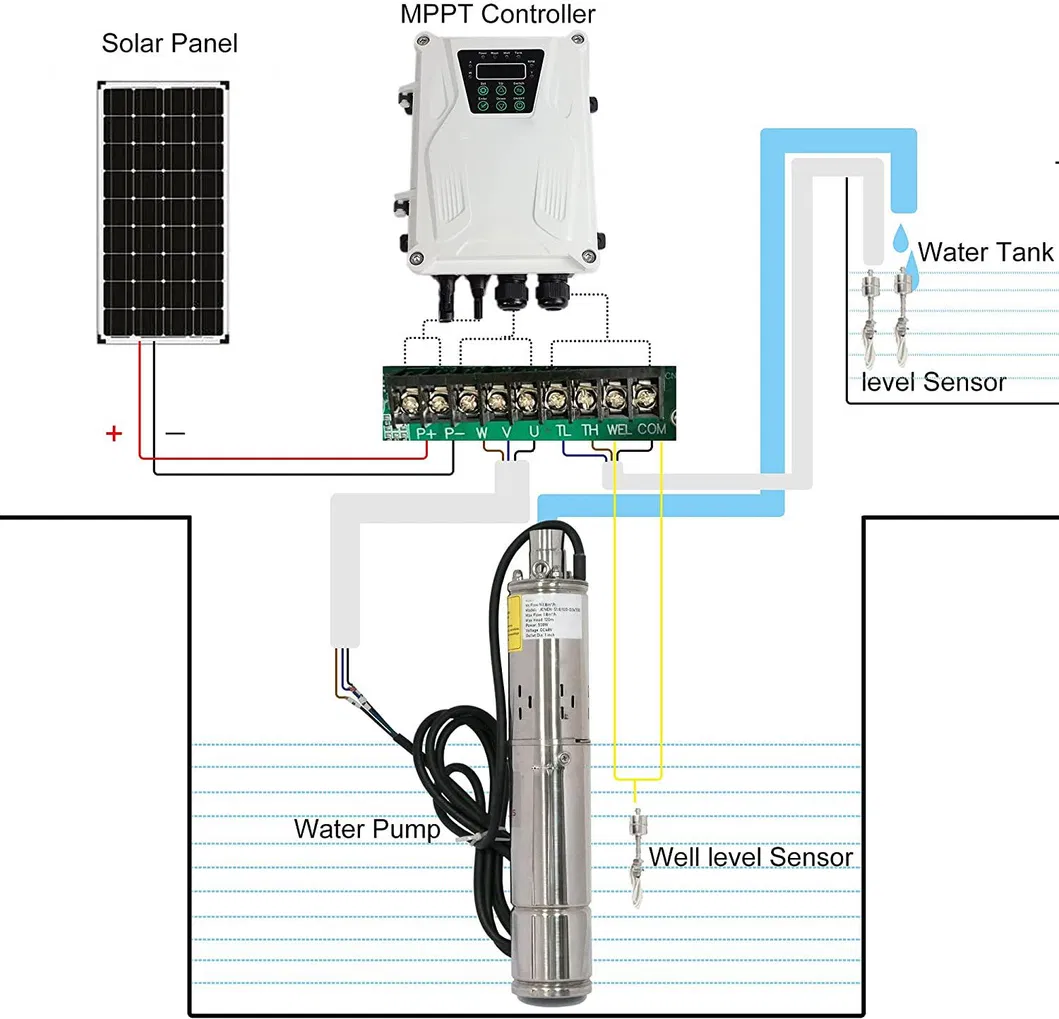

System Components

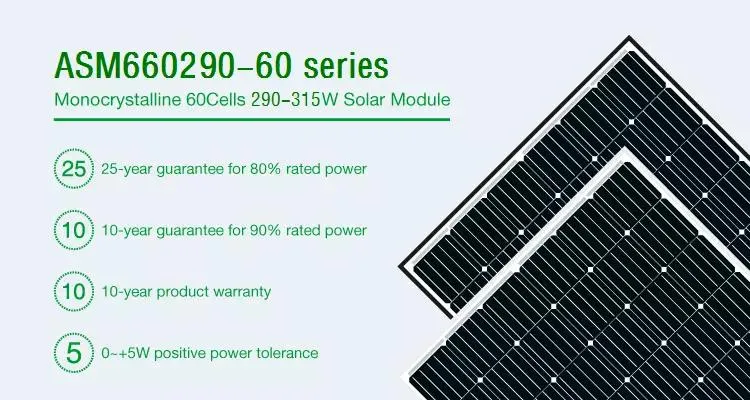

Mono Solar Panels

Peak Power: 290W
Max Voltage: 32.2V
Dimensions: 1640×992×35 mm

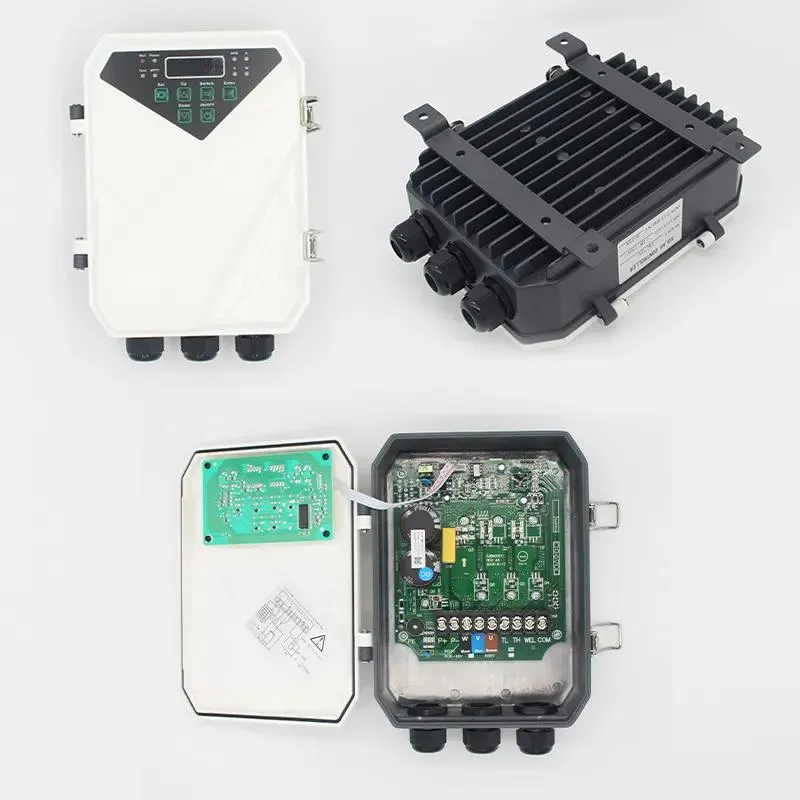

Pump Controller

Max DC Input: 8.5KW
Voltage Range: 90-520V
MPPT Efficiency Optimized

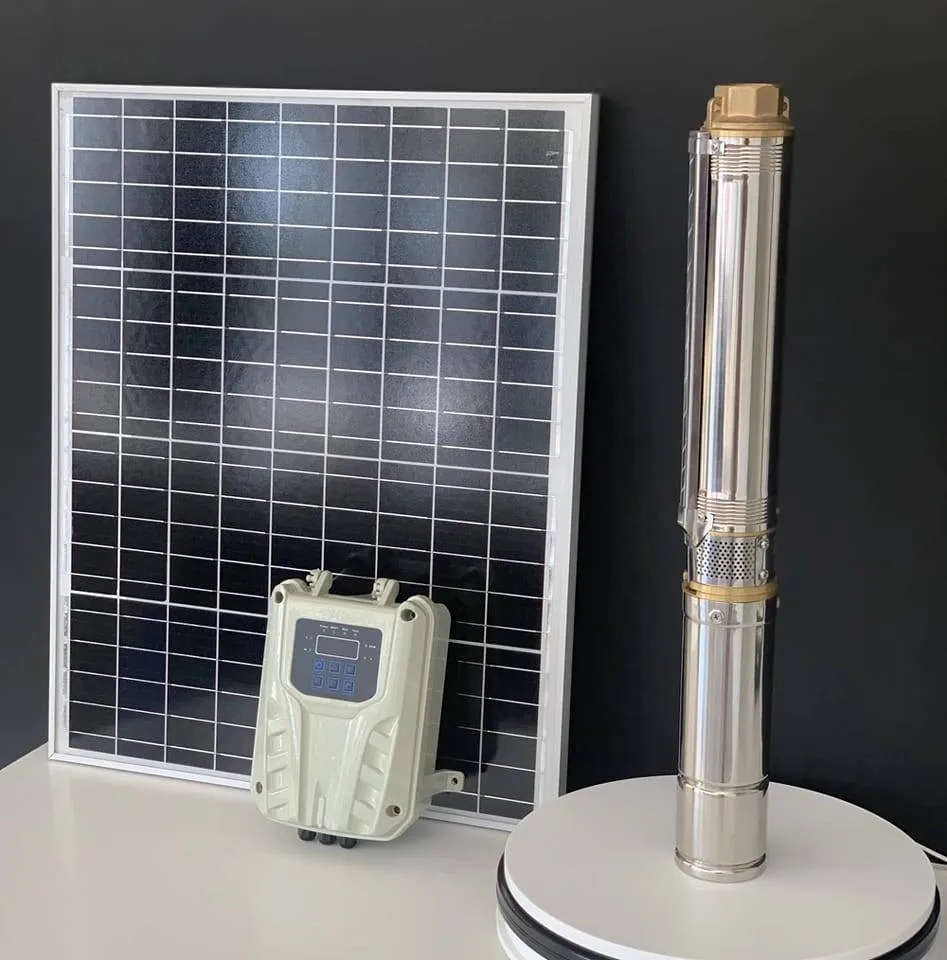

Submersible Pump

Material: Stainless Steel 304
Diameter: 1-6 inch
Type: Centrifugal/Helical

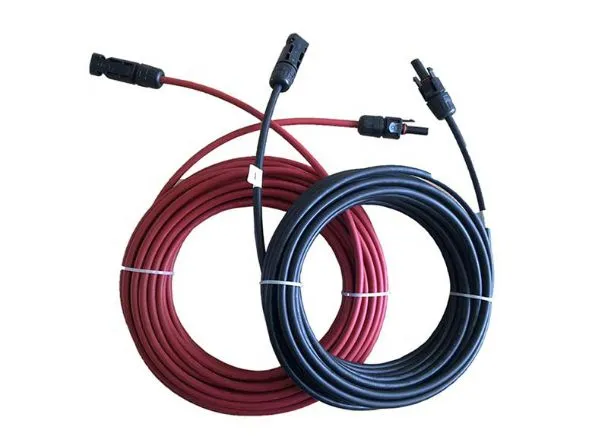

Cables & Connectors

Cross Section: 4mm2 / 6mm2
Rating: 600VDC / 1000VDC
UV Resistant Lifetime: 25 Years

✈

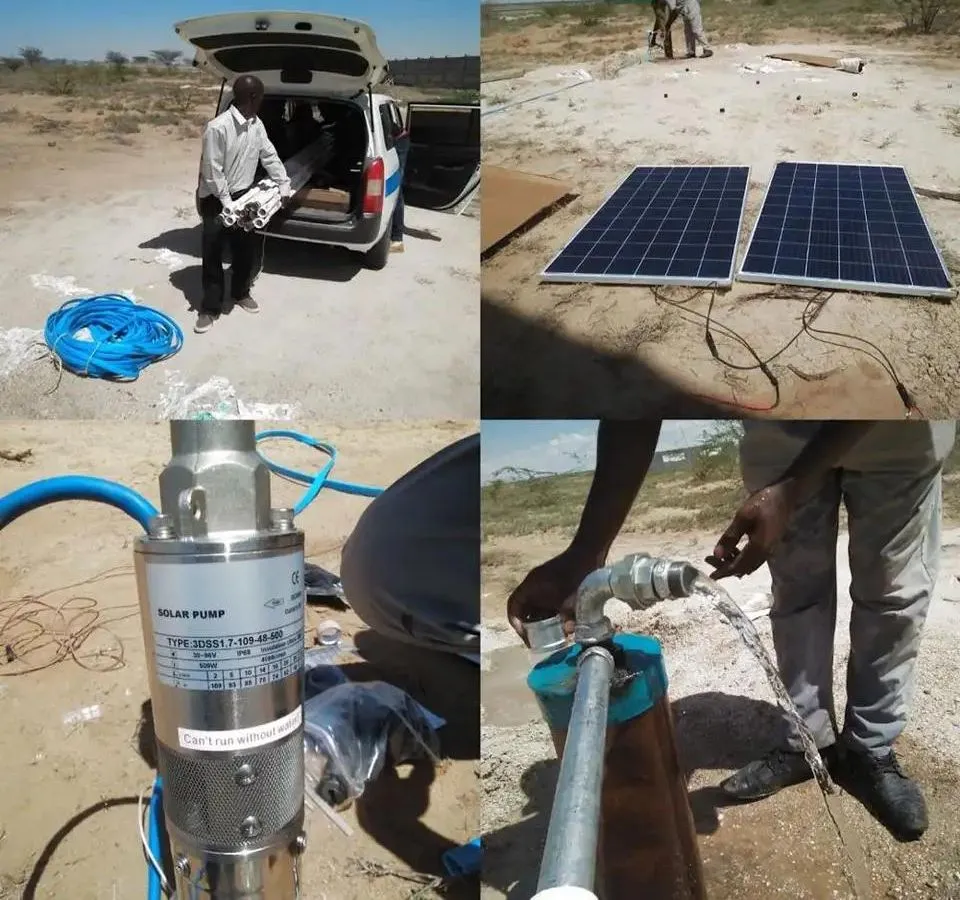

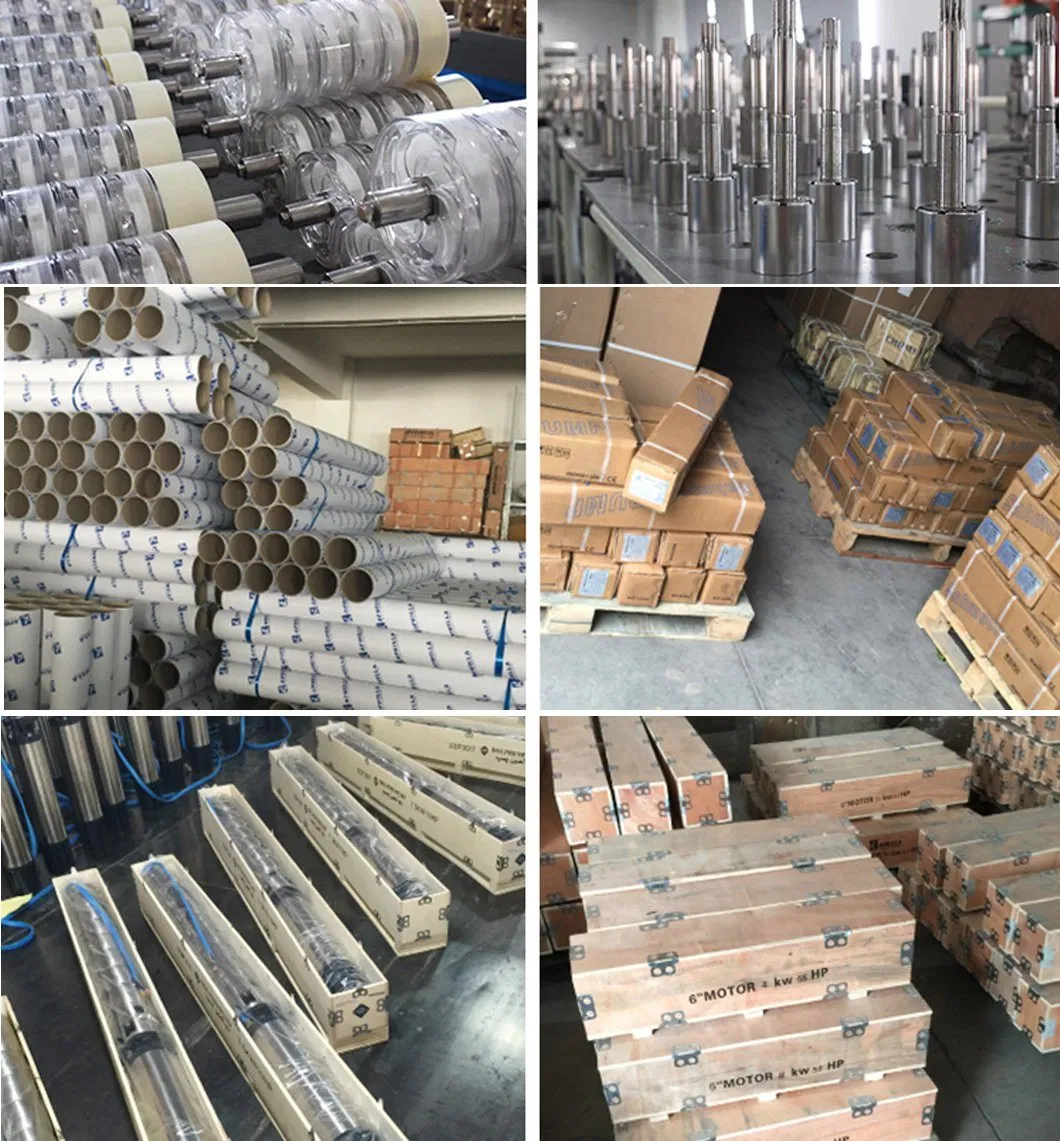

Projects & Packaging

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all of our inverters provide true pure sine wave output, ensuring compatibility with sensitive electronics.

What's the difference between pure sine wave and modified sine wave inverters?

Pure sine wave output is as good as the public power grid with low repair rates and long lifespan. Modified sine wave can have negative impacts on inductive loads like refrigerators and air conditioners.

What appliances can your inverters load?

Our inverters can be used for household, office, and agricultural appliances, including inductive loads like water pumps, refrigerators, and air conditioners.

How do I choose the right inverter?

Please tell us your power demand and application requirements, and our technical team will recommend the most suitable model for your system.

What is the difference between 12V, 24V, and 48V inverters?

This refers to the input voltage from the battery bank. Higher voltages allow for smaller wires and less current loss between the solar array and the battery bank.

What should I do if the product is faulty?

If a product is faulty, please provide photos or video. We will analyze the issue and provide necessary spare parts like PCB boards for after-sales service.
