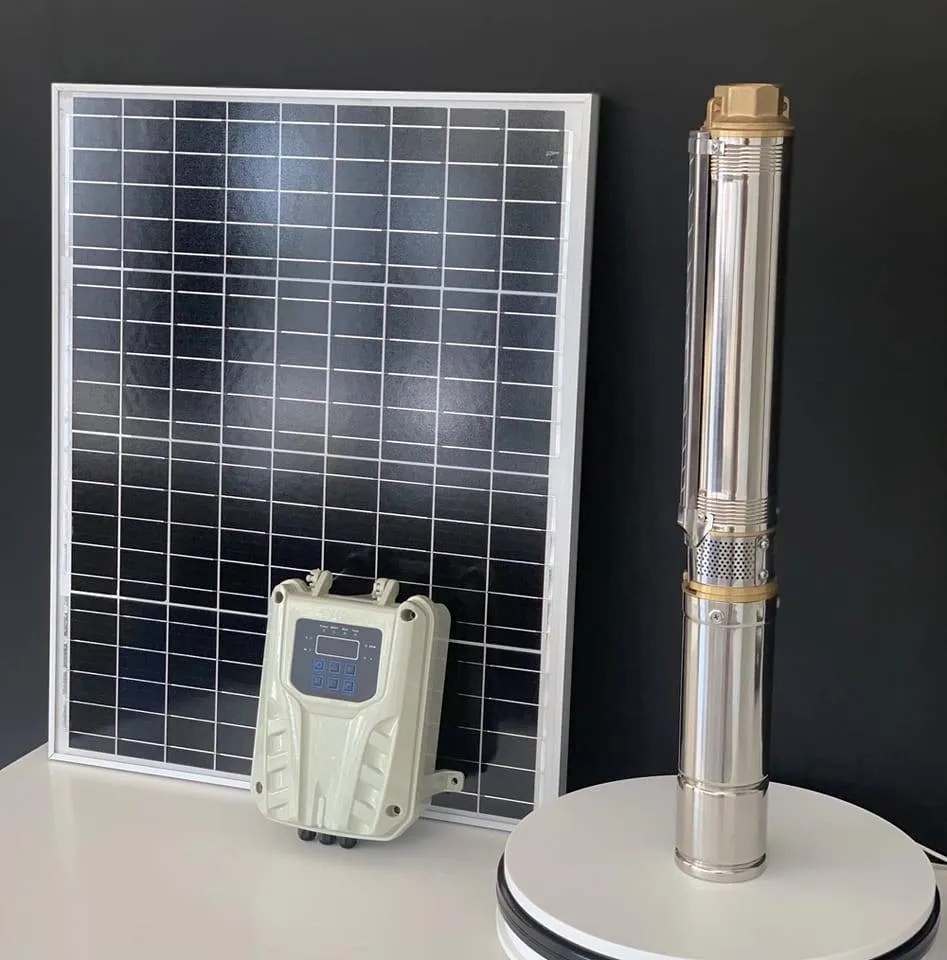

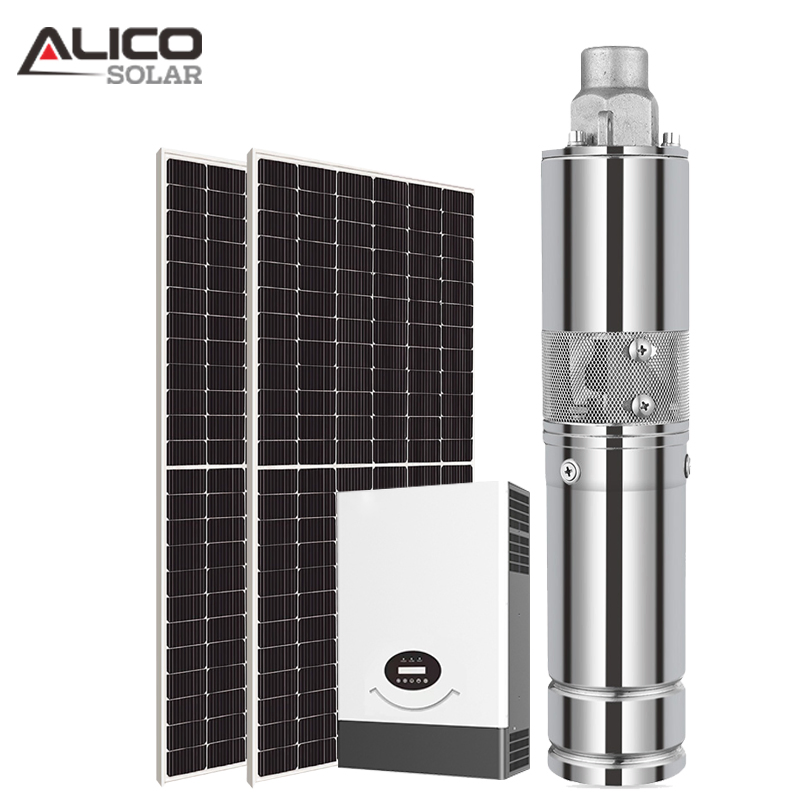

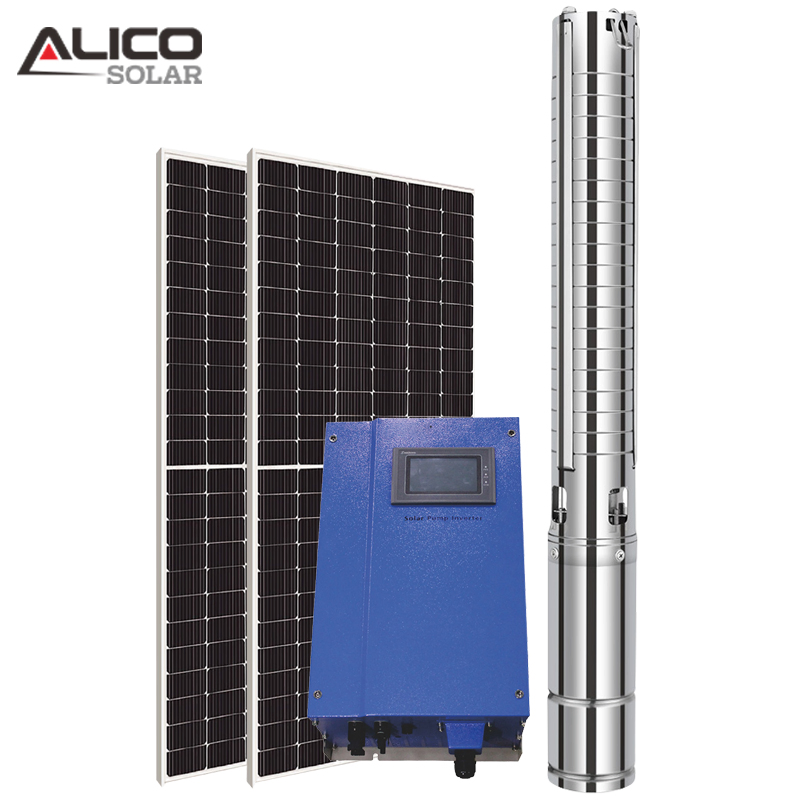

DC AC Solar Pump system for Farm
| Model | Voltage (V) | Power (W) | Max Flow (m3/h) | Max Head (M) | Outlet (in) | Diameter (mm) |
|---|---|---|---|---|---|---|
| JS3-0.9-32 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| JS3-1.8-80 | 24 | 210 | 1.8 | 80 | 3/4" | 76 |
| JC3-4.2-54 | 48 | 600 | 4.2 | 54 | 1" | 76 |
| JS4-4.0-100 | 72 | 1000 | 4 | 100 | 1" | 100 |
| JCS4-25-96 | 288 | 4000 | 25 | 96 | 2" | 100 |
| JCS6-50-45 | 288V | 4000 | 50 | 45 | 4" | 150 |
| 30HP Solar Water Pump System Items List | |||
|---|---|---|---|
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |

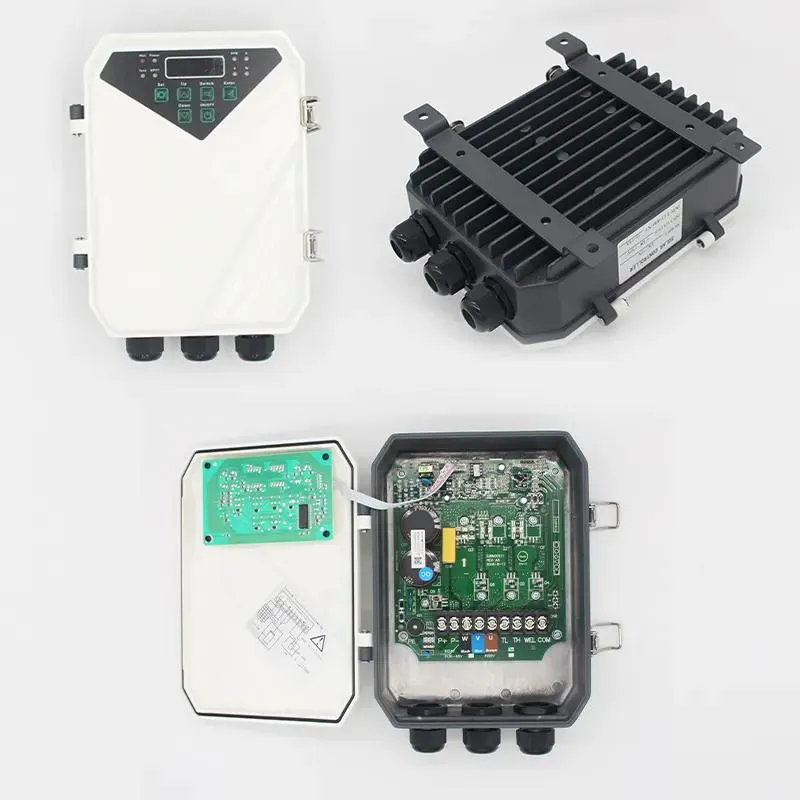

| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| PV cables | 4mm2, 400m | set | 1 |

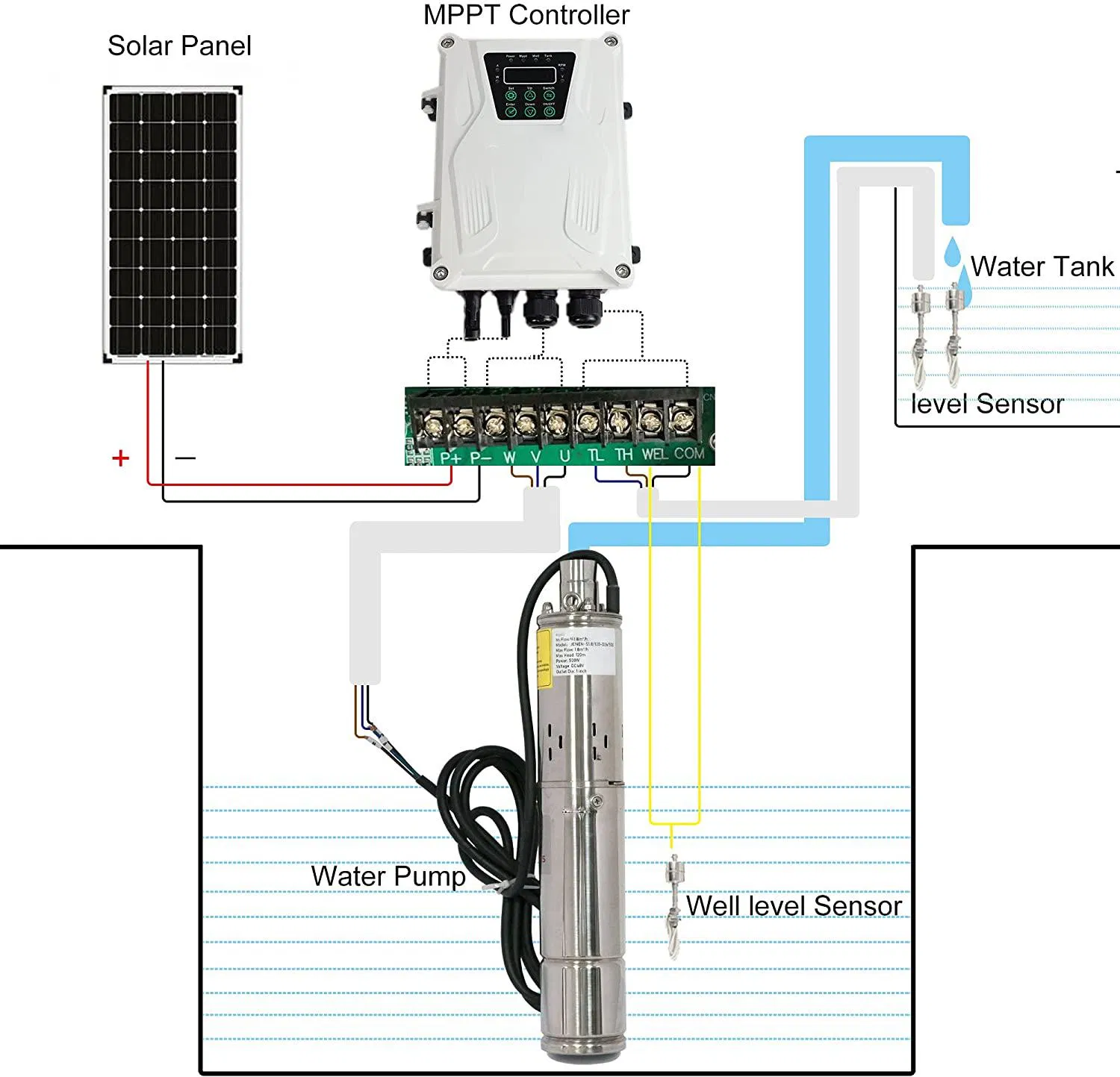

Solar pump systems are high quality products designed for drinking water supply, livestock watering, and smaller irrigation applications without pollution. No infrastructure or grid is required for site selection.
Peak Power Watts: 290W
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg
Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Wifi Stick Optional for Monitoring.
