Submersible DC/AC Panel Circulation for Heater Solar Water Pump System with Low Price

1 / 5

Submersible DC/AC Panel Circulation for Heater Solar Water Pump System with Low Price

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information Overview

Model NO.

pump

Certification

ISO, CE

Application

Home, Industrial, Commercial

System Type

Home Solar Power System

Theory

Centrifugal Pump

Industry

Air Conditioning Pump

Media

Sea Water Pump

Production Capacity

1.2 Gw/Year

Product Description

DC AC Solar Pump system for Farm

Model	Voltage (V)	Power (W)	Max Flow (m³/h)	Max Head (m)	Outlet (in)	Diameter (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.8-100	24	270	1.8	100	3/4"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-70-33	288V	4000	70	33	4"	150

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
PV cables	4mm2, 400m	set	1

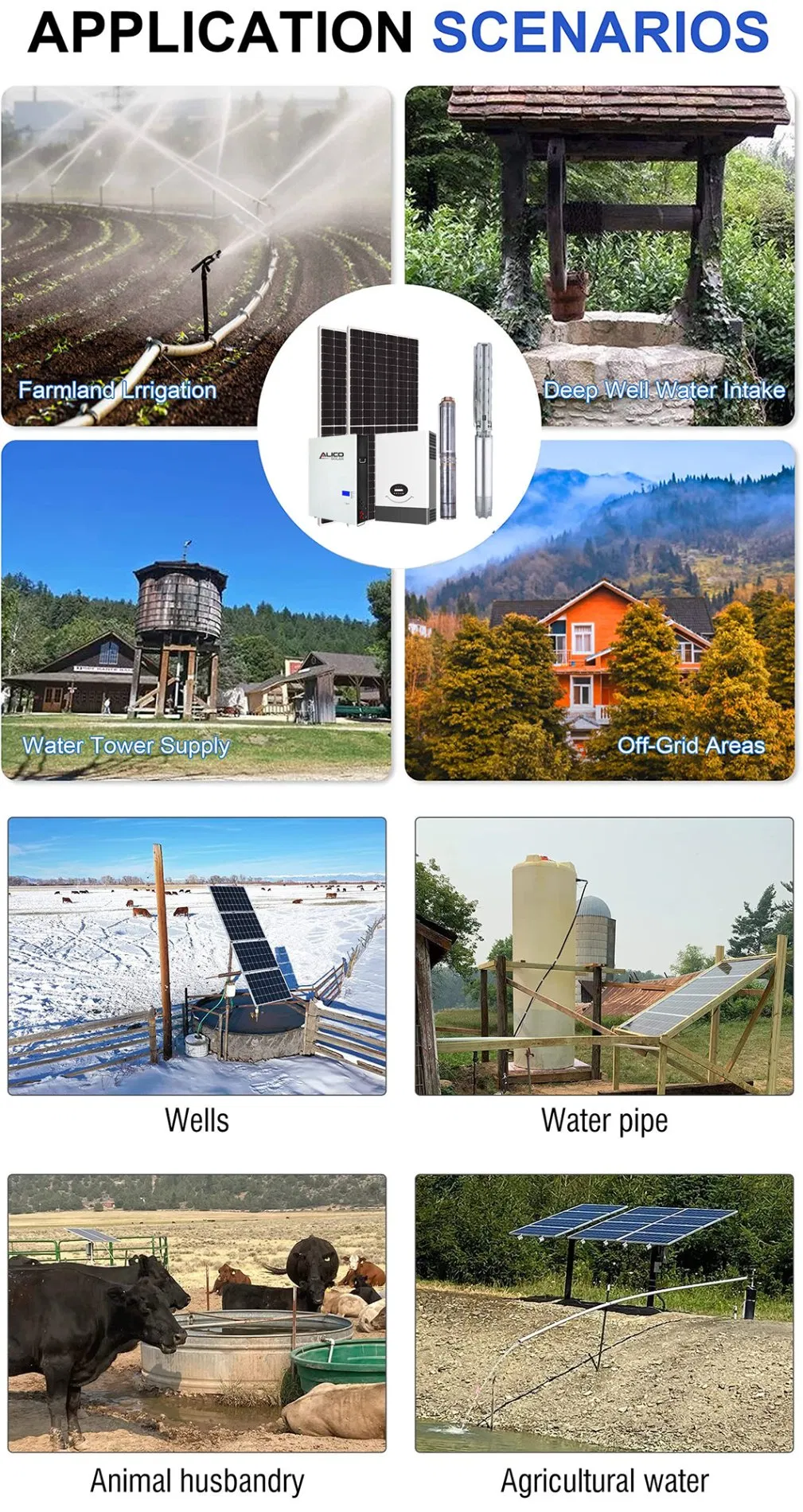

✓ AGRICULTURAL IRRIGATION
✓ ANIMAL HUSBANDRY
✓ DESERTIFICATION CONTROL

Solar pump systems are high quality products designed for drinking water supply, livestock watering and irrigation applications without any pollution. They utilize solar power directly, requiring no grid infrastructure, making them ideal for remote site selection.

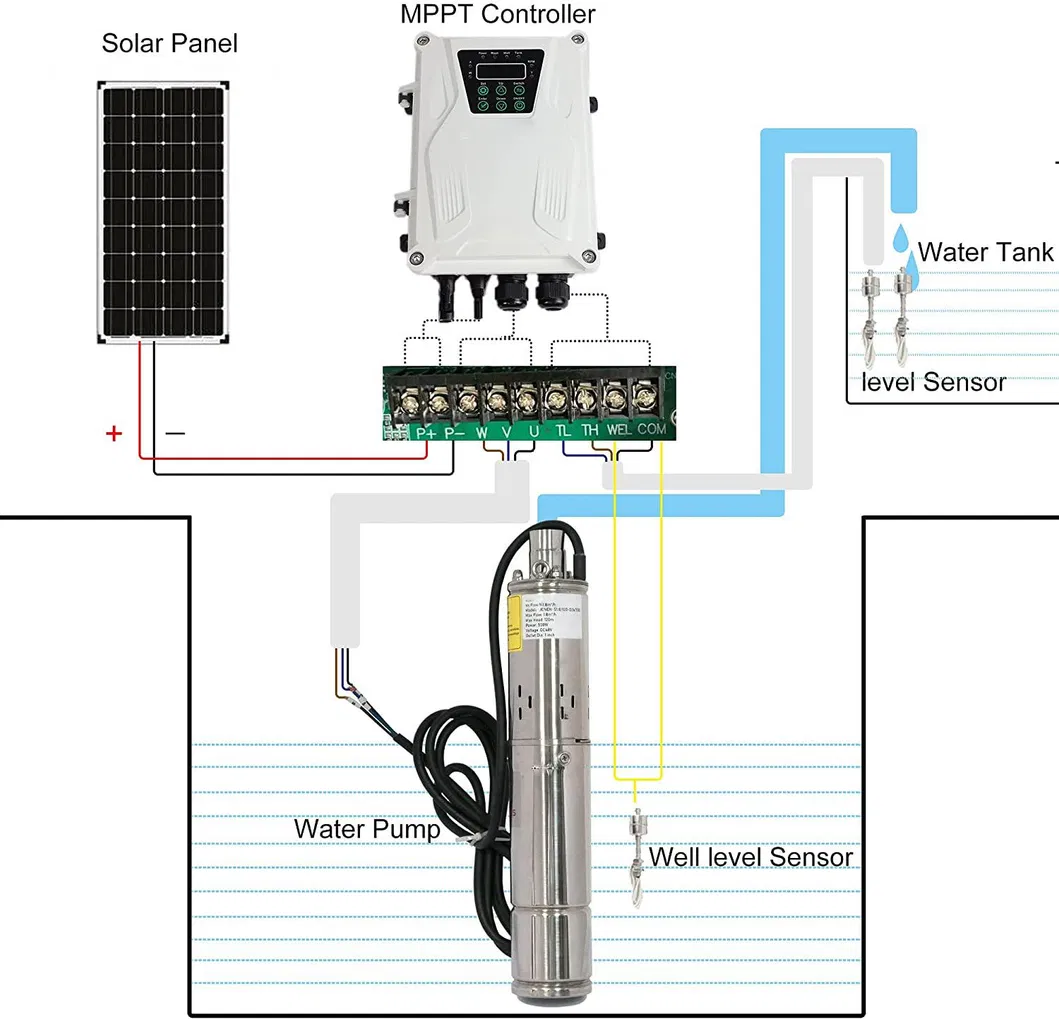

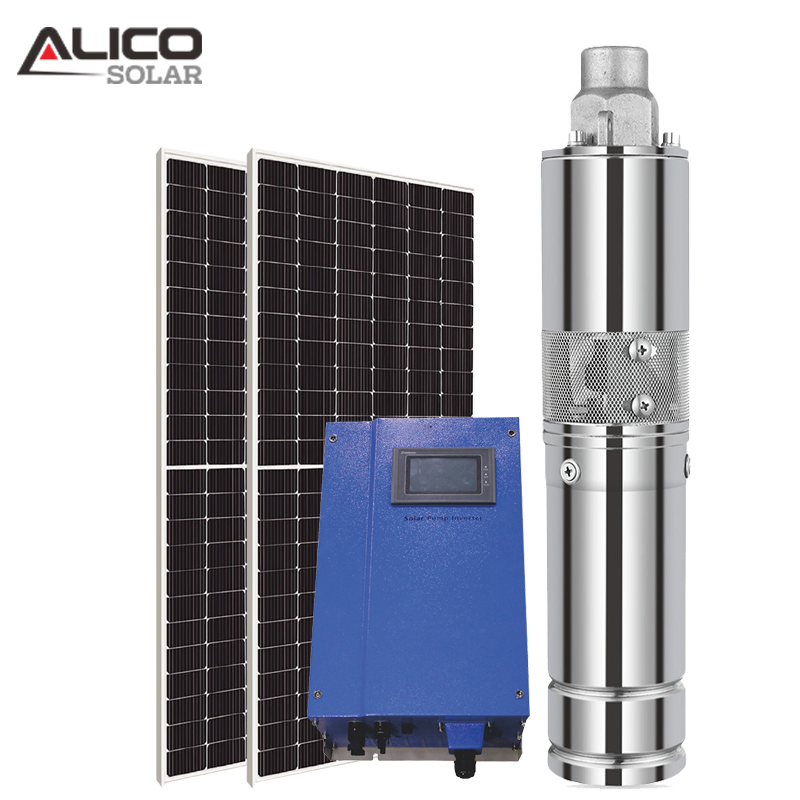

System Components

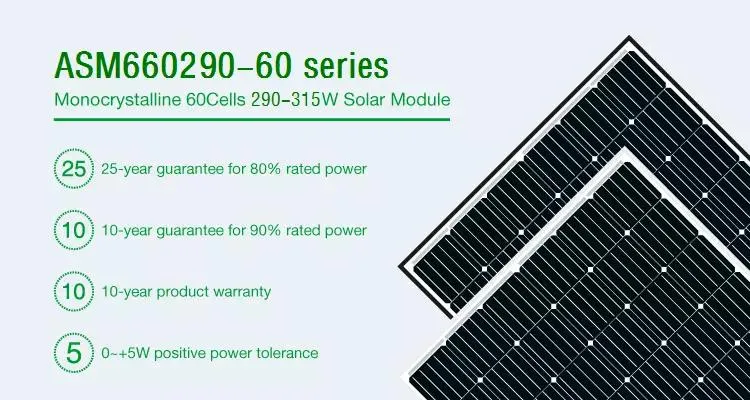

Mono Solar Panels
Peak Power: 290W
Dimensions: 1640×992×35 mm

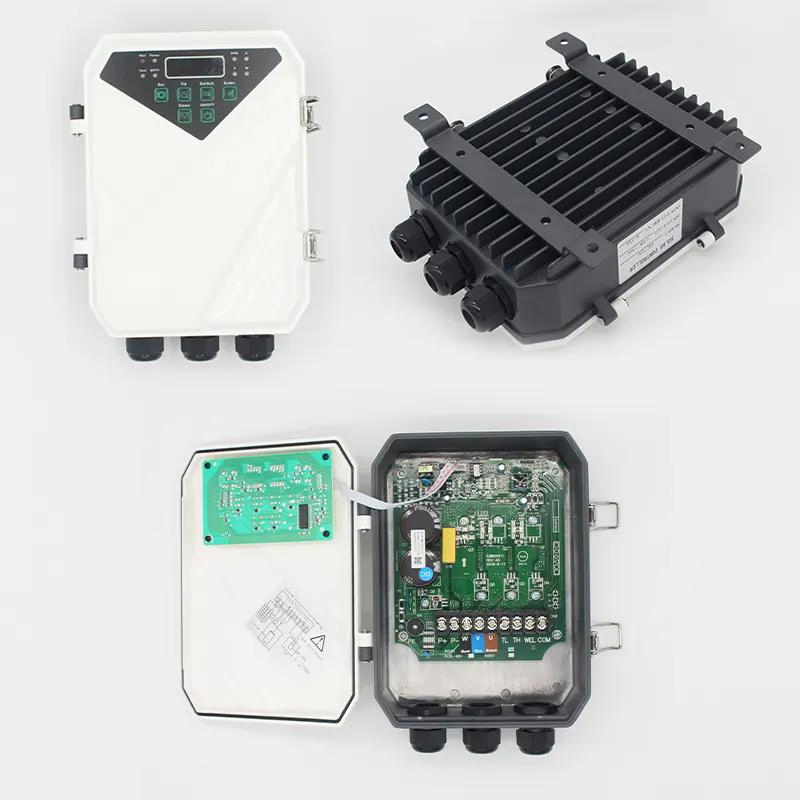

Pump Controller
Max Input: 8.5KW
MPPT Range: 90-520V

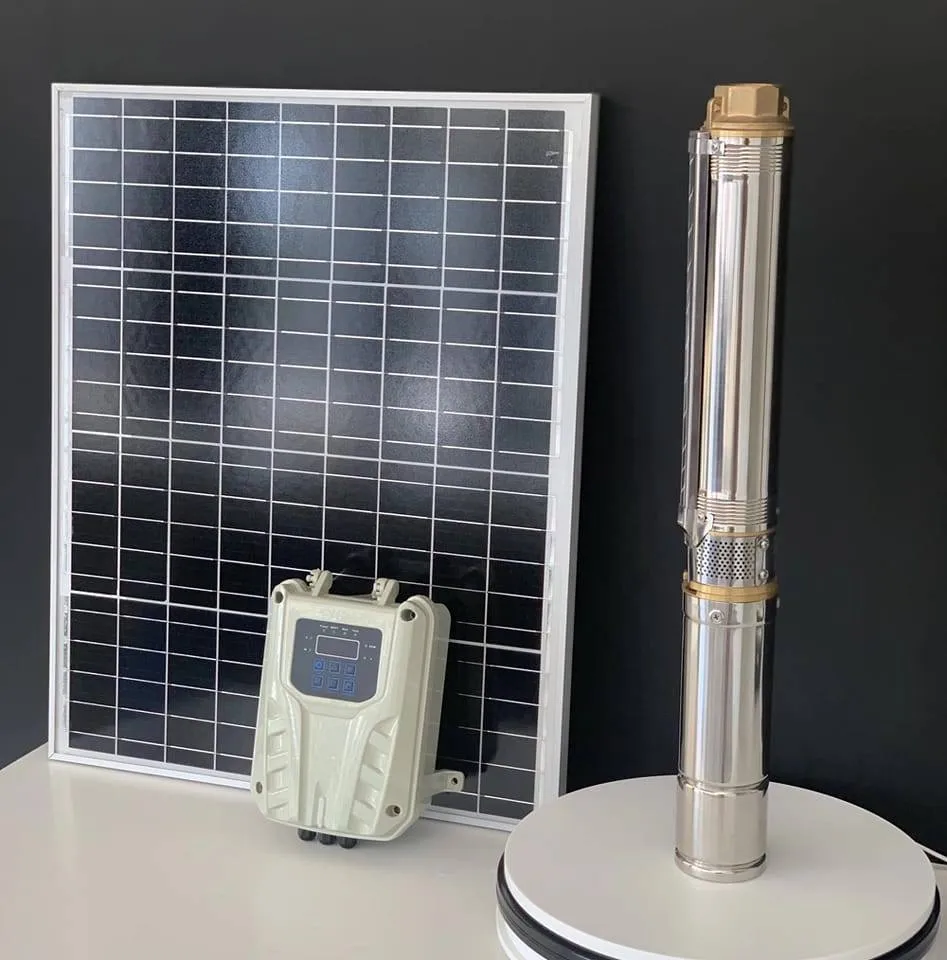

Submersible Pump
Material: 304 Stainless Steel
Power: 0.3-5HP

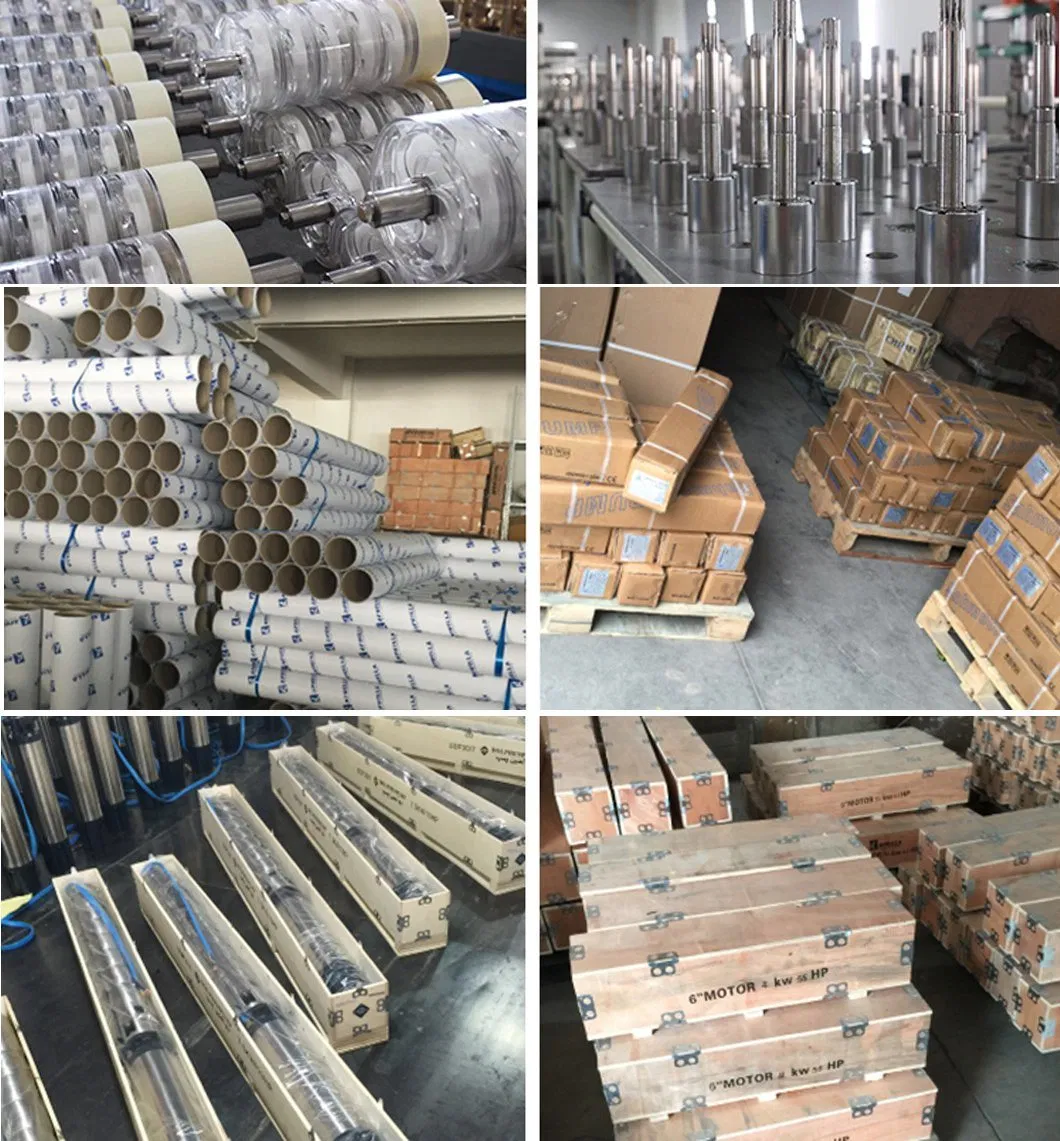

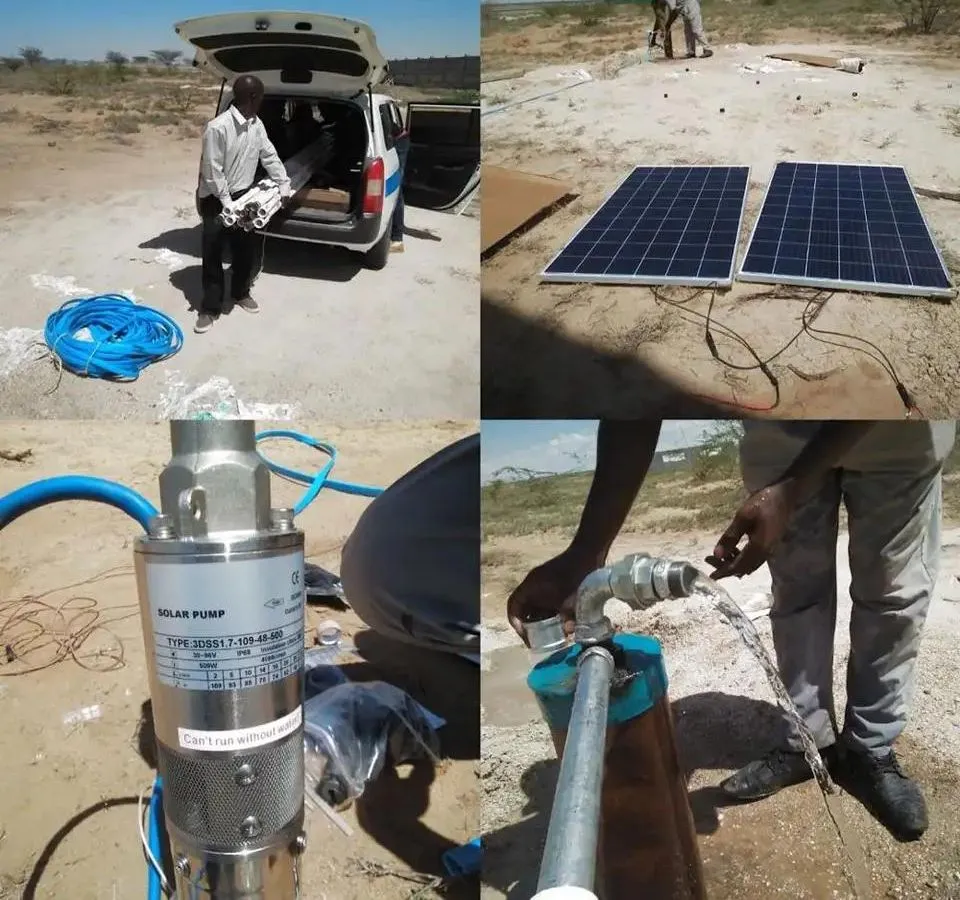

Projects & Packaging

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all of our inverters provide true pure sine wave output, which is as good as or better than the public power grid.

What's the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters are more reliable, have a longer lifespan, and are compatible with all appliances, including inductive loads like refrigerators and air conditioners. Modified sine wave inverters can negatively impact these appliances.

What kind of appliances can your inverters power?

Our inverters can be used for household, office, and agricultural appliances, including refrigerators, water pumps, and air conditioners.

How do I choose the right inverter for my needs?

Please provide your power requirements and appliance types to our sales team, and they will recommend the most suitable model for you.

Do I absolutely need a power inverter for a solar system?

It is not strictly required if you only intend to use DC battery power. However, if you want to use standard AC appliances (220V/230V), an inverter is essential.

What happens if a product is faulty?

If a product has a fault, you can provide a photo or video. We will analyze the issue and supply replacement parts like PCB boards free of charge for after-sales service.
