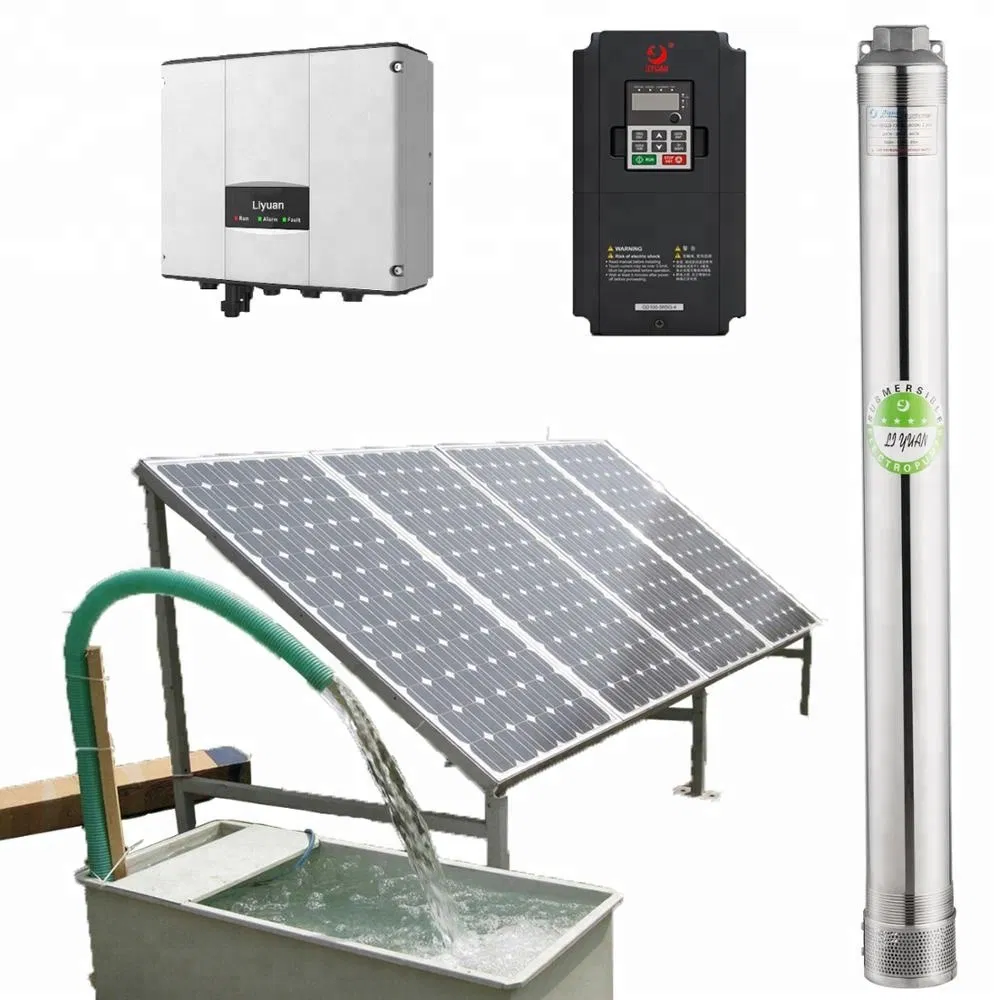

Solar Water Pumping System Price for Irrigation

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model
LY-Solar Pump
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Power
Electric / Solar
Media
Clean Water / Hot Water
Theory
Centrifugal Pump
pH Requirement
6.5-8
Frequency
50/60Hz
Rotation Speed
2850rpm
Voltage
220V-400V / DC 24V-280V
Origin
China

Agriculture Submersible Solar Pump

Solar Water Pumping System
Description Specifications
Pump SizeAC Solar pump: 3" to 12" | DC Solar pump: 3", 4"
Power Range0.3hp - 300hp
Voltage (DC)24V, 48V, 72V, 96V, 120V, 280V
Voltage (AC)110V, 220V, 380V, 410V, 440V, 480V
MaterialHigh-grade Stainless Steel
Controller TypesMPPT Inverter, AC/DC Controller, Multi-function Inverter

Technical Performance Chart

Model (Single/3 Phase) Power (HP/KW) Flow Rate (m³/h)
3 4 5 6 7
J150/7S / J150/71 HP / 0.75 KW39m36m31m26m22m
J150/13S / J150/132 HP / 1.5 KW71m67m63m50m41m
J150/18S / J150/183 HP / 2.2 KW105m100m90m70m57m
J150/427.5 HP / 5.5 KW233m225m207m166m132m
J150/5610 HP / 7.5 KW310m300m275m220m176m
Pump Details

Key Features & Advantages

Standard Quality: Fully CE standard approved for international safety.
Enhanced Durability: Thicker pipe walls compared to standard market products.
Premium Components: High-quality bearings (NSK, SKF options available).
100% Brass Motor: Efficient 100% brass wire with deeper slots for optimal cooling.
Customized Solutions: Special versions available for acidic or alkaline water.
Quick Delivery: Standard lead time of 7-15 days depending on quantity.

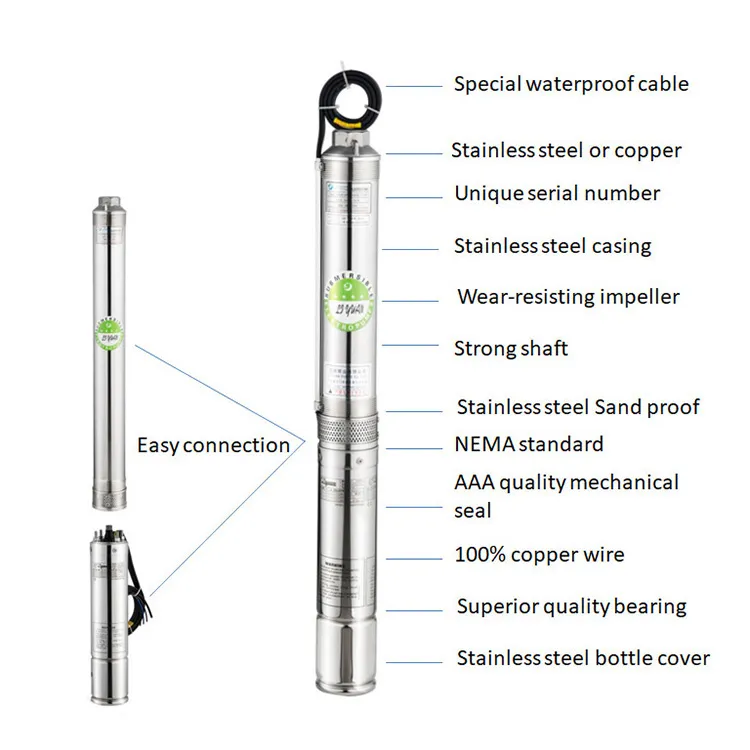

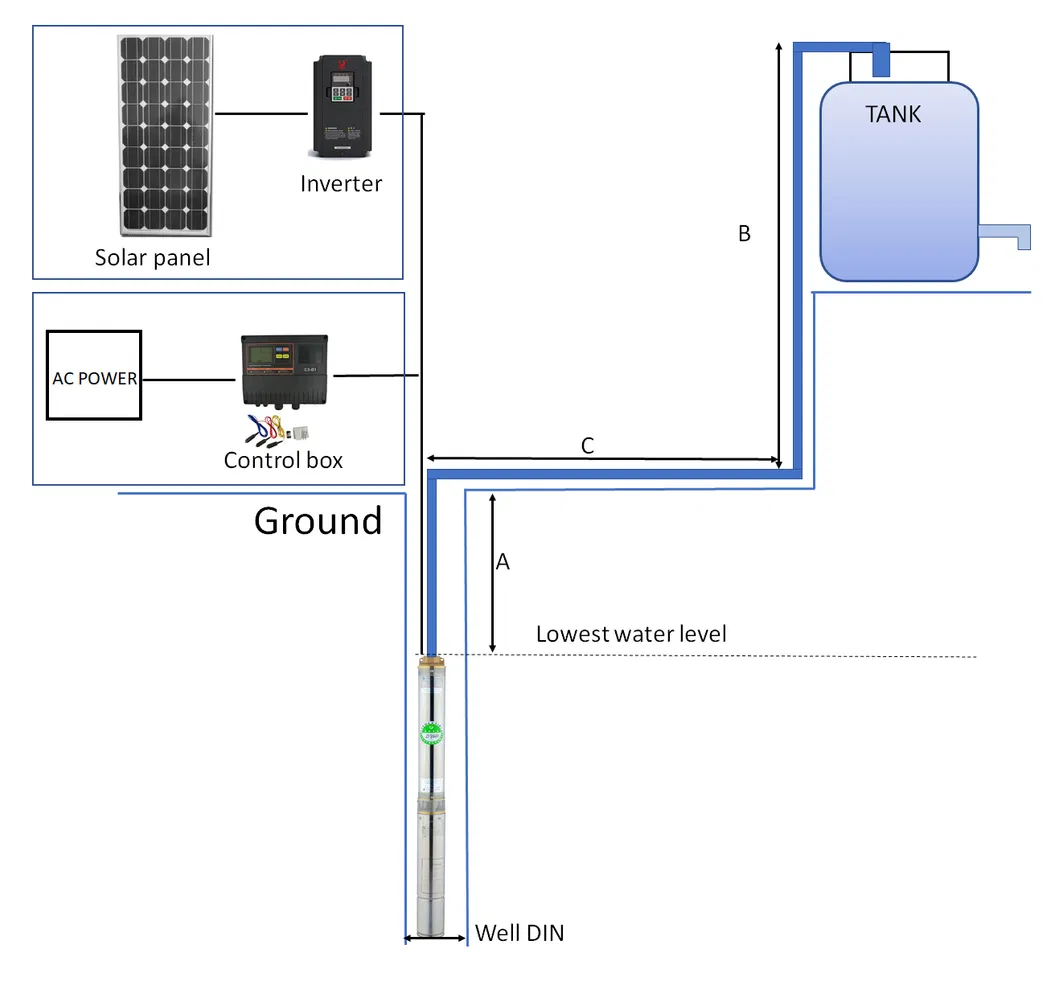

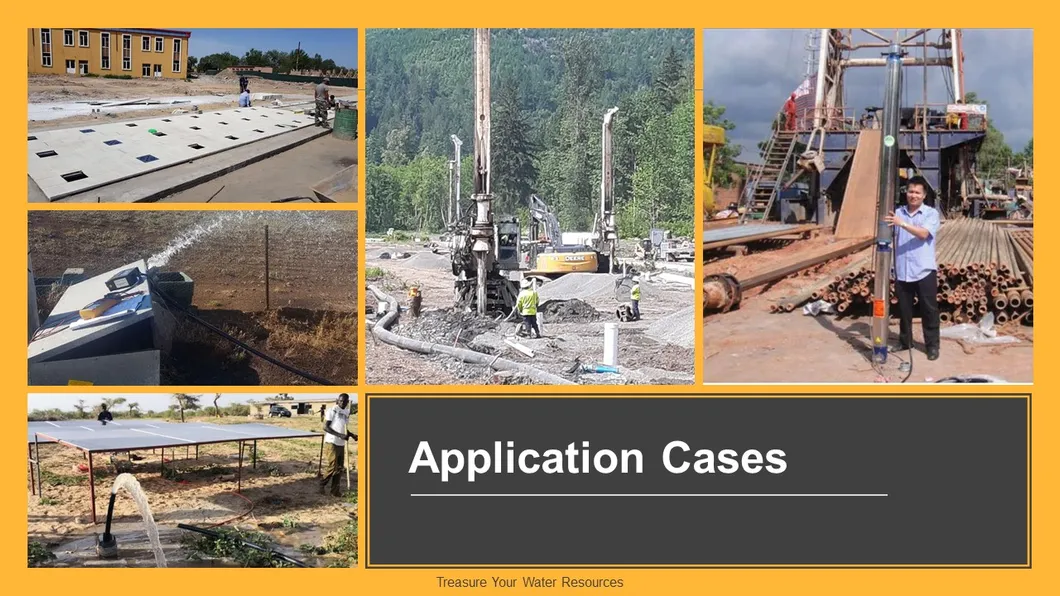

Application 1 Application 2 Application 3

Frequently Asked Questions

What materials are used for the submersible pump?
The pumps are primarily constructed from high-quality Stainless Steel, with hull material options including Cast Iron and Brass for specific parts.
Can these pumps be used for hot water or acidic conditions?
Yes, the system supports clear water and hot water. We also offer customization for acidic and alkaline water environments.
What power sources can drive this solar water pump?
The system is versatile and can be powered by Solar energy alone or a combination of Solar and Electric (AC/DC).
What is the typical delivery timeframe for an order?
Our standard lead time ranges from 7 to 15 days, depending on the specific order quantity and customization requirements.
Does the pump come with a controller?
Yes, we provide several controller options including MPPT AC Inverters, Multi-function all-in-one Inverters, and specialized DC/AC-DC controllers.
What is the maximum power and depth capacity?
Power ranges from 0.3hp up to 300hp. The deep well multistage structure allows for significant head capacity, reaching over 300 meters for high-power models.
