| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, pump cable connector, etc | set | 1 |

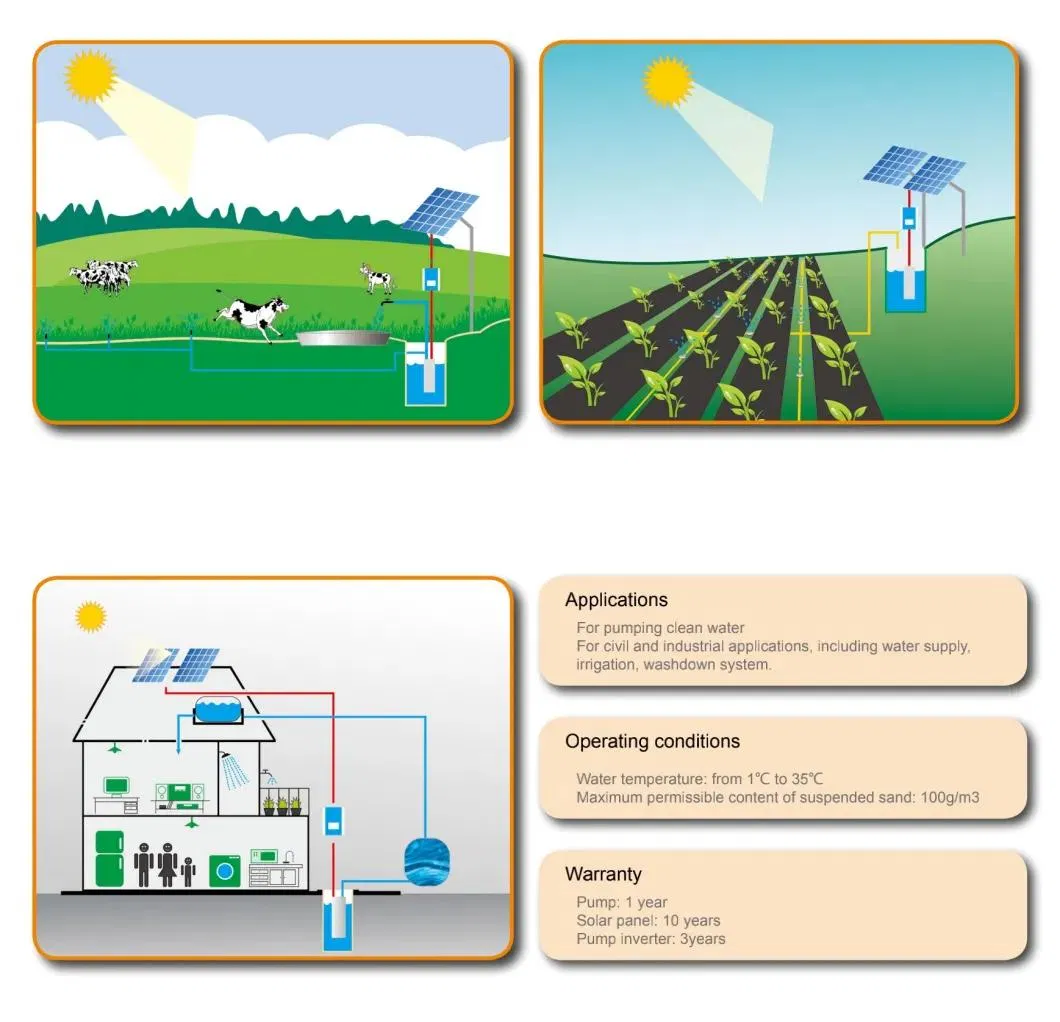

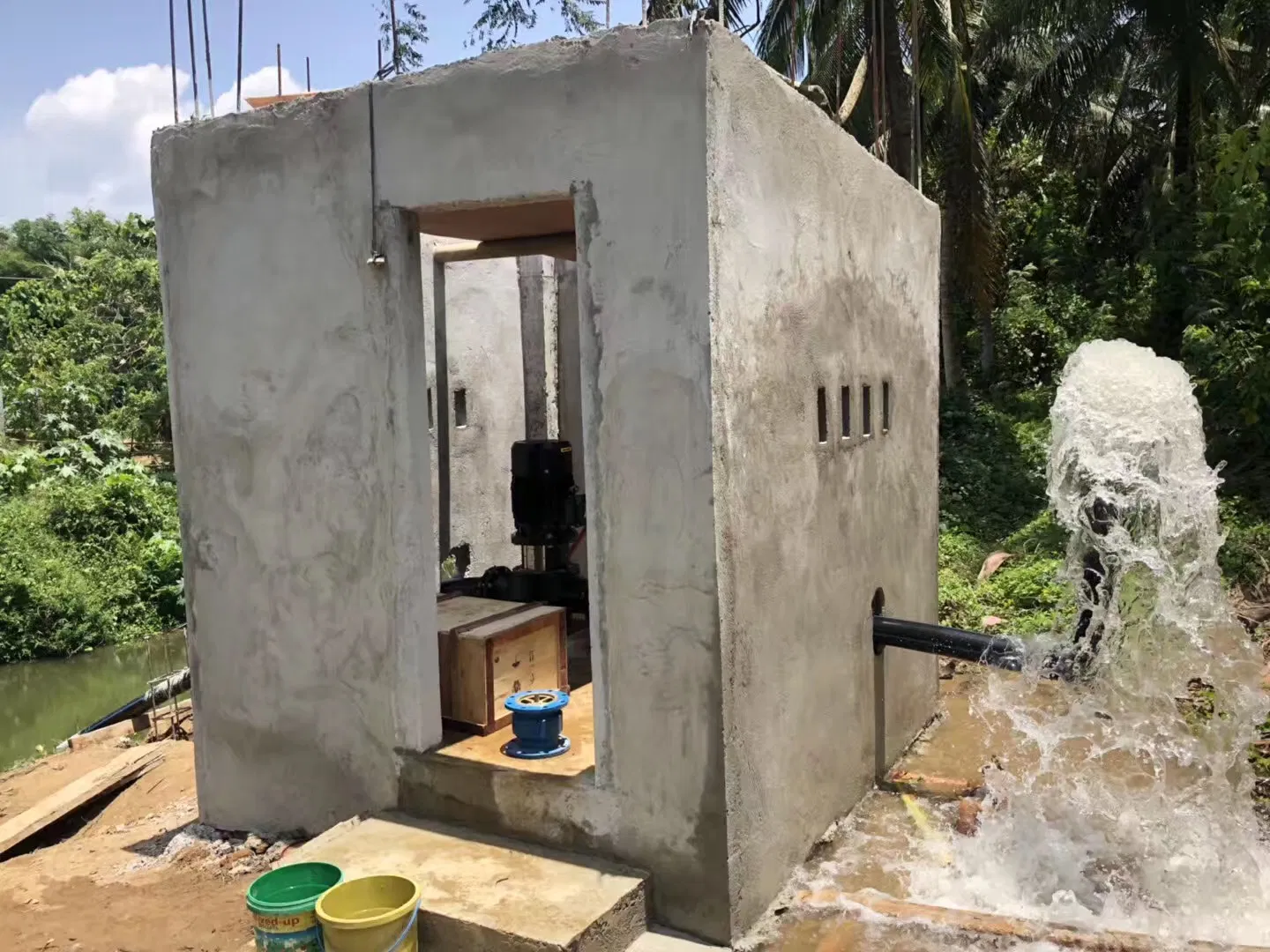

Solar power system has a wide range of applications, such offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea island, animal husbandry, and water treatment projects.
With the promotion of new energy utilization, recently the usage of solar water pump is increasing. You can find them in government projects, landscape architectures and fountains of city squares, parks tourist attractions, hotels and residential areas.
Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution.

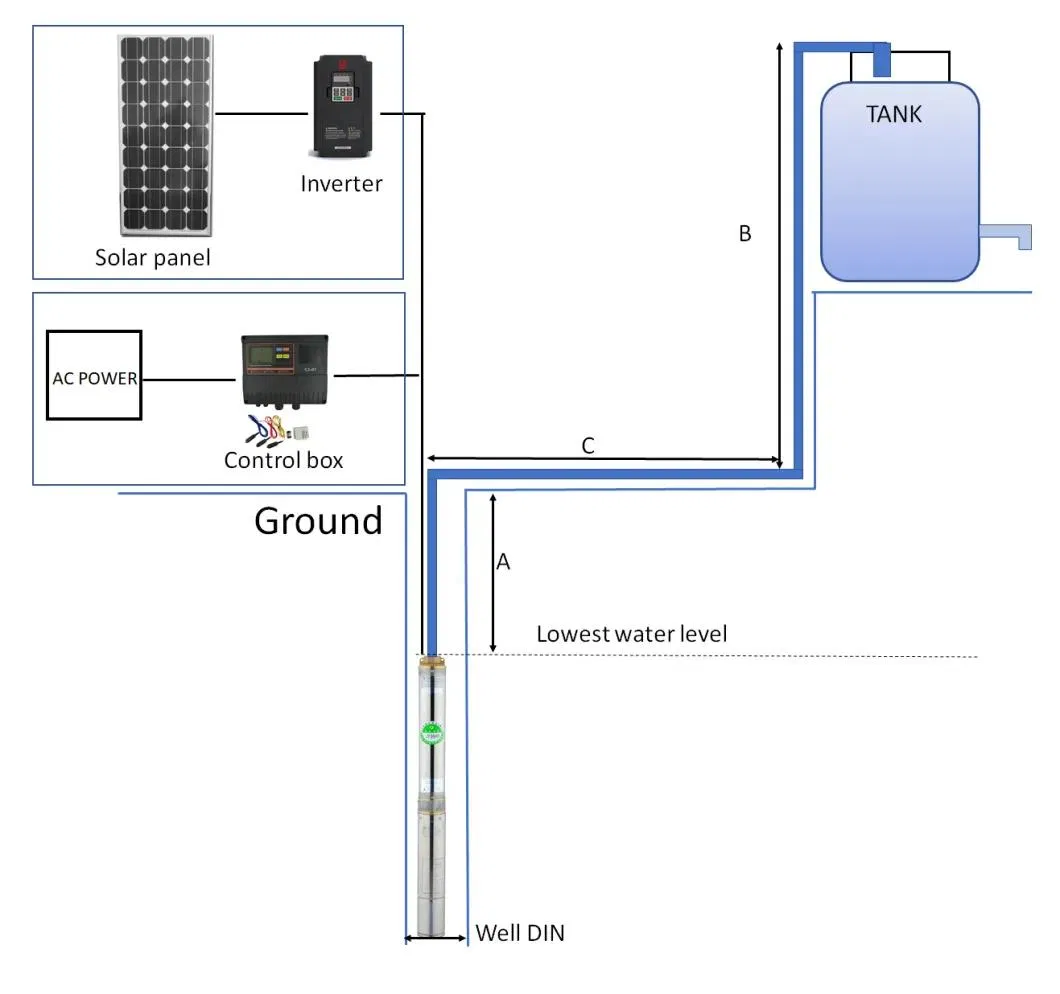

Specially designed to use solar power directly, no infrastructure or grid is required for site selection. An optional grid can be used as a back-up to meet day and night running without disturbance.
Peak Power Watts: 290W
Max Power Voltage: 32.2V
Max Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

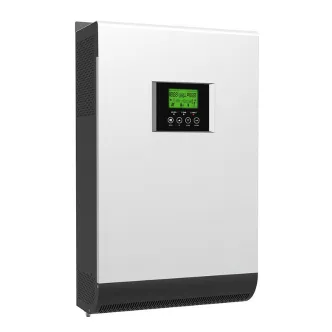

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V / 230V

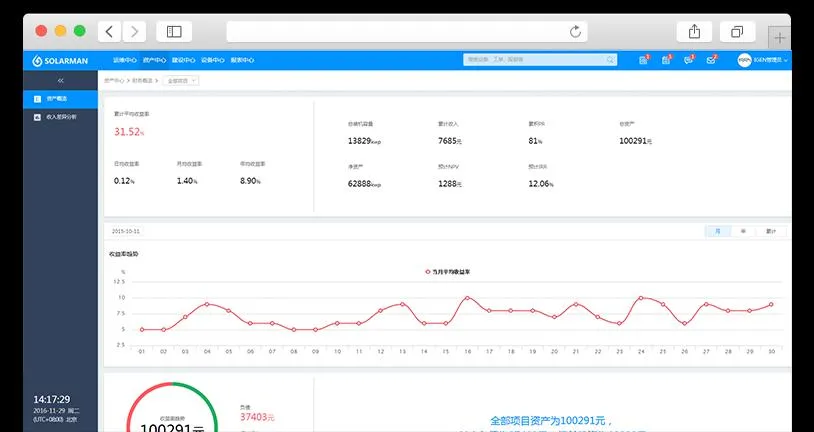

Wifi/Lan/GPRS Monitoring Optional.
Data Logging Stick for real-time information via web server. App available for PC, iOS & Android to keep you informed about system and atmosphere conditions.

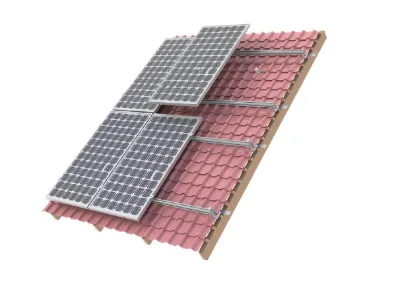

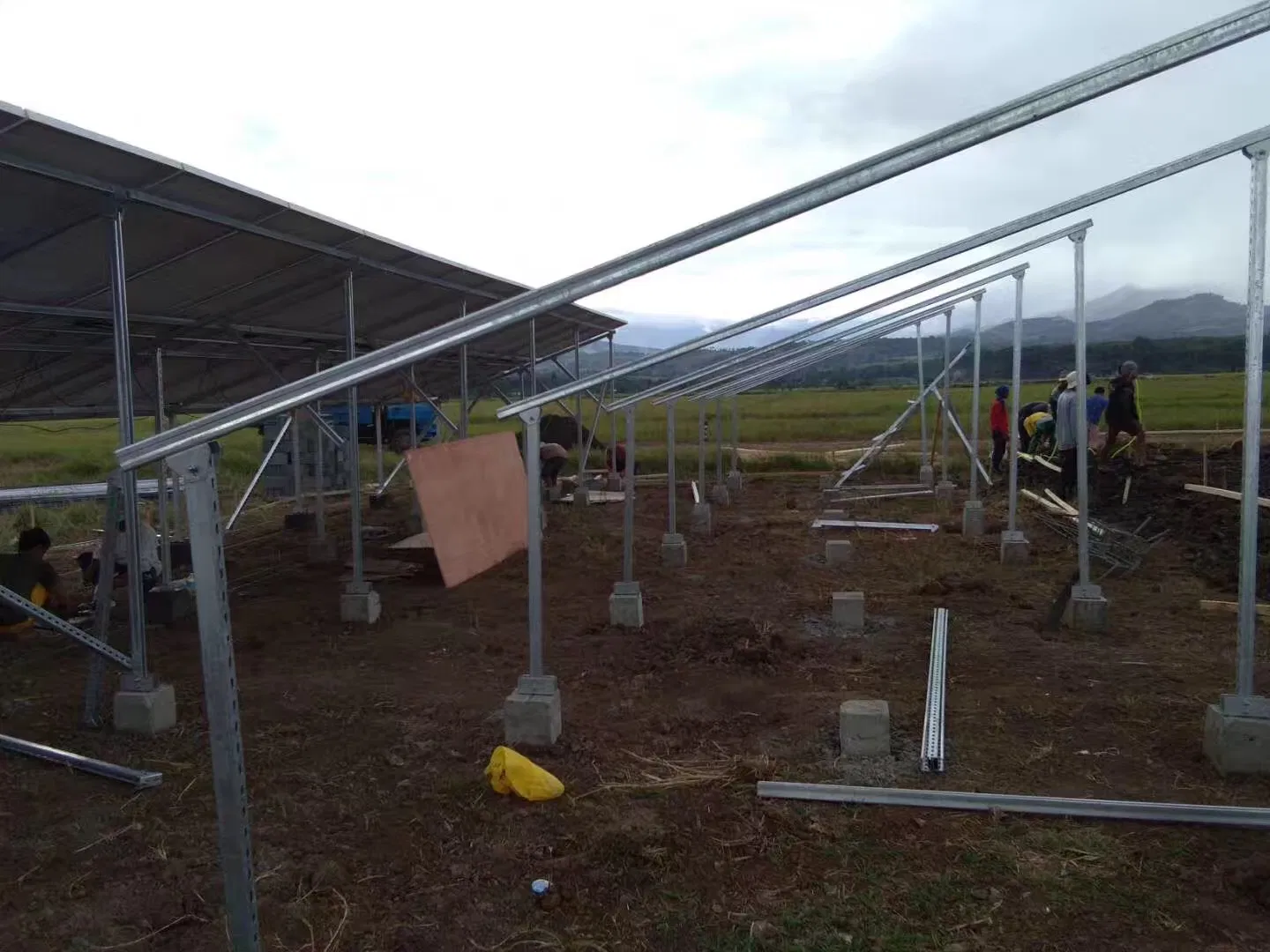

Mounting Rail & Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35-50mm.
L Foot & Ground Clip options available.

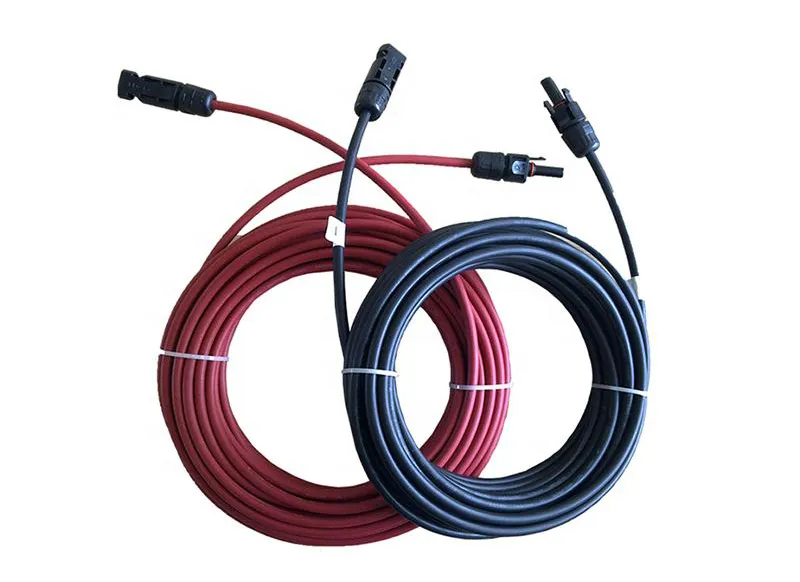

Cross Section: 4mm2, 6mm2.
Rated Voltage: 600VDC / 1000VDC.
Rated Current: 55A, 70A.
Designed for 25 years lifetime.

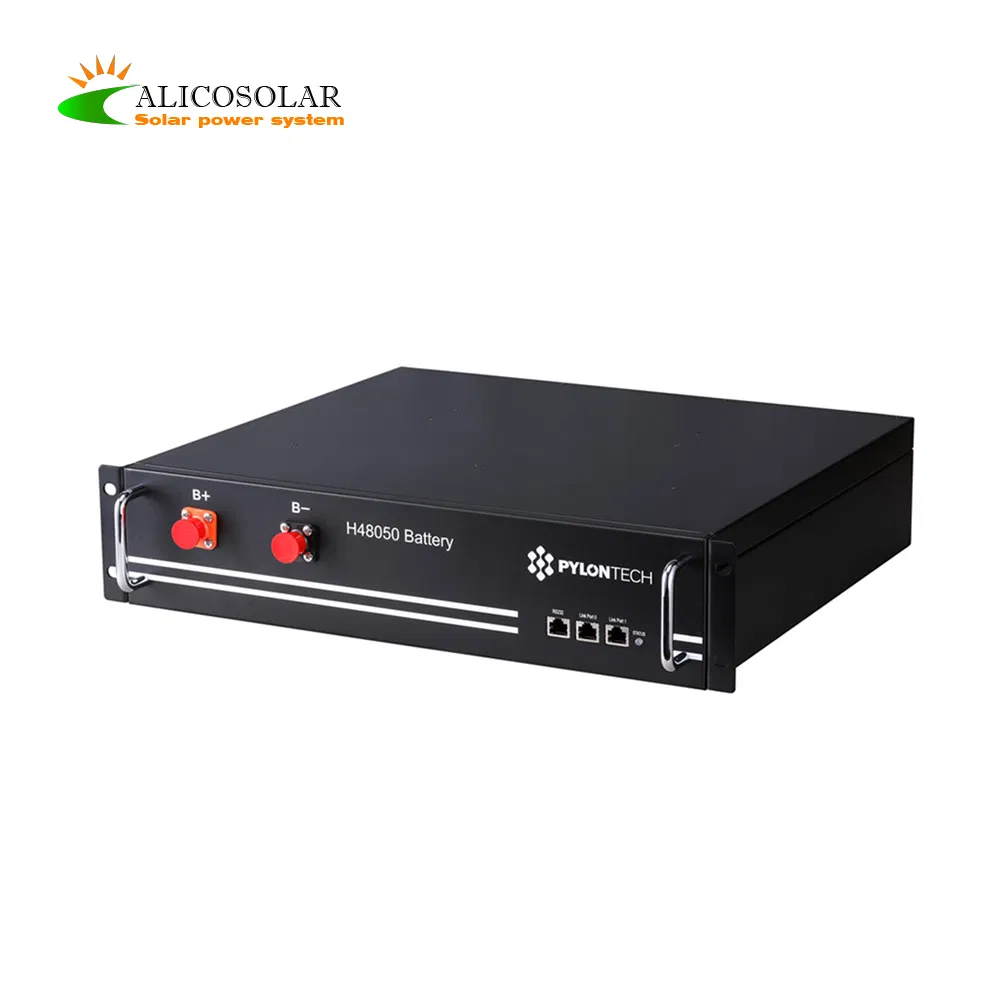

48V 100Ah Lithium solution.
Standard dimension: 4-5U rack size.
Reliable energy storage for system backup.
