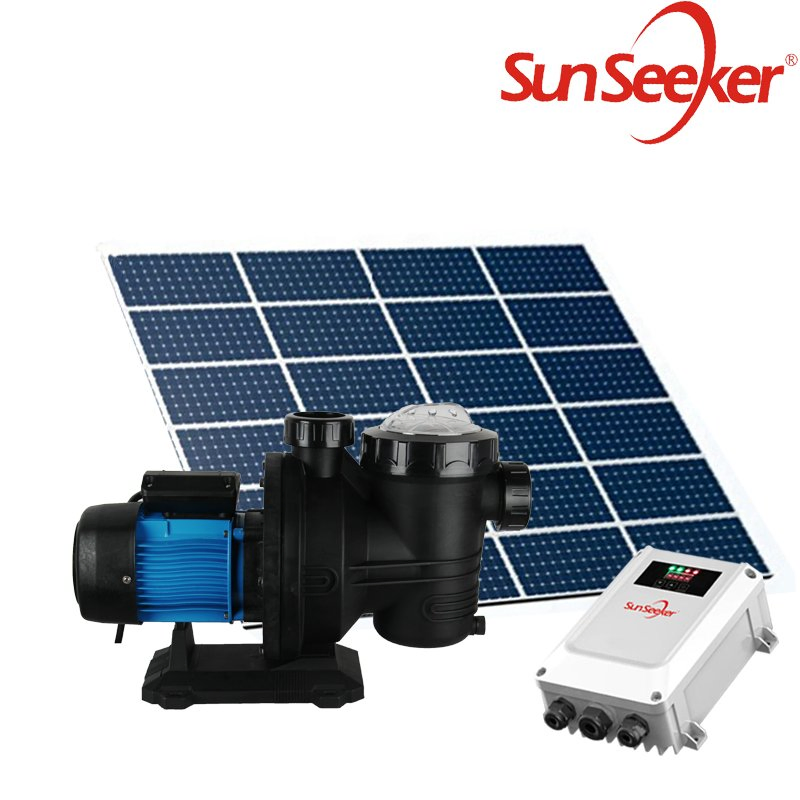

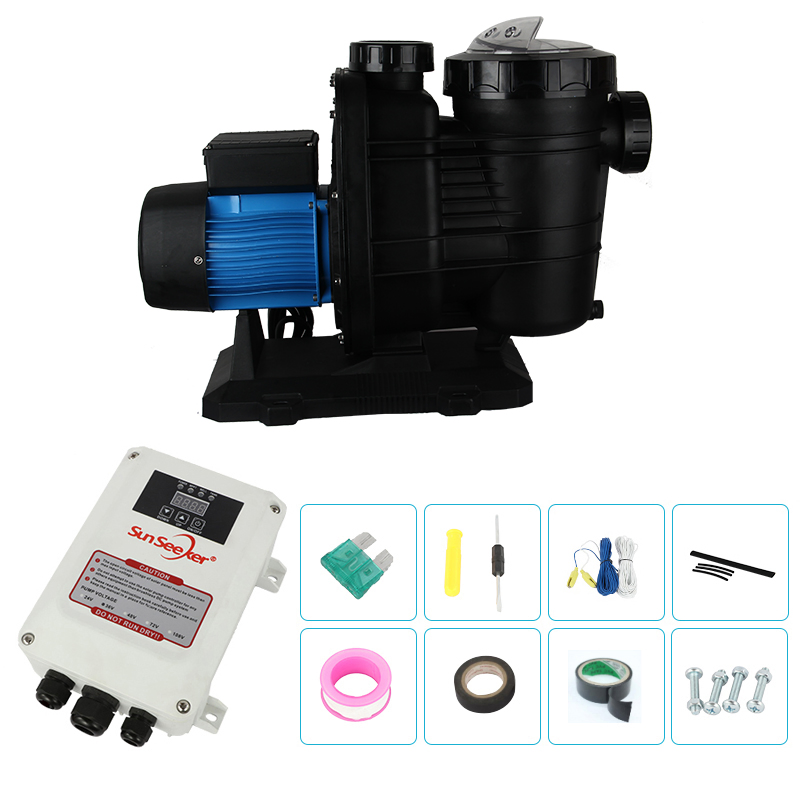

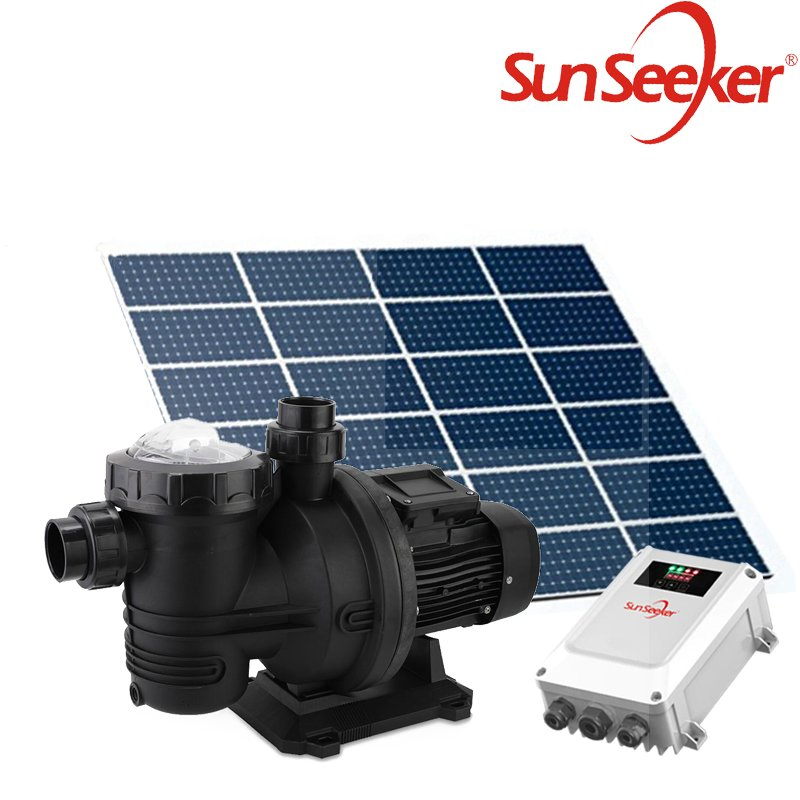

Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
1 / 5
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System
Solar Powered Surface Swimming Pool Pump System

Solar Powered Surface Swimming Pool Pump System

Customization: Available
Max.Head: 80-110m
Max.Capacity: <50 L/min
Send Inquiry

Product Description

Basic Specifications
Model NO.ZJP17/15-D48/500
Driving TypeMotor
MaterialStainless Steel
StructureCentrifugal Pump
Power SourceSolar
Start UpElectric Pump
Wattage750W
Production Capacity5000PCS/Month
Product Description

Solar water pump consists of solar panel system, PV water pump controller system and pump.

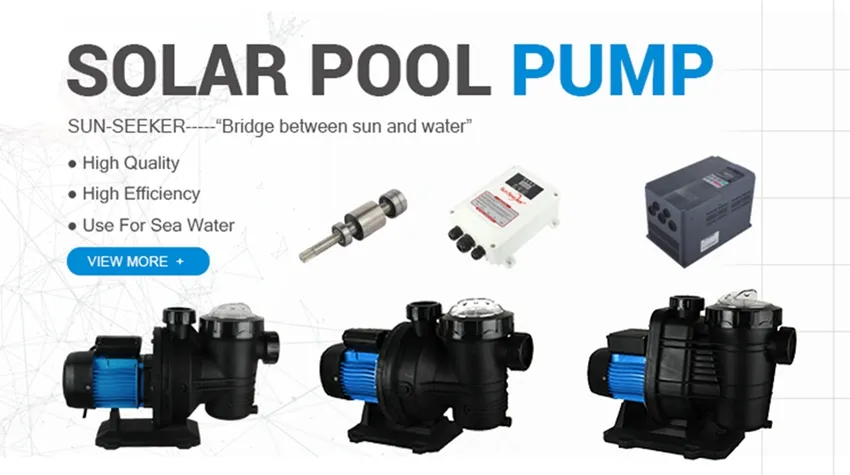

Solar Pump System Overview

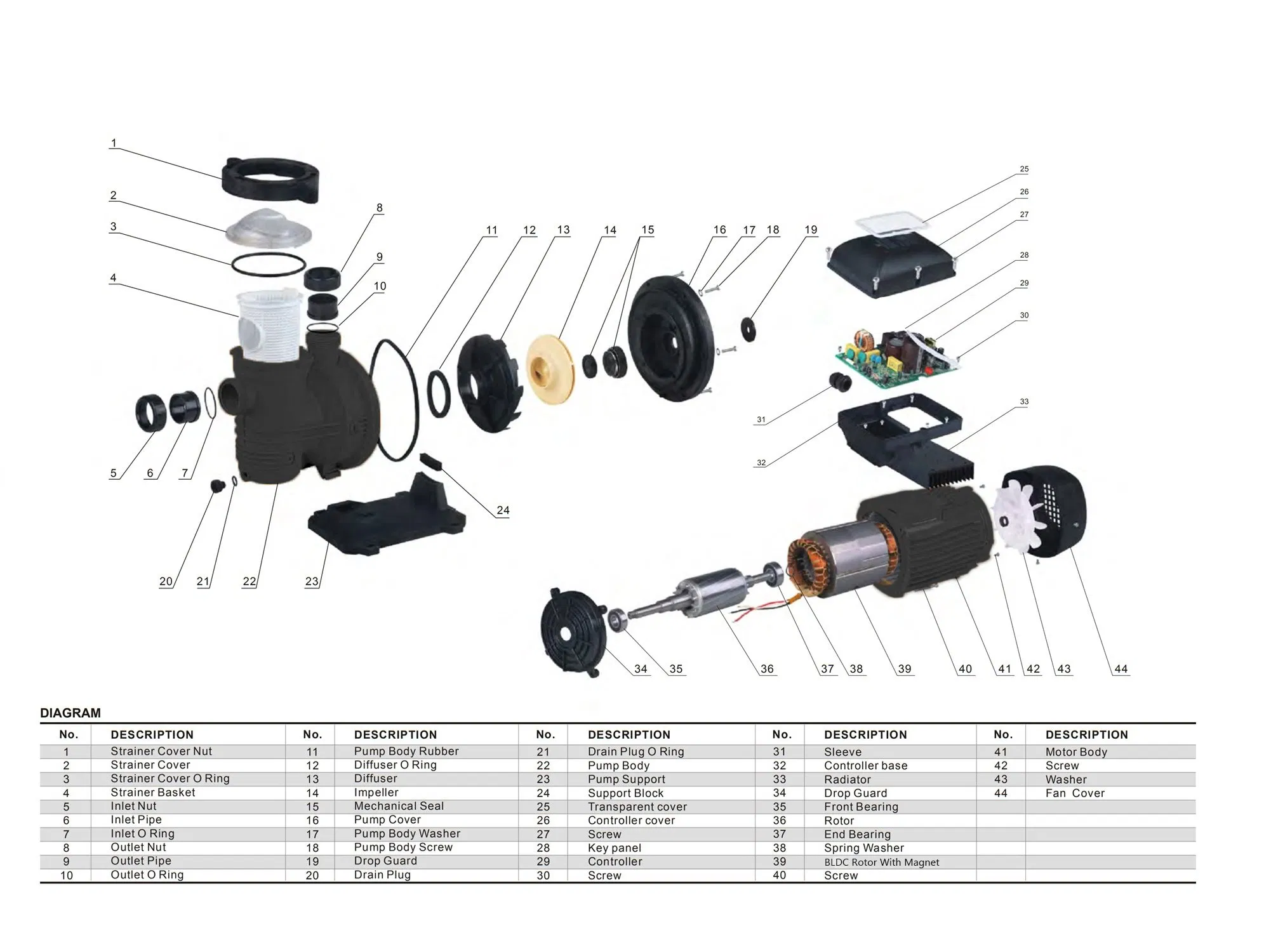

Solar Pump Details
Service Capabilities
  • No MOQ required, Most solar water pumps ready in stock (fast lead time)
  • Two Years Warranty
  • Experienced manufacturer of over 15 years
  • Manufacture more than 50,000pcs per year
  • Exported more than 60 countries
How to choose the right pump

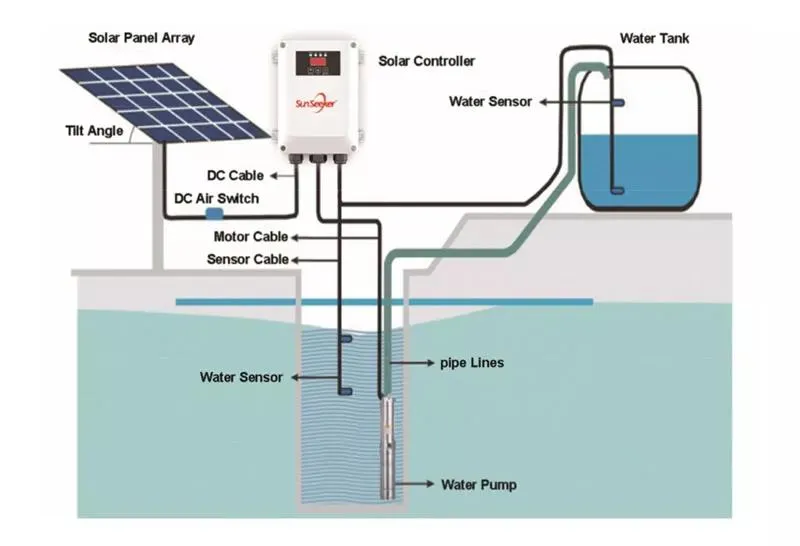

Pump Selection Diagram
Basic data for selecting a pump:
  1. Water source: Borehole (Diameter_____mm)
  2. Average daily water demand (_____L/hour)
  3. H1 (Lift from lowest water level to ground): ____m
  4. H2 (Tank height from the ground): _____m
  5. L (Horizontal distance of water well to tank): _____m
  6. Total head = H1+H2+(L*10%)
Selection Chart
Recommended Products

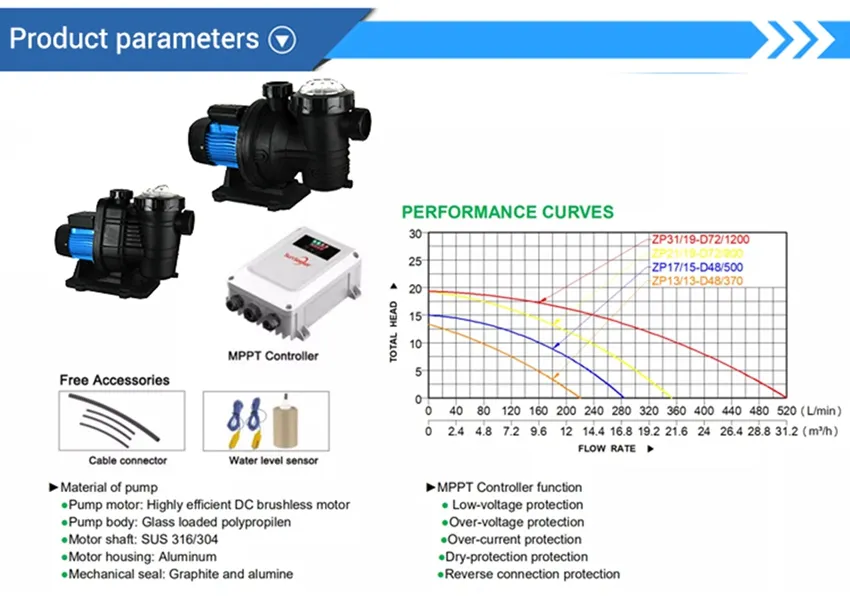

Recommended Models
Model Impeller Voltage (V) Power (W) HP Max Flow (m³/h) Max Head (M) Outlet (inch) Solar Panel (W)
ZP17-15-D48-550 Plastic 48 500 0.75 17 15 2"x2" 800
ZP21-19-D72-900 Plastic 48 900 1.2 21 19 2"x2" 1200
ZP31-19-D72-1200 Plastic 72 1200 1.5 31 19 2.5"x2.5" 1980
Application Area & Advanced Technology

Mainly used in residential and commercial swimming pools and spas.

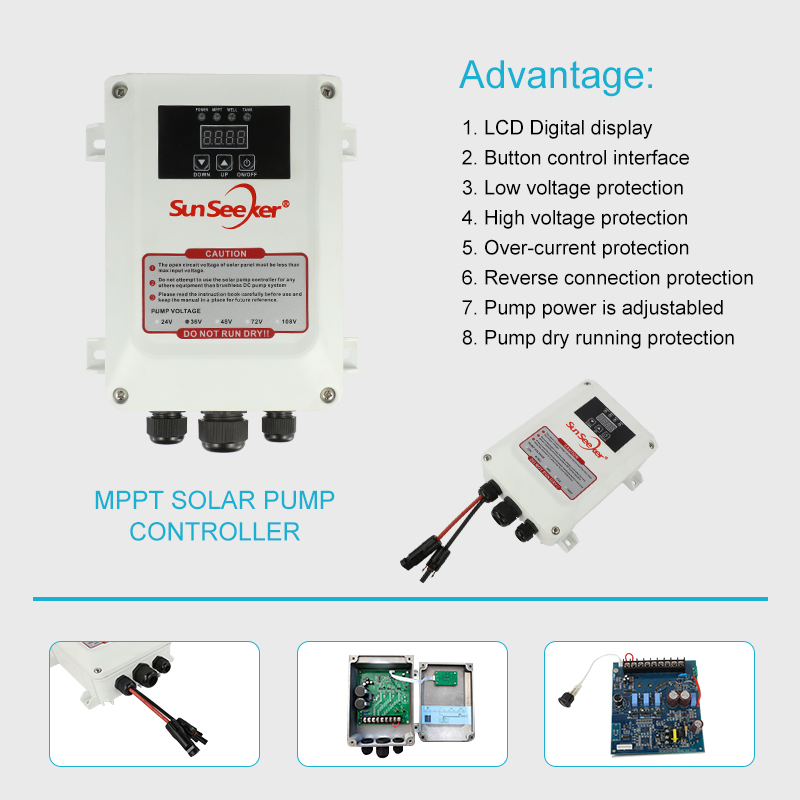

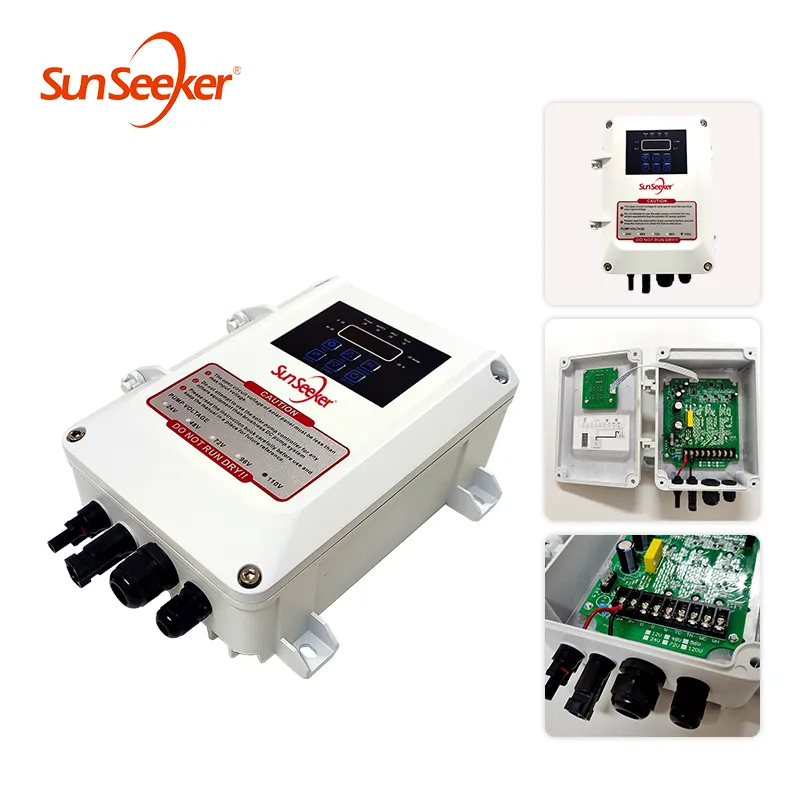

MPPT Controller
MPPT Controller Functions
  • Low-voltage / Over-voltage protection
  • Over-current protection
  • Dry-run protection
  • Reverse connection protection
  • VOC Range: 24V(26-50V) | 48V(50-100V) | 72V(76-150V)

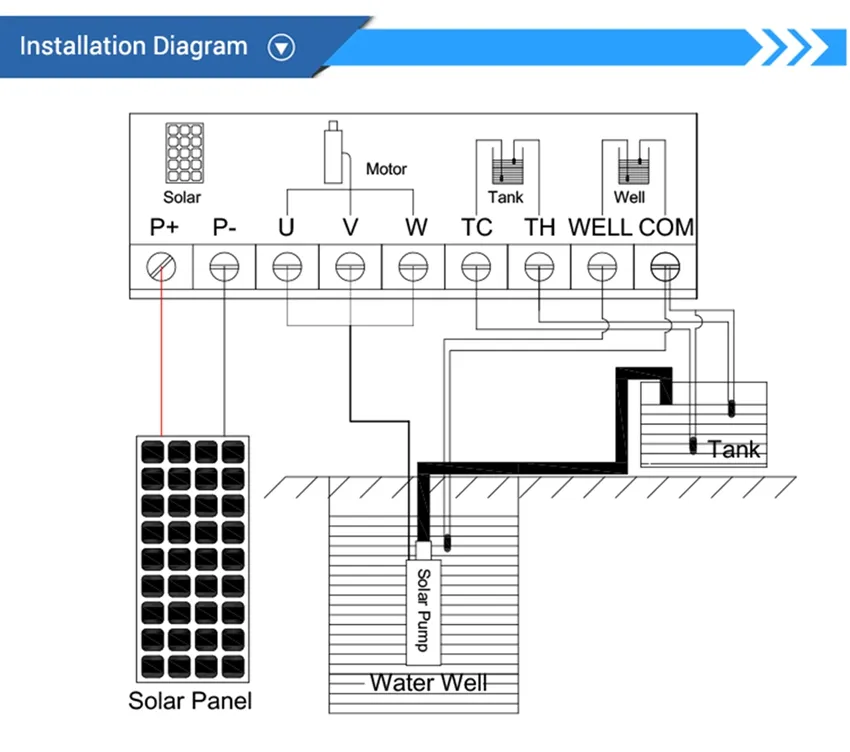

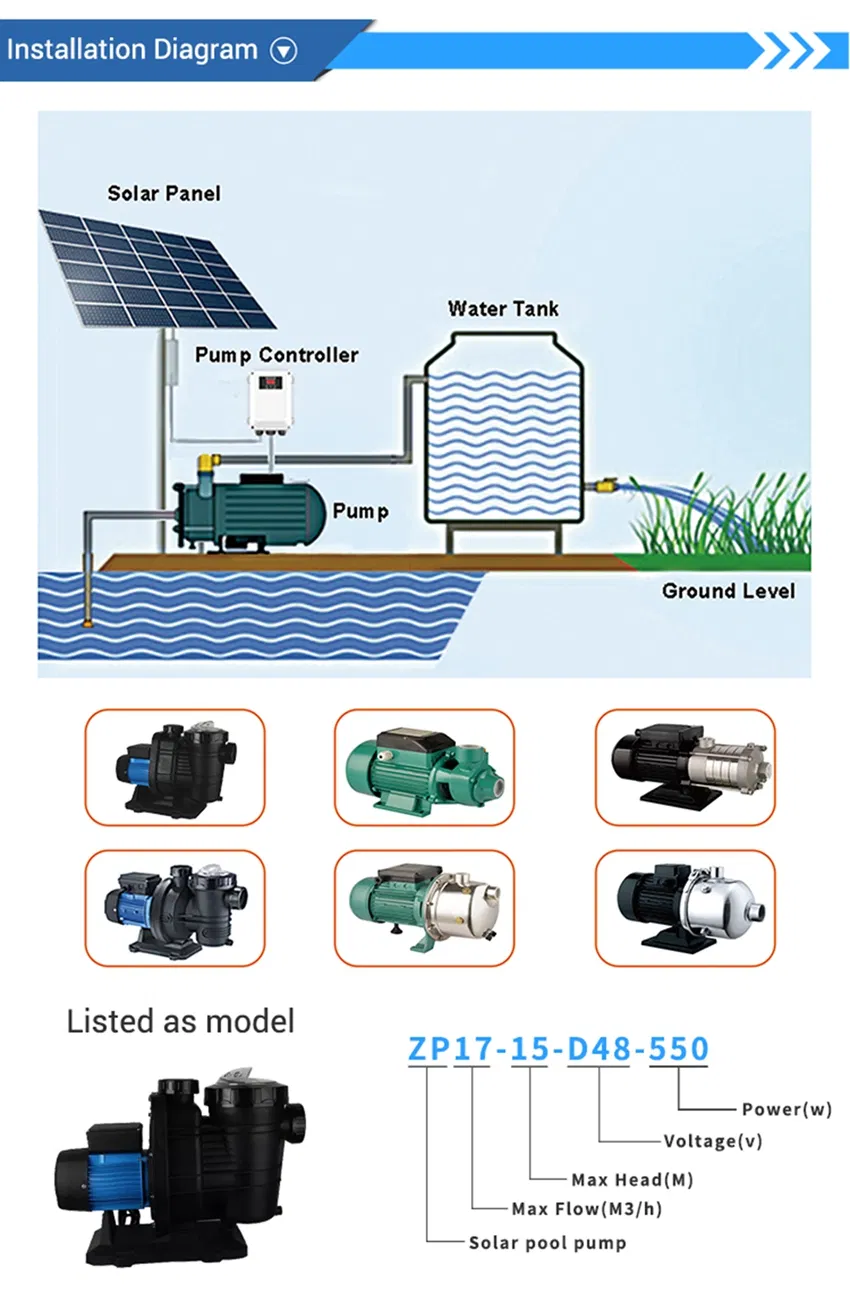

Installation Diagram
Installation Guide

The solar controller stabilizes the voltage and output power to drive the pump motor. Even on cloudy days, it can pump 10% water flow per day. Sensors automatically stop the pump when the tank is full or the source is dry.

Installation 1

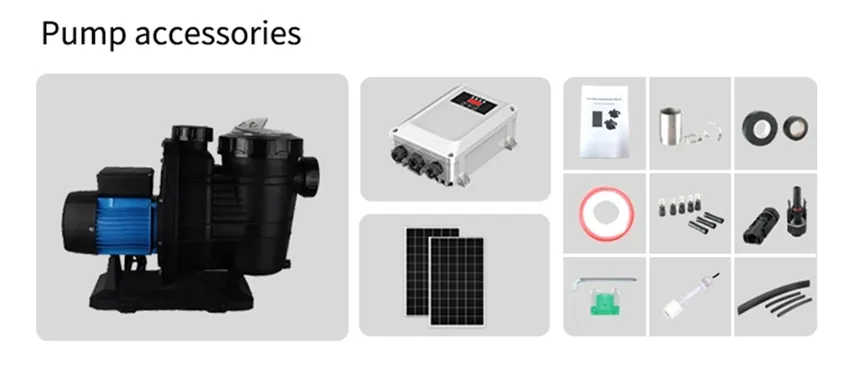

Installation 2
Quality Assurance & Packing
Certifications
Exhibition
Packing
Frequently Asked Questions
Q: Are you a manufacture or trading company?
A: We are a professional manufacturer specialized in solar brushless DC pumps.
Q: Which payment methods do you accept?
A: We accept T/T, L/C, D/P, PayPal, and Alipay.
Q: What is the Minimum Order Quantity (MOQ)?
A: For trial or sample orders, 1 piece is available.
Q: What is your delivery time?
A: Sample orders for regular models can be sent within 2-3 days. Bulk orders are typically shipped within 10-15 days.
Q: What about the product warranty?
A: We provide a three-year warranty for all solar pumps.
Q: Can you supply a complete solar pump system?
A: Yes, we can provide the entire system including solar panels, PV boxes, mounting structures, and cables.
