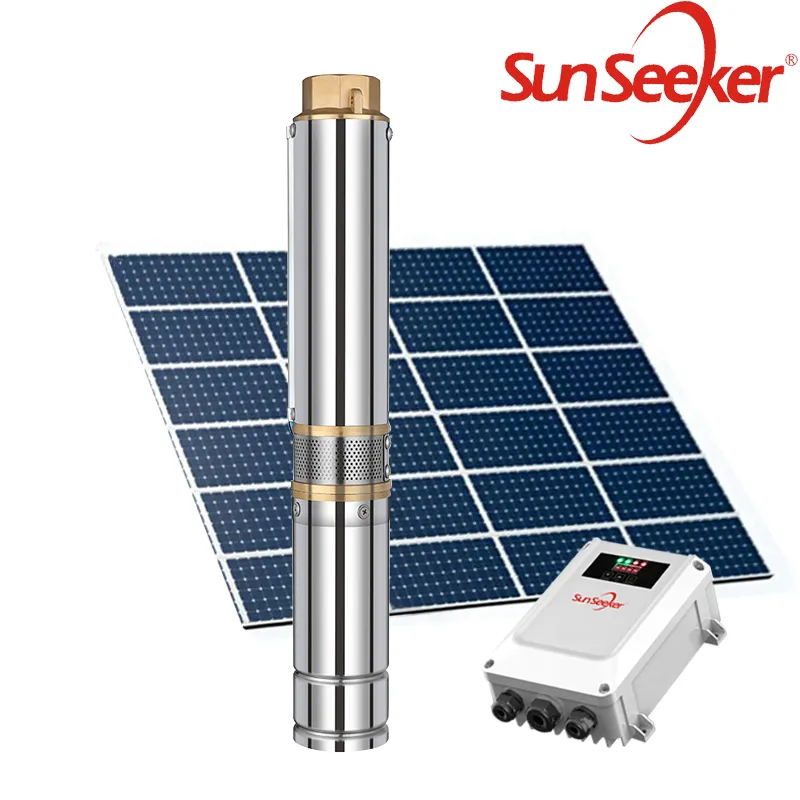

Versatile Solar Submersible Pumping System for Garden Irrigation

Customization:	Available
Max.Head:	50-80m
Max.Capacity:	<50 L/min

Product Overview

Model NO.

4ZPC9/72-D72/1300

Driving Type

Motor

Material

Stainless Steel

Structure

Screw Pump

Power Source

Solar

Pump Type

Submersible Jet Pump

Application

Irrigation & Deep Well

Origin

China

HS Code

8413709190

Capacity

5000 PCS/Month

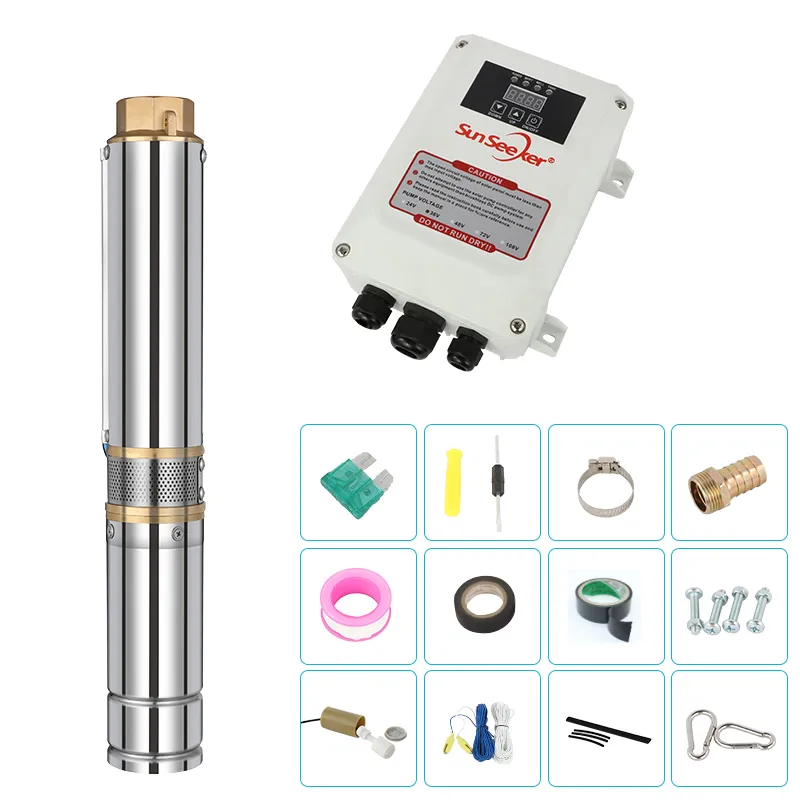

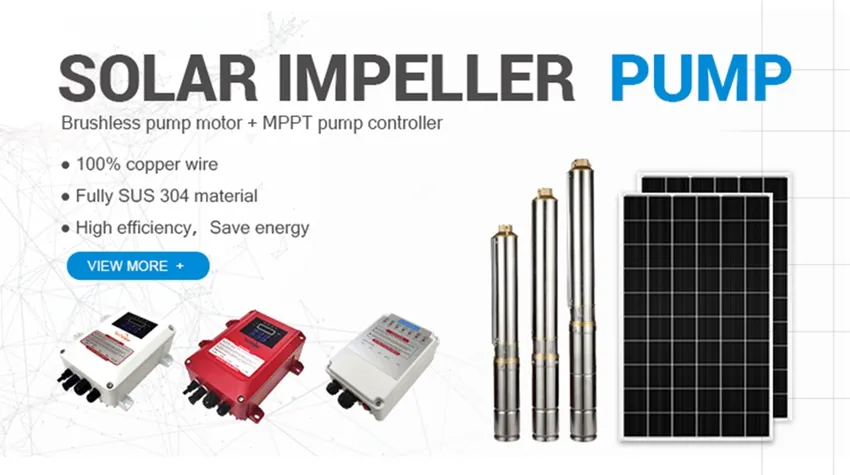

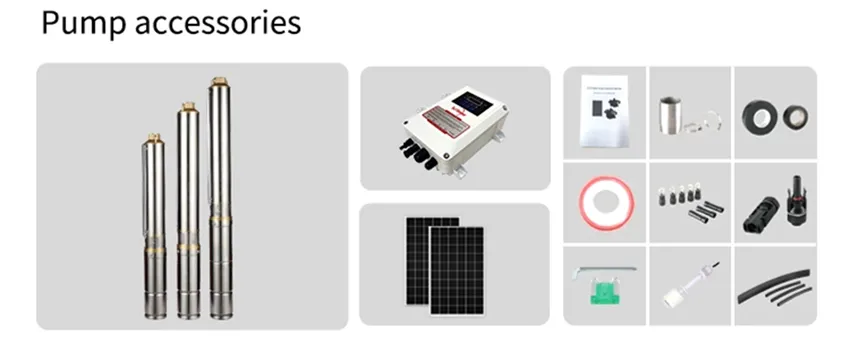

Solar Pumping System

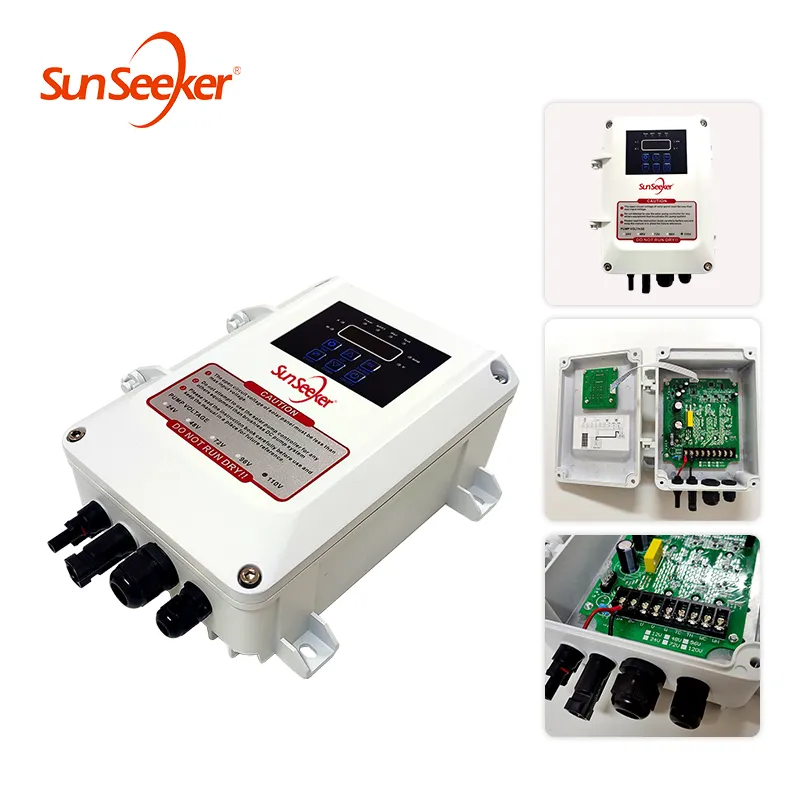

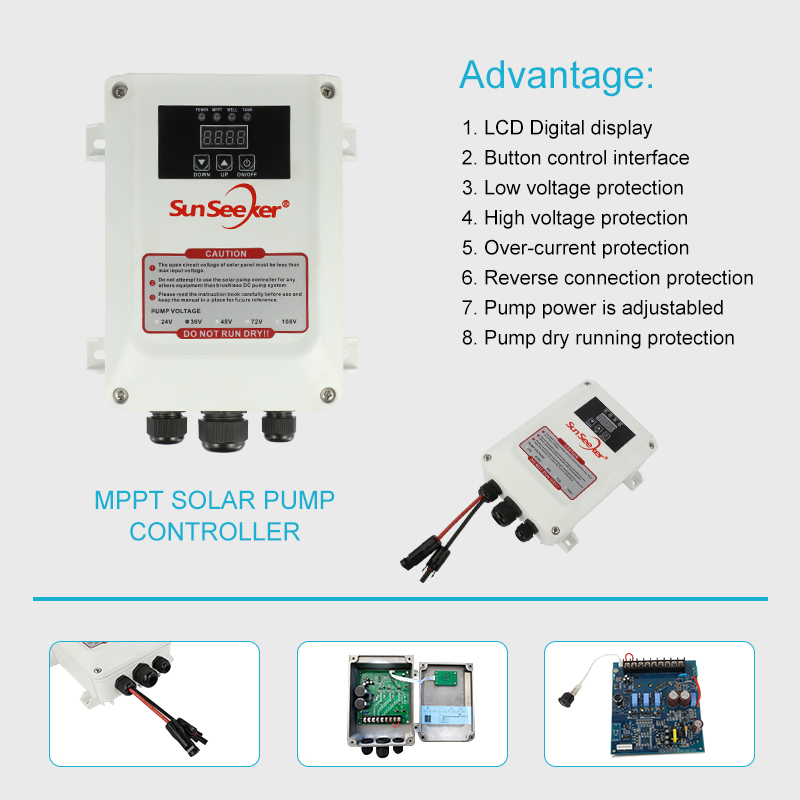

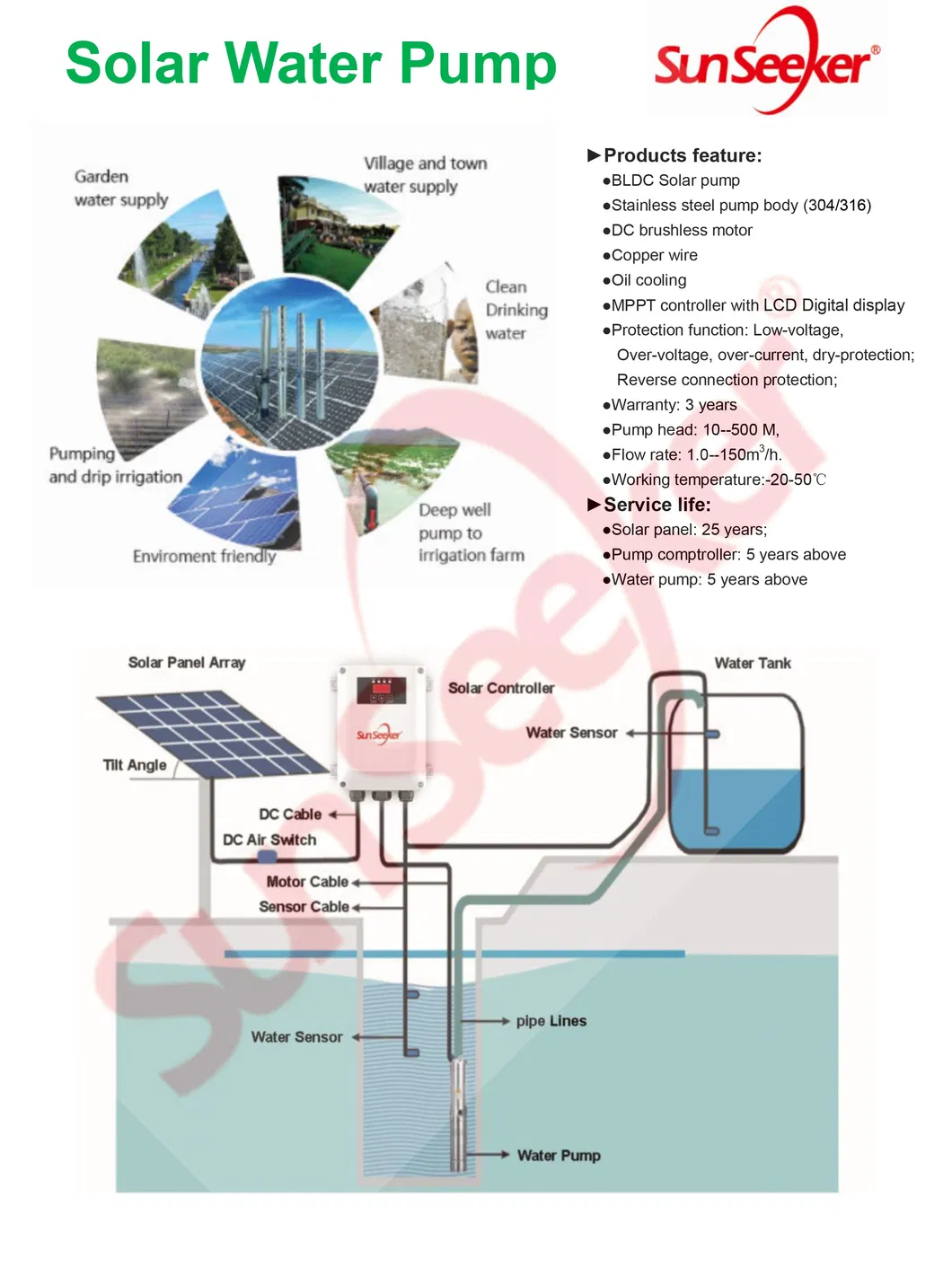

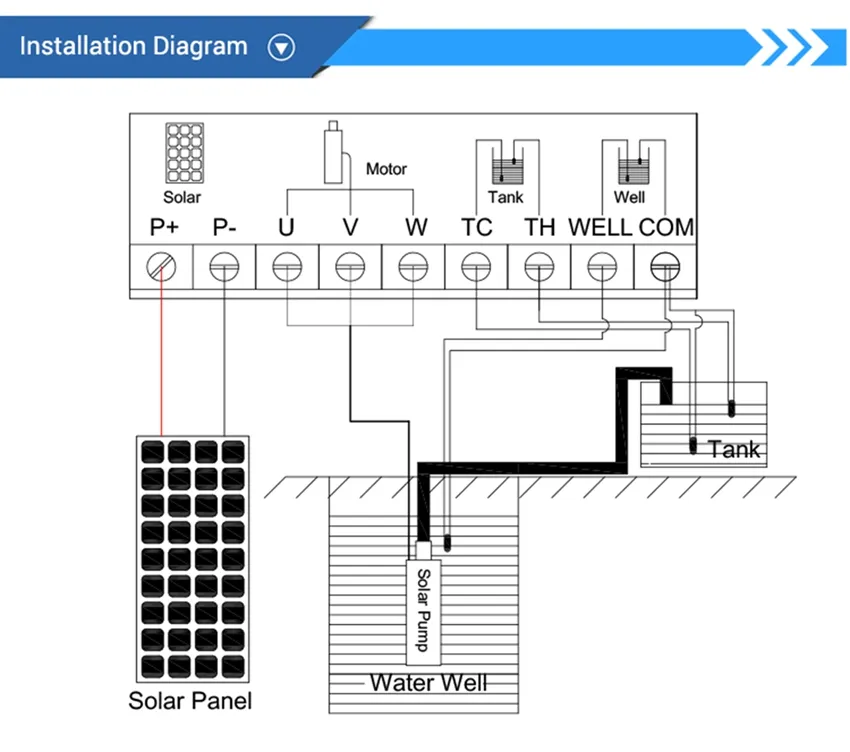

The solar pumping system mainly consists of PV modules, solar pumping controller/inverter, and water pumps. Solar panels convert sunlight to electrical energy which is passed to the solar pump controller. The controller stabilizes the voltage and output power to drive the pump motor. Even on cloudy days, it can pump 10% water flow per day. Sensors protect the pump from dry running and automatically stop operation when the tank is full.

Service Capabilities

No MOQ required, most models ready in stock for fast lead time
Two Years Warranty protection
Experienced manufacturer with over 15 years of expertise
Annual production capacity exceeding 50,000 units
Global export presence in more than 60 countries

How to Choose the Right Pump

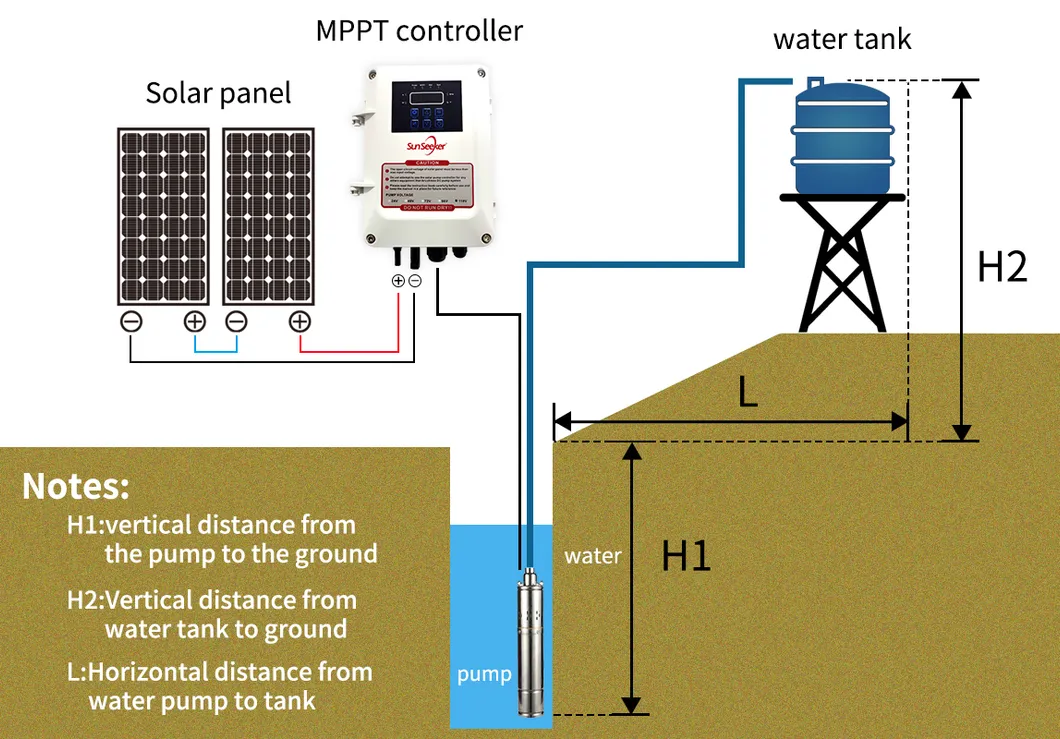

Calculation of Pump Head

1) H1: Vertical distance from the pump to the ground

2) H2: Vertical distance from water tank to ground

3) L: Horizontal distance from water pump to tank

4) Total Head = H1 + H2 + (L * 10%)

Calculation of Pump Flow

1) Estimated Hours: 5 hours (standard solar working window)

2) Daily Consumption: Total water needed (m³)

3) Actual Flow: Daily water consumption / Working time (m³/h)

Please provide the following information for professional selection:

Usage location and application type
Required daily or hourly water discharge (liters/m³)
Preference for submersible or surface pump
For borehole use: depth of the well
Pipe distance and slope characteristics
Storage tank height

Analysis of Pump Parameters

Model Identification Guide

Example: Solar Screw Pump 3 inch

Outlet Size: 3 inch (76mm) or 4 inch (100mm)
Flow (0.9): Max flow is 0.9 m³/h
Head (40): Max head is 40m
Voltage (D24): Pump voltage is DC 24V
Power (100): Pump power is 100W (0.15HP)

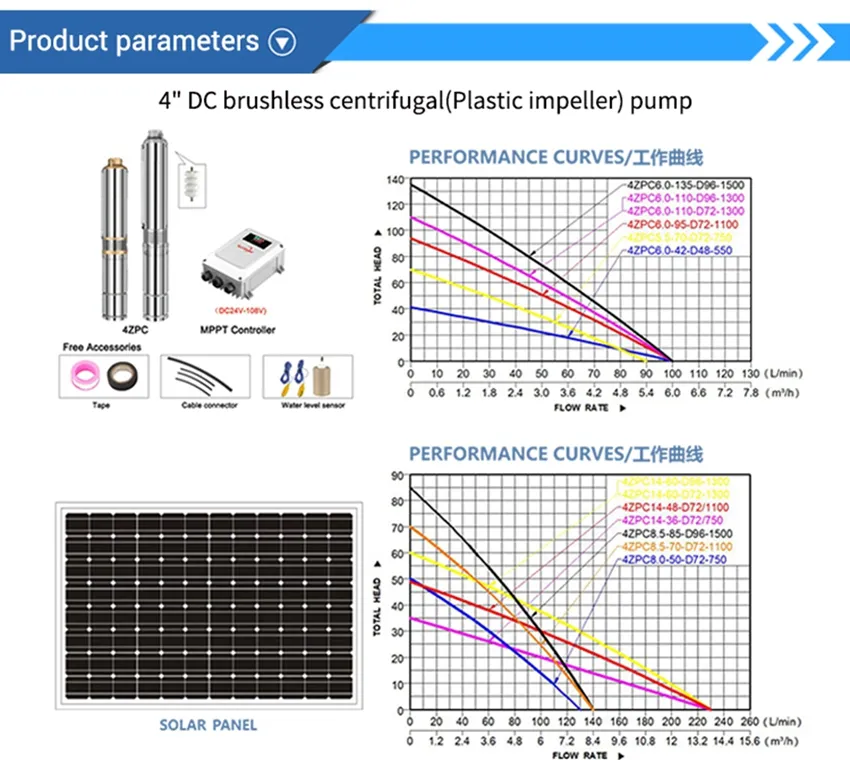

Technical Specifications

Model	Impeller	Voltage (V)	Power (W)	Max Flow (m³/h)	Max Head (M)	Outlet (inch)	Solar Panel (W)
4ZPC6.0-42-D48-550	PPO	48	550	6	42	1.25"	800
4ZPC5.5-70-D72-750	PPO	72	750	5.5	70	1.25"	1050
4ZPC6.0-95-D72-1100	PPO	72	1100	6	95	1.25"	1650
4ZPC6.0-110-D72-1300	PPO	72	1300	6	110	1.25"	1980
4ZPC6.0-135-D96-1500	PPO	96	1500	6	135	1.25"	2200
4ZPC8.5-70-D72-1100	PPO	72	1100	8.5	70	1.5"	1650
4ZPC14-60-D72-1300	PPO	72	1300	14	60	2"	1980
