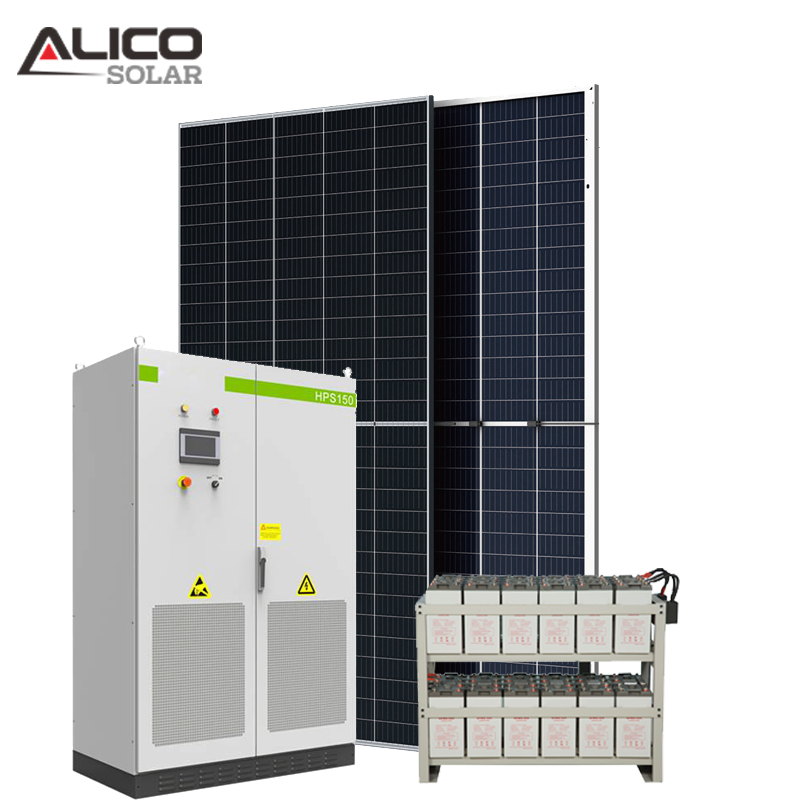

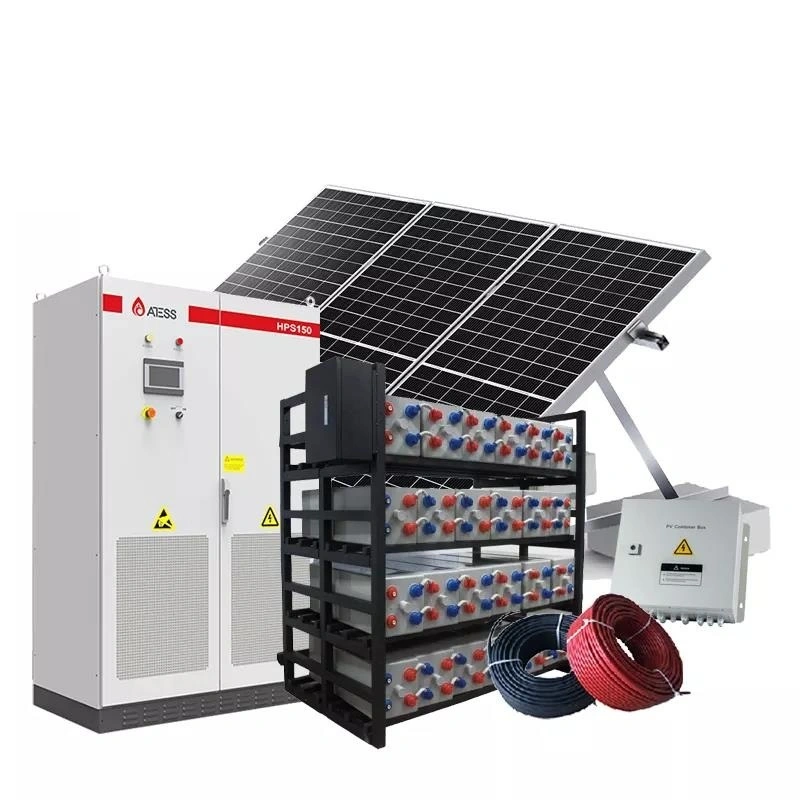

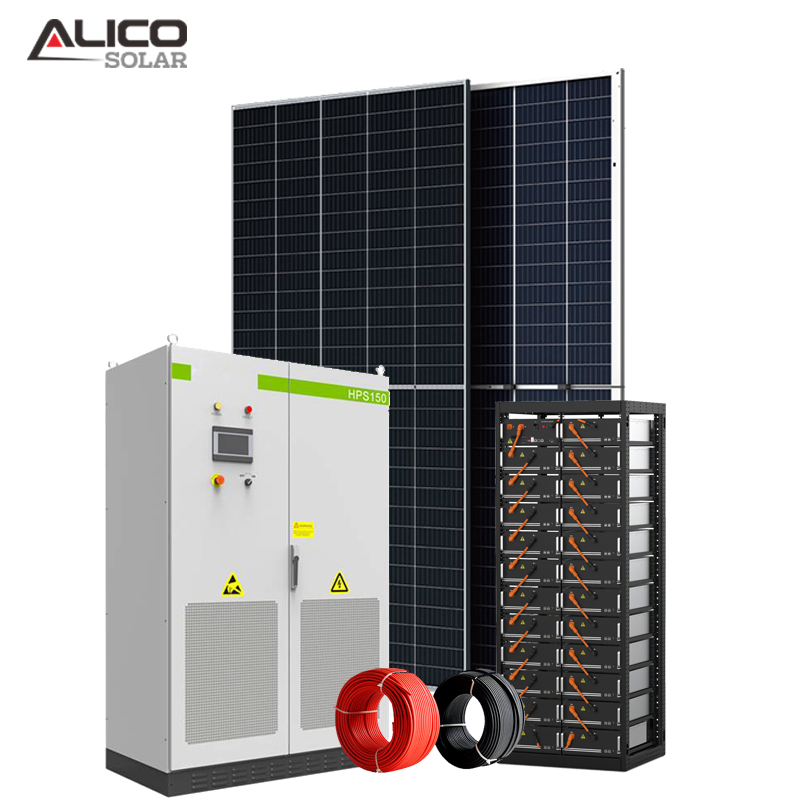

1385 Solar Renewable Energy Hot Selling Install 5kw on-Grid Solar Systems 500kw 1000kw 1MW Grid-Tied Solar Panel Kit for Solar Power Plant

1 / 5

1385 Solar Renewable Energy Hot Selling Install 5kw on-Grid Solar Systems 500kw 1000kw 1MW Grid-Tied Solar Panel Kit for Solar Power Plant

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-500KW-Grid-Tied

Condition

New

Certification

ISO, CE, TUV

Application

Home, Industrial, Commercial

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Solar Power Plant

HS Code

85414020

Production Capacity

1.2 Gw/Year

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 150.00cm

Gross Weight

2000.000kg

Product Parameters

Name	500KW On-grid Description	Quantity
Solar Panel	Mono Half Cell 650 Watt PV Module	770 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	Few Sets
On-Grid Inverter	500KW Three Phase 380/400Vac	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	Few Sets
DC Cable	4mm2	1000 Meters
MC4 Connector	4mm2 1000VDC	100 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	5 Sets

Note: Product dimensions and physical appearance are nominal. The right to make product changes without prior notification is reserved.

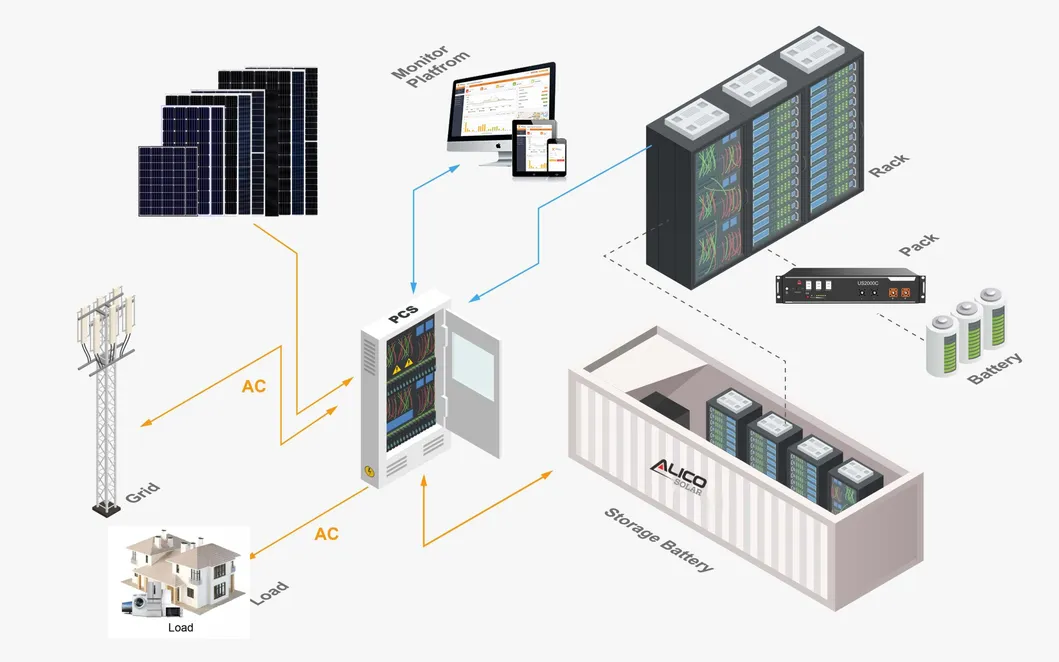

On Grid System Configuration

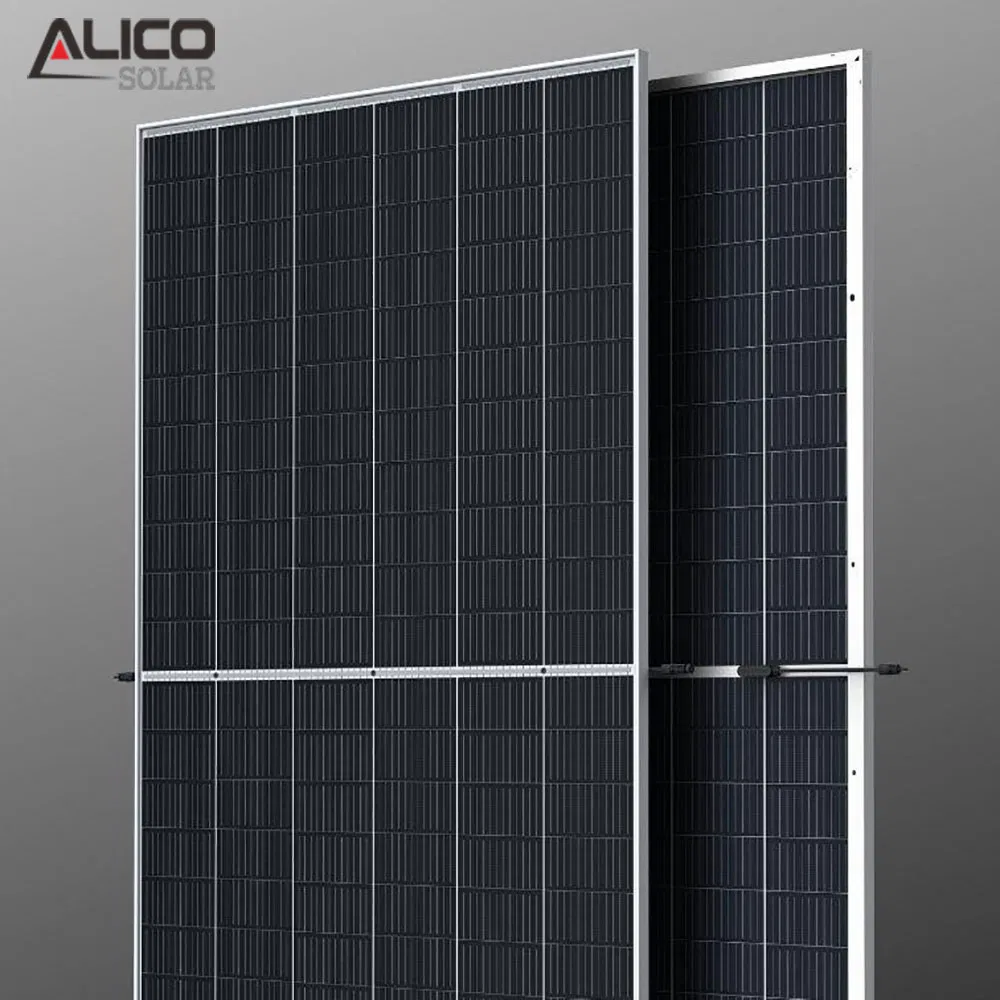

Mono Solar Panels

Peak Power Watts: 380-690W
Maximum Power Voltage: 32.2-45V
Maximum Power Current: 9.02-18A
Open Circuit Voltage: 39.5-55V
Short Circuit Current: 9.55-19A
Tier 1 Standard, 12 years quality warranty, 30 years power warranty.

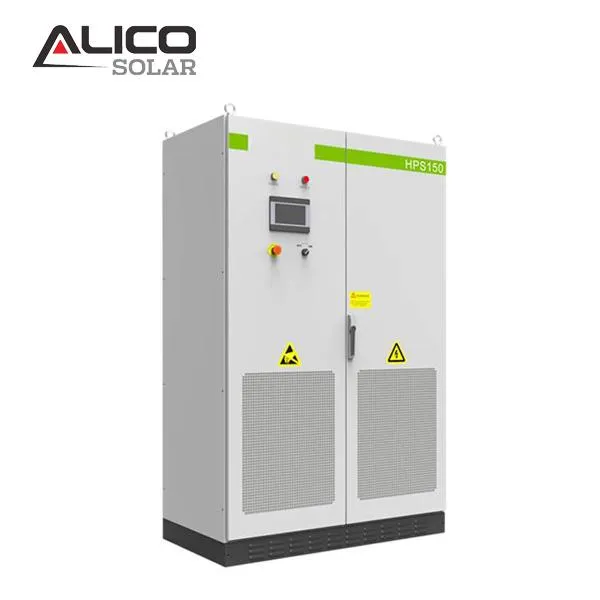

On-Grid Inverter

Max.DC Input Power: 500KW
Max. DC Input Voltage: 1500V
MPPT Voltage Range: 120-1200V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380/400V
Warranty: 5-10 Years; Wifi Stick, Lan & GPRS Optional.

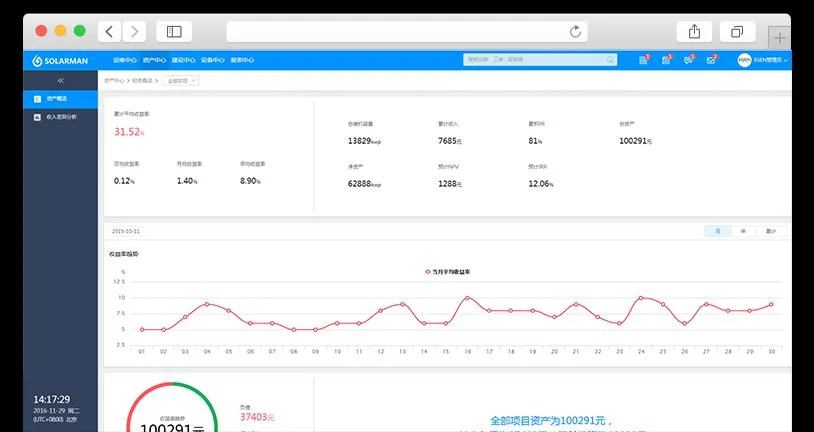

Remote Monitoring System

Data Logging Stick allows real-time PV system and atmospheric condition monitoring via web server (Wi-Fi, Lan, or GPRS). App available for PC, IOS & Android.

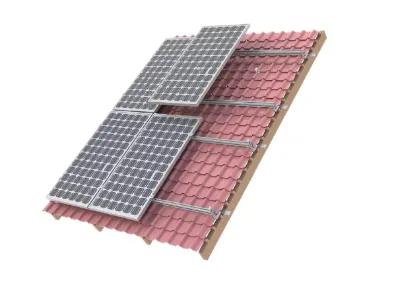

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35-50mm. Options for Asphalt Shingle Mount, Hanger Bolts, and Grounding clips.

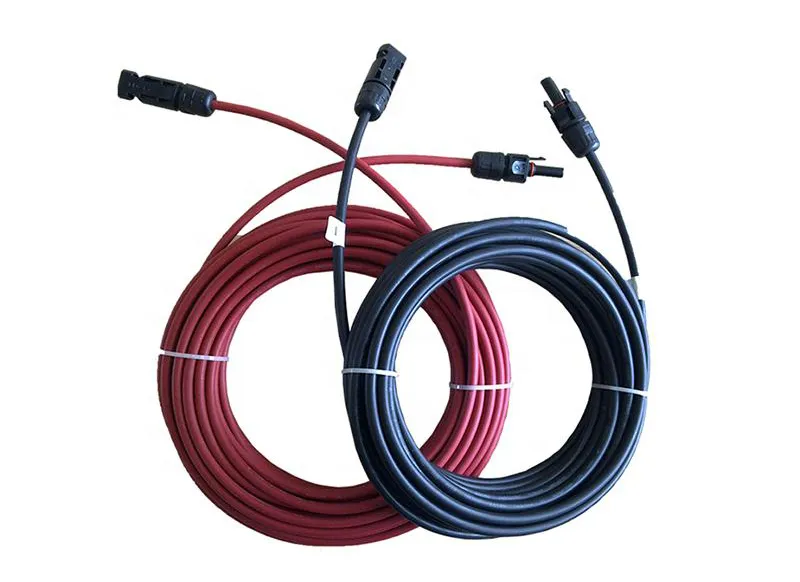

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2. Rated Voltage: 1000VDC(TUV). Colors: Black/Red. Lifetime: up to 25 Years.

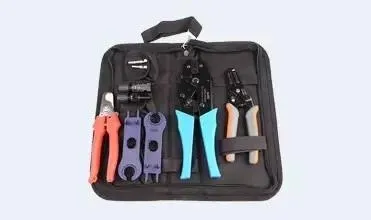

PV Tools

Full installation kit including Wire Cable Cutter & Stripper, MC3 MC4 Crimper, and Assembly/Disassembly Tools.

Projects Shown

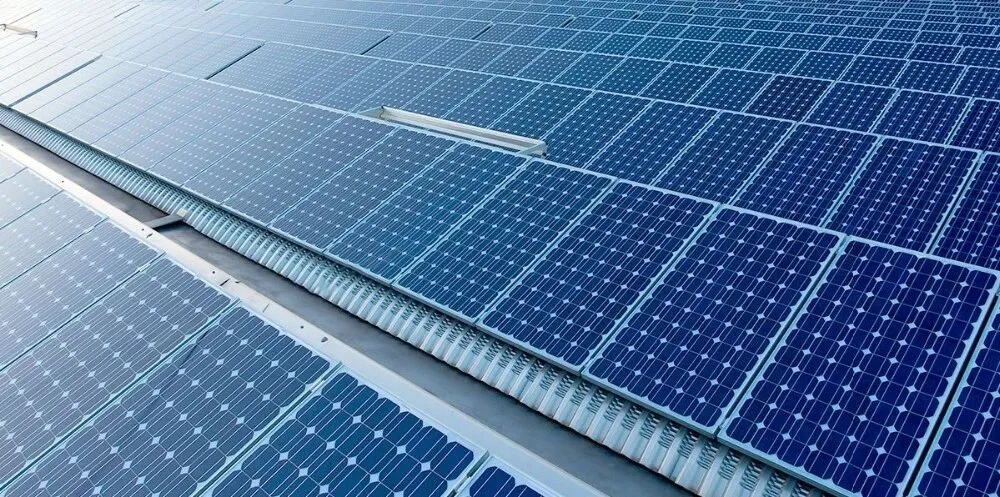

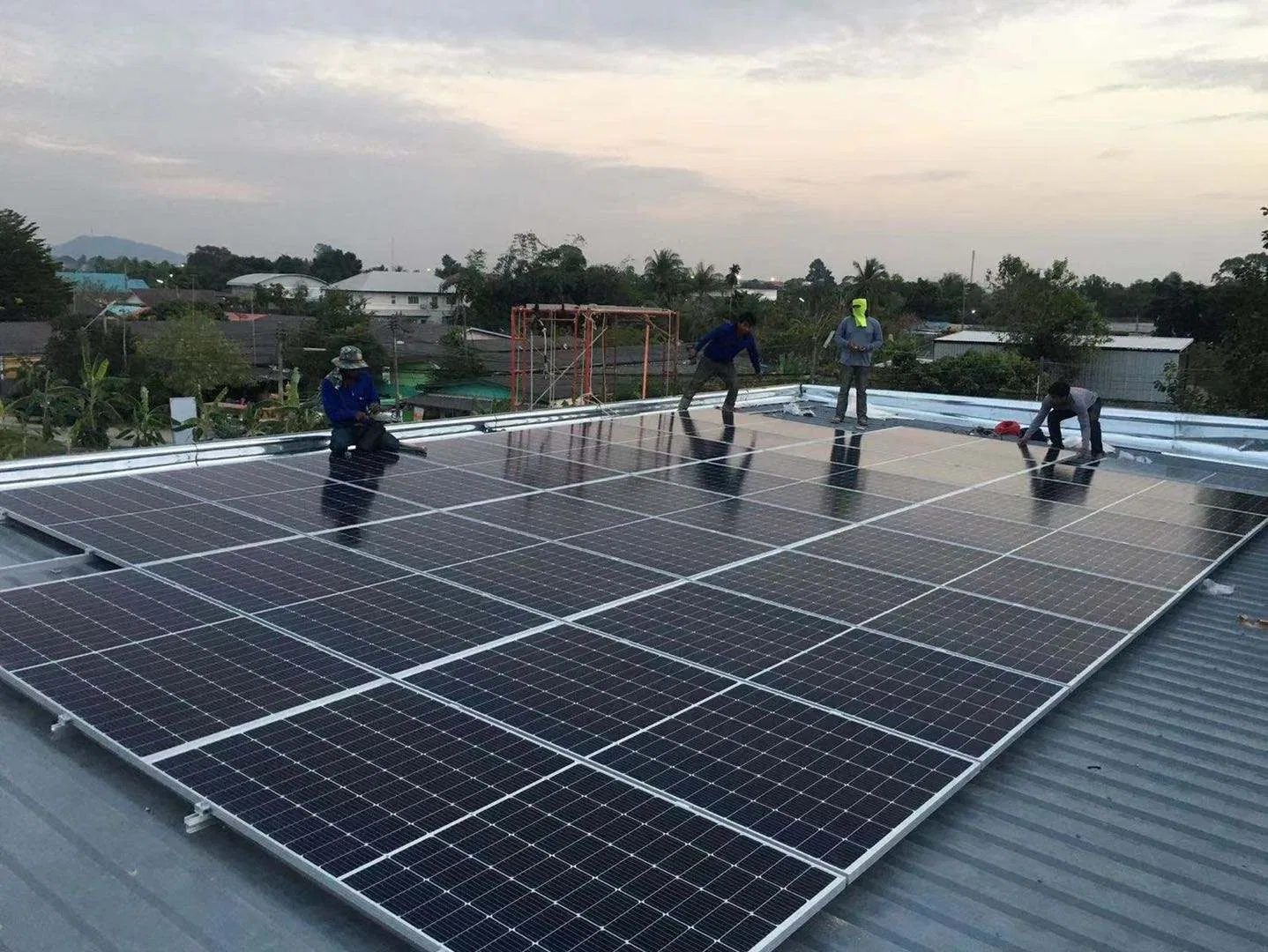

12MW Commercial Metal Roof Solar Plant

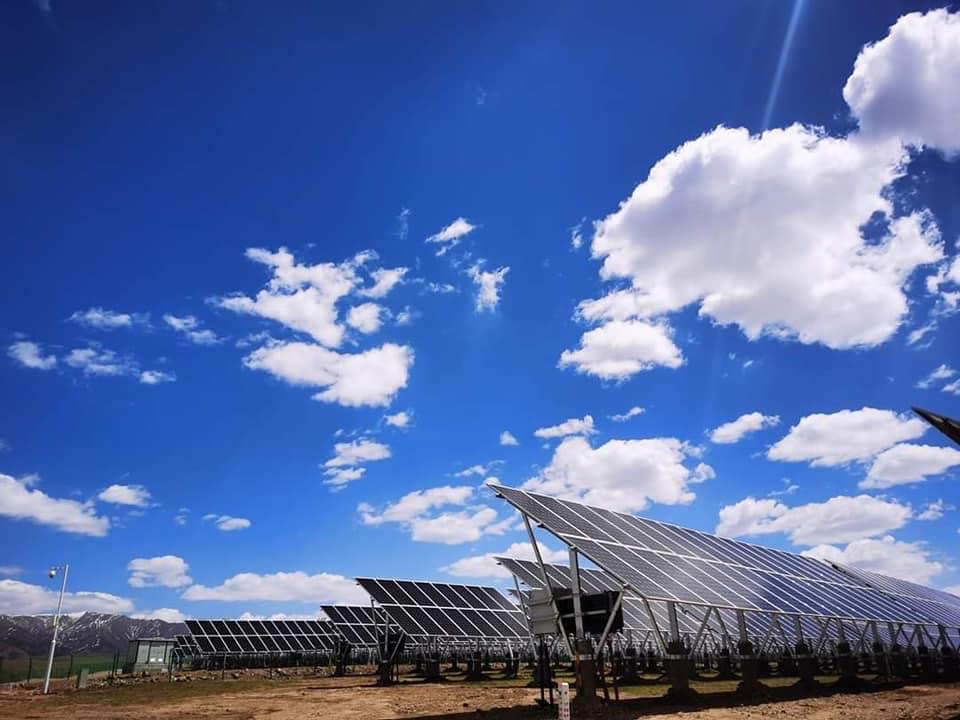

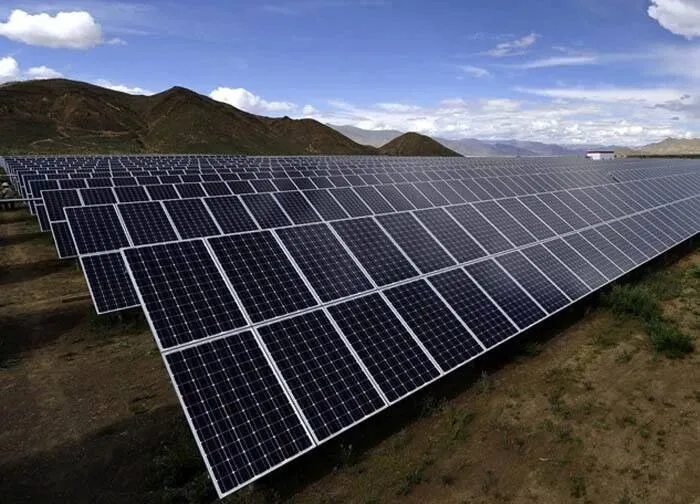

20MW Ground Solar Plant in USA

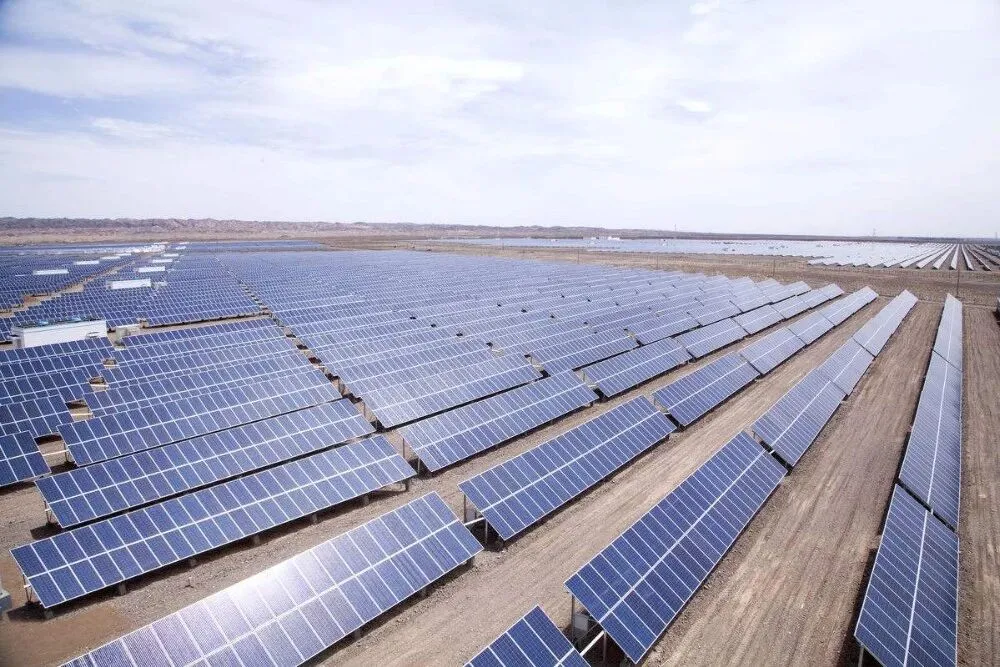

50MW Solar Plant in Brazil

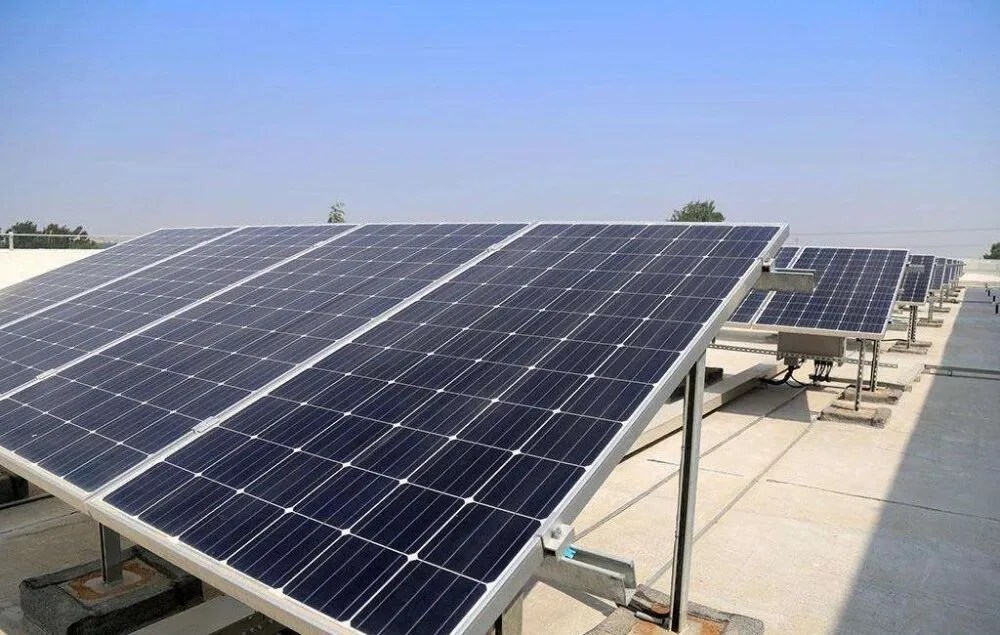

20KW Solar Plant in Mexico

Frequently Asked Questions

Q1: What is included in the 500KW on-grid solar system package?

The complete package includes high-efficiency Mono solar panels (approx. 770 pieces), a 500KW three-phase grid-tied inverter, DC/AC disconnect switches, specialized DC cables, MC4 connectors, a professional mounting system, and essential PV installation tools.

Q2: Can the mounting system be customized for different roof types?

Yes, while the standard package includes a pitched roof mounting system, we offer customized options for flat roofs, metal roofs, and ground-mounted brackets to suit your specific site requirements.

Q3: How long is the warranty for the system components?

Solar panels typically come with a 12-year quality warranty and a 30-year power performance warranty. On-grid inverters usually carry a 5 to 10-year warranty depending on the regional standards (EU/US).

Q4: Is remote monitoring available for this 500KW system?

Absolutely. The system includes a data logging stick that supports Wi-Fi, LAN, or GPRS. You can monitor system performance and atmospheric conditions in real-time via dedicated apps for PC, iOS, and Android.

Q5: What certifications does the equipment hold?

All core components, including panels and inverters, are fully certified with international standards such as ISO, CE, and TUV, ensuring high safety and reliability for commercial and industrial use.

Q6: What are the maintenance requirements for a system of this size?

The system is designed for longevity with minimal maintenance. Periodic cleaning of panels and checking electrical connections are recommended. The remote monitoring system will alert you to any performance irregularities.
