1 / 5
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |

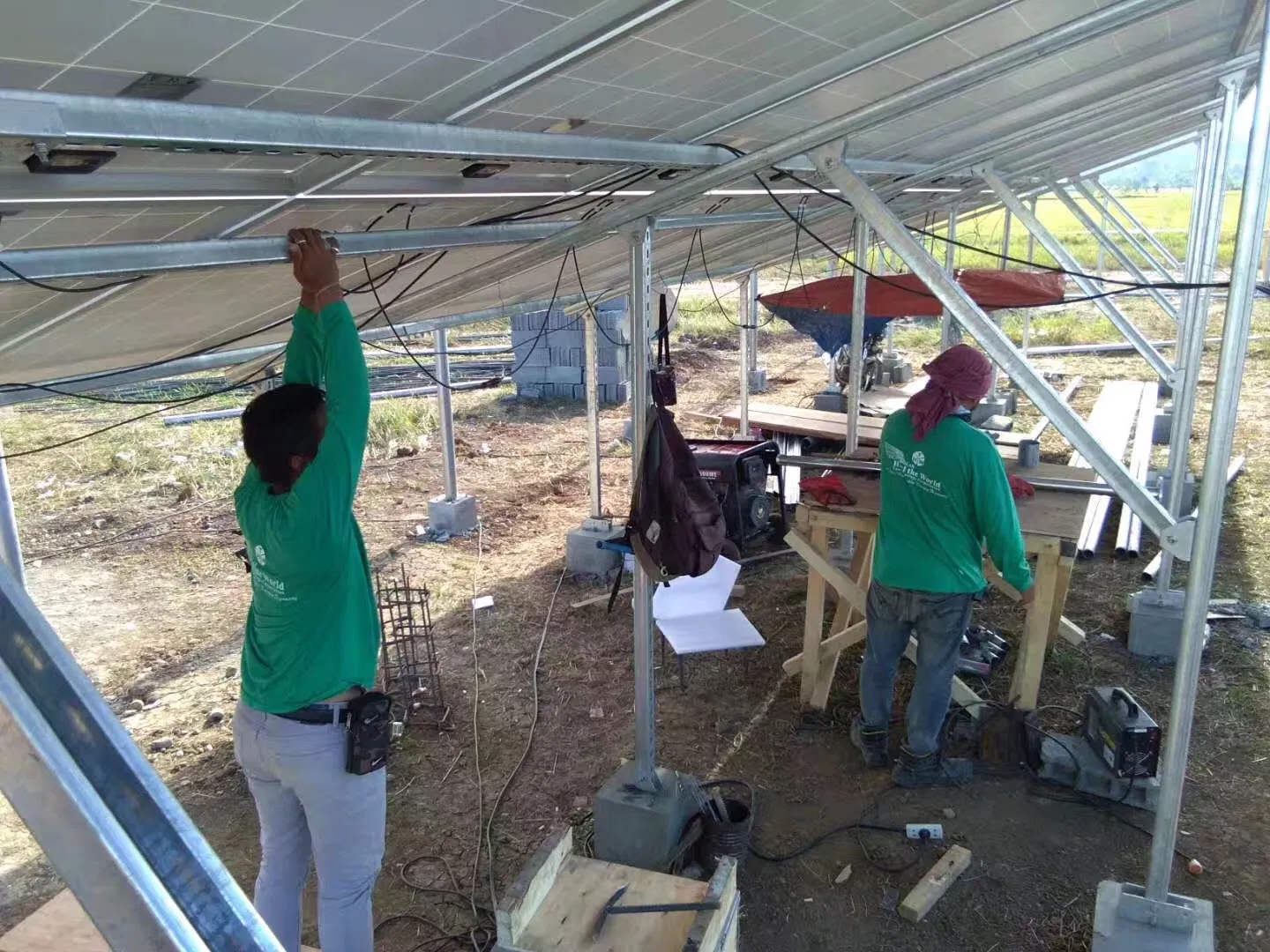

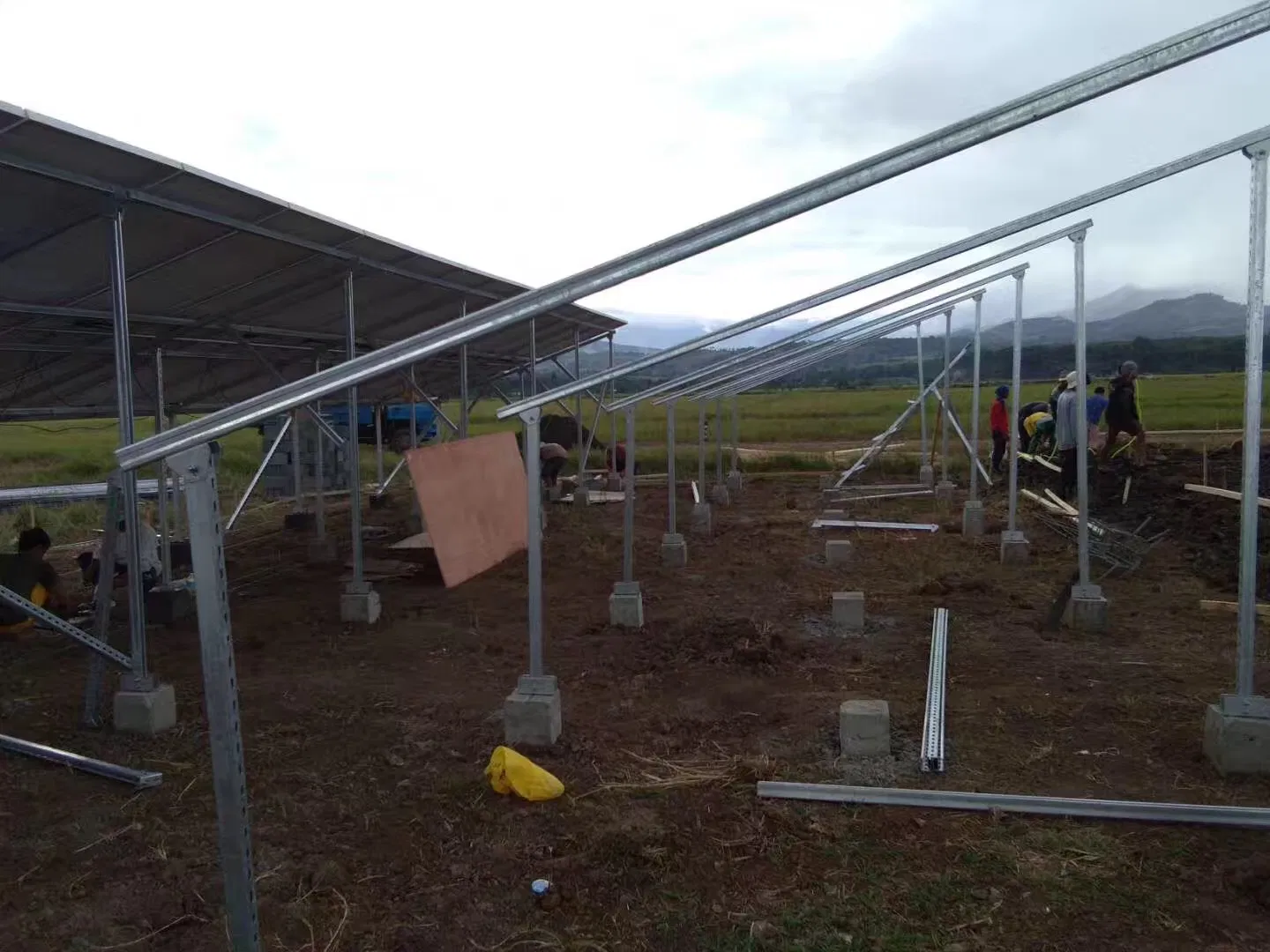

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
🚀 VERSATILE APPLICATIONS:

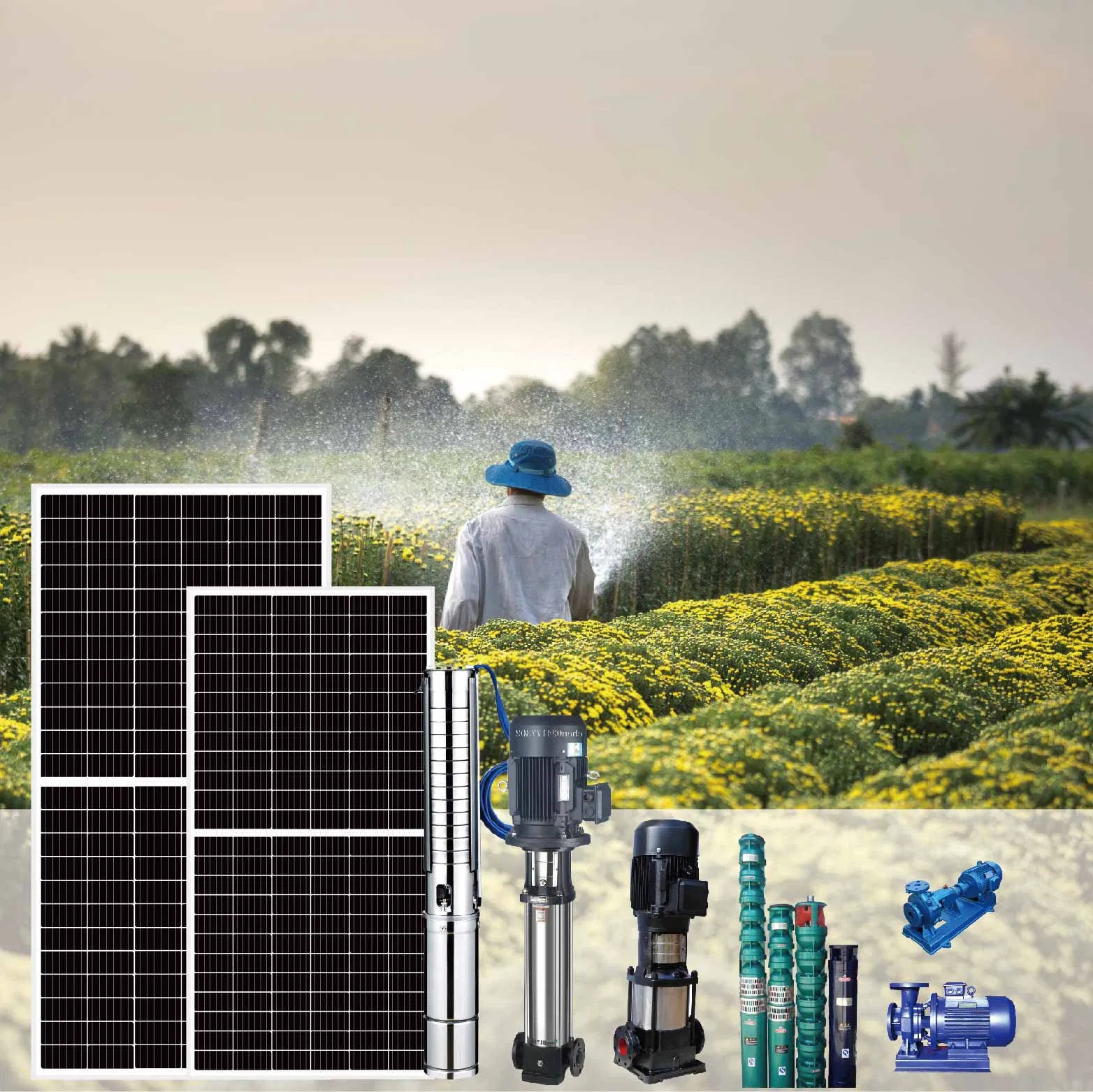

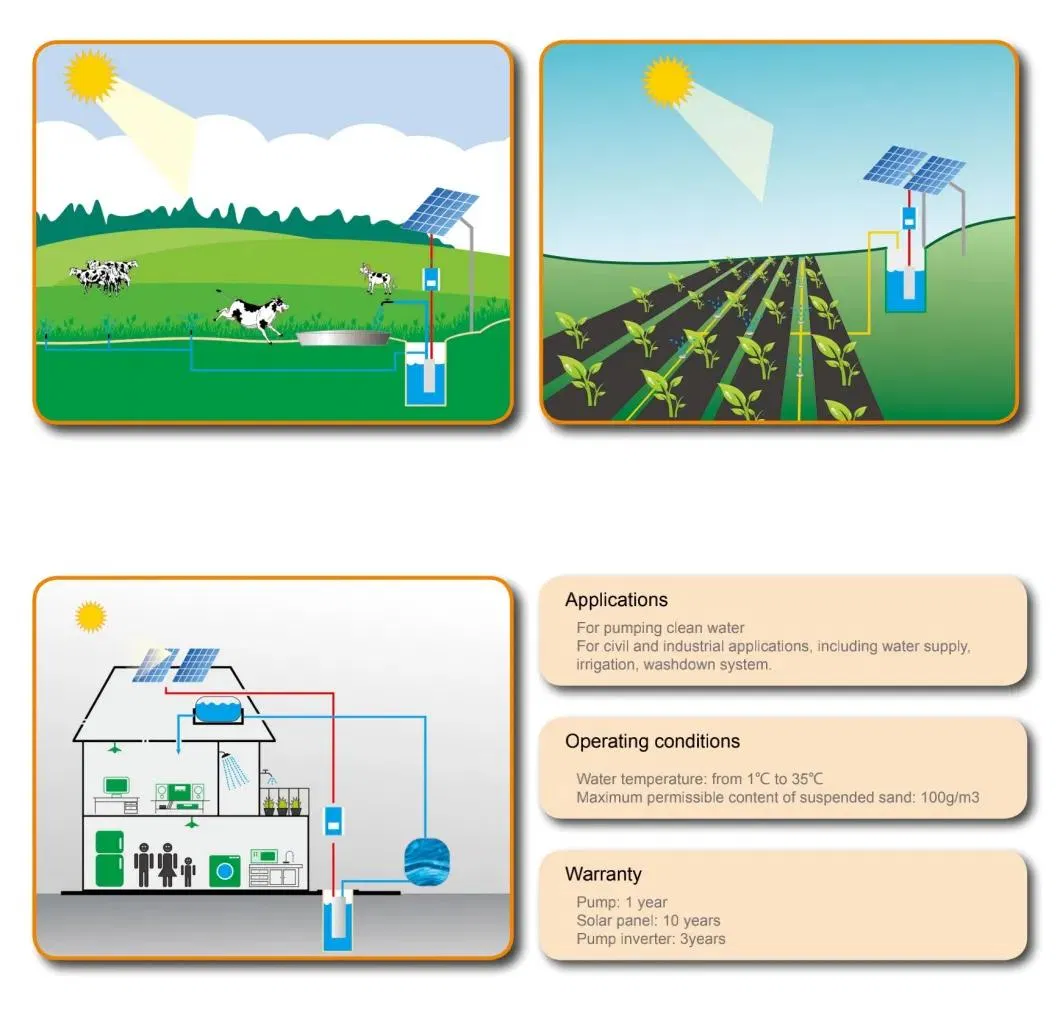

Solar power systems offer a wide range of applications including domestic water supply, agricultural and forestry irrigation, and desertification control. These systems are ideal for sea islands, animal husbandry, and water treatment projects. With increasing interest in new energy, solar pumps are widely used in government projects, landscape architecture, and residential areas.

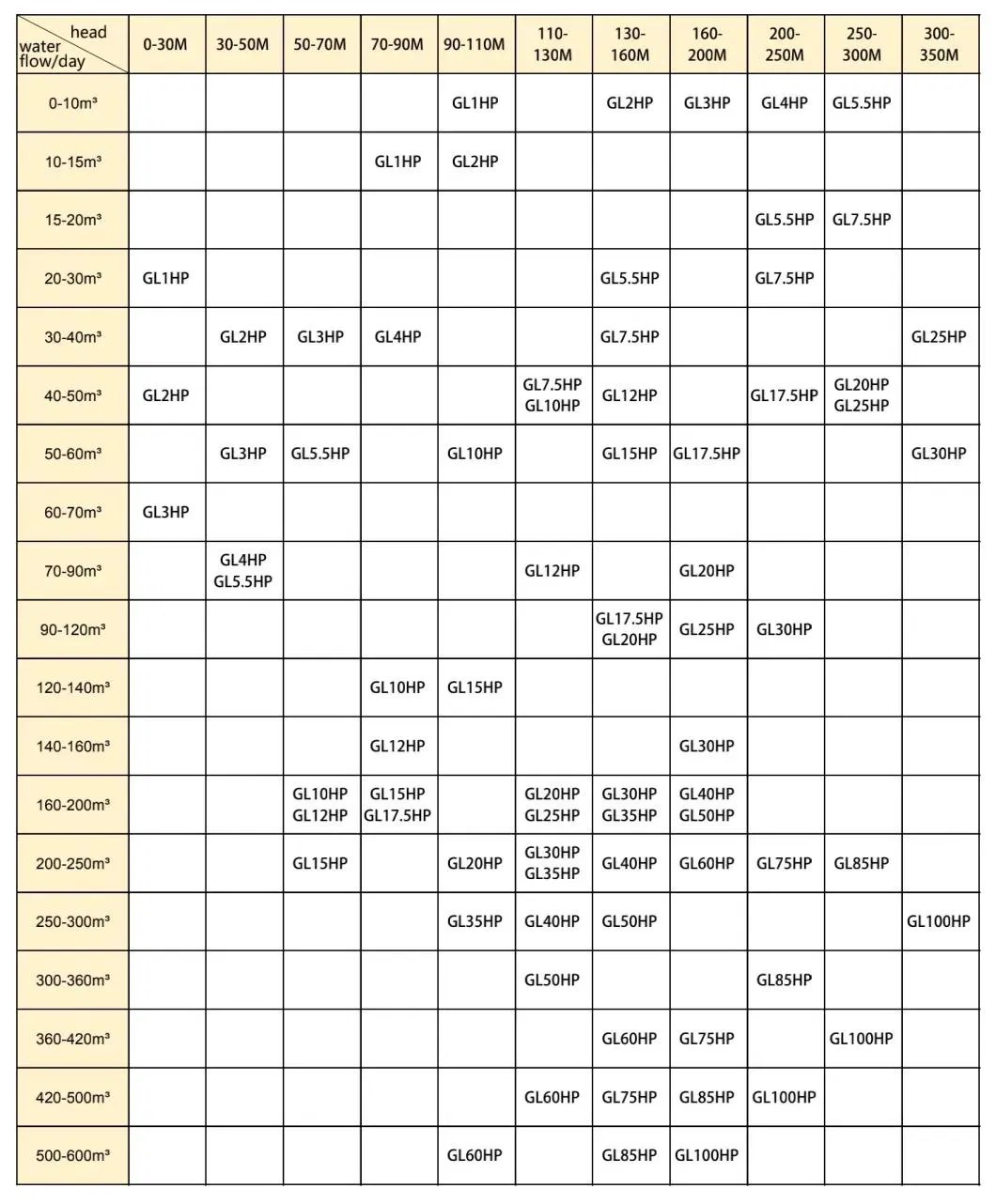

To help us select the right pump for your needs, please provide the following information:
Solar Panel Power: Pump Power × 1.3
Battery Use Hours: Capacity ÷ (Machine Power ÷ Voltage) × 0.6
Required Battery Capacity: Target Hours ÷ 0.6 × (Machine Power ÷ Voltage)

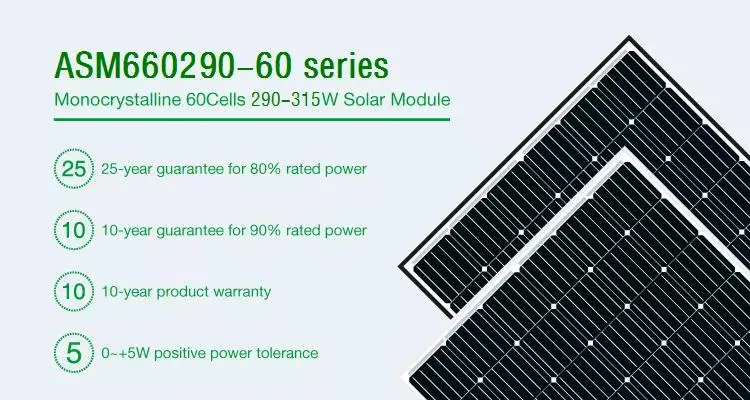

Peak Power: 290W
Max Voltage: 32.2V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

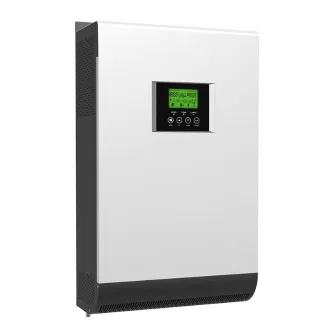

Max DC Input Power: 8.5KW
Input Voltage: up to 600V
MPPT Range: 90-520V

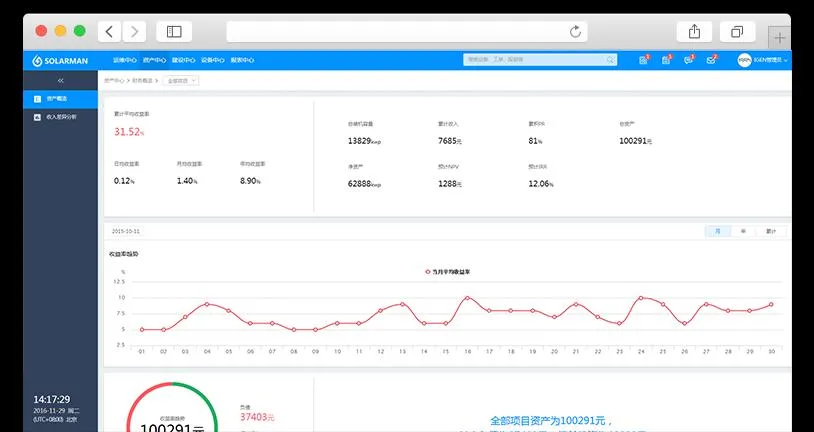

Supports Wifi/Lan/GPRS monitoring.
Track your PV system status via web server or App (iOS & Android). Real-time data logging for atmosphere and power conditions.

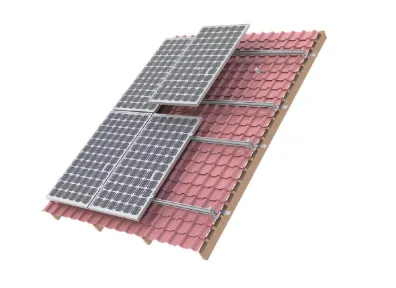

High-quality Al6005 rails and SUS304 bolts. Versatile options for asphalt shingles or hanger bolts. Lifetime durability.

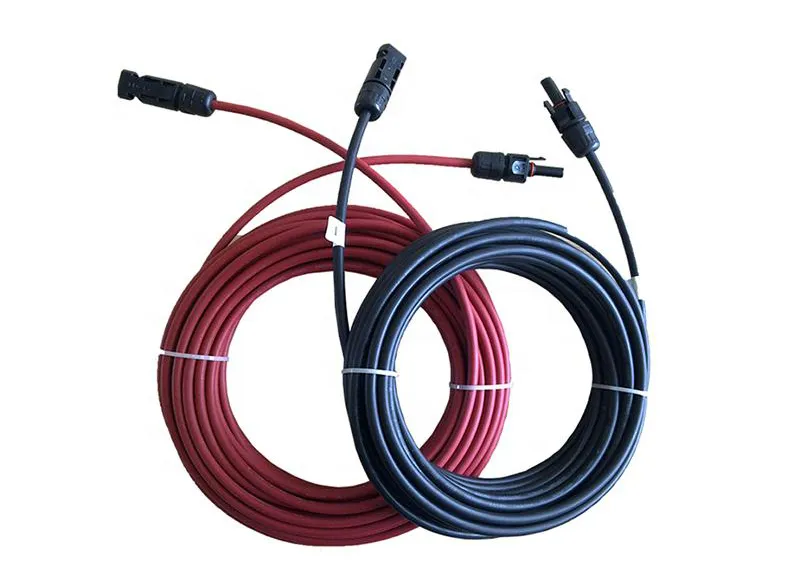

Cross Section: 4mm2 / 6mm2
Rated Current: 55A/70A
Design Lifetime: ≤25 Years
48V 100Ah capacity for energy storage. Optimized for solar backup to ensure continuous day and night operation.
