Solar Powered Center Pivot Irrigation System

Customization:	Available
Usage:	Irrigation
Type:	Irrigation System

Send Inquiry

Product Description

Basic Specifications

Model NO.DYP 40-1000m

Power SourceElectricity

Irrigation ModeSprinkler Irrigation

Pump TypeCentrifugal Pump

MaterialMetal (Hot DIP Galv.)

CertificationISO9001:2008, CCC, CE

Qty of Spans1-16

Max. Speed142m/H

Tire Size14.9X24

Span Length48m, 54.5m, 61.3m

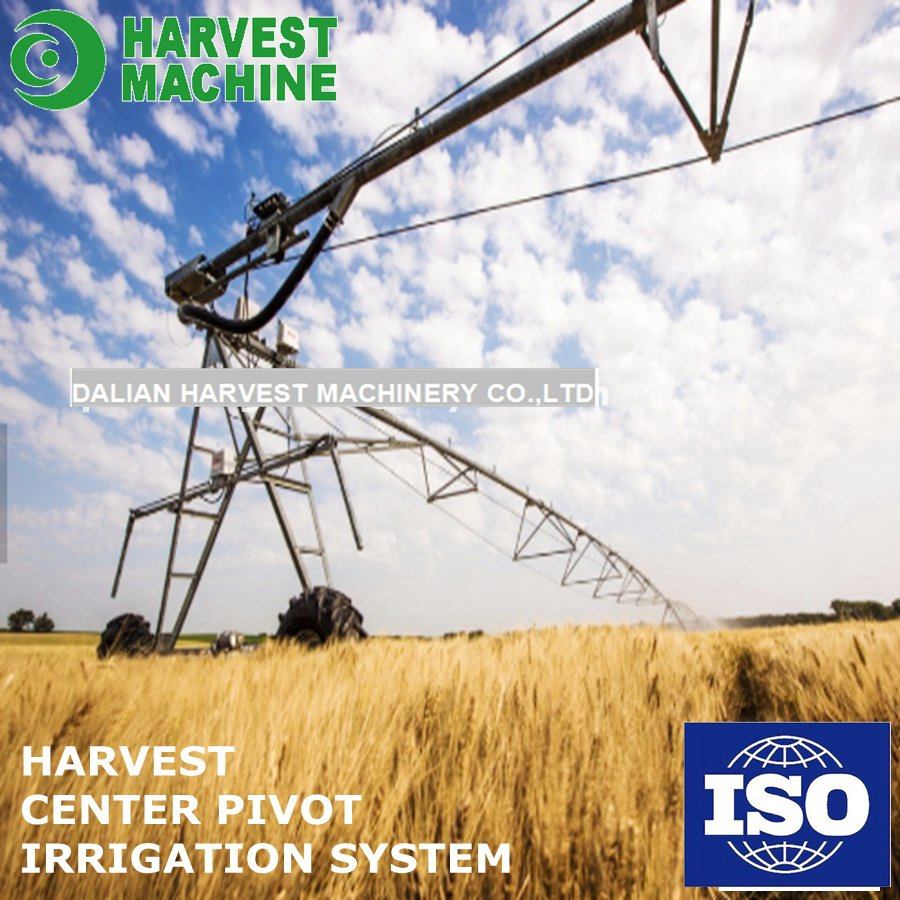

Center Pivot Irrigation System Introduction

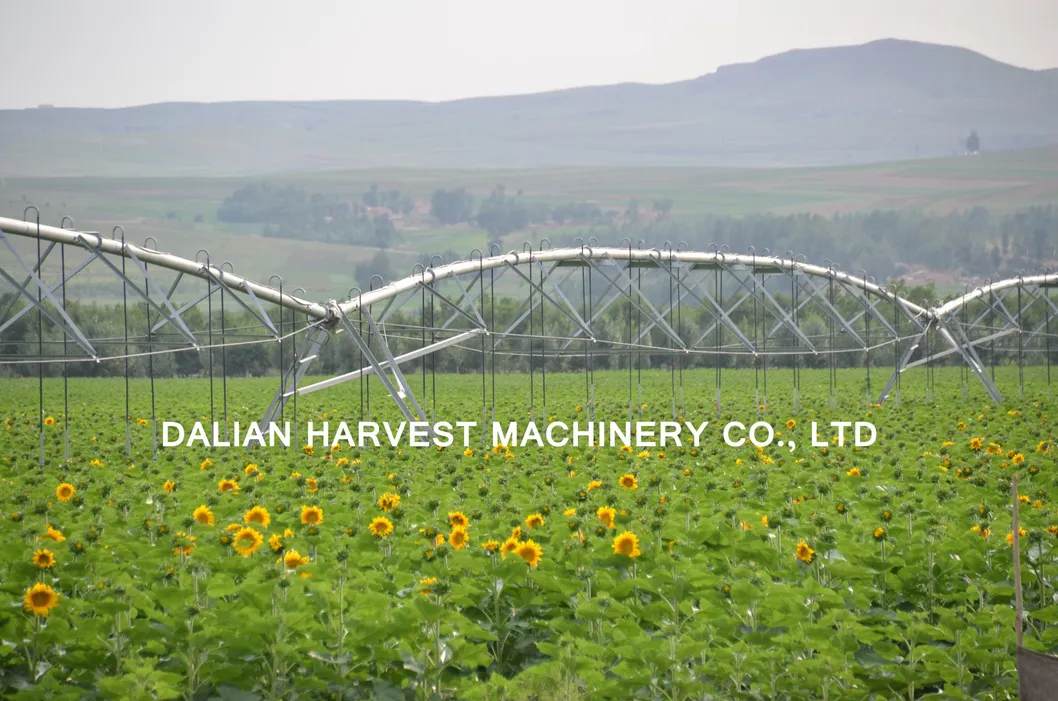

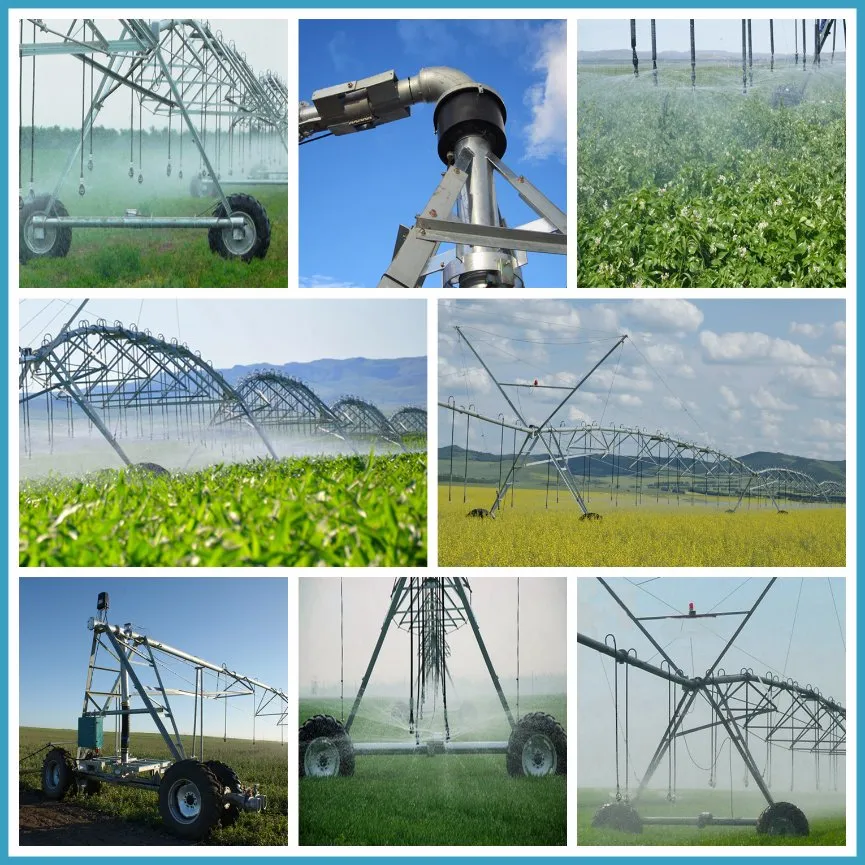

The DYP series center pivot irrigation system is composed of a center trestle table, trestle-tower vehicle, sprinkler truss, endmost cantilever, and a synchronous system controlled by electricity.

💡Applications & Advantages

This system is specifically designed for the irrigation of potatoes, sugarcanes, watermelons, legumes, economic crops, and pasture. Featuring high efficiency, power, and water saving, it can increase yields at an economical cost with a spraying uniformity coefficient up to 85%. It supports the uniform application of chemicals and fertilizers and can operate on uneven fields with slopes of up to 25%.

Technical Specifications

Items	Specification	Items	Specification
Pivot length	41.1-791.2m	Land covered	0.53-196.7ha
Qty. of spans	1-16	Span length	41.1 / 47.8 / 54.4 / 61.3m
Span thickness	3mm	Surface	Hot dip galvanization
Flow rate	15-1080m³/hr	Water pressure	1-7.5Bar
Max speed	142m/hr	Sprinkler	Nelson/Senninger
Gear box	50:1 heavy duty	Gear motor	3/4HP 40:1 Ratio

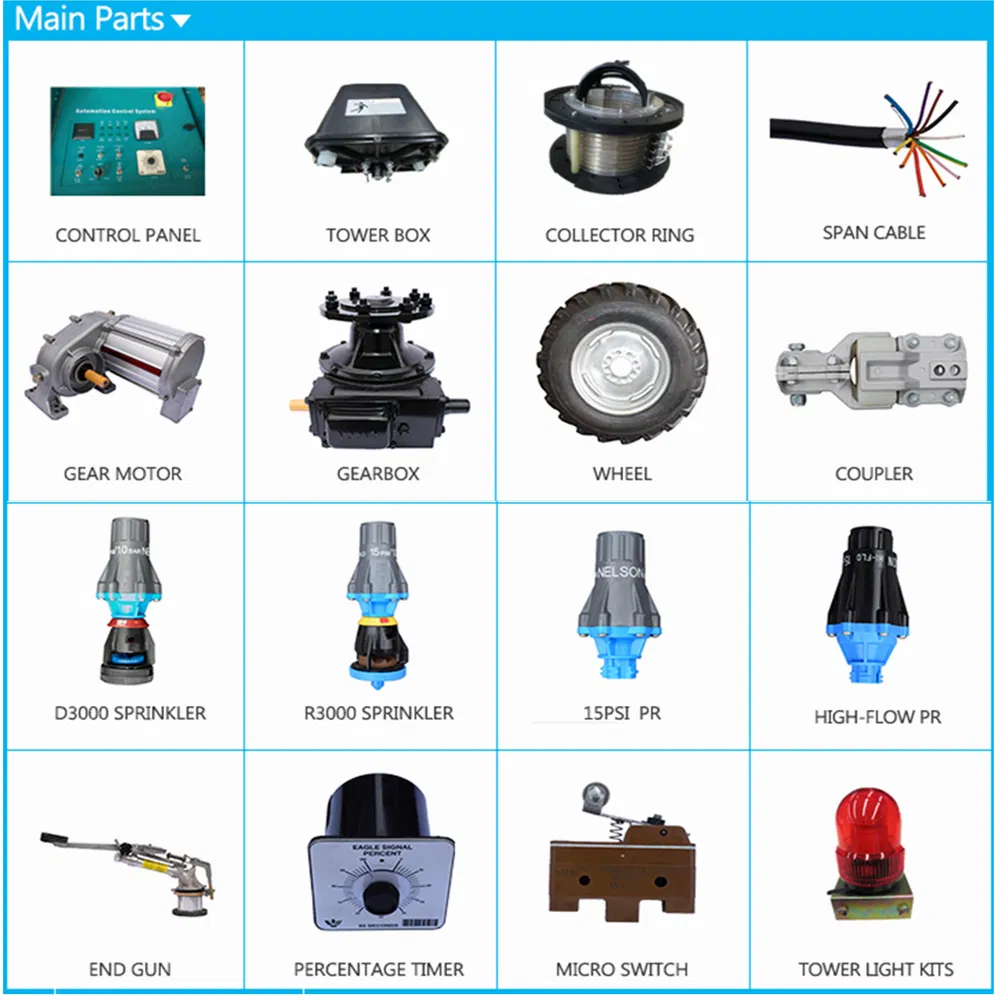

Key System Features

⚙️Structural Excellence

Metallic zinc-coated spans with rubber-band union

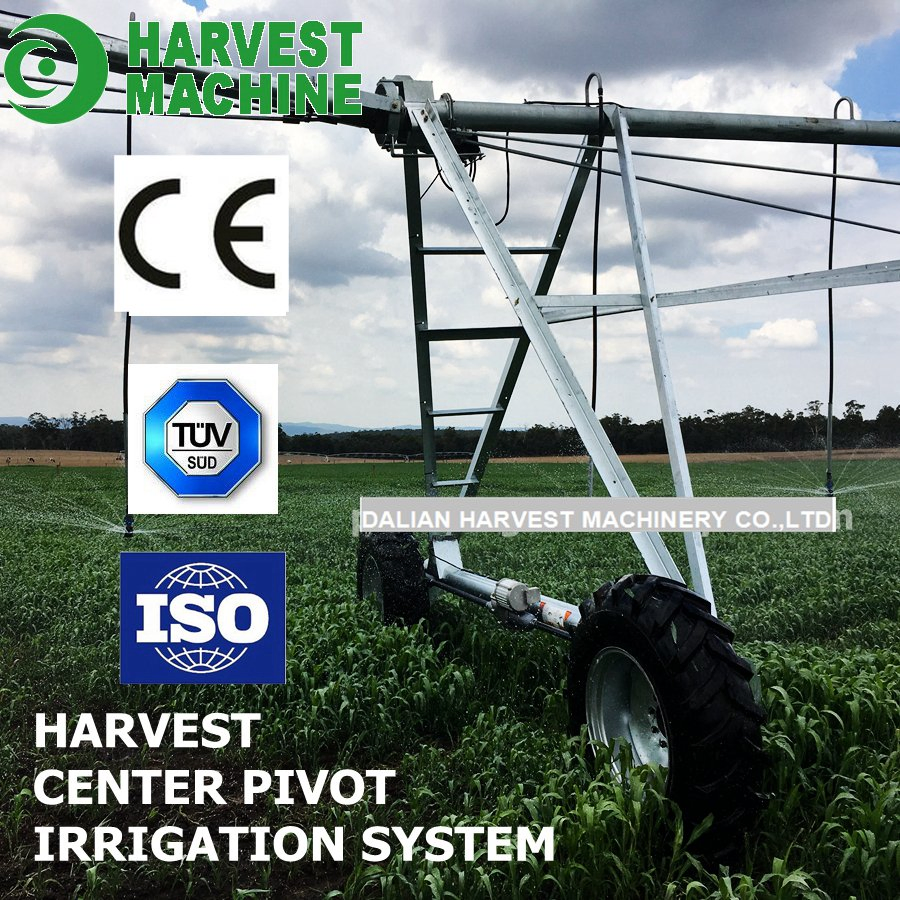

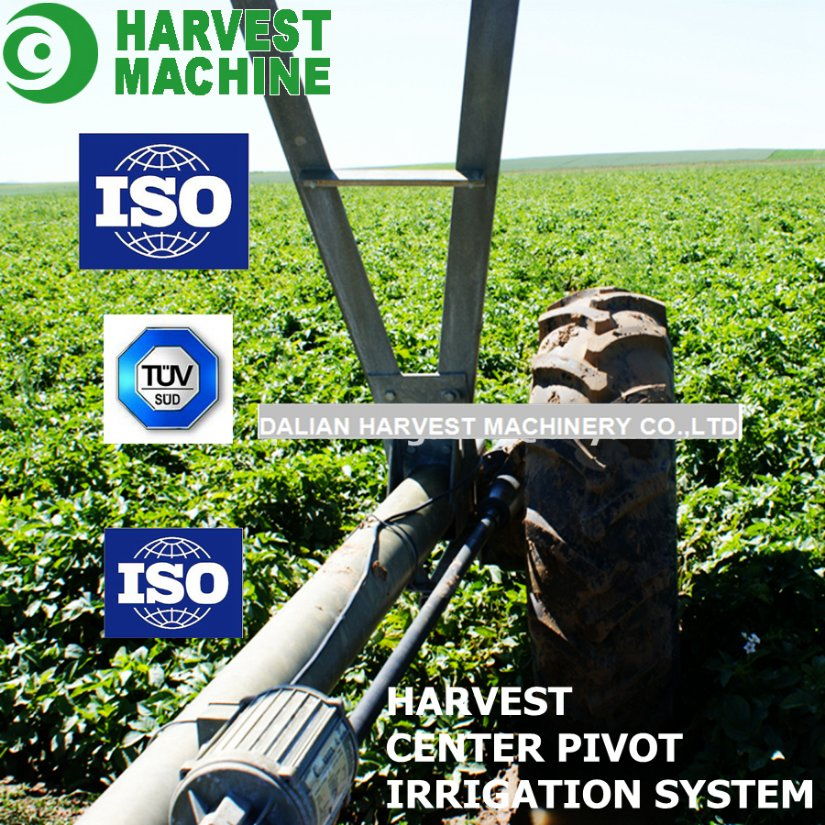

Intermediate towers mounted on two-wheel supports
Axles drive unit from electric geared motor to gearboxes
Electronic block with equalization and monitoring
Forward / reverse contactors rated 600v at 30 amps
All parts rust-free for 15 years via zinc coating

🛡️Heavy Duty Gear Box

Enhanced casing design for high intensity and low wear
Special seals to prevent dust and humidity ingress
Large power output bearing, increasing load capacity by 55%
High-strength cast iron big gear design

Service & Logistics

🛠️ Customization
Tailored manufacturing available

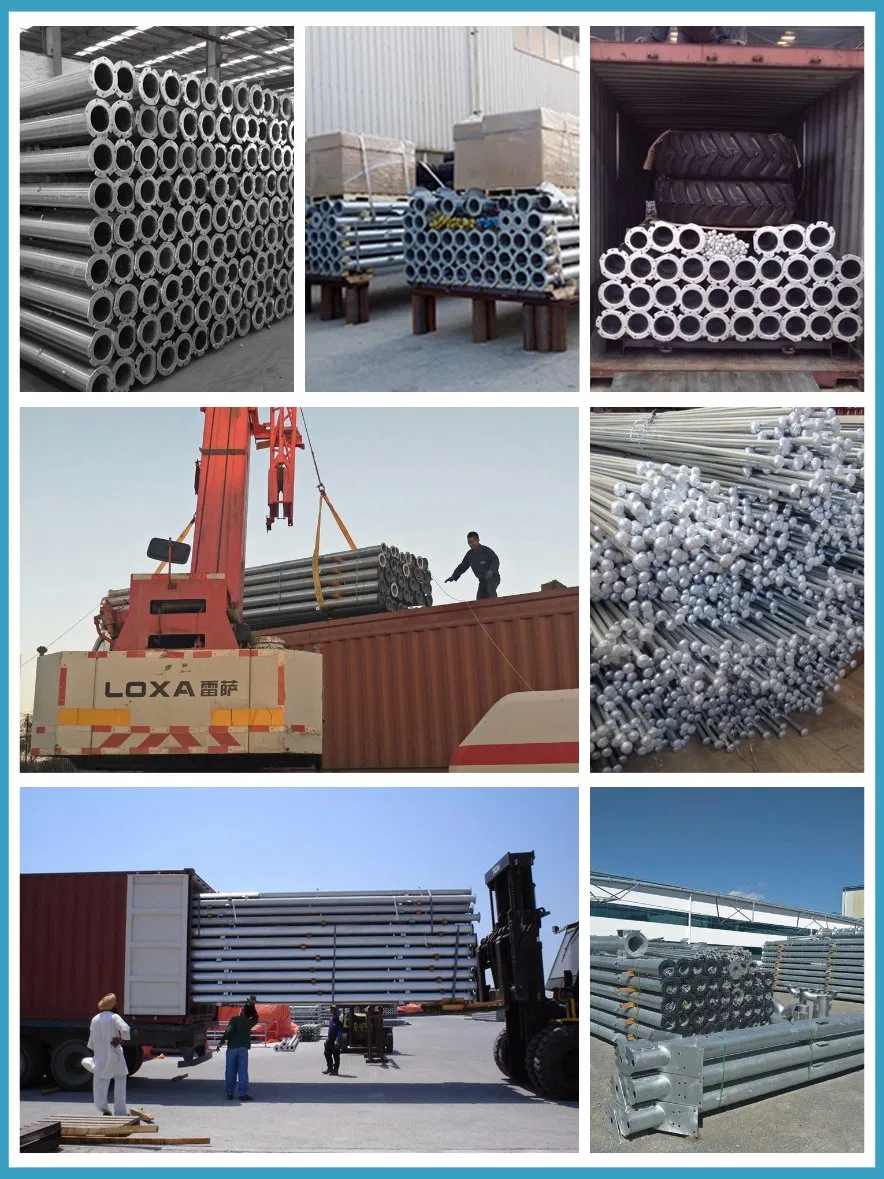

📦 Safe Packing
Standard export wooden boxes

⚡ Quick Response
Technical support within 24h

📜 Documents
Full manuals & tech docs provided

💳Payment & Trade Terms

Payment: Wire transfer (30% advance, 70% before shipment), Irrevocable L/C at sight, or Western Union.
Trade Terms: FOB, C&F, and CIF available.

Frequently Asked Questions

Which crops are best suited for this irrigation system?

The DYP center pivot system is ideal for potatoes, sugarcanes, watermelons, legumes, and various pasture or economic crops.

Can the system handle hilly or uneven terrain?

Yes, the machine is designed to walk on waving land and can handle field slopes of up to 25%.

What is the expected lifespan of the rust protection?

Thanks to the hot-dip galvanization (zinc coating) treatment, all structural parts are designed to remain rust-free for at least 15 years.

What water resources can be used with this system?

The system is versatile and can utilize water from both rivers and bore wells as its primary water resource.

How is the system controlled during a malfunction?

The main control system monitors all running parts. If a malfunction or interruption occurs, the fault position will be displayed on the panel for quick troubleshooting.

What are the span length options available?

We offer multiple span length choices including 41.1m, 47.8m, 54.4m, and 61.3m to satisfy different land sizes.
