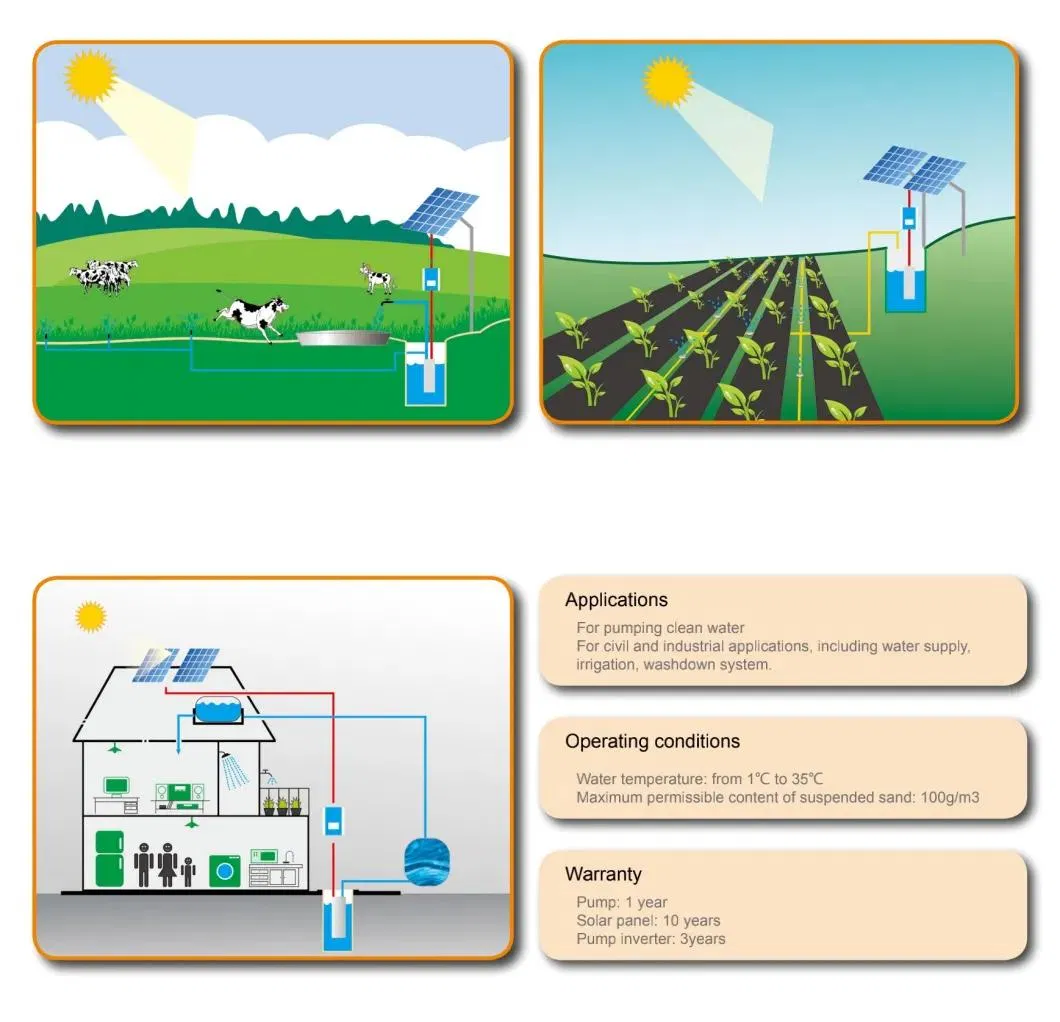

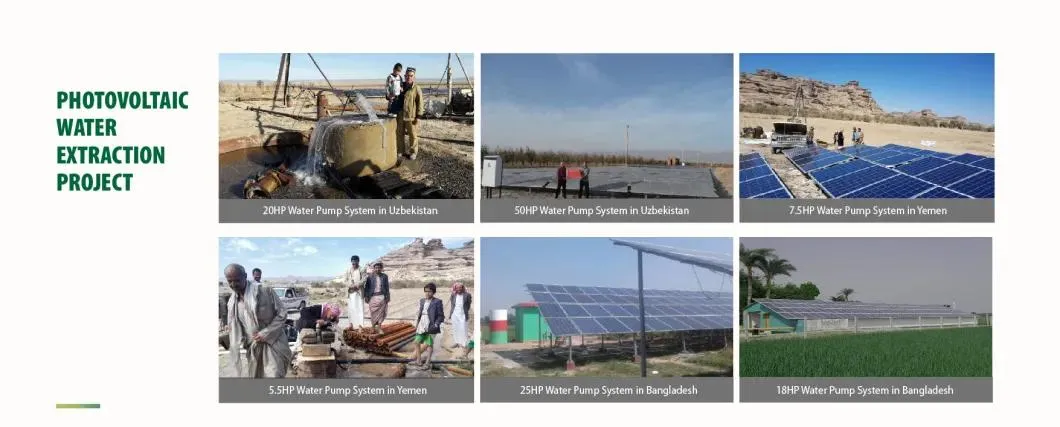

Solar power systems have a wide range of applications, offering domestic water, supporting agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.
With the promotion of new energy utilization, the usage of solar water pumps is increasing globally. You can find them in government projects, landscape architectures, and fountains of city squares, parks, tourist attractions, hotels, and residential areas.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |

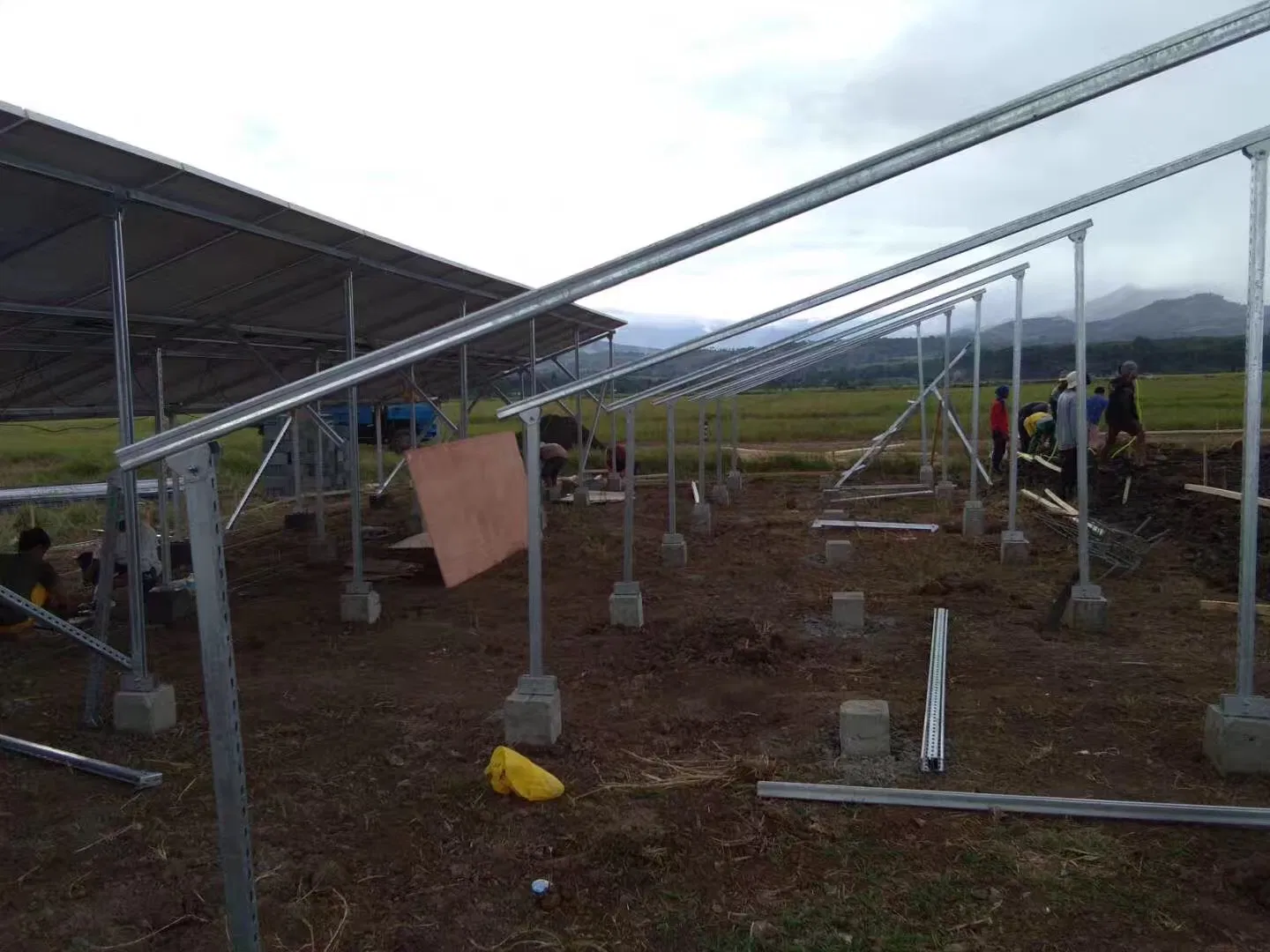

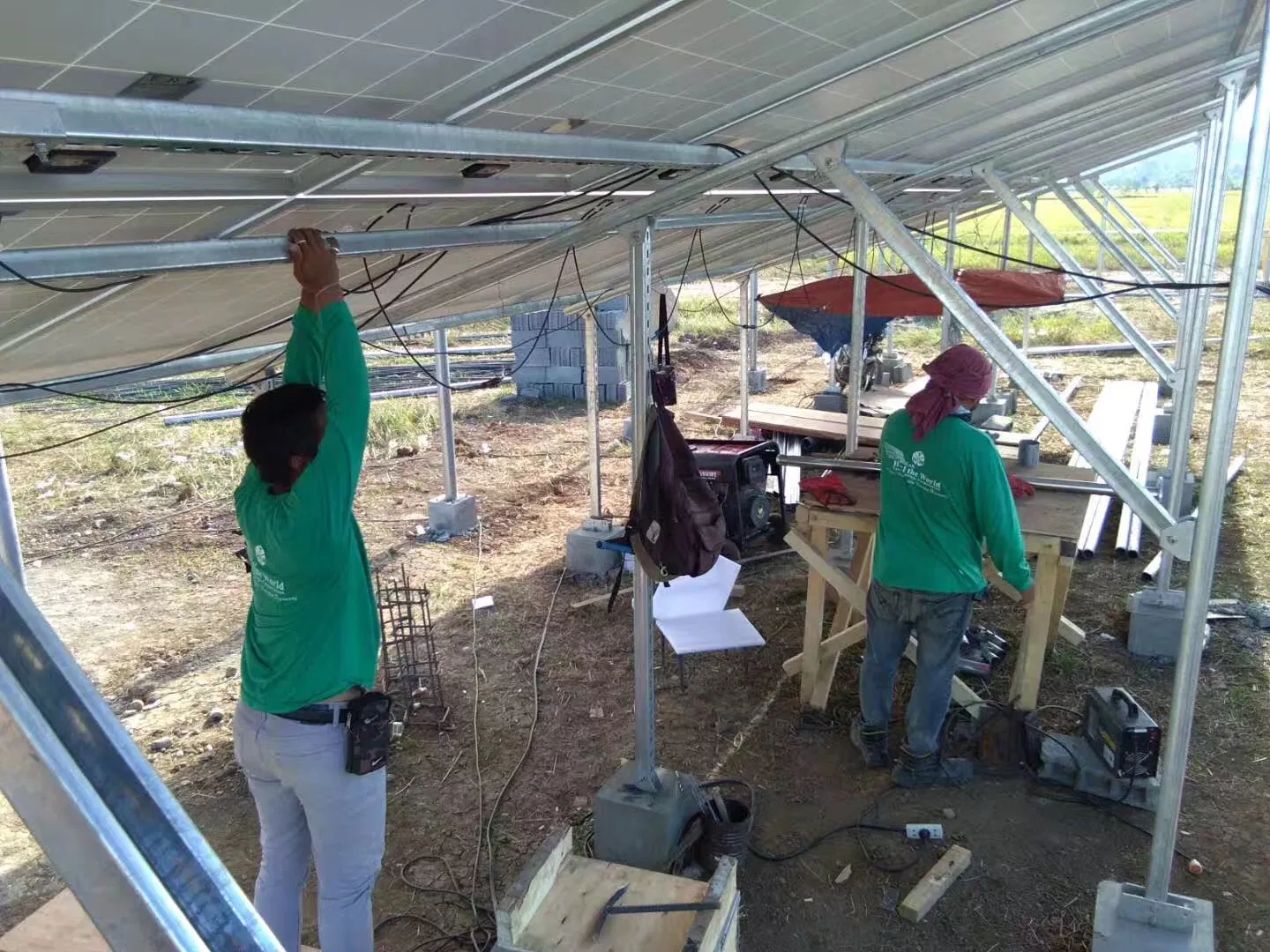

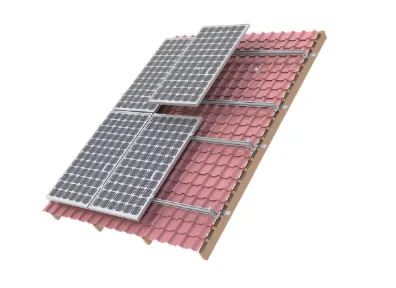

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |

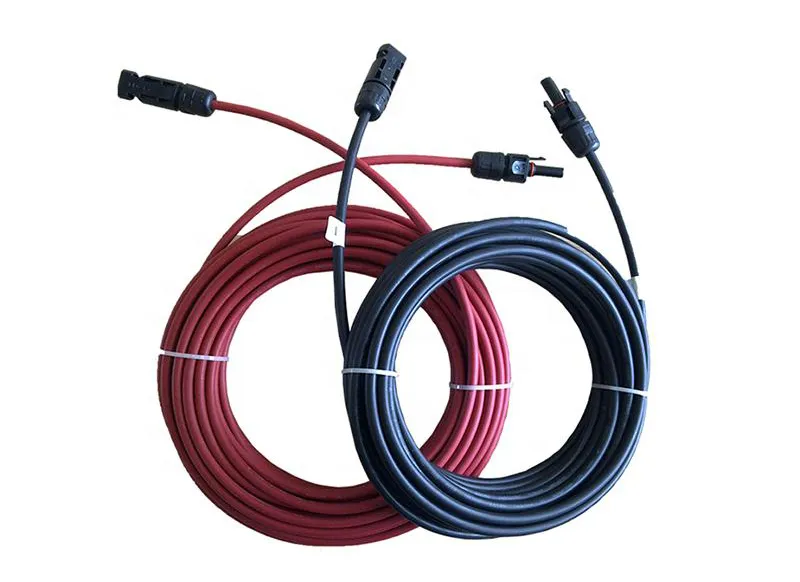

| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Valve | Check valve with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, pump cable connector, etc | set | 1 |

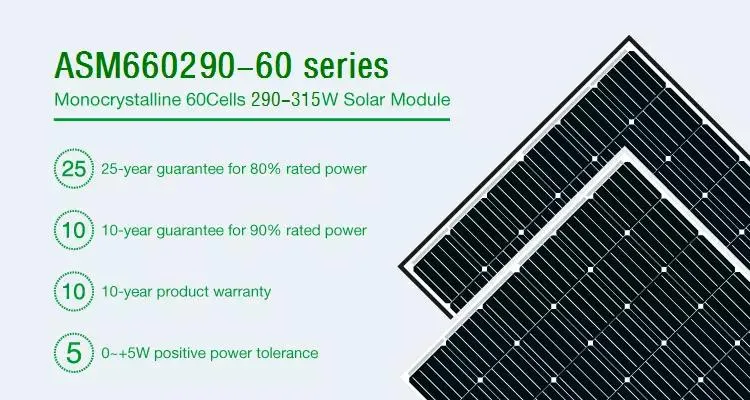

Peak Power Watts: 290W (ASM660290)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 39.5V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

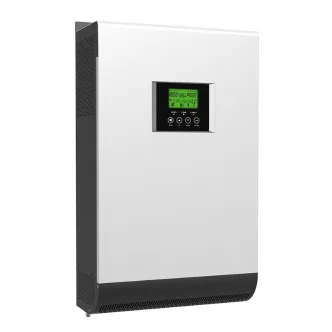

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Wifi Stick for Standard, Lan & GPRS Optional.

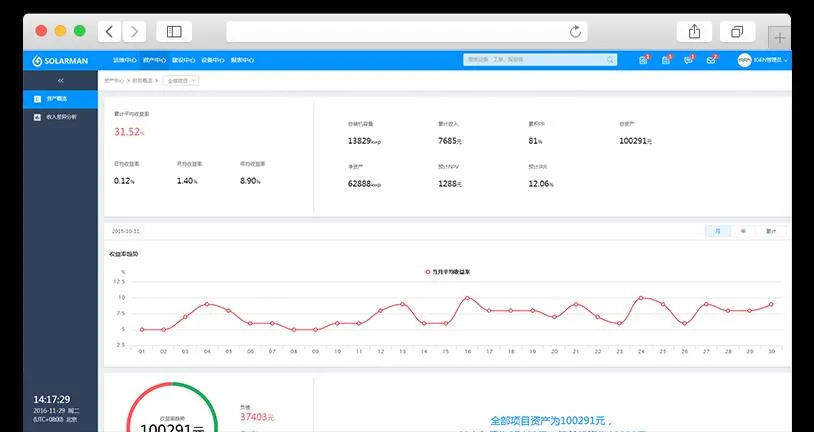

Data Logging Stick allows you to receive information everywhere and every time via Wi-Fi, Lan or GPRS. App Available for PC, IOS & Android.
