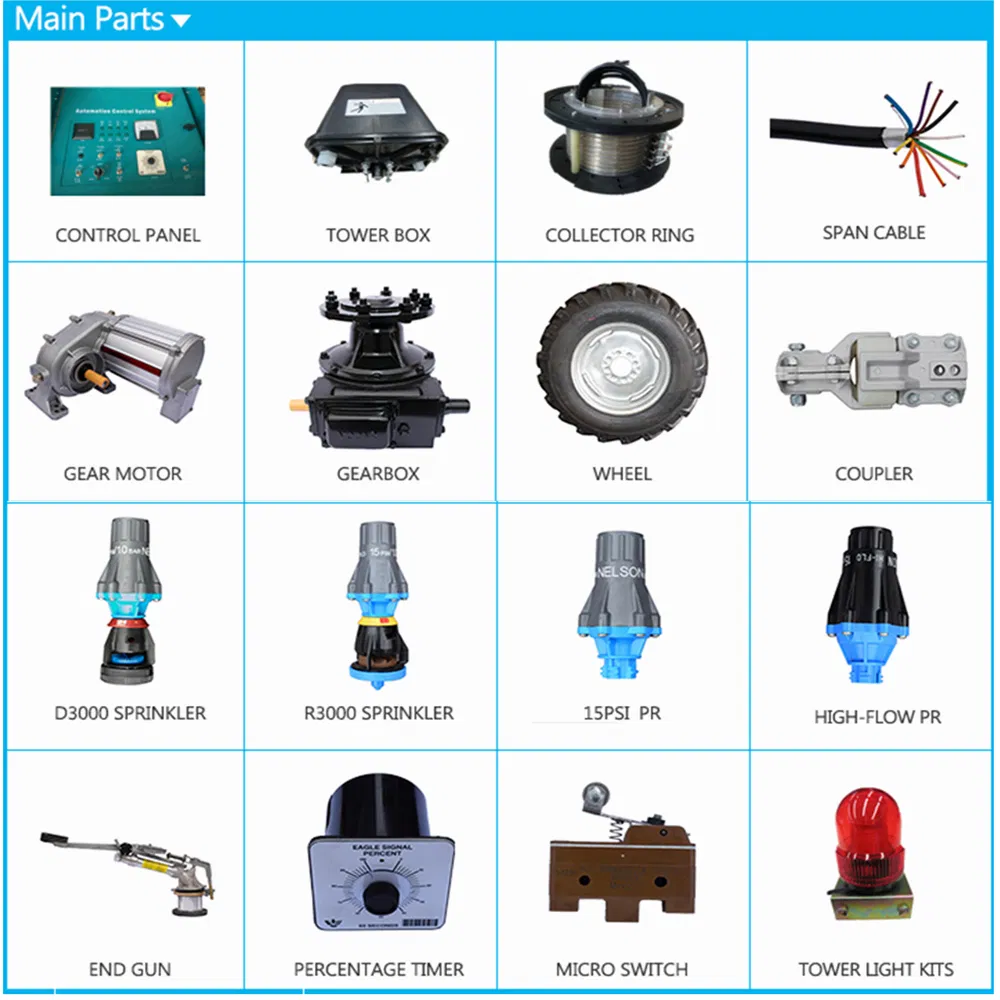

The DYP series lateral move irrigation system is composed of a center trestle table, trestle-tower vehicle, sprinkler truss, endmost cantilever, and an electric synchronous control system. This automated irrigation system is specifically designed for large-scale farming of potatoes, sugarcanes, watermelons, legumes, and various economic crops or pastures.
Key Advantages: High efficiency, power and water saving. The system increases yield at an economical cost with a spraying uniformity coefficient of up to 85%. It allows for uniform application of chemicals and fertilizers and can operate on fields with slopes up to 25%.
| Items | Specification | Items | Specification |
|---|---|---|---|
| Pivot length | 41.1-791.2m | Land covered | 0.53-196.7ha |
| Qty.of spans | 1-16 | Span length choice | 41.1 / 47.8 / 54.4 / 61.3m |
| Overhang length | 6.7 / 13.4 / 20.1 / 26.8m | Pivot clearance | 2.91-3.75m |
| Span dia. | 141 / 168 / 203mm | Surface | Hot dip galvanization |
| Flow rate | 15-1080m³/hr | Water pressure | 1-7.5 Bar |
| Max speed | 142m/hr | Tire | Rubber or Plastic options |
| Gear box | 50:1 heavy duty | Required run power | 0.7-11.5kw |
Payment: T/T (30% advance, 70% before shipment), L/C at sight, or Western Union.
Trade Terms: FOB, C&F, and CIF available.

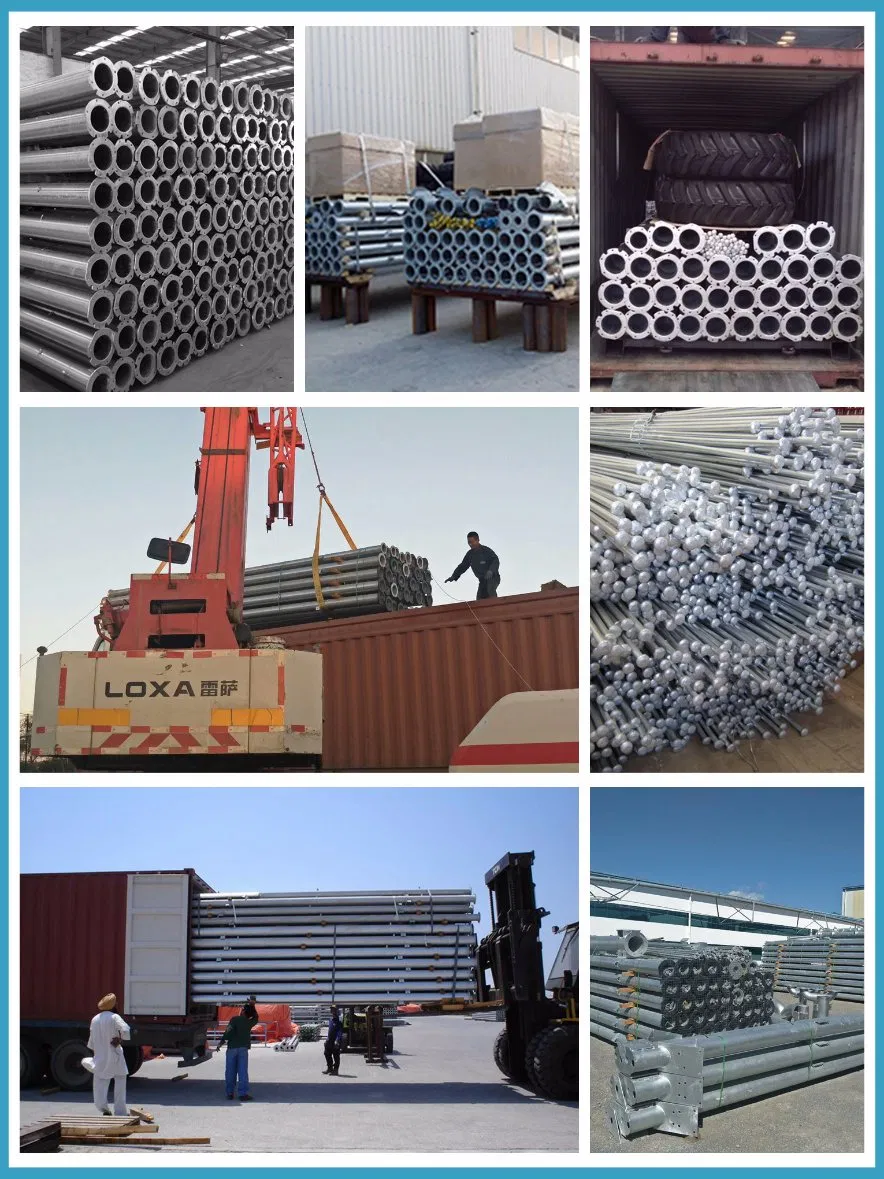

Packing: Standard exporting wooden cases; 20"/40"/HQ container compatible.
