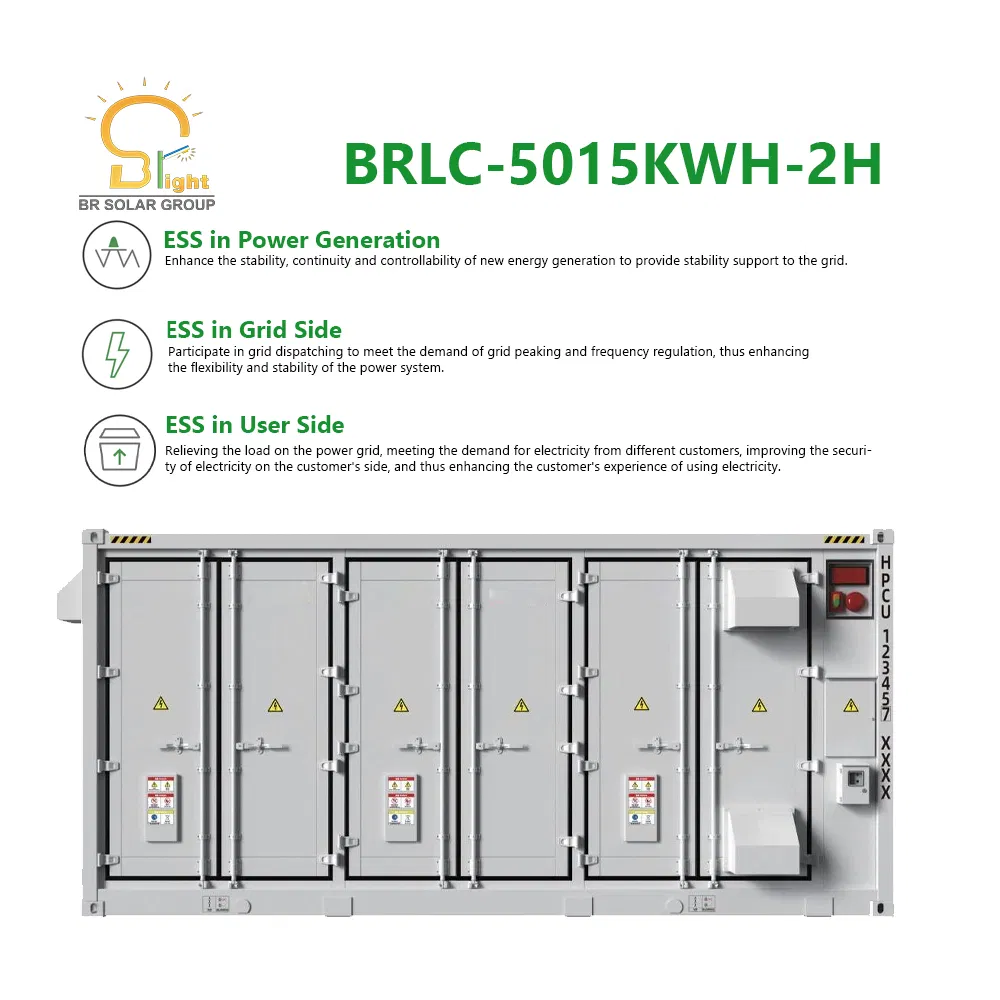

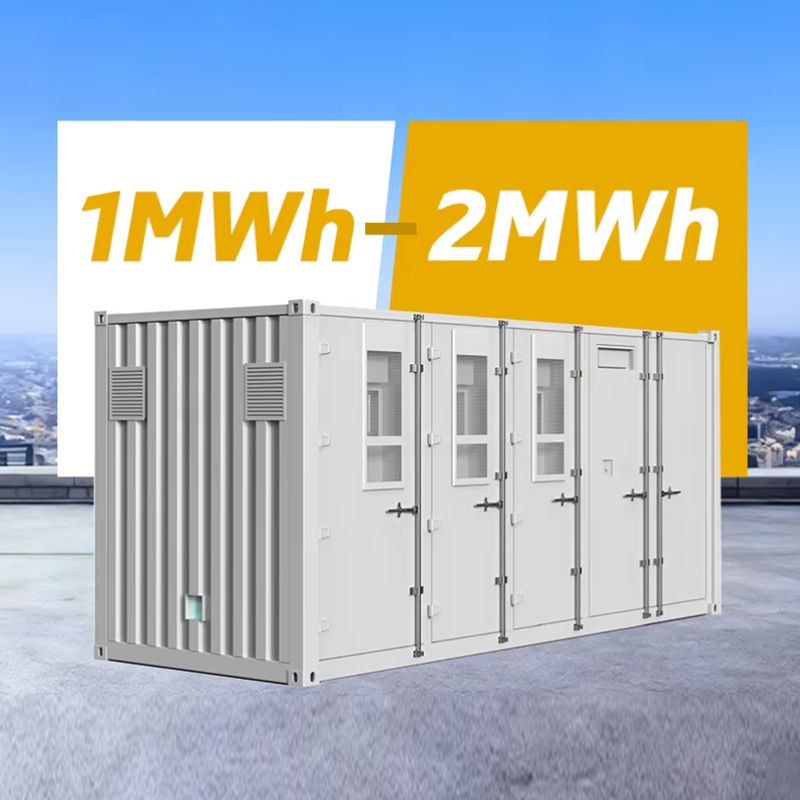

Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess All-in-One Container Battery

1 / 5

Solar Energy Battery Storage System 100kwh 200kwh 500kwh 1mwh Bess All-in-One Container Battery

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Information

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial, School, Factory

Specification

100kwh, 233kwh

Type of Cell

Lithium Iron Phosphate(LFP)

Cell Parameter

3.2V/314ah

Cooling

Liquid Cooling

Protection Class

IP55

Max. Charge/Discharge

0.5c

System Configuration

1p416sx12

Rated Capacity

5.01 Mwh

Rated Voltage

1331.2V

Voltage Range

1164.8~1497.6V

Origin

China

HS Code

8501310000

Production Capacity

1000set/Month

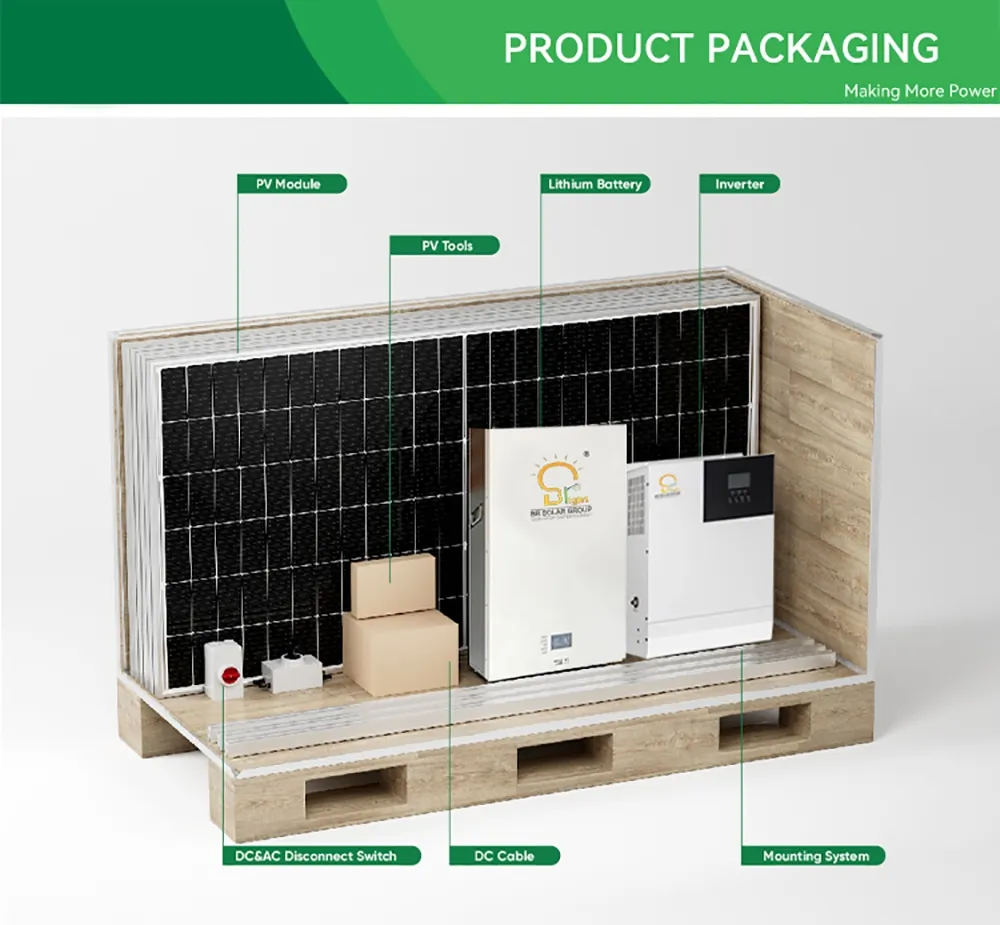

Packaging & Delivery

Package Size

110.00cm * 140.00cm * 238.00cm

Gross Weight

2000.000kg

Transport Package

Carton and Pallet

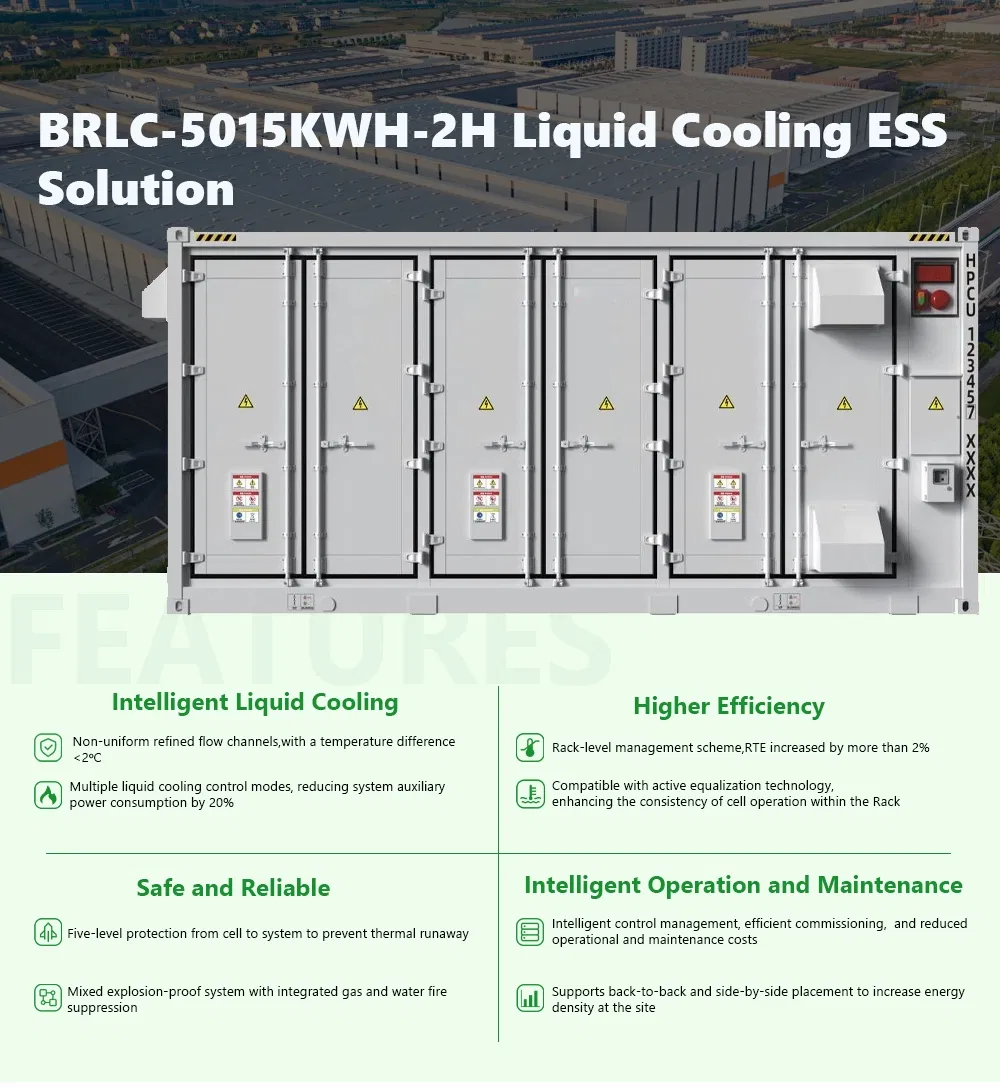

Product Description

Items	Parameters

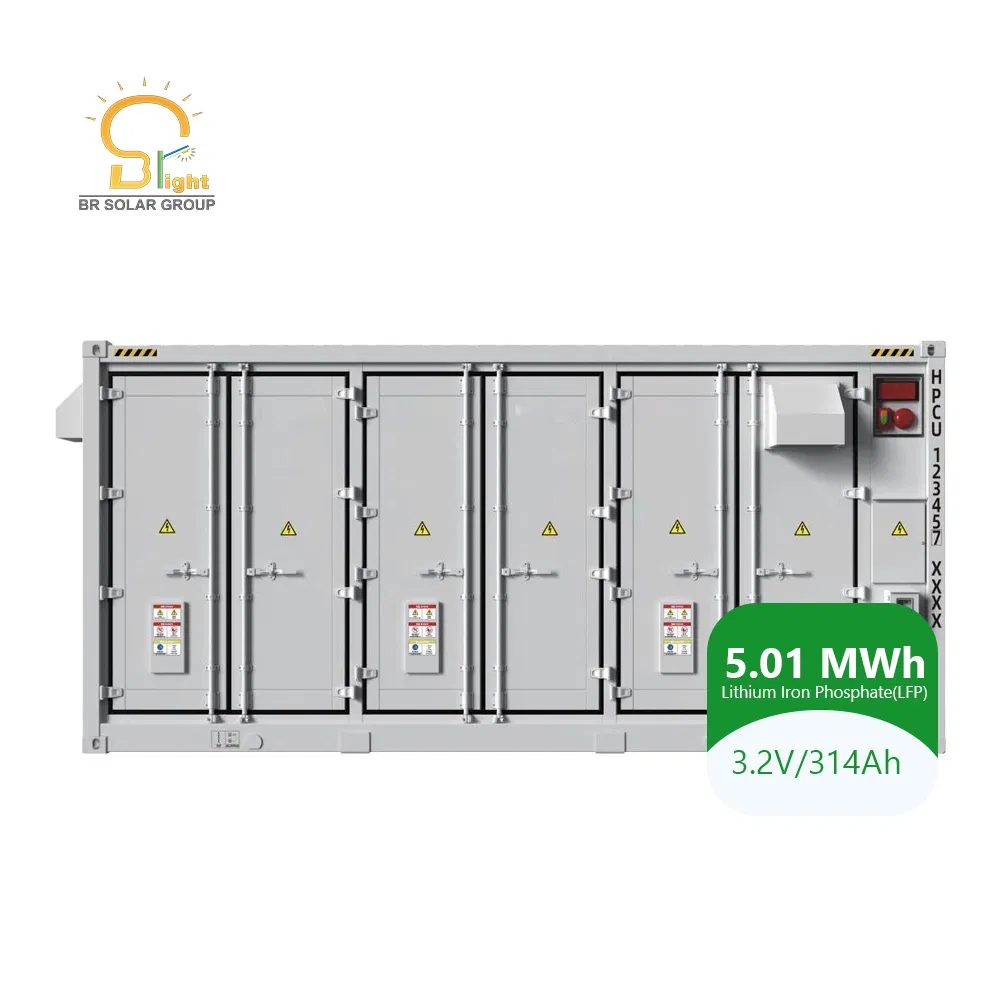

Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V
Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)

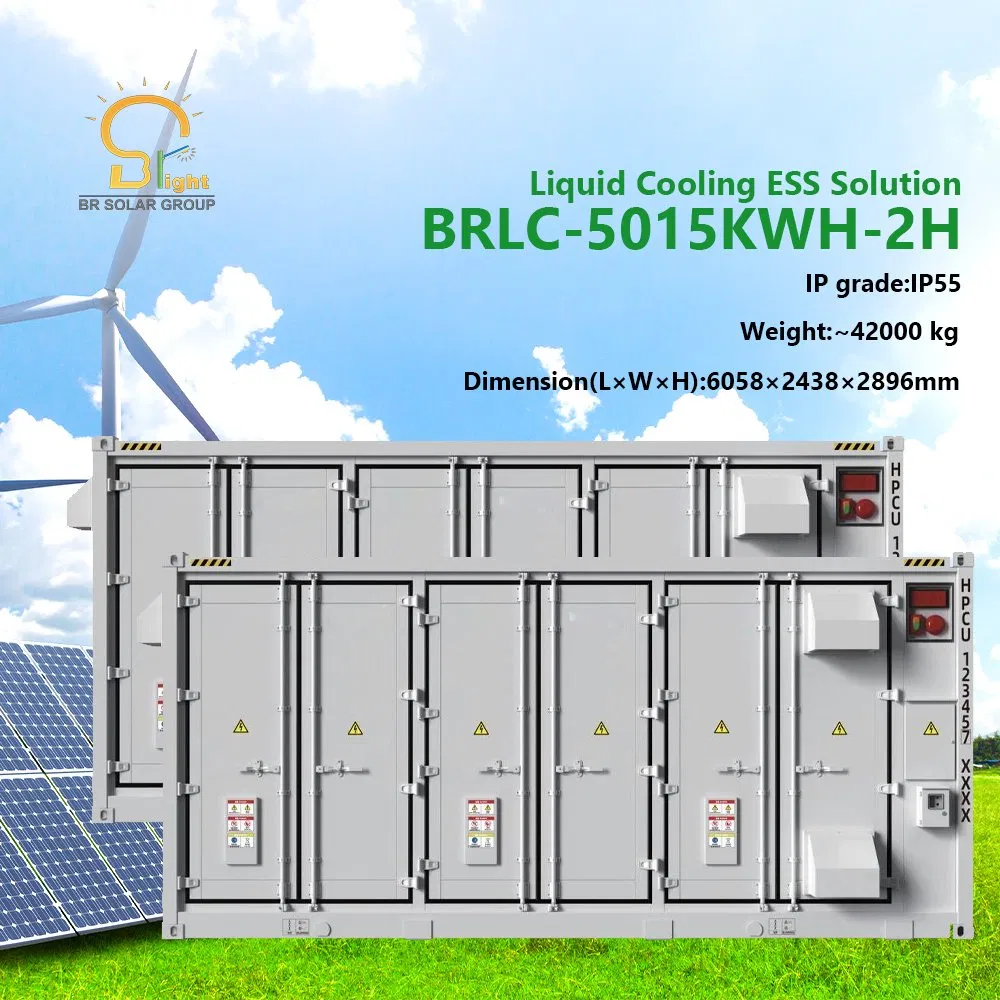

IP grade	IP55
Storage temperature	−20~45ºC
Corrosion-proof grade	C4/C5(optional)
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interface	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

Frequently Asked Questions

What type of battery technology is used in this system?

The system utilizes Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for high safety and long cycle life.

How is the thermal management handled?

This energy storage system uses advanced Liquid Cooling technology to maintain optimal operating temperatures between -30°C and 50°C.

What is the protection rating for outdoor use?

The system is rated IP55, providing excellent protection against dust and water, making it suitable for various industrial and commercial environments.

What fire safety features are integrated?

It includes a comprehensive multi-level safety system: temperature and smoke sensors, combustible gas detectors, deflagration venting, fire extinguishing gas, and a water sprinkler system.

What are the communication interfaces available?

The system supports multiple external communication interfaces including Ethernet, CAN, and RS485 for seamless integration with monitoring systems.

Can this system be used at high altitudes?

Yes, the system is designed to operate efficiently at altitudes up to ≤3000 meters.
