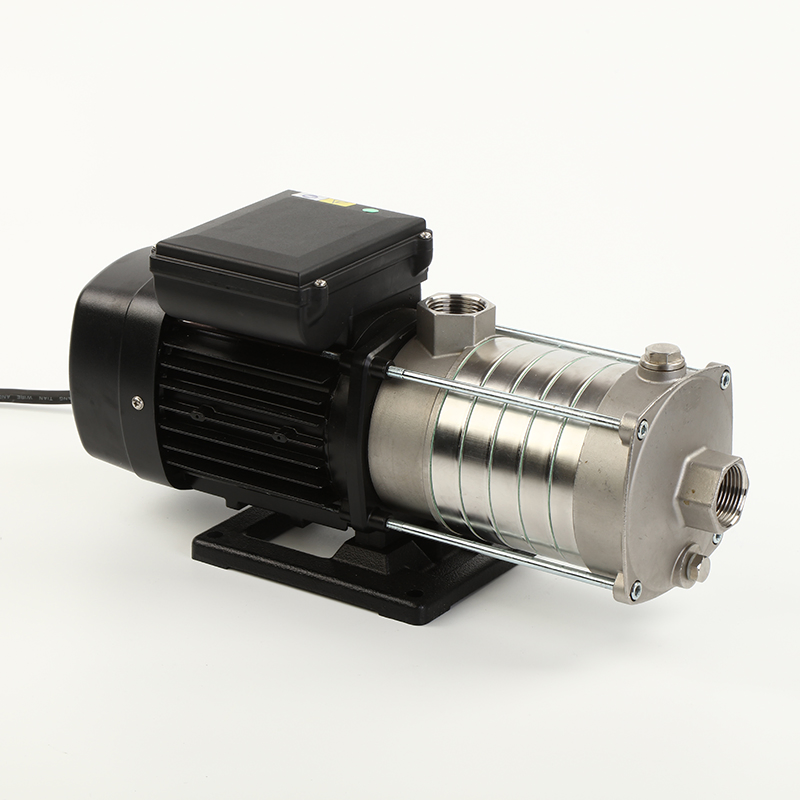

Solar DC High Pressure Boosting Surface Pump Systems

1 / 5

Solar DC High Pressure Boosting Surface Pump Systems

Customization:	Available
After-sales Service:	3 Years
Warranty:	3 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

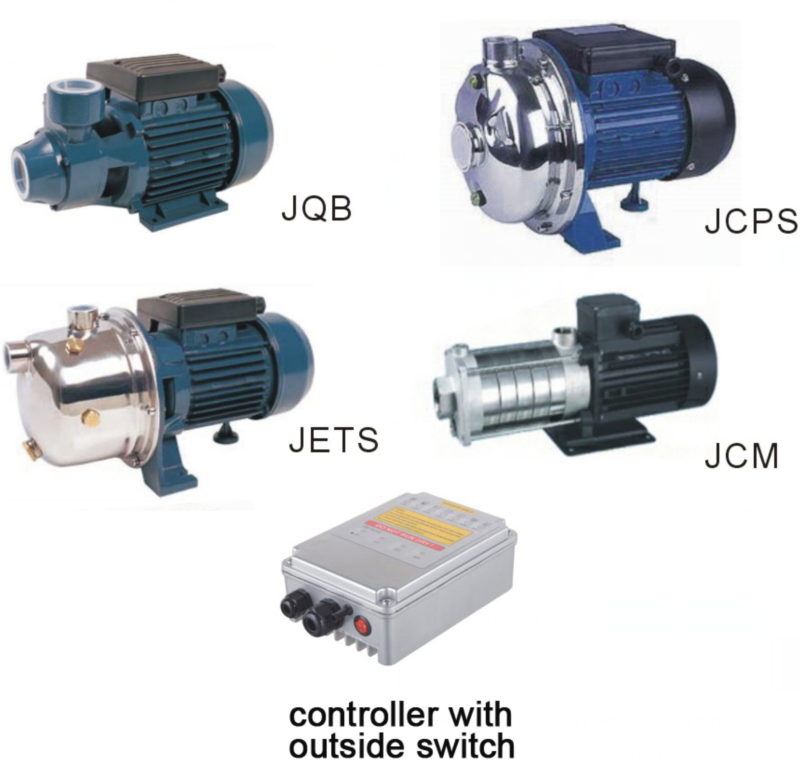

JQB, JCPS, JETS

Max. Head

50-80m

Max. Capacity

100-200 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Power

Solar Energy

Type

Solar Pump

Application

Submersible/Surface Pump

Media

Clean Water

Theory

Centrifugal Pump

Controller

MPPT Controller

Solar DC Pressure Booster System

🛡️ Warranty Coverage

Solar water pump: 3 years

MPPT controller: 3 years

Solar panel: 25 years

Components can be purchased as a complete system or individually. If the controller or motor is damaged within 3 years, a replacement will be sent free of charge. Spare parts are provided for pump damage within the same period.

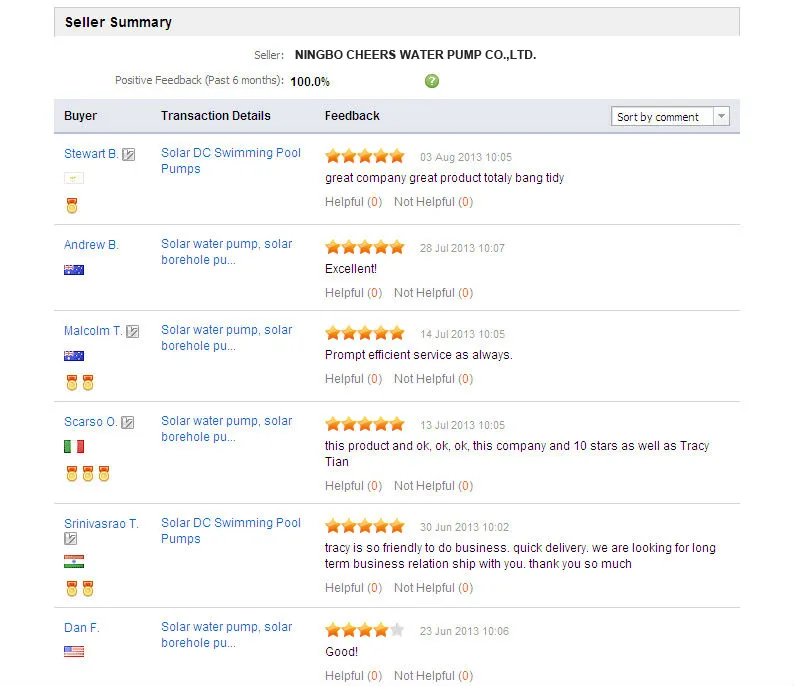

Customer Feedback & Results

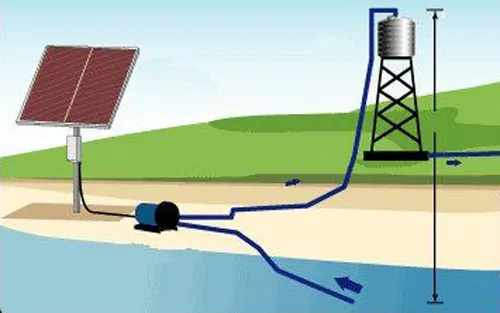

Application Areas

Products are primarily utilized in dry regions for agricultural irrigation, drinking water supply, and general domestic use, significantly improving living conditions.

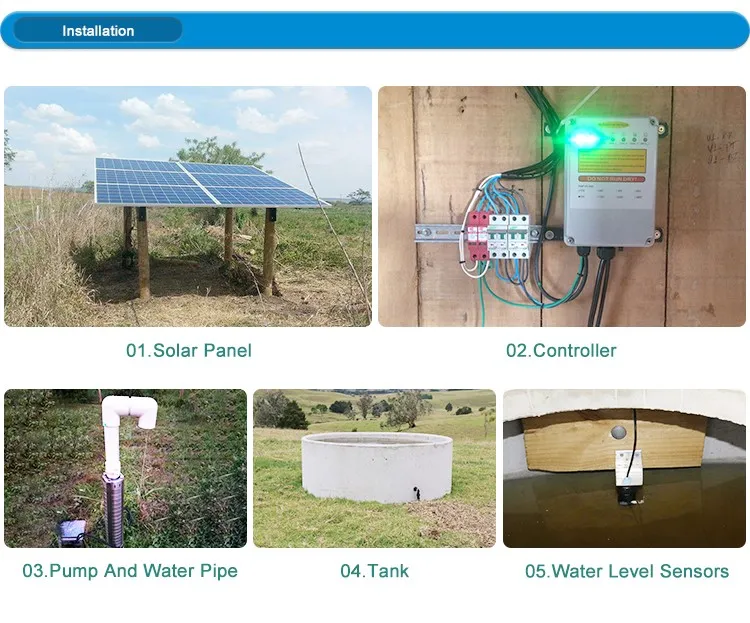

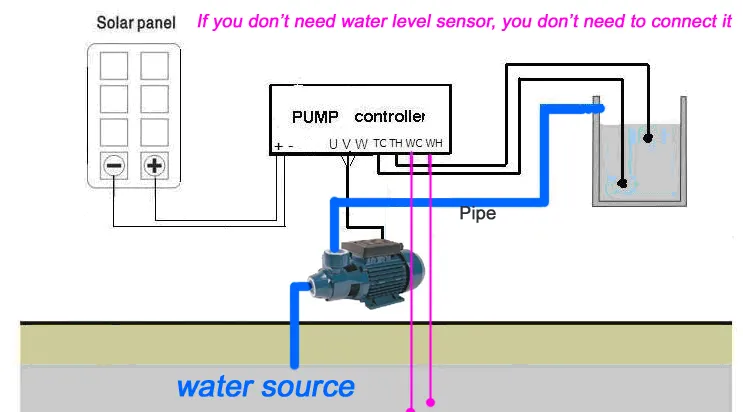

Included Accessories:

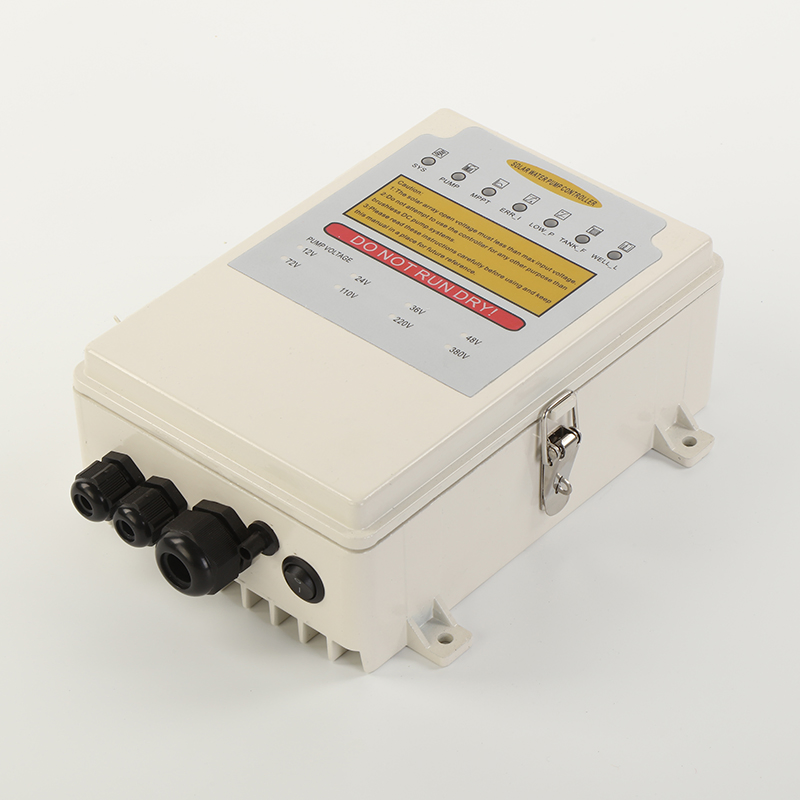

✅ Pump Controller
✅ Cable Connector
✅ Water Level Sensor
✅ Cable for Solar Panel

Advanced Technology

Application Innovation: Permanent magnetism brushless DC motor improves efficiency by 25% compared to traditional AC machines.
Technical Innovation: High reliability, cost-efficient pumping, and extended life expectancy.

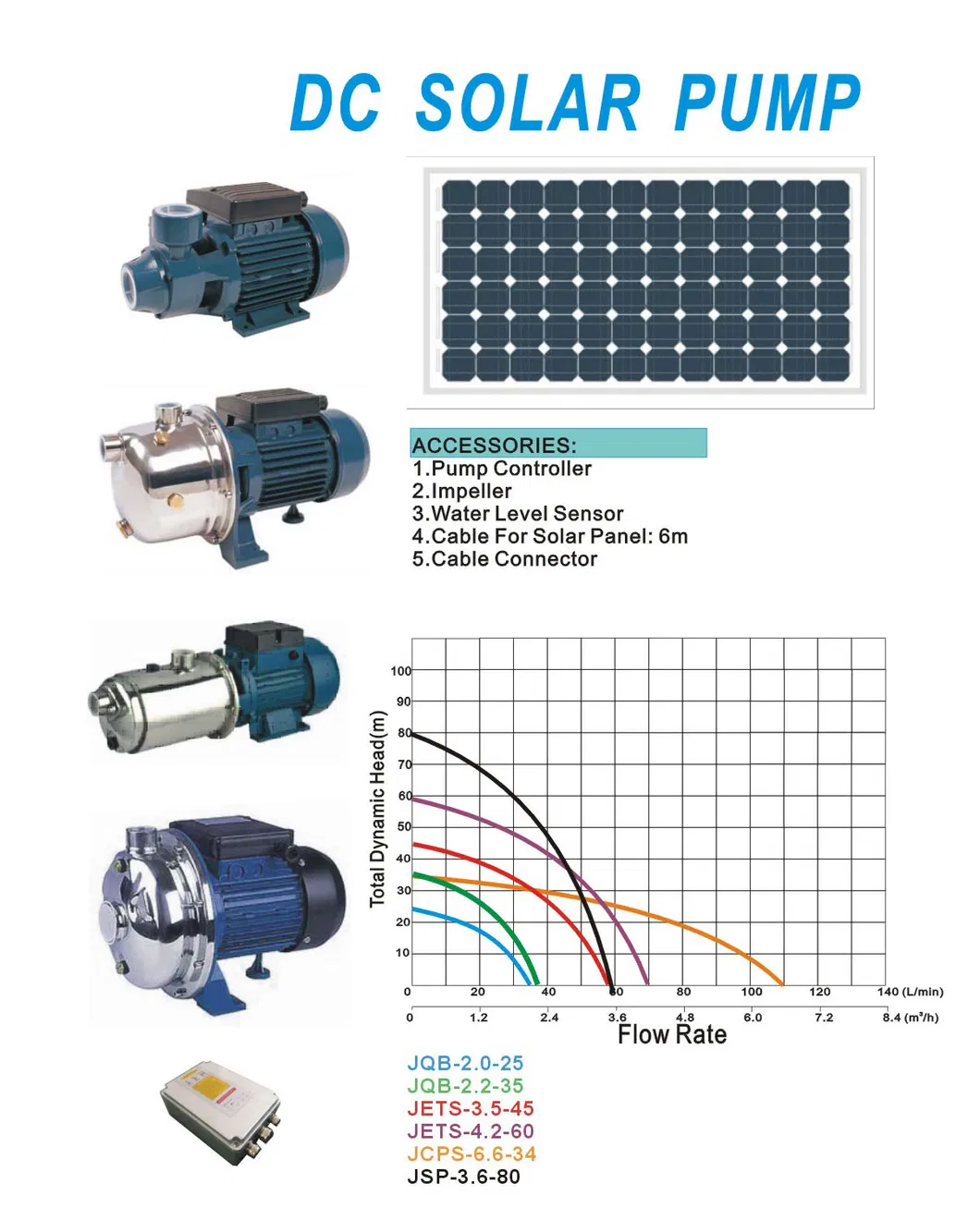

TYPE	VOLTAGE (V)	RATE POWER (W)	MAX FLOW (m³/h)	MAX HEAD (m)	OUTLET SIZE (in)
JQB-2.0-25	24	120	2	25	1" *1"
JQB-2.2-35	36	210	2.2	35	1" *1"
JETS-3.5-45	48	550	3.5	45	1" *1"
JETS-4.2-60	72	1000	4.2	60	1" *1"
JCPS-6.6-34	72	1000	6.6	34	1.25*1"

Frequently Asked Questions

Q: What is the warranty period for the solar pump system?

A: The solar water pump and MPPT controller both come with a 3-year warranty, while the solar panels feature a 25-year warranty.

Q: Can this pump be used for agricultural irrigation?

A: Yes, these pumps are specifically designed for irrigation in dry regions as well as providing drinking water for domestic use.

Q: What makes the DC brushless motor better than traditional AC motors?

A: The permanent magnetism brushless DC motor increases efficiency by 25% compared to traditional alternating current machines.

Q: What happens if a component fails during the warranty period?

A: If the motor or controller is damaged within 3 years, we provide a free replacement with shipping included. Spare parts are provided for pump damage.

Q: Are the necessary installation accessories included?

A: Yes, the system includes the pump controller, cable connectors, water level sensors, and the required cables for solar panel connection.
