Solar DC Surface Pressure Booster Pump System

1 / 5

Solar DC Surface Pressure Booster Pump System

Customization:	Available
Condition:	New
Certification:	ISO, CE

Send Inquiry

Product Description

Basic Specifications

Application

Home, Industrial, Commercial, Clean Water

Specification

Solar Powered, DC POWER

MPPT

Controller

Pump Type

Solar DC Pressure Booster System

Certification

CE, GS, RoHS Approved

Warranty

3 Years

Delivery Time

15 Days

Packaging

Carton or Wooden Case

Capacity

10,000 Pieces / Month

HS Code

8413609090

Product Overview

Solar Surface Pump & DC Pressure Booster System

📍Primary Application

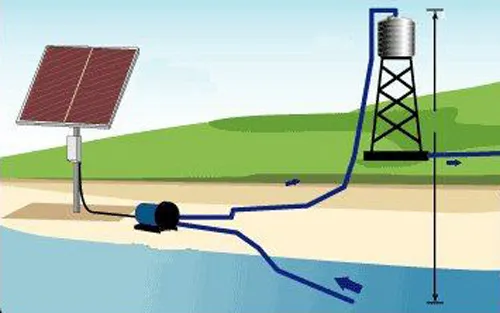

Specifically designed for dry regions to support agricultural irrigation, ensuring reliable drinking water and improving overall living conditions.

⚙️Advanced Technology

Utilizes permanent magnetism, brushless DC non-sensor motors, improving efficiency by 25% compared to traditional AC machines.

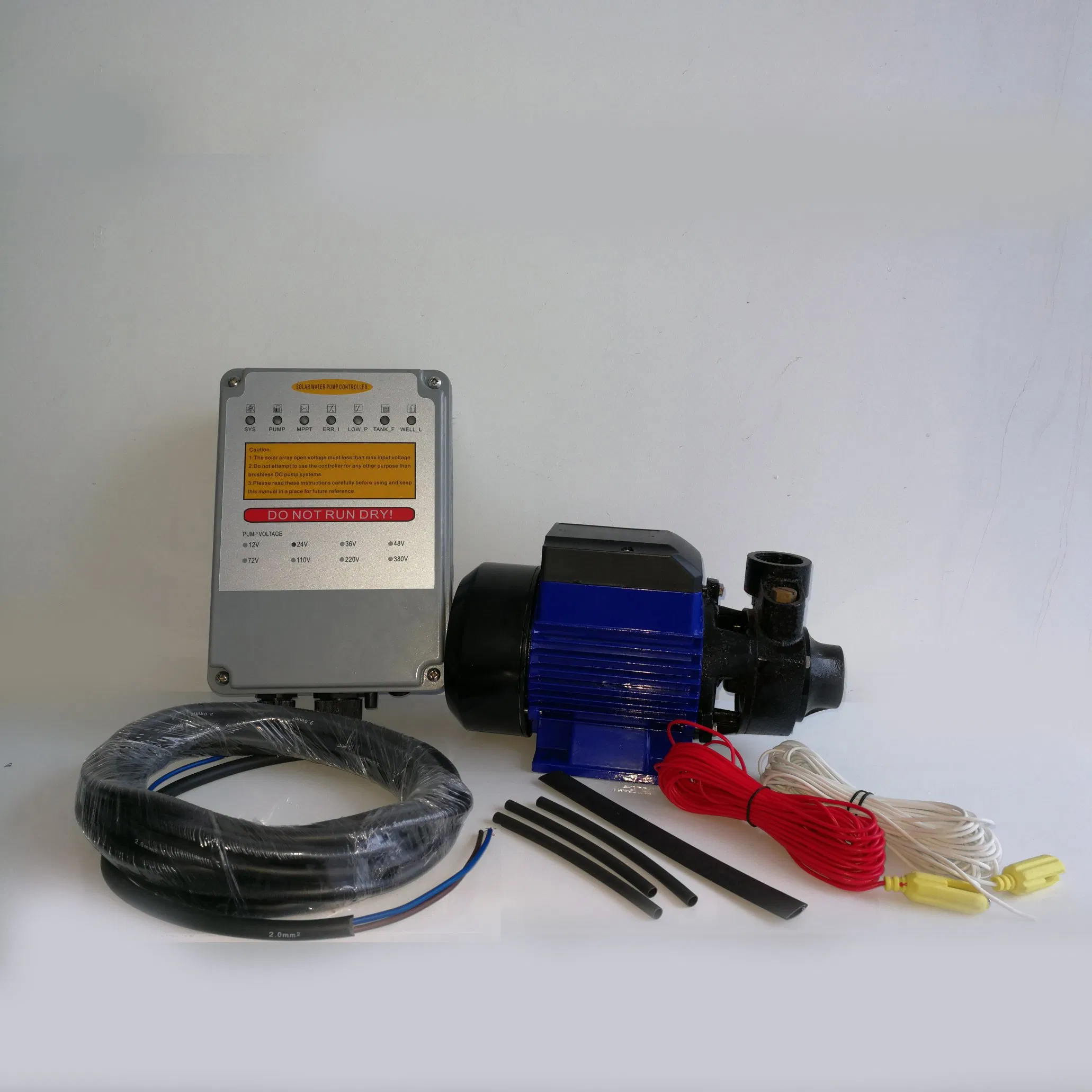

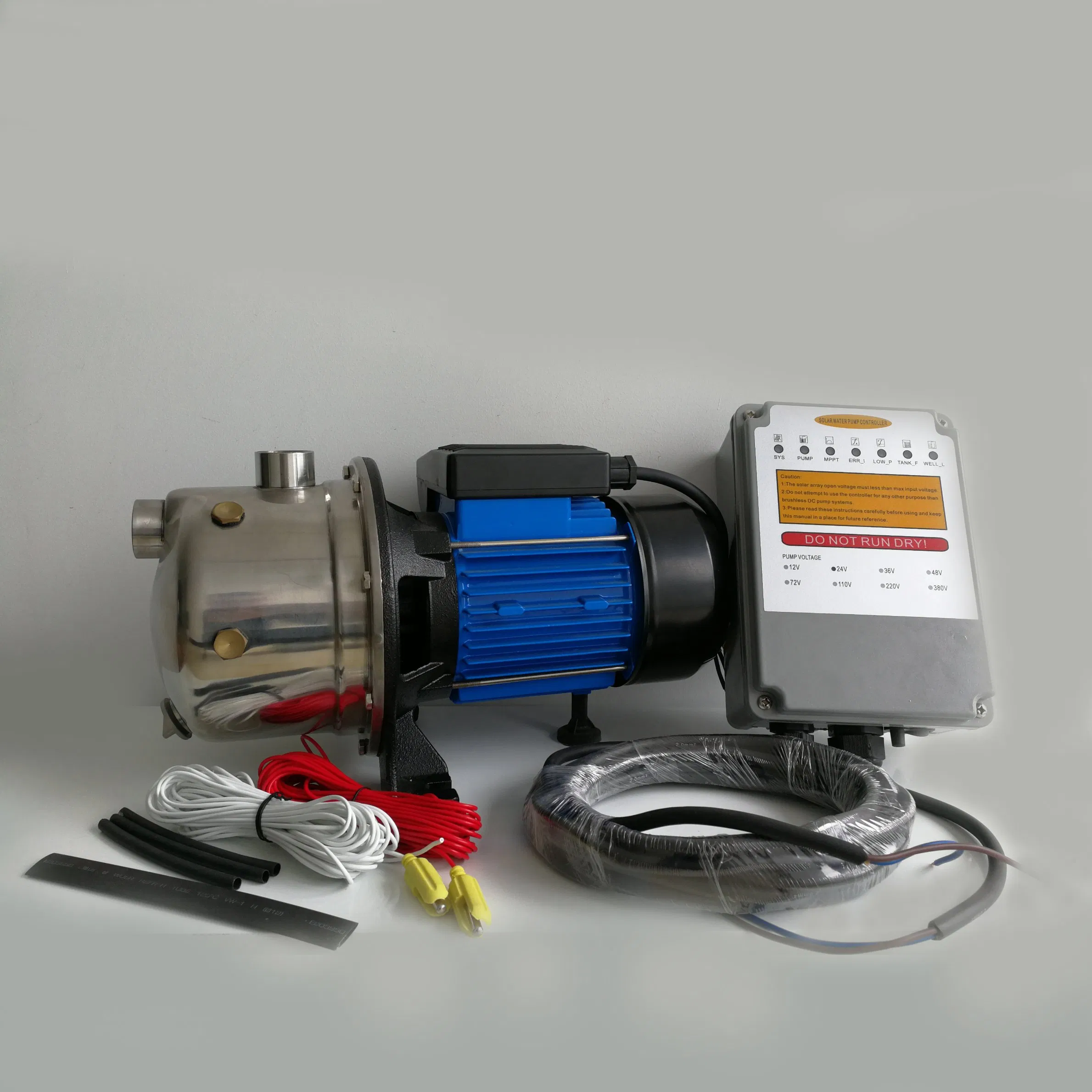

📦Included Accessories

Pump controller
Cable connector
Water level sensor
Solar panel cables

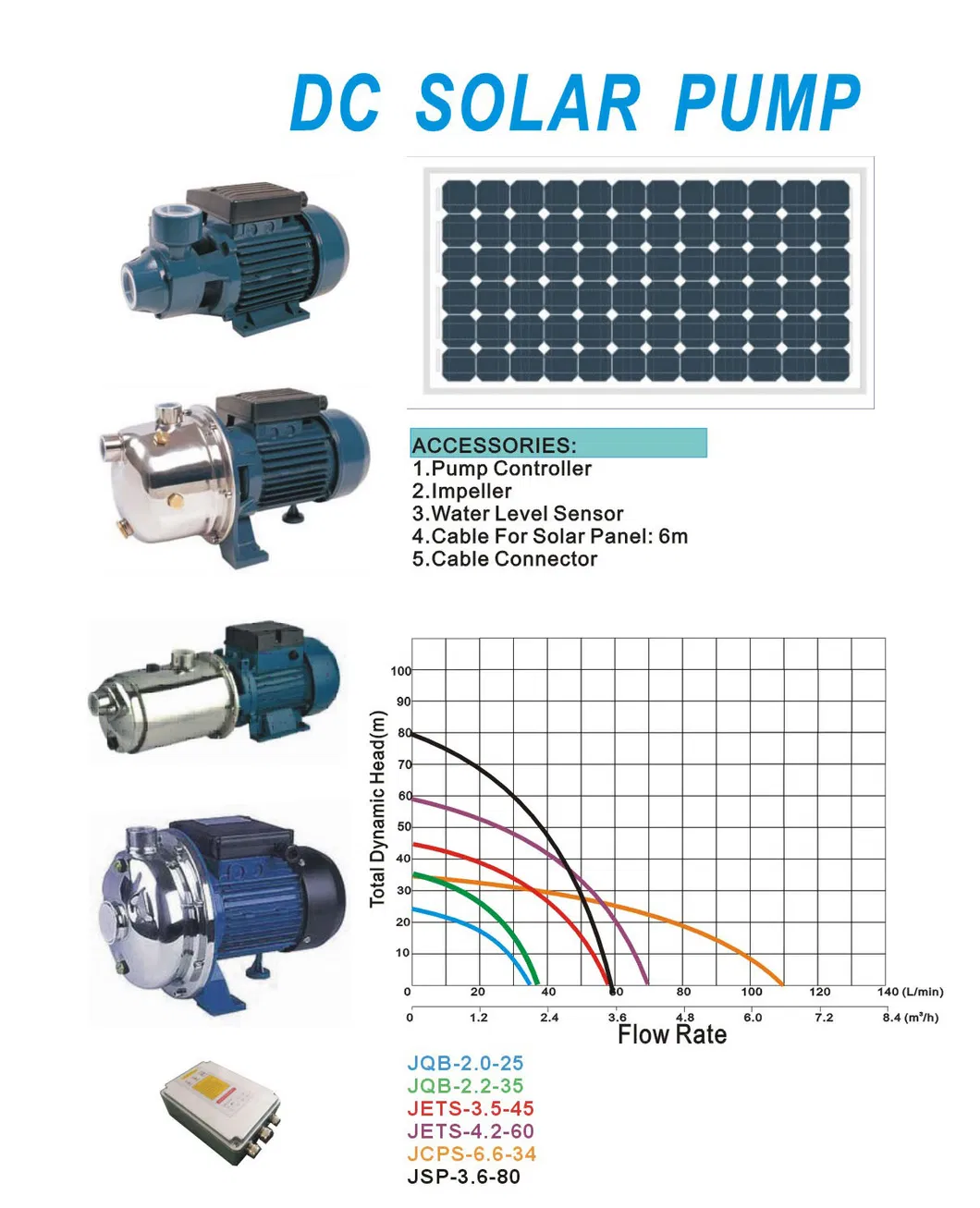

Technical Parameters

TYPE	VOLTAGE	RATE POWER	MAX FLOW	MAX HEAD	OUTLET SIZE
TYPE	(V)	(W)	(m³/h)	(m)	(in)
JQB-2.0-25	24	120	2	25	1" * 1"
JQB-2.2-35	36	210	2.2	35	1" * 1"
JETS-3.5-45	48	550	3.5	45	1" * 1"
JETS-4.2-60	72	1000	4.2	60	1" * 1"
JCPS-6.6-34	72	1000	6.6	34	1.25 * 1"

Frequently Asked Questions

What are the primary uses for this solar pump system?

The system is mainly used for agricultural irrigation in dry regions, as well as providing drinking water and living water for domestic use.

How much more efficient is the brushless motor?

Thanks to permanent magnetism and brushless DC technology, the motor efficiency is improved by approximately 25% compared to traditional alternating current (AC) machines.

What is the warranty period for this product?

We provide a 3-year manufacturer's warranty against any defects in material and workmanship to ensure long-term reliability.

What accessories are included in the package?

The standard package includes the pump controller, cable connectors, water level sensors, and the necessary cables for solar panel connection.

What is the estimated delivery time for an order?

The typical production and delivery time is approximately 15 days, with products securely packed in cartons or wooden cases.

Are these pumps certified for international markets?

Yes, our solar booster pumps are CE, GS, and RoHS approved, meeting high international safety and quality standards.
