Solar Center Pivot Irrigation System for Sudan

Customization:	Available
Usage:	Irrigation
Type:	Irrigation System

Send Inquiry

Product Description

Basic Information

Model NO.

DYP 40-1000m

Power Source

Electricity

Irrigation Mode

Sprinkler Irrigation

Pump Type

Centrifugal Pump

Material

Metal

Certification

ISO9001:2008, CCC, CE, QS, GMP

Application

Agriculture

Qty of Spans

1-16

Surface

Hot DIP Galvanization

Max. Speed

142m/H

Tire Size

14.9X24

Production Capacity

3000 sets/Year

Product Introduction

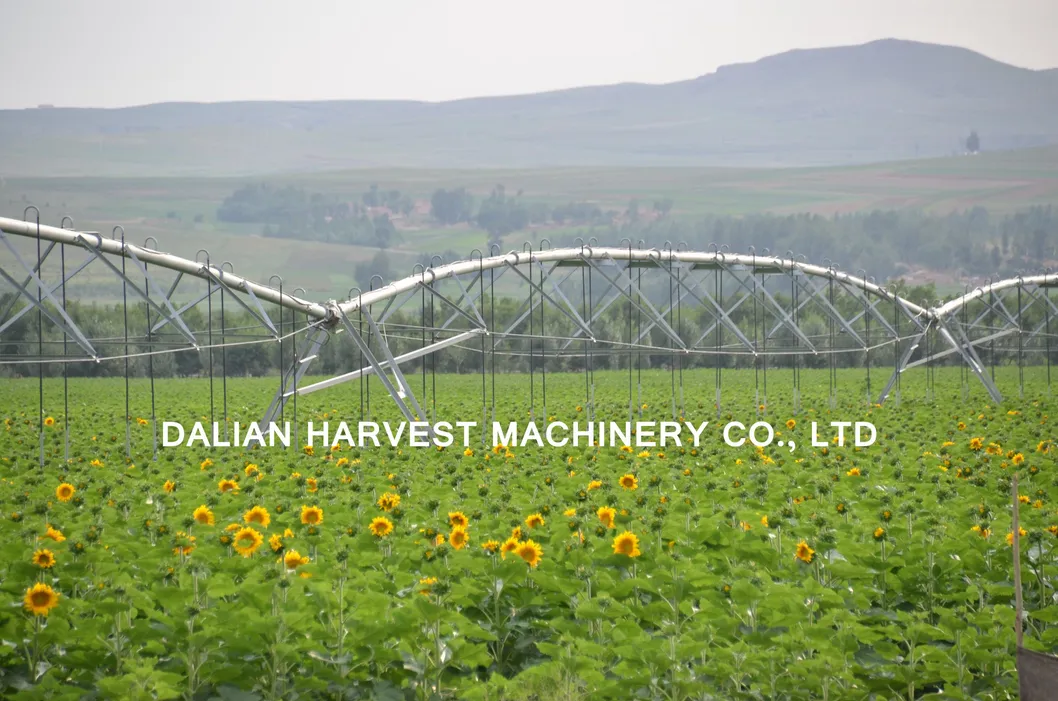

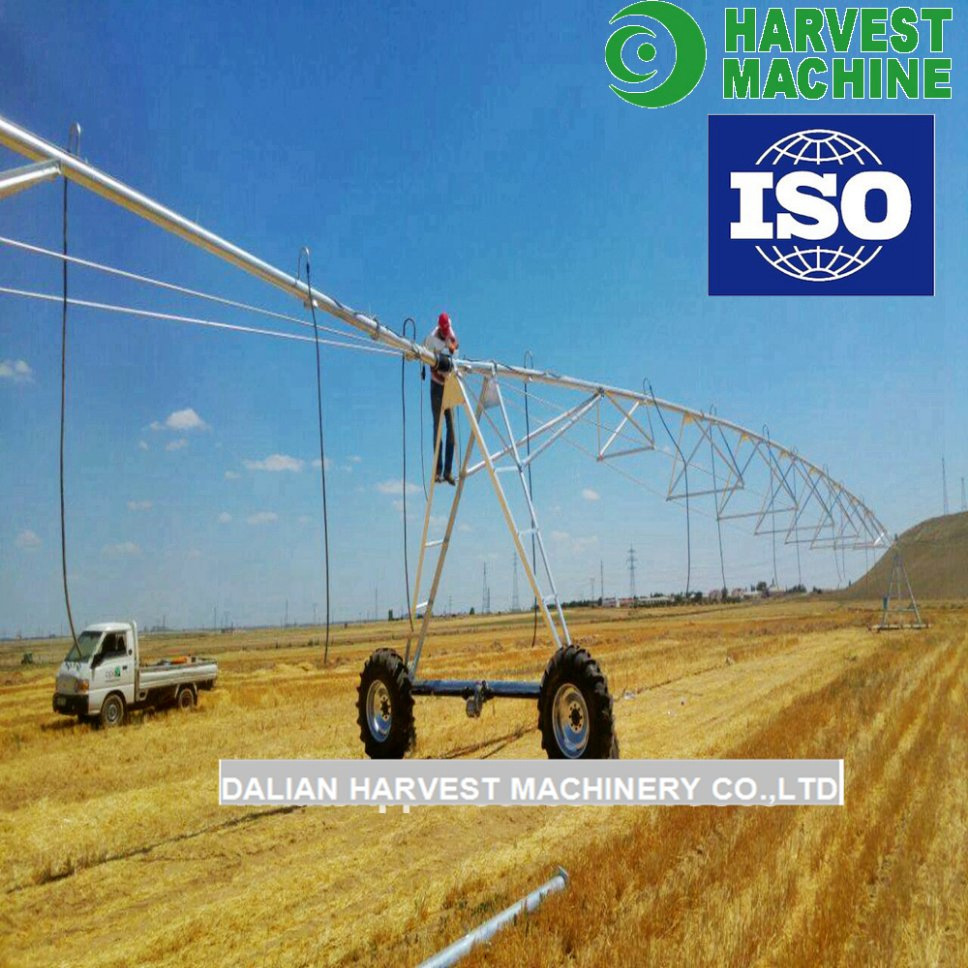

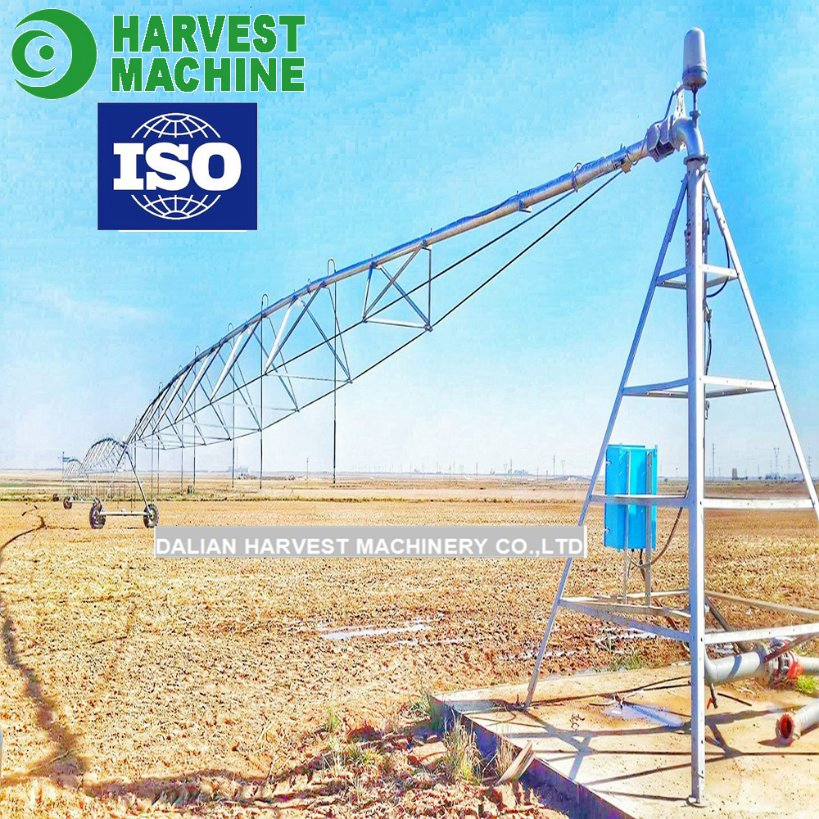

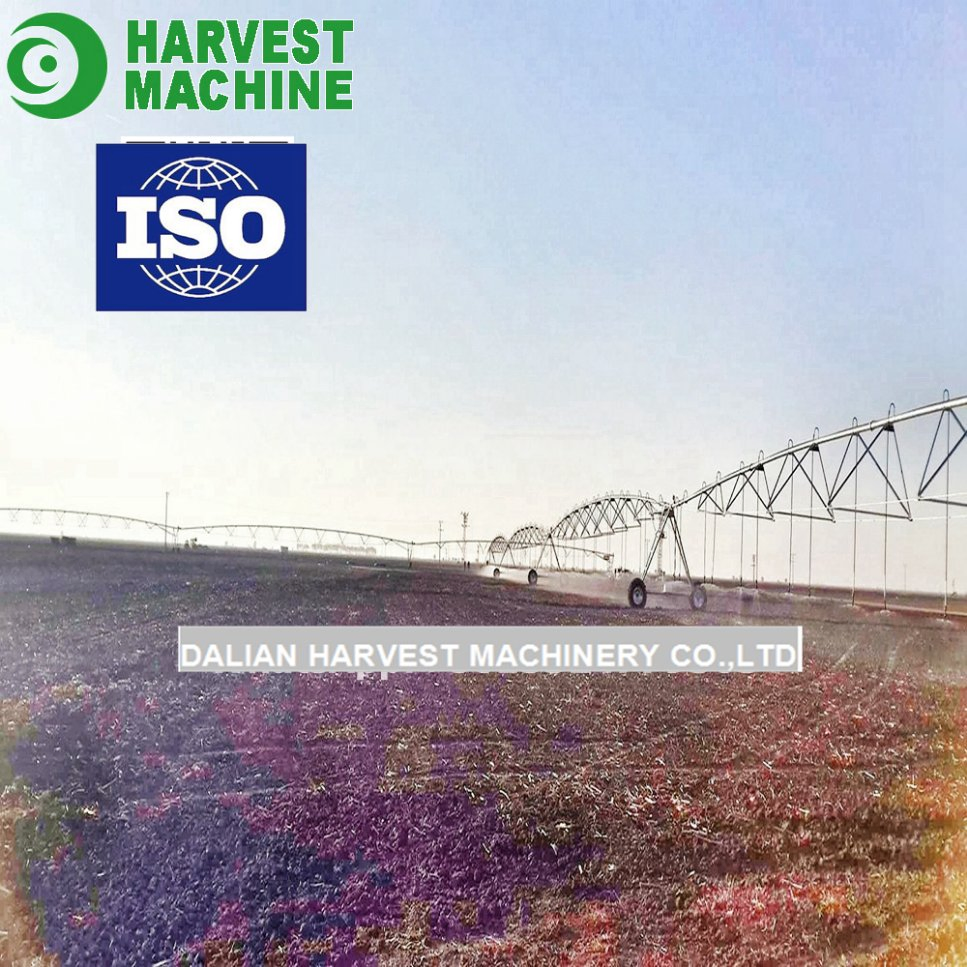

The DYP series center pivot irrigation system consists of a center trestle table, trestle-tower vehicle, sprinkler truss, endmost cantilever, and an electric synchronous control system.

Ideal for: Potatoes, sugarcanes, watermelons, legumes, economic crops, and pasture. This automated system offers high efficiency, power saving, and water conservation. It increases yield at an economical cost with a spraying uniformity coefficient of up to 85%.

Works on uneven fields with slopes up to 25%.
All parts rust-free for 15 years via zinc coating treatment.
Fault position display for easy maintenance.
Irrigates 13-130ha from a single water feeding point.
Heavy-duty design extendable to more than 11 spans (650m).

Technical Specifications

Pivot Length	41.1-791.2m	Land Covered	0.53-196.7ha
Span Length Choice	41.1 / 47.8 / 54.4 / 61.3m	Pivot Clearance	2.91-3.75m
Span Diameter	141 / 168 / 203mm	Pivot Height	4.62-5.46m
Flow Rate	15-1080m³/hr	Water Pressure	1-7.5Bar
Gear Box	50:1 heavy duty	Gear Motor	33rpm, 3/4HP 40:1 Ratio
Power Supply	380V / 415V 50HZ/60HZ	Max Speed	142m/hr

Core Features

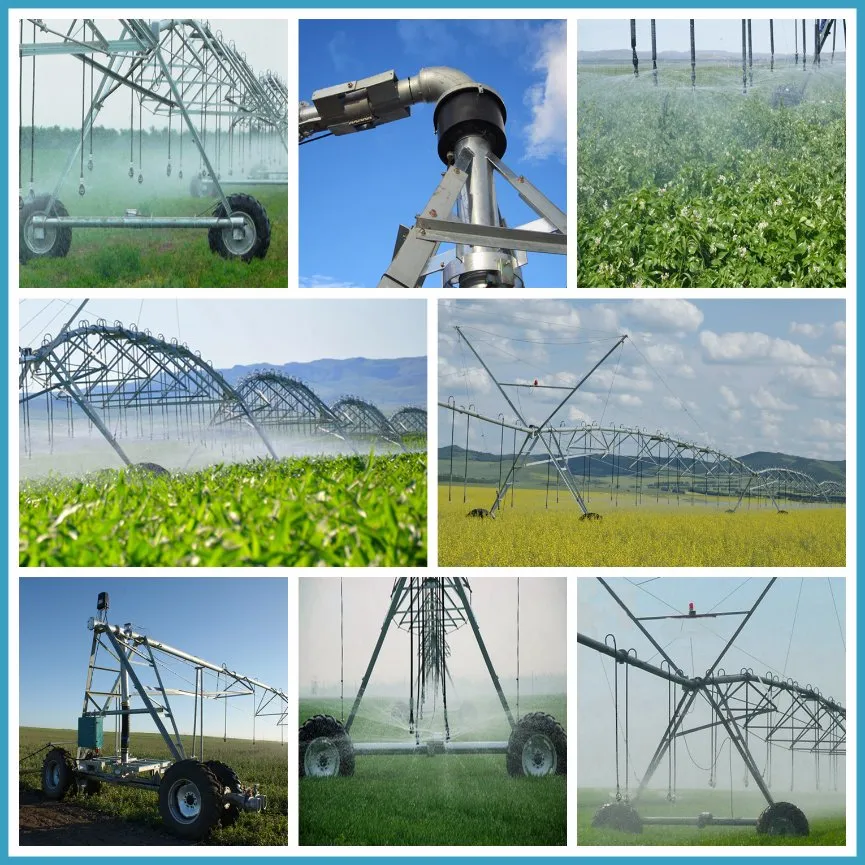

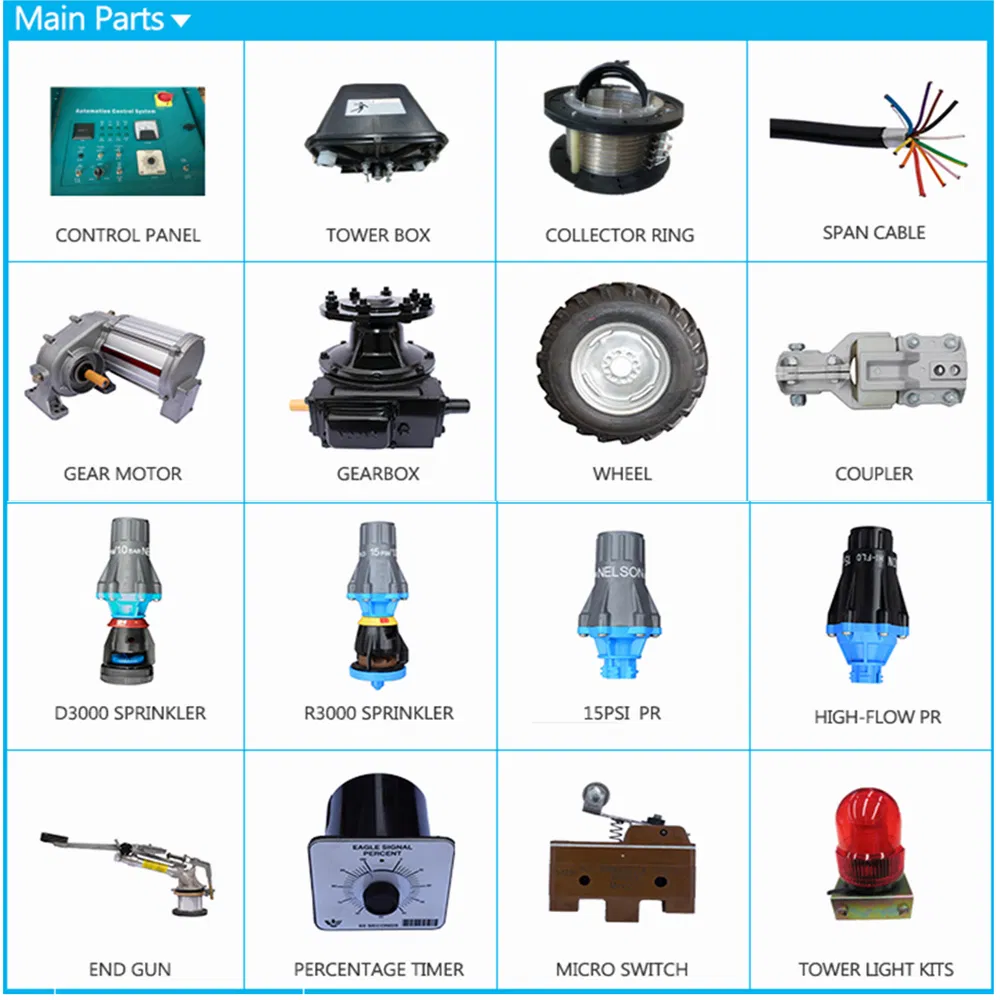

System Architecture

Metallic zinc-coated Spans with rubber-band joints.
Intermediate towers with two-wheel support.
Axles drive unit from electric geared motor.
Electronic block with equalization and checking.
Forward/reverse contactors rated 600v.

Heavy Duty Gear Box

Enhanced casing design for high intensity.
Special seal to prevent dust and humidity.
Load capacity enhanced by 55%.
High-strength cast iron and big gear design.
Reduced extra load with shorten driven wheel.

Package & Delivery

Spare parts are packaged in standard exporting wooden boxes. We offer various container options including 20", 40", 40"HQ, and 40" open top to suit your shipping needs.

Payment & Trade Terms

Wire Transfer

30% advance by T/T, 70% balance before shipment.

Letter of Credit

Irrevocable L/C at sight.

Trade Terms

FOB, C&F, and CIF available.

Frequently Asked Questions

What types of crops is this center pivot system suitable for?

It is specially designed for various agriculture needs, including potatoes, sugarcanes, watermelons, legumes, economic crops, and pasture.

Can this irrigation system work on sloped or uneven terrain?

Yes, the center pivot irrigation system is highly adaptable and can operate effectively on uneven fields with slopes up to 25%.

How durable is the structure against rust and corrosion?

All parts are treated with a hot-dip zinc coating, providing a rust-free guarantee for approximately 15 years.

What is the maximum area covered by a single system?

Depending on the configuration and span length (up to 16 spans), a single system can irrigate between 13 to 130 hectares from one feeding point.

What safety and monitoring features are included?

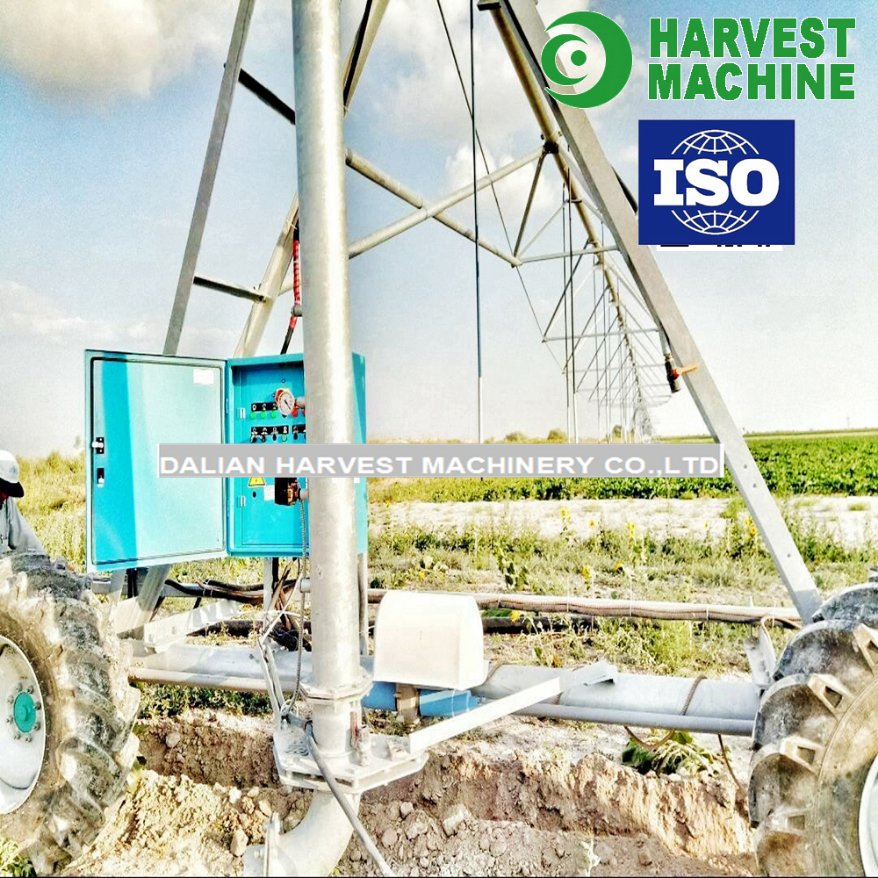

The system includes a main control panel with fault position display, over-heating protection for motors, and synchronization monitoring to ensure stable operation.

What are the power requirements for the DYP series?

The system typically requires a power supply of 380V or 415V at 50Hz/60Hz, with run power requirements ranging from 0.7 to 11.5kw.
