| Model NO. | AS-Pump System |
|---|---|
| Application | Home, Industrial, Commercial |
| Specification | Normal, OEM |
| Mounting Support | Roof or Ground Solar Mount Bracket |
| Solar Inverter | Off-Grid Inverter |
| Warranty | 25 Years Service Life |
| System Type | Home Solar Power System |
| Industry | Air Conditioning Pump |
| Media | Sea Water Pump |
| Theory | Centrifugal Pump |
| Conveying Medium | Water Transfer |
| Production Capacity | 1.2 Gw/Year |

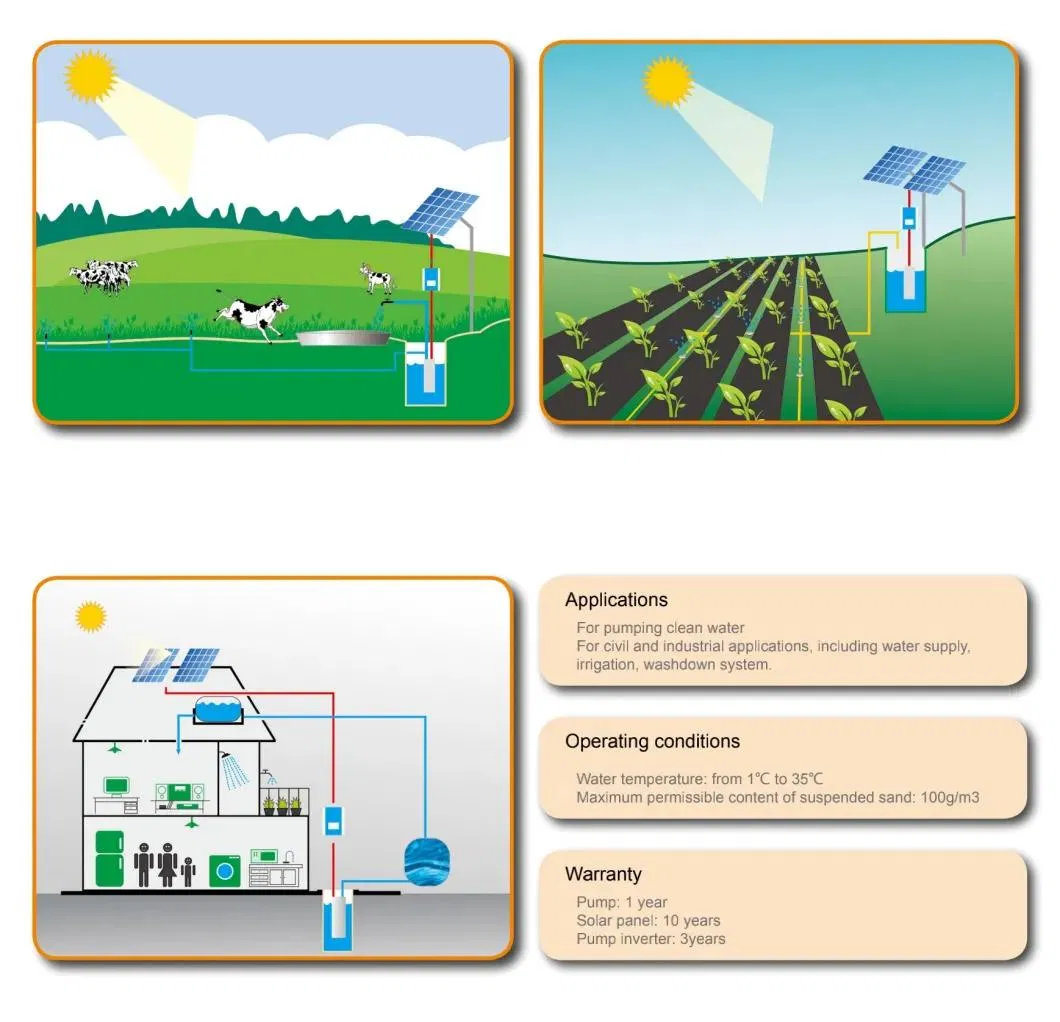

Solar power system has a wide range of applications, such offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea island, animal husbandry, and water treatment projects.

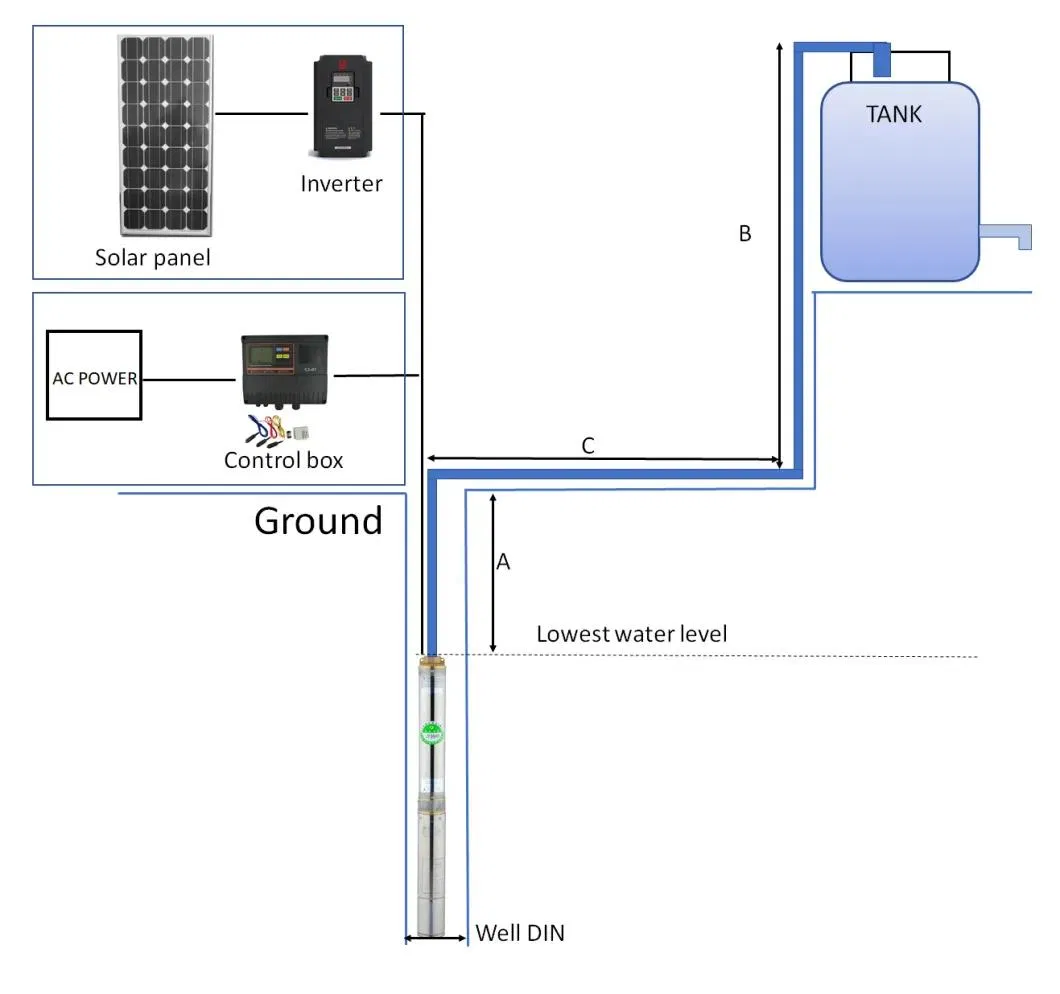

Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution. These systems are specially designed to use solar power directly. No infrastructure or grid is required for site selection. Optional grid can be back-up to meet day and night running without disturbance.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | Check value with connector | set | 1 |
| Other accessories | Tape, MC4 connector, cable connector, etc | set | 1 |

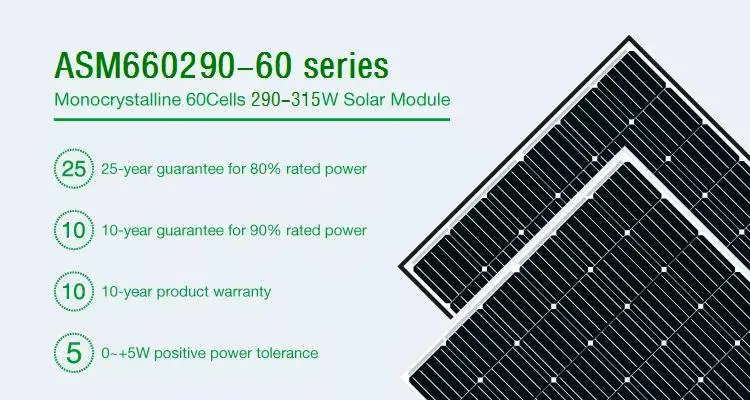

Peak Power: 290W (ASM660290)
Max Voltage: 32.2V | Max Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

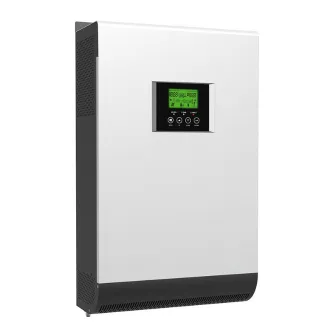

Max DC Input: 8.5KW | Max Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 230V(EU) / 208/240V(US)

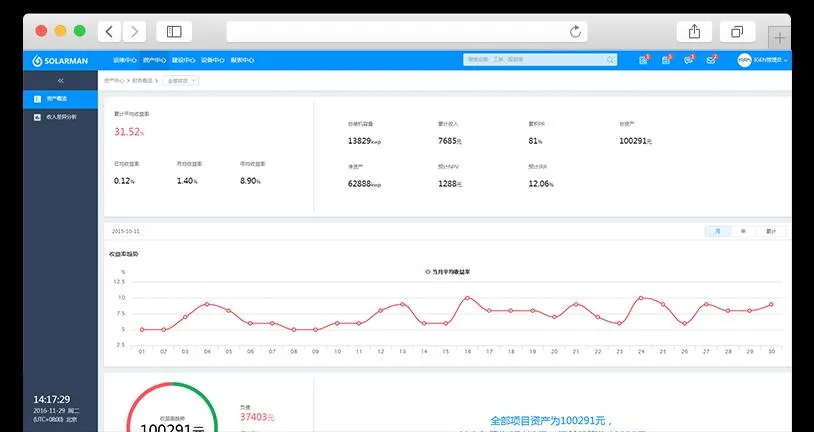

Wifi/GPRS Optional Monitoring.
Data Logging Stick for real-time PV system and atmosphere tracking via Wi-Fi, Lan, or GPRS. App available for PC, iOS & Android.

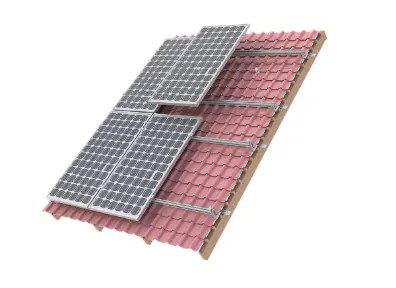

Material: AI6005 & SUS304 Bolt
Clamps: 35, 40, 45, 50mm
Options: L Foot, Hanger Bolt, Ground Clips & Lugs.

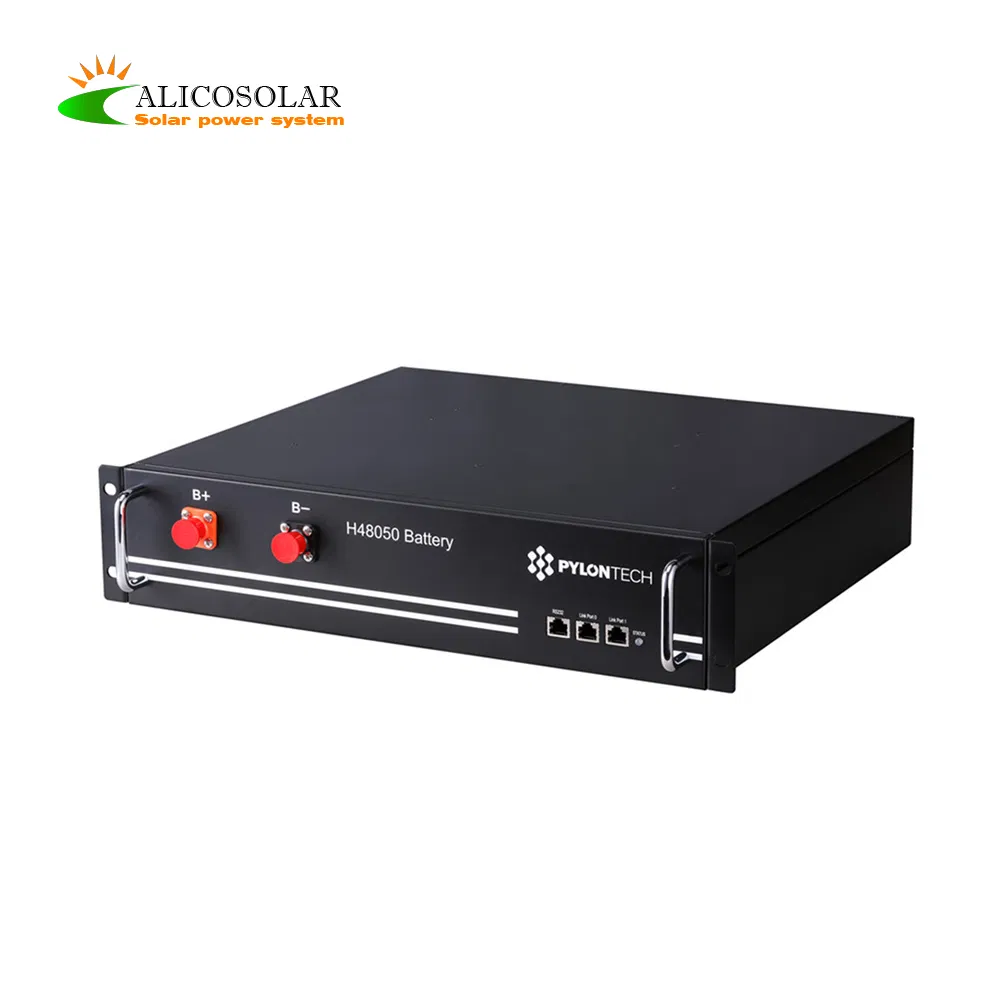

Capacity: 48V 100Ah
Dimension: 4-5U Standard Rack Size.
