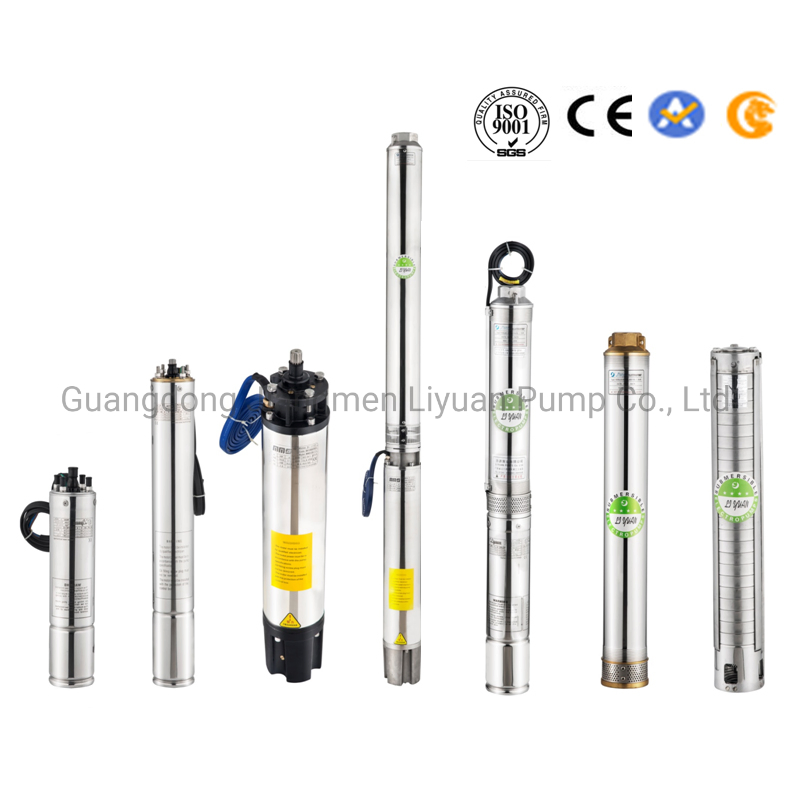

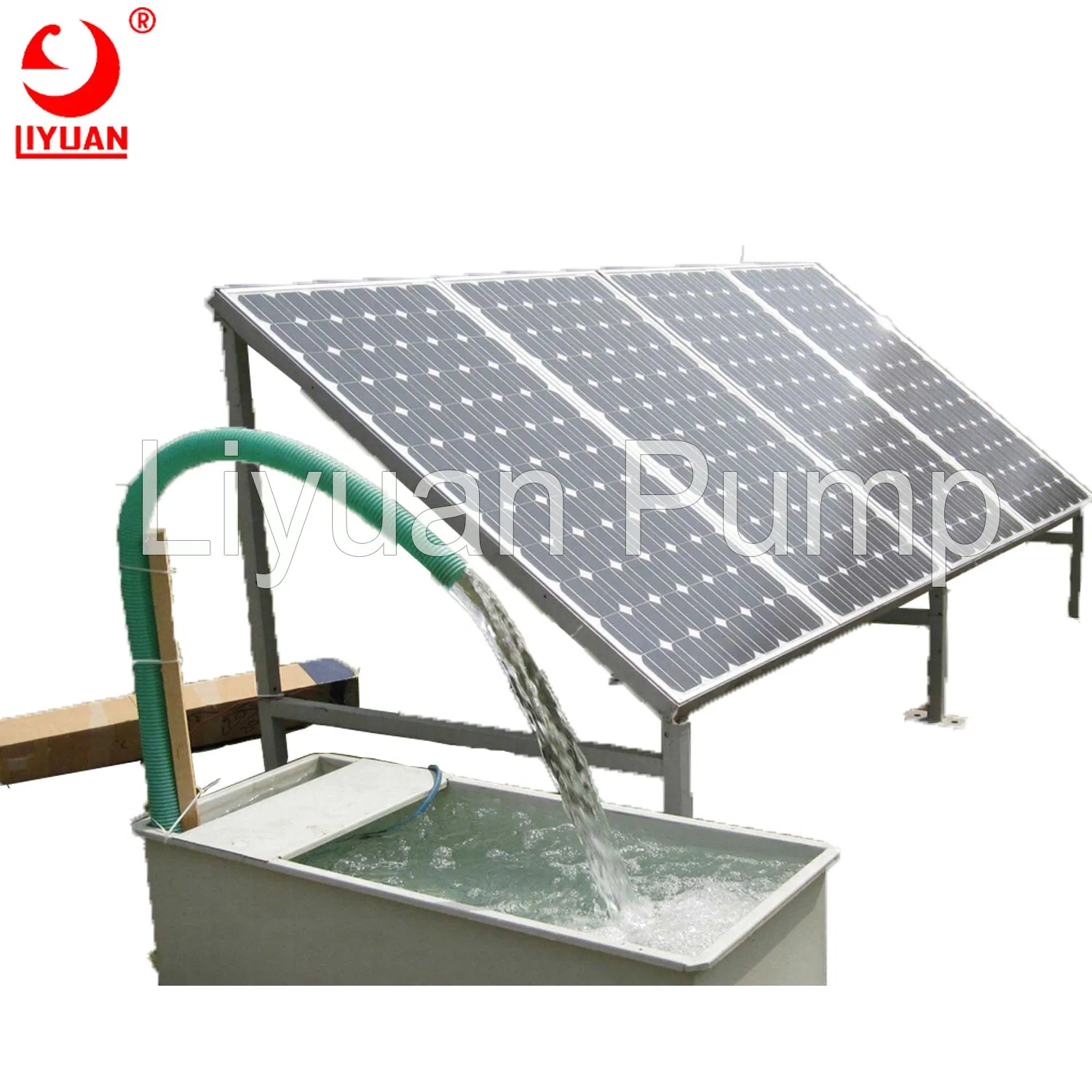

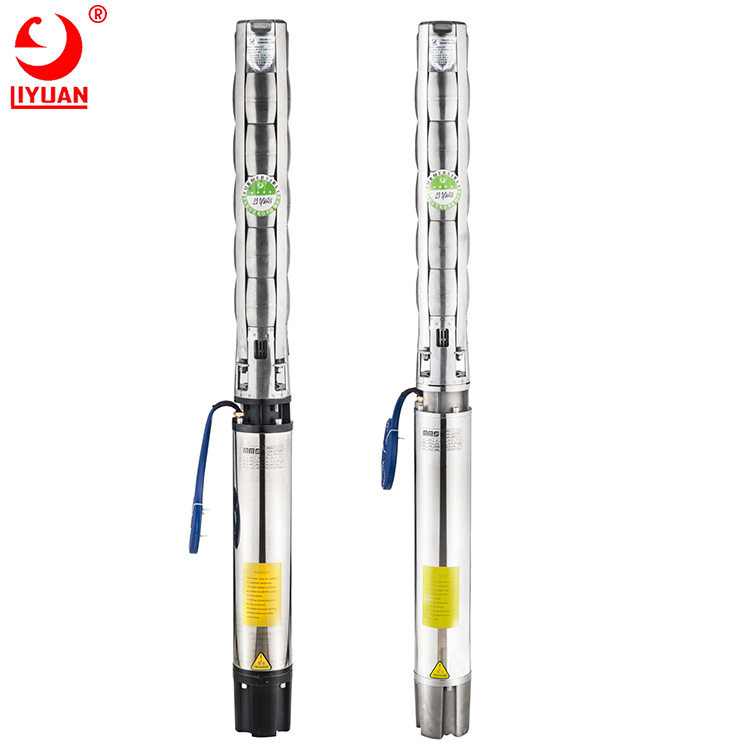

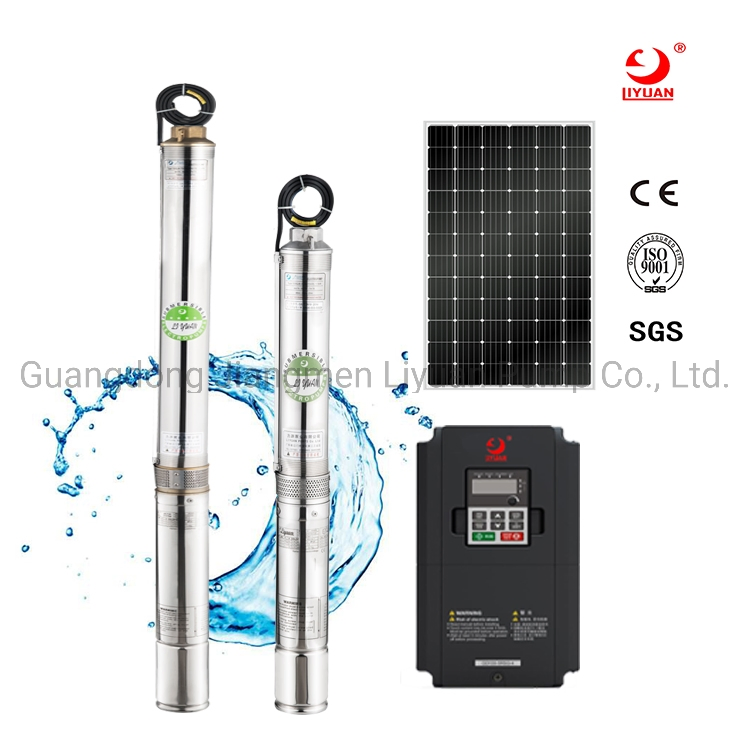

5.5kw-18.5kw Solar AC/DC Solar Deep Submersible Pump System

1 / 5

5.5kw-18.5kw Solar AC/DC Solar Deep Submersible Pump System

Customization:	Available
Max.Head:	>150m
Max.Capacity:	>400 L/min

Send Inquiry

Product Description

📊 Basic Information

Model NO.

17.5 hp

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Assembly

Liquid Pumps

Power

Electric

Start Up

Electric Pump

Type

Blade Pump

Application

Submersible Pump

Industry

Deep Water Pump

Performance

Automatic Pump

Theory

Centrifugal Pump

Transport Package

Wooden Case

Specification

ISO9001

Production Capacity

10000PCS/Year

💧 Product Description

5.5kw-18.5kw Solar AC/DC Solar Deep Submersible Pump System

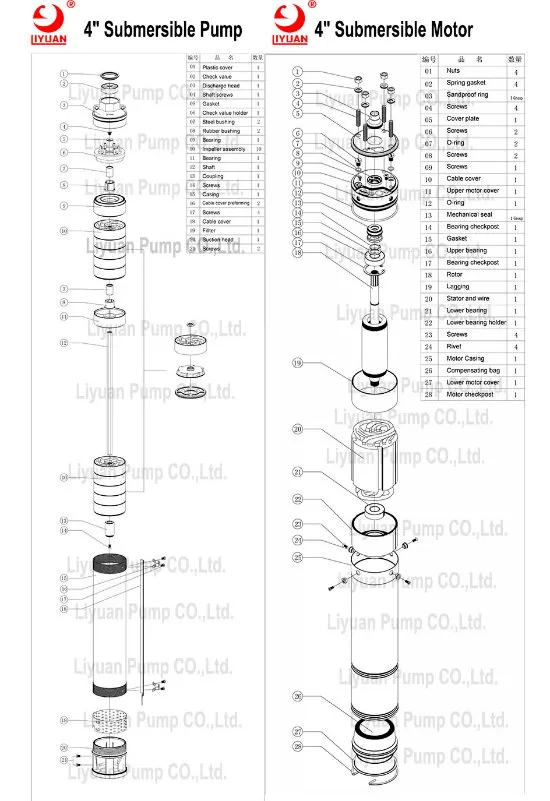

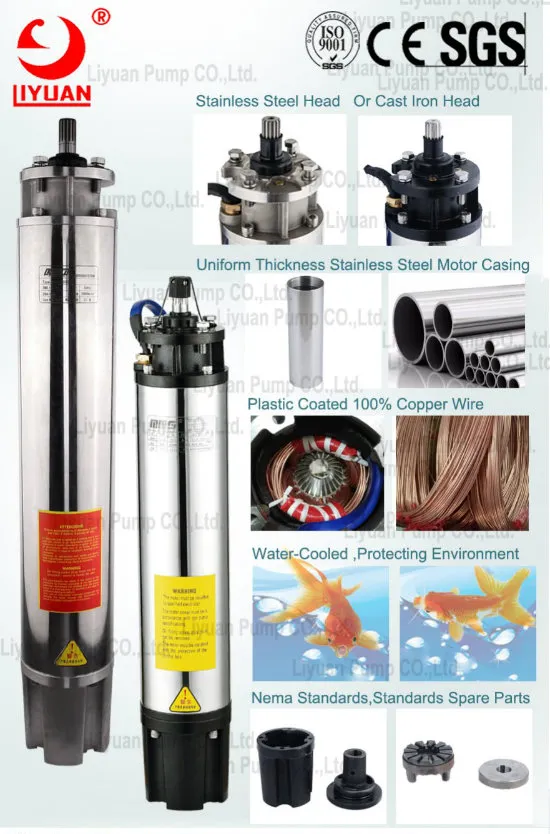

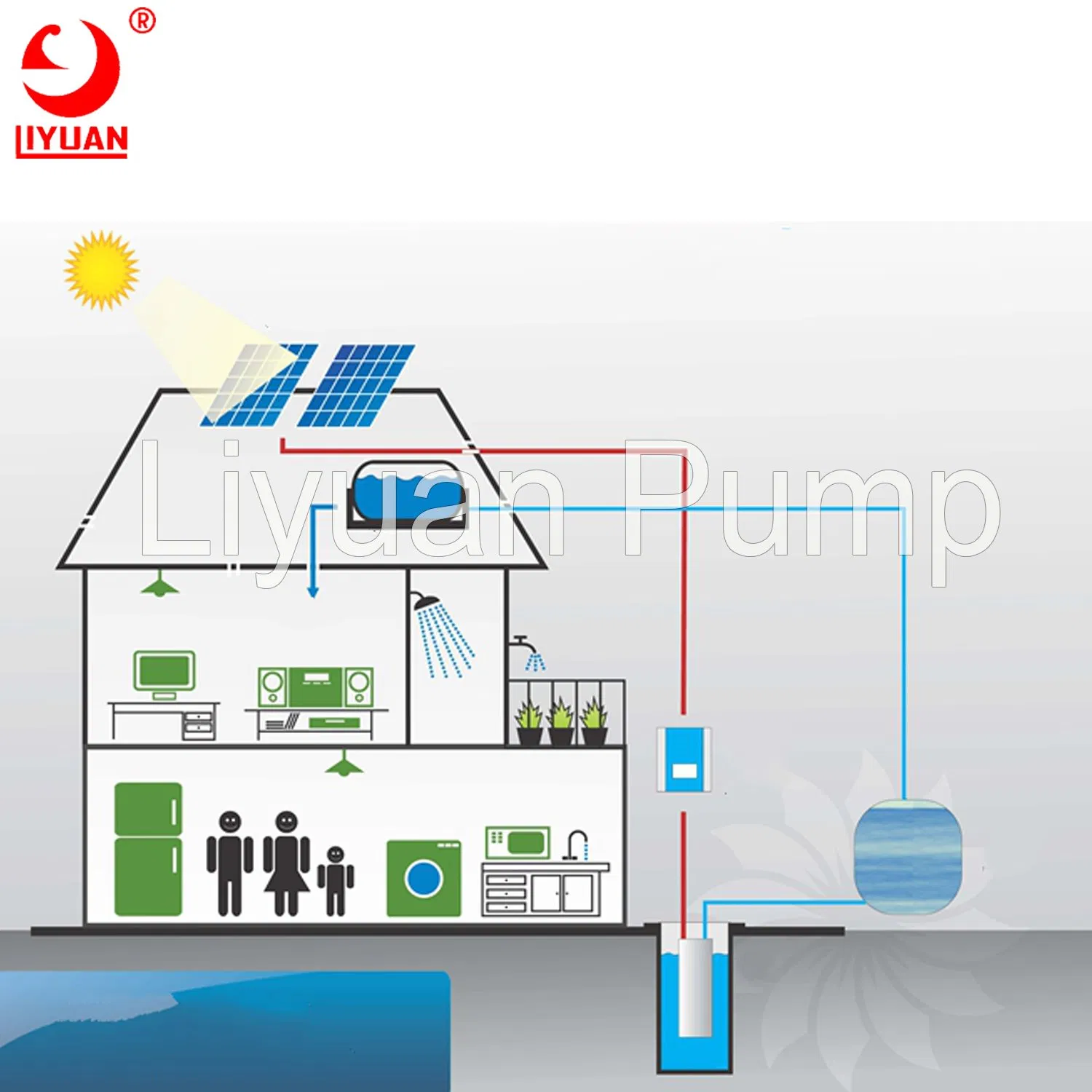

🛠️ Product Structure

📋 Technical Specifications

6" Three Phase Water-Cooled Submersible Motor (380V 50Hz 60Hz)
MOTOR POWER		CURRENT	POWER FACTOR	SPEED	LENGTH	WEIGHT
HP	KW	A	COSФ	rpm	mm	kg
4	3	7	0.78	2850	701	40
7.5	5.5	13	0.8	2850	769	48
10	7.5	16.5	0.8	2850	804	50
15	11	25.5	0.81	2850	956	68
25	18.5	38	0.81	2850	1166	94

4" Single Phase Oil-Cooled Submersible Motor (220V ±5% 50Hz 60Hz)
MOTOR POWER		CURRENT	FACTOR	CAP	SPEED	LENGTH	WEIGHT
HP	KW	A	COSФ	uF	rpm	mm	kg
0.5	0.37	3.2	0.88	20	2850	364	7.4
1.5	1.1	9.0	0.90	40	2850	439	11
3	2.2	14.6	0.96	60	2850	553	14.7

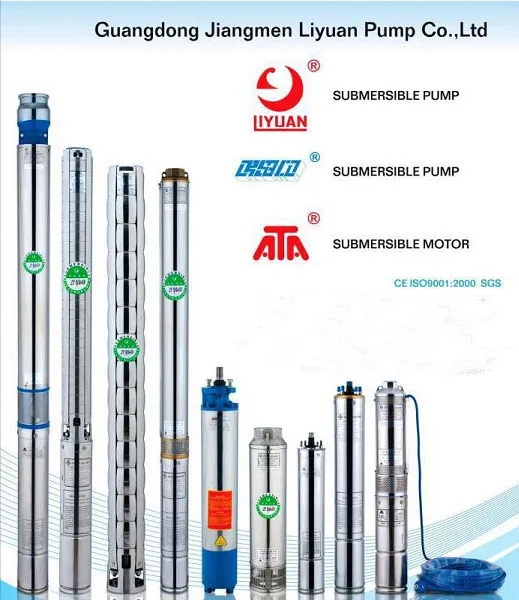

📦 Full Family Range & Packing

3" oil-cooled submersible motor (220V 50Hz 60Hz)
4" oil-cooled submersible motor (220V/380V 50Hz 60Hz)
6" water-cooled submersible motor (380V 50Hz 60Hz)
3", 4", 6" submersible pumps

❓ Frequently Asked Questions

What is your typical response time for inquiries?

We reply to all client inquiries within 12 hours. During our standard working hours, you can expect feedback within 2 hours.

What is the Minimum Order Quantity (MOQ)?

The MOQ is generally 50-100 PCS per type. We can accept trial orders; please contact our sales team for specific details.

Do you support OEM or custom branding?

Yes, we have 23 years of experience in this field. We accept OEM orders and can produce pumps according to your custom brand requirements.

Are you a direct manufacturer?

Yes, we are a pump manufactory. We sell directly to clients to ensure reasonable pricing and have the capability to handle customized orders.

What are your payment and warranty terms?

We require a 30% T/T deposit and 70% against documents or L/C at sight. All our products come with a one-year warranty.

What is the expected delivery time?

Samples can be dispatched within 3-5 days. For batch orders, shipping typically occurs within 25-30 days after order confirmation.
