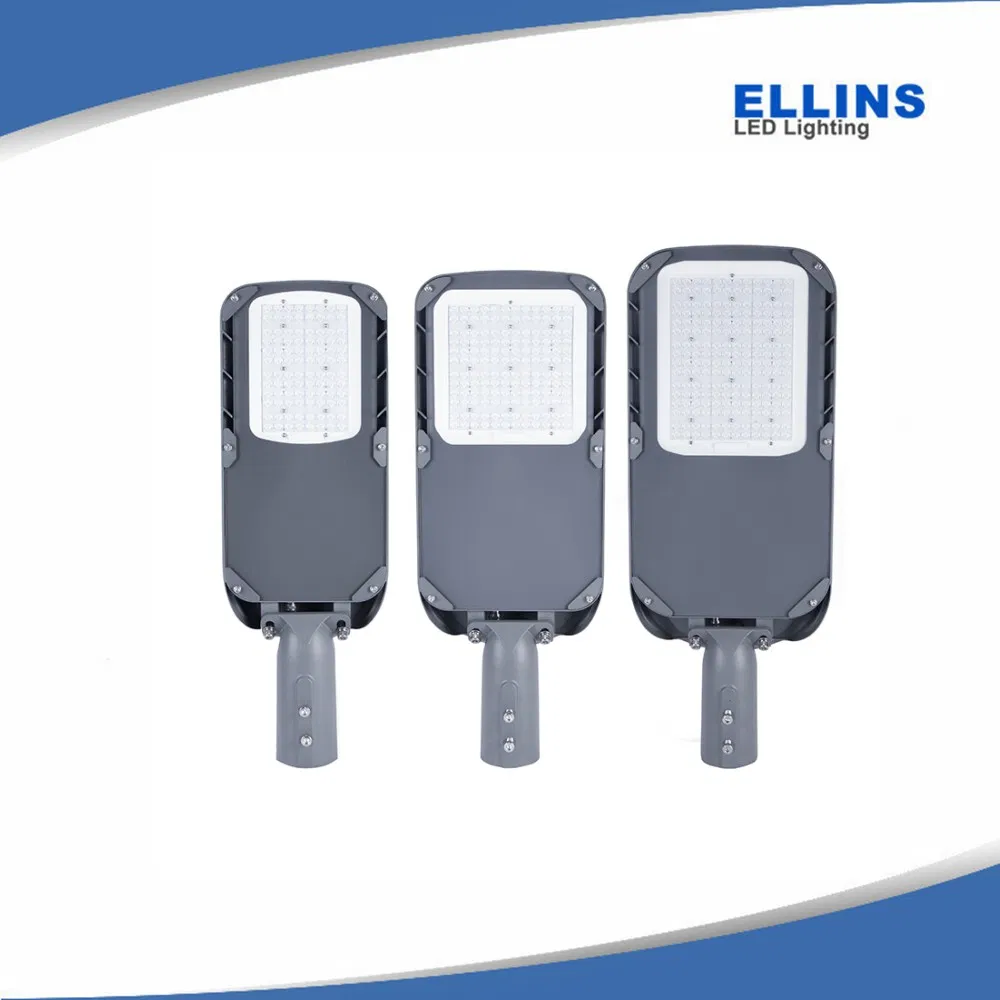

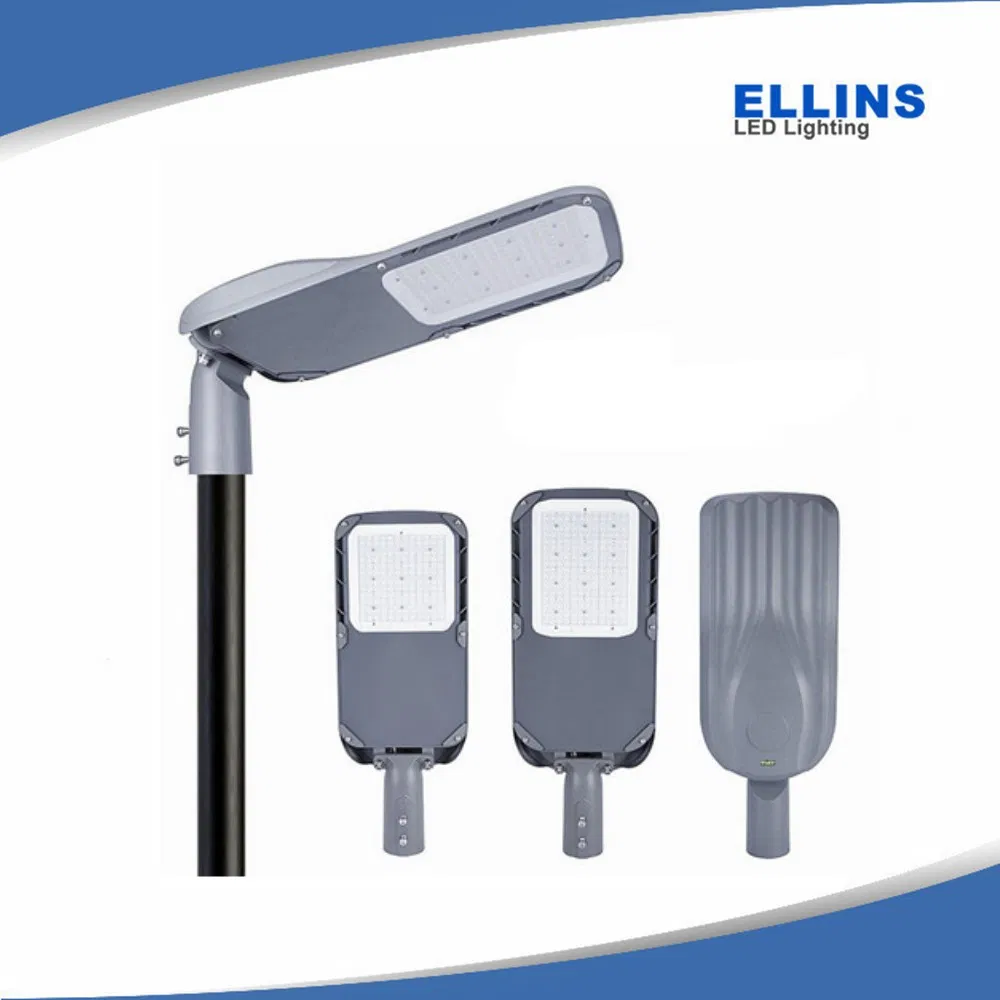

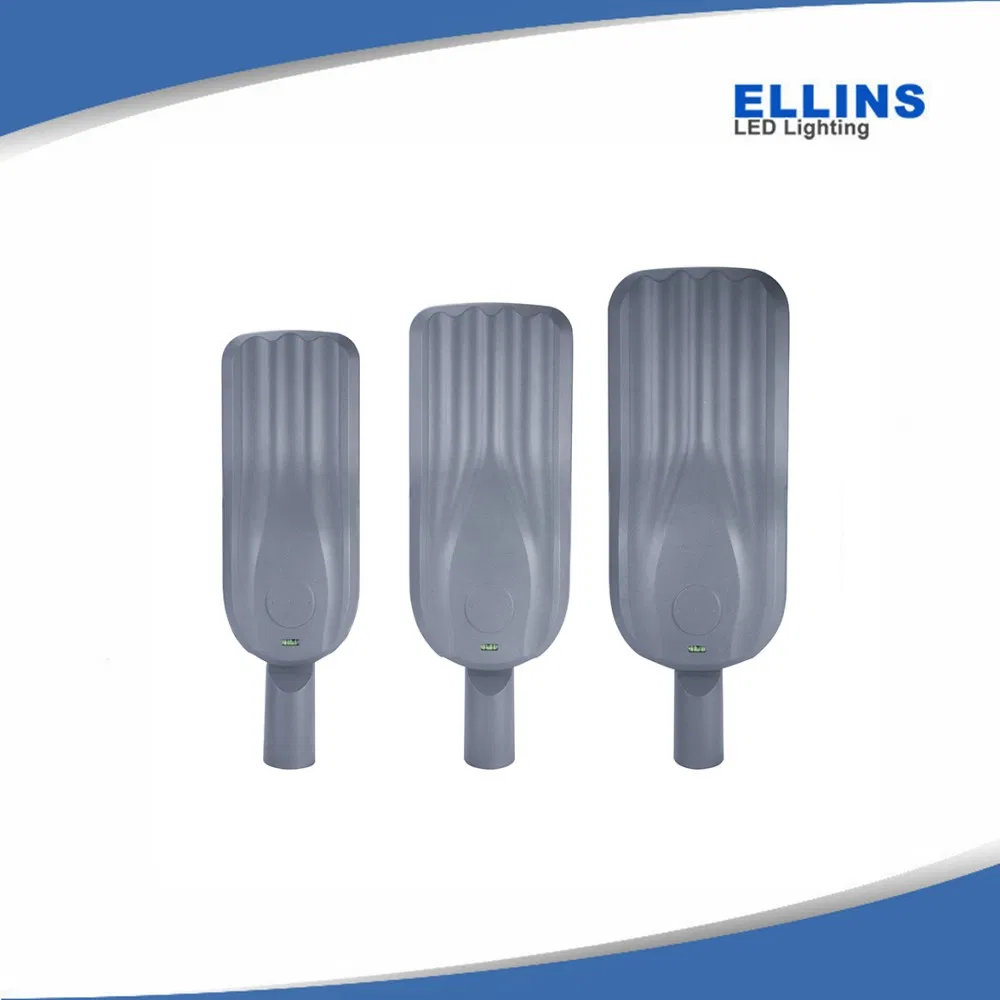

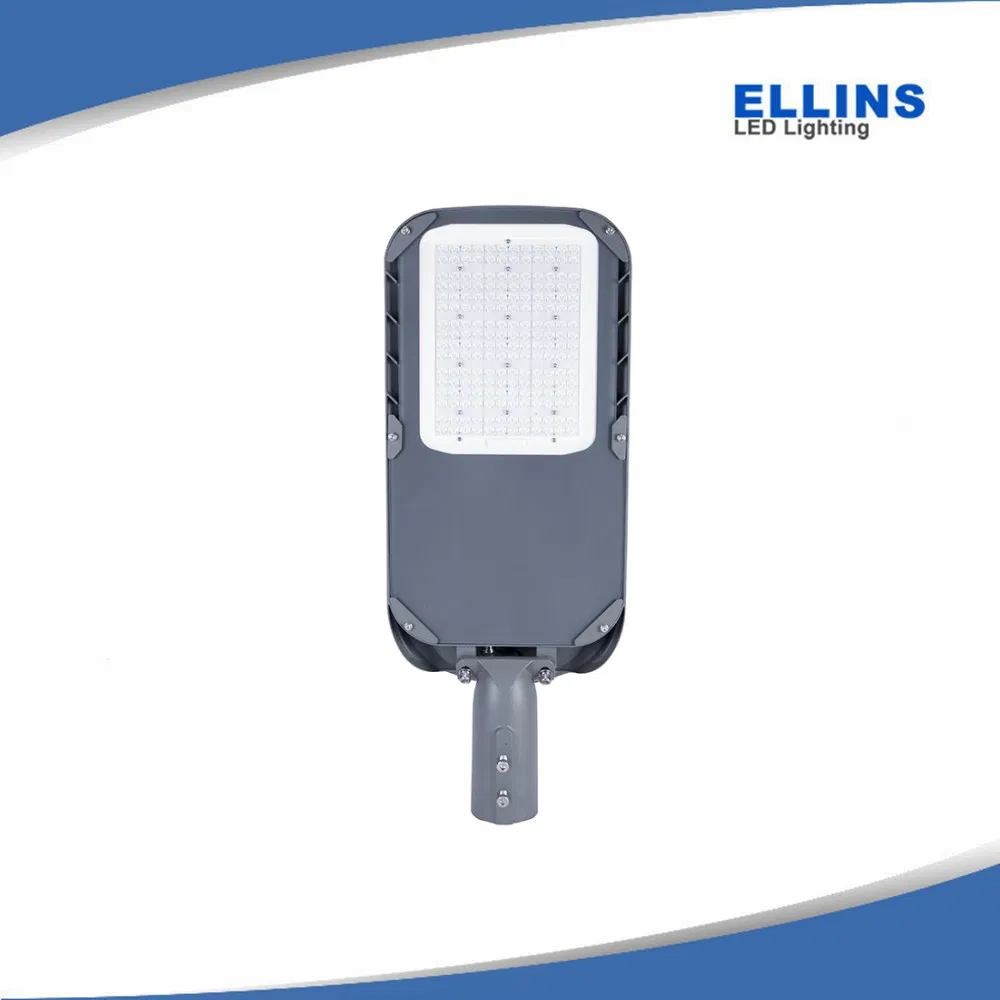

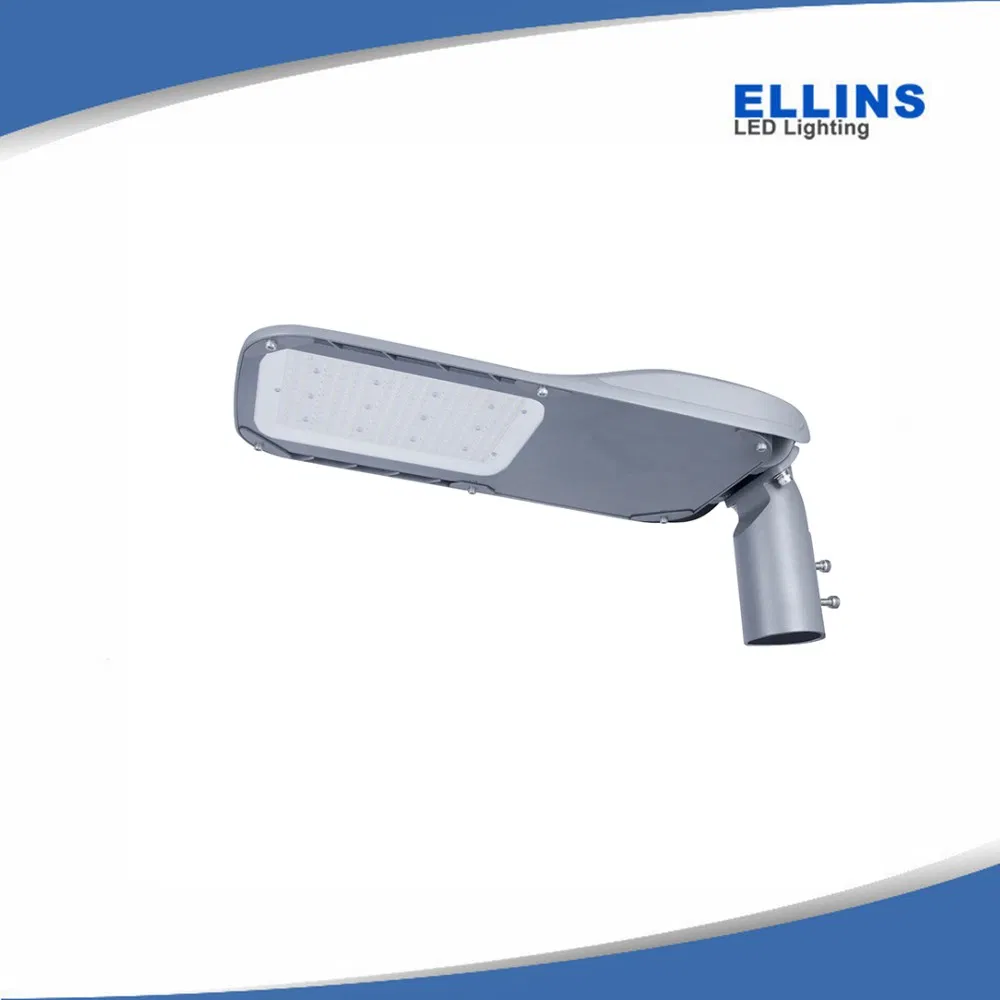

30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
1 / 5
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System
30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System

30W-240W Smart LED Street Light Solar Power Industrial Lighting with Gateway and Plsm System

Customization: Available
Power Supply: AC
Color Temperature: 3000K 4000K 5000K 5700K 6500K
Send Inquiry

Product Description

📊

Basic Information

Model NO.
ELS-ST12
Material
Aluminum
Power
30W - 240W
IP Rating
IP67 / IP66
LED Brand
CREE / SMD3030 / SMD5050
Lumen
160 Lm/W (Lamp) / 210 Lm/W (Chip)
Input Voltage
100-240V / 100-277V
Lifetime
100,000 Hours
IK Class
IK10
Warranty
5 / 7 / 10 Years
💡

Product Description

High Efficiency and Energy Saving Outdoor Lighting LED Street Lamps

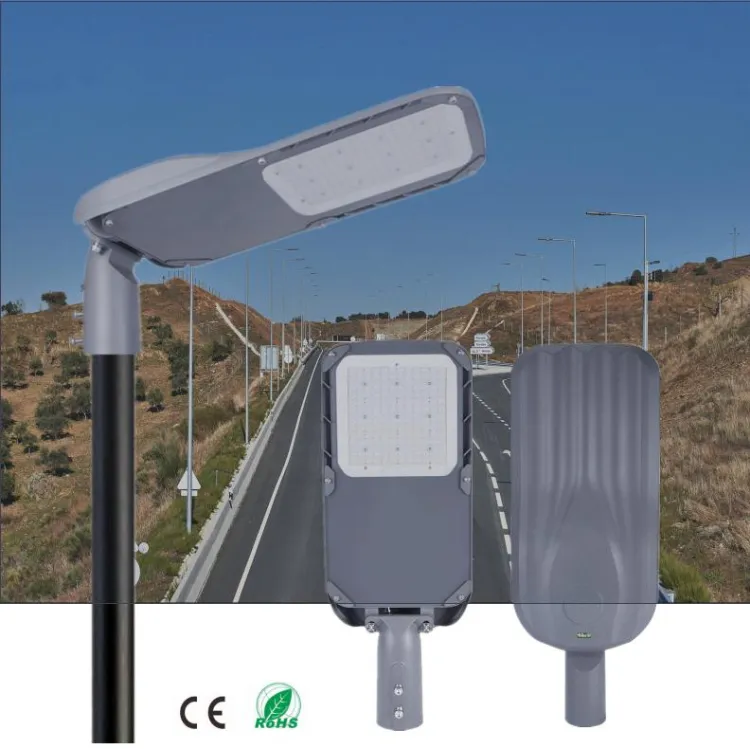

Smart LED Street Light

ELS-ST12 Key Features:

  • ✓ Slim and compact profile for maximum wind resistance
  • ✓ Circuit interrupter for safe maintenance access
  • ✓ Adjustable installation angle for flexible deployment
  • ✓ IP66/IP67 rating for all weather conditions
  • ✓ Ultra-high efficiency LED up to 210 lm/w
  • ✓ Maintenance flap for quick driver compartment access
  • ✓ Excellent heat dissipation and stylish industrial design
📋

Technical Parameters

Model No.ELS-ST12
Power Options50W / 70W / 100W / 120W / 150W / 180W / 200W / 240W
VoltageAC100-277V / 50-60 Hz
MaterialDie-casting aluminum
Driver BrandMeanwell / Inventronics
PF>0.95
Working Temp-40°C ~ +50°C
Beam AngleT2 / T3 (150*65 / 150*80)
📸

Detailed Photos

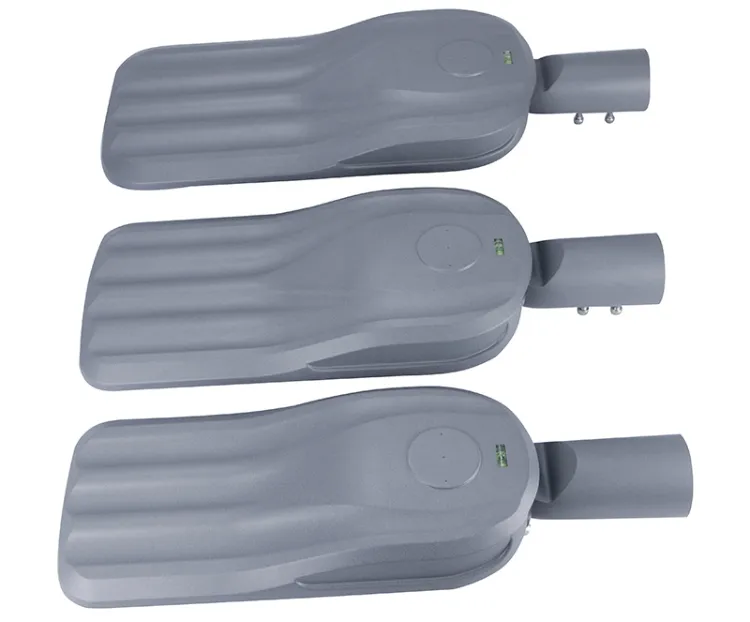

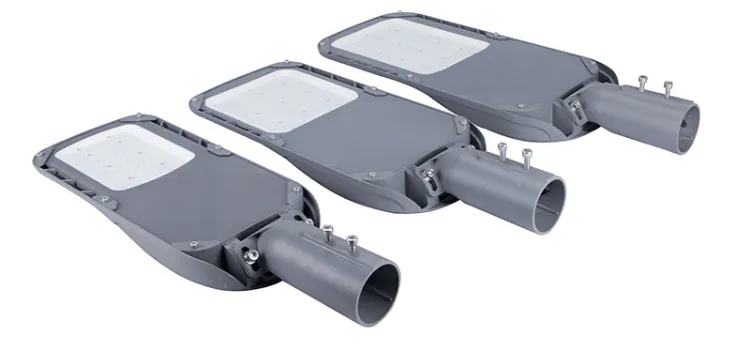

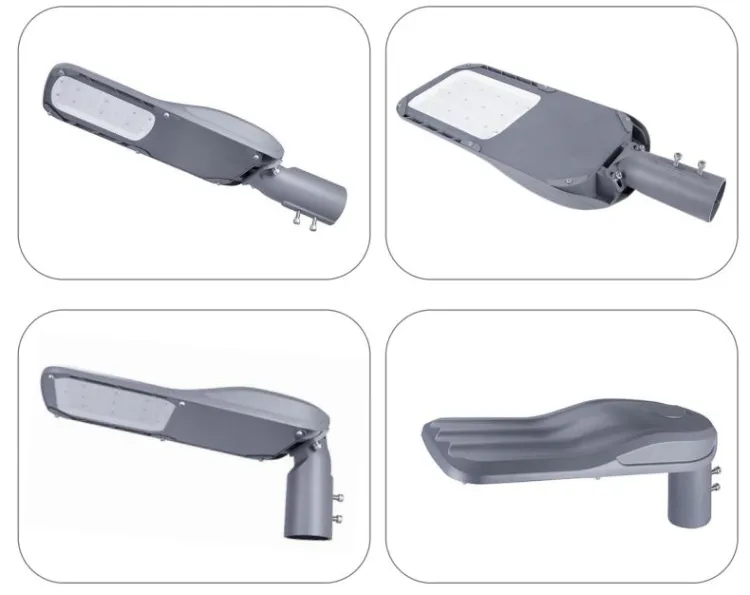

Detail 1 Detail 2 Detail 3

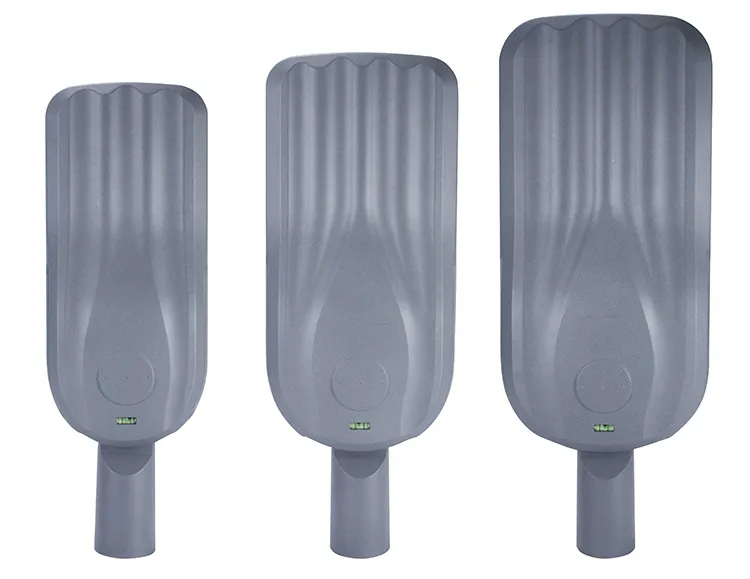

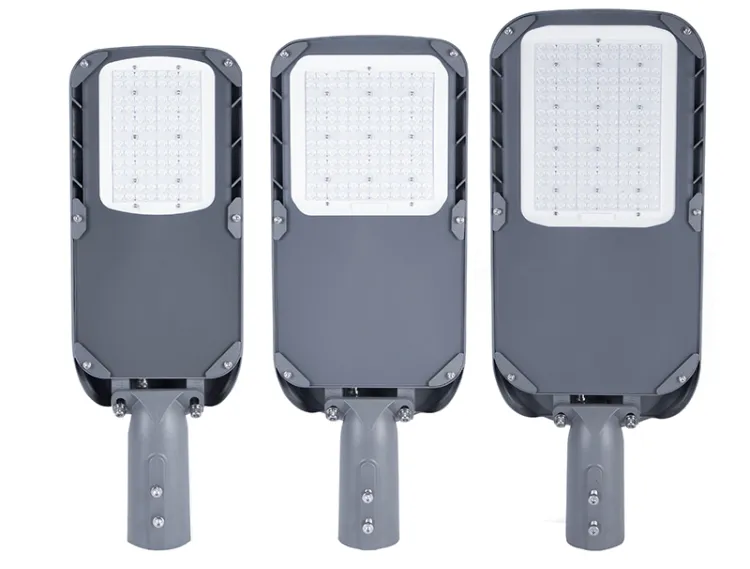

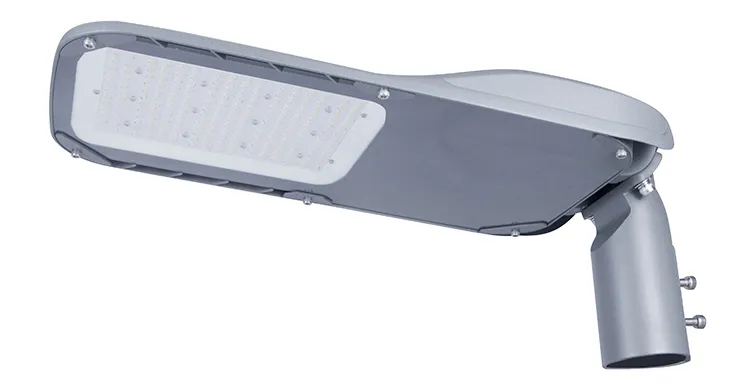

Detail 4 Detail 5 Detail 6

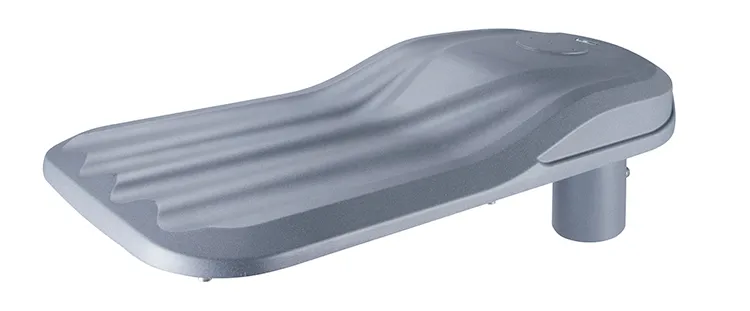

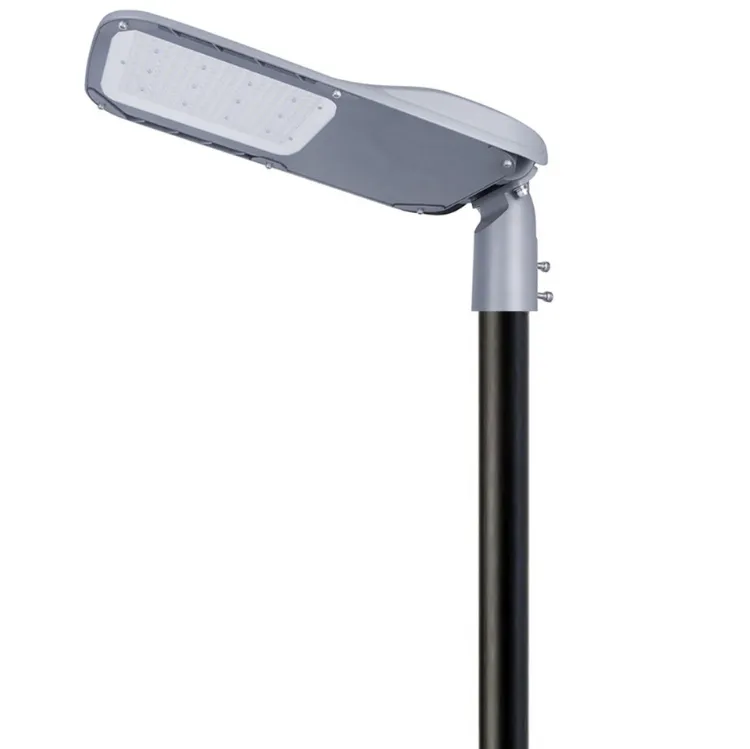

Detail 7 Detail 8
📐

Specifications & Light Distribution

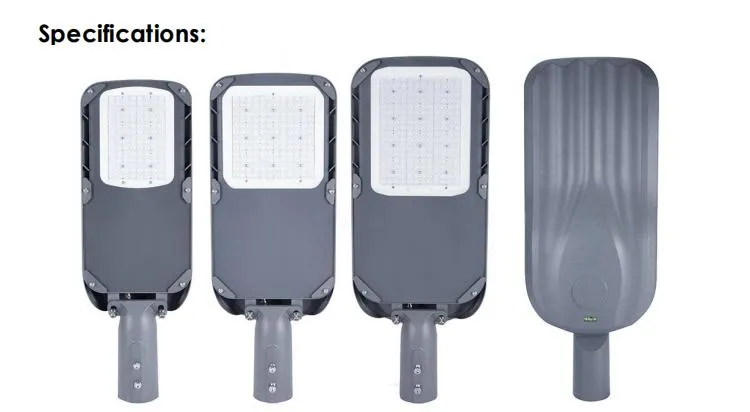

Specification 1

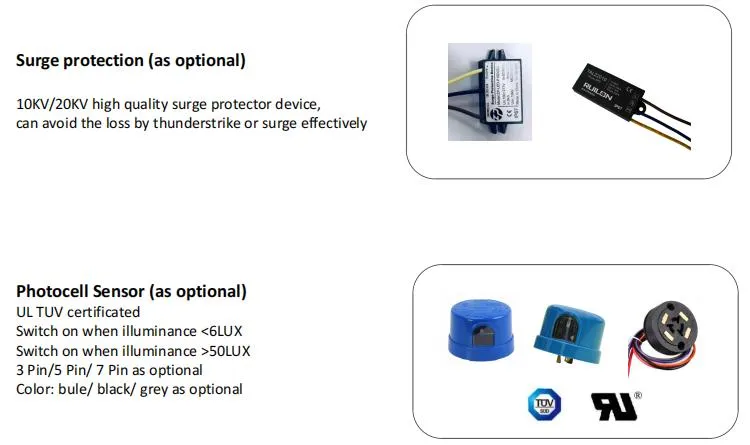

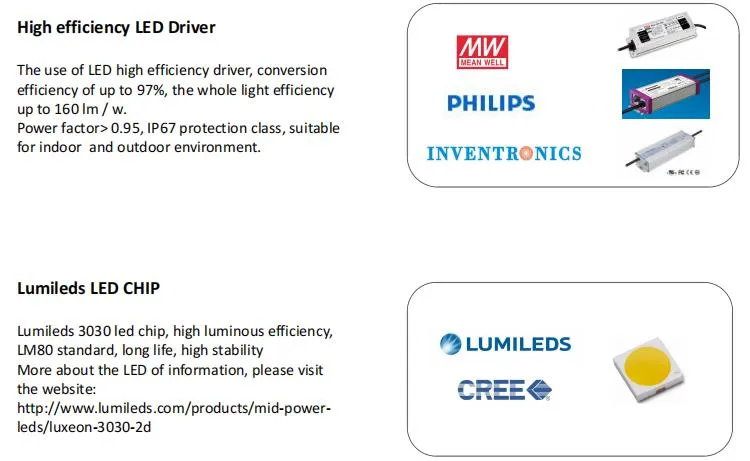

Specification 2 Specification 3 Specification 4

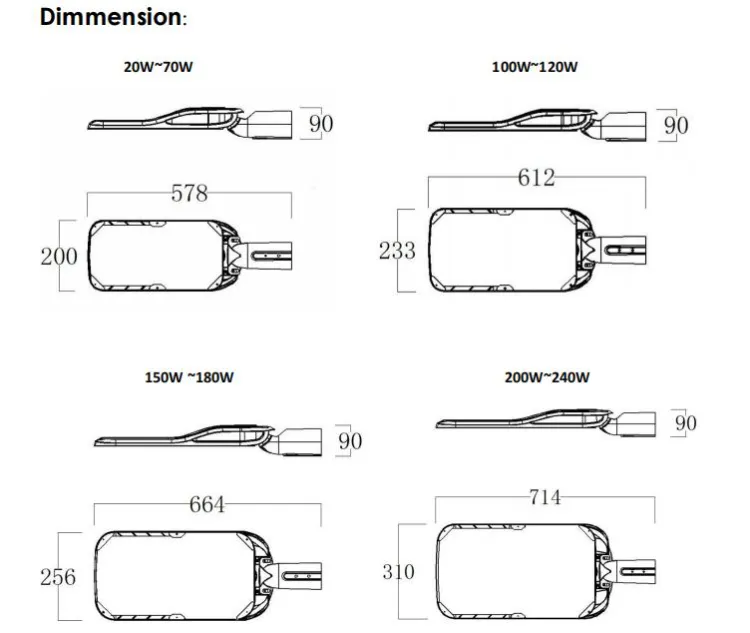

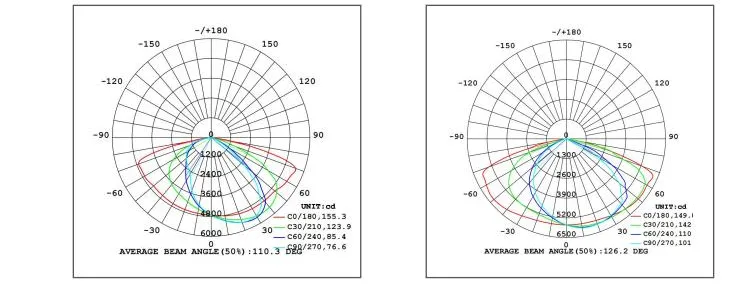

Dimensions Distribution Curve Light Path
🏭

Production & Certifications

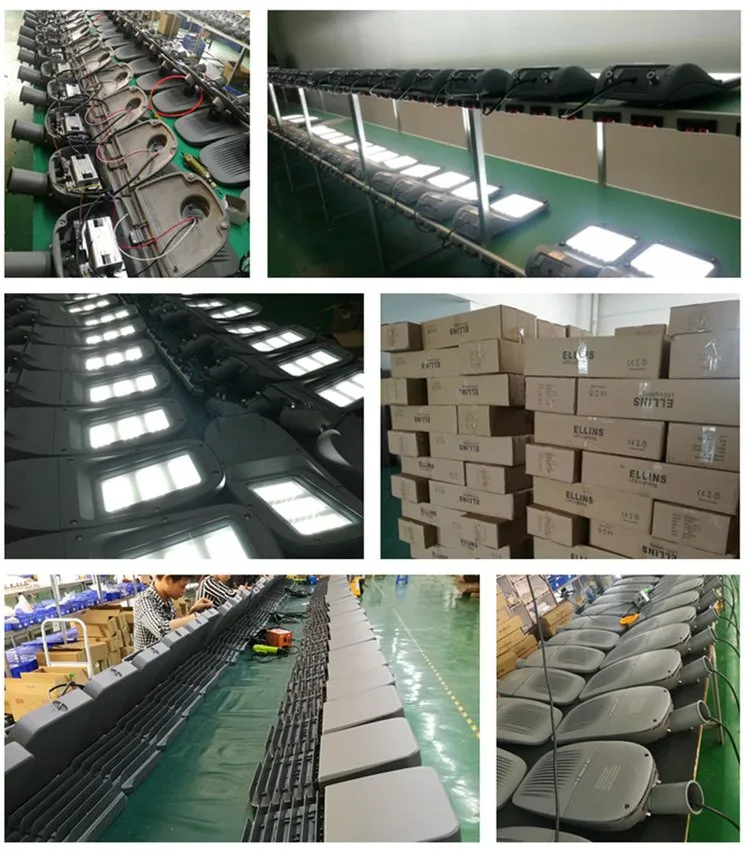

Production Process Certificates
🏢

Professional Profile

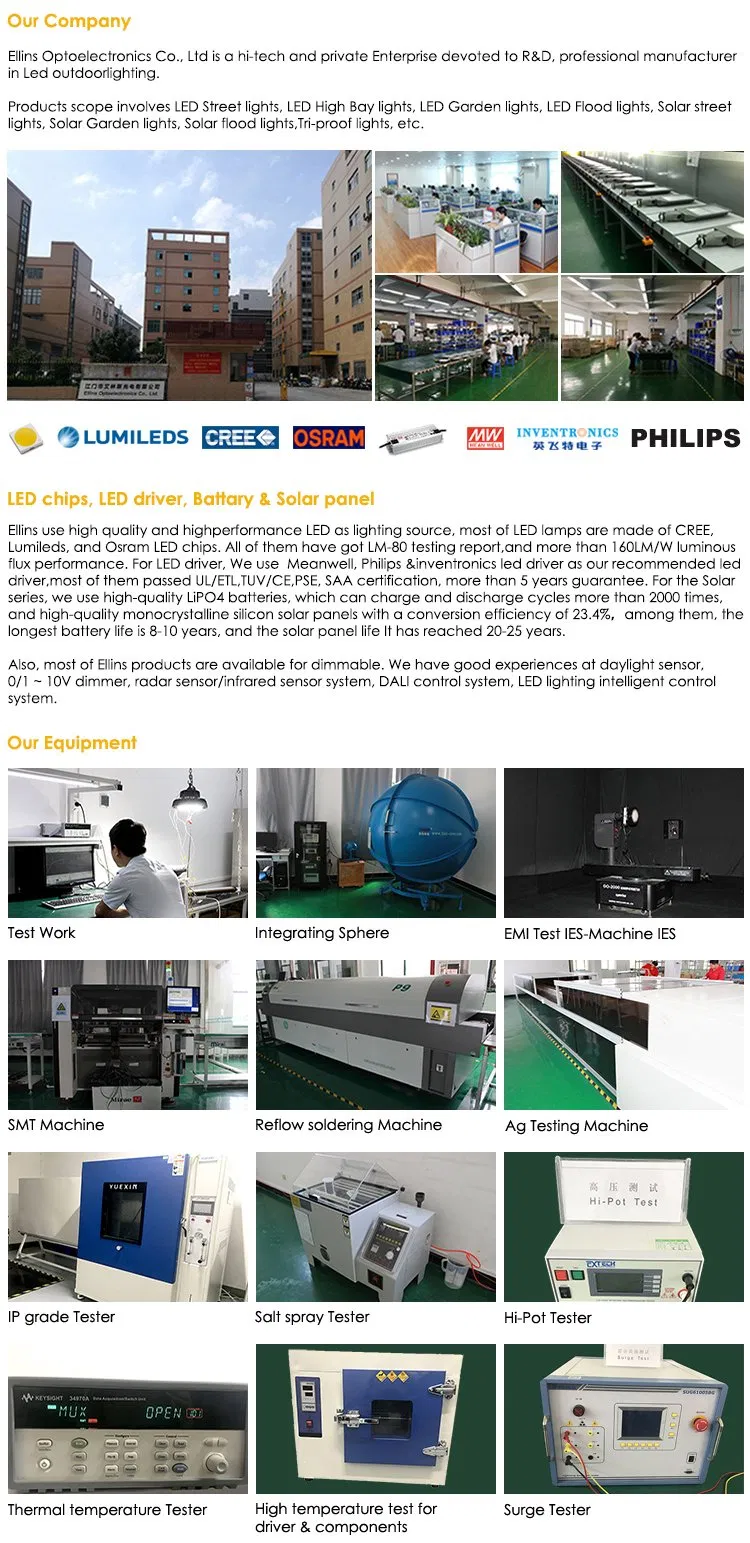

Infrastructure
❓

Frequently Asked Questions

Q1: What is the lifespan of the ELS-ST12 LED street lights?
A: The ELS-ST12 series is designed for extreme longevity, featuring a lifetime of over 100,000 hours.
Q2: Can these lights withstand harsh weather conditions?
A: Yes, with an IP67/IP66 waterproof rating and IK10 impact resistance, they are built to endure snow, rain storms, and coastal environments.
Q3: What brand of LED chips and drivers are used?
A: We utilize high-efficiency CREE LED chips and premium drivers from Meanwell or Inventronics for optimal performance.
Q4: Are the installation angles adjustable?
A: Yes, the series features an adjustable installation angle to accommodate different pole requirements and lighting needs.
Q5: What is the standard warranty period?
A: We offer flexible warranty options ranging from 5 years to 10 years depending on the specific project requirements.
Q6: Are dimming options available for these street lights?
A: Yes, we support 1-10V dimming and Timer dimming to enhance energy savings.
