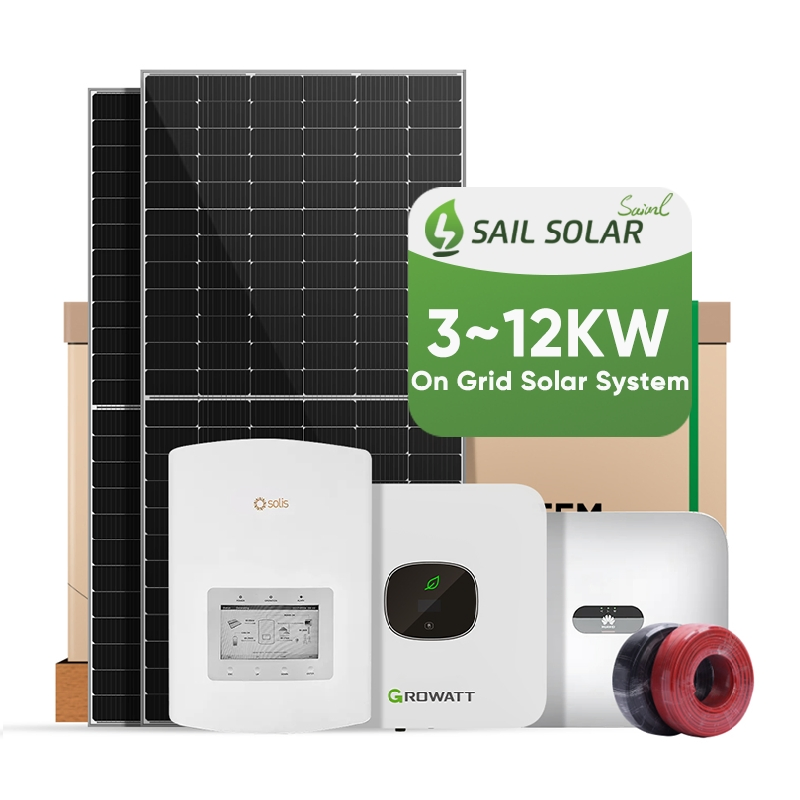

Sail Solar Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System with Growatt Deye Huawei Inverter

1 / 5

Sail Solar Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System with Growatt Deye Huawei Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:SAS3KW-12KW-ON

Condition:New

Certification:CE

Application:Home

Solar Panel Type:Monocrystalline / Polycrystalline Silicon

Mounting Type:Roof / Ground / Carport

Load Power (W):3kw, 5kw, 6kw, 8kw, 10kw, 12kw

Work Time (H):24 Hours

Output Frequency:50Hz/60Hz

Package Size:320.00cm * 280.00cm * 60.00cm

Gross Weight:1200.00kg

Product Description

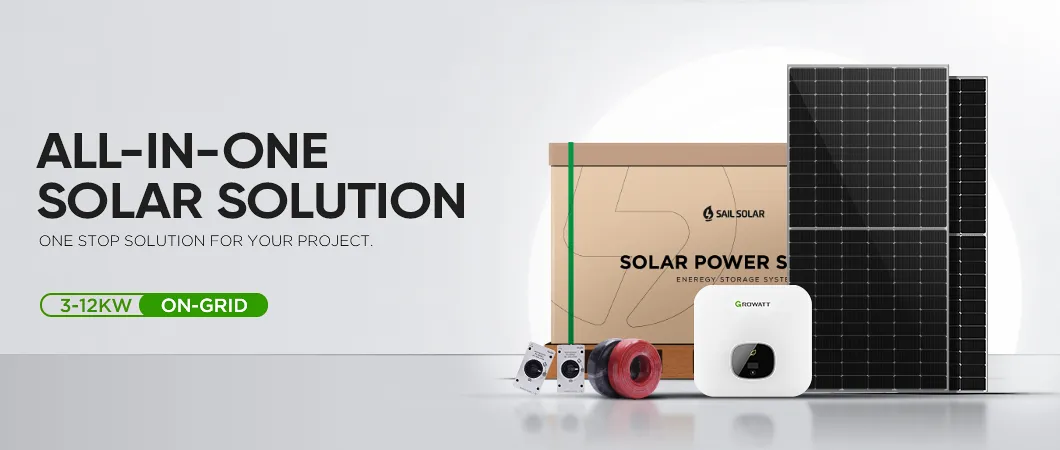

One Stop Solution For Your Solar Project

We provide professional solar energy integrated solutions with a dedicated team available 7*24h to support your project requirements.

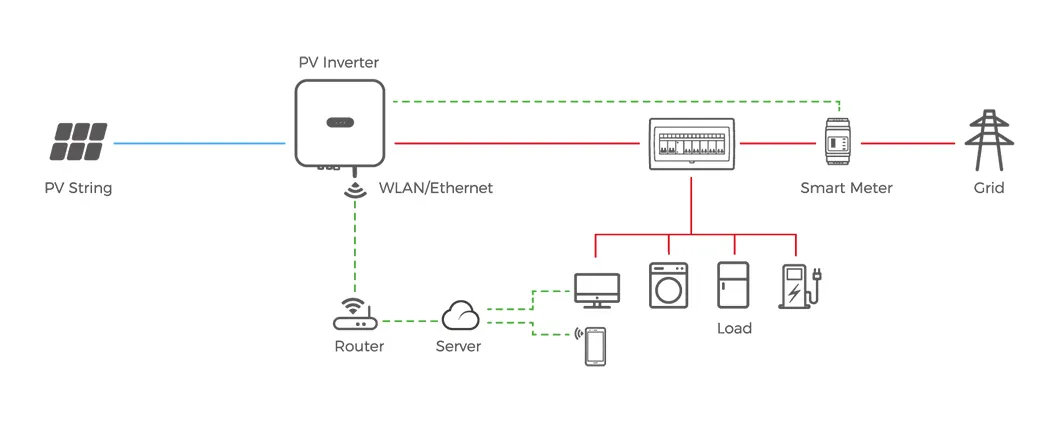

System Connection

💰 Net Metering Savings

Grid-connection allows you to save more money through better efficiency rates and net metering programs.

🔋 Virtual Battery

The utility grid acts as a virtual battery, providing backup power while reducing the company's peak load.

📈 Additional Profit

Generate additional profits by selling excess electricity back to the local power company.

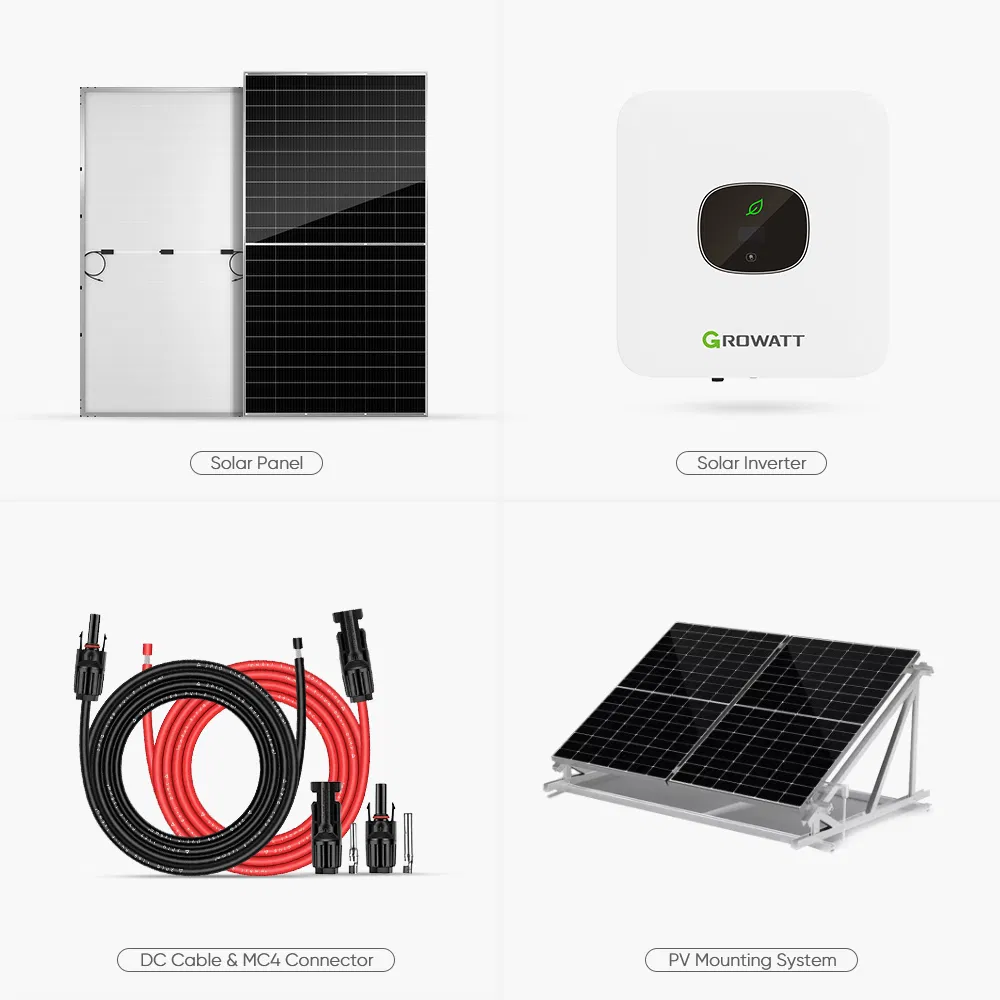

Residential On-grid Solar System Specifications

Model	SAS3KW-ON	SAS5KW-ON	SAS8KW-ON	SAS10KW-ON	SAS12KW-ON
550W Solar Panel	6 pieces	9 pieces	18 pieces	20 pieces	22 pieces
Grid Tied Inverter	3KW	5KW	8KW	10KW	12KW
DC Cable 4mm²	100 Meters	100 Meters	200 Meters	200 Meters	200 Meters
MC4 Connector	10 Pairs	10 Pairs	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized for Rooftop or Ground
Optional Accessories	Lightning protection / AC-DC Combiner box / Smart Meter

Product Parameters & Components

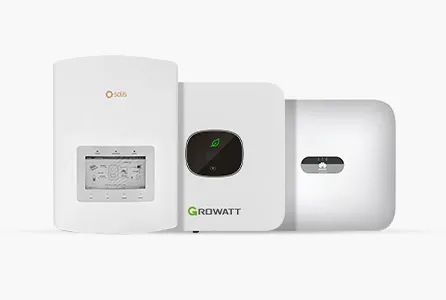

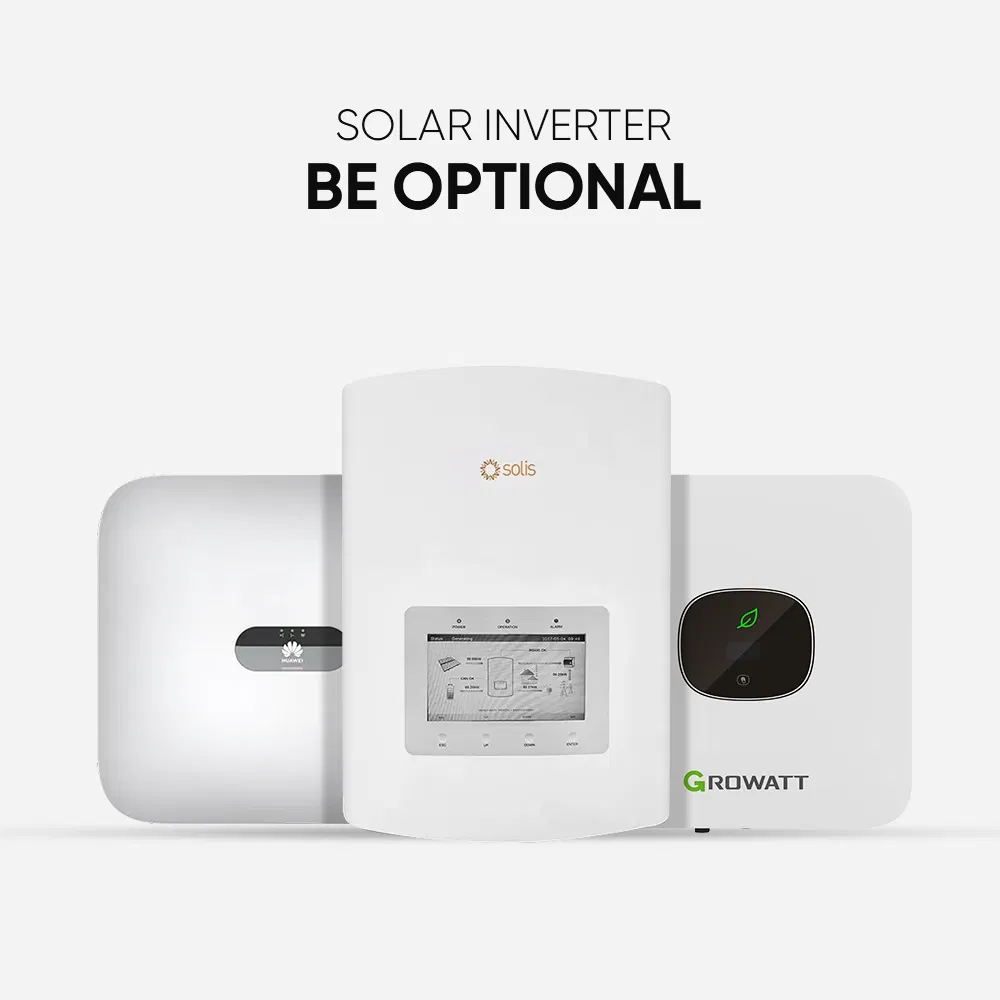

Various On Grid Inverter

5 years standard warranty
Max. Efficiency 99.6%, European efficiency 99%
Integrated DC switch for safety protection
Flexible communication: WIFI/RF support
Transformer-less design & high power density

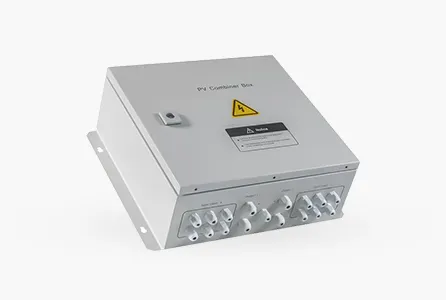

PV Combiner Box

Customized connection for solar panels
Includes DC Circuit Breaker / DC Fuse
Anti-Reverse diode & Surge protection
IP65 Waterproof for outdoor application

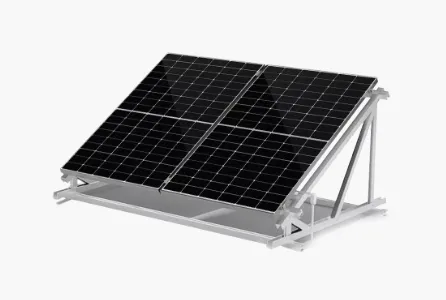

Mounting Brackets

Pitched Residential Roof / Flat Commercial Roof
Ground Solar Mounting Systems
Vertical Wall / Carport solutions
Full aluminum structure options available

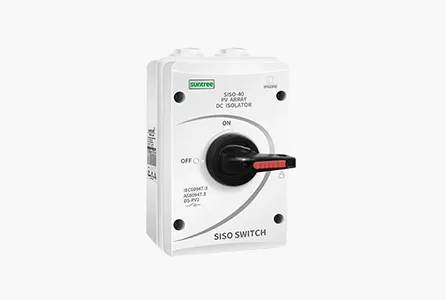

DC Isolating Switch

Rated Voltage: 1000VDC to 1200VDC
Rated Current: 10A to 32A
IP66 Waterproof degree
Certificates: CE/CB/TUV/IEC/SAA

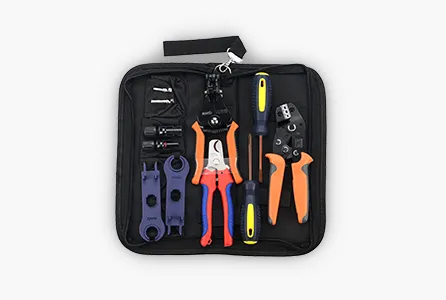

Installation Tools

Whole set for solar system installation
Solar Crimper for PV connectors
Specialized Connector Wrench

Packaging & Shipping

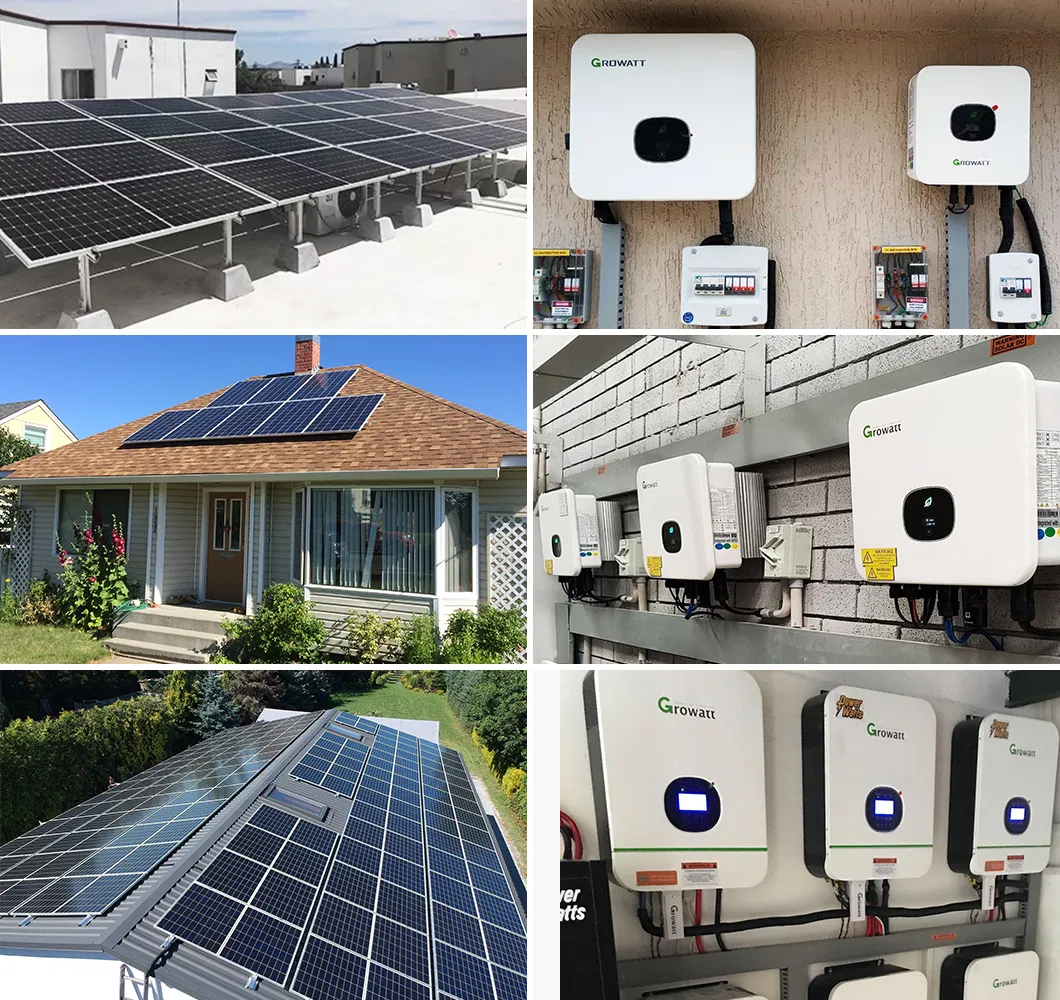

Global Projects

Frequently Asked Questions

What are the primary advantages of an on-grid solar system?

On-grid systems are highly efficient and cost-effective. They allow for net metering (selling excess power back to the grid) and don't require expensive battery storage.

Does this solar system work during a power outage?

Standard on-grid systems are designed to shut down during a power outage for safety reasons (to prevent back-feeding the grid while workers are repairing lines).

What is the lifespan of the solar panels?

Most high-quality monocrystalline and polycrystalline panels have a performance life of 25-30 years with minimal maintenance.

Can the system be installed on any type of roof?

Yes, our mounting systems are customized for pitched roofs, flat roofs, and even ground-mounted or carport structures.

How can I monitor the performance of my system?

The grid-tied inverters support flexible communication options, including WIFI and RF, allowing you to monitor real-time power generation via a mobile app or computer.

What maintenance is required?

On-grid systems require very little maintenance. Periodic cleaning of the panels to remove dust and debris is usually sufficient to keep the system running at peak efficiency.

Sail Solar Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System with Growatt Deye Huawei Inverter

Product Description

Basic Information

Product Description

System Connection

Residential On-grid Solar System Specifications

Product Parameters & Components

Various On Grid Inverter

PV Combiner Box

Mounting Brackets

DC Isolating Switch

Installation Tools

Packaging & Shipping

Global Projects

Frequently Asked Questions

Related Products

Schutten Grid Tied Kit Solar Energy System 10kw/15kw/20kw/50kw Hybrid Solar Power Storage Batteries Set

Sail Solar Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System with Growatt Deye Huawei Inverter

Cheap Factory Price 5kw 10kw on Grid Hybrid PV Solar Panel Power System for Home Power Energy with Akku Battery

10kw on Grid Solar Power Solar Energy Systems

1385 Solar Renewable Energy Hot Selling Install 5kw on-Grid Solar Systems 500kw 1000kw 1MW Grid-Tied Solar Panel Kit for Solar Power Plant

3kw 5kw 10kw 20kw 30kw High Performance on Grid Complete Solar Power System for Home Use

5kwh 10kwh 16kwh Lithium Ion Bess Battery Energy Storage System for Residential Solar Backup

Best Selling Outdoor 30W 60W 90W Street Lighting Solar System

Ezone Bomba De Agua Con Panel BLDC DC 48V 0.5 HP Surface Solar Direct Water Pump System

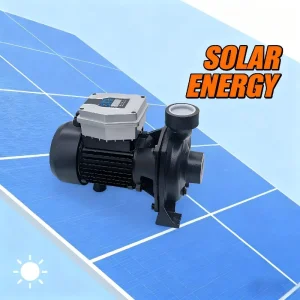

3inch 150V Solar Powered Surface Booster Irrigation Water Pump System Solar Panel
