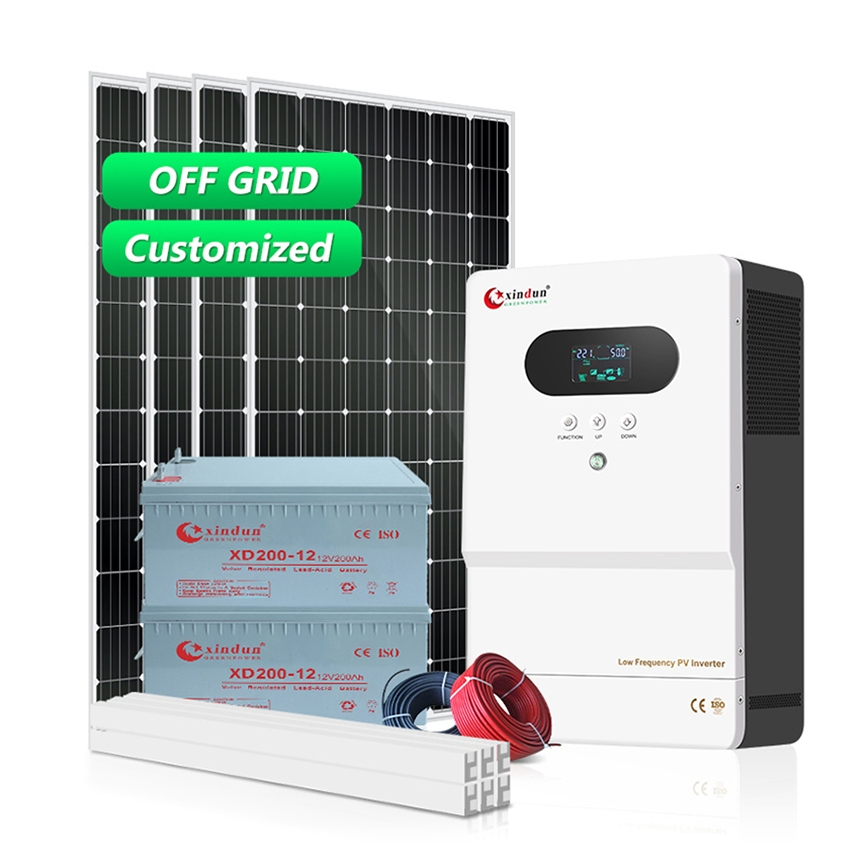

Rooftops Balcony Photovoltaic Complete off Grid 5kw 3kw 1000W 10kw 10 Kw 6kw 15kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Home

1 / 5

Rooftops Balcony Photovoltaic Complete off Grid 5kw 3kw 1000W 10kw 10 Kw 6kw 15kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	Support

Send Inquiry

Product Description

Overview

Product Description

Technical Parameter

Application

Packing & Delivery

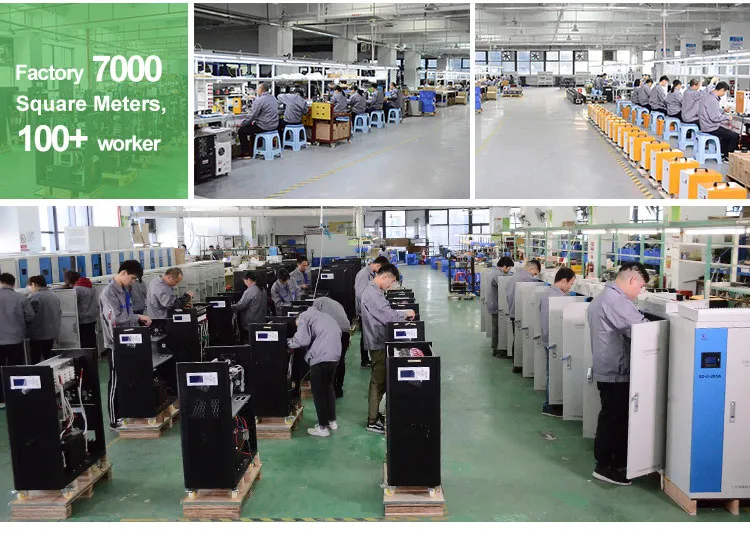

Workshop

Basic Information

Model NO.

XD-LF Solar System

Condition

New

Certification

ISO, CE, Test Report

Application

Household/Industrial/Office

Rated Output (VAC)

110V/120V/220V/230V/240V

Charging Mode

MPPT Solar Charge Controller

DC Voltage(VDC)

12V/24V/48V

Battery Compatibility

Lead Acid / Lithium Battery

Output Frequency

50/60Hz

Load Power Range

1kw - 12kw

Solar Panel Type

Poly/Mono Crystalline Silicon

Customization

Accept OEM & ODM

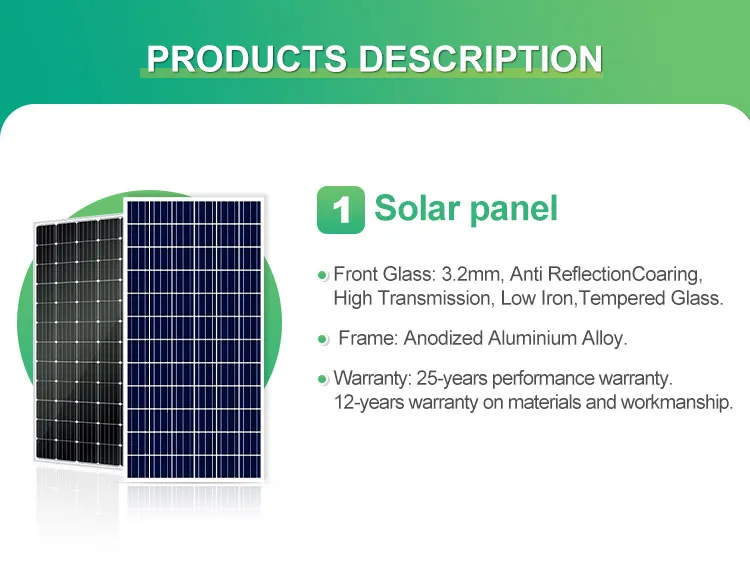

Product Description

Technical Parameters

Components	SL1KW-OFF	SL2KW-OFF	SL3KW-OFF	SL4KW-OFF	SL5KW-OFF	SL6KW-OFF

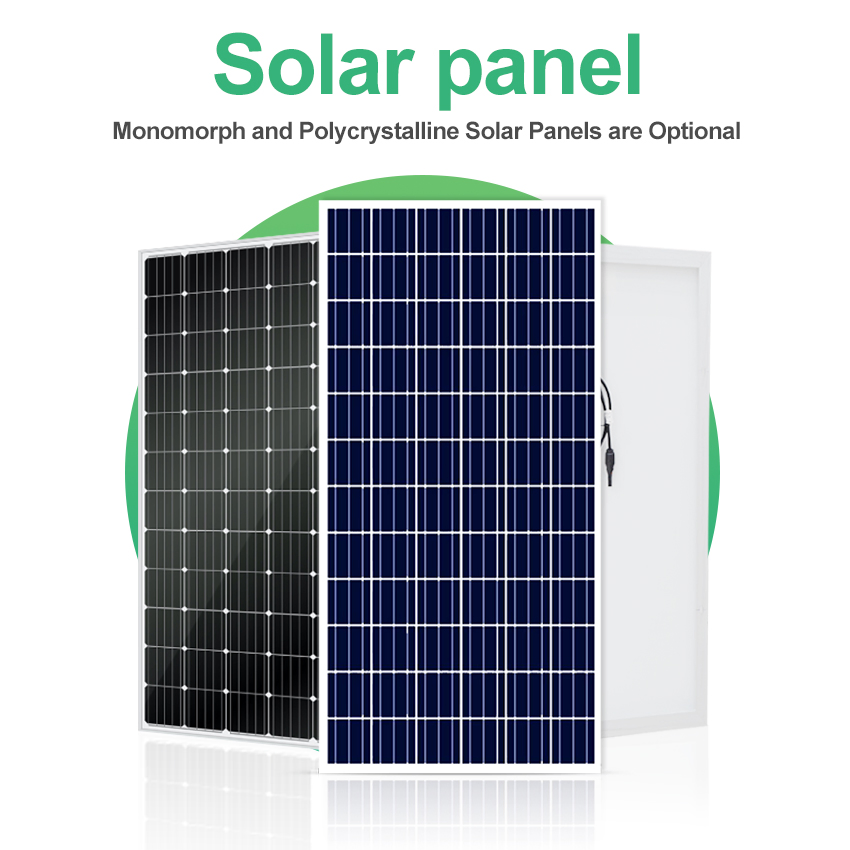

Solar Panel	2 Pcs 320W	4 Pcs 320W	6 Pcs 430W	8 Pcs 390W	8 Pcs 430W	10 Pcs 430W

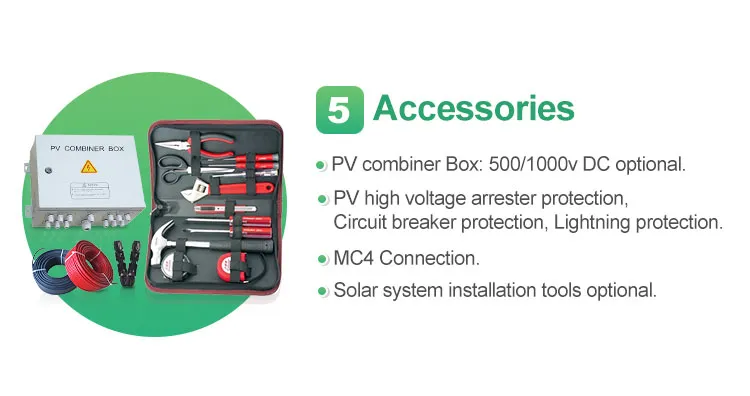

PV Combiner Box	None	2 in 1 out	3 in 1 out	4 in 1 out	4 in 1 out	5 in 1 out

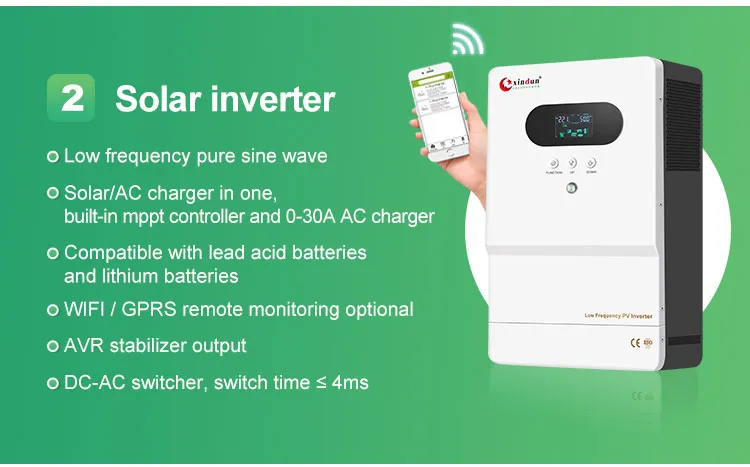

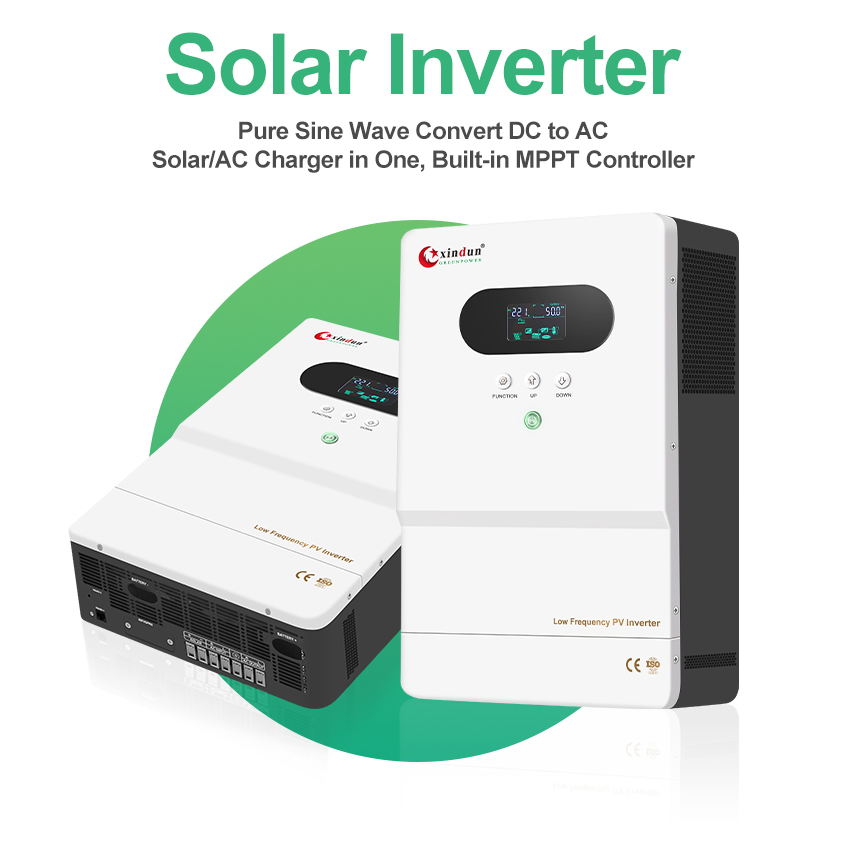

Off Grid Inverter	1kw, 30A	2KW, 50A	3kw, 50A	4KW, 60A	5kw, 80A	6kw, 80A

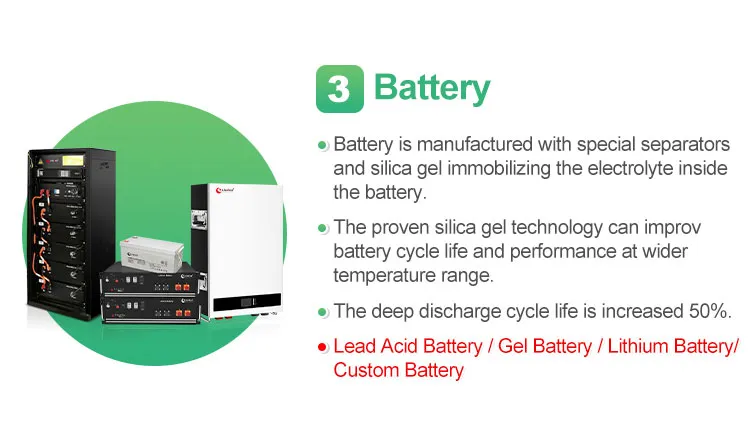

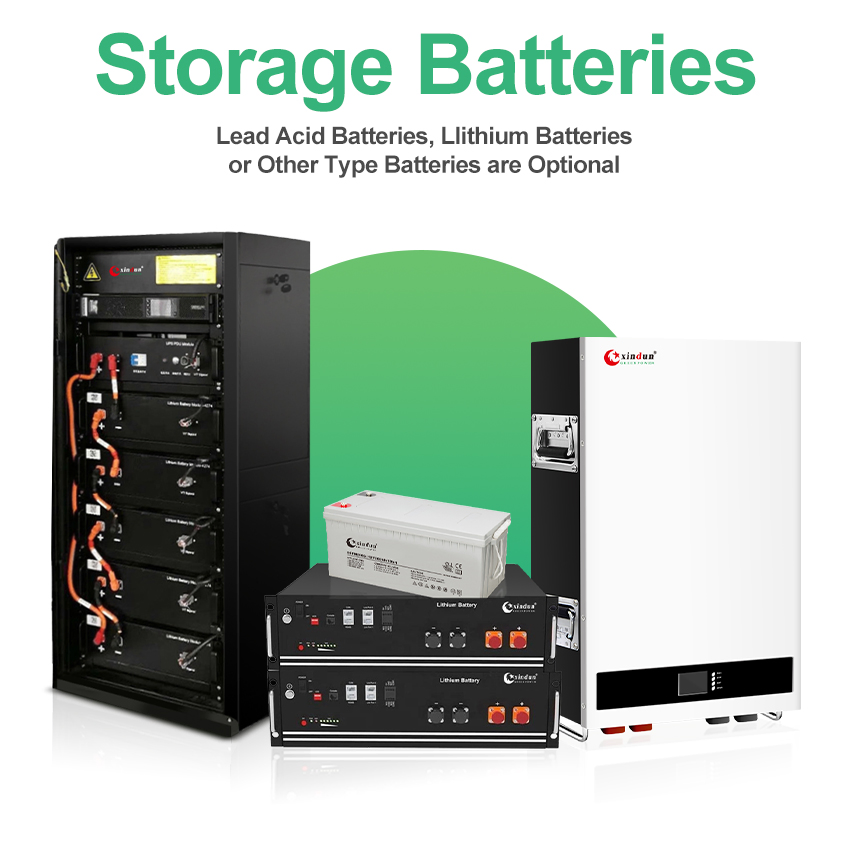

GEL Battery 12V	2pcs 150AH	2pcs 200AH	4pcs 200AH	4pcs 250AH	4pcs 250AH	8pcs 200AH
PV Cable	100m	100m	100m	200m	200m	200m

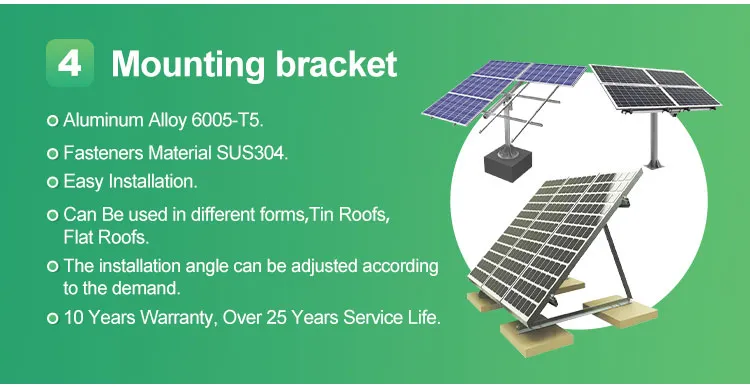

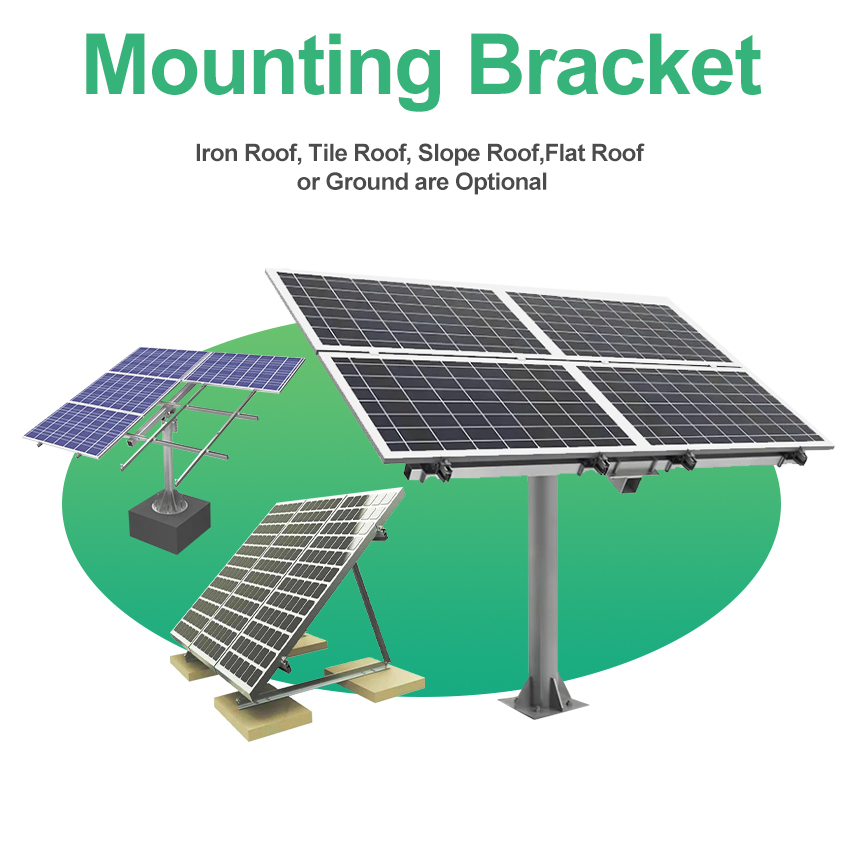

Mounting	Ground or Roof (Customized Optional)

Note: Lf solar system power ranges from 1kw to 12kw. Please inquire for specific configuration needs and the latest parameters.

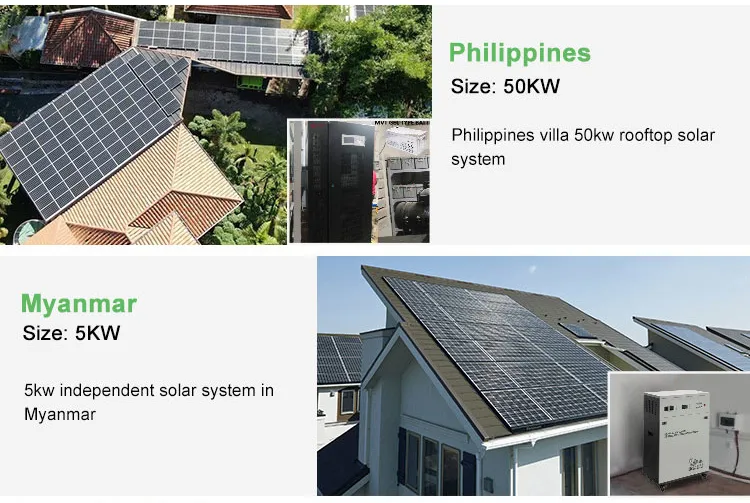

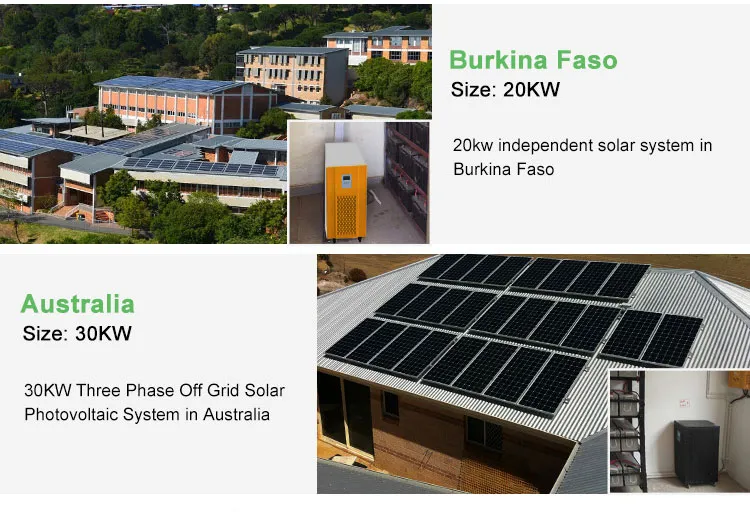

Applications

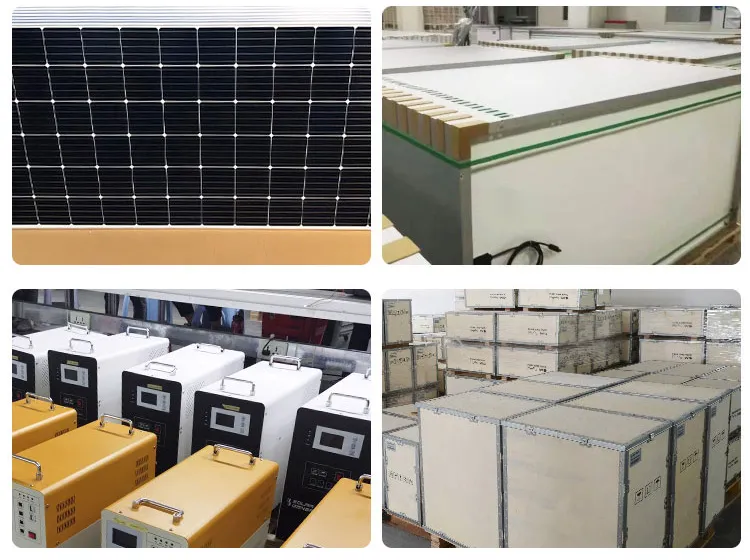

Packing & Delivery

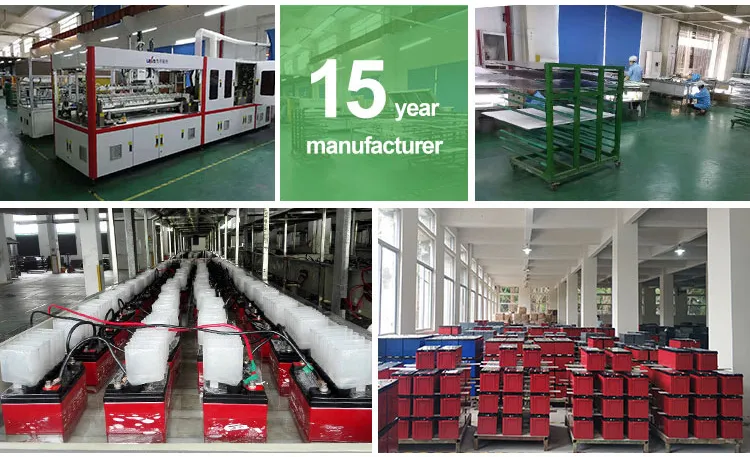

Workshop & Shipping

1 Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2 By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3 Customers specifying freight forwarders or negotiable shipping methods.
4 Delivery time: 7 days for samples; 10 to 25 days for batch goods.

Quality Control

Frequently Asked Questions

What components are included in the off-grid solar system?

A complete system typically includes solar panels, an off-grid inverter (with built-in MPPT controller), GEL or Lithium batteries, PV combiner box, cables, and a mounting system.

Can this system handle household appliances like air conditioners?

Yes, depending on the power rating (1kw to 12kw). For heavy inductive loads like air conditioners or refrigerators, we recommend choosing a system with sufficient wattage to handle the starting surge.

How long can the battery backup last at night?

The backup time depends on the battery capacity (AH) and your total load power. Our systems are designed to provide 24-hour power under standard usage when configured correctly.

Is the system compatible with both Lead-acid and Lithium batteries?

Yes, our inverters are designed with flexible charging modes that support both traditional Lead-acid (GEL) and modern Lithium battery technologies.

What is the advantage of an MPPT solar controller?

MPPT (Maximum Power Point Tracking) technology is up to 30% more efficient than PWM controllers, ensuring you get the maximum possible energy from your solar panels regardless of weather conditions.

Do you provide remote monitoring for the solar system?

Yes, our systems support RS485 communication and can be equipped with WiFi or GPRS modules for monitoring via a mobile APP.
