Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
1 / 5
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System
Ce RoHS Wind and Solar Hybrid LED Street Lighting System

Ce RoHS Wind and Solar Hybrid LED Street Lighting System

Customization: Available
Light Source: LED Light
Color Temperature(CCT): Cool White
Send Inquiry

Product Description

Basic Specifications

Model NO.
DDXLED-09
Body Material
Aluminum
Lamp Power
60W
Power Supply
DC 24V
IP Rating
IP66
Certification
CE, RoHS, CCC, ISO, FCC, EMC, GS
Lamp Source
LED / Sodium / Metal Halide
Pole Shape
Round / Conical / Polygonal
Height Options
3m - 12m
Solar Panel
Mono / Poly
Production Capacity
50,000 PCS/Month
HS Code
54094090

Key Features

🛡️ Durability

Hot galvanized street light posts with customized powder painting for maximum corrosion resistance.

⚙️ Advanced Production

Vertical production lines ensuring high-quality control of galvanized lighting poles from 3M to 35M.

📦 Safe Packaging

FCL goods use bulb wrappings; LCL goods utilize felt wrapping followed by bulb protection.

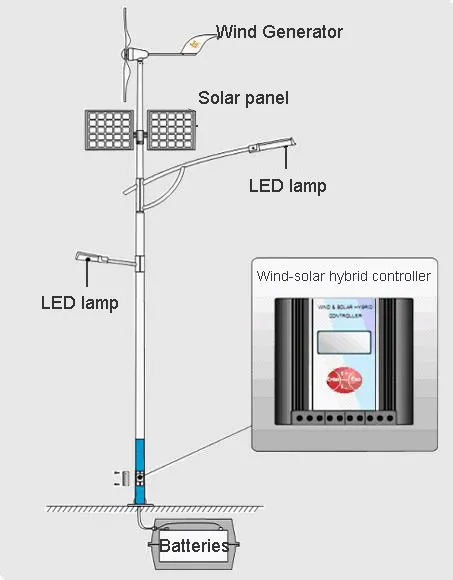

Galvanized Street Light Post Details

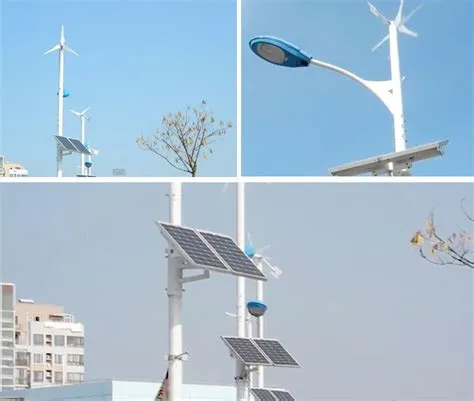

Street Lighting Pole Production

Technical Specifications

Material
Steel Q235/SS400
Welding Standard
GB11345 Grade II
Zinc Coating
≥ 86um
Anti-wind Capacity
36.9m/s
Corrosion Lifetime
≥ 20 years
Coating Hardness
≥ 2H
Item Pole Height LED Lamp Solar Panel Battery Controller
SS306m30W90W120AH10A/12V
SS406m40W120W150AH10A/12V
SS608m60W180W2*120AH10A/24V
SS12012m120W2*180W2*220AH10A/24V

Lighting Pole Dimensions

Height (m) Dimension (mm) Thickness (mm) Flange Size (mm)
660/1402.75240*240*12
870/1803.0280*280*14
1070/1703.5300*300*16
1280/2004.0350*350*18

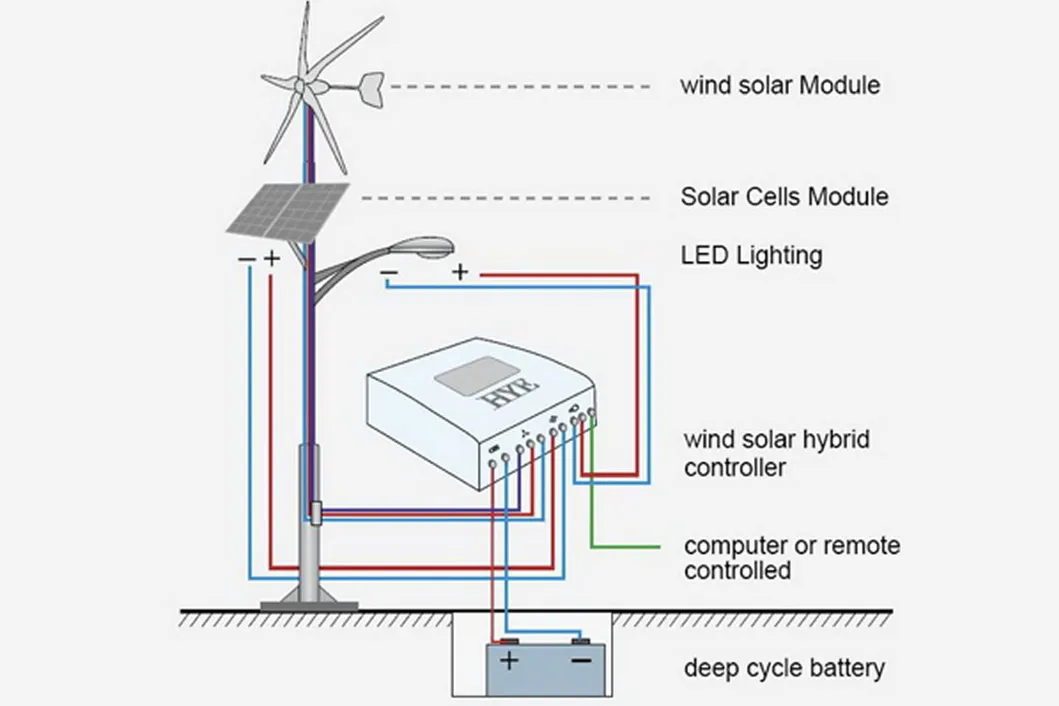

Solar Street Light System Overview

Delivery & Production

Standard Lead Time: Generally 20 working days for 100 galvanized steel light poles.

Process Flow: Plate cutting ➔ Plate bending ➔ Auto-welding ➔ Polishing ➔ Spray painting ➔ Packaging.

Frequently Asked Questions

What materials are used for the street light poles?
We use high-quality steel Q235 and SS400. All poles undergo hot-dip galvanizing and optional powder painting for maximum durability.
How long is the anti-corrosion lifespan of the poles?
The anti-corrosion lifetime is guaranteed to be ≥ 20 years, thanks to our specialized zinc coating (≥ 86um) and professional surface treatment.
What is the wind resistance capacity of the system?
The lighting system is designed with an anti-wind capacity of 36.9m/s, making it suitable for highways and open squares.
What height options are available for customization?
We offer a wide range of heights from 3 meters to 15 meters. Common standards include 6m, 8m, 10m, and 12m depending on the application.
What certifications do your street light products hold?
Our products are fully certified with CE, RoHS, CCC, ISO, FCC, EMC, and GS standards to ensure international quality compliance.
What is the typical delivery time for large orders?
For an order of 100 galvanized steel light poles, the standard production and delivery time is approximately 20 working days.
