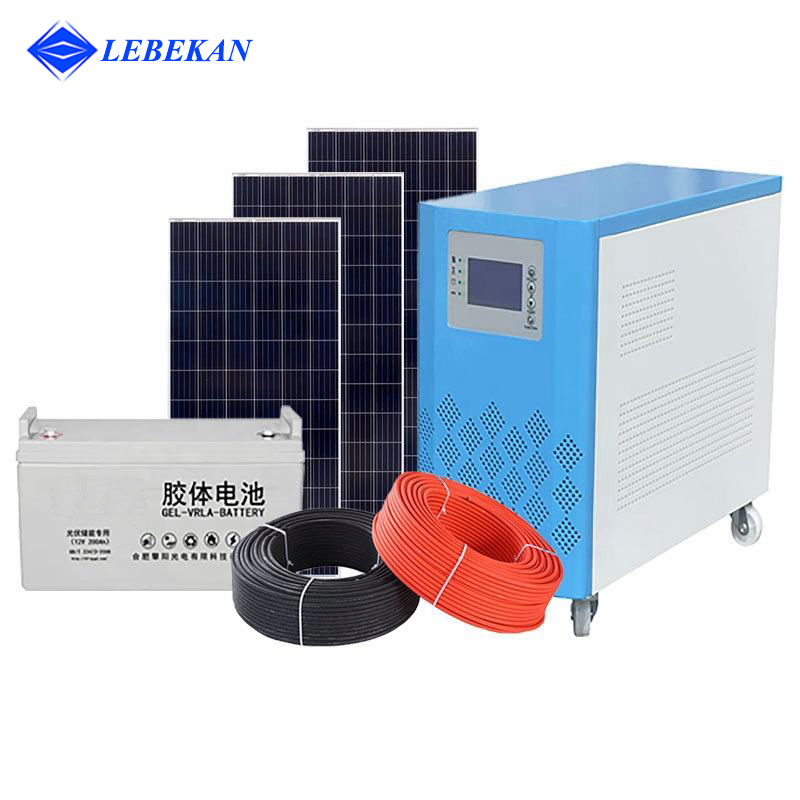

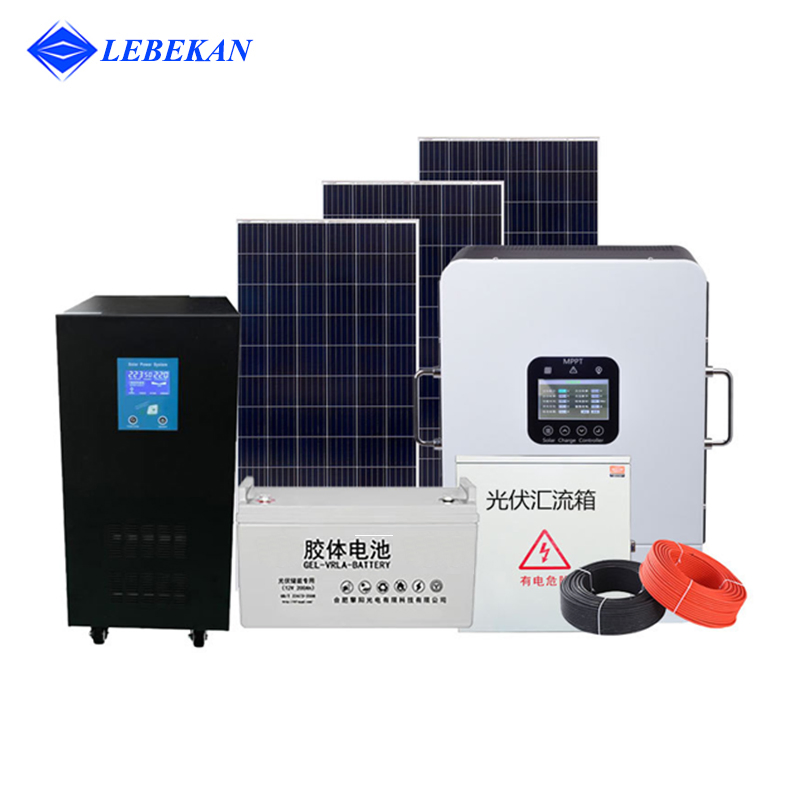

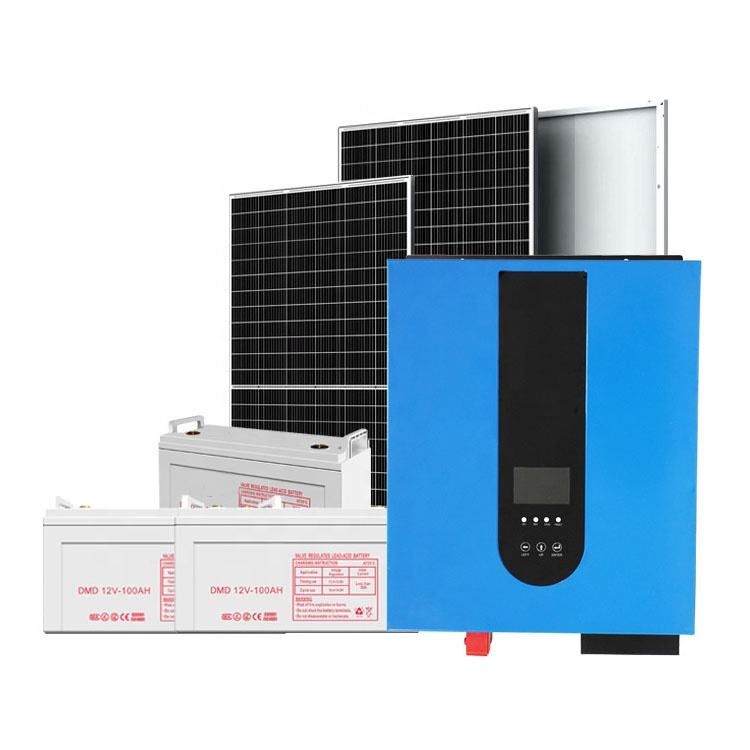

Residential Use Solar Energy System 1kw 2kw 5kw 10kw Solar Inverter Hybrid off Grid Solar System for Home Solar Panel Kit Hybird Solar System Price

Customization:	Available
After-sales Service:	Video Guide Installation
Warranty:	5years

Basic Specifications

Model NO.

EC-SP10-5KW

Condition

New

Certification

ISO, CB, CE

Application

Home, Industrial, Commercial

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT Charge Controller

Output Frequency

50Hz/60Hz

Output Voltage

AC110V/220V

Battery Type

Gel / LiFePO4 Lithium Battery

Inverter Type

Pure Sine Wave

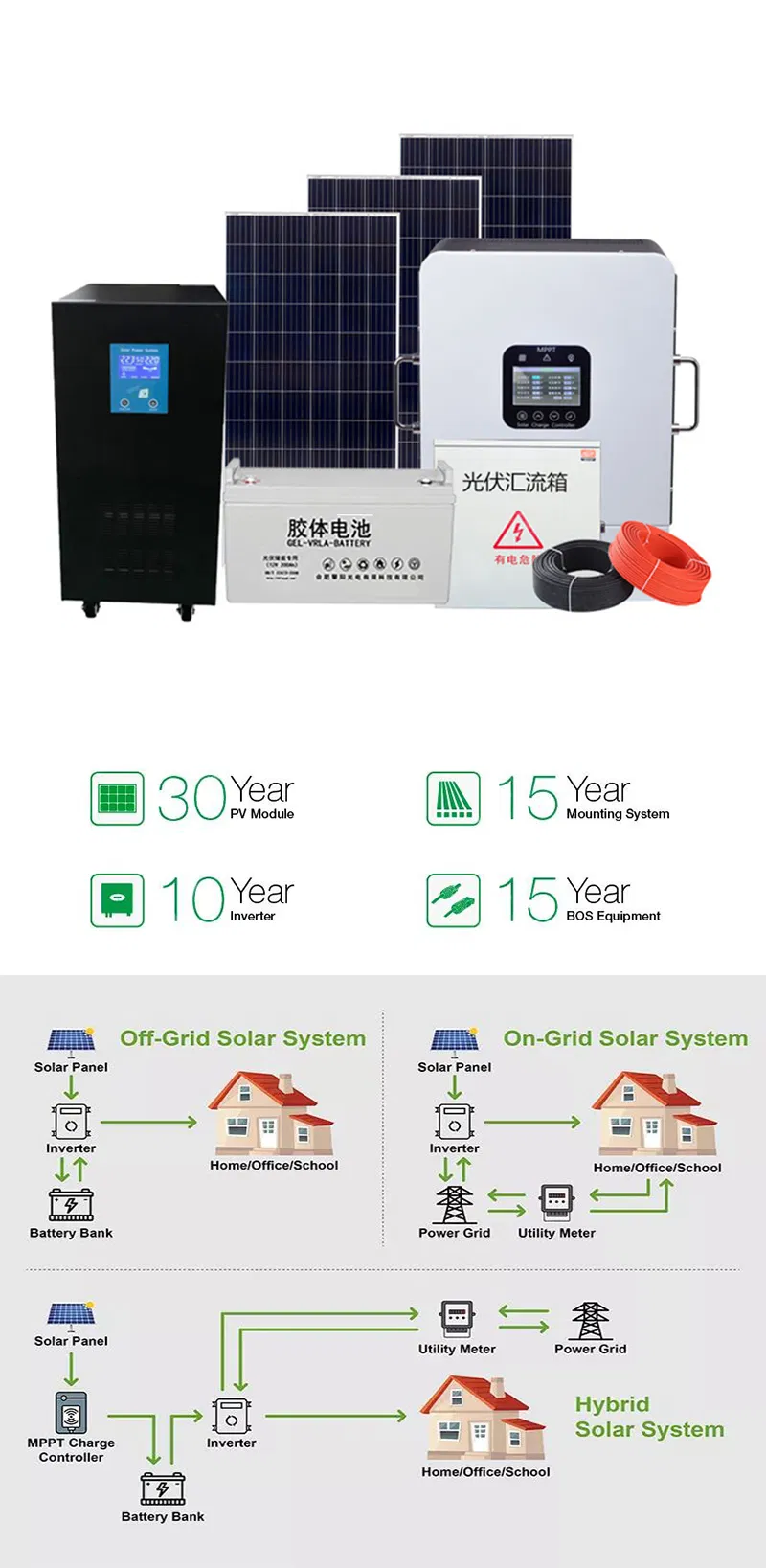

Hybrid Off-Grid Solar System

Residential Solar Energy Solutions: 1KW, 2KW, 5KW, 10KW

A comprehensive solar power kit designed for high efficiency and reliability. Suitable for residential homes and small commercial applications looking for energy independence.

System Configurations

Components	SP 5KW - A	SP 5KW - B	SP 5KW - C
Daily Generation	~11.2KW / Store: 7.2kwh	~14KW / Store: 9.6kwh	~19.6KW / Store: 14.4kwh
Mono Solar Panel	470W * 6 Pcs	470W * 10 Pcs	470W * 14 Pcs
Integrated Machine	1 Pcs	1 Pcs	1 Pcs
12V Battery	100A * 4	200A * 4	150A * 8
Mounting System	Standard Pitched Roof (Customized Optional)

Core Components

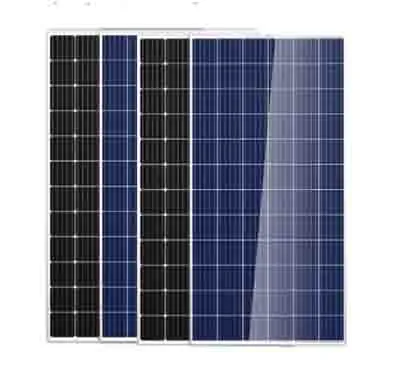

Mono Solar Panels

25 years Warranty

Conversion efficiency up to 19.2%

Anti-reflective & Anti-soiling surface

PID Resistant, High salt & ammonia resistance

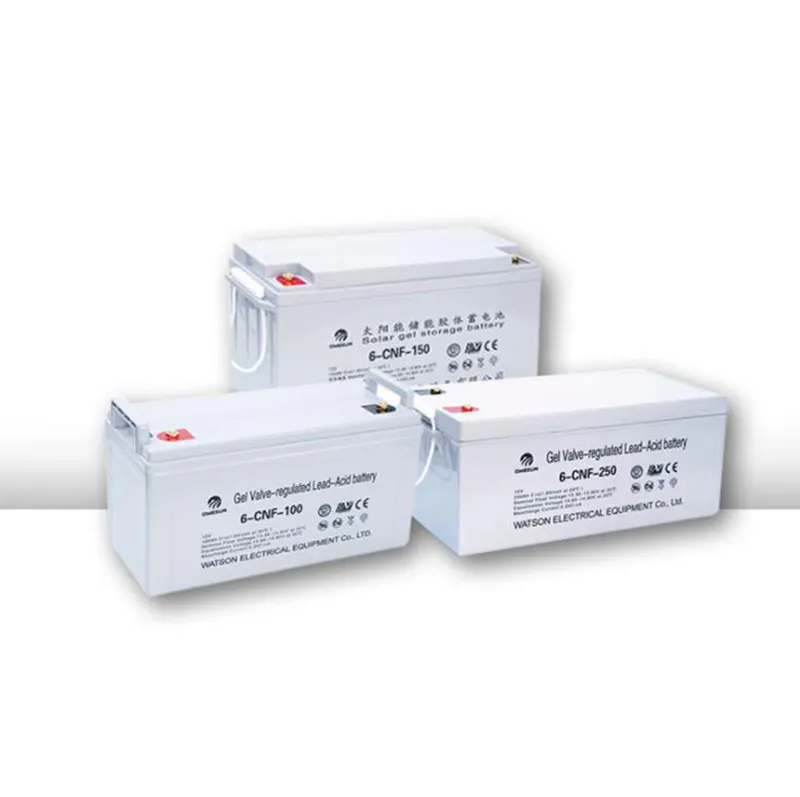

Energy Storage Batteries

Superior Gel technology

10+ years design life

Excellent recovery from deep discharge

600+ cycles at 80% DOD

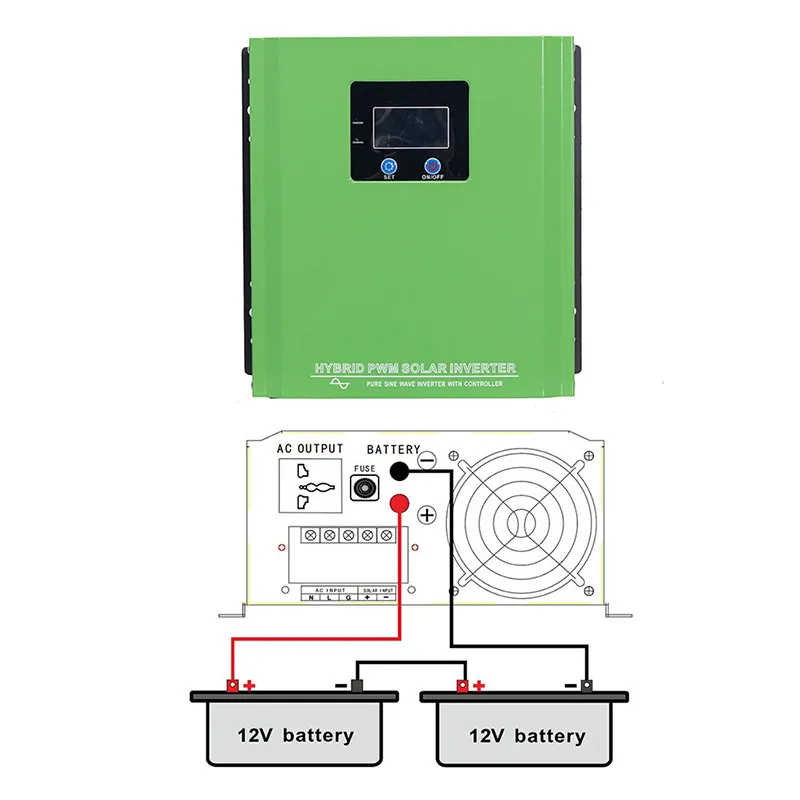

Pure Sine Wave Inverter

Pure sine wave output

Wide input voltage range: 90-280V

Built-in protection: Overload, Short-circuit

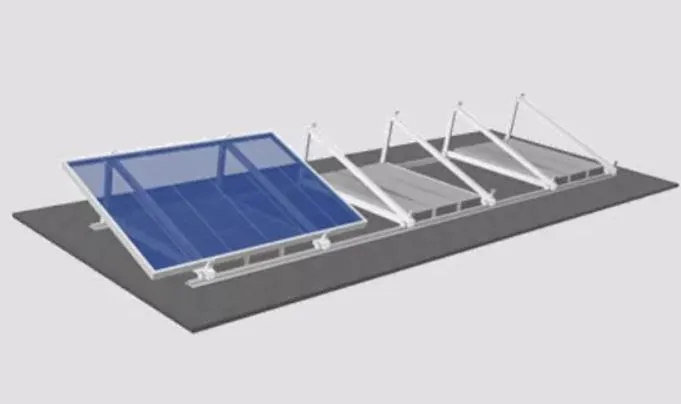

Mounting Structure

Residential & Commercial Roof solutions

Ground and Vertical wall systems

All aluminum alloy construction

5kW System Load Capability

Equipment	QTY	Load(W)	Daily Time(h)	Power(WH)
LED Lights	10	18	3	540
Computer	1	100	7	700
TV 32'	1	80	6	480
180L Fridge	1	50	24	1200
1P Air-condition	1	750	8	6000
Total Daily Consumption:				10520Wh

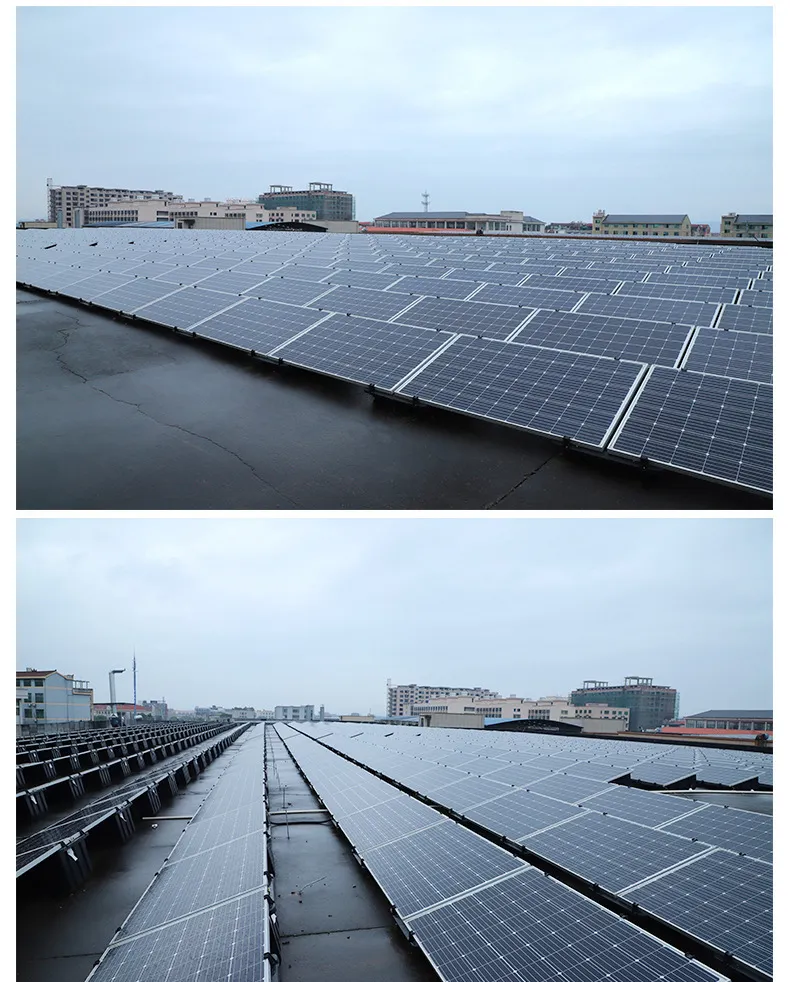

Installation Showcase

Frequently Asked Questions

Can we get samples to test before a bulk purchase?

Yes, samples are available for each model and can typically be dispatched within 3-5 working days.

How is the product quality controlled?

All equipment undergoes rigorous testing and must pass strict QC procedures before leaving the factory to ensure optimal performance.

What is the Minimum Order Quantity (MOQ)?

We maintain a low MOQ. Sample checking for 1 pcs is available to help you evaluate the system.

Is it possible to customize the system with my logo?

Yes, OEM services are available. Please provide your design requirements before production begins.

What kind of warranty do you offer?

We offer a comprehensive warranty ranging from 2 to 5 years depending on the specific components of the solar system.

How do you handle technical support or faulty units?

Our products have a defective rate of less than 0.2%. During the warranty period, we provide replacement units or repair services for any verified batch issues.
