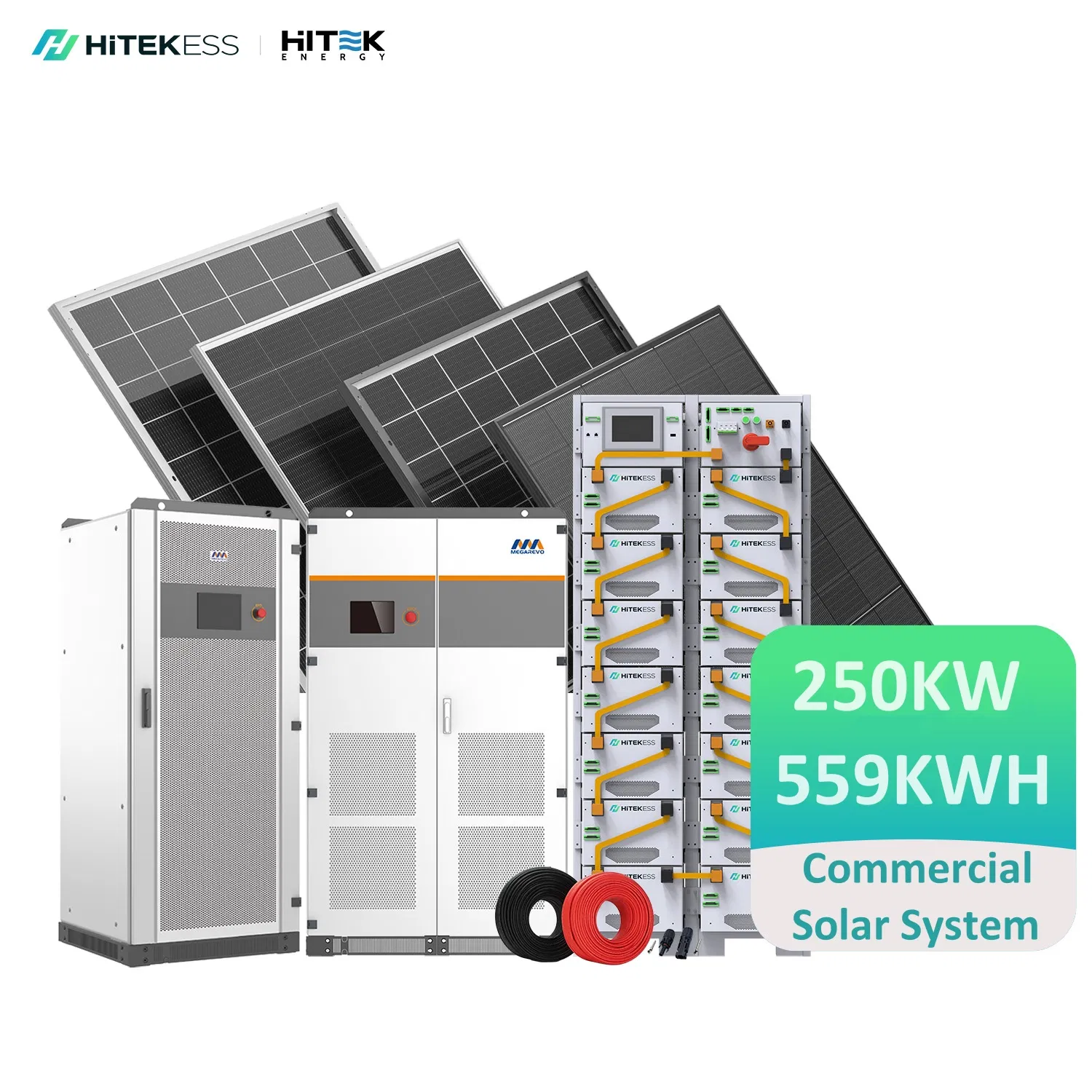

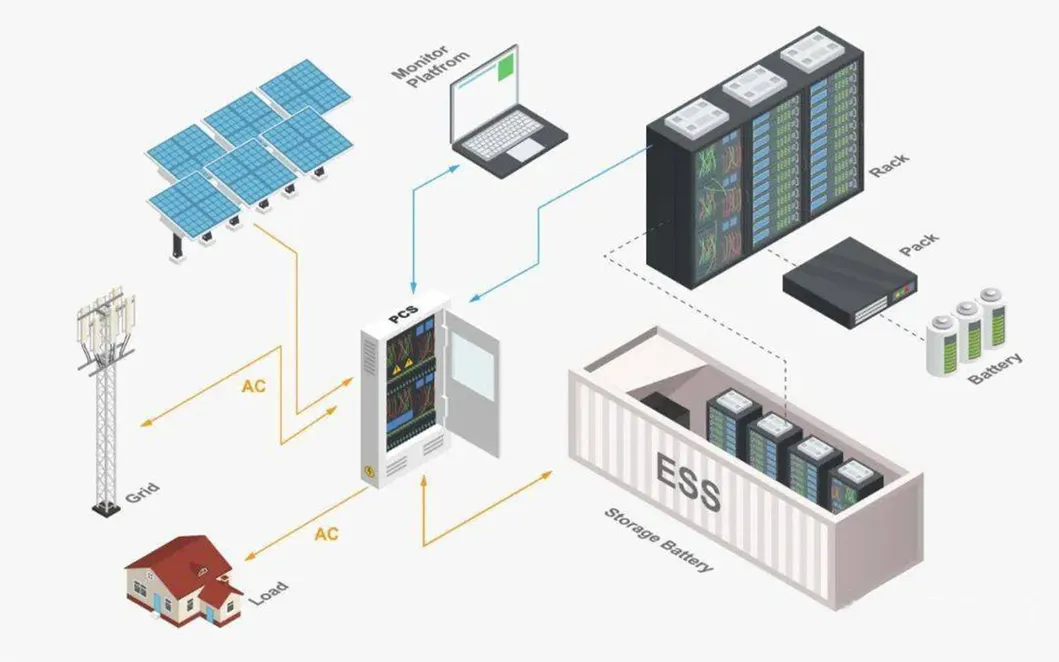

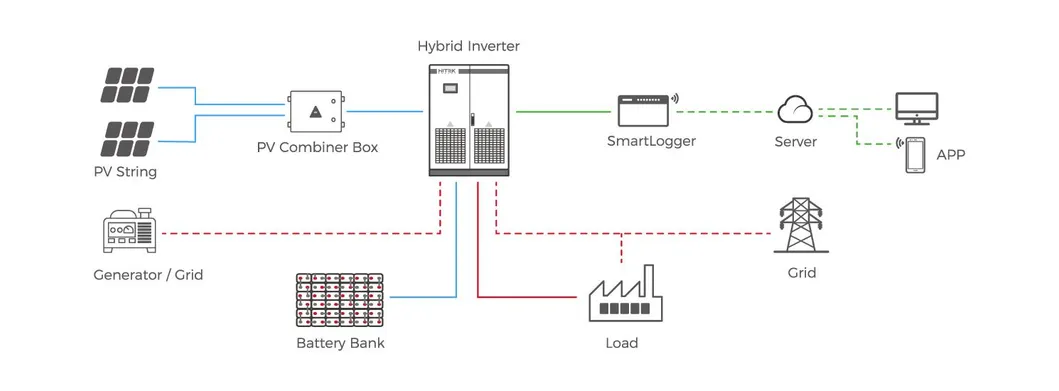

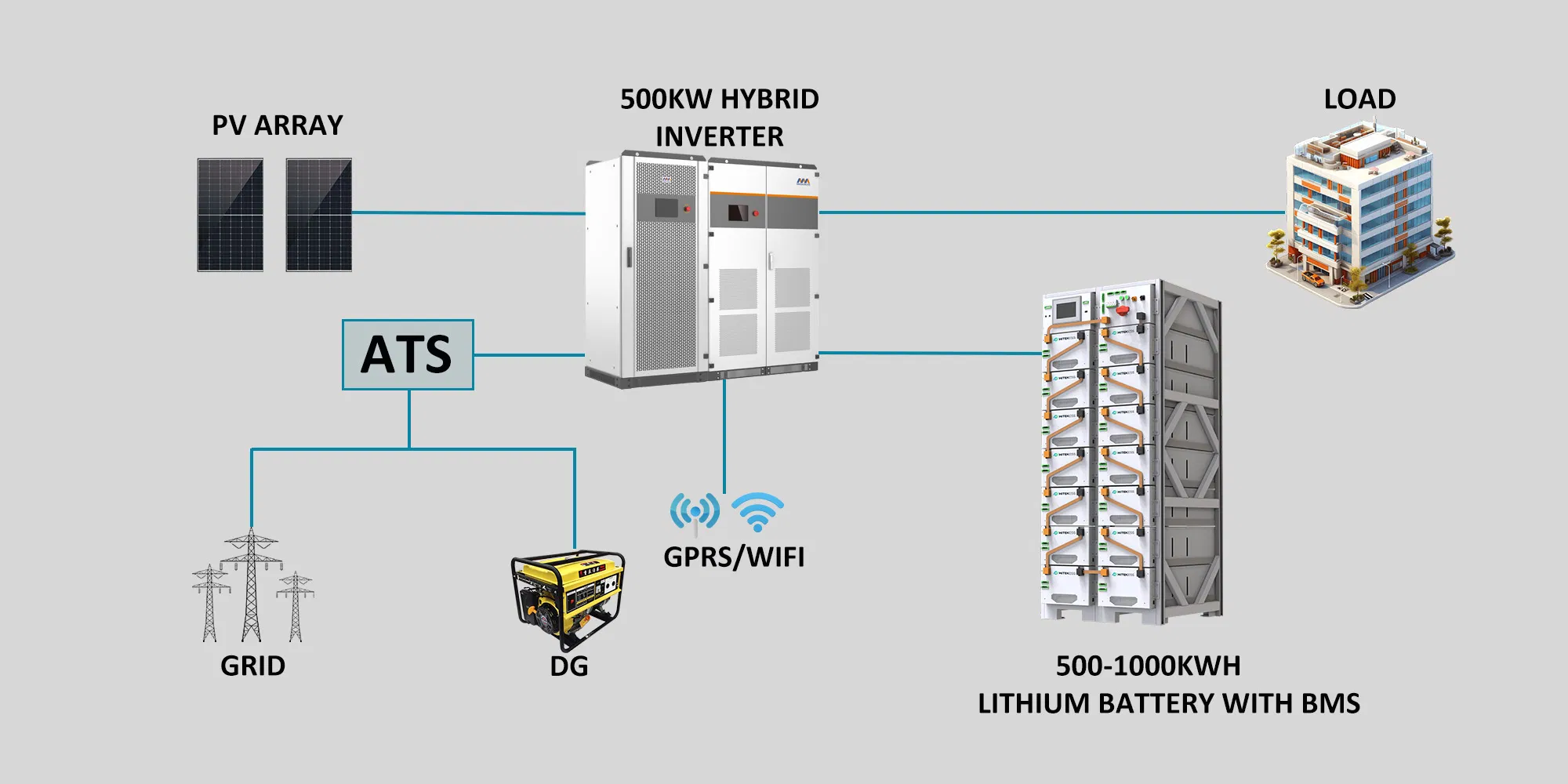

The hybrid solar system is a renewable energy solution that is grid-tied and includes high-efficiency battery storage. The system utilizes solar panels to generate energy during the day, while the battery units store excess power for usage during the night or during periods of low sunlight.
This system provides both on-grid and off-grid capabilities, ensuring your operations continue seamlessly even if the utility grid fails. It is an ideal option for those looking to lower electricity costs while maintaining a reliable backup power source.
| Parameter | 30KW System | 50KW System | 100KW System | 250KW System | 500KW System |
|---|---|---|---|---|---|
| Solar Panel Qty | 68 PCS | 102 PCS | 204 PCS | 510 PCS | 1020 PCS |
| Total PV Power | 38.08 KW | 57.1 KW | 114.24 KW | 285.6 KW | 571.2 KW |
| Inverter Model | HTMPS30 | HTMPS50 | HTMPS100 | HTMPS250 | HTMPS500 |
| Battery Capacity | 40.96 KWH | 100.35 KWH | 200.70 KWH | 473.08 KWH | 946.17 KWH |
| AC Output | 380/400VAC | 380/400VAC | 380/400VAC | 380/400VAC | 380/400VAC |

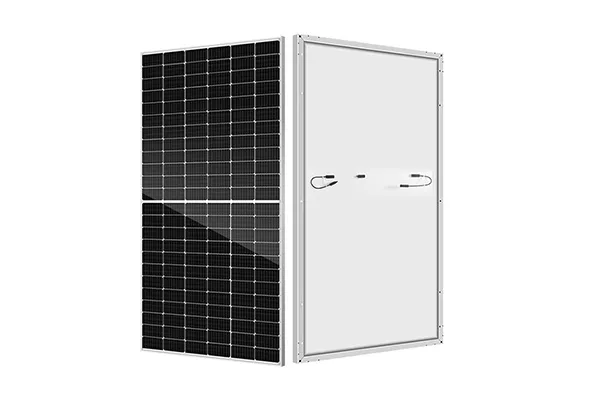

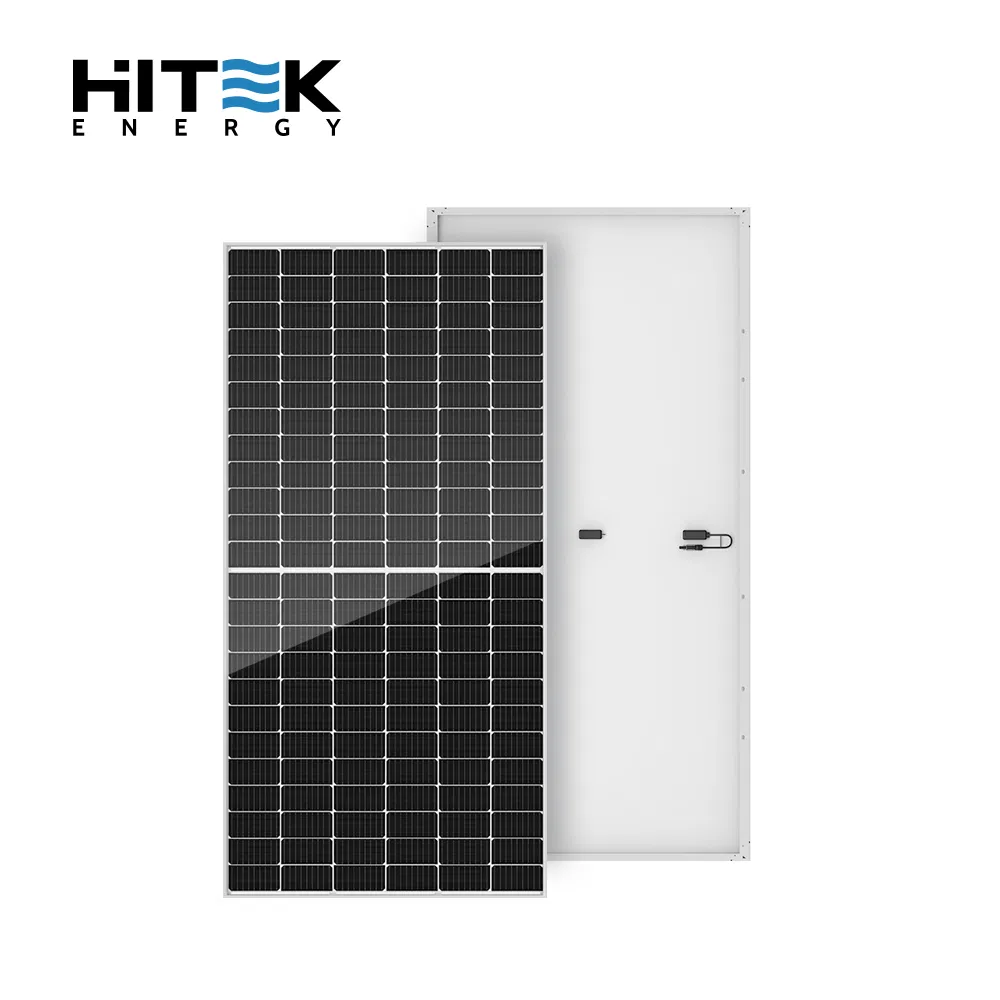

Model: HT560M-72 | Peak Power: 560Wp
Open Circuit Voltage: 49.84V | Dimensions: 2279*1134*35mm
High-efficiency monocrystalline cells for maximum sunlight absorption.

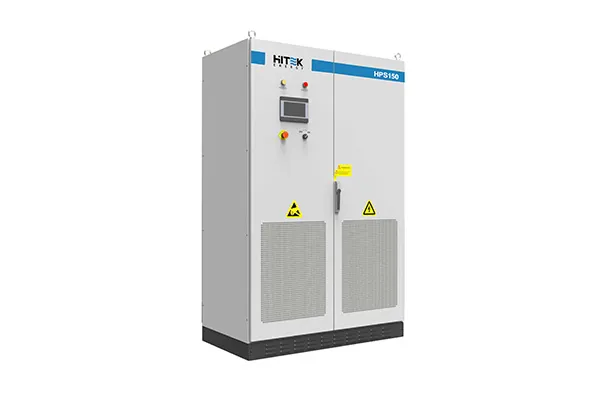

Programmable working modes with Touchscreen LCD.
Features seamless transfer, dry contact output, and scalable parallel design (up to 4 units).

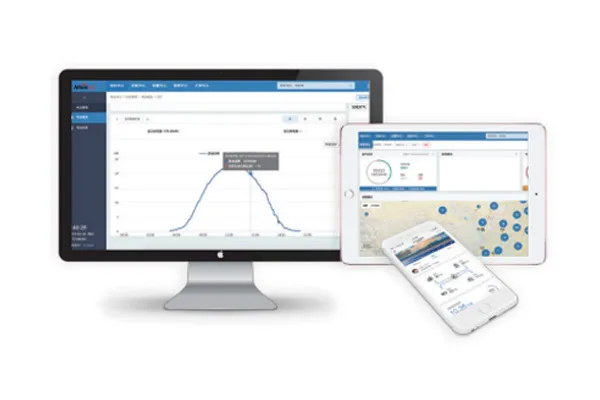

One-click registration and real-time tracking.
Safe operation with traceable logs and full lifecycle data storage for maximum security.

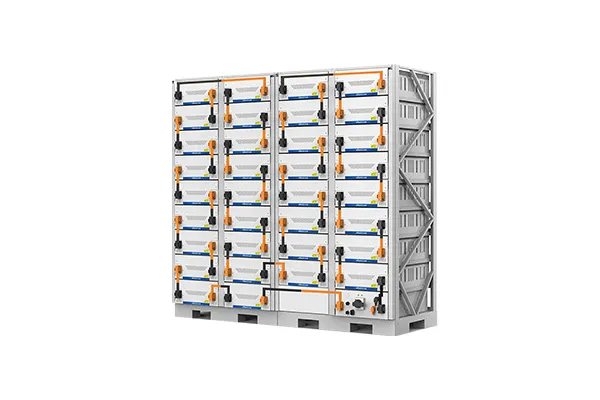

Rack-mounted LiFePO4 / Lithium Ion batteries.
Over 6000 cycles at 90% DOD. Deep cycle performance with maintenance-free operation.
Founded with a mission to provide sustainable and renewable energy, we specialize in providing tailored solar solutions for backup, residential, and commercial needs. We use only reliable, approved equipment to ensure long-term performance and customer satisfaction.
Let's work together for a better, brighter and greener future.
