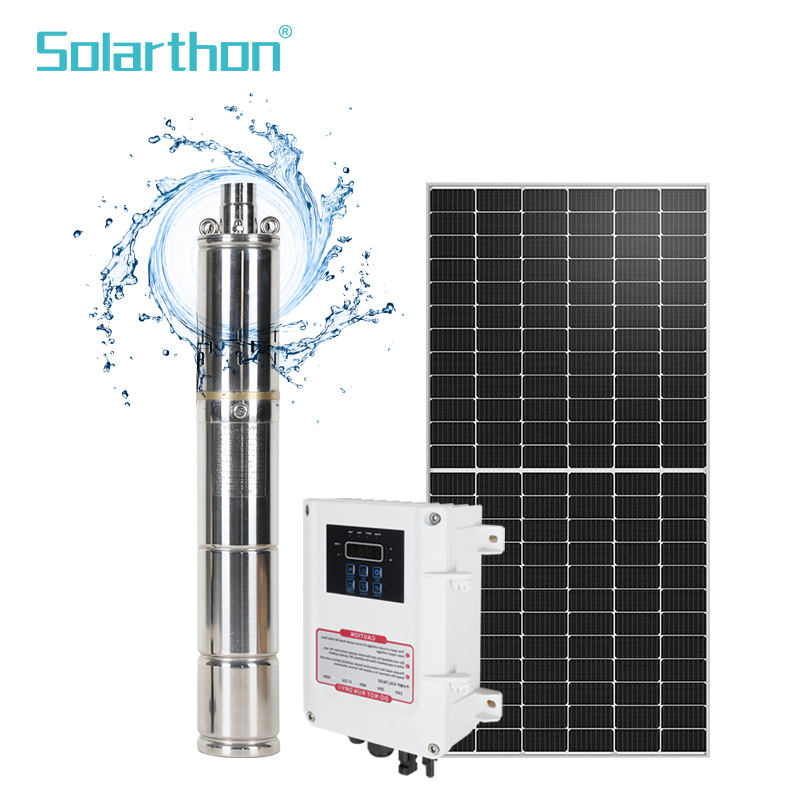

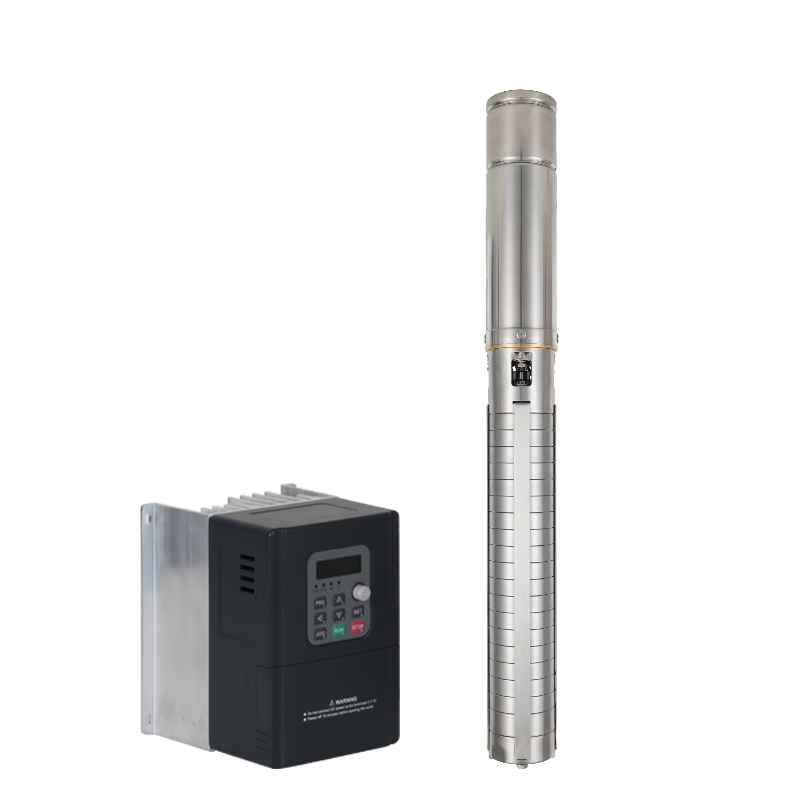

Reliable Solar-Powered Water Pumping System for Irrigation Needs

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

60ZY24

Max.Head

50-80m

Max.Capacity

13 M³/H

Driving Type

Motor

Material

Stainless Steel

Structure

Double Sealing Effect

Assembly

Liquid Pumps

Power

Solar Energy

Start Up

Solar Pump

Type

Water Pump

Application

Submersible Pump, Agriculture Deep Well Broehole Irrigation

Performance

Automatic Pump

Product Name

Solar DC Brushless Pump

Configuration

3 Inch Stainless Steel Pump + Built-in Controller

✔

Product Description

High Quality Energy Saving Mass Flow Solar Power Irrigation System

Introducing the High Quality Energy Saving Mass Flow Solar Power Irrigation System, a reliable and efficient solution for all your agricultural irrigation needs. Powered by a 210W solar pump water system, this solar water pump is designed to provide optimal performance while saving energy.

With the MPPT solar pump inverter, you can expect the highest solar utilization rate, ensuring maximum efficiency and output. The alloy mechanical seal guarantees a long life and reliable operation, making it a durable choice for your irrigation system. Thanks to its waterproof and sealed design, this solar pump offers a double sealing effect, protecting it from water damage and ensuring its longevity.

The digital display allows you to easily monitor the power, voltage, current, and speed, providing you with valuable information about its working conditions. For added safety, this solar pump features high/low voltage protection as well as overcurrent/overload protection, giving you peace of mind while using it.

⚙

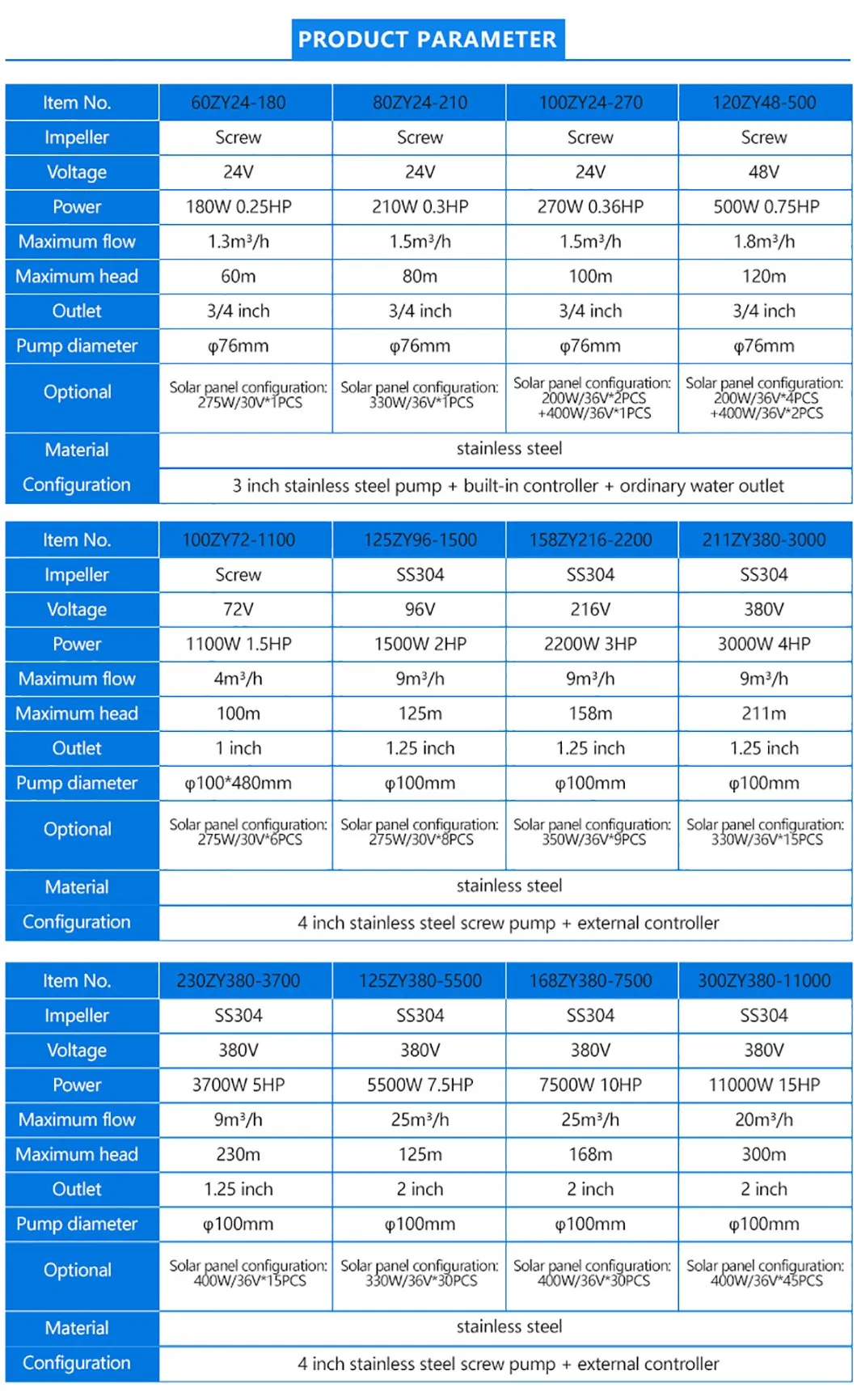

Product Parameters

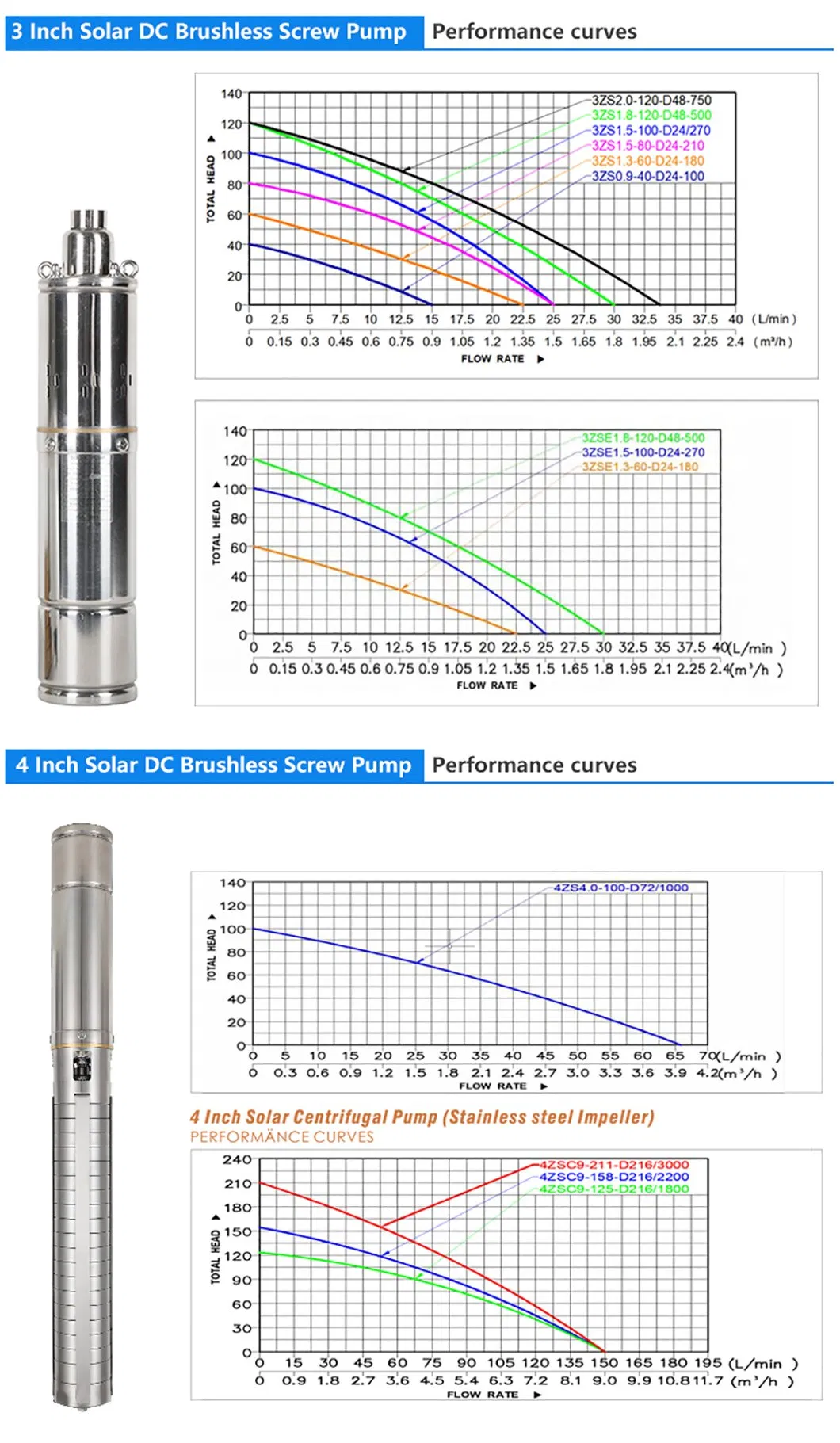

Model	60ZY24-180	80ZY24-210	100ZY24-270	120ZY48-500	100ZY72-1100	125ZY96-1500	158ZY216-2200
Voltage	24V	24V	24V	48V	72V	96V	216V
Power	180W	210W	270W	500W	1100W	1500W	2200W
Max Flow	1.3m³/h	1.5m³/h	1.5m³/h	1.8m³/h	4m³/h	9m³/h	9m³/h
Max Head	60m	80m	100m	120m	100m	125m	158m
Material	Stainless Steel

📷

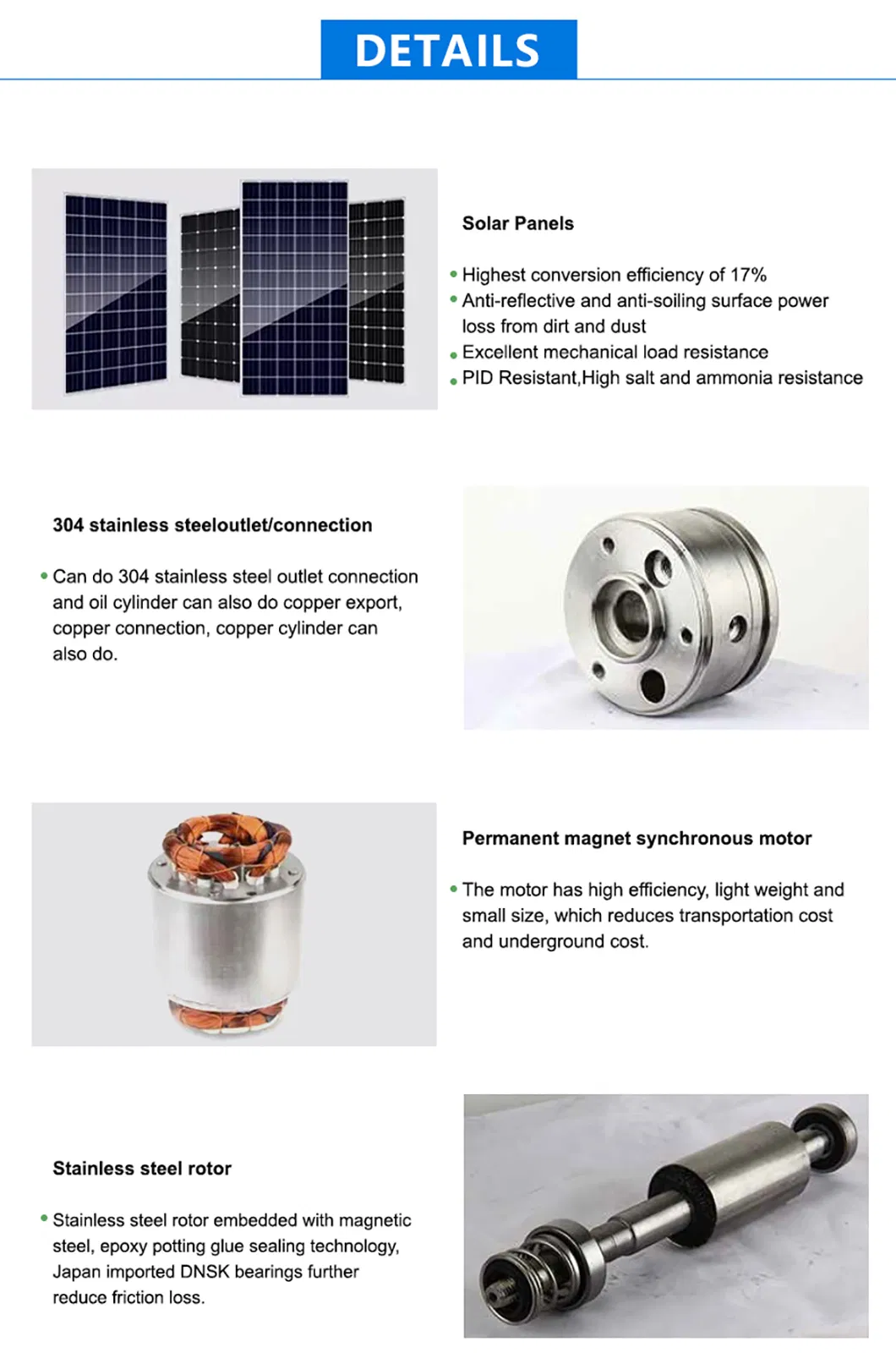

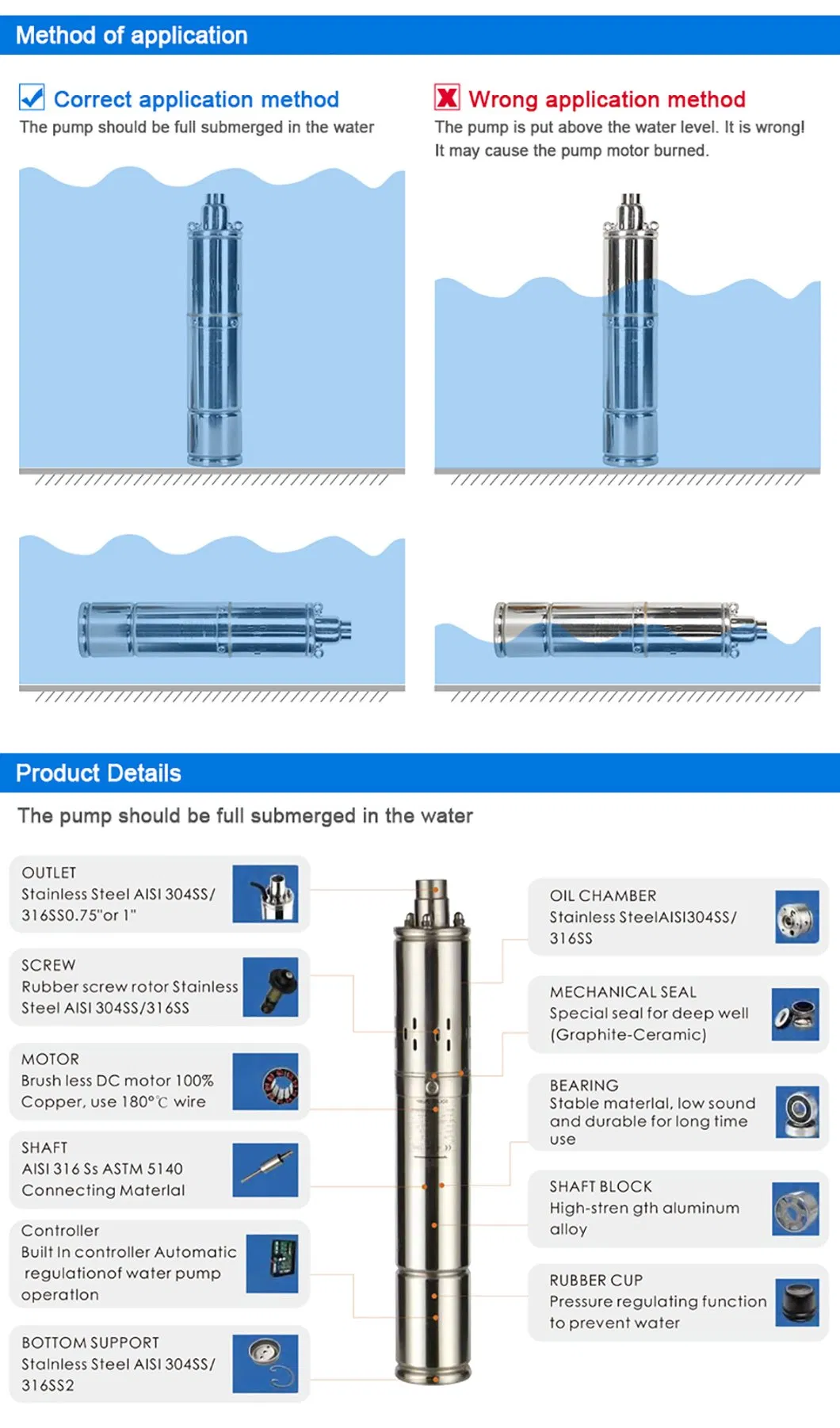

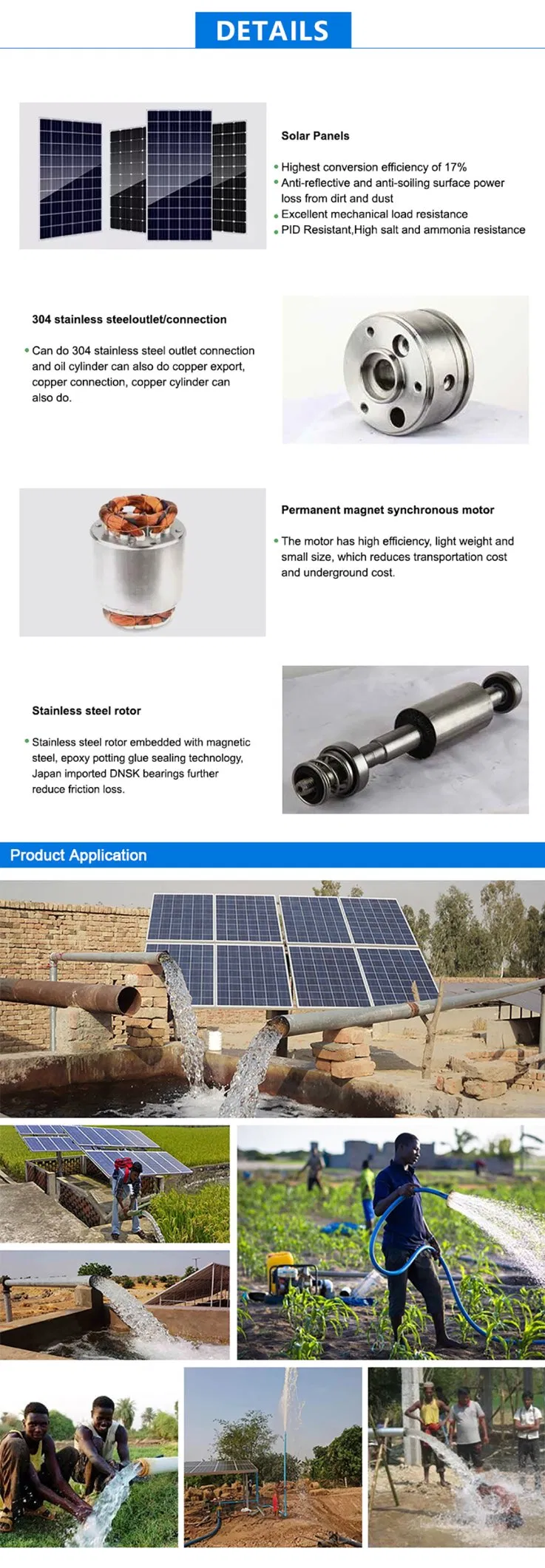

Detailed Photos

FAQ

1. What is the benefit of the MPPT controller? The MPPT (Maximum Power Point Tracking) function maximizes the solar utilization rate, ensuring the pump operates at peak efficiency even when sunlight intensity varies.

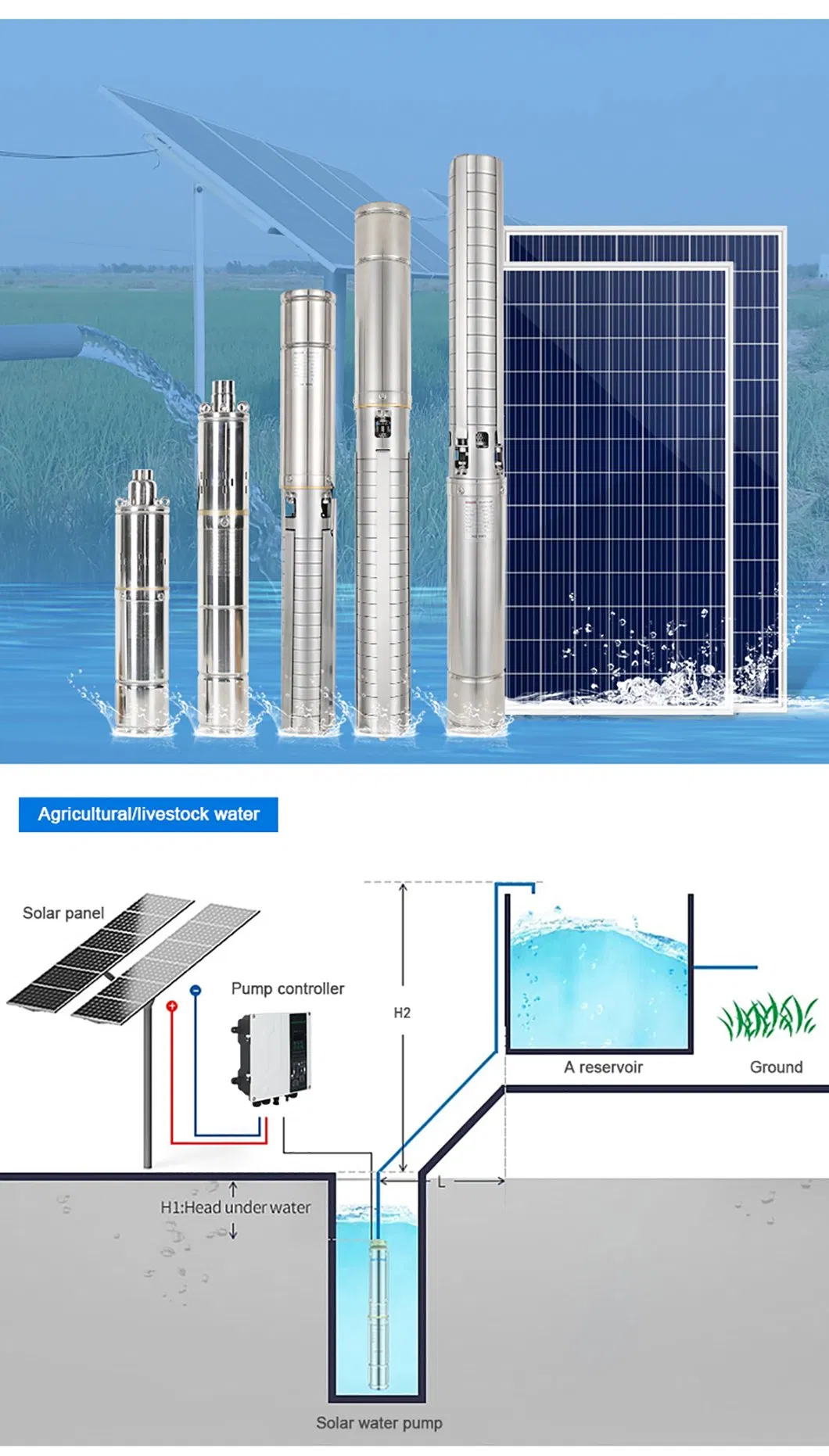

2. Is this solar pump suitable for deep wells? Yes, it is specifically designed for agriculture deep well borehole irrigation with a maximum head reaching up to 300m depending on the model.

3. What materials are used to ensure durability? The pump is constructed from high-quality stainless steel and features an alloy mechanical seal for long-lasting operation and corrosion resistance.

4. Does the system provide safety protections? Yes, the system includes built-in high/low voltage protection, overcurrent protection, and overload protection to prevent damage to the motor.

5. Can I monitor the pump's performance? Absolutely. The digital display allows users to monitor real-time power, voltage, current, and running speed during operation.

6. What is included in the packaging for shipping? The standard transport package includes a sturdy carton, protective foam, and a wooden frame to ensure the product arrives safely.
