| Parts | Specification | SP5KW | SP6KW | SP8KW | SP10KW | SP12KW |
| Solar Panel | 590W Mono Panel | 6 Pieces | 10 Pieces | 12 Pieces | 16 Pieces | 20 Pieces |
| Hybrid Inverter | Single / Three Phase | 1 pcs 5KW | 1 pcs 6KW | 1 pcs 8KW | 1 pcs 10KW | 1 pcs 12KW |
| LiFePO4 Battery | 48V 5/10KWH | 1 Pieces | 2 Pieces | 2 Pieces | 2 Pieces | 2 Pieces |
| Bracket | Ground or Roof | 1 set | 1 set | 1 set | 1 set | 1 set |
| PV Cables | 4mm² | 100 meters | 200 meters | 200 meters | 200 meters | 200 meters |
| MC4 Connector | Male + Female | 5 pairs | 10 pairs | 10 pairs | 15 pairs | 15 pairs |
Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make product changes from time to time, without prior notification.

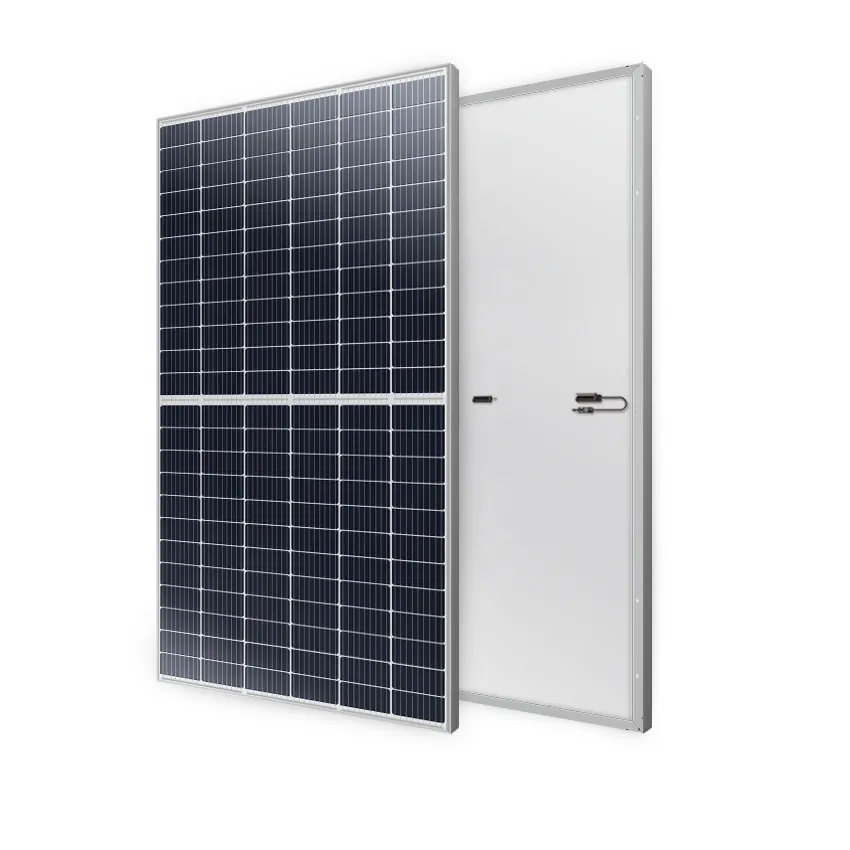

Peak Power: 590W
Max Power Voltage: 41.5V
Max Power Current: 11.3A
Open Circuit Voltage: 48.5V
Dimensions: 2094*1038*35 mm
Weight: 25 kg
Capacity: 5.5KW (AC 220V/230V/50HZ)
MPPT Voltage Range: 70-450Vdc
Max PV Open Circuit: 500Vdc
Monitoring: Optional WIFI service
Weight: 15 KG

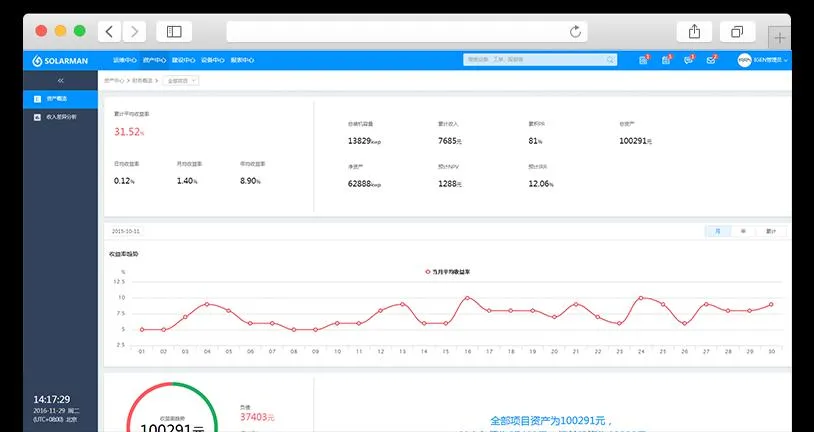

Data Logging Stick for real-time tracking via web server, PC, iOS, and Android.

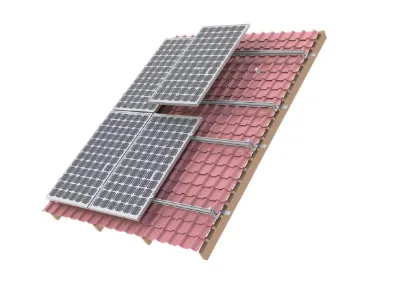

AI6005 & SUS304 components for ground or roof installation.

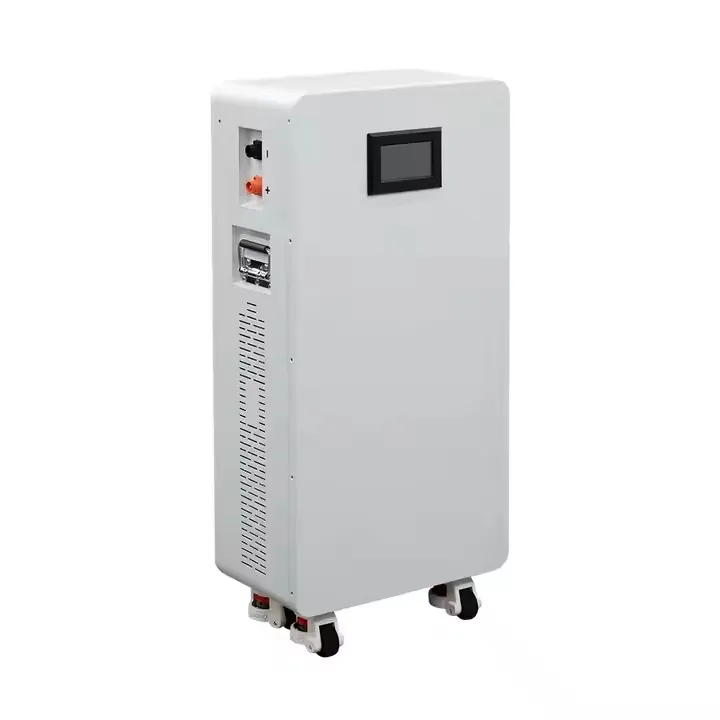

Capacity: 4.8KWH
Includes: Connection & Communication cables
Weight: 103 KG
Package Size: 710*500*310 mm
Specs: 4mm² / 6mm² TUV Rated
Voltage: 600VDC/1000VDC
Lifetime: ≤25 Years
