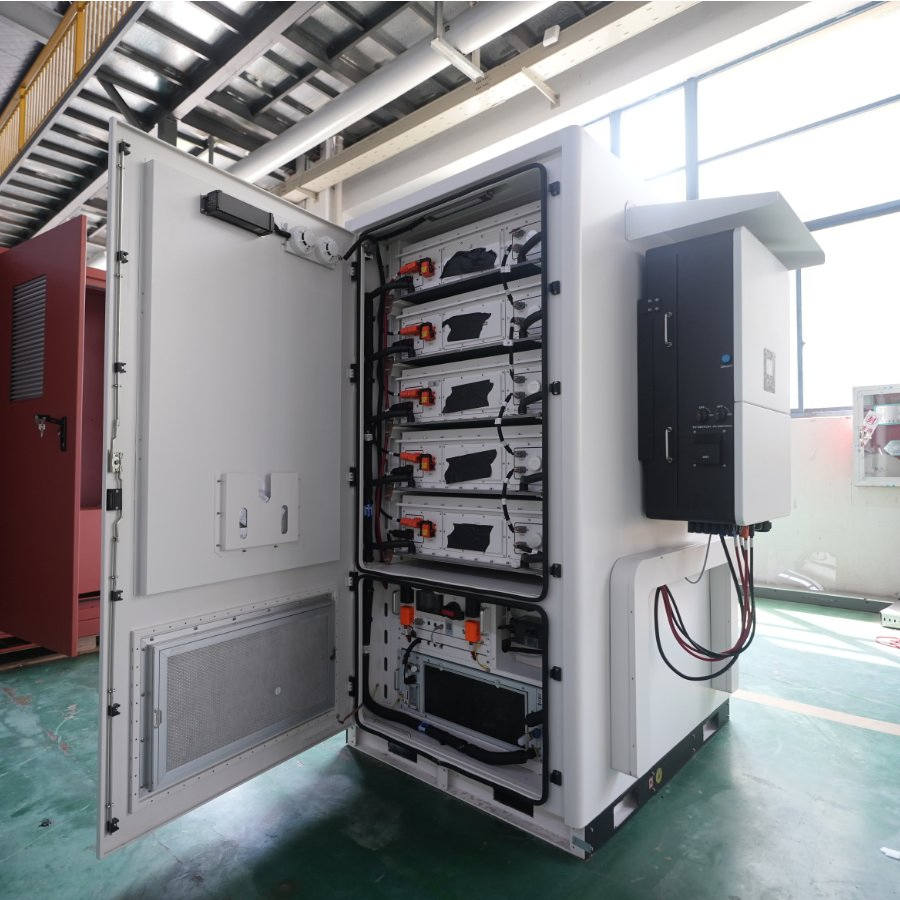

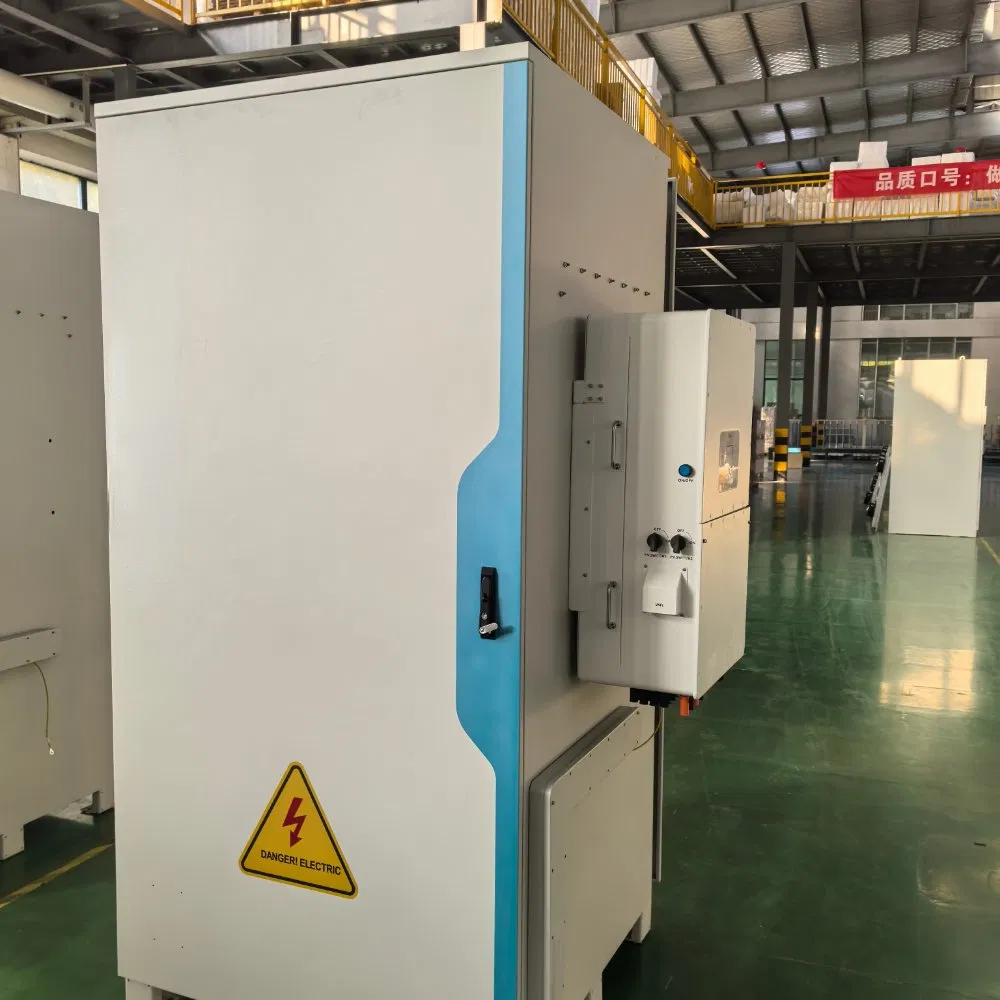

Outdoor Cabinet Bess Battery Storage 50kw 80kw 200kwh 261kwh 1mwh Lithium Solar Battery Energy Storage System

1 / 5

Outdoor Cabinet Bess Battery Storage 50kw 80kw 200kwh 261kwh 1mwh Lithium Solar Battery Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model

ATESSOT100-215KWH

Nominal Capacity

100~215kwh

Cycle Life

More Than 6000 Cycles

Battery Type

Lithium Iron Phosphate (LFP)

Protection Degree

IP54 (Outdoor Rated)

Cooling System

Air Conditioning Air Cooling

Designed Life

10+ Years

Certifications

IEC62619, IEC61000, UN38.3, MSDS

💡

Product Description

Commercial Battery Storage Energy System: Flexible solutions designed for both indoor (steel bracket) and outdoor (cabinet) environments. Capacity ranges from 100KWh to 261KWh, with the ability to expand via parallel configuration for industrial and commercial applications.

⚙️

Application & Benefits

⚡ Electricity Bill Savings Peak shaving and valley filling to reduce demand charges and capacity bills.

☀️ Scenery Consumption Store surplus PV energy during the day for use at night or to smooth wind power fluctuations.

🔋 Standby Power Ensures continuous power supply during grid outages or rationing.

🌐 Microgrid Support Stable power for islands, mountainous areas, and off-grid locations.

📋

Technical Parameters

Parameter	ATESSOT50-100KWH	ATESSOT100-200KWH
Dimension (WxDxH)	1500x1100x2080 mm	1760x1100x2080 mm
Total Weight	1.25 t	2.05 t
Rated Power	30/50 KW	80/100 KW
DC-side Voltage	560~850 V	615~900 V
System Capacity	100.352 KWH (Max)	200.7 KWH
Battery Type	Lithium Iron Phosphate (LFP)
Operating Temp	-25°C to +50°C
Module Capacity	14.336 KWH

🌟

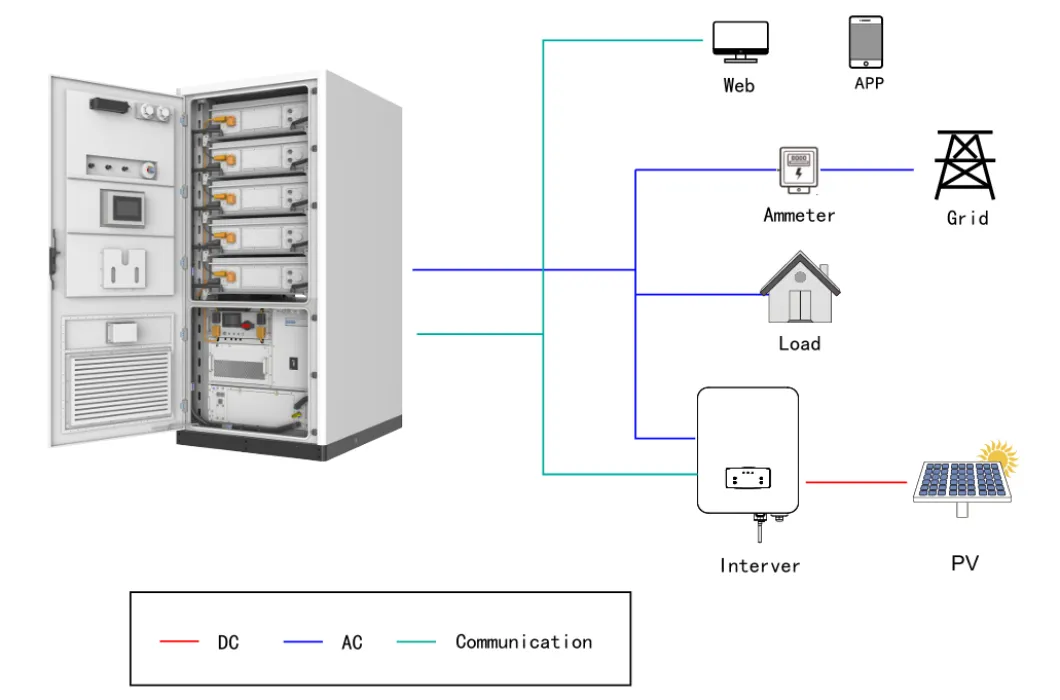

System Components

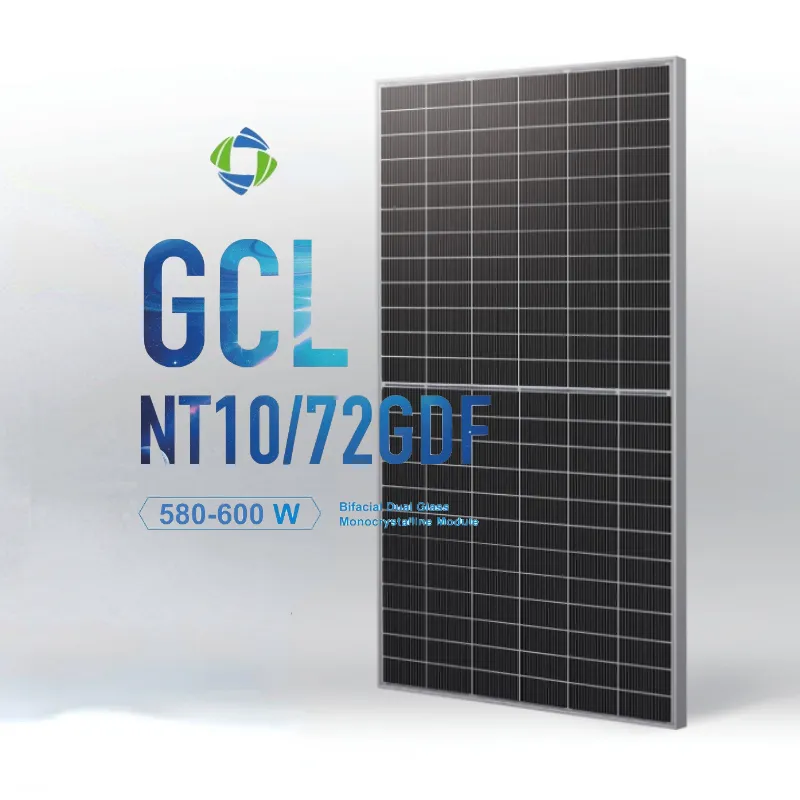

Solar Panel (400W+ ~ 600W+)

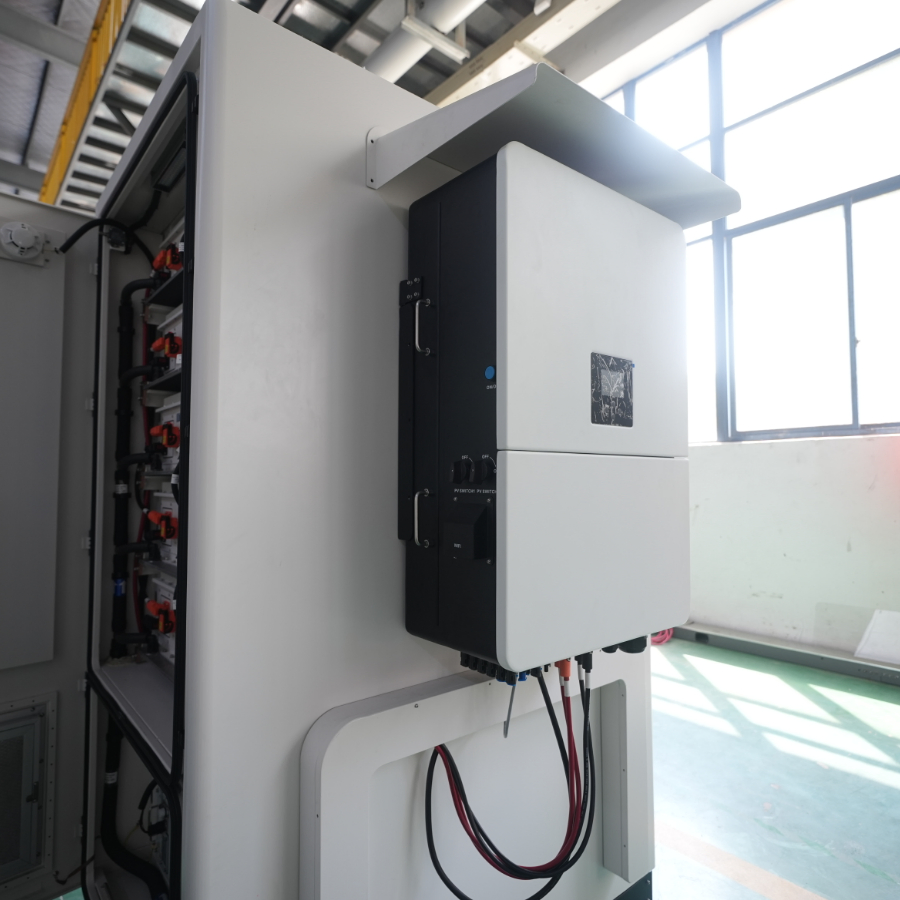

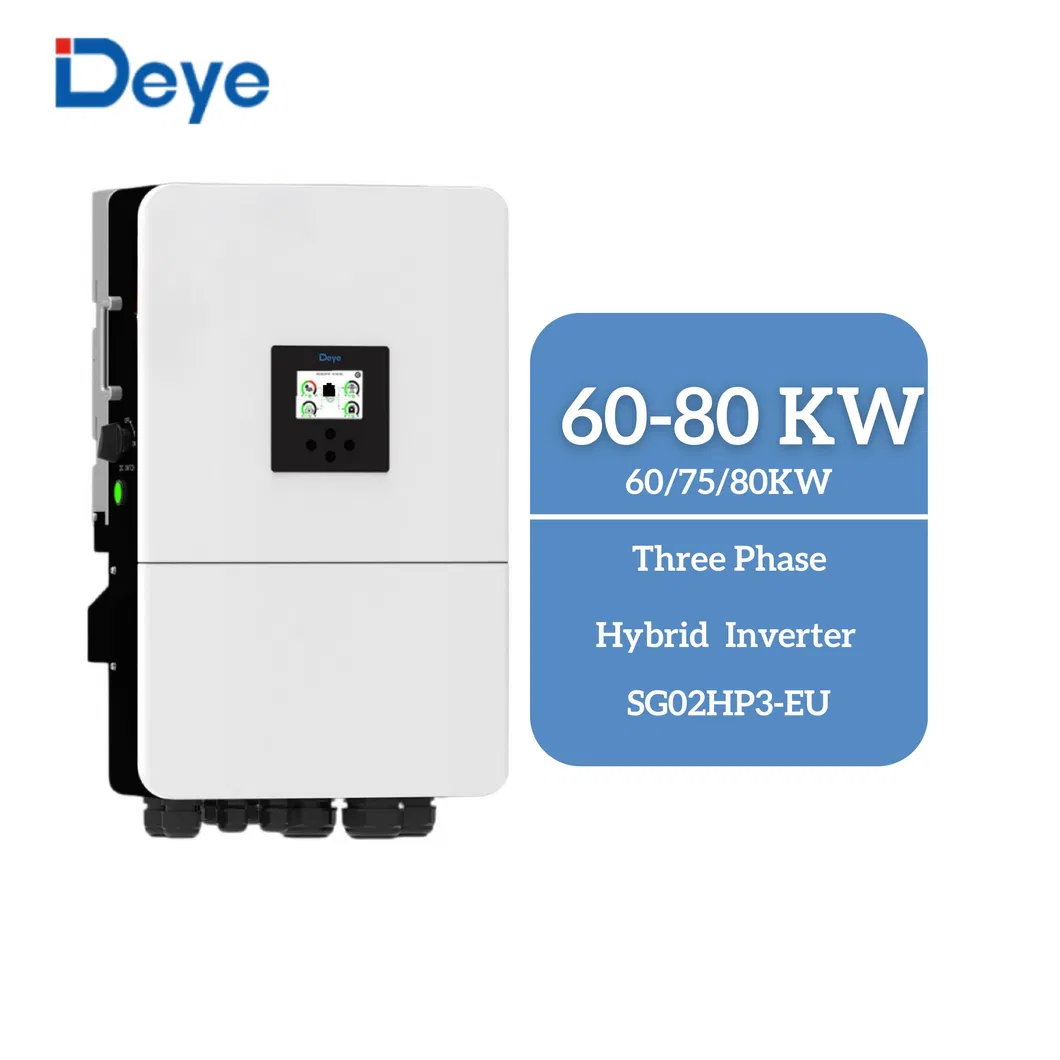

Hybrid Inverter (30Kw~80Kw)

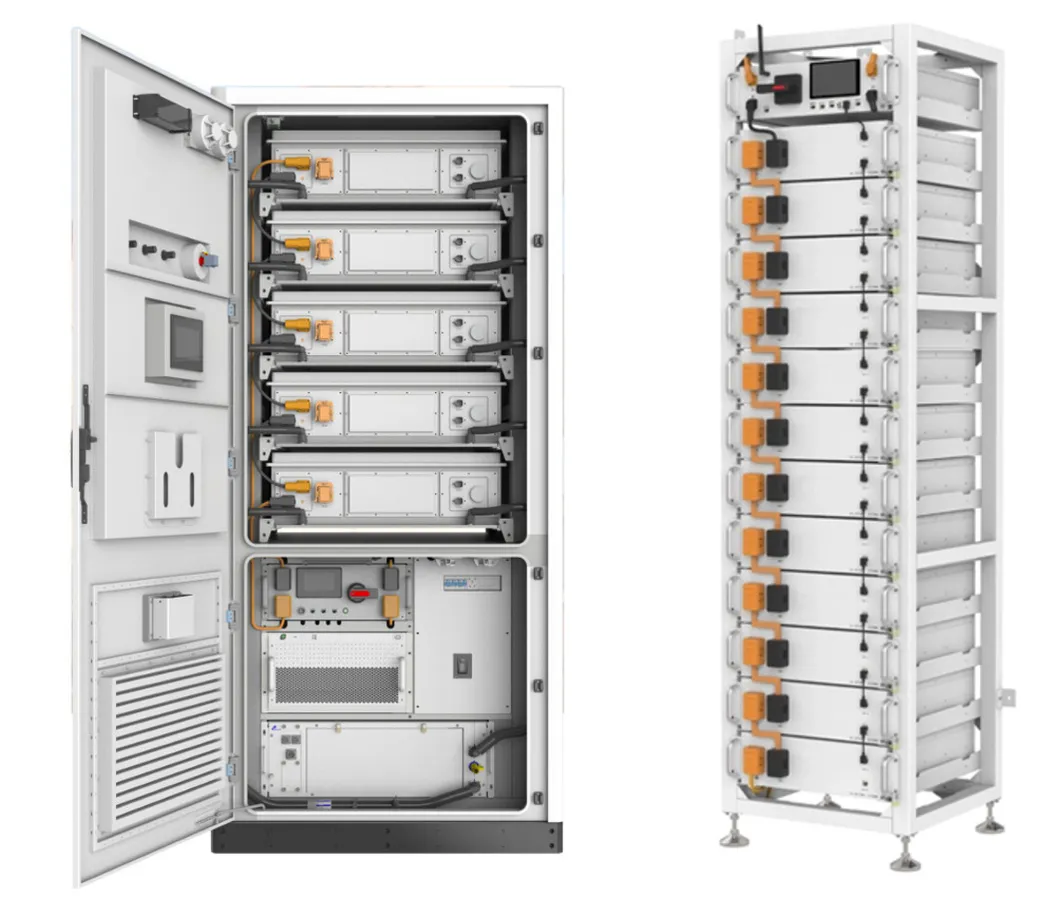

Battery Storage System

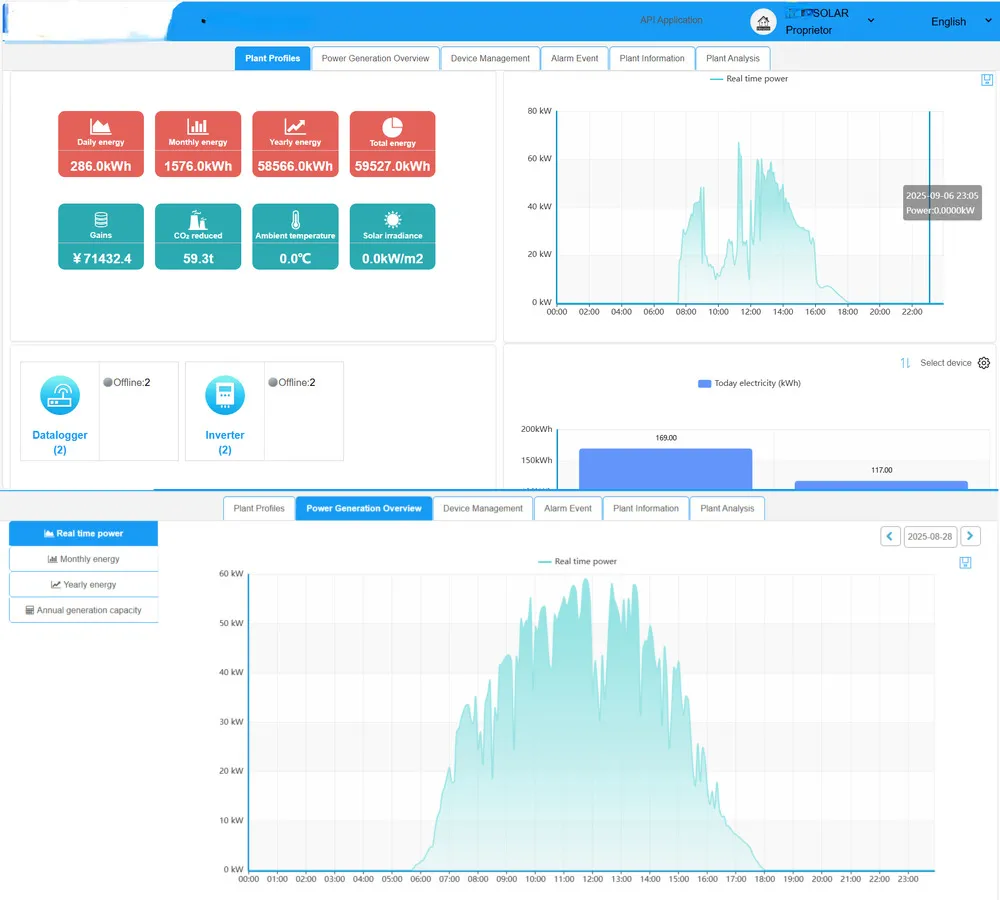

PV Monitoring System

📸

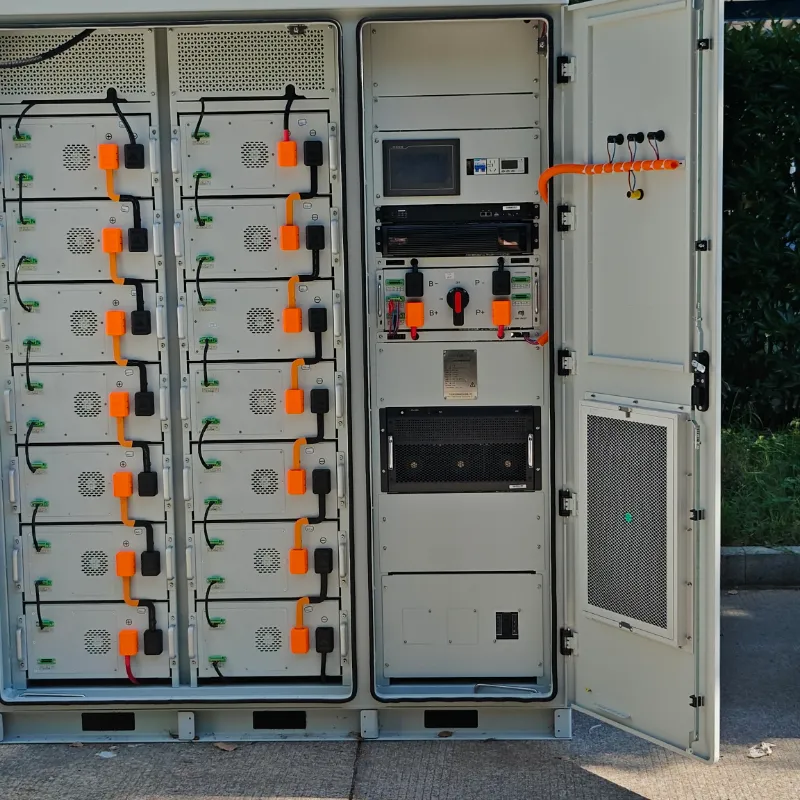

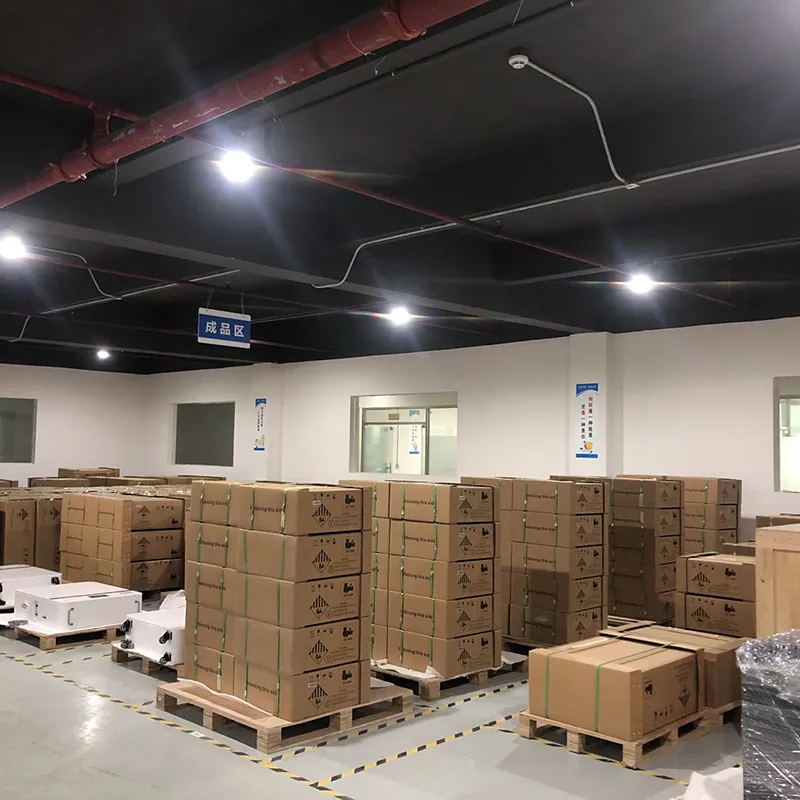

Product Details & Logistics

❓

Frequently Asked Questions

What is the expected lifespan of this energy storage system?

The system uses high-quality Lithium Iron Phosphate cells and is designed for a service life of more than 10 years, with a cycle life exceeding 6000 cycles.

Can the system be installed outdoors?

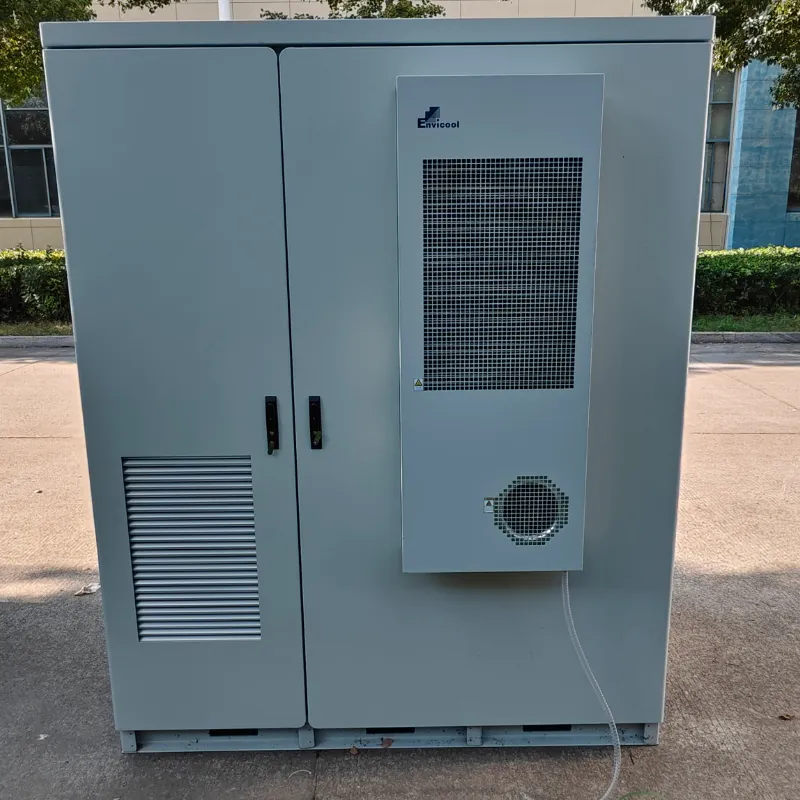

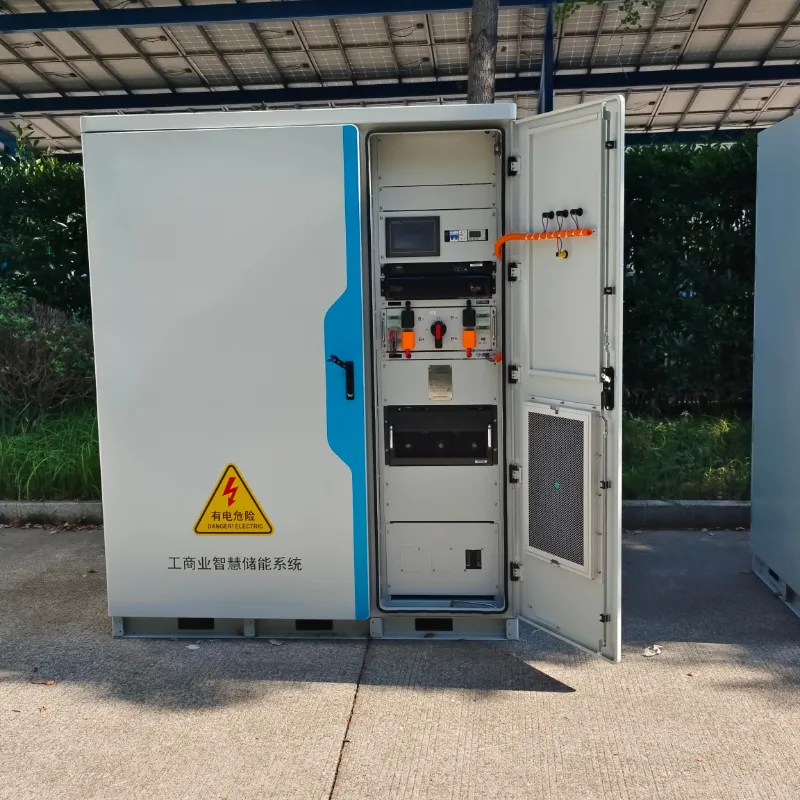

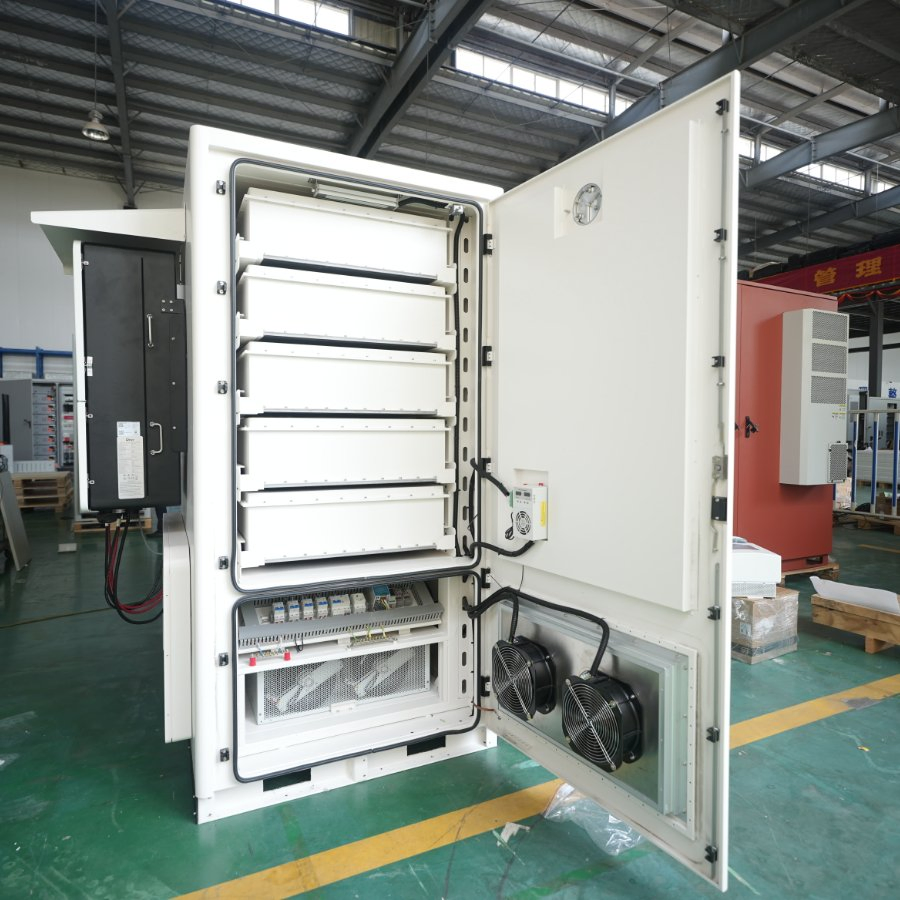

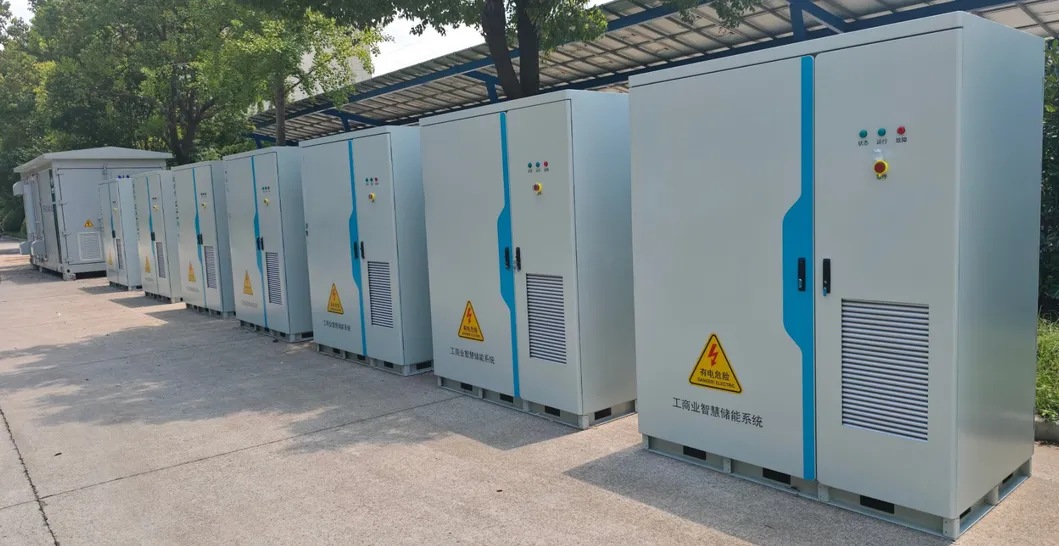

Yes, the outdoor cabinet is rated IP54 and features an integrated air conditioning cooling system to withstand various weather conditions.

Is the storage capacity expandable?

Absolutely. Multiple units can be connected in parallel to increase capacity from 100KWh up to 1.8MWh or more, depending on project requirements.

What kind of maintenance is required?

The system adopts intelligent monitoring and air-cooling technology, making it highly cost-effective and easy to maintain compared to traditional liquid cooling systems.

Does this system support backup power during grid failures?

Yes, it provides a standby power supply function that discharges automatically in the event of a power outage to ensure continuous operation.
