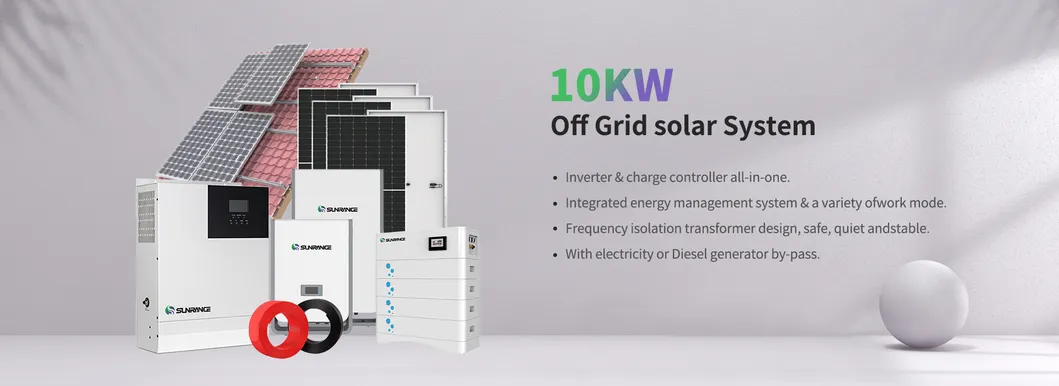

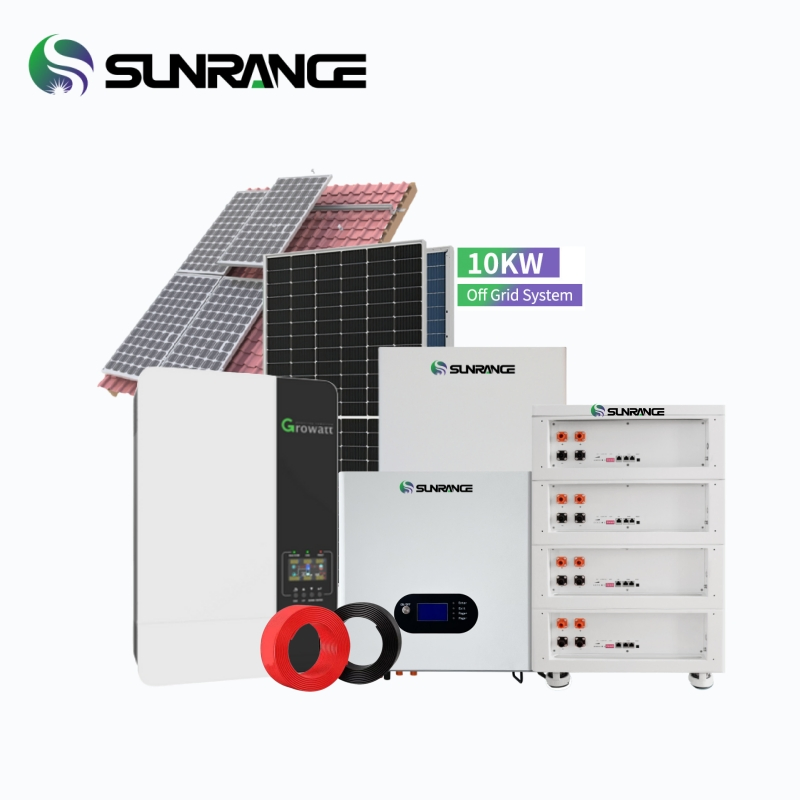

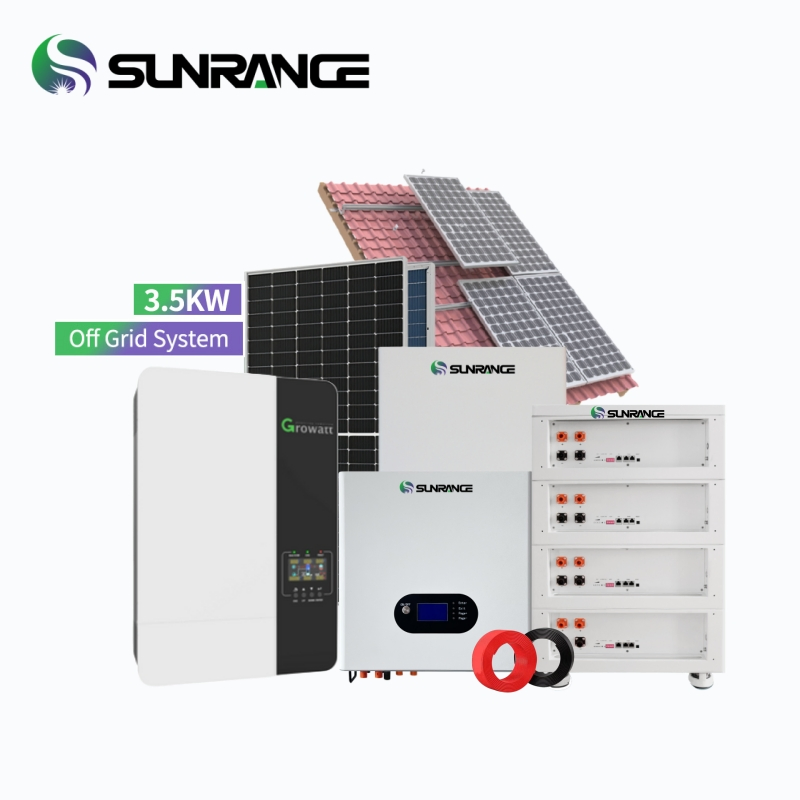

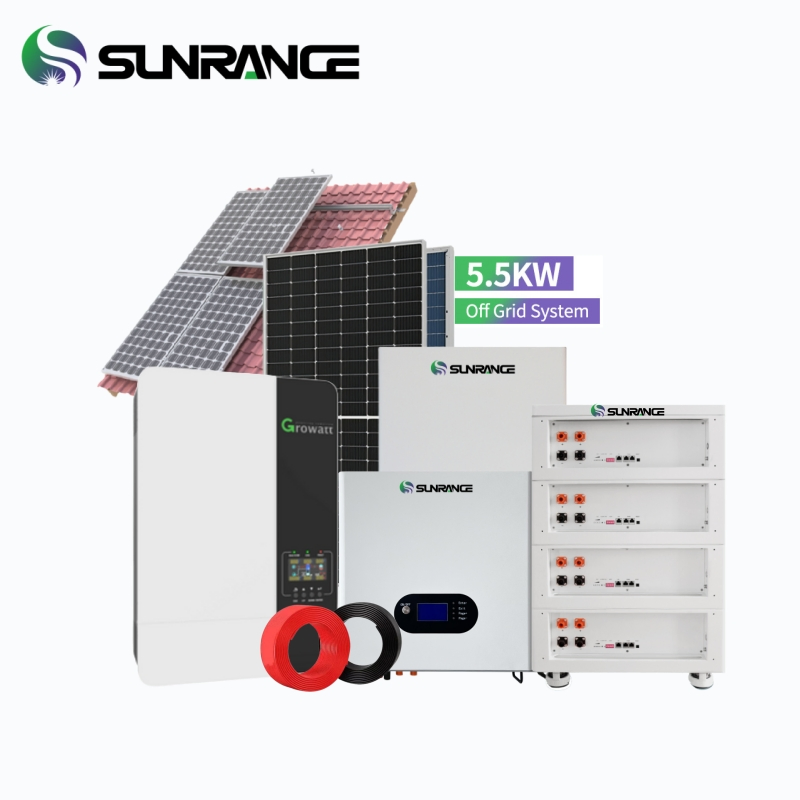

ENERGY STORAGE SYSTEM FEATURES:
| Components | SR3KW-OFF | SR5KW-OFF | SR8KW-OFF | SR10KW-OFF |
|---|---|---|---|---|
| 580W Solar Panel | 5 Pieces | 8 Pieces | 14 Pieces | 16 Pieces |
| DC Combiner Box | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
| Off Grid Inverter | 3kw | 5kw | 8kw | 10kw |
| Battery Type | Gel / Lithium Battery Optional | |||
| DC Cable | 100 Meters | 200 Meters | 200 Meters | 200 Meters |
| MC4 Connector | 4 Pairs | 6 Pairs | 6 Pairs | 8 Pairs |
| Mounting System | Ground or Roof (Customized) | |||

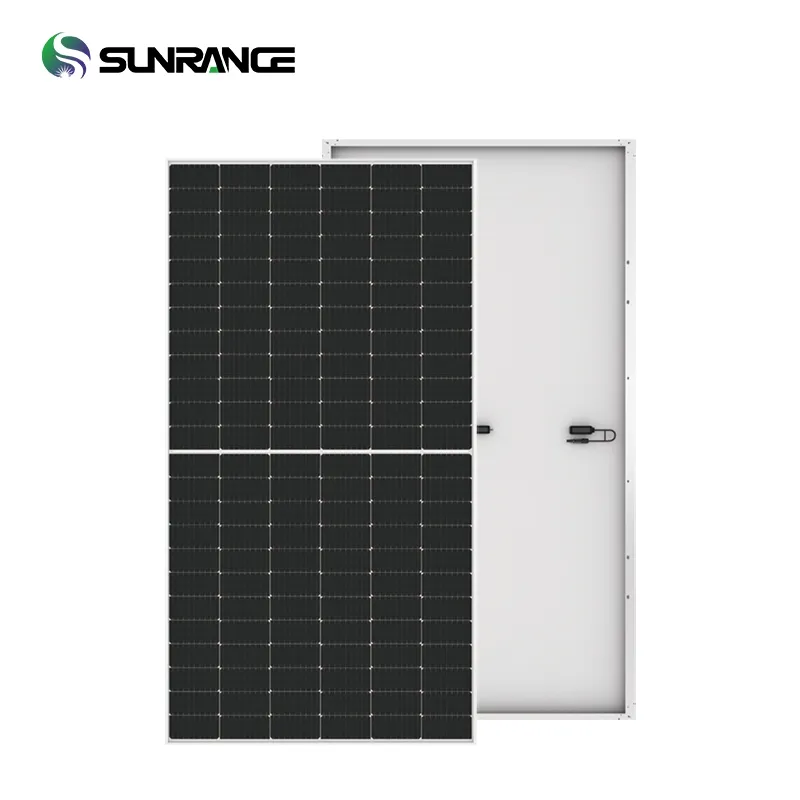

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Voltage at Maximum power (Vmpp): 43.09V
Current Maximum Power (lmpp): 13.46A
Module Efficiency: 22.44%

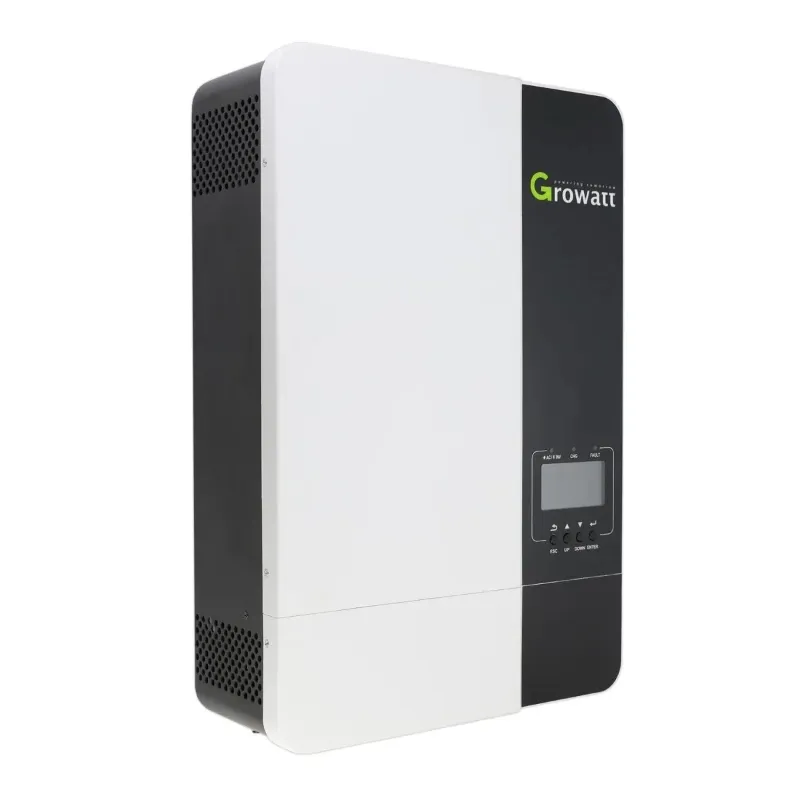

1. Pure sine wave inverter
2. Parallel operation with up to 9 units
3. Auto restart while AC is recovering
4. Built-in MPPT solar charge controller
5. Compatible to mains voltage or generator power
6. Selectable input voltage range
7. Configurable AC/Solar priority via LCD

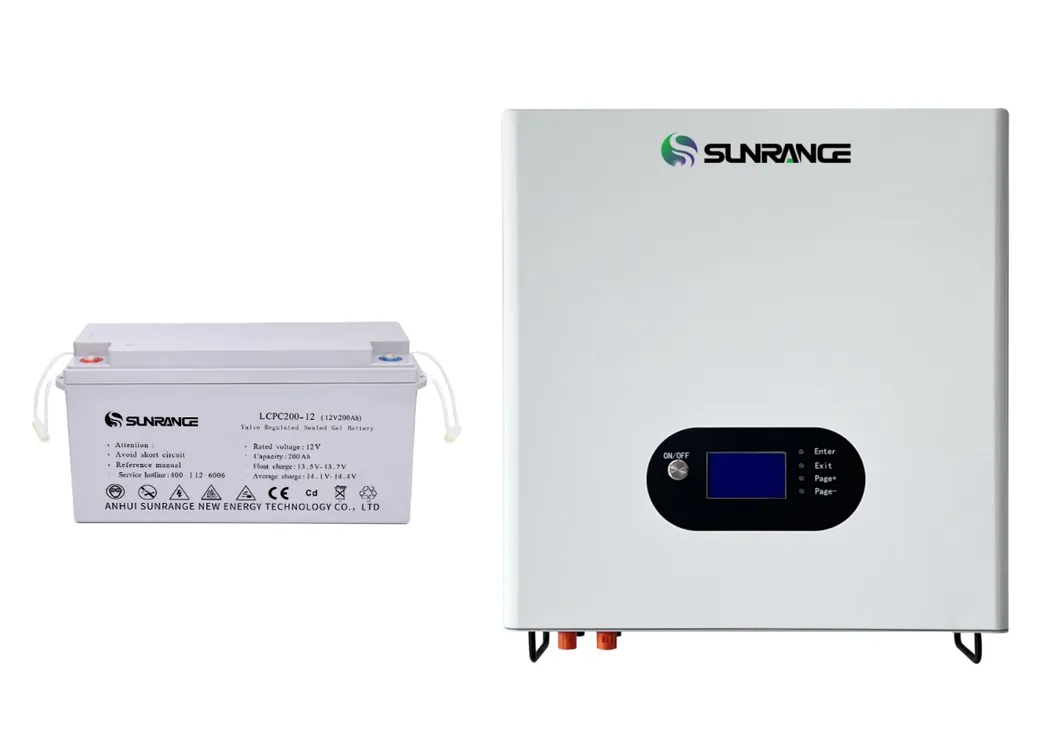

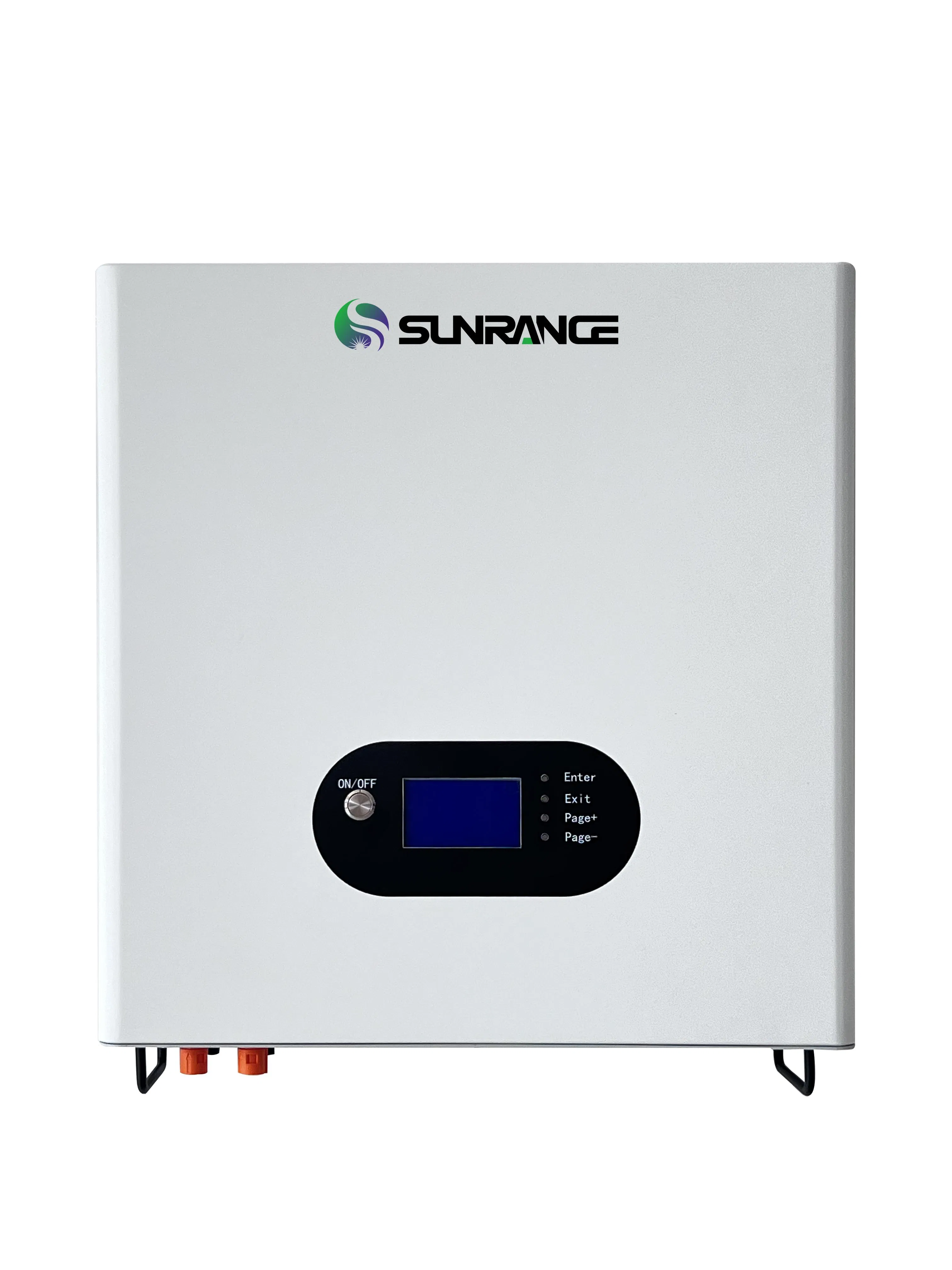

1. Deep cycle long lifespan (6000+ times)
2. Up to 90% Depth of Discharge (DOD)
3. High discharge performance
4. Maintenance-free LiFePO4/Gel types
5. 2V/12V/48V options available
6. Wide suitability for ambient temperatures

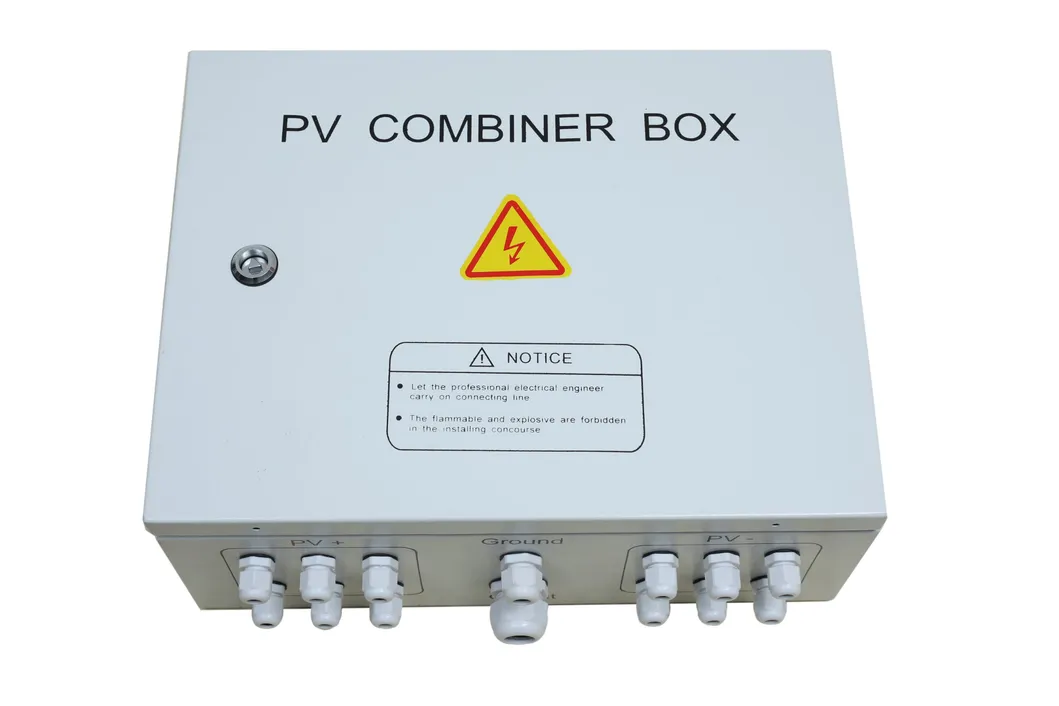

DC & AC Disconnect Switch
IP66 Rated, 1000V DC, Connection: M20/M25/MC4

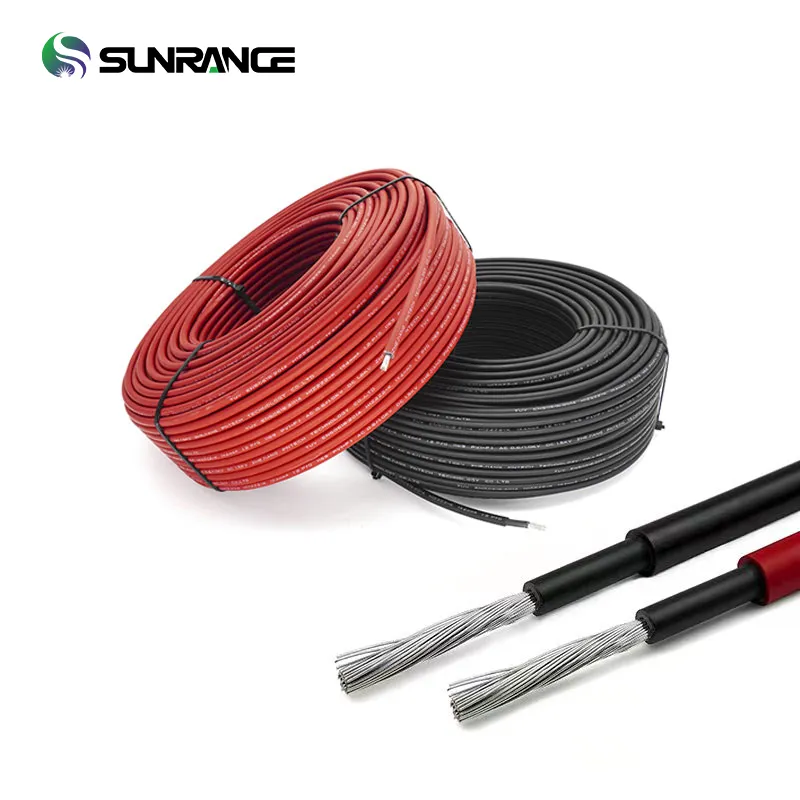

Cables & MC4 Connectors
4mm²/6mm²/10mm², TUV Certified, 25-Year Lifetime

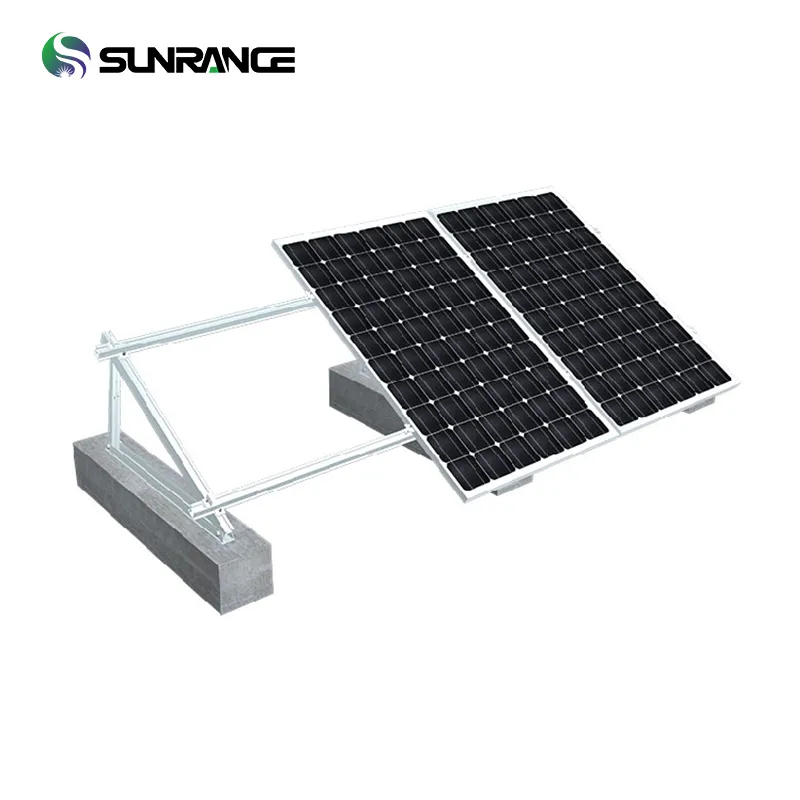

PV Mounting System
Aluminum 6005 & SUS304, for Asphalt, Tile, or Ground
