Modern Agricultural Equipments Rain Gun Irrigation Pump Solar System

Customization:	Available
Usage:	Irrigation
Type:	Irrigation System

Basic Specifications

Power Source

Electricity

Drainage Mode

Sprinkler Irrigation

Pump Type

Centrifugal Pump

Material

Metal

Certification

ISO9001:2008, CCC, CE

Application

Agriculture

Working Voltage

380-460V/50-60Hz

Surface Treatment

Hot DIP Galvanization

Product Overview

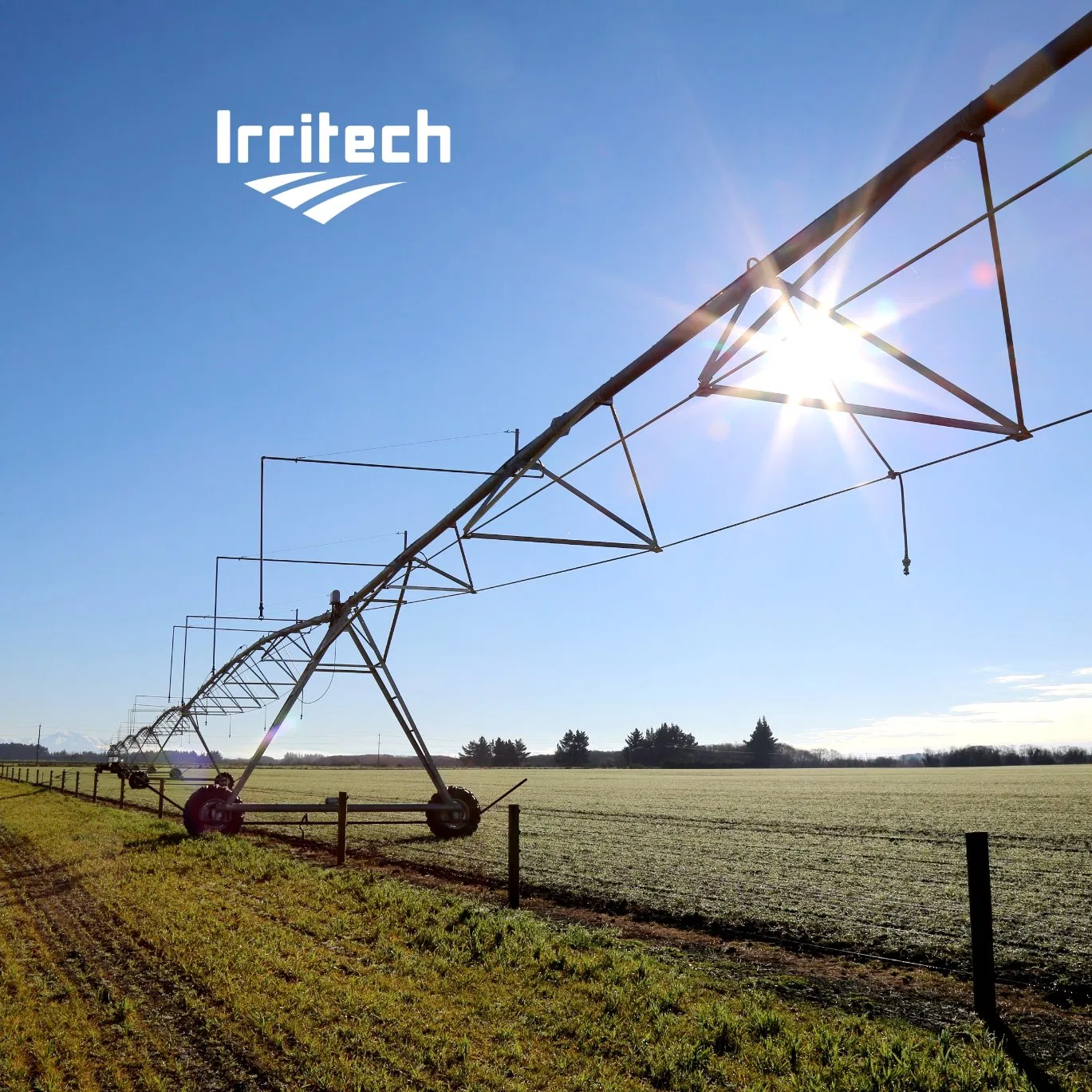

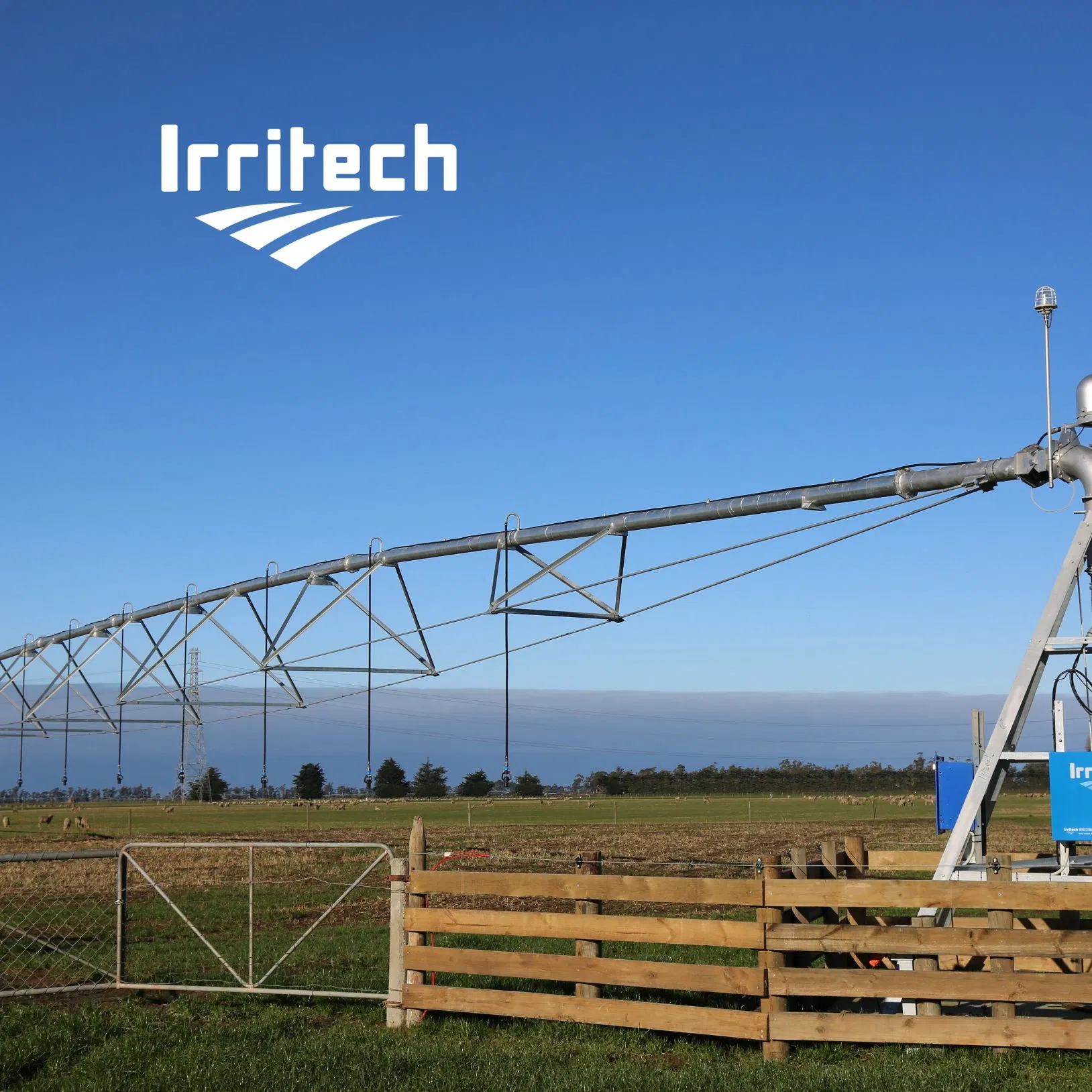

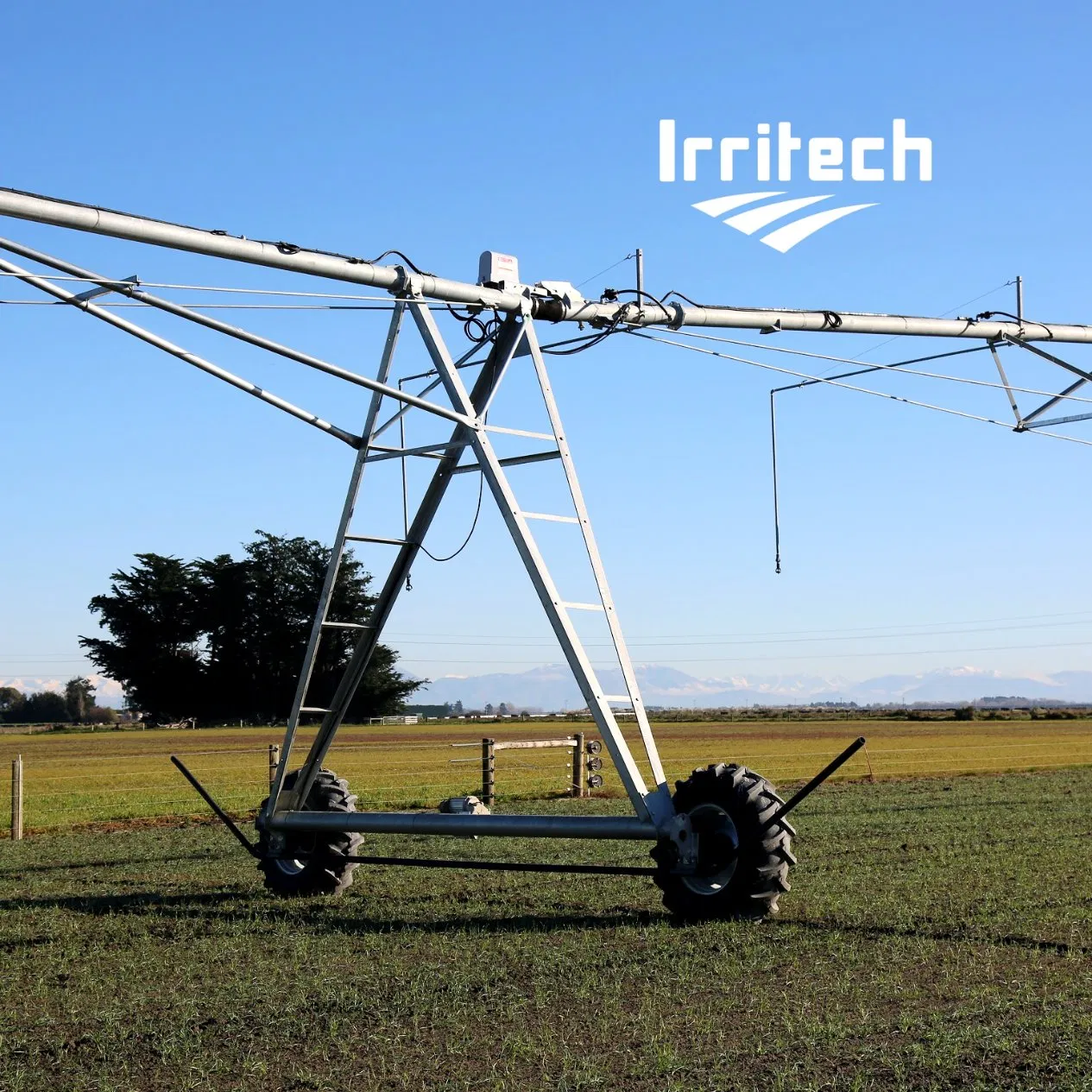

A pivot, also known as a center pivot or clock pivot, is a large-scale automatically running irrigation system. It is highly suitable for corn, wheat, alfalfa, potatoes, grains, vegetables, sugarcanes, and various cash crops. It is even effective for fruit trees and plant nurseries. A single pivot system can cover an extensive field area efficiently.

Key Advantages

1

Extensive Coverage: No need for heavy earthwork. One single pivot can cover up to 1200 acres in a short time. Larger fields result in smaller relative investments.

2

High Automation: A single operator can manage a 10,000-acre field, significantly increasing productivity.

3

Resource Efficiency: Water savings of 30%–50% with spray uniformity reaching 90%. This helps adjust field micro-climates and increases yields by 20%–50%.

Technical Components

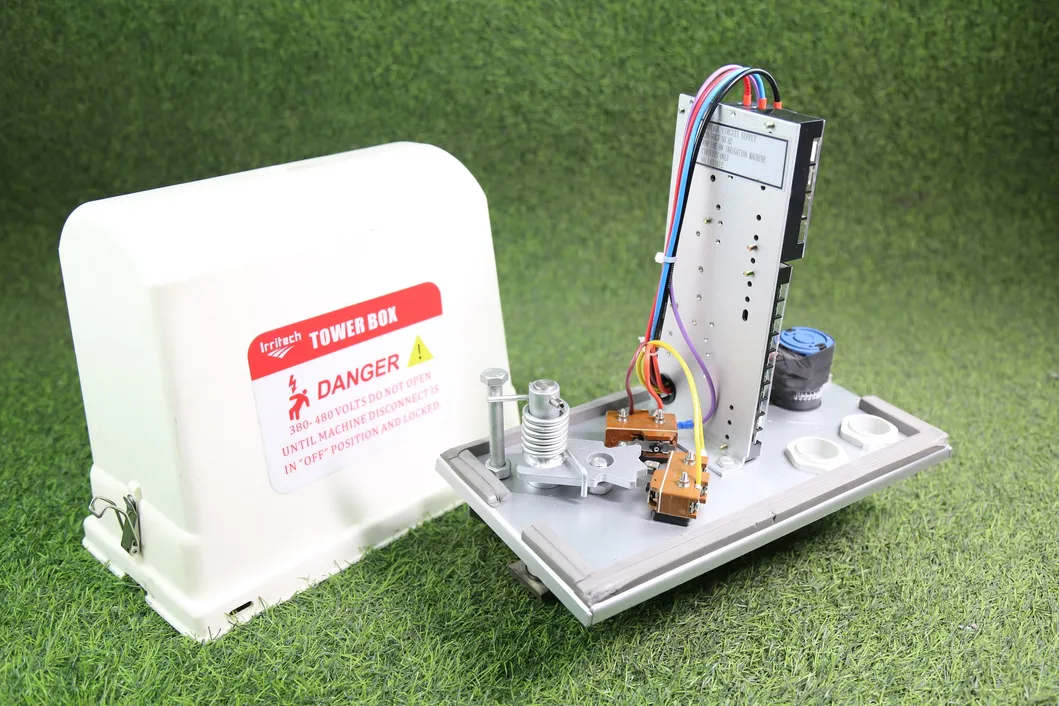

The systems utilize high-quality UMC motors, gearboxes, couplers, and collector rings. Sprinkler packages can include a full range from Komet and Senninger. Tower boxes feature Honeywell micro switches, Schneider contactors, and UL-recognized terminal blocks.

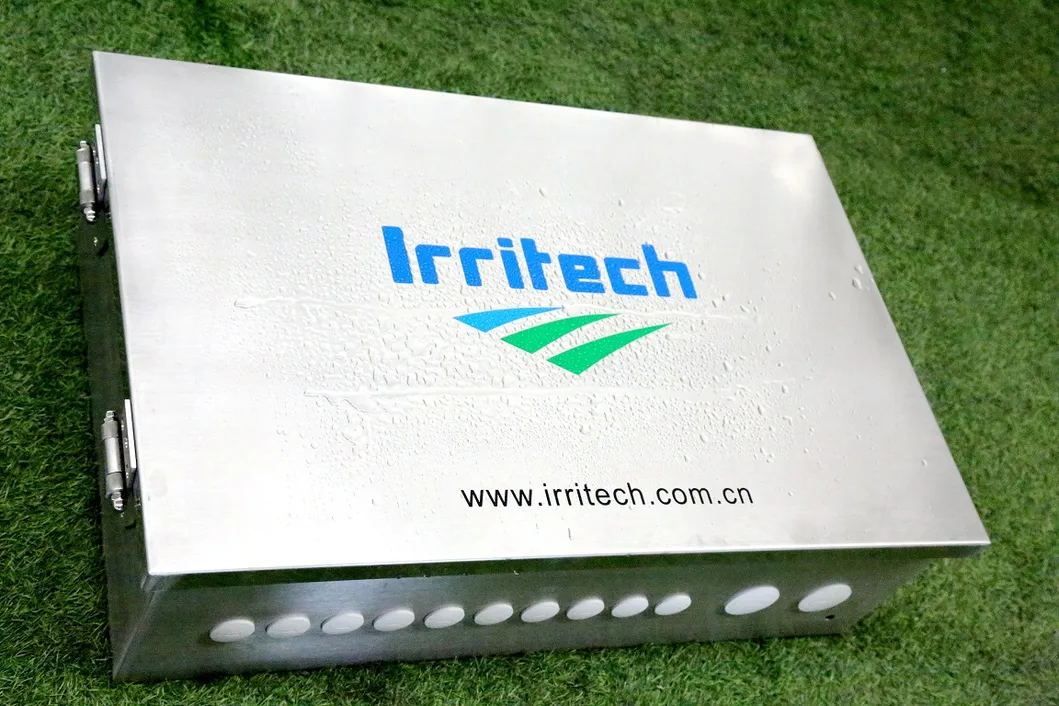

An indicator light is installed underneath the tower box to provide instant visual alerts for safety circuit breaks. Custom stainless steel control panels are available, featuring LED lights for safe night operation and QR codes for quick access to troubleshooting documentation.

Technical Parameters

No.	Item	Specification

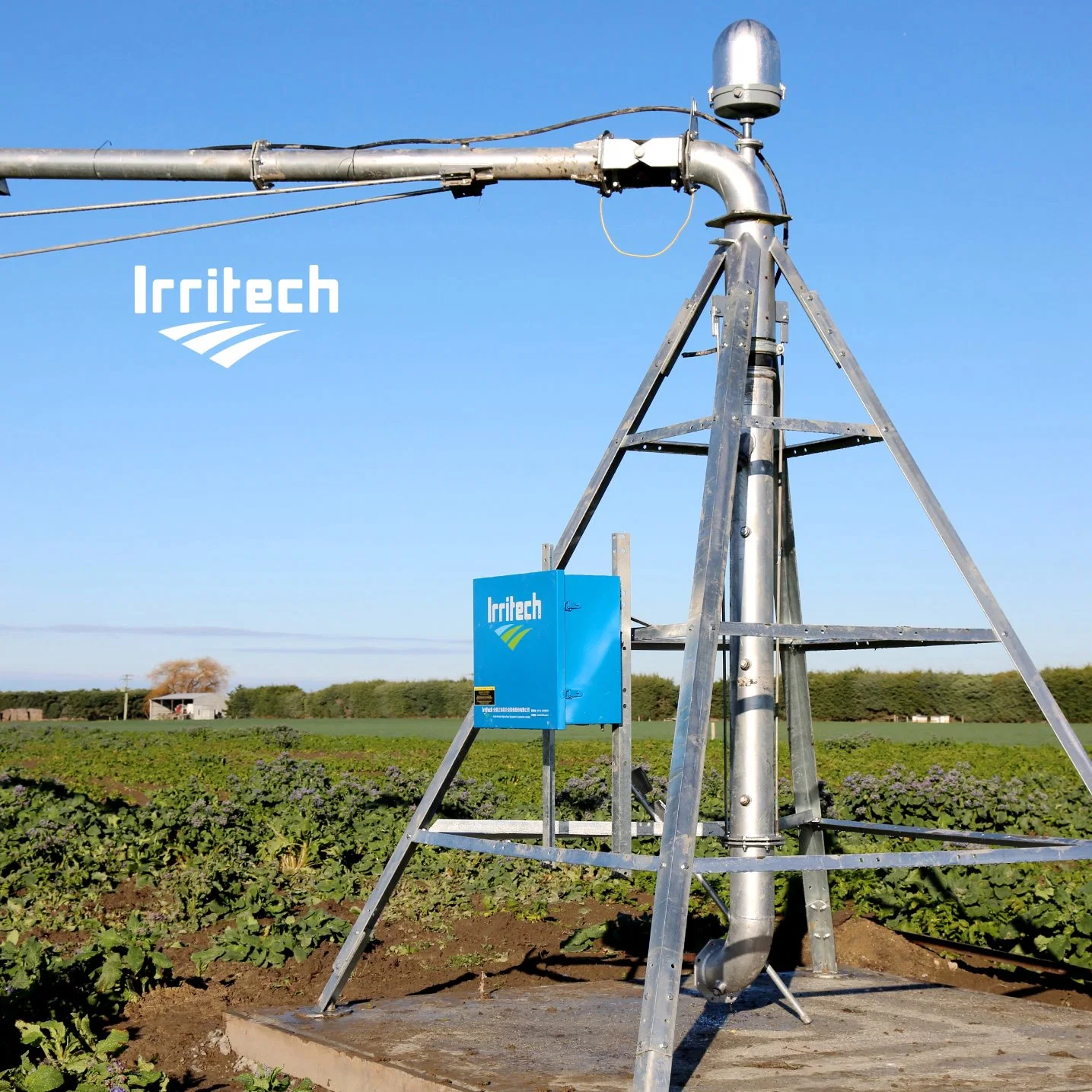

1	Center Pivot	6 5/8''(168mm) or 8 5/8''(219mm)
2	Pipe Spec.	5''(127mm); 6 5/8''(168mm) or 8''(203mm)

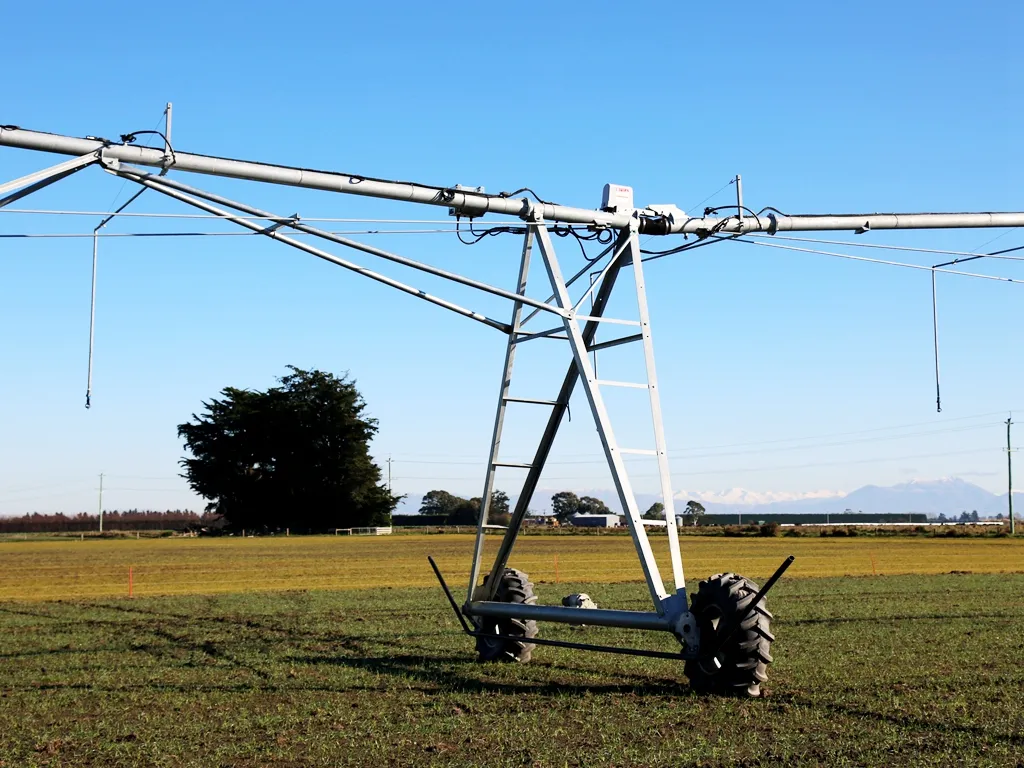

3	Span Length	37.5m, 43.3m, 49.1m, 54.9m, or 60.7m

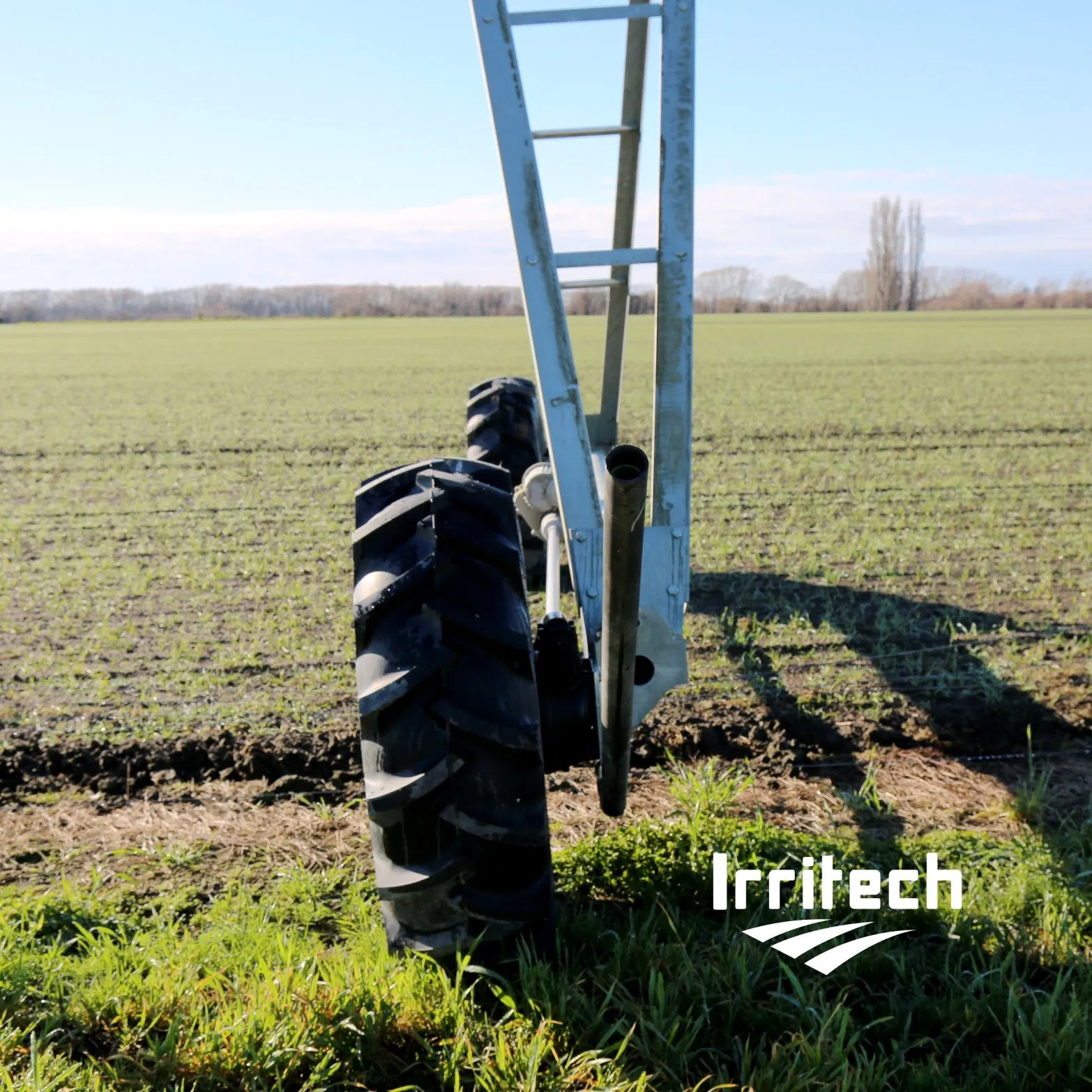

4	Tire Spec.	14.9-24 or 11.2-24 (Vacuum/Inner tube)
5	Cable Spec.	Armored Cable (UL Certified)

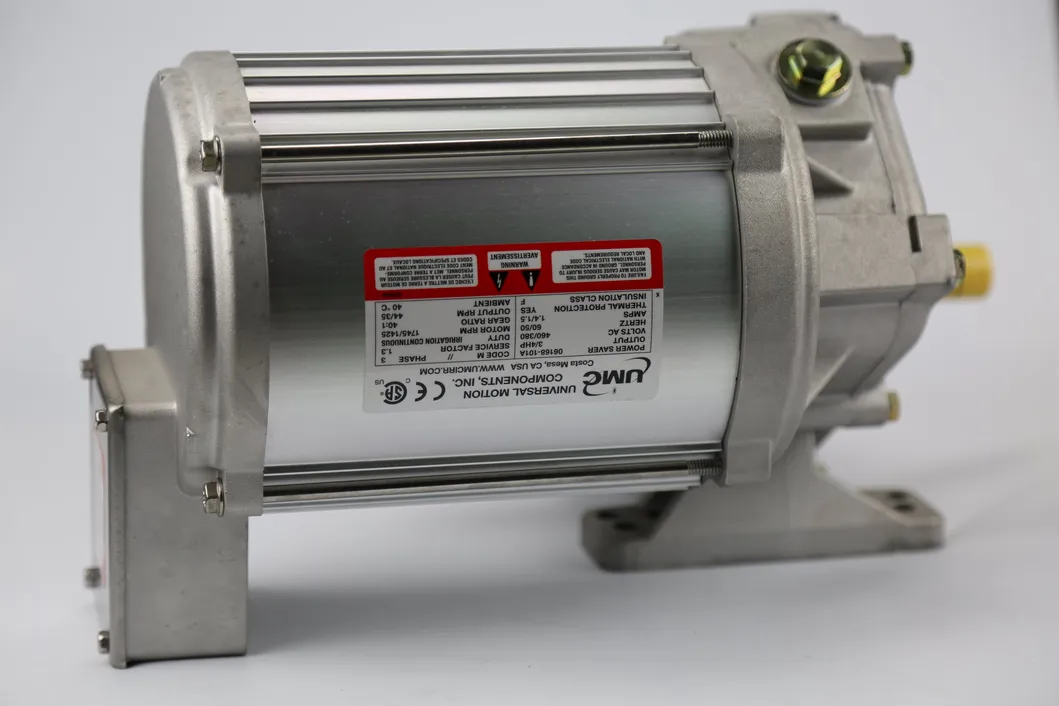

6	Motor	UMC 25.5:1 (1.5hp) or UMC 40:1 (0.75hp)

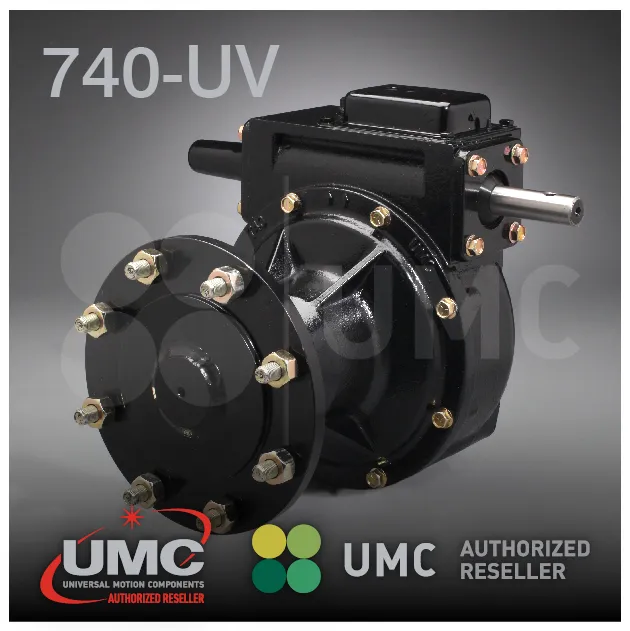

7	Gear Box	UMC 50:1 or UMC 52:1

Packaging & Logistics

Irrigation accessories are loaded into standard exporting wooden boxes. These boxes, along with the structural parts of the system, are packed into 40 HQ containers for global shipping via major shipping lines.

Professional Services

Global irrigation design team support.
Careful installation and debugging guidance.
Comprehensive after-sales service.
Strict production control using advanced machinery.

Frequently Asked Questions

What types of pivot systems are available?

We offer fixed center pivots, towable center pivots, and lateral move (linear) systems. Fixed systems are stationary at one end, while towable versions can be moved by tractor. Lateral systems move in a linear fashion across rectangular fields.

What is the warranty on these systems?

Electrical equipment is covered for 1 year. Gearboxes and gear motors are covered for 10 years or 10,000 working hours. Galvanized structures have a 15-year guarantee against corrosion.

Can these systems work on hilly or mountainous terrain?

Yes. Lateral move systems can handle up to a 5% slope, while center pivot systems are capable of operating on slopes up to 20%.

Are these machines difficult to operate?

The machines are designed for simplicity. Most operators can learn the control panel functions within an hour. Once set, the system functions automatically.

How long does manufacturing and shipping take?

Timeline depends on order quantity and specs. While some units are in stock, custom orders or lateral move systems (which require additional components like diesel engines) may take longer.

What is the auto stop/reverse system?

This system is used when there are obstacles in the field (poles, houses, etc.). A touch device is installed on the tower so that the pivot stops or reverses automatically when it encounters a designated boundary.
