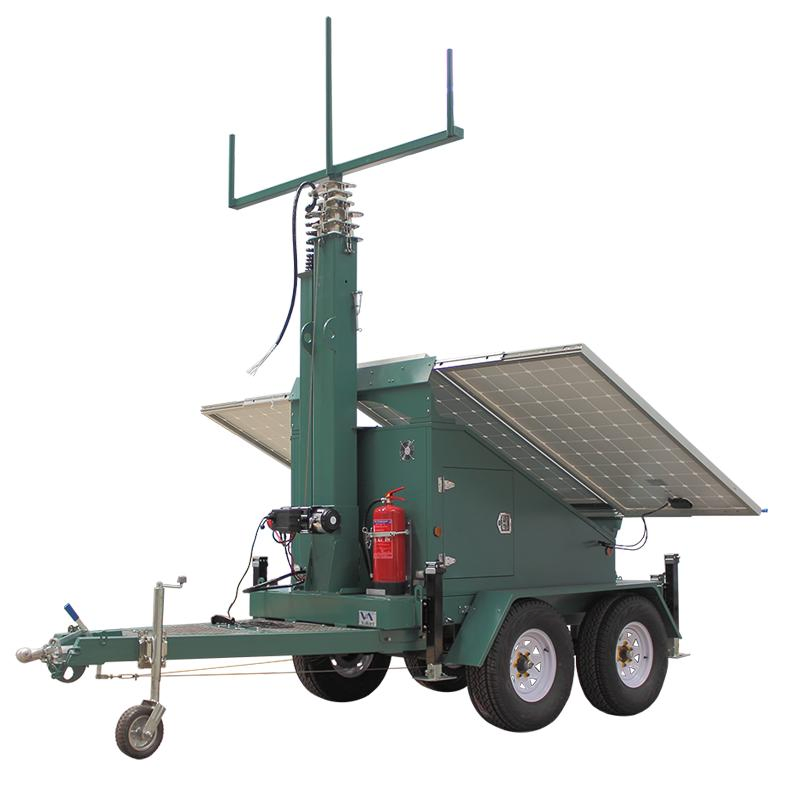

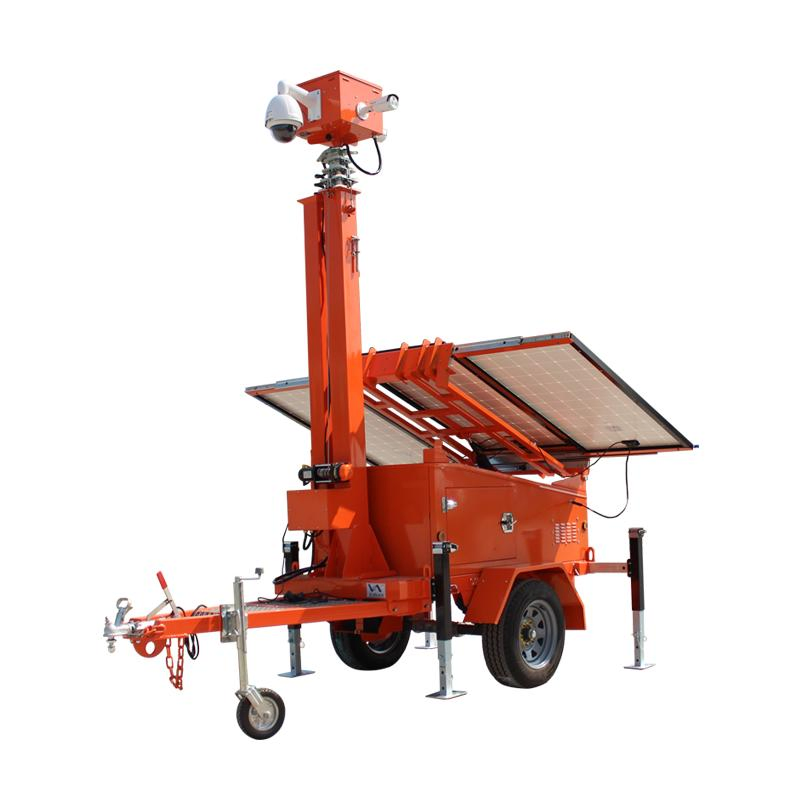

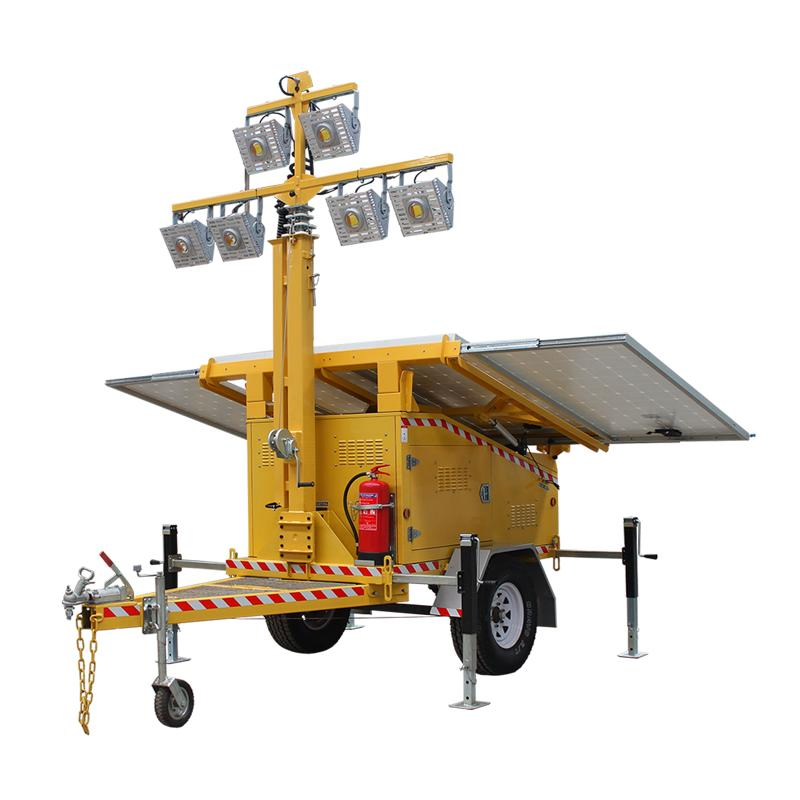

Mobile Solar Surveillance Trailer Quick Deloyment Security System Vts900A-C

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Dome Camera

Product Description

Basic Specifications

Model NO.VTS900C-L
TypeCCTV Camera
SensorCMOS
HDMI Format1080P
Horizontal Resolution520tvl
CertificationCE, FCC, RoHS
Height of Mast6m
ApplicationSecurity, Telecom, Lighting
Wheel Size14 or 15 Inches
Light SourceLED

Industry Profile

Established in 2010, backed by over 20 experienced engineers and a production facility exceeding 5,000sqm. With products exported to over 40 countries worldwide, our quality solutions have earned a high reputation across various industrial sectors.

Product Overview

Solar Power solutions are widely utilized as a sustainable energy source. Our Security series integrates a high-efficiency solar power system, advanced security monitoring, and an easy-to-transport trailer. Designed for rapid deployment in remote areas without the need for fixed construction, it is ideal for temporary or short-term security monitoring tasks.

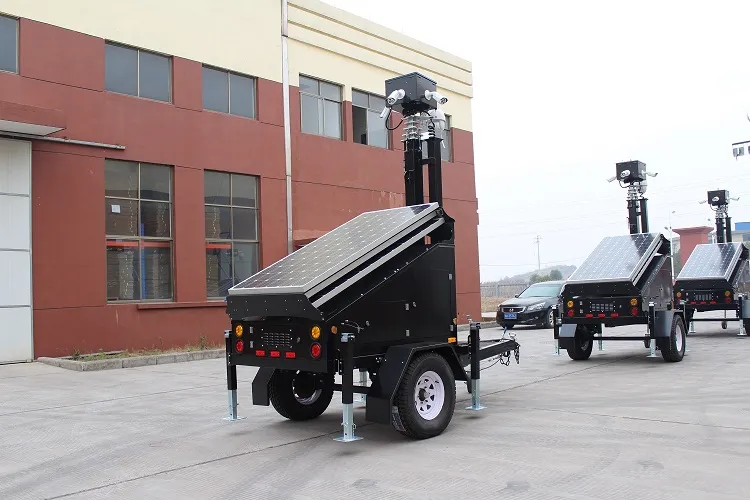

Mobile Solar Surveillance

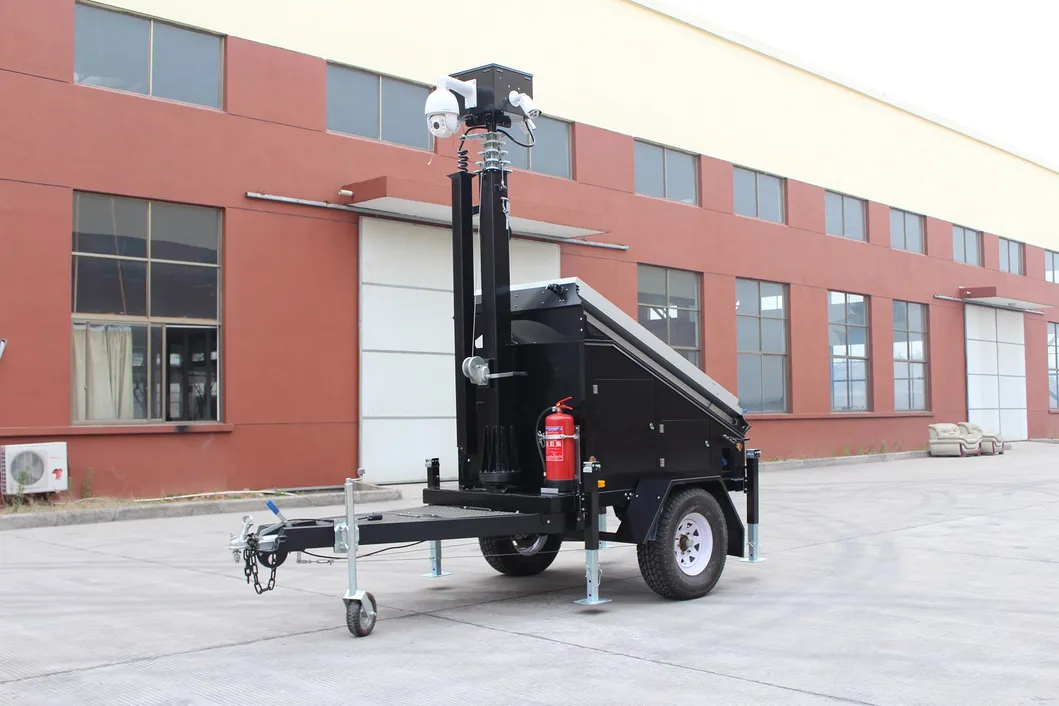

Quick Deployment System

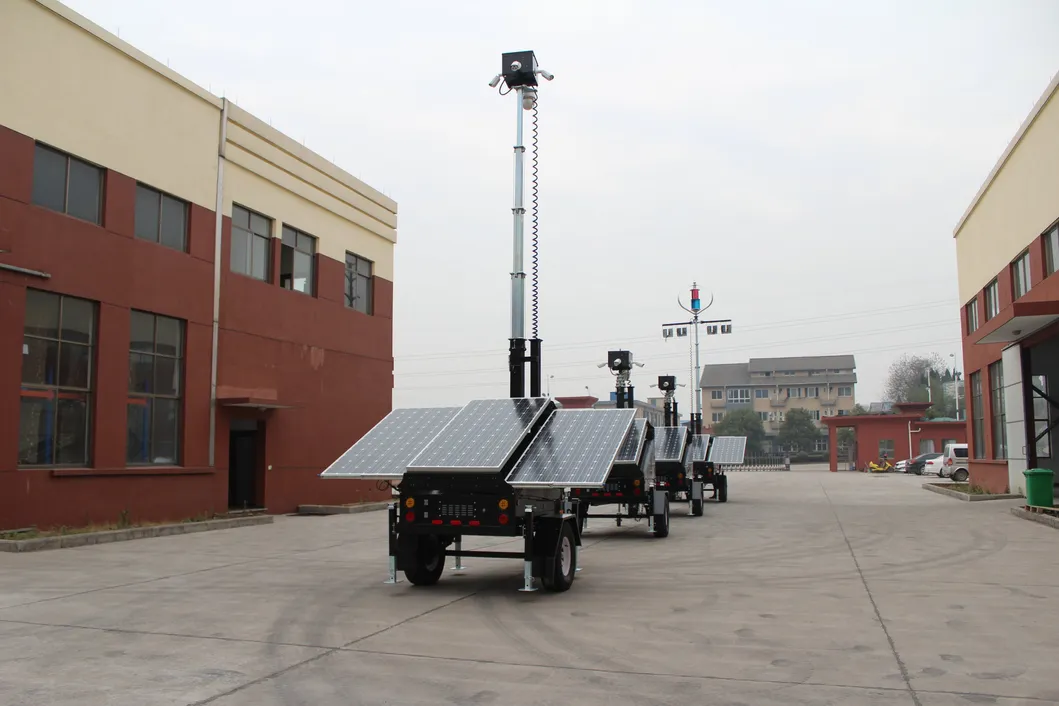

Solar Trailer Details

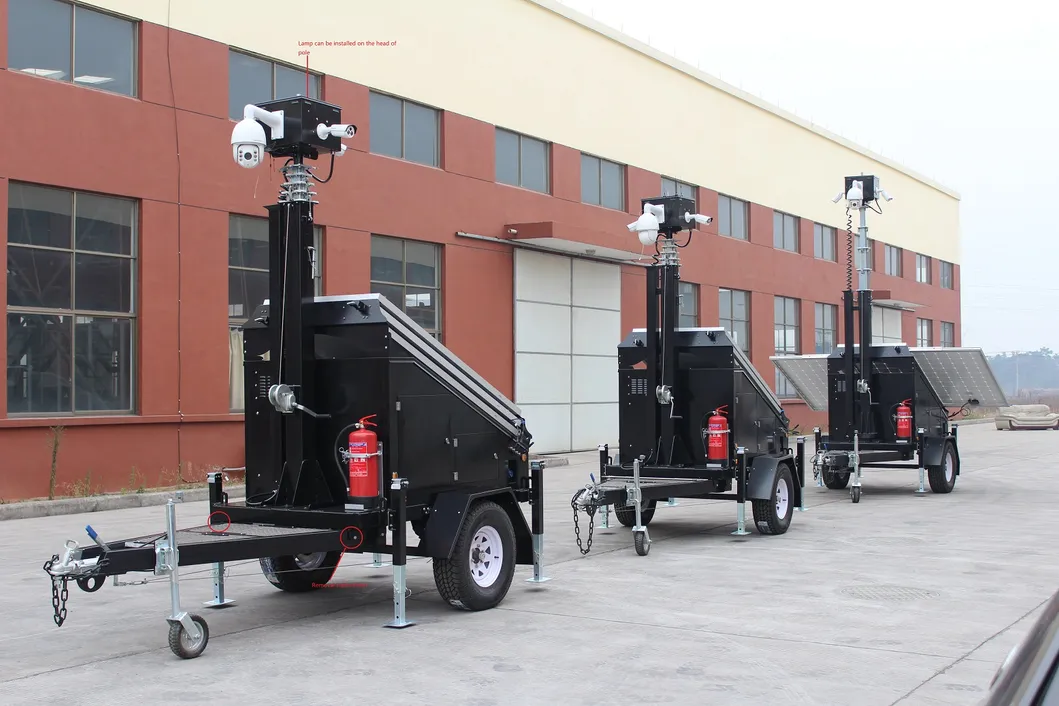

Security Monitoring

Technical Parameters

VTS900A-C System

  • 3*390W solar panels
  • 4*200Ah / 6*150Ah / 6*200Ah gel batteries, DC24V
  • 1*PTZ camera, 3*bullet cameras
  • 6 to 9 meters manual/electric/hydraulic mast
  • Single axle trailer (AU/EU/NA standards)

Dimensions & Build

  • Length: 4040mm | Width: 1780mm | Height: 2900mm
  • Gross Weight: 1270kg
  • Wind Rating: 100km/h
  • Temperature: -35°C to 60°C
  • 15" Tire and Rim

Detailed View

Detail 1

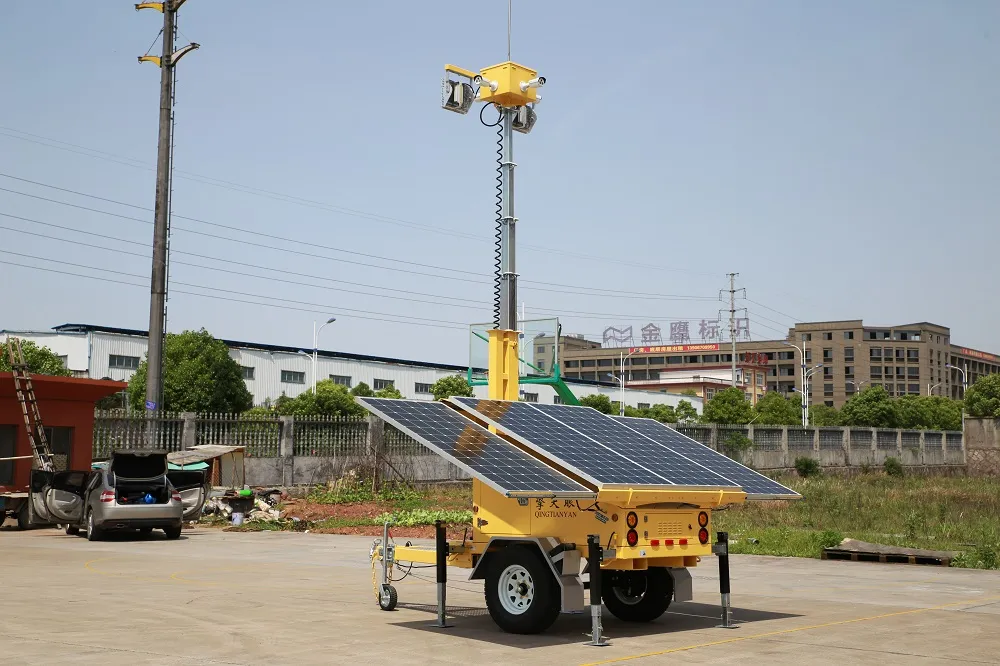

Detail 2

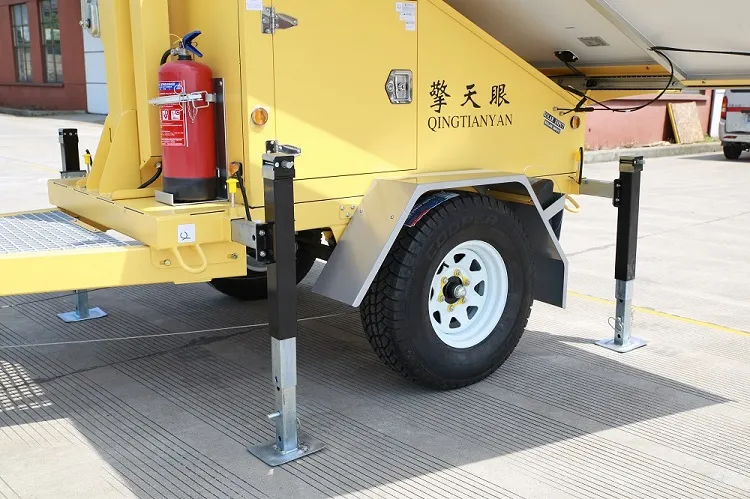

Internal Component
Solar Control

Site Applications

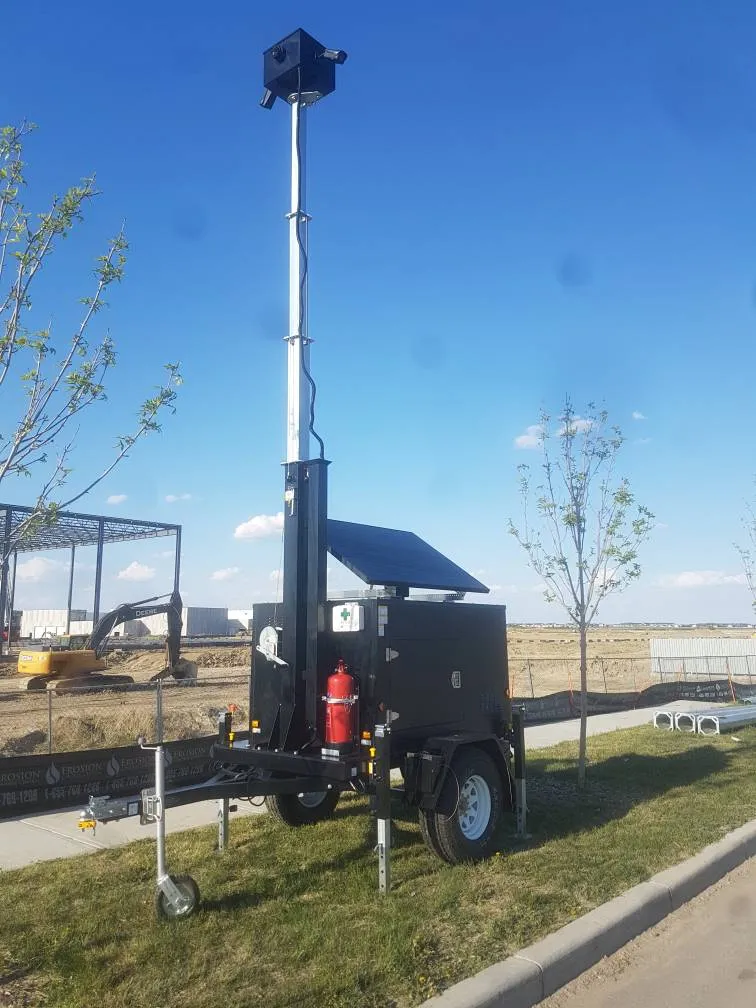

Site 1

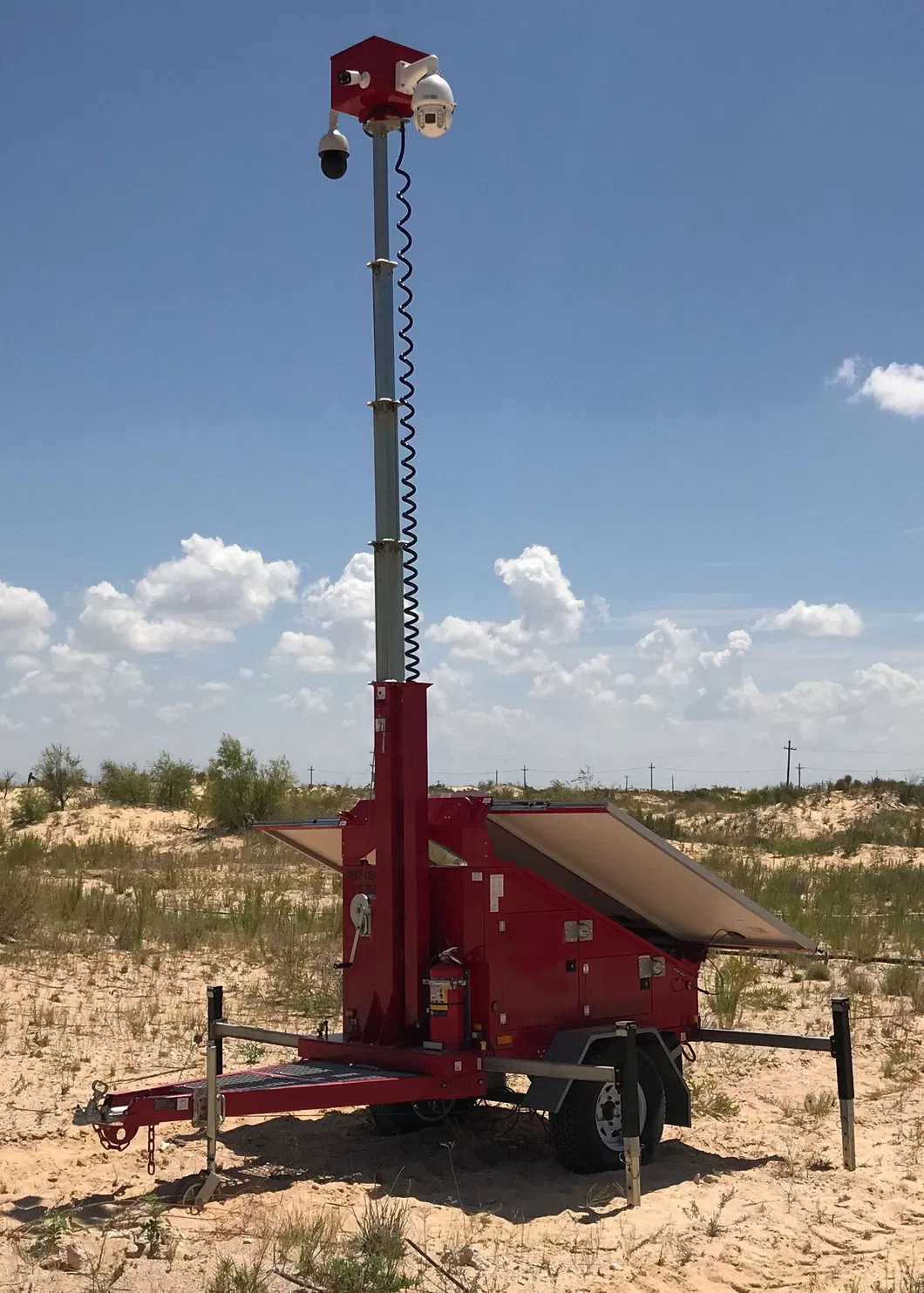

Site 2

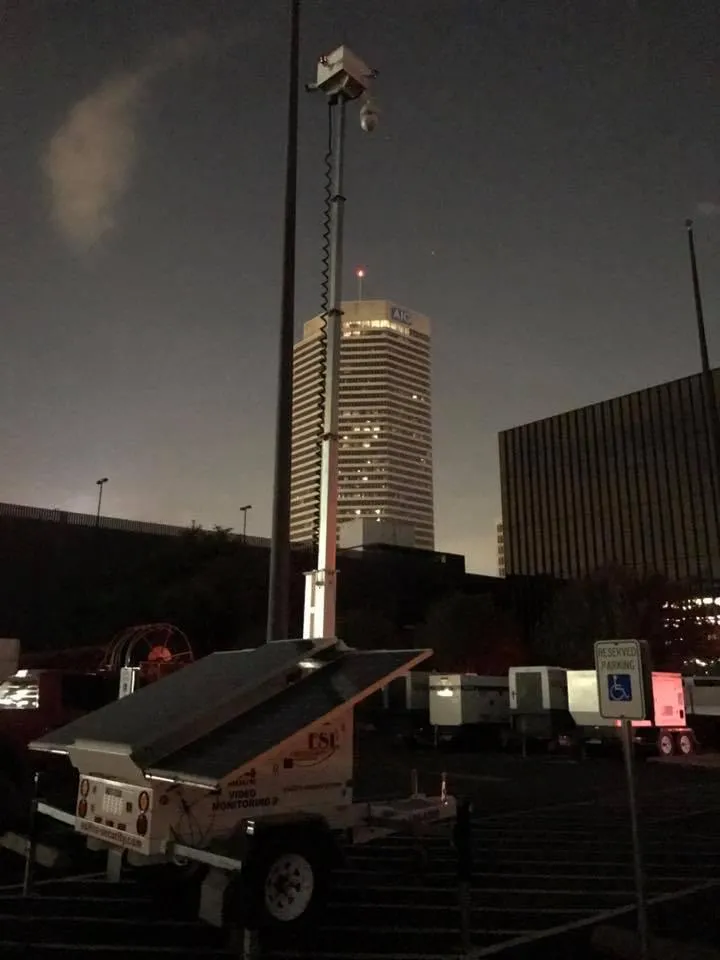

Site 3

Hybrid Solutions

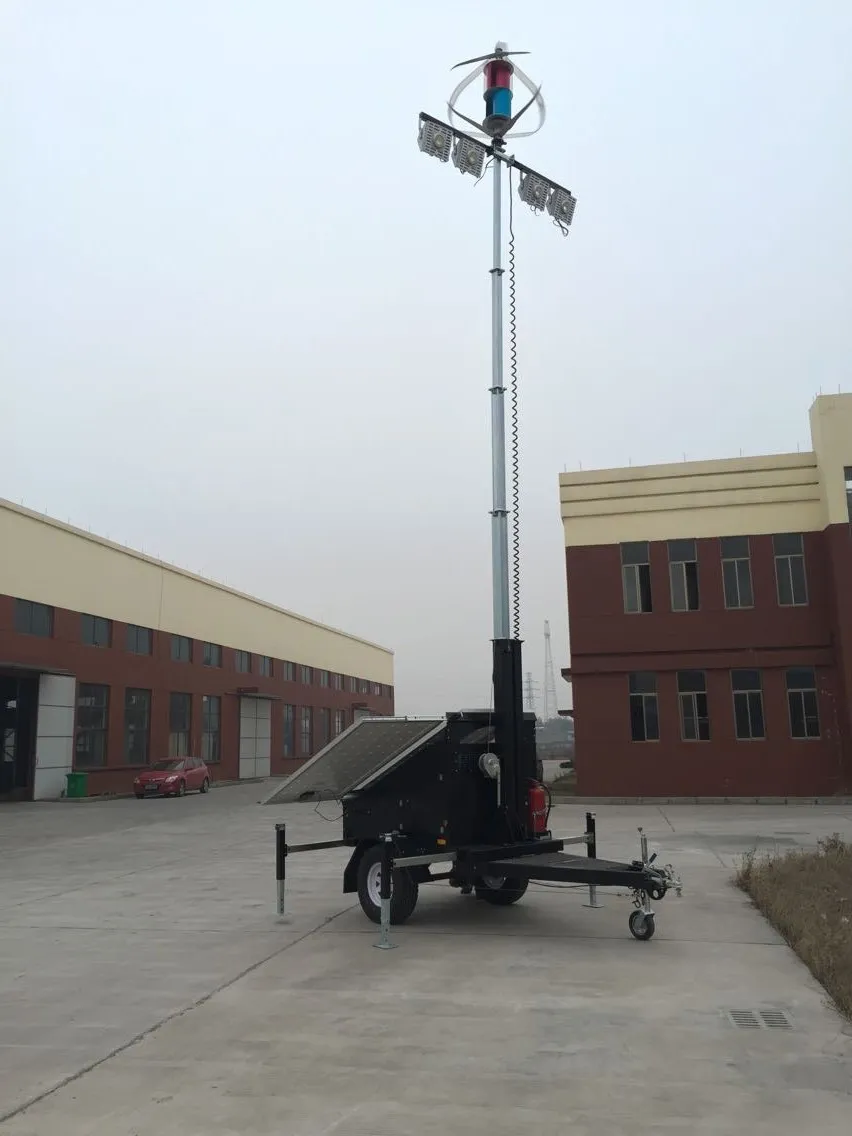

Hybrid Solar Trailer

3 in 1 Hybrid Mobile Solar Trailer

Features integrated Wind Turbines (500W to 650W) for complementary power during cloudy weather. The unit includes a generator space that automatically triggers charging if battery voltage drops below critical levels.

Frequently Asked Questions

What certifications do your solar trailers have?
The complete machine is CE certified. Major components including LED lamps, batteries, and solar panels hold both CE and UL certifications.
What is the typical lead time for an order?
During peak season, lead time is approximately 35-45 days. In regular seasons, it ranges from 25-35 days.
How can I become a regional agent?
Qualified agents with marketing resources and after-sales service capabilities are welcome. Please contact us via inquiry for specific cooperation details.
Is the system suitable for extreme weather?
Yes, the system is designed to operate in temperatures ranging from -35°C to 60°C and has a wind resistance rating of 100km/h.
Does it support remote monitoring?
Absolutely. The system can be equipped with 4G routers and NVRs for real-time remote surveillance access.
What happens if there is no sunlight for several days?
The hybrid version supports an optional backup generator and wind turbine to ensure continuous operation even during prolonged cloudy periods.
