Low Maintenance Solar Panel Power Lighting System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.STL12-40W
Lamp Body MaterialAluminum
Lamp Power40W
Power SupplySolar
Average Life>8000h
IP RatingIP66
VoltageDC12V
Battery TypeGel Battery
Working ModeFull Power and Motion Sensor
Maintenance9 Years Free Maintenance
Product Description
  • 3- 5 rainy /cloudy days backup
  • Dusk-to-Dawn 12 hours with dim energy saving mode
  • Lighting times can be individually adjusted with program switch.
  • Illuminance in operation depending on local site conditions and customer-specific lighting times.
Solar Lighting System
Technical Specifications
Component Detailed Specification
Lighting Time10-14hrs/day(adjustable),3-7 rainy days back-up
Solar PanelPoly solar panel 100W, high efficiency, life span >25years
Gel Battery80Ah/12V, free maintenance, deep cycle 3500 times @ 30% DOD

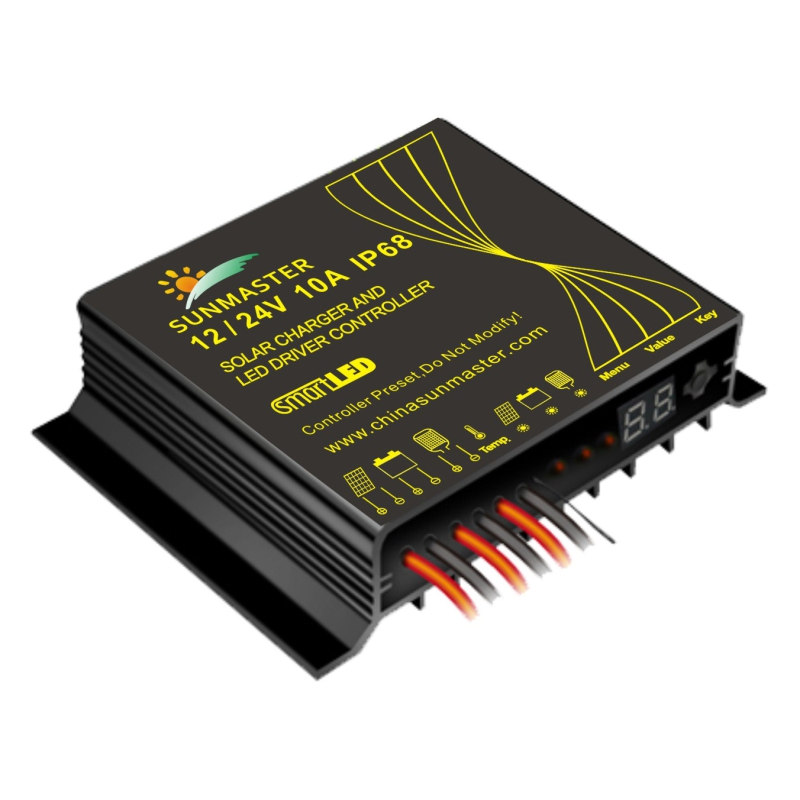

Solar ControllerMPPT/PWM, intelligent output, waterproof IP68
LED Lamp40W USA Bridgelux chip, 180lm/w, life span >100,000hrs

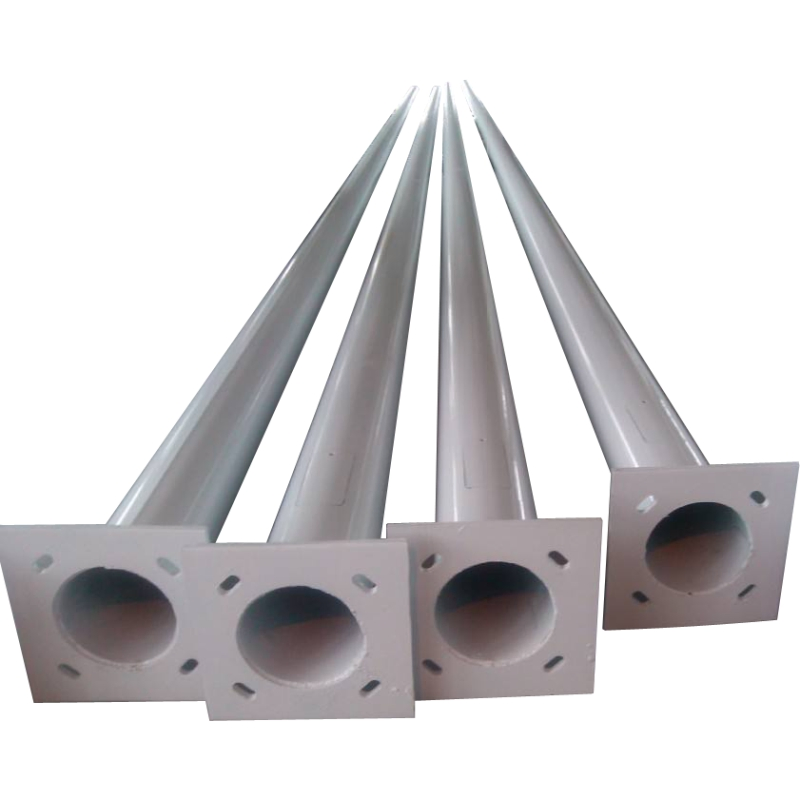

Light PoleQ235 steel, hot-dip galvanized, wind resistance >150km/h

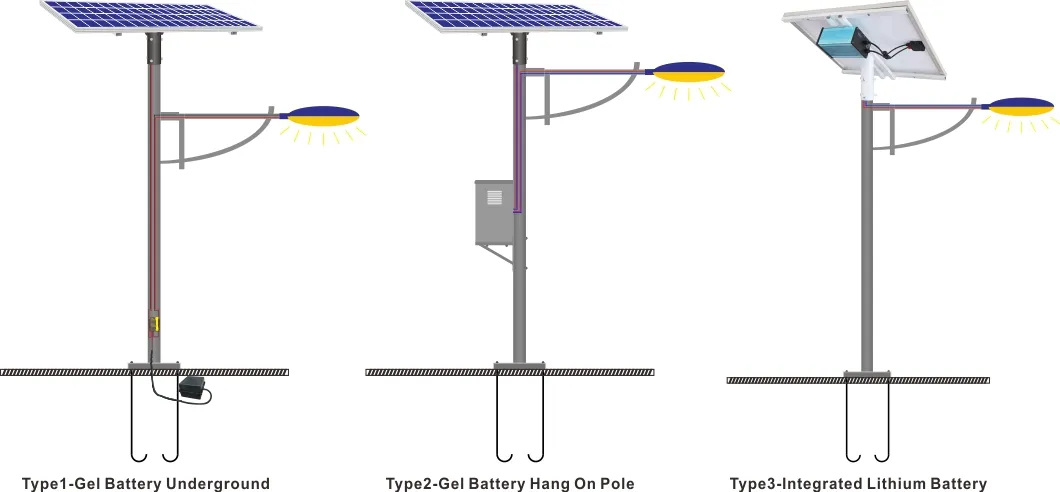

Solar Battery Installation Position
Battery Installation

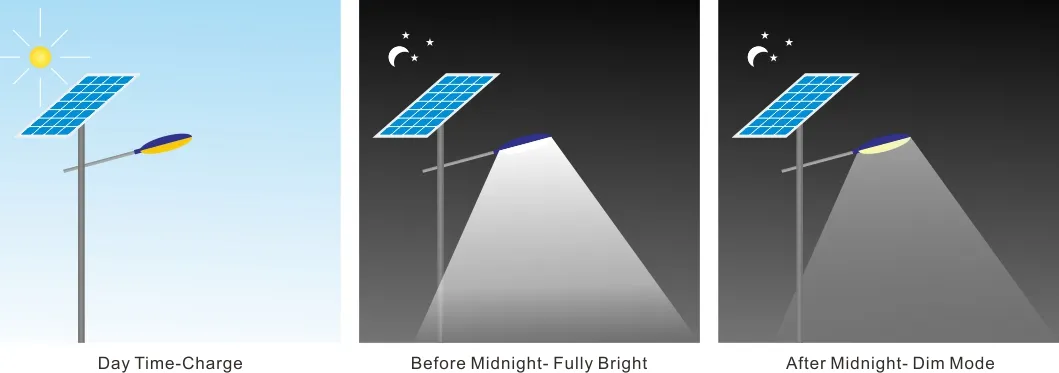

Working Mode Display
Working Mode

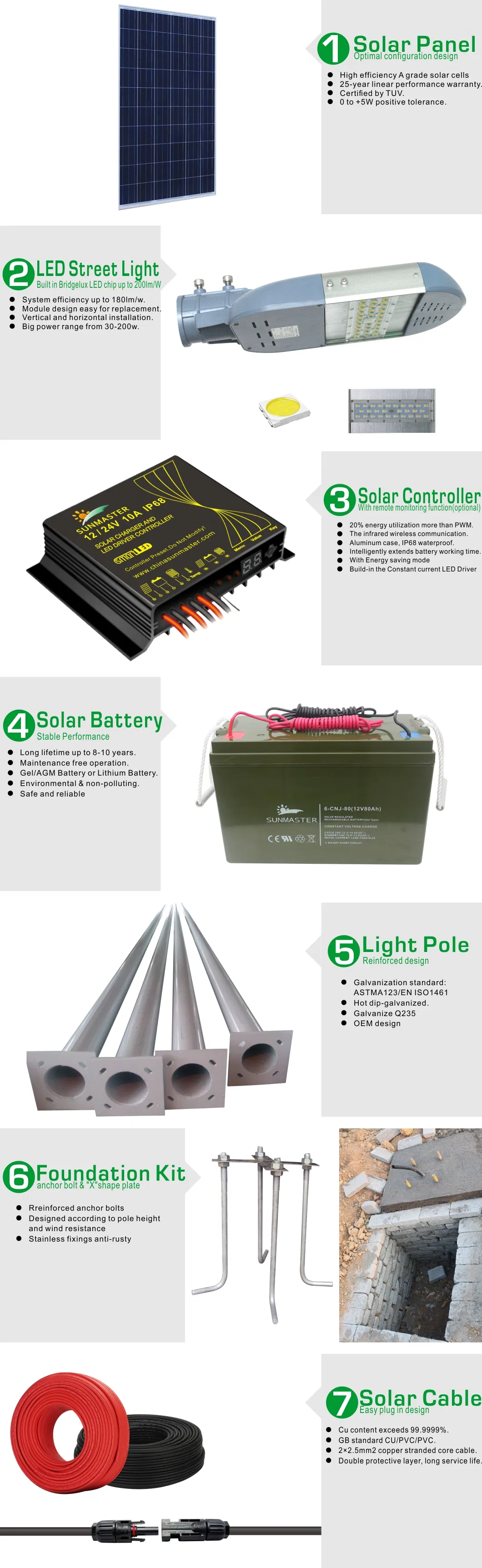

Product Benefits
Benefits
Recommended Configurations
Lamp Pole Solar Panel Battery Space Controller Backup
20W3-4m50W40Ah>12mMPPT3-5 days
40W5-6m100W80Ah>15mMPPT3-5 days
60W7-8m150W60Ah*2>20mMPPT3-5 days
100W9-10m130W*2100Ah*2>27mMPPT3-5 days
150W11-12m200W*2150Ah*2>33mMPPT3-5 days

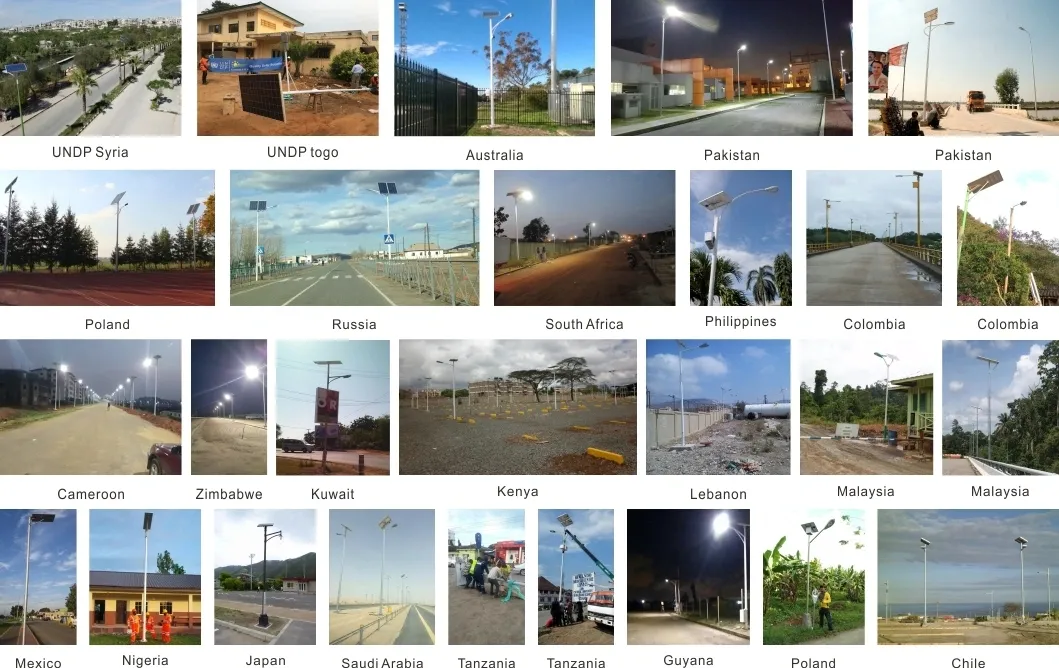

Project Cases
Project Case

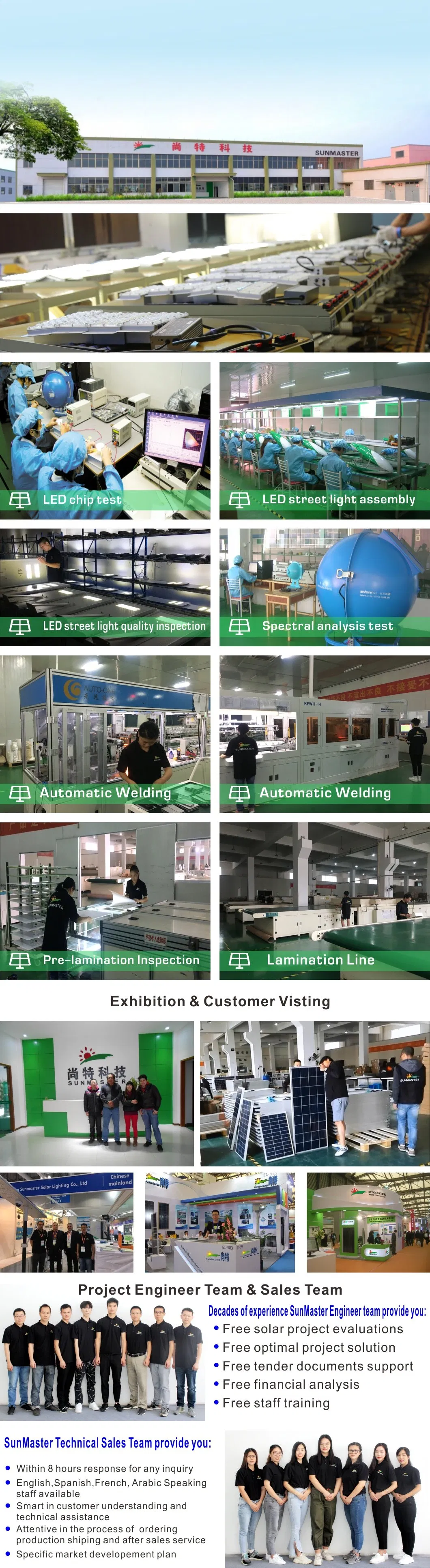

System Detail 1 System Detail 2
Frequently Asked Questions
How many days can the system work during rainy weather?
The system is designed with a backup capacity of 3 to 7 rainy or cloudy days, depending on the configuration and local site conditions.
Can the lighting schedule be customized?
Yes, lighting times can be individually adjusted using a program switch to meet specific lighting requirements.
What is the expected lifespan of the LED and Solar Panels?
The LED lamp has a lifespan of over 100,000 hours, while the high-efficiency solar panels have a life span exceeding 25 years.
Is the system maintenance-free?
Yes, it uses Gel batteries that are maintenance-free and offers a 9-year free maintenance period for the system overall.
What safety protections are included in the controller?
The intelligent MPPT/PWM controller includes protections against over-charge, over-discharge, overheating, overload, short circuits, and anti-reverse polarity.
How does the wind resistance of the light pole perform?
The poles are made of Q235 steel with hot-dip galvanization, providing a strong wind resistance of over 150km/h.
