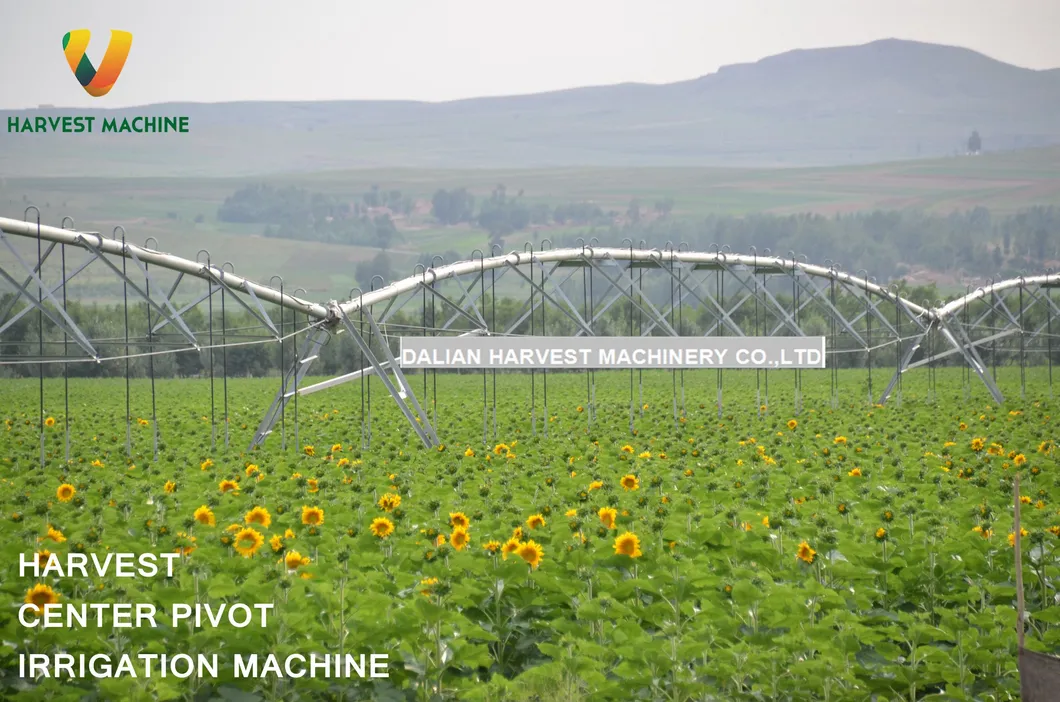

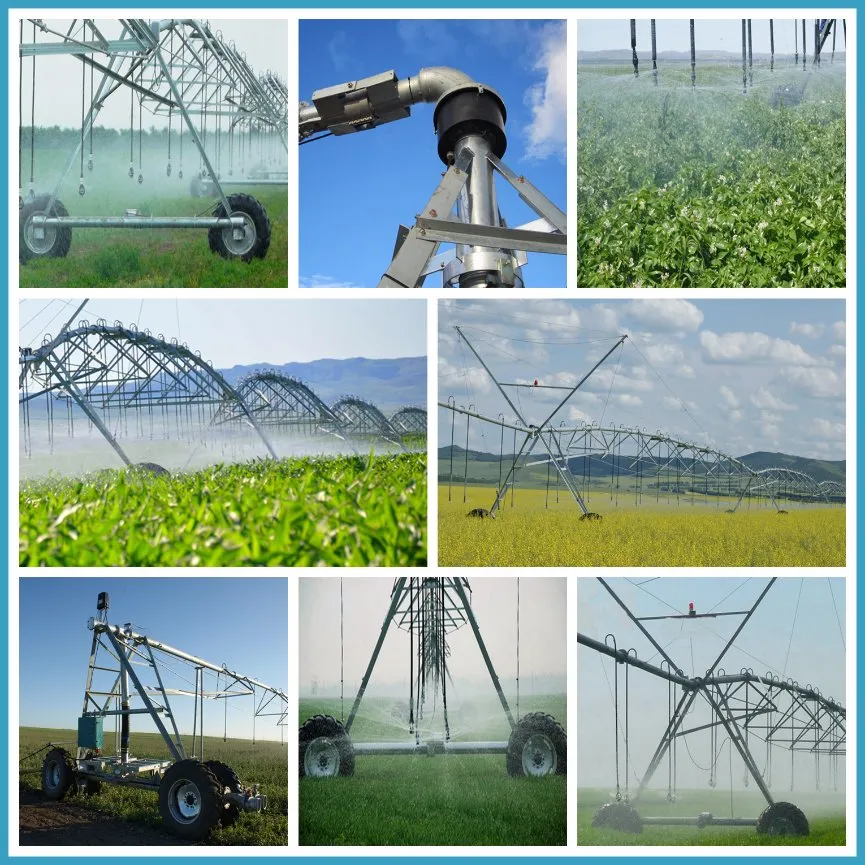

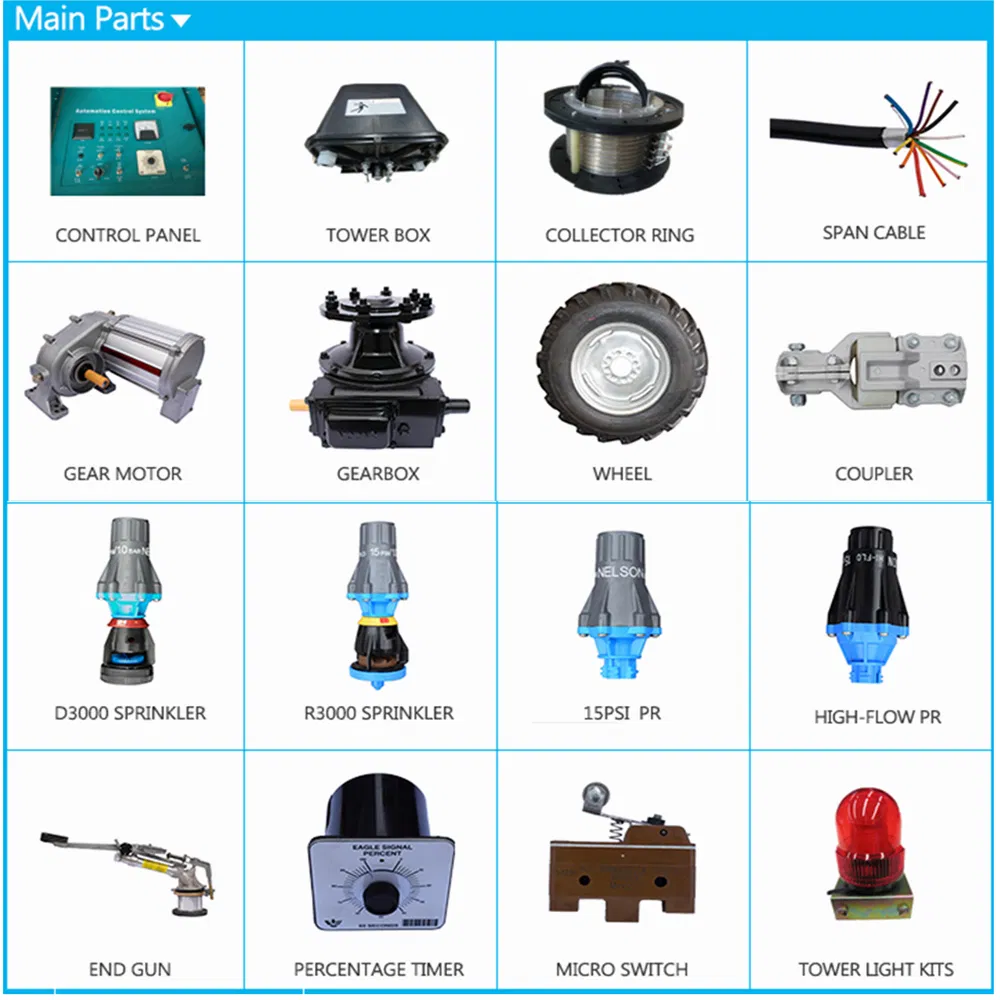

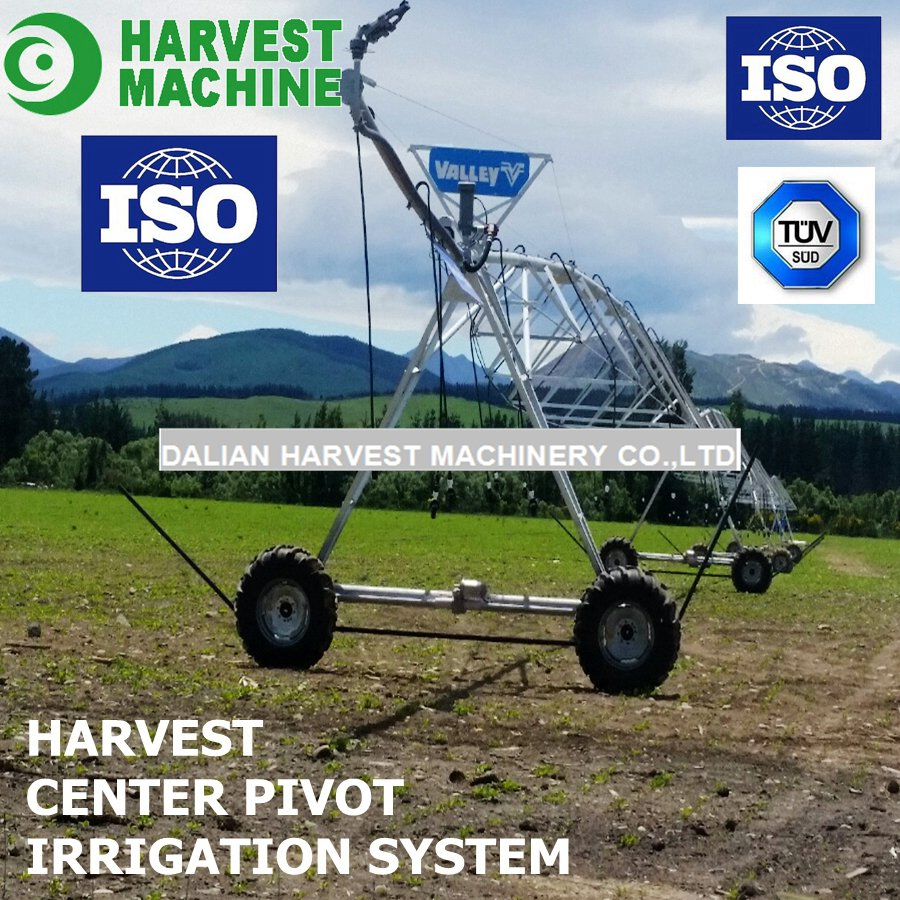

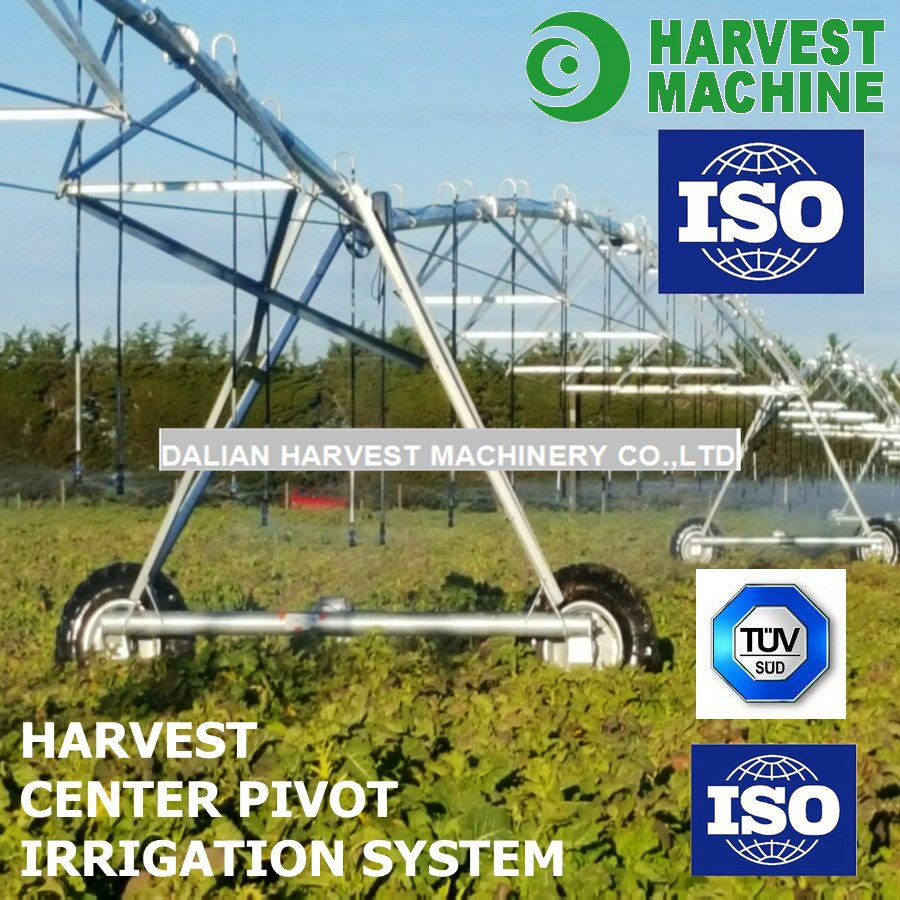

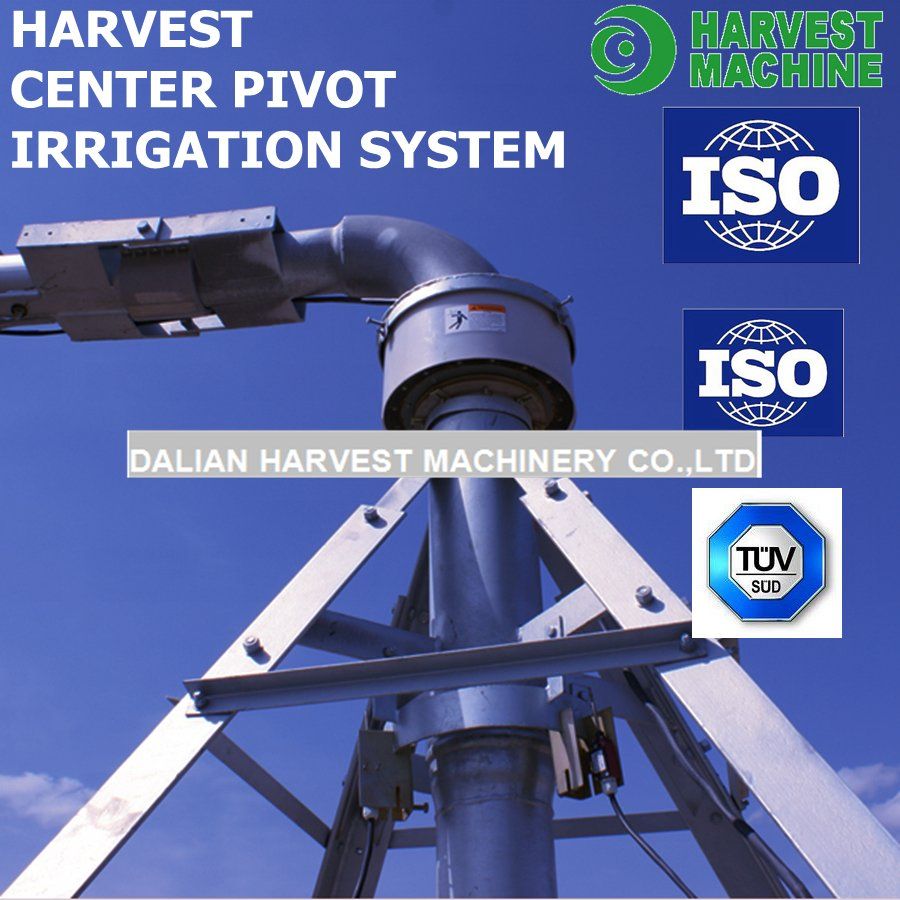

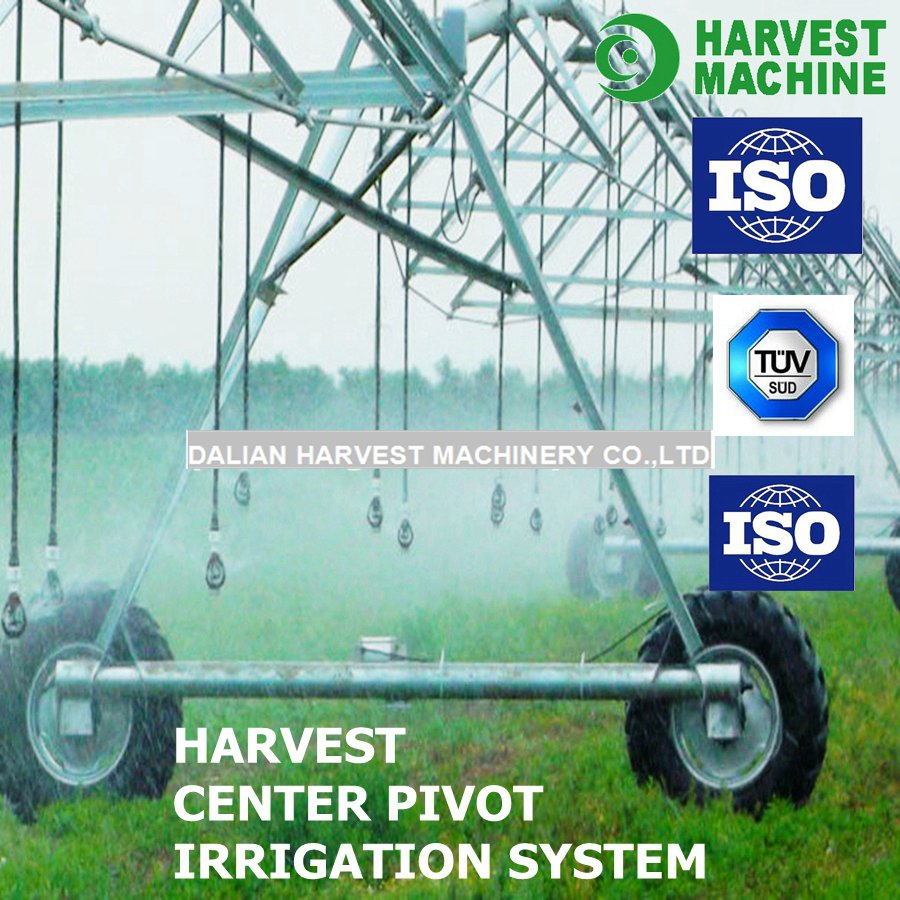

The DYP series center pivot irrigation system is composed of a center trestle table, trestle-tower vehicle, sprinkler truss, endmost cantilever, and an electric synchronous control system. This automated irrigation system is specifically designed for large-scale farming of potatoes, sugarcanes, watermelons, legumes, economic crops, and pasture land.
Features high efficiency, power and water saving capabilities. It can increase yield at economical costs with a spraying uniformity coefficient up to 85%. All metallic parts are treated with zinc coating for 15 years of rust-free operation.
The system can operate on uneven fields with slopes up to 25%. Water can be sourced from rivers or bore wells, transporting through main pipes to the sprinklers. The heavy-duty design allows extension to more than 11 spans (650m) with high windstorm resistance.
| Items | Specification | Items | Specification |
|---|---|---|---|
| Pivot length | 41.1-791.2m | Land covered | 0.53-196.7ha |
| Qty.of spans | 1-16 | Span length | 41.1 / 47.8 / 54.4 / 61.3m |
| Overhang length | 6.7 / 13.4 / 20.1 / 26.8m | Pivot clearance | 2.91-3.75m |
| Span dia. | 141 / 168 / 203mm | Pivot height | 4.62-5.46m |
| Surface | Hot dip galvanization | Flow rate | 15-1080m³/hr |
| Water pressure | 1-7.5Bar | Max speed | 142m/hr |
| Sprinkler | Nelson/Senninger | Gear box | 50:1 heavy duty |
| Power supply | 380V / 415V 50-60HZ | Daily rate | 0-50mm/day |
