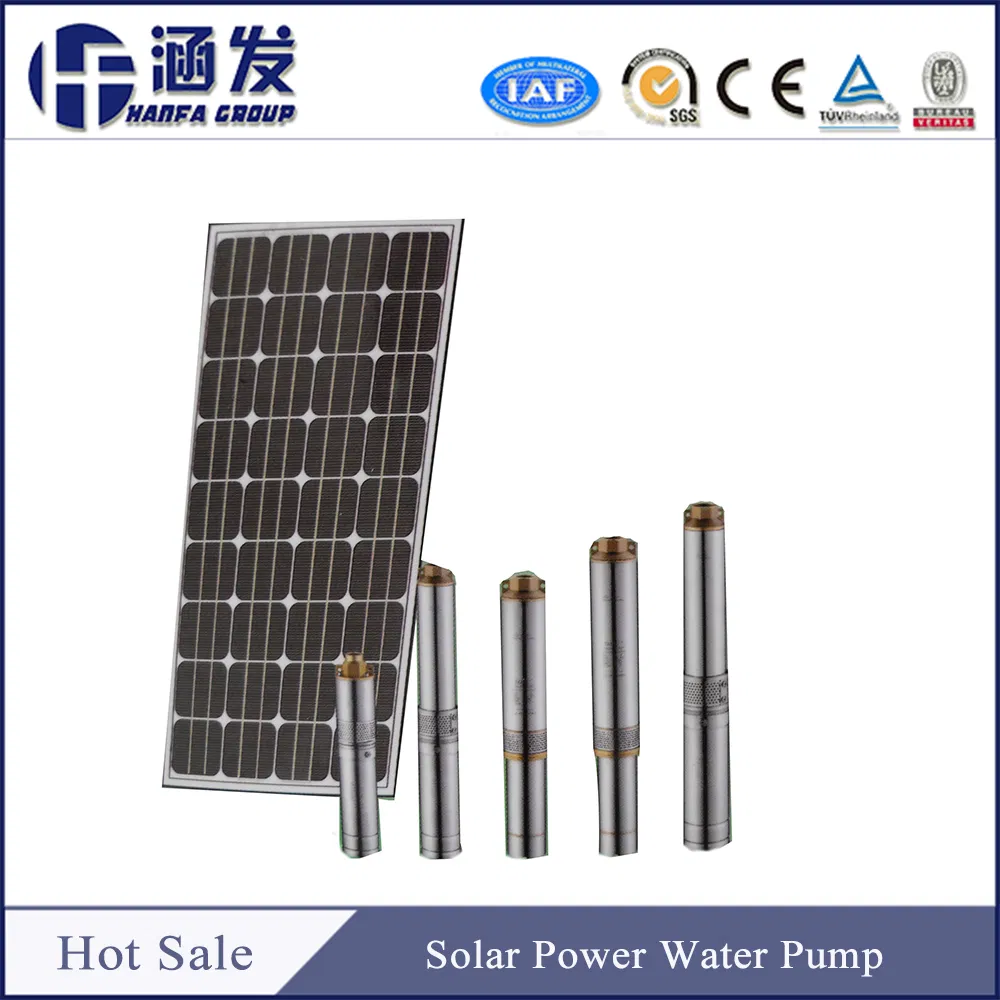

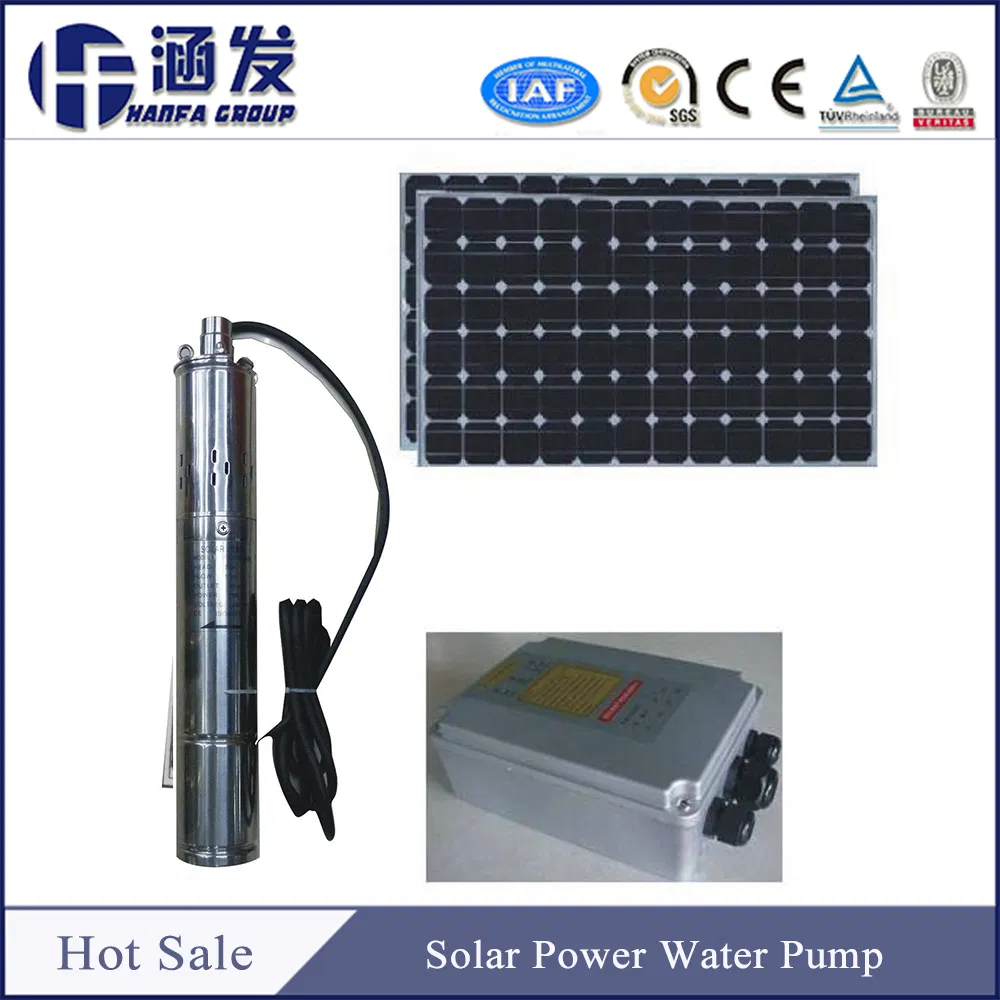

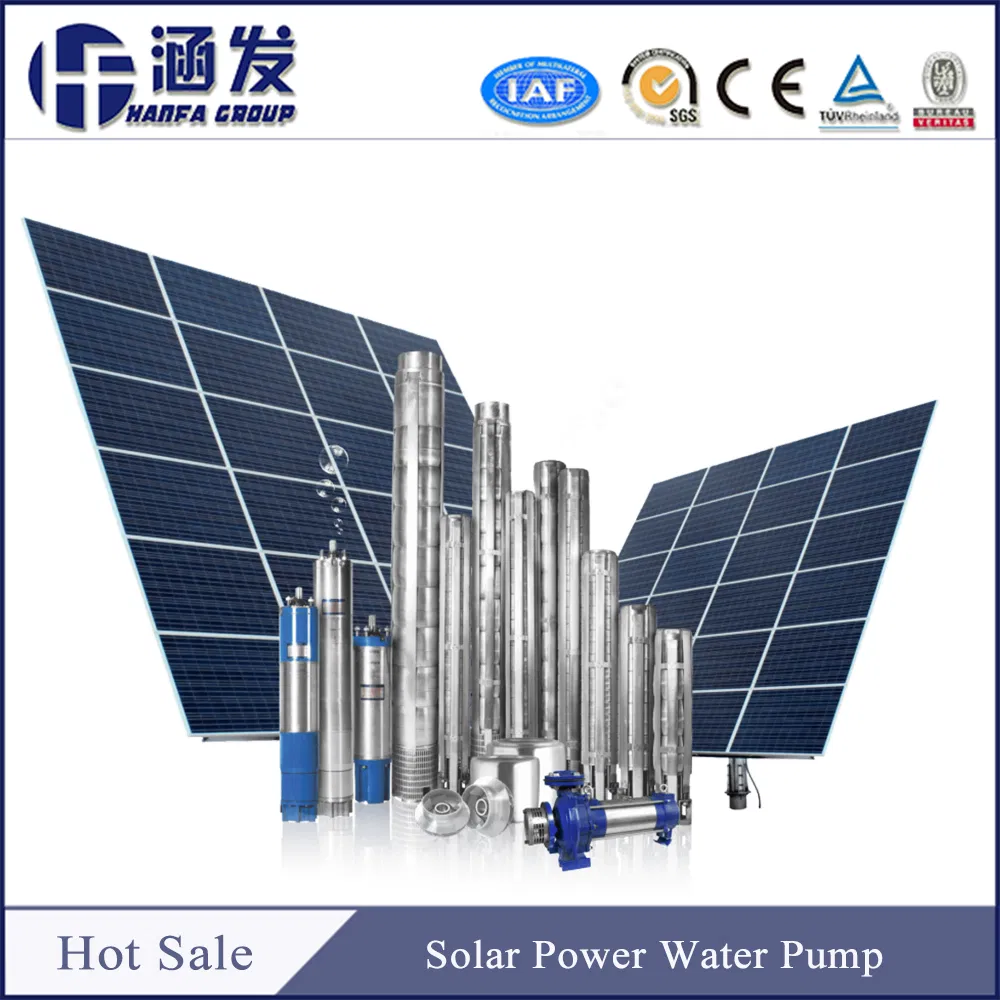

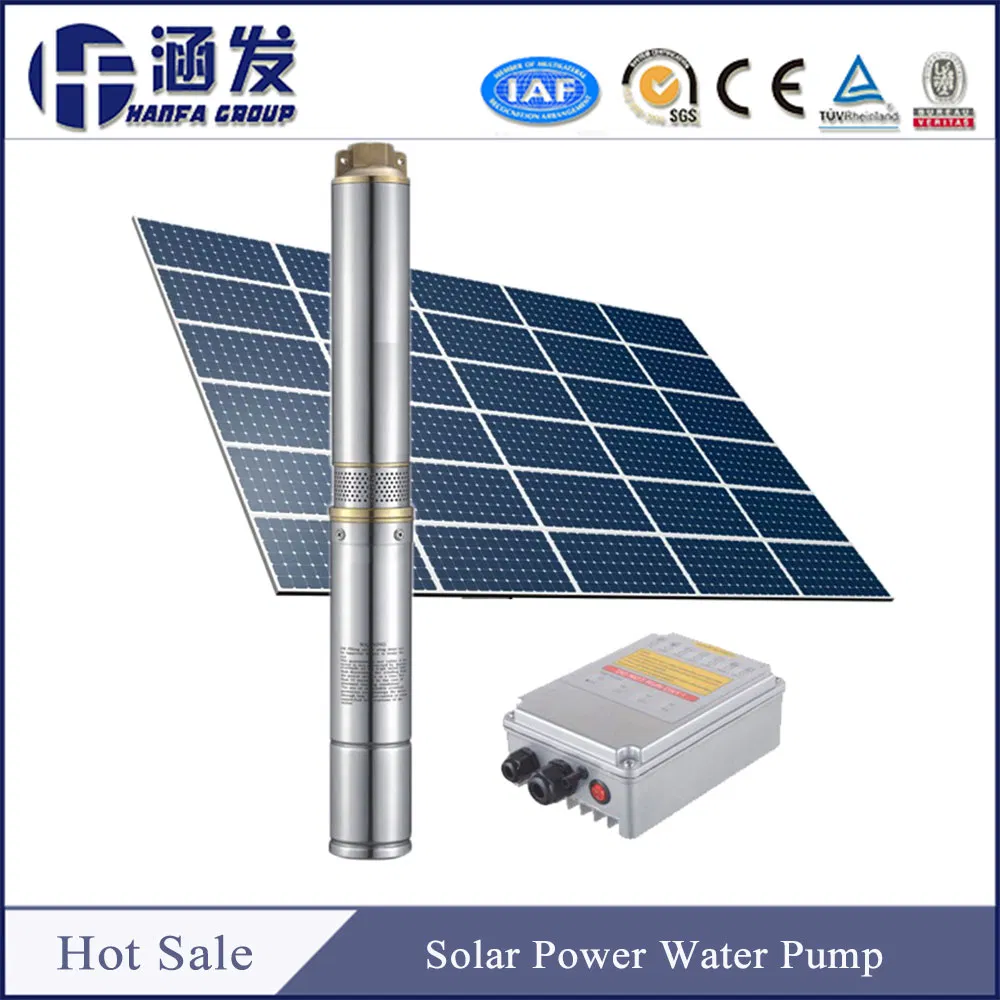

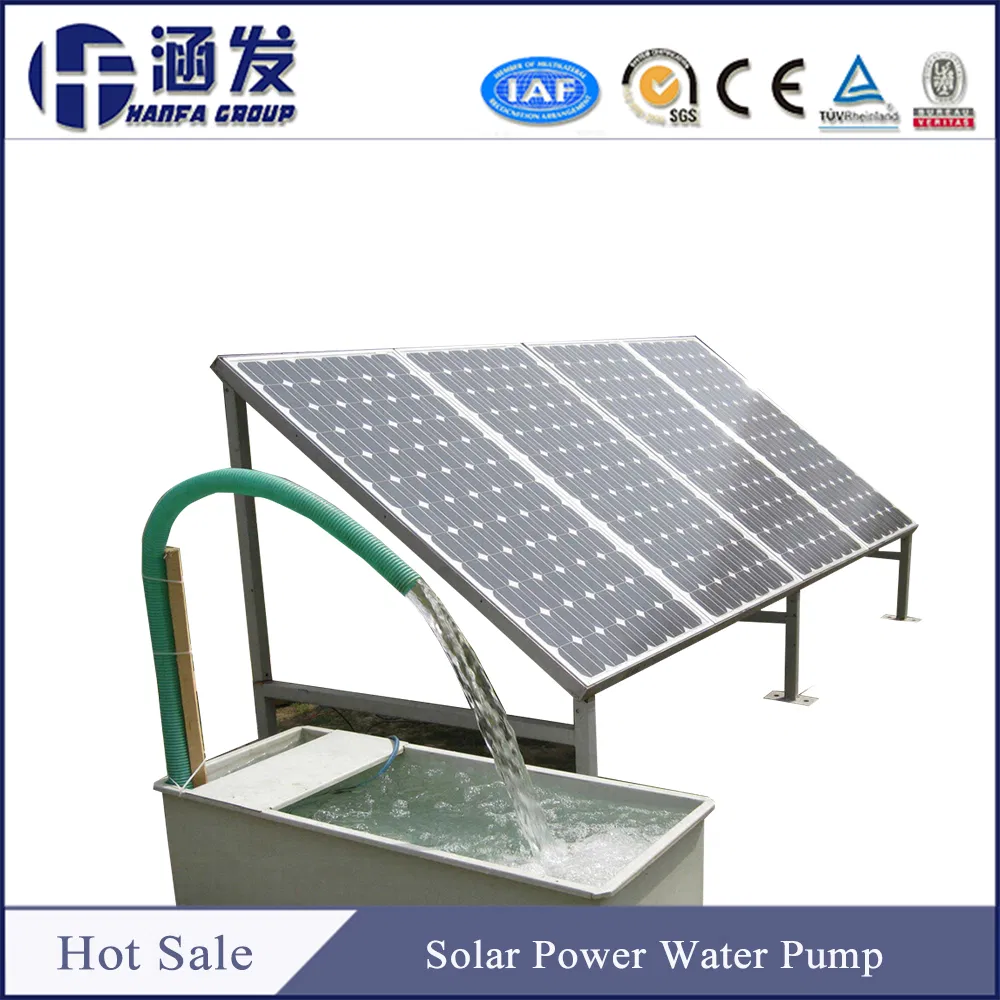

Large Power Solar Water Pumping System for Irrigation (sp series)

1 / 5

Large Power Solar Water Pumping System for Irrigation (sp series)

Customization:	Available
Max.Head:	30-320m
Max.Capacity:	2-12t/H

Send Inquiry

Product Description

Basic Specifications

Model NO.

sp series

Driving Type

Magnetic

Material

Stainless Steel

Structure

Single-stage Pump

Assembly

Liquid Pumps

Power

Electric

Start Up

Electric Pump

Type

Jet Pump

Industry

Fisheries Pump

Media

Sewage Pumps

Performance

Wear Pump

Theory

Electromagnetic Pump

Engine Power

1.5-7.5kw

Open-Circuit Voltage

750V

MPPT Voltage

540V

Specification

dc solar pump

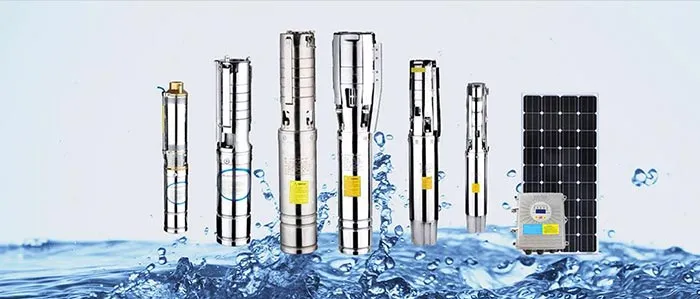

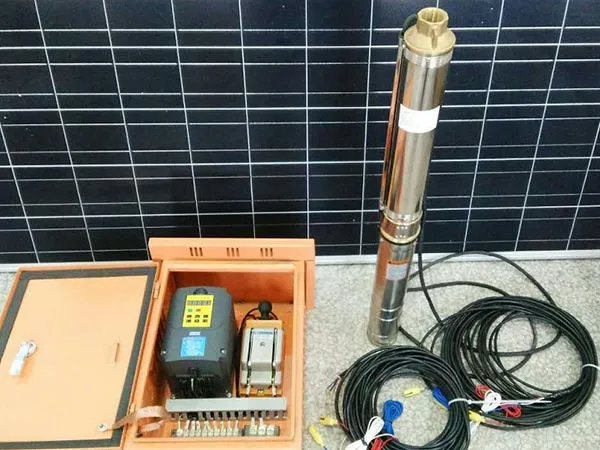

Large Power Solar Water Pumping System

✓ Made of stainless steel, non-sensor shielding motor, motor efficiency over 90%.

✓ Permanent magnet, brushless DC motor for long lifetime.

✓ Powered by solar panel directly, fully automatic operation, remote operation safeguards.

✓ Advanced controller with MPPT technology for maximum solar power usage.

✓ Prevent frequent startup under low solar power; controller prolongs motor lifetime.

✓ Multiple Protection: Over-voltage / Under-voltage / Over-current / Over-load / Lightning / Dry-running protection.

✓ Automatic restart when water returns to the well or motor temperature returns to safety range.

Technical Data

Model	Power (KW)	MPPT Voltage	Open-Circuit Voltage	Rated Head (m)	Max Head (m)	Rated Flow (T/H)	Water Inlet (mm)	Outlet (Inch)	Protection Grade	Dim. Dia(mm)	Dim. Ht(mm)
HF4SP2 Series (2T/H)
HF4SP2/26-1.5	1.5	540V	750V	120	159	2	100	1.25/1.5	IP68	96	1287
HF4SP2/44-3	3	540V	750V	250	332	2	100	1.25/1.5	IP68	96	1873
HF4SP4 Series (4T/H)
HF4SP4/22-2.2	2.2	540V	750V	110	151	4	100	1.5/2	IP68	96	1336
HF4SP4/48-4	4	540V	750V	200	268	4	100	1.5/2	IP68	96	2010
HF4SP6 Series (6T/H)
HF4SP6/30-3	3	540V	750V	118	164	6	100	1.5/2	IP68	96	1518
HF4SP6/46-5.5	5.5	540V	750V	194	290	6	100	1.5/2	IP68	96	2183
HF4SP10 Series (10T/H)
HF4SP10/25-5.5	5.5	540V	750V	95	170	10	100	1.5/2	IP68	96	1847
HF4SP10/32-7.5	7.5	540V	750V	120	206	10	100	1.5/2	IP68	96	2203
HF4SP12 Series (12T/H)
HF4SP12/19-4	4	540V	750V	65	111	12	100	1.5/2	IP68	96	1631
HF4SP12/28-7.5	7.5	540V	750V	103	176	12	100	1.5/2	IP68	96	2306

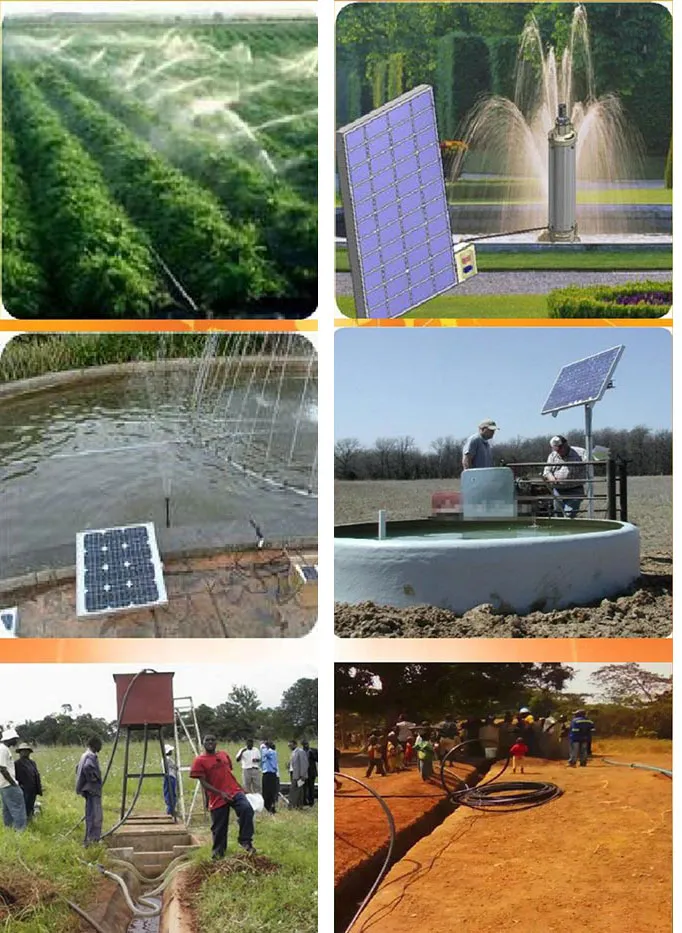

Wide Range Applications

1 Tank/Cistern filling
2 Village or family water supply
3 Water supply for farm
4 Garden/courtyard irrigation systems
5 Livestock watering
6 Swimming pool filling
7 Fountains & Water features
8 Renewable energy projects

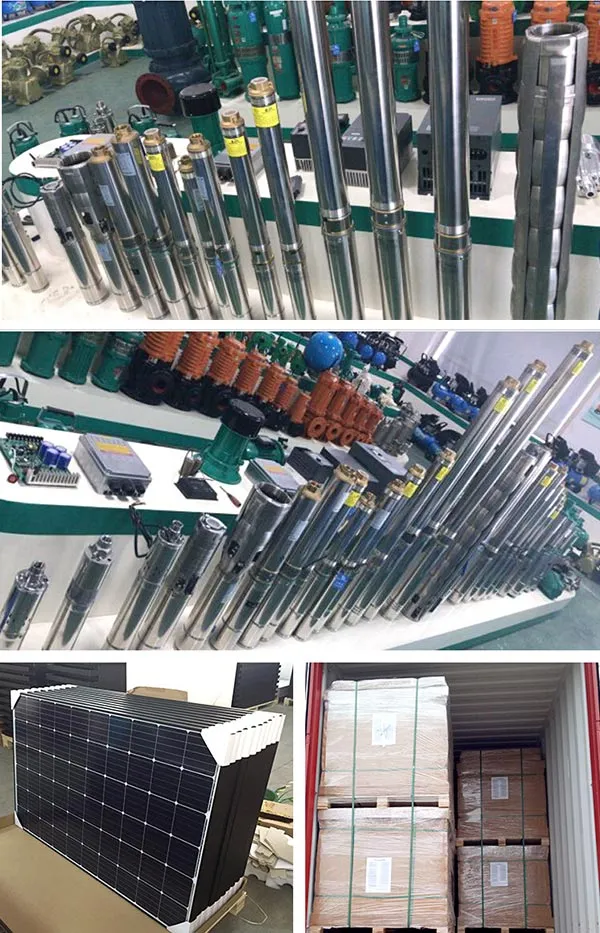

Project Showcase & Delivery

Frequently Asked Questions

What material is used for the SP series solar pumps?

The pumps are made of high-quality stainless steel, ensuring durability and corrosion resistance in various water environments.

How efficient is the motor in this system?

The system features a permanent magnet, brushless DC motor with an efficiency rating of over 90%.

Does the pump include protection against dry-running?

Yes, the advanced controller provides full protection including dry-running, over-voltage, under-voltage, and lightning protection.

What is MPPT technology and how does it benefit the system?

MPPT (Maximum Power Point Tracking) technology optimizes the solar power input to ensure the pump operates at peak efficiency even in varying sunlight conditions.

Is the operation of the solar pumping system manual or automatic?

The system is designed for fully automatic operation, powered directly by solar panels with automatic restart capabilities.

What are the primary applications for this solar water pump?

It is ideal for farm irrigation, village water supply, livestock watering, tank filling, and renewable energy projects.
