Solar water pump: 3 years
MPPT controller: 3 years
Solar panels: 25 years
If the controller or motor is damaged within 3 years, we provide new components for replacement. Damaged impellers within 3 years are also covered with spare replacements.

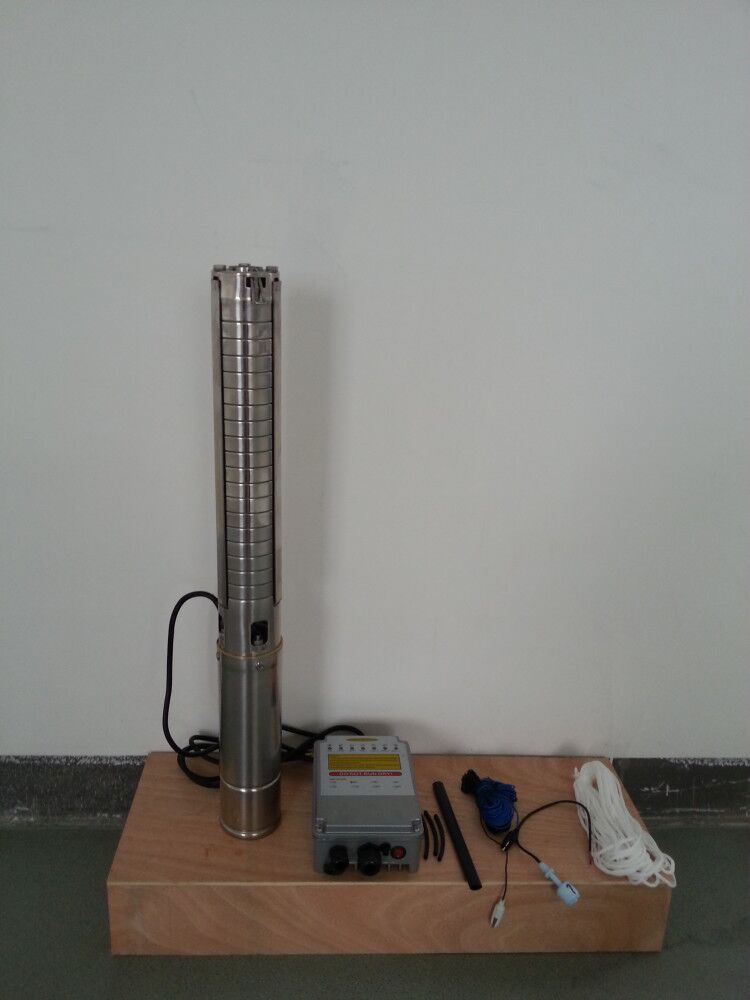

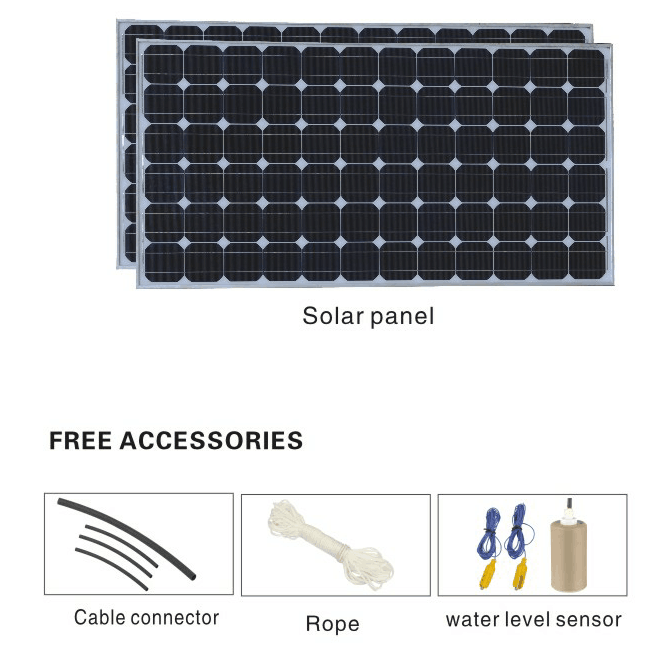

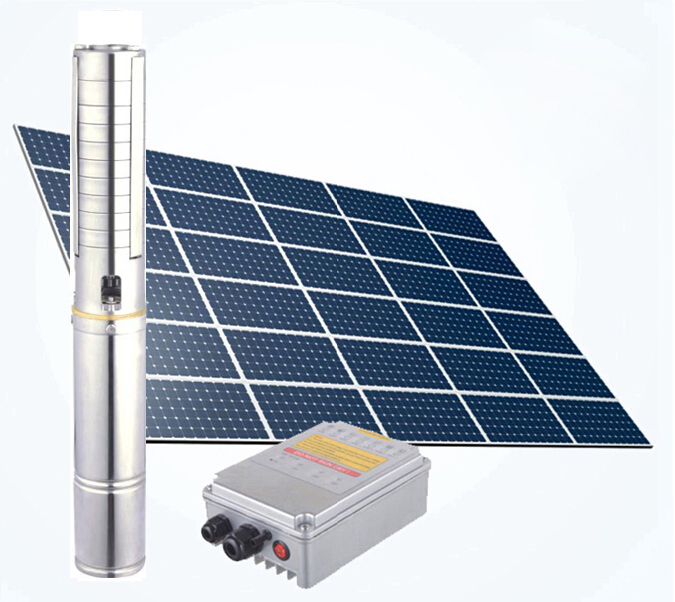

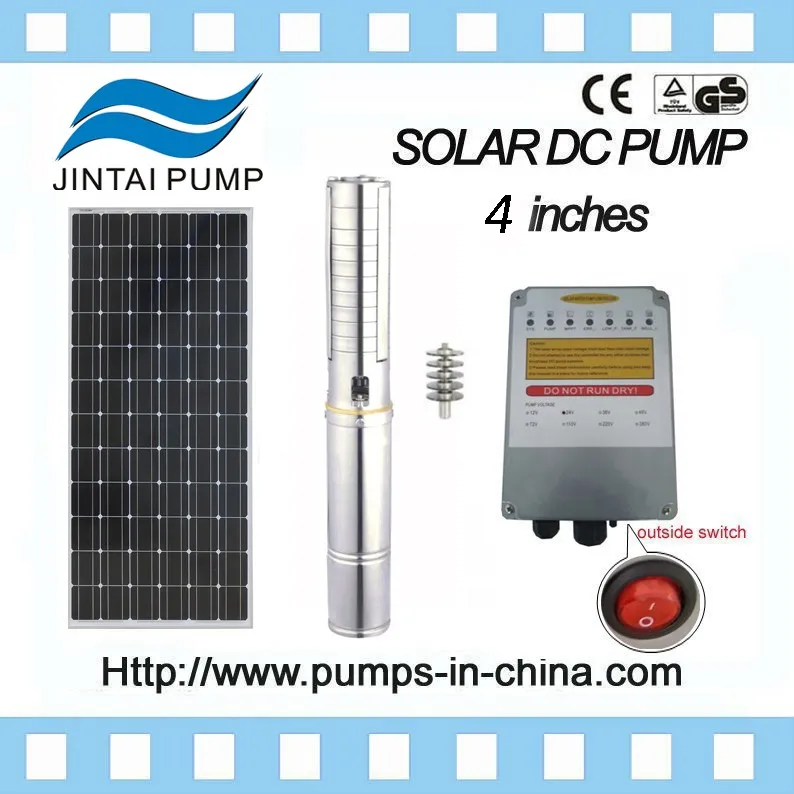

The solar submersible pump is immersed into water and connects the motor with the pump directly. It consists of a submersible pump, motor, MPPT controller, water pipe, cable, and solar panels.

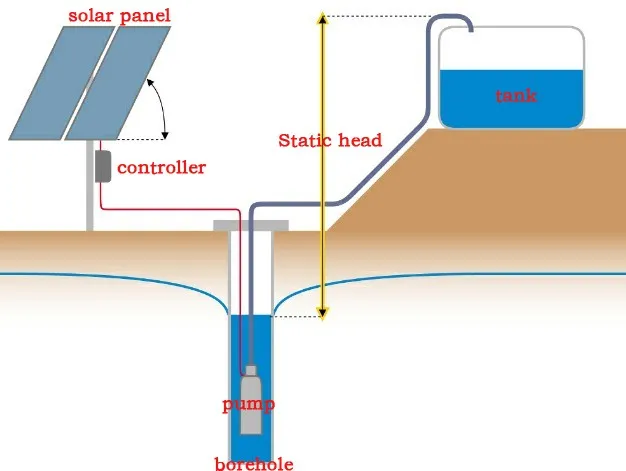

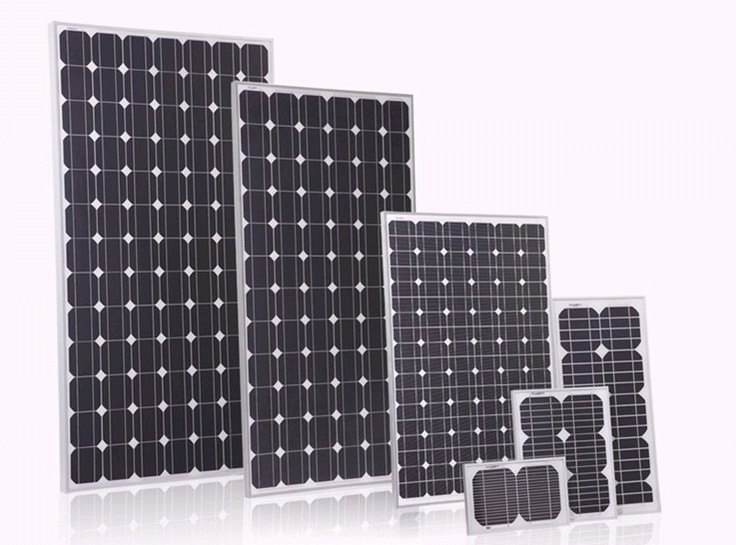

Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. The system runs automatically in the sun and can operate continuously via battery or grid electric when there is little sunshine.
Efficiency improved by 25% using permanent magnetism, direct current, brushless, and non-sensor motors compared to traditional machines.
Double plastic package for rotor and stator; motor insulation ≥300MΩ for significantly improved security.

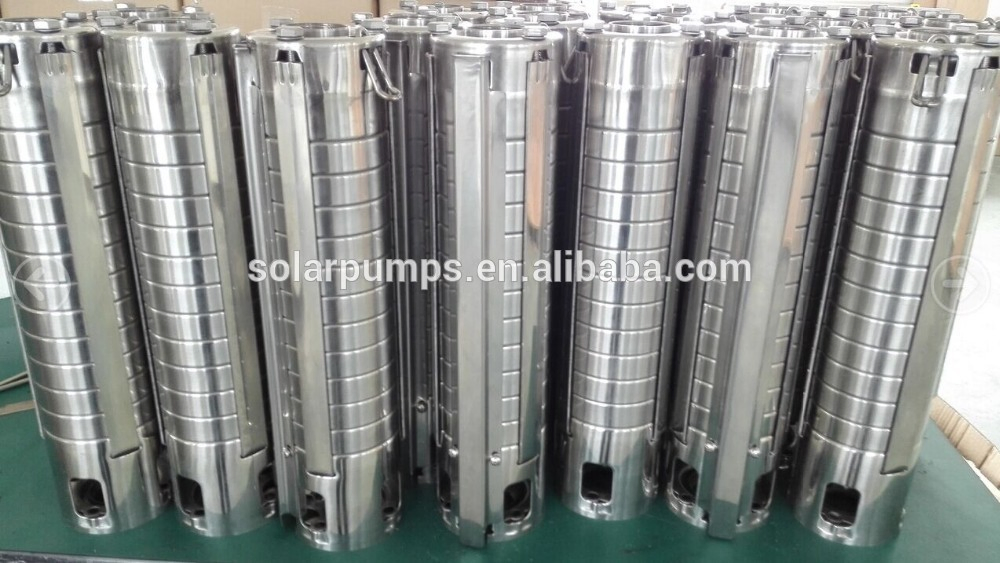

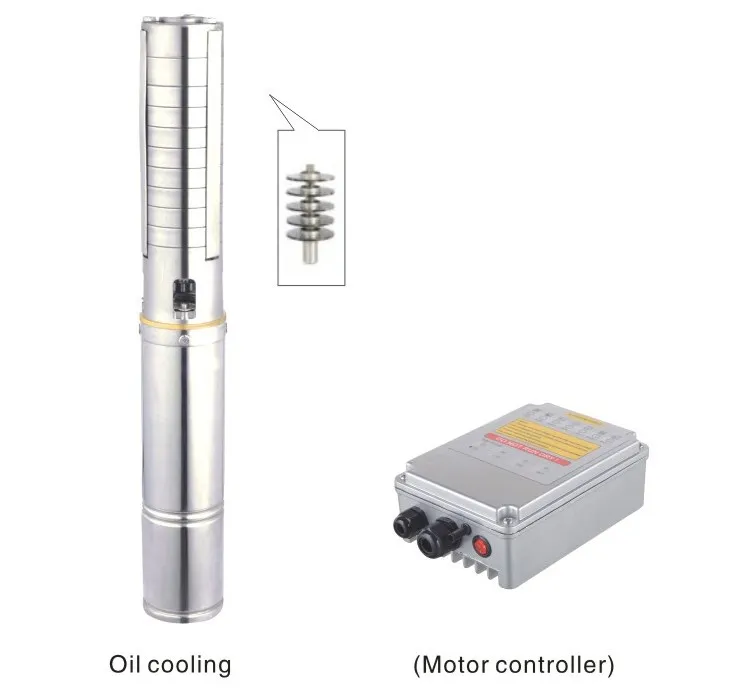

Outlet, Pump body, Motor casing, and Impeller are all made of high-quality Stainless Steel. Bearings utilize NSK technology.
| TYPE | VOLTAGE (V) | POWER (W) | WATER OUTPUT DAILY (L/day) | LIFT HEAD (M) | OUTLET (Inch) | DIAMETER (mm) |
|---|---|---|---|---|---|---|

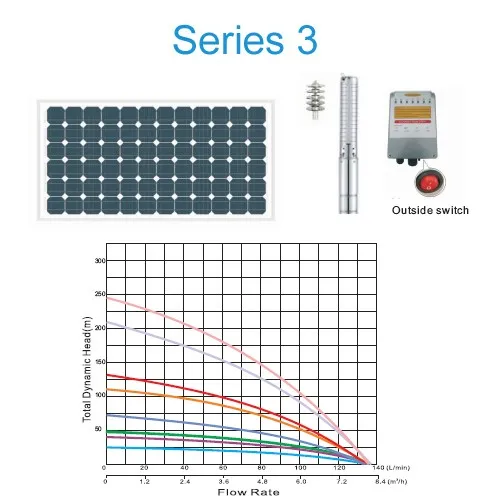

| Series 3 | ||||||
| JCS4-8.0-25 | 36 | 370 | 28,000-40,000 | 5 to 15m | 1.5 | 92 |
| JCS4-8.0-38 | 48 | 550 | 28,000-40,000 | 5 to 25m | 1.5 | 92 |
| JCS4-8.0-72 | 72 | 1100 | 28,000-40,000 | 5 to 60m | 1.5 | 92 |
| JCS4-8.0-248 | 288 | 4000 | 28,000-40,000 | 5 to 220m | 1.5 | 92 |

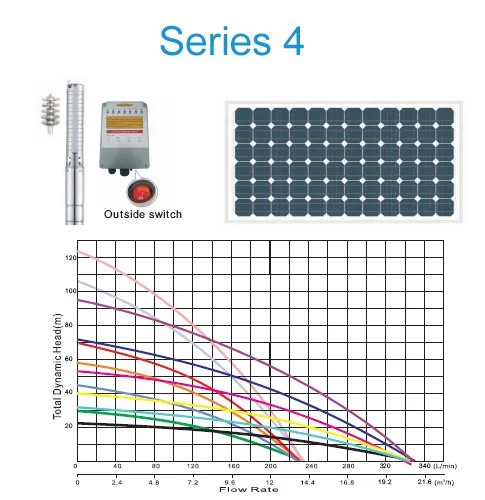

| Series 4 | ||||||
| JCS4-14-30 | 48 | 750 | 40,000-56,000 | 5 to 25m | 2 | 92 |
| JCS4-14-123 | 288 | 4000 | 40,000-56,000 | 5 to 110m | 2 | 92 |
| JCS4-21-21 | 72 | 1200 | 60,000-78,000 | 5 to 15m | 2 | 92 |
| JCS4-21-96 | 288 | 4000 | 60,000-78,000 | 5 to 80m | 2 | 92 |

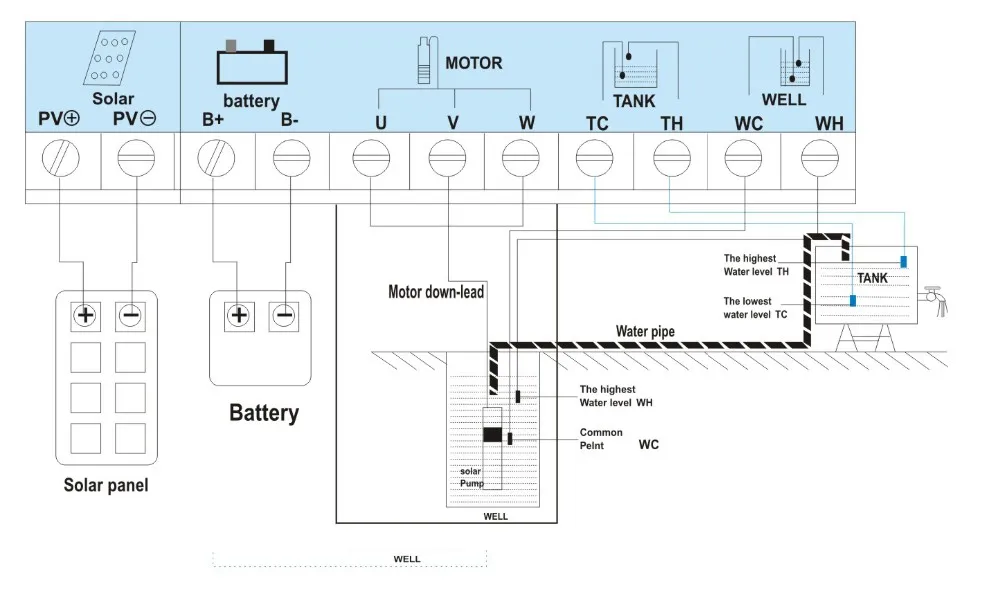

With Battery Backup:

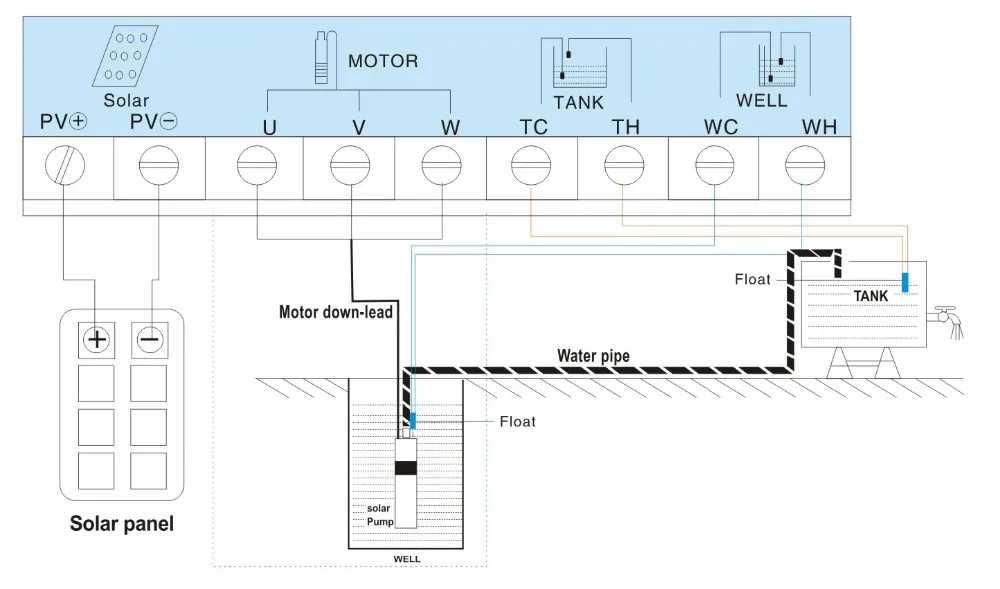

Without Battery Backup:
1. Solar Panel Power = Pump Power X 1.3
2. Battery Use Hours = Capacity ÷ (Machine Power ÷ Battery Voltage) X 0.6
3. Required Capacity = Use Hours ÷ 0.6 x (Machine Power ÷ Battery Voltage)
