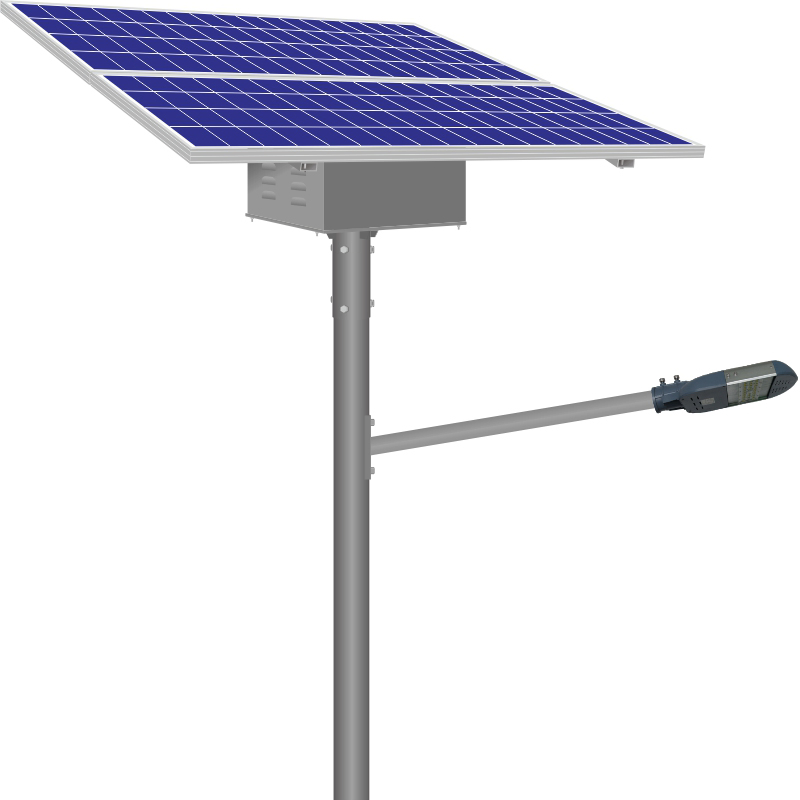

Ce ISO Certificated Intelligent Street Lighting Control System

1 / 5

Ce ISO Certificated Intelligent Street Lighting Control System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SMLN-170W

Lamp Material

Aluminum

Lamp Power

170W

Power Supply

Solar

Average Life

80,000h

Application

Highway, Square, Garden

IP Rating

IP66

Certification

CE, RoHS, CCC, ISO, FCC, EMC, GS

Voltage

DC12V

Lighting Area

100m²

LED Chip Brand

USA Bridgelux 210lm/W

Solar Panel

170W * 2PCS

Battery

Lead Battery

Maintenance

9 Years Free Maintenance

Product Features

☔

3-5 Rainy Days Backup
Ensures continuous lighting even during extended cloudy or rainy weather conditions.

🌓

Smart Energy Saving
Dusk-to-Dawn 12 hours operation with intelligent dimming mode to conserve power.

⚙️

Adjustable Lighting
Lighting times can be individually adjusted via the program switch to meet site conditions.

Intelligent Street Lighting Control System

Technical Specification

Lighting Time	10-14hrs/day(adjustable), 3-7 rainy days back-up
Solar Panel	Poly solar panel 240W(optional)*2pcs, high efficiency, life span >25years
Gel Battery	Capacity 170Ah/12v*2pcs, free maintenance, deep cycle 3500 times @ 30% DOD, life span >8 years

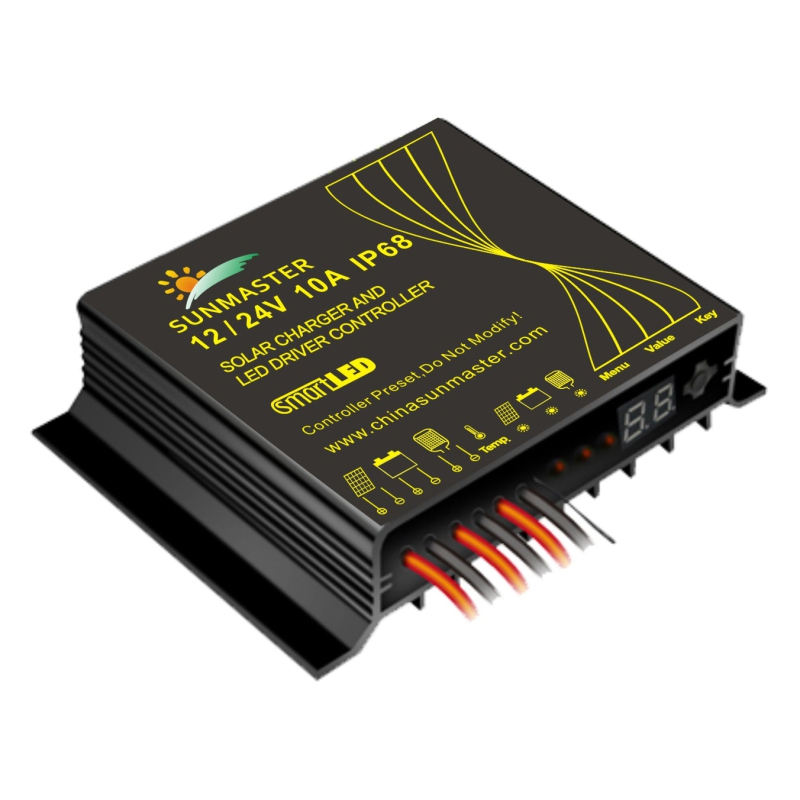

Solar Controller	MPPT/PWM, IP68 waterproof, over-charge/discharge/short circuit protections, life span >10 years
LED Lamp	170w power, USA Bridgelux LED chip (200lm/w), whole lamp efficiency 180lm/w, IP65, life span >100,000hrs

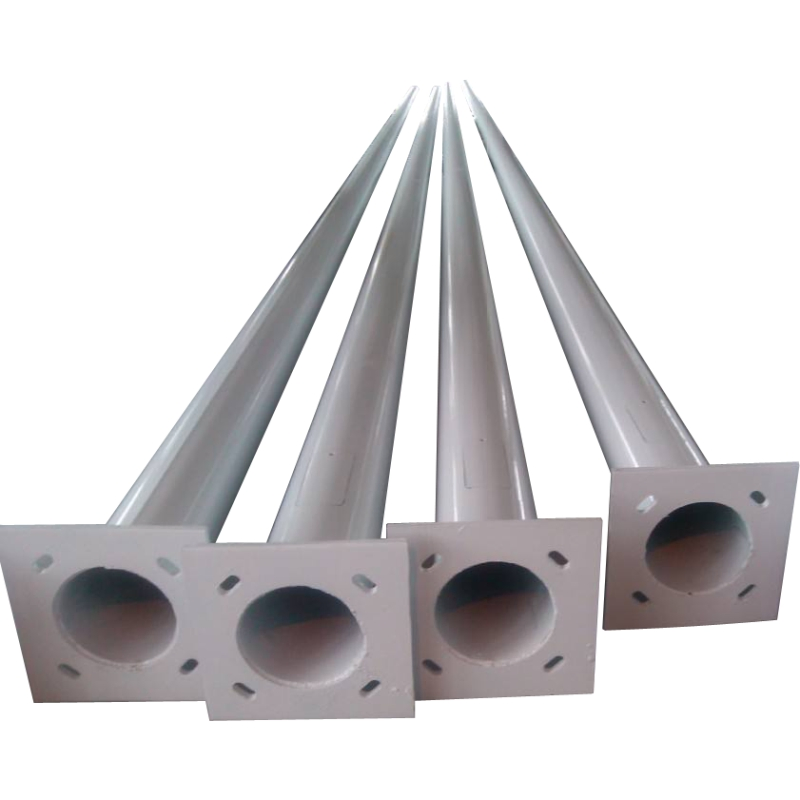

Light Pole	Q235 steel material, hot-dip galvanized and powder coating, wind resistance >150km/h, life span >20 years

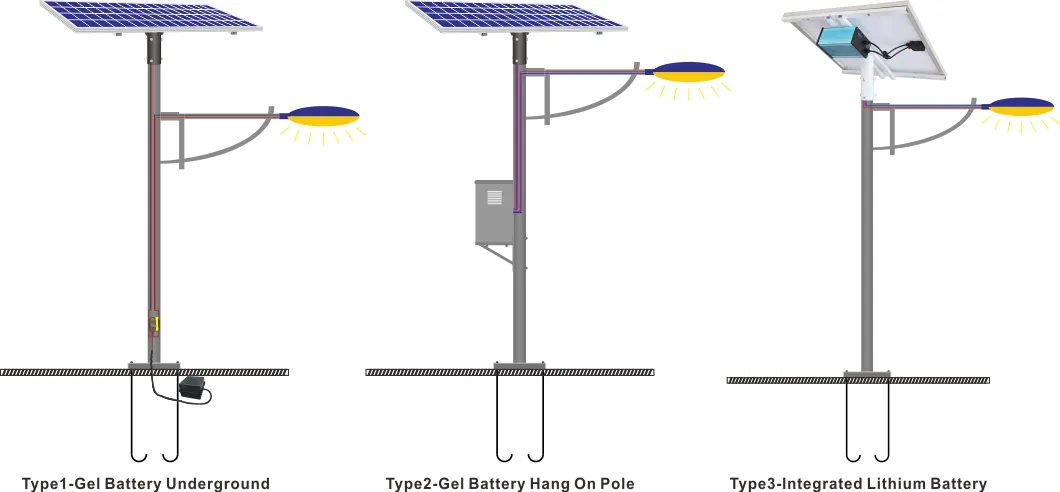

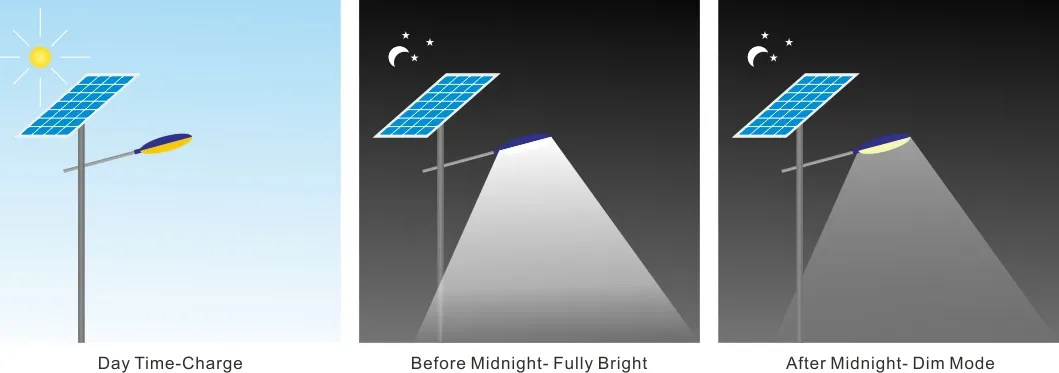

Installation & Working Modes

Recommended Configurations

Lamp	Pole	Solar Panel	GEL Battery	Lighting Space	Controller	Working Hours	Backup
20w	3-4m	50w*1	40Ah*1	>12m	MPPT	10-14 hrs	3-5 days
50w	6-7m	120w*1	50Ah*2	>17m	MPPT	10-14 hrs	3-5 days
100w	9-10m	130w*2	100Ah*2	>27m	MPPT	10-14 hrs	3-5 days
150w	11-12m	200w*2	150Ah*2	>33m	MPPT	10-14 hrs	3-5 days
200w	12-13m	280w*2	200Ah*2	>35m	MPPT	10-14 hrs	3-5 days

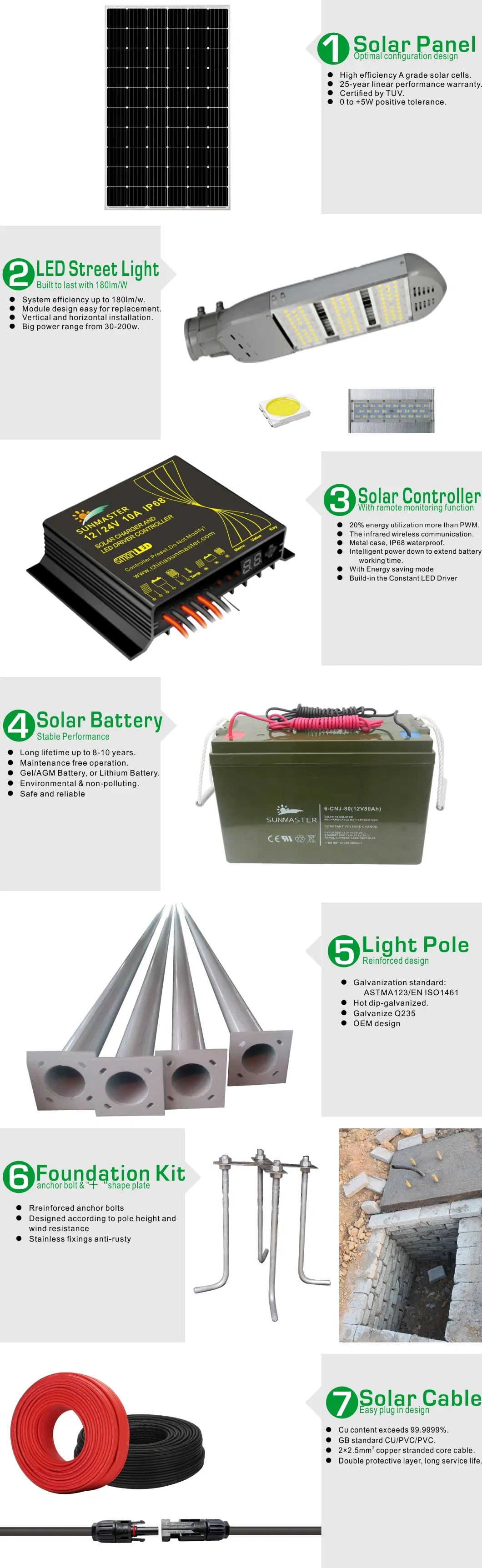

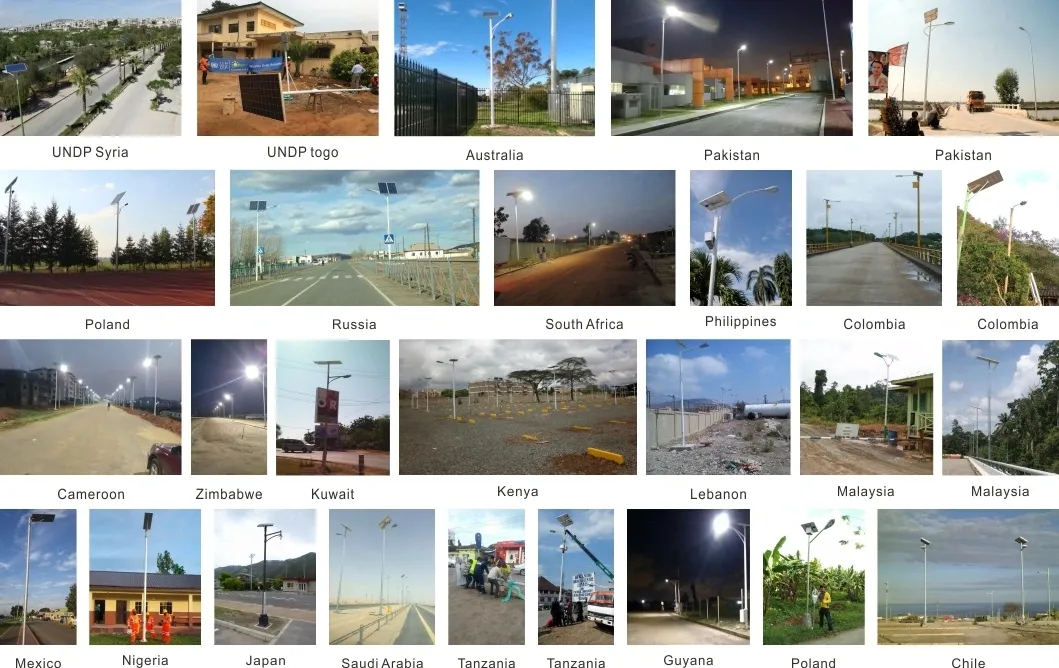

Product Benefits & Real Cases

Frequently Asked Questions

How many days can the system operate during rainy weather?

The system is designed with a backup capacity for 3 to 5 rainy or cloudy days, depending on the specific configuration chosen.

What is the expected lifespan of the solar panels and LED lamps?

The poly solar panels have a life span of over 25 years, while the high-efficiency USA Bridgelux LED chips are rated for over 100,000 hours of operation.

Is the street lighting system resistant to high winds?

Yes, the light poles are made of Q235 steel material, hot-dip galvanized and powder coated, providing wind resistance of over 150km/h.

Can the lighting times be customized?

Absolutely. Lighting times can be individually adjusted using a program switch to suit local site conditions and specific customer requirements.

What type of battery and controller are used in the system?

The system utilizes high-capacity Gel batteries with deep cycle capabilities and smart MPPT/PWM controllers with IP68 waterproof ratings for intelligent power management.
