IP67 Aluminum Alloy Integrated Solar System for Street Lighting

Customization:	Available
Power Supply:	Solar
Color Temperature:	2700K-6000K Customizable

Send Inquiry

Product Description

Basic Specifications

Model NO.

XYD-0155

Body Material

Aluminum/Stainless Steel

Power

>200W

Application

Square, Highway, Garden, Parking Lot

IP Rating

IP67

Certification

CCC, CE, RoHS, ISO9001, ISO14001

Input Voltage

18V

LED Chips

Famous Brand

Warranty

5 Years

Working Temp

-30~+70℃

Light Efficiency

150-180lm/W

Viewing Angle

140*70 Degree

Product Description

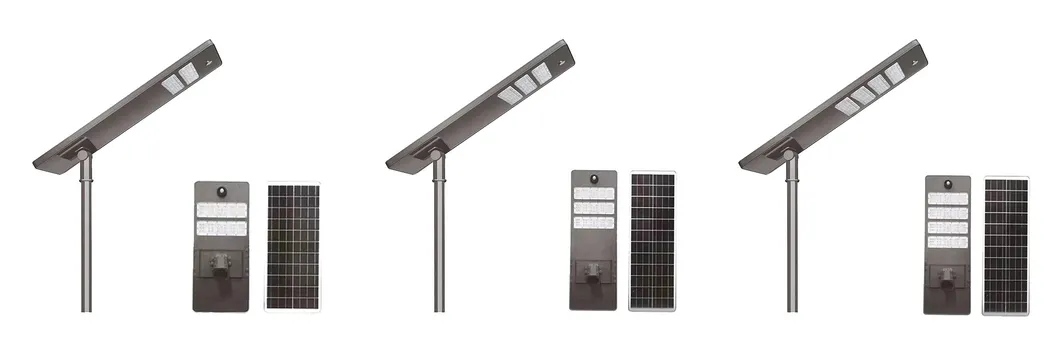

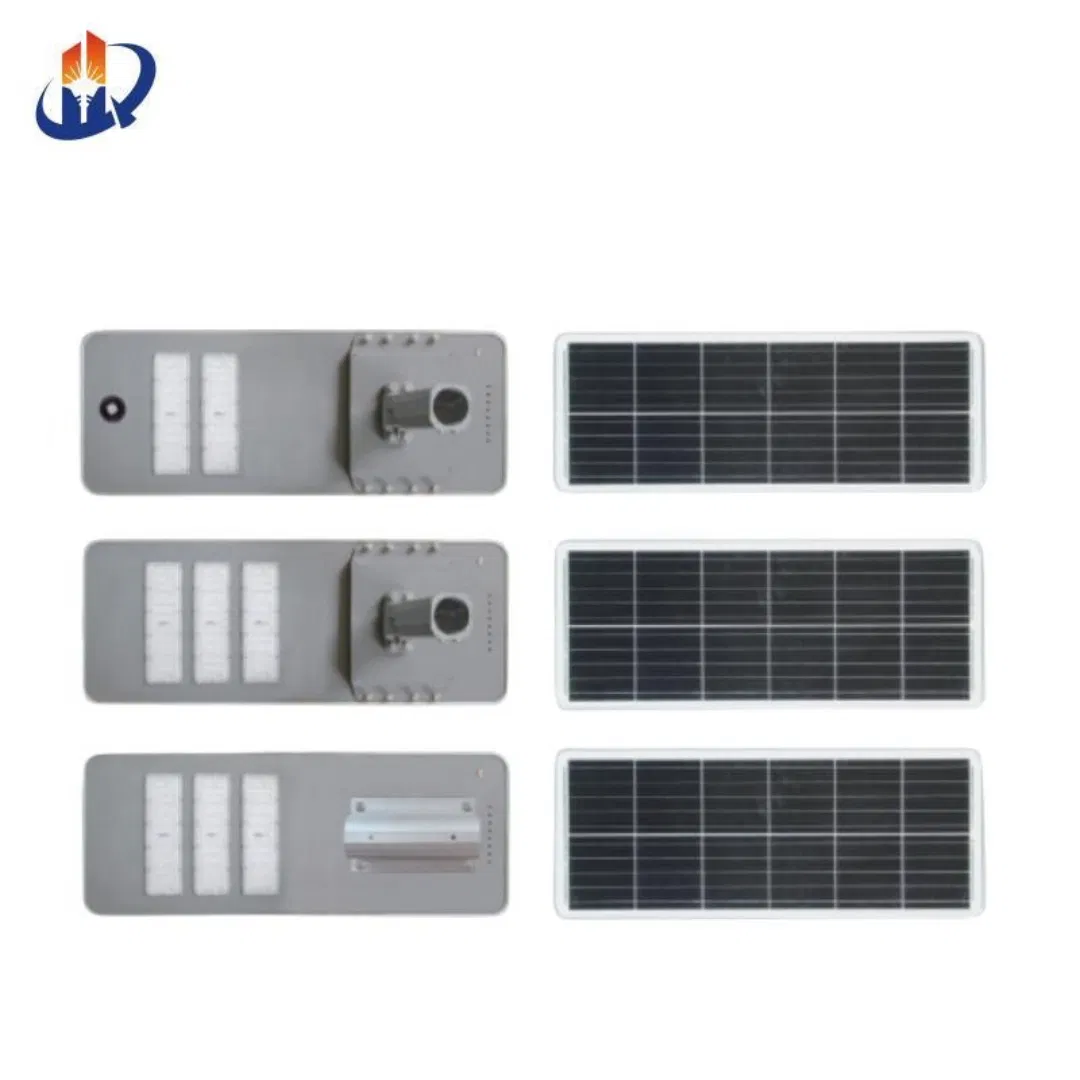

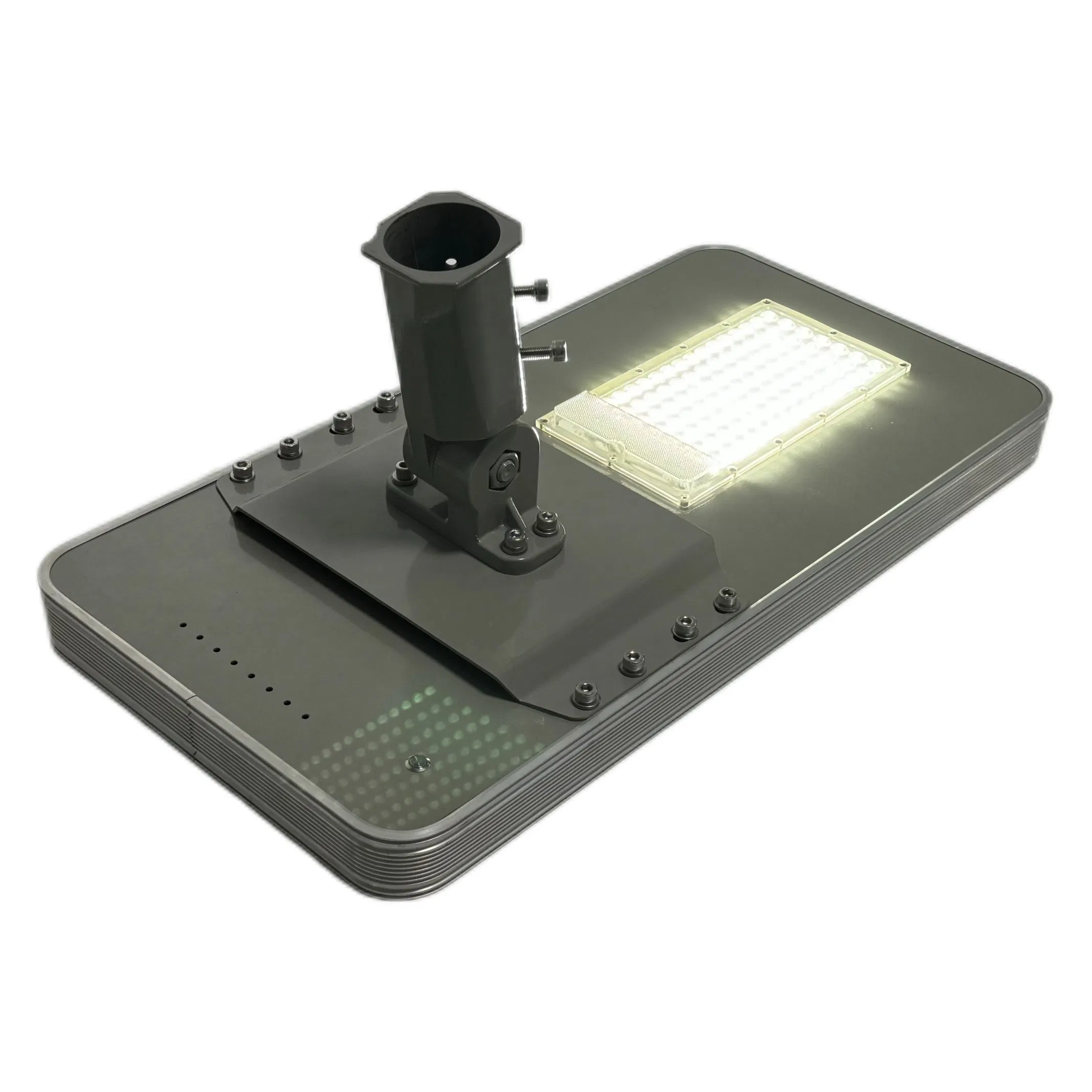

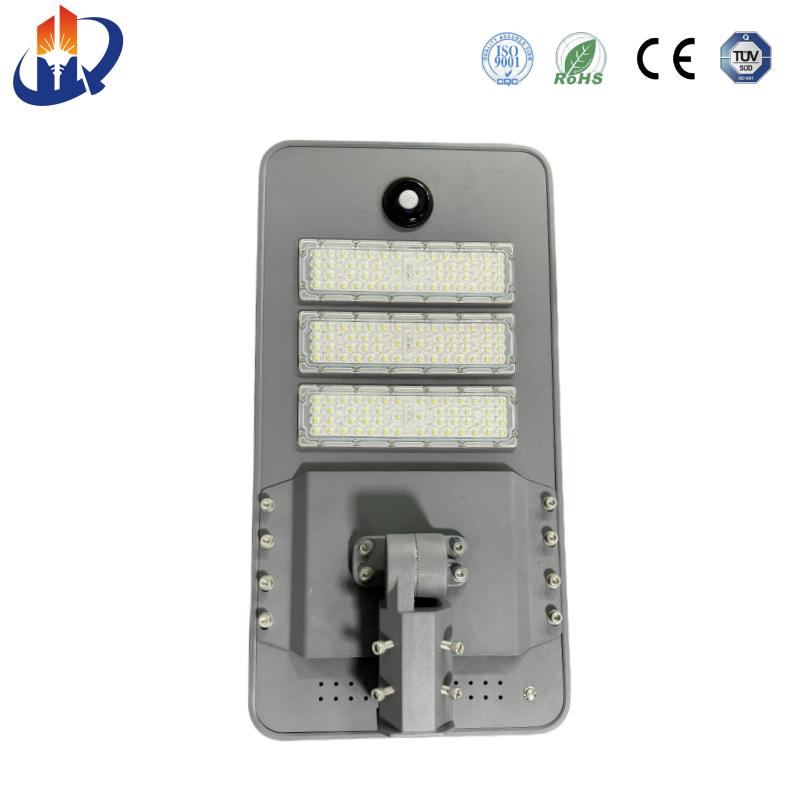

IP67 Aluminum Alloy Integrated Solar System for Street Lighting

Illuminate streets with our IP67 Die Casting Aluminum Alloy 60W-120W integrated Solar Street Light. Harness solar energy efficiently for outdoor lighting with high brightness and durable construction.

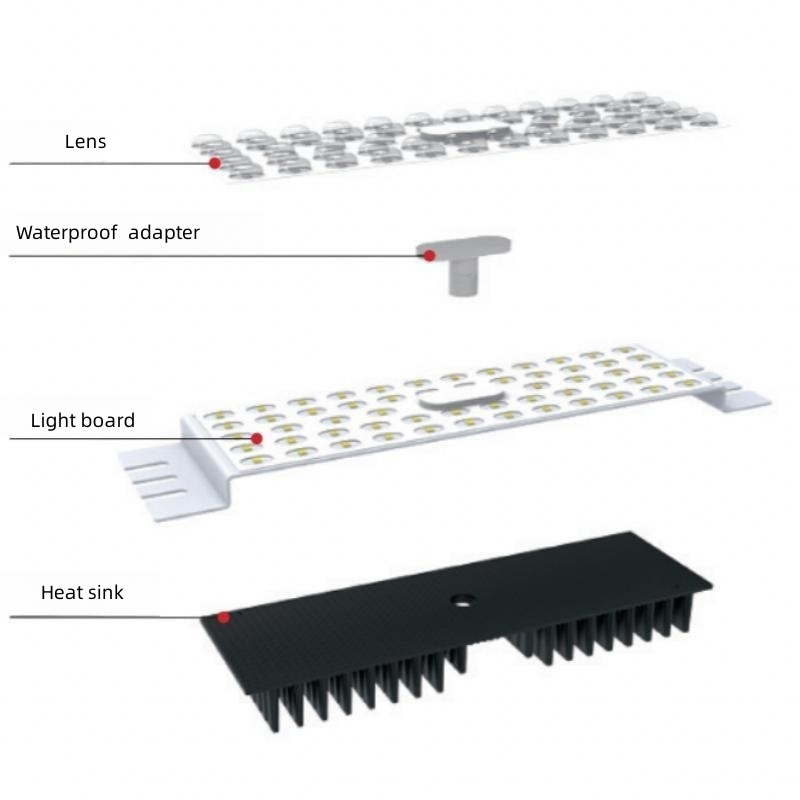

LED Lamp	High Power LED, High Brightness, Die-casting Aluminum
	Power Range: 30-300W
	Light Efficiency: 150-180lm/w
	Lifetime: >80,000 hours
Solar Panel	Mono-crystalline silicon, High Efficiency 20.5%
Solar Panel	Lifetime: 25 years
Battery	LifePO4 Lithium battery, Deep Cycle, Blast Protection
	Capacity: 12.8V 24Ah
	Lifetime: 5-10 years
Operation	Work time: 8-10 hours/day, 3 days backup; Charge time: 6-7 hours

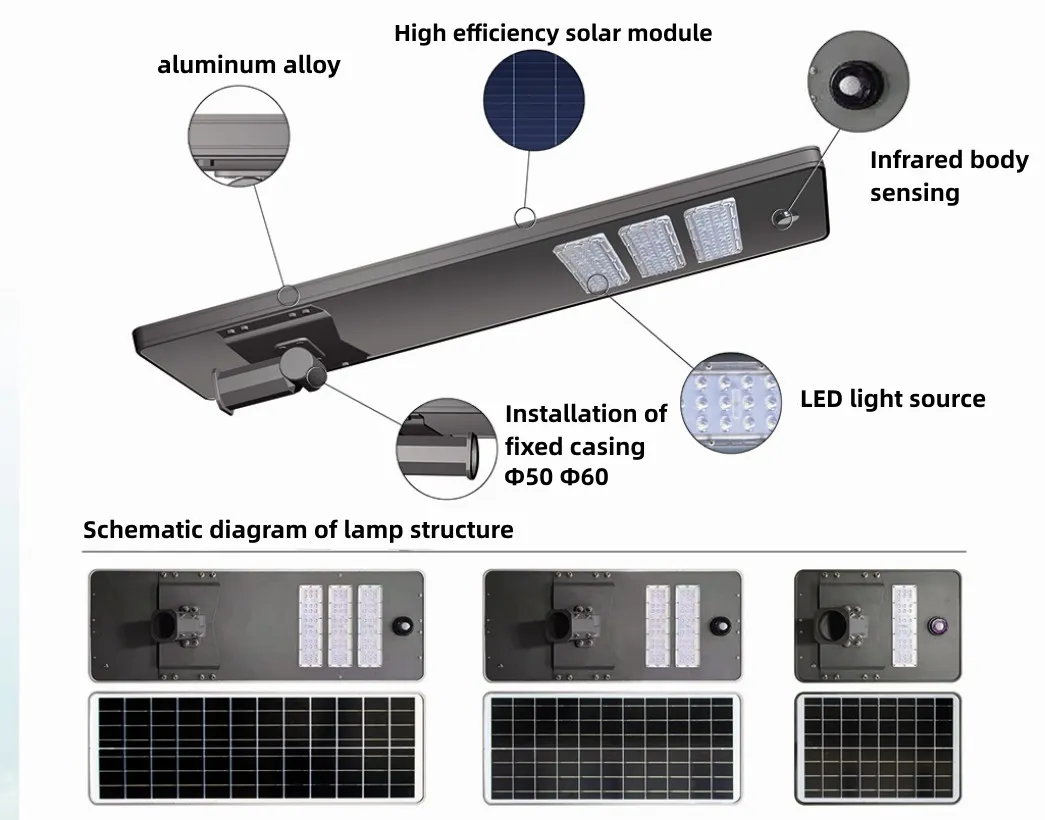

Working Principle & Intelligence

Converts solar energy into electricity, charging the lithium battery during the day even in cloudy conditions.

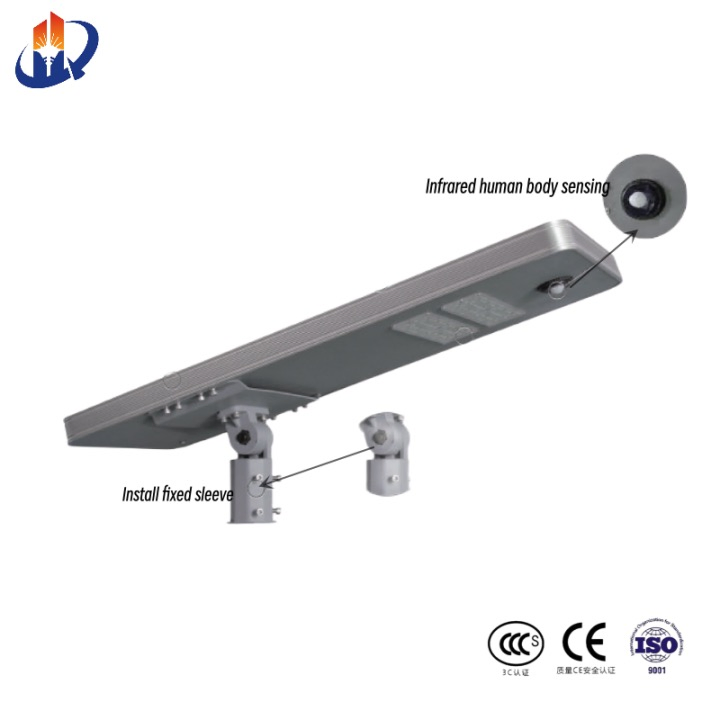

Automatically powers LED lights at night with integrated PIR sensing.
Intelligent Control: 100% brightness when movement is detected; drops to 33% brightness during inactivity to save energy.
Simple, fashionable, and modular design for easy maintenance and zero wiring.
Anti-rust and anti-corrosion properties due to high-grade alloy material.

Quality Assurance

Frequently Asked Questions

1. What is the lifespan of the battery and solar panel?

The LifePO4 lithium battery is designed to last 5-10 years, while the high-efficiency mono-crystalline solar panel has a lifetime of up to 25 years.

2. How long does the light operate on a full charge?

The system provides 8-10 hours of illumination per day and includes a 3-day backup capacity for rainy or cloudy weather.

3. How does the intelligent PIR sensing work?

The light operates at 100% brightness when it detects movement. When no movement is detected after a delay, it automatically switches to 1/3 brightness to conserve energy.

4. Is the solar street light waterproof?

Yes, the system has an IP67 rating, meaning it is highly resistant to dust and can withstand powerful water jets or temporary immersion, making it ideal for outdoor use.

5. What materials are used in the construction?

The main housing is made of high-quality Aluminum Alloy, providing excellent anti-rust and anti-corrosion properties for long-term outdoor durability.

6. What is the warranty period for this product?

We provide a 5-year warranty on the integrated solar street lighting system.
