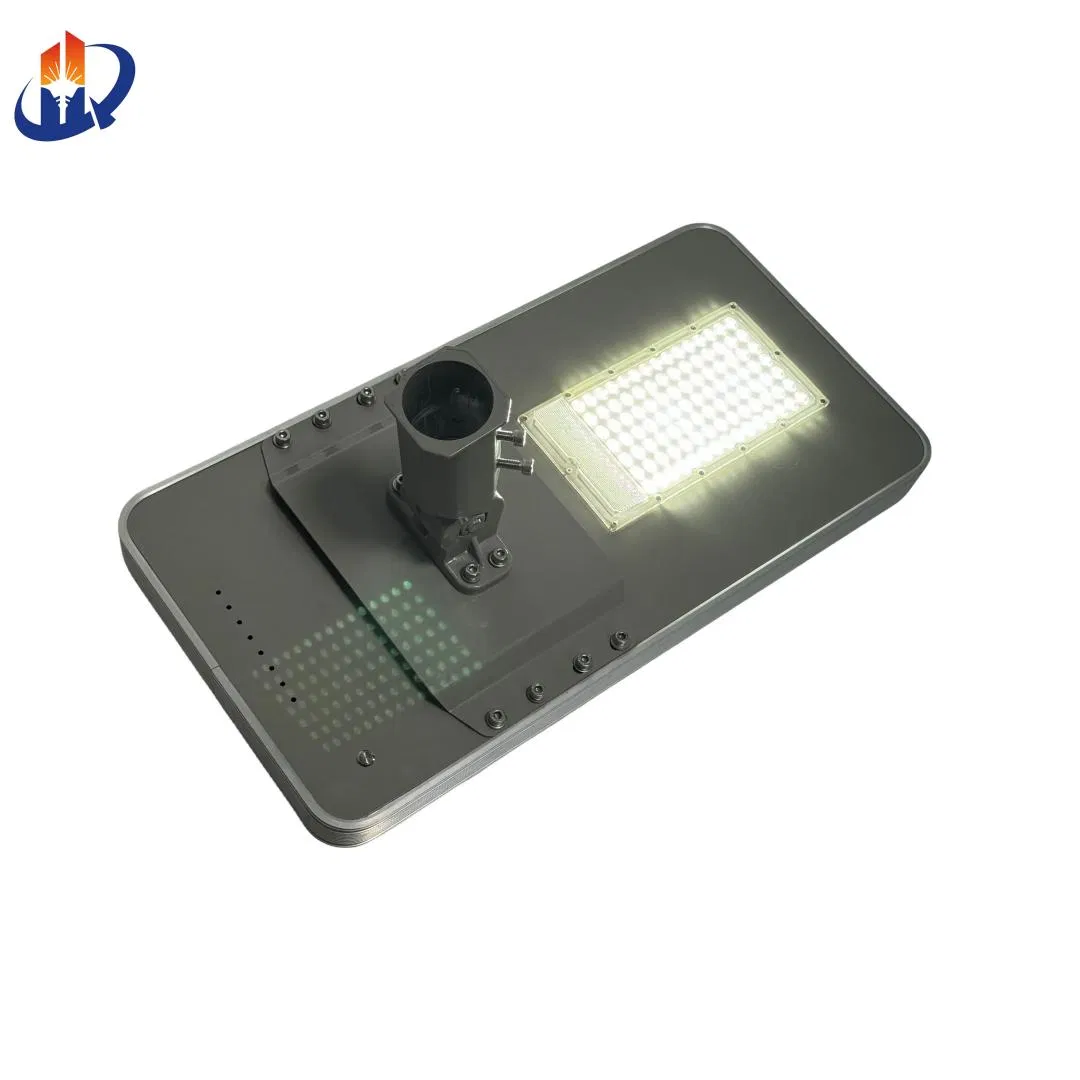

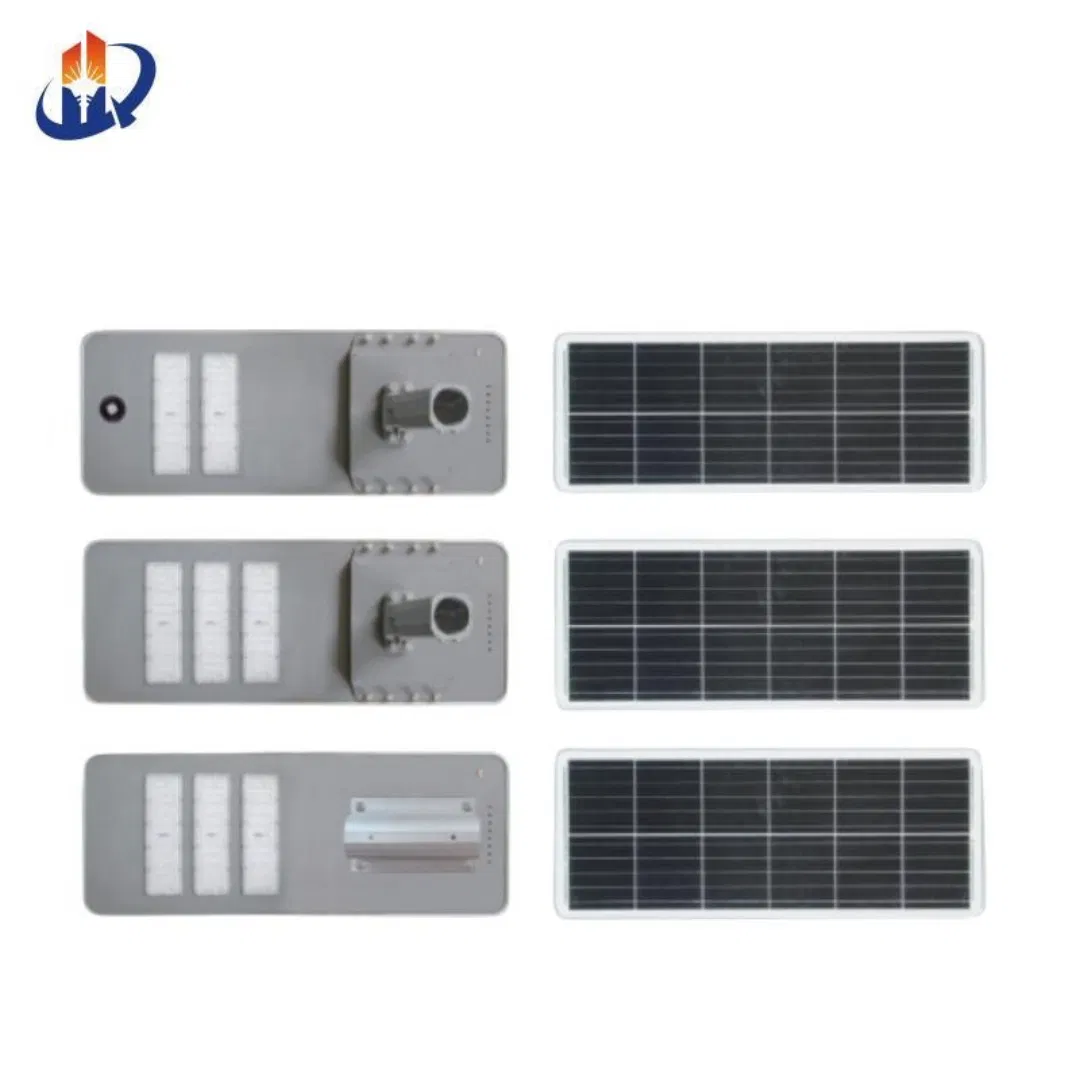

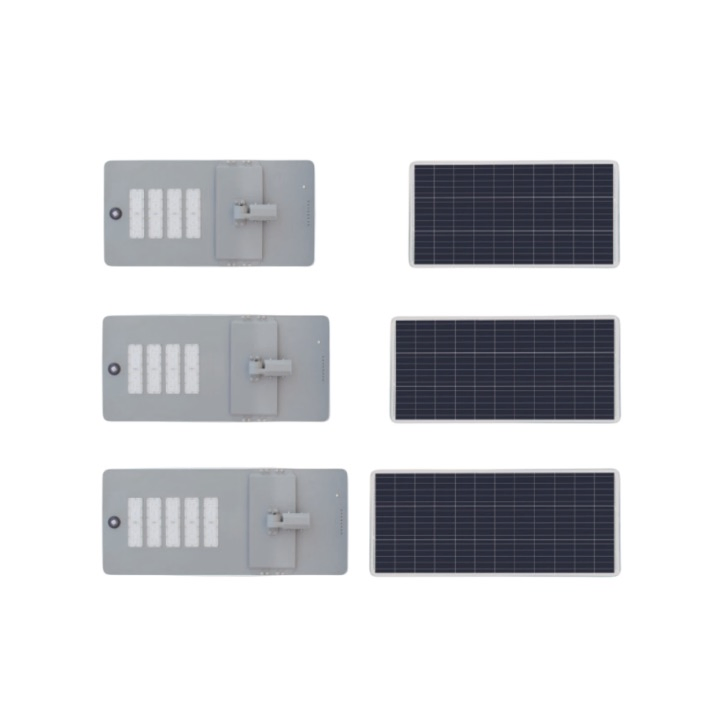

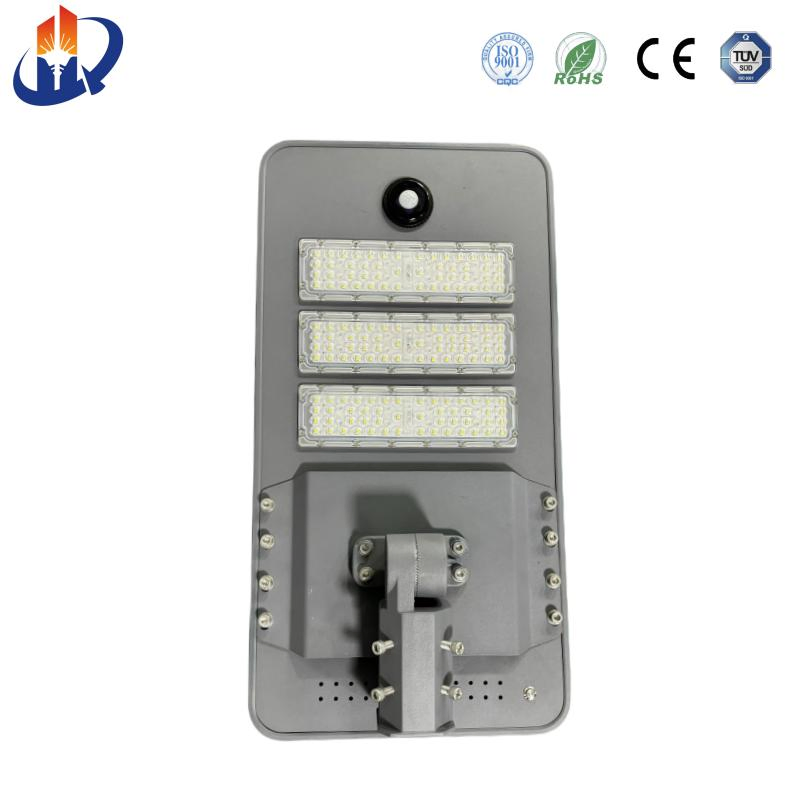

IP67 Aluminum Alloy All-in-One Solar System for Street Lighting

1 / 5

IP67 Aluminum Alloy All-in-One Solar System for Street Lighting

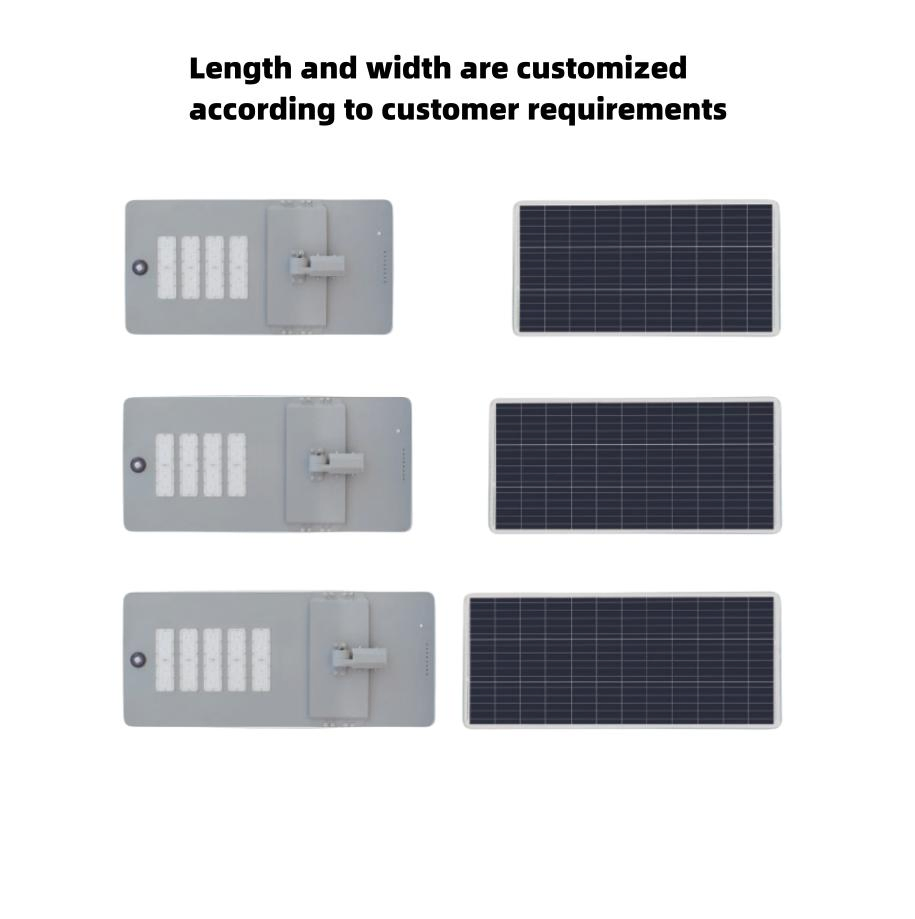

Customization:	Available
Power Supply:	Solar
Color Temperature:	2700K-6000K Customizable

Send Inquiry

Product Description

Technical Specifications

Model NO.

XYD-0155

Material

Aluminum/Stainless Steel

Power

>200W

IP Rating

IP67

Warranty

5 Years

Input Voltage

18V

Light Efficiency

150-180lm/W

Illumination Time

Application

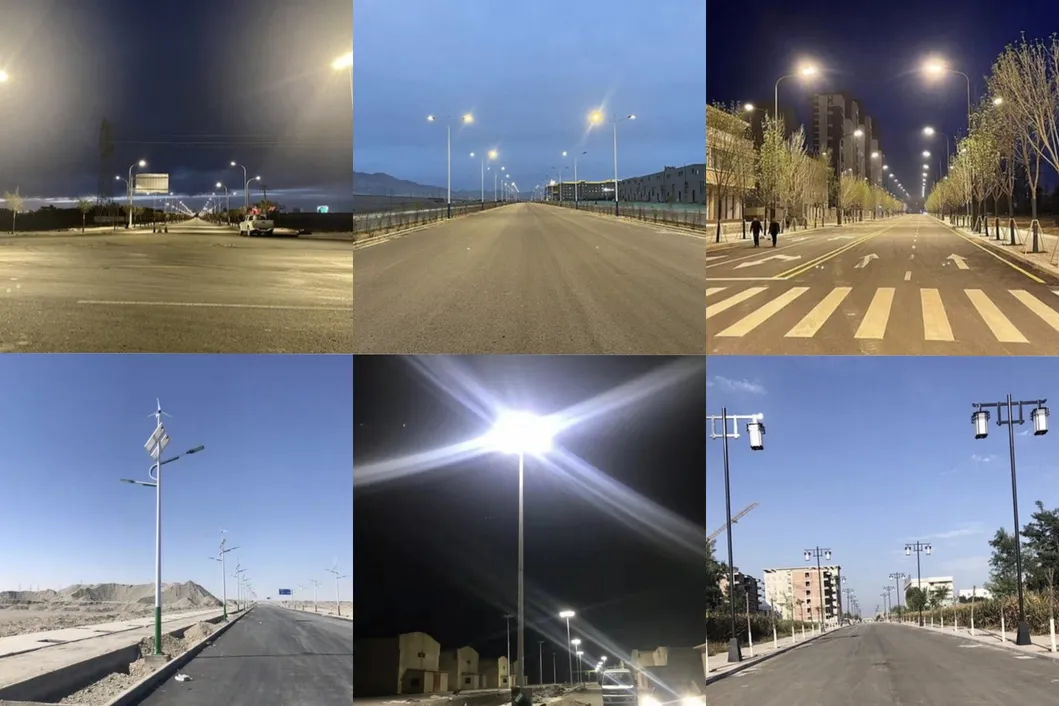

Highway, Garden, Parking Lot

Certifications

CCC, CE, RoHS, ISO

All-in-One Solar Street Lighting

This integrated solar panel light offers energy-efficient outdoor illumination with a premium aluminum alloy design. It converts solar energy into electricity, charging the lithium battery during the day even on cloudy days, to automatically power the LED lights at night.

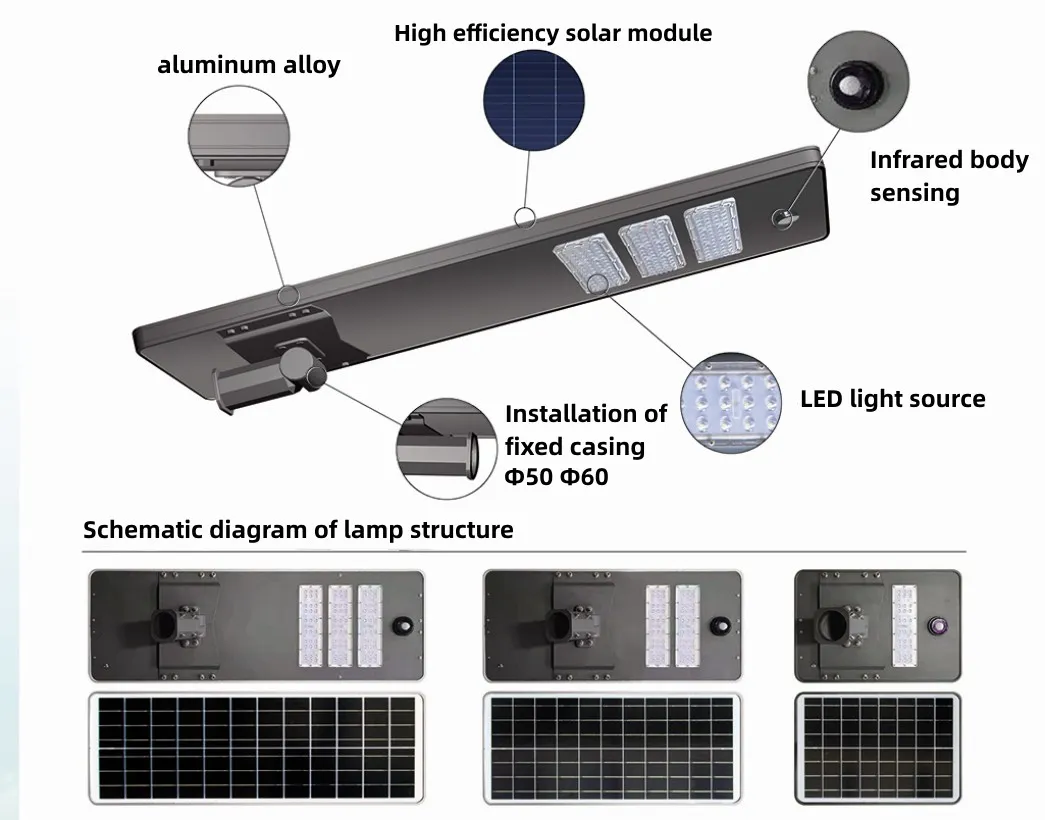

Component	Details
LED Lamp	30-300W, High Brightness, Famous Brand Chips, >80,000 hrs lifetime
Solar Panel	Mono-crystalline silicon, 20.5% Efficiency, 25 years lifetime
Battery	LifePO4 Lithium, Built-in, 12.8V 24Ah, 5-10 years lifetime
Controller	Intelligent PIR Motion Sensing, Automatic Energy Optimization
Charging	6-7 Hours (Strong Sunlight) for 8-10 hours work time

Product Advantages

Intelligent Induction: Human infrared induction adjusts brightness based on movement to save energy.
High-Capacity Battery: Lithium battery ensures a long product lifespan of up to 8 years.
Easy Installation: No wiring required; modular design allows for easy maintenance.
All-Weather Ready: Waterproof IP67 structure ensures safety and reliability in all conditions.
Durable Body: Alloy material provides excellent anti-rust and anti-corrosion properties.

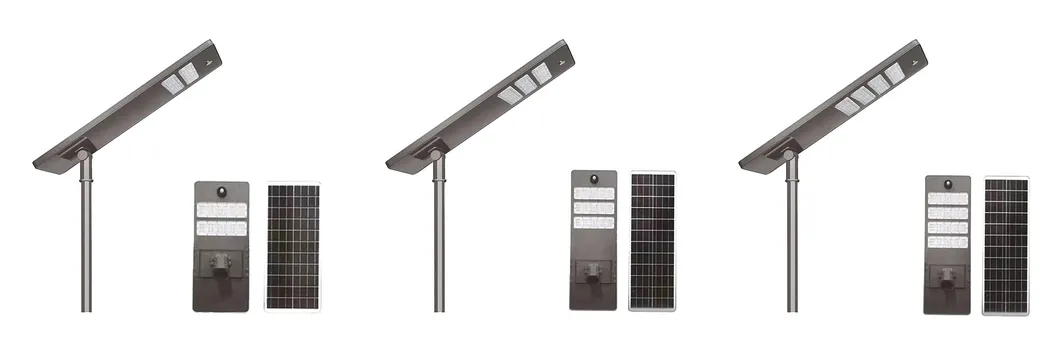

Visual Overview

Frequently Asked Questions

How does the PIR motion sensor work?

The lamp provides 100% brightness when detecting movement and automatically switches to 1/3 brightness after a delay when no movement is detected to maximize energy efficiency.

What is the expected lifespan of the battery?

The LifePO4 lithium battery is designed for deep cycles and high performance, with an expected lifetime of 5 to 10 years depending on environmental conditions.

Is it difficult to install this solar street lighting system?

No, the all-in-one modular design means no complicated wiring is required. It is designed for simple and quick installation.

Can the lamp work in extreme temperatures?

Yes, the system is designed to operate efficiently within a working temperature range of -30ºC to +70ºC.

What is the warranty for this product?

The system comes with a comprehensive 5-year warranty, ensuring long-term reliability and performance.

What happens on rainy or cloudy days?

The high-efficiency mono-crystalline solar panels can still collect energy on cloudy days, and the system typically includes a 3-day battery backup.
