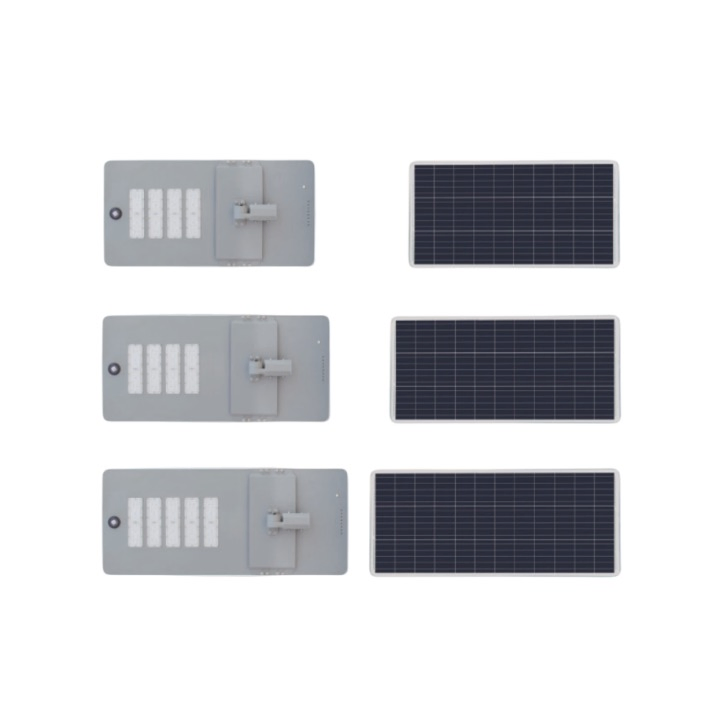

IP67 Aluminum Alloy Integrated Solar Panel LED Display Lighting System

Customization:	Available
Power Supply:	Solar
Color Temperature:	2700K-6000K Customizable

Send Inquiry

Product Description

Basic Information

Model NO.

XYD-0155

Lamp Body Material

Aluminum/Stainless Steel/Galvanized

Power

>200W

Application

Square, Highway, Garden, Parking Lot

IP Rating

IP67

Certification

CCC, CE, RoHS, ISO, ISO9001 ISO14001 ISO45001

Input Voltage

18V

Warranty

5 Years

Light Efficiency

150-180lm/W

Viewing Angle

140*70 Degree

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 1000.00cm

Package Gross Weight

15.000kg

Product Description

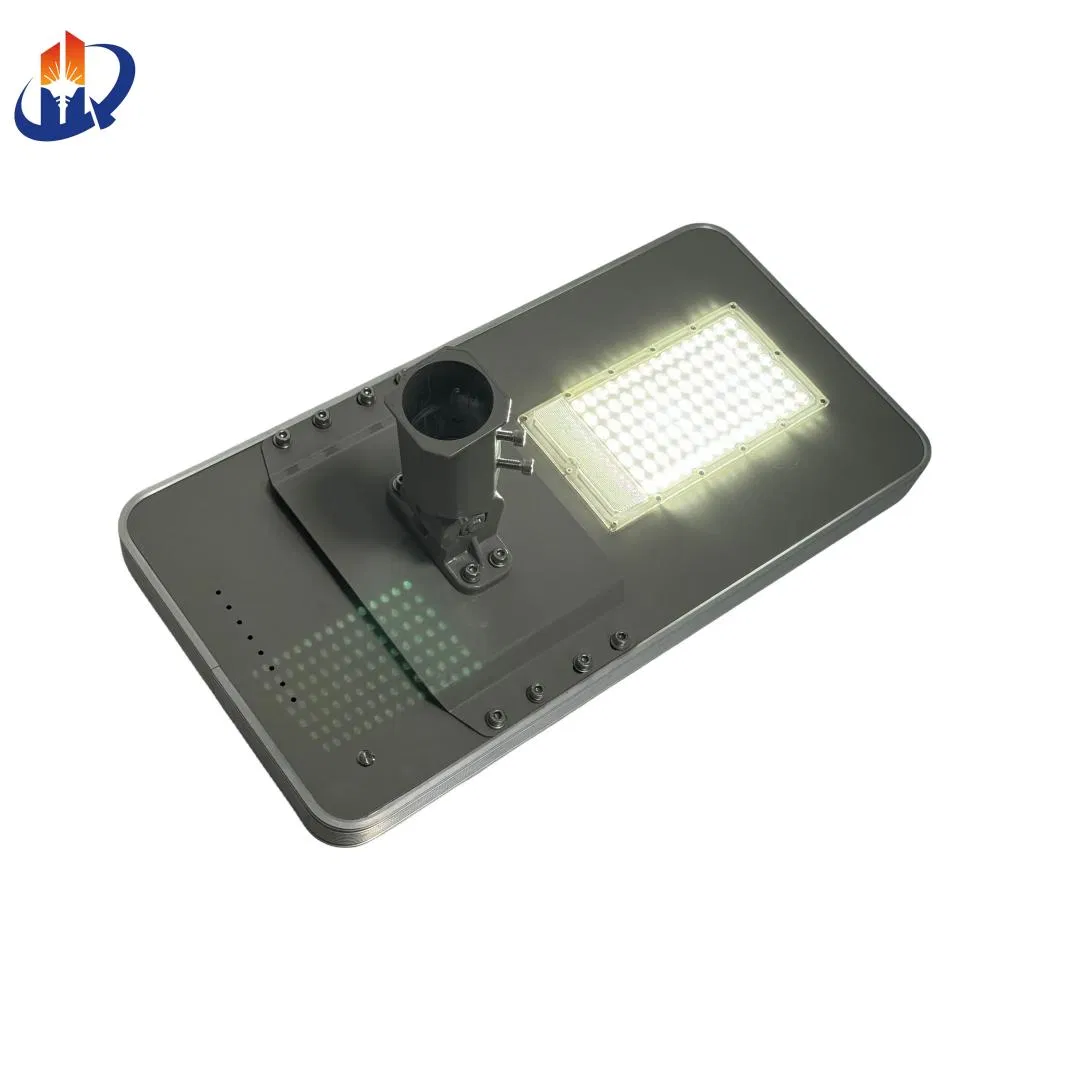

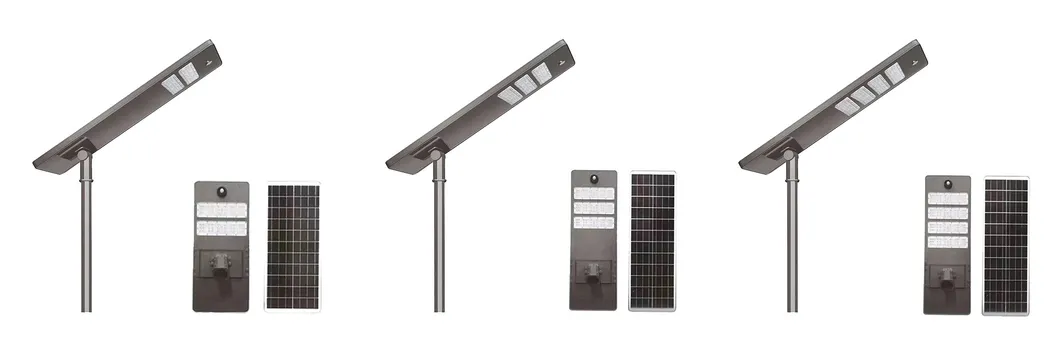

IP67 Aluminum Alloy Integrated Solar Panel LED Display Lighting System

Illuminate your outdoor space with our Integrated Solar Street Light. This system combines solar energy and LED technology for efficient lighting.

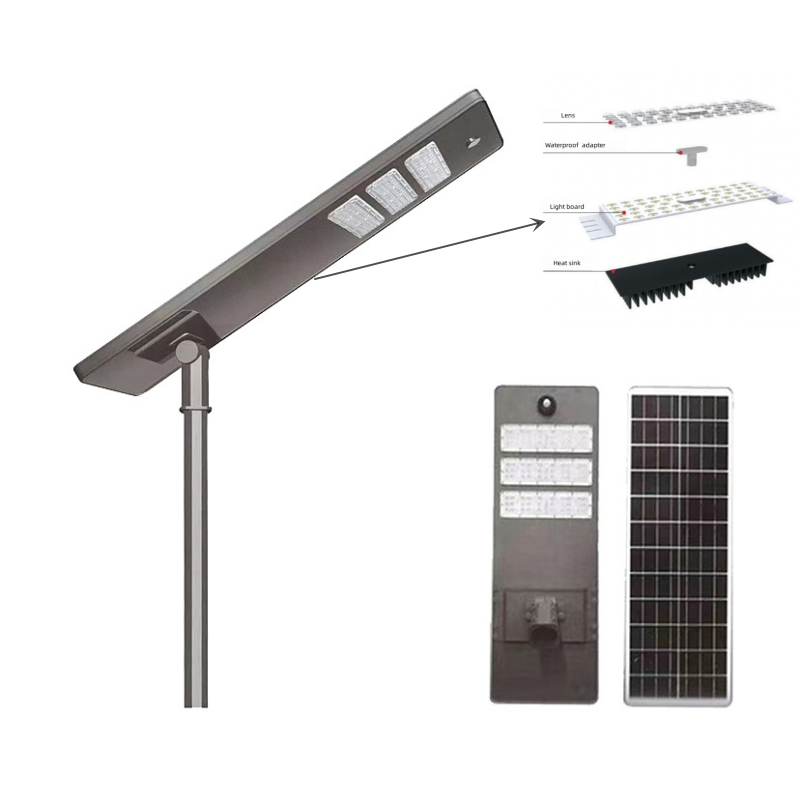

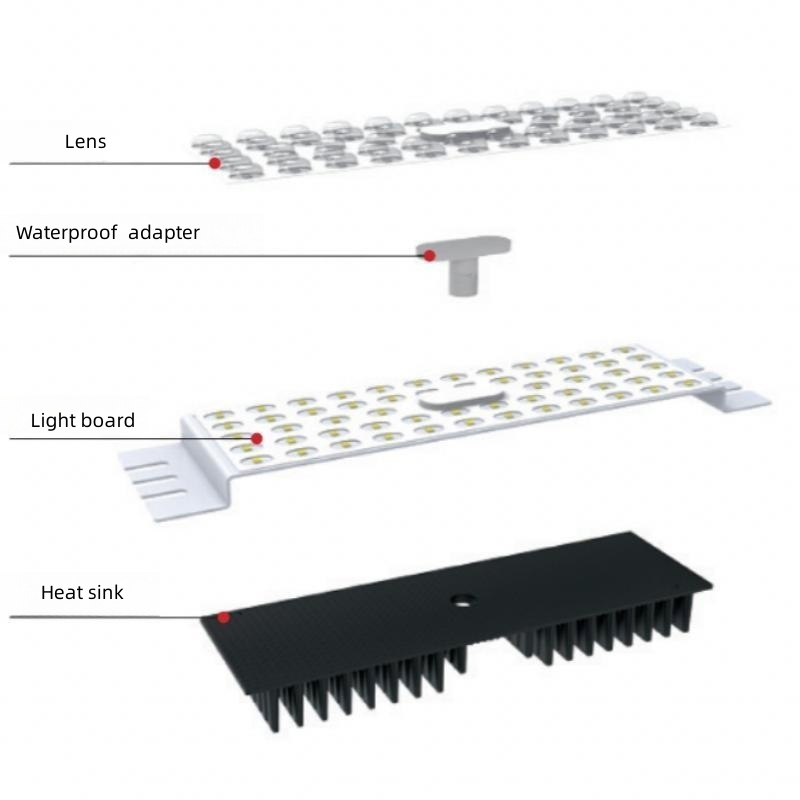

LED Lamp	High Power LED, High Brightness, High transmittance & Density LED Lens, Die-casting Aluminum
	Power	30-300W
	LED chip brand	Famous brand
	Light Efficiency	150-180lm/w
	Lifetime	>80000hours

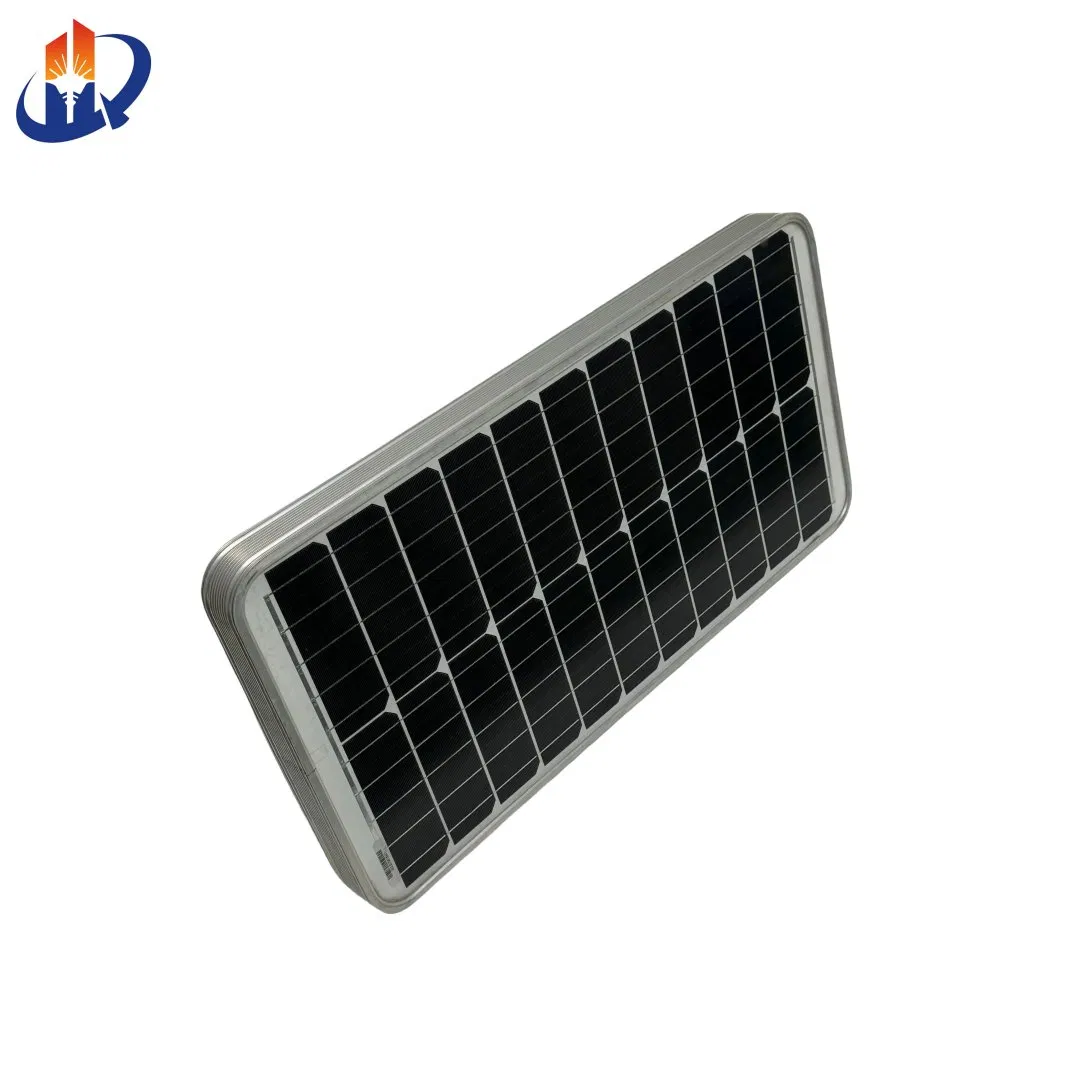

Solar Panel	Mono-crystalline silicon. A Quality High Efficiency 20.5% Mono crystalline Silicon
	Lifetime	25 years
Lithium battery	LifePO4 lithium battery, Built-in LED lamp, with charge controller, Fireproofing, Deep Cycle. Maintenance Free, Blast Protection.
	Capacity	12.8V24Ah
	Lifetime	5-10 years
Work time	8-10hours per day, 3 days back up
Charge Time	6-7 Hours (with Enough Strong Shine)
Working Temperature	-30ºC~+70ºC

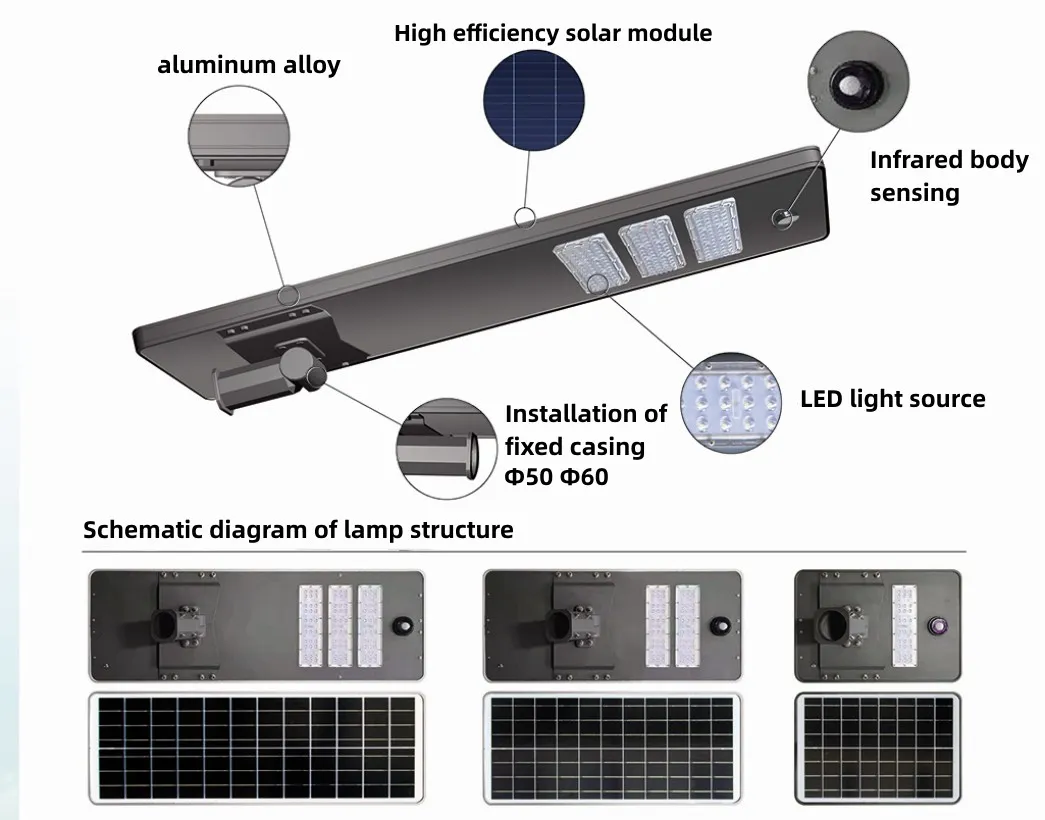

Core Features & Benefits

✔Converts solar energy into electricity efficiently.
✔Charges high-capacity lithium battery for reliable night lighting.
✔PIR sensing function for intelligent energy-saving: 100% brightness when humans are present, 1/3 brightness when absent.
✔Integrated design: simple, fashionable, lightweight, and practical.
✔No wiring required for easy installation and enhanced safety.
✔Anti-rust and anti-corrosion properties thanks to high-quality alloy material.

Intelligent Operation

During the day, the solar panel collects and stores energy, ensuring reliable lighting even on cloudy days. At night, the integrated solar street lamp automatically illuminates using stored energy, with intelligent control based on human presence. Experience the benefits of renewable energy with this advanced lighting solution.
