IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
1 / 5
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System
IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System

IP66 Ce RoHS Wind and Solar Hybrid LED Street Lighting System

Customization: Available
Light Source: LED Light
Color Temperature(CCT): Cool White
Send Inquiry

Product Description

Basic Specifications
Model NO.dsxd65
Lamp Body MaterialAluminum
Lamp Power60W
Power SupplyDC
Average Life5500h
IP RatingIP66
Voltage24V
CertificationCE, RoHS, CCC, ISO, FCC, EMC, GS
Production Capacity50000PCS/Month
HS Code54094090
Key Features
  • Hot galvanized street light post with customized powdered painting.
  • Available heights: 3m, 4m, 5m, 6m, 8m, 9m, 10m, 12m.
  • Production Capacity: Up to 20,000 poles per month.
  • Vertical production lines for strict quality and cost control.
  • High-quality Q235/SS400 steel material.

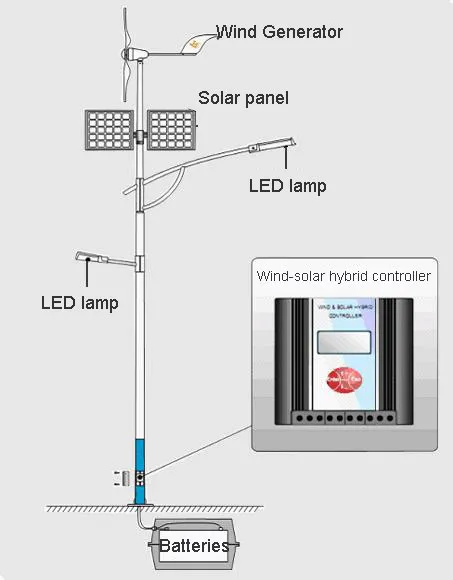

LED Street Lighting System

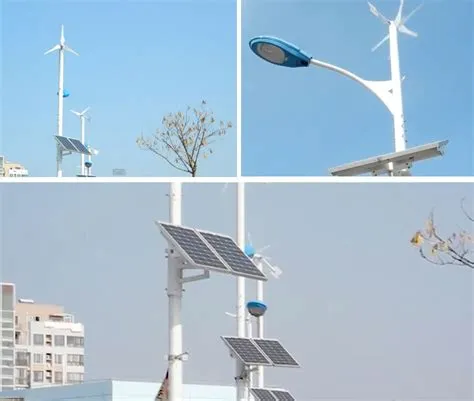

Hybrid LED Street Lighting System
Technical Specifications
Welding StandardGB11345 Grade II
Zinc Coating≥ 86um
Anti-wind Capacity36.9m/s
Anti-corrosion Life≥ 20 years
Hardness≥ 2H
Pole TypeConical, Polygonal
Item Pole Height LED Lamp Solar Panel Battery Controller
DXSS306m30W90W120AH10A/12V
DXSS608m60W180W2*120AH10A/24V
DXSS12012m120W2*180W2*220AH10A/24V
Lighting Pole Details
Height (m) Dimension (mm) Thickness (mm) Flange size (mm)
660/1402.75240*240*12
870/1803280*280*14
1070/1703.5300*300*16

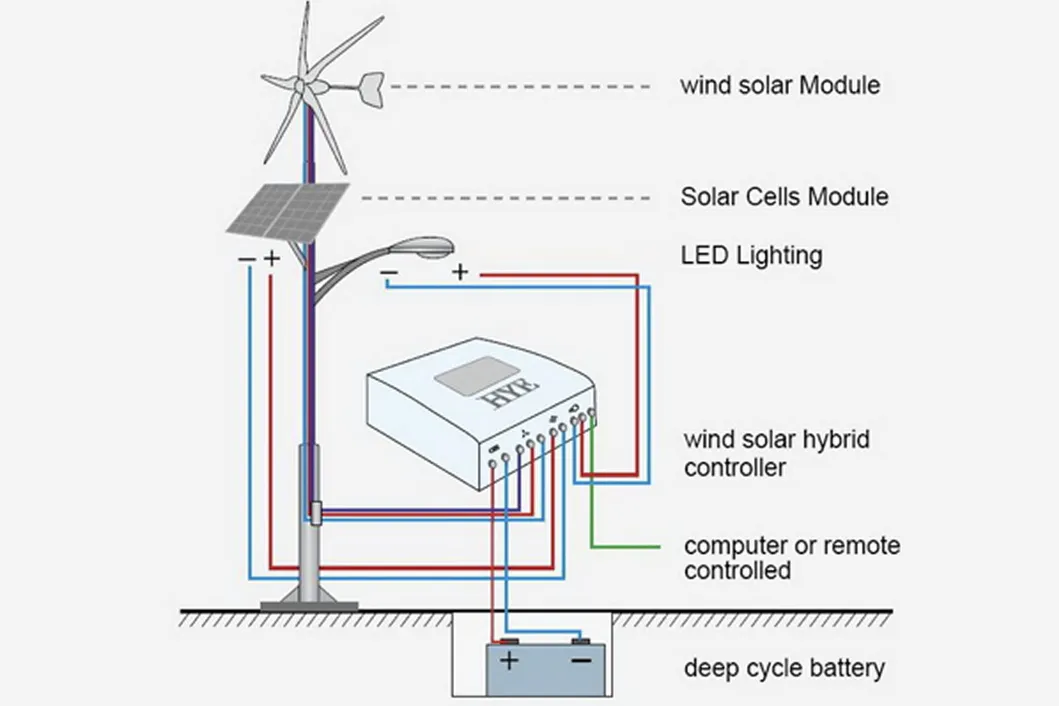

Lighting Pole Specification
Packaging & Delivery

Packaging: Bulb wrappings for FCL goods; felt wrapping followed by bulb wrappings for LCL street light poles.

Lead Time: Generally 20 working days for an order of 100 galvanized steel light poles.

Production Process: Plate cutting → Plate bending → Auto-welding → Polishing → Spray painting → Packaging.

Frequently Asked Questions
What materials are used for the street light poles?
We use high-quality Q235 and SS400 steel sourced from reputable steel groups to ensure durability and strength.
What is the lifespan of the anti-corrosion coating?
The hot-dip galvanizing and powder painting treatment provides an anti-corrosion lifetime of 20 years or more.
Are the street light poles wind-resistant?
Yes, our poles are designed with an anti-wind capacity of up to 36.9m/s.
What height options are available for the poles?
We offer a wide range of heights from 3 meters up to 12 meters, with options for conical or polygonal shapes.
What certifications do your products hold?
Our products are fully certified with CE, RoHS, CCC, ISO, FCC, EMC, and GS standards.
What is the typical delivery time for orders?
Standard orders, such as 100 galvanized poles, typically take about 20 working days to complete and prepare for shipment.
