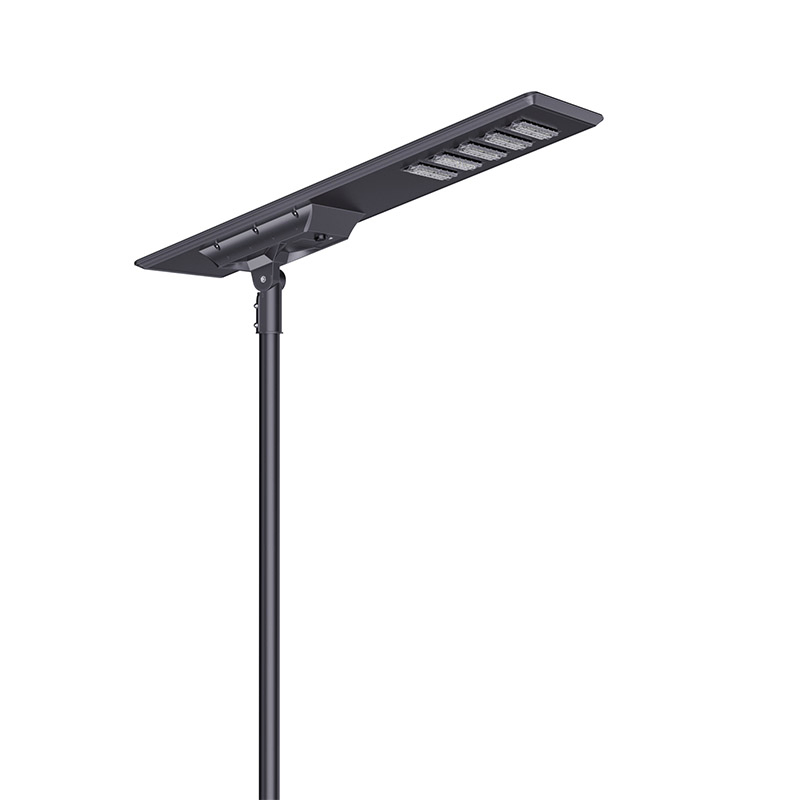

IP65 Solar Street Lighting System with Rotatable LED Module and Long Lifespan Battery

● Overview

Model NO.

ZAIN

Lamp Body Material

Aluminum Alloy

Lamp Power

50W-180W

Power Supply

Solar

IP Rating

IP65

Certification

CE, RoHS, CB

Warranty

5 Years

Battery Capacity

25.6V 60ah

Solar Controller

MPPT with Sensor

Average Life

5500h

● Product Description

ZAIN is the premium solar lighting solution designed for demanding outdoor environments. With a versatile power range from 50W to 180W, it is ideal for pole heights ranging from 5 to 14 meters.

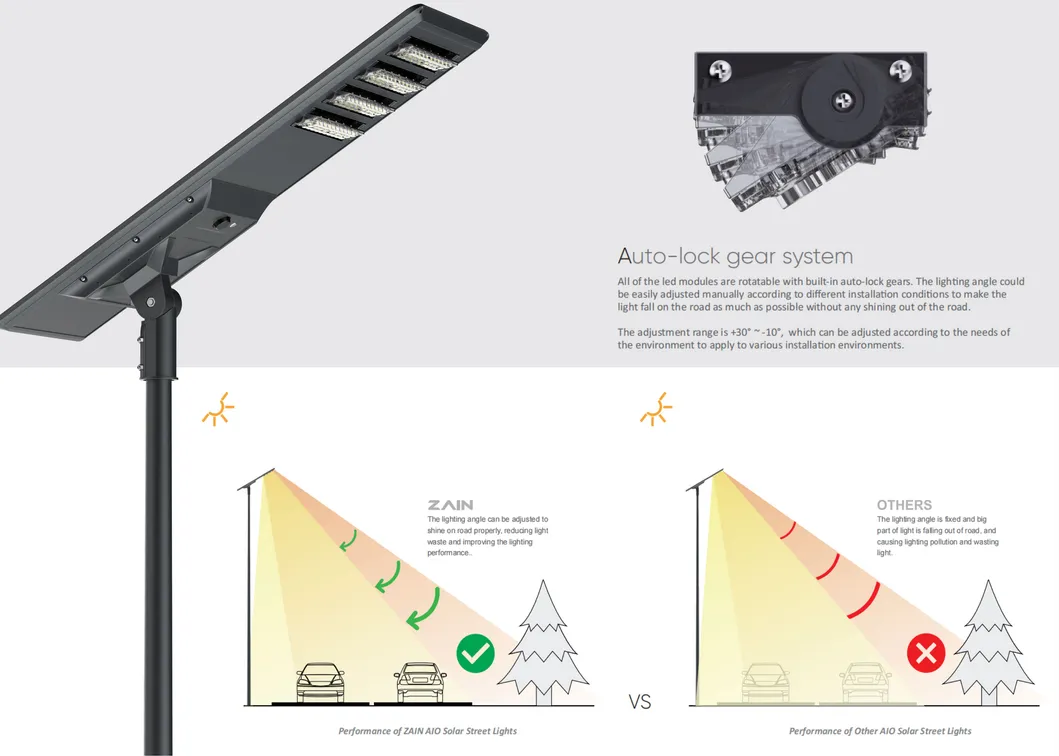

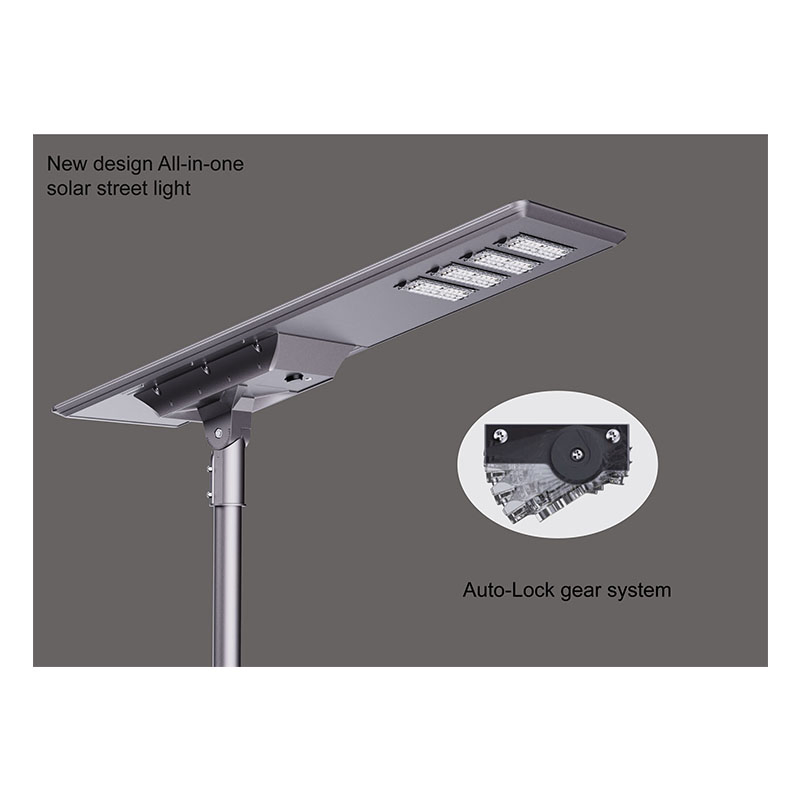

Adjustable LED Modules
The angle of the LED modules can be manually adjusted to optimize light distribution on the road while ensuring the solar panel maintains maximum sun exposure.

High Efficiency Solar Panel
Equipped with solar panels up to 196W and a massive 25.6V 60AH battery capacity for reliable performance.

Easy Maintenance
The solar panel and battery box are integrated with a simple six-screw attachment system, making future repairs or replacements quick and accessible.

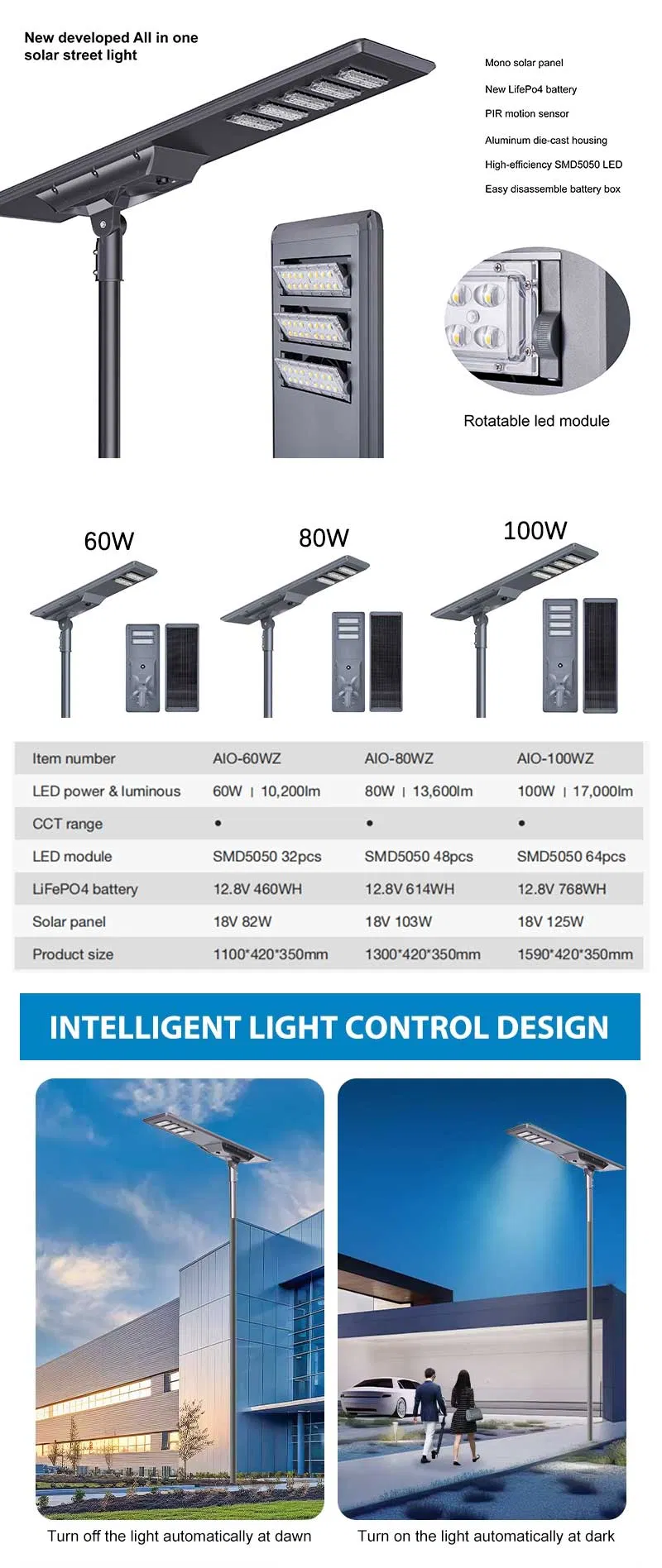

● Product Parameters

Model Type	Power	Dimensions	LiFePO4 Battery	Solar Panel	Protection
Integrated Solar Street Lamp	60W	1100420350mm	12.8V 460WH	18V 82W MONO	IP65 / CE / RoHS
	80W	1300420350mm	12.8V 614WH	18V 103W MONO
	100W	1590420350mm	12.8V 768WH	18V 125W MONO
	120W	1360530380mm	12.8V 921WH	18V 135W MONO
	140W	1480530380mm	12.8V 1075WH	18V 158W MONO

● Detailed Photos

● Packaging & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

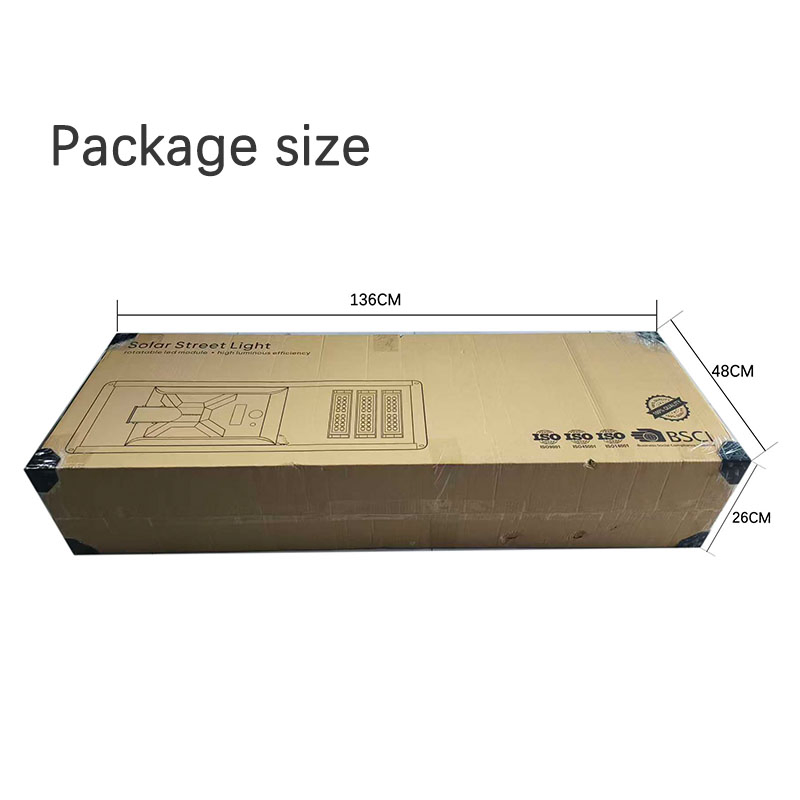

Package Size

140.00cm * 55.00cm * 40.00cm

Gross Weight

30.000kg

● Frequently Asked Questions

What is the Minimum Order Quantity (MOQ) and delivery time?

There is no MOQ required; we welcome sample testing. Mixed samples are acceptable. Samples usually take 1 week, while mass production takes 1-2 weeks for larger quantities.

How do you handle the production process and lead times?

We begin by understanding your specific requirements or application. We then provide a quote and suggestions. Once samples are confirmed and a deposit is placed, we arrange the full production cycle.

Do you offer OEM/ODM services?

Yes, we have over 18 years of manufacturing experience with dedicated design teams, engineering departments, and quality control teams to support your custom needs.

What are the available shipping methods?

We typically ship via major couriers like DHL, UPS, FedEx, or TNT, which takes 3-5 days. Airline and sea freight options are also available for larger orders.

What is the warranty period for your solar lighting products?

We offer a comprehensive warranty ranging from 2 to 5 years, depending on the specific model and configuration chosen.

How can I maintain the ZAIN series street light?

The ZAIN series is designed for easy maintenance. The solar panel and battery box can be separated by removing just six screws, allowing for simple onsite repair or component replacement.
