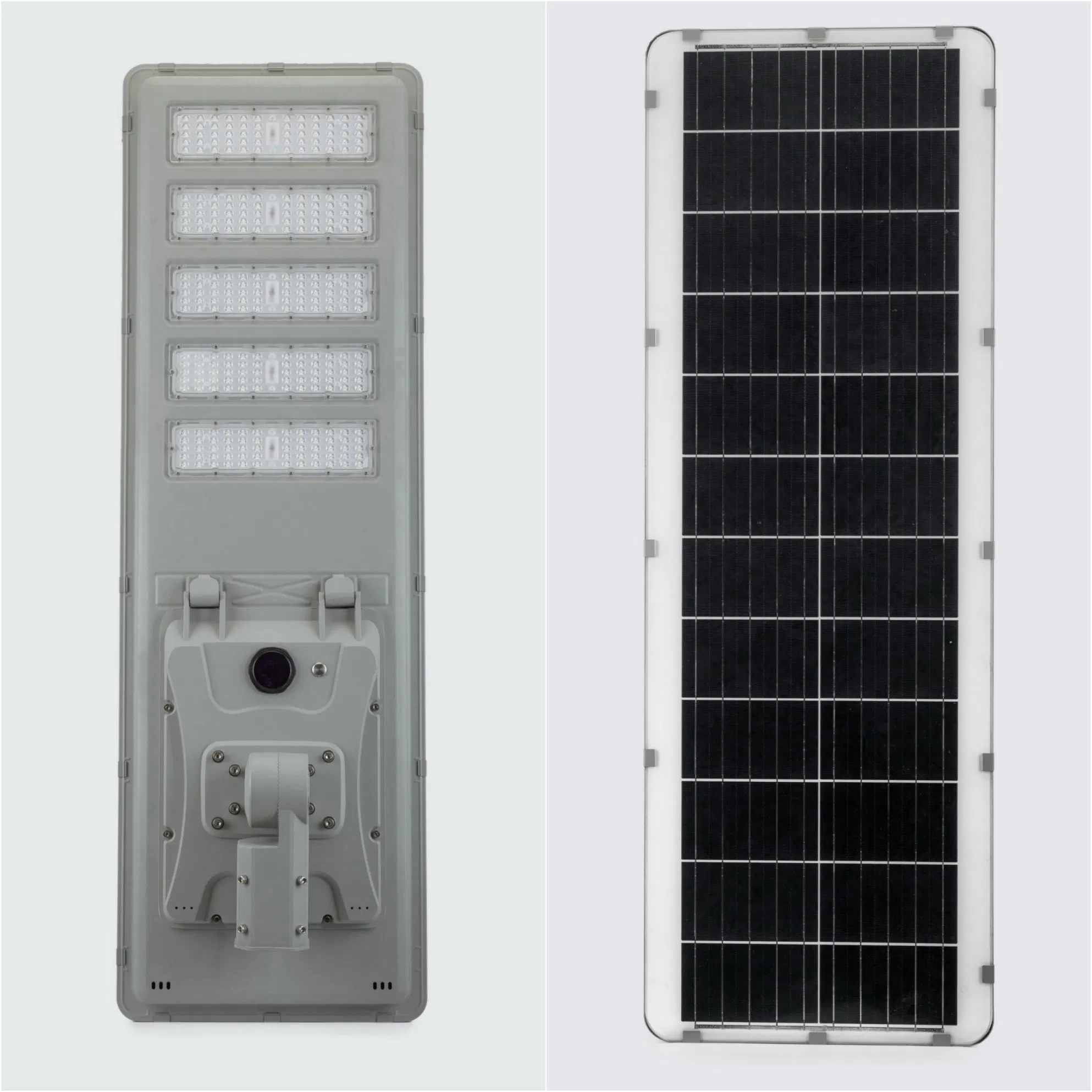

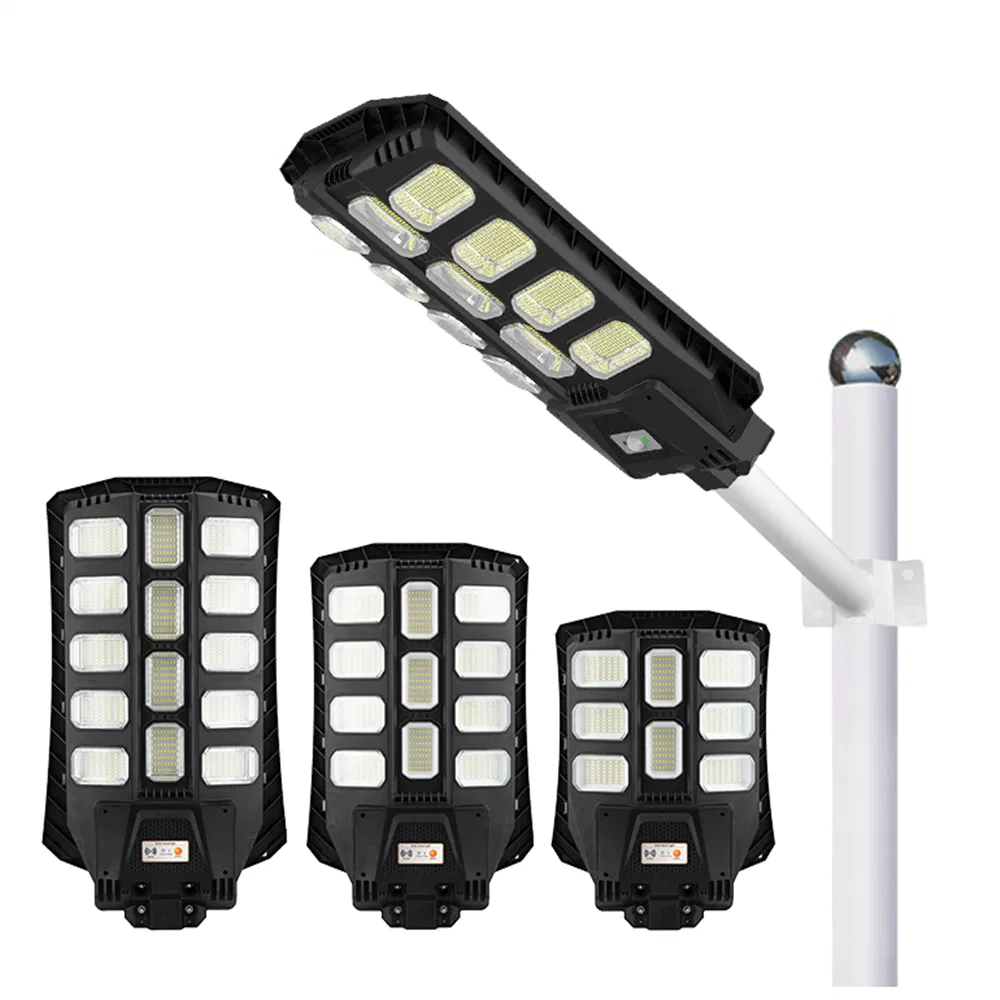

Integrated Energy All-in-One Road Street Lighting IP65 High Brightness Garden Lamp Motion Sensor LED Solar Street Light

Still deciding? Get samples of $ !
Order Sample

Product Description

🔹 Basic Information
Model NO.
WD-YL-HQ-Solar Street 100W
Light Source
LED Lamp
Material
Aluminum
Light Type
Solar
Color Temperature
3000K-6500K
Power
≥30W
Illumination Time
12h
Cell Type
Lithium Battery
Charging Time (H)
6
IP Rating
IP65
Certification
CE, RoHS
Solar Panel
Monocrystal Silicon
Function
Time Control+Radar Sensor
Package Size
131.00cm * 45.00cm * 12.00cm
🚀 Product Features

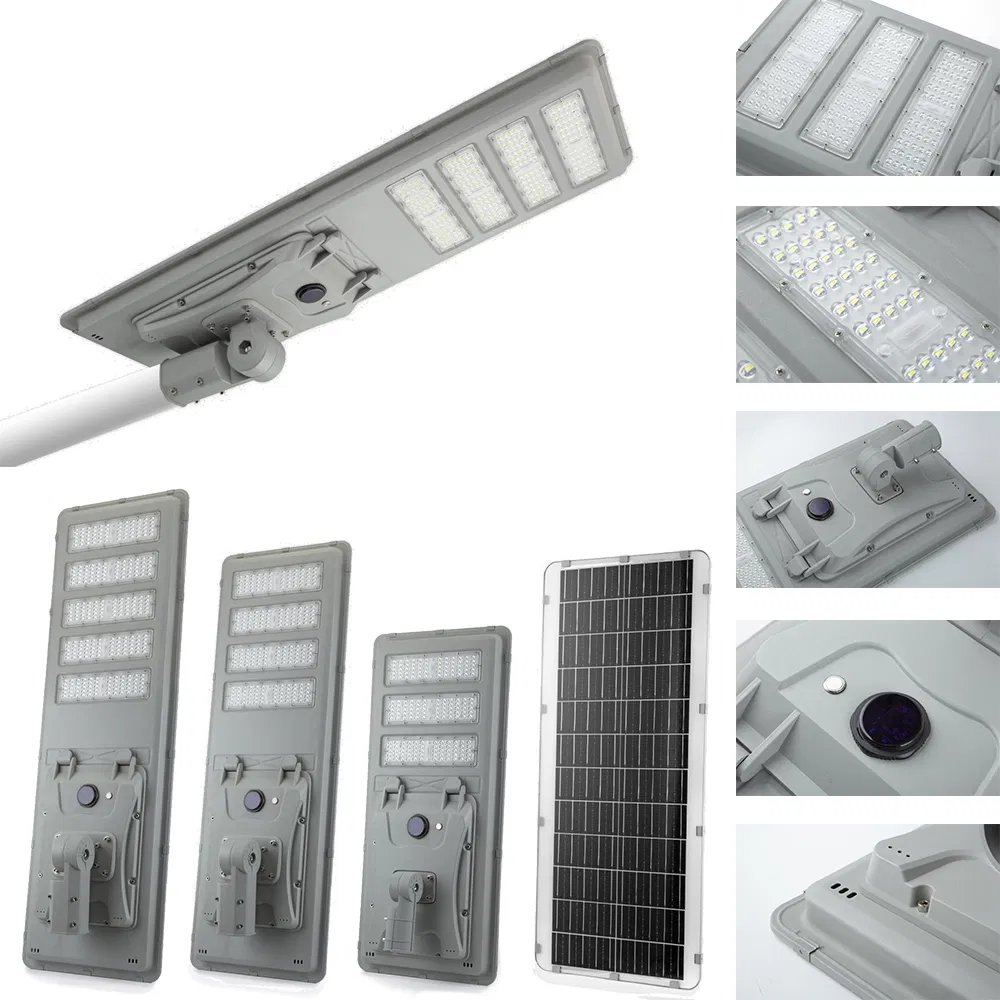

High Power High Lumen IP65 Outdoor Integrated All In One Motion Sensor LED Solar Street Light
Light control system
Motion sensor (Full bright for someone, 20% bright for none)
Intelligent time control
LED screen for battery power display

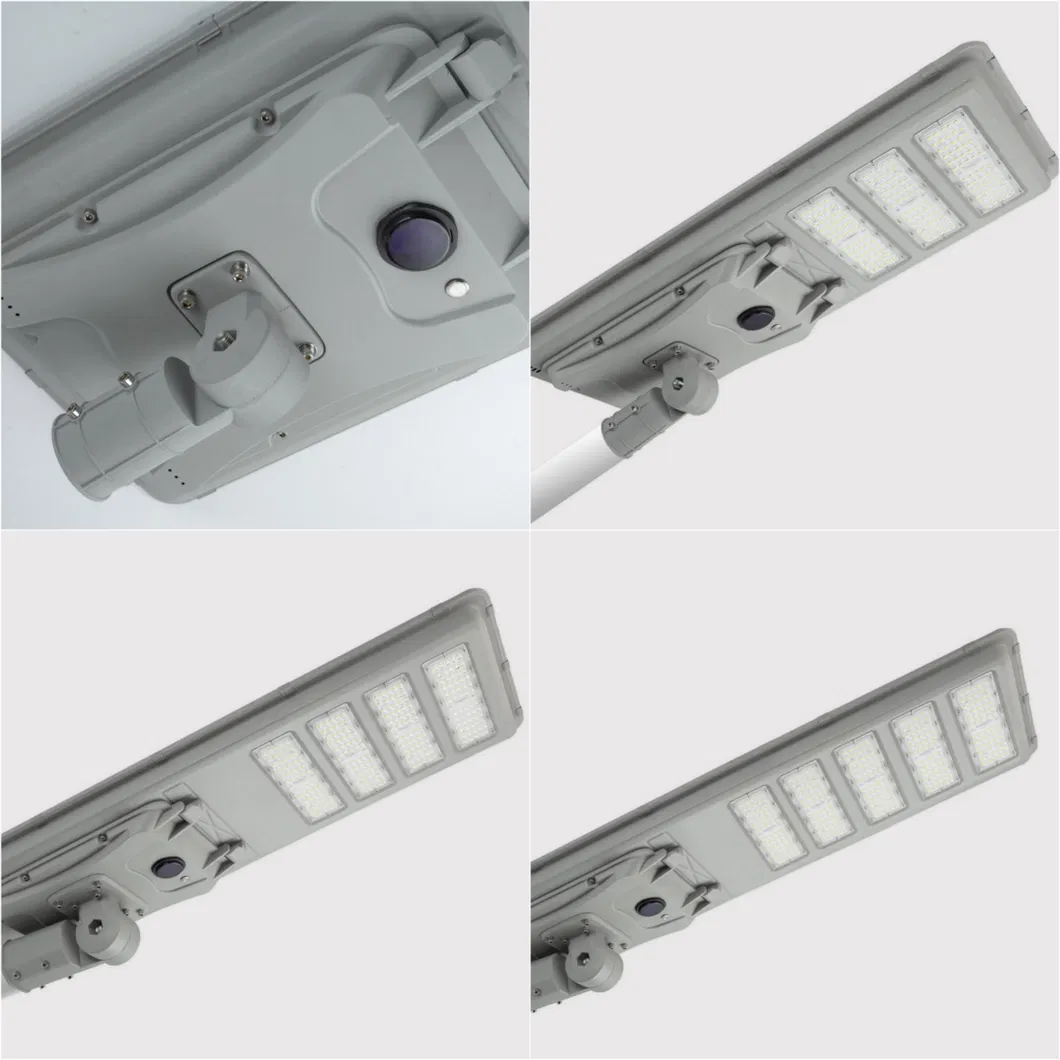

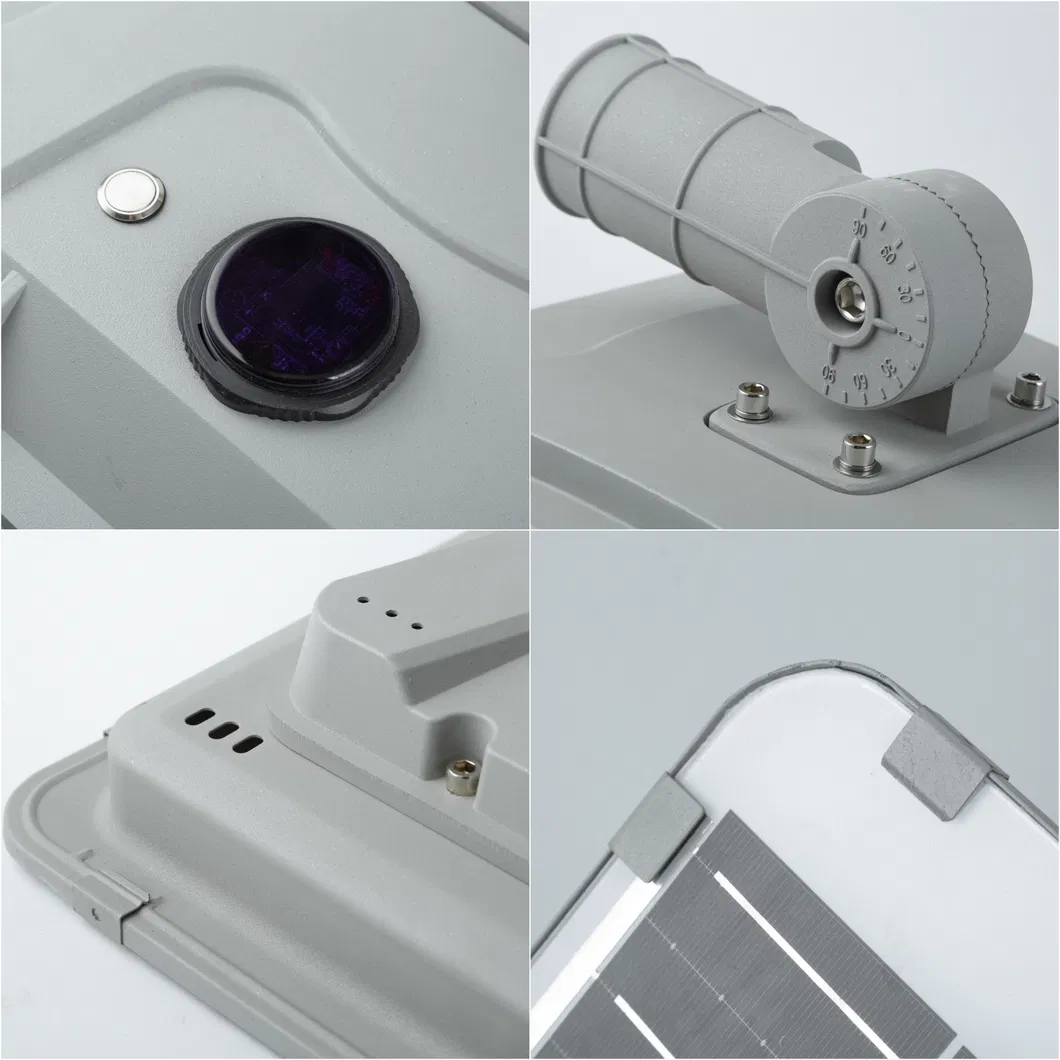

Built-in radar induction head (damage-resistant)
Easy replace battery cover & glass
Reinforced hoop for typhoon resistance

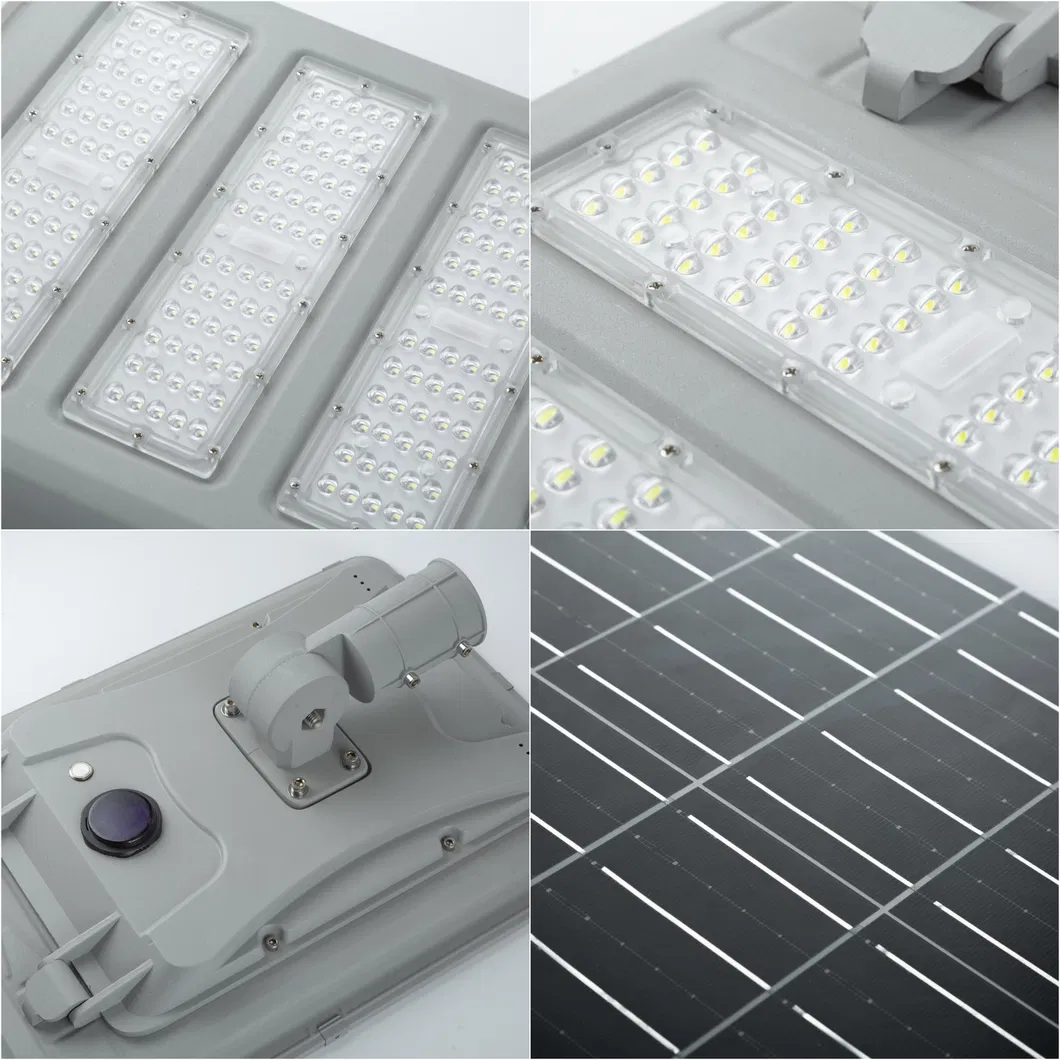

Technical Design

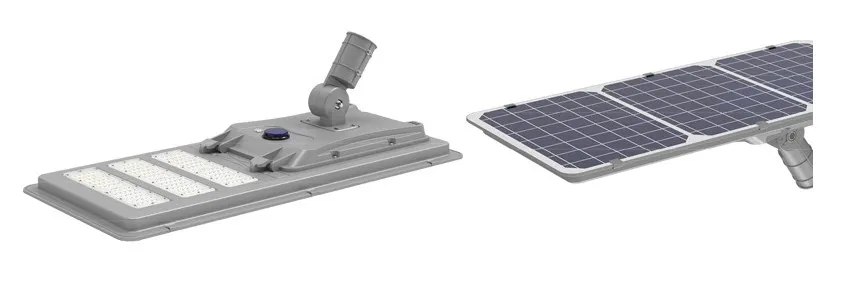

Product Banner
📋 Product Specifications

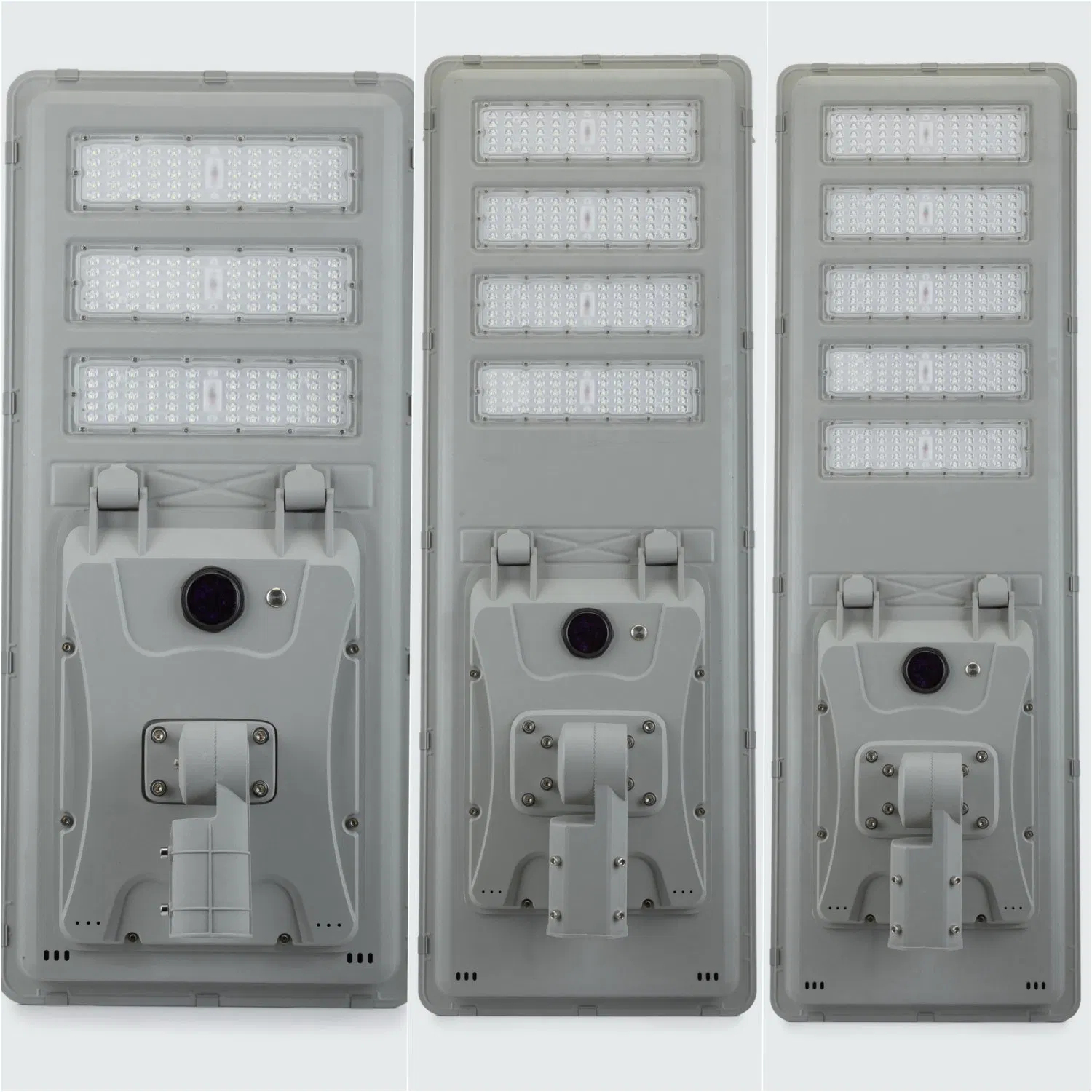

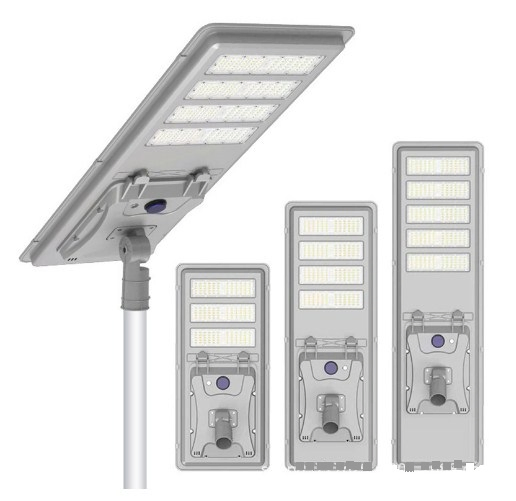

Item No. Power & LM Lamp Size(mm) Specification Details
WD-YL-HQ-Solar Street 60W 60W
4000LM
887*400*280mm Solar panel: Monocrystal 6V/60W
LED: SMD3030 180
Battery: 3.2V/45A
Charging: 6-7H | Working: 12-15H
WD-YL-HQ-Solar Street 80W 80W
5120LM
1160*400*280mm Solar panel: Monocrystal 6V/80W
LED: SMD3030 240
Battery: 3.2V/60A
Charging: 6-7H | Working: 12-15H
WD-YL-HQ-Solar Street 100W 100W
7200LM
1435*400*280mm Solar panel: Monocrystal 18V/100W
LED: SMD3030 300
Battery: 6.4V/50A
Charging: 6-7H | Working: 12-15H
Additional Advantages:
  • 3.2V design: Efficient and safe energy utilization.
  • Lithium battery: Provides a long operational life span.
  • Integrated design: All-in-one structure for easy installation without cabling.
  • High quality LED chips: Rated for 50,000 hours life span.
  • 2-year product warranty for peace of mind.
❓ Frequently Asked Questions
How does the integrated motion sensor work?
The solar street light features an intelligent radar motion sensor. It provides 100% brightness when motion is detected and automatically dims to 20% brightness when no one is present, effectively saving energy.
Is the battery easy to replace?
Yes, the design includes a specialized battery cover that can be opened easily, allowing for convenient battery maintenance or replacement without dismantling the entire unit.
What is the waterproof and durability rating?
This light is rated IP65 waterproof, making it suitable for all outdoor weather conditions. It also features a longer embrace hoop design specifically to resist strong winds and typhoons.
How long does it take to charge and how long will it stay on?
With high-efficiency monocrystal silicon solar panels, it requires about 6-7 hours of charging time and can provide reliable illumination for 12-15 hours.
What are the main installation areas?

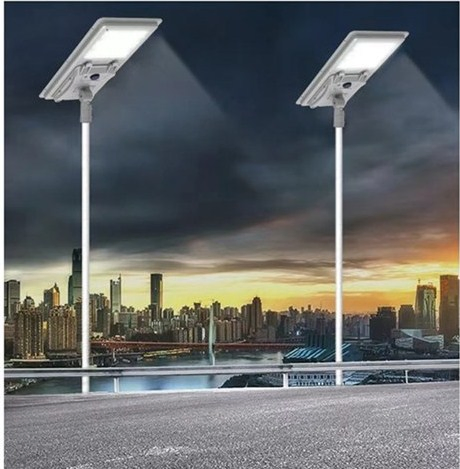

Due to its "All in One" integrated design, it is ideal for gardens, streets, urban roads, pathways, rural areas, and farms where grid power is not easily accessible.
How can I check the battery status?
The lamp body is equipped with a built-in LED screen that clearly displays the current battery power level, allowing for easy monitoring of the energy status.
