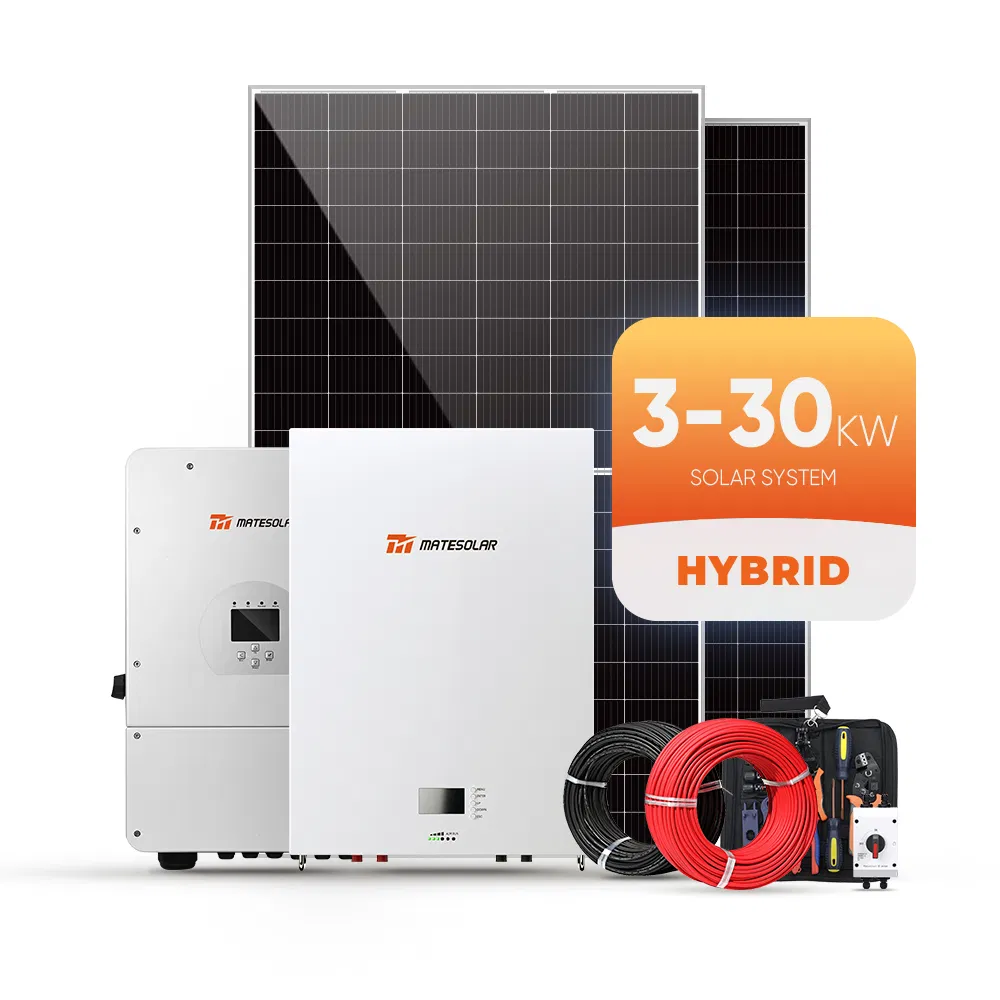

📊 Basic Information
Product Name

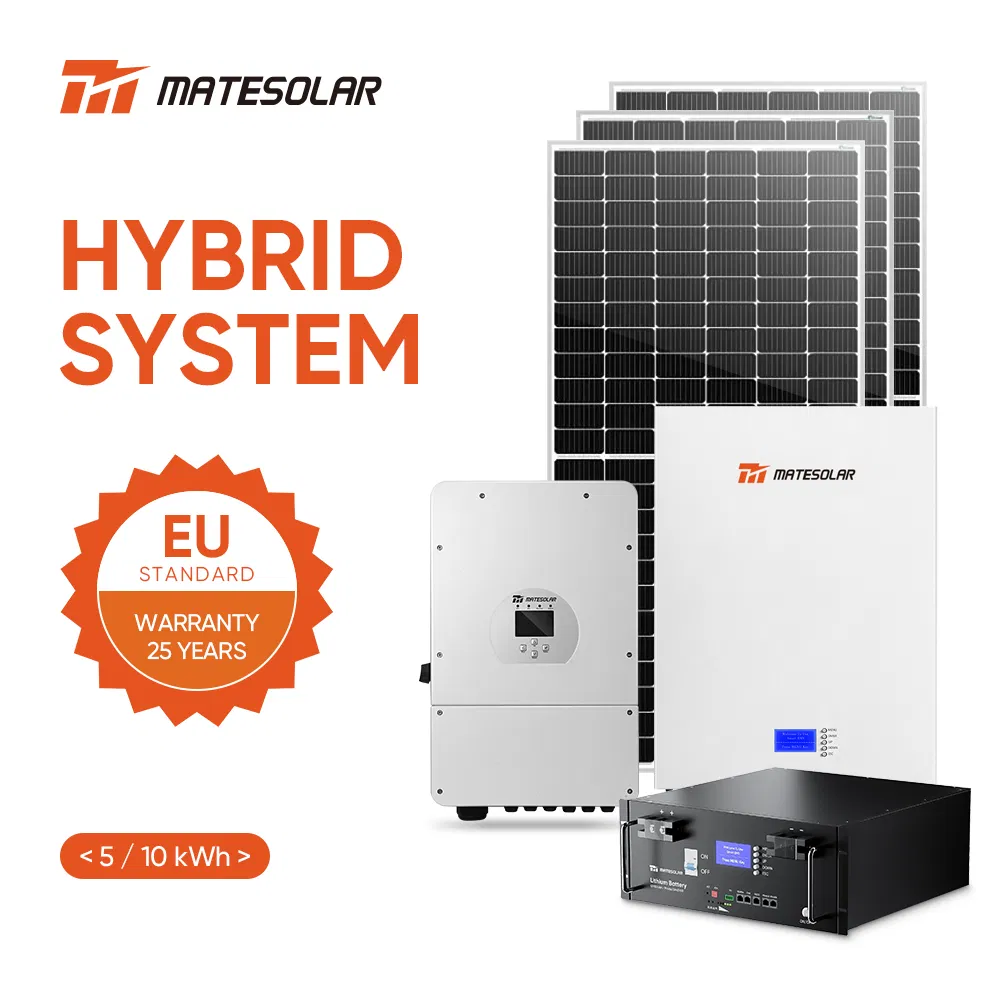

Household Hybrid Solar Power System
System Type
Off-Grid Hybrid Solar Photovoltaic System
Solar Panel
Mono Crystalline Perc Solar Panel
Inverter
Single Phase/Split Phase/3phase
Battery
Lead Acid/LiFePO4 Lithium Battery
Usage
Home Solar Energy Generation
📦 Packaging & Delivery
Package Size
225.00cm * 115.00cm * 4.00cm
Transport
Wooden Box Package by Sea
⚡ Product Description
| System MODEL |
MT5KW-HY |
MT8KW-HY |
MT10KW3-HY |
MT12KW3-HY |
| PV System Size Nominal (kWp) |
5.5 |
8.8 |
11 |
13.2 |

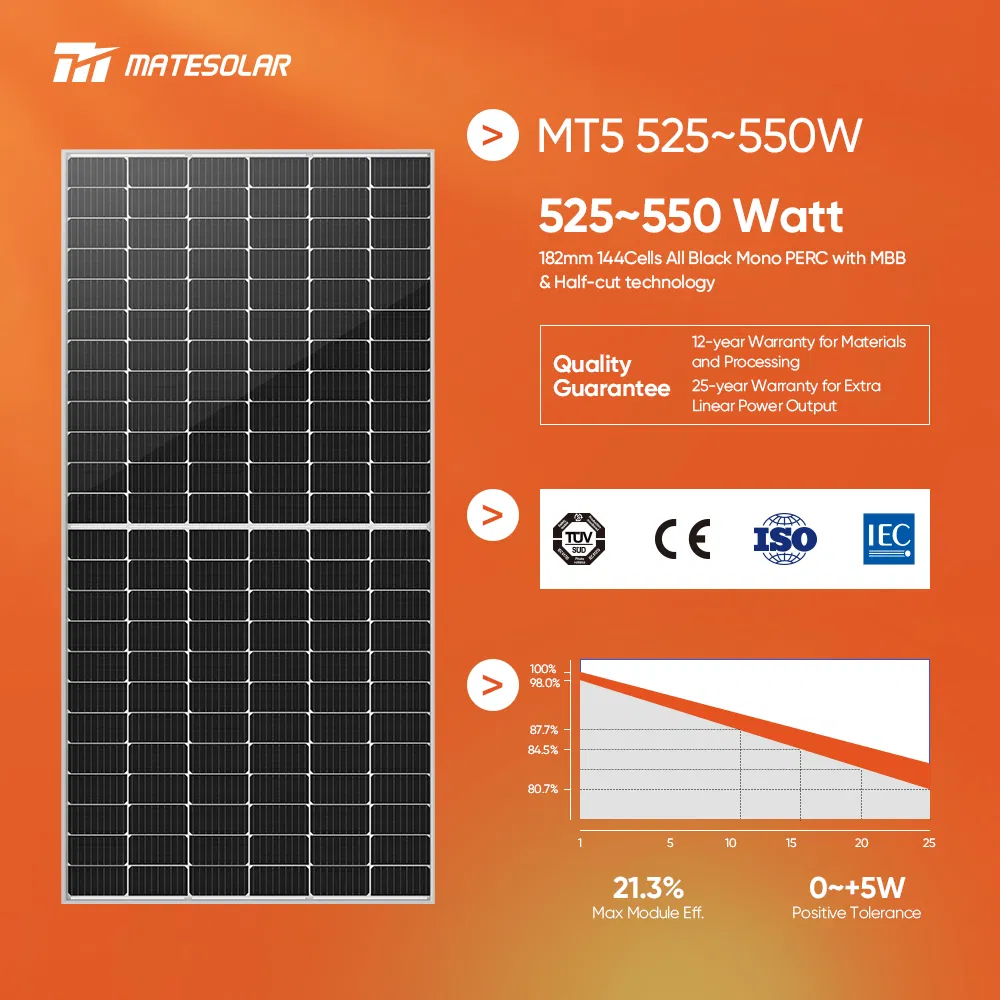

| PV MODULE SPECIFICATIONS (*half cell mono) |
| Power (W) | 550 |
| Vmp (V) | 41.96 |
| Dimensions (mm) | 2279*1134x35 |
| Certification | CE / TUV (IEC 61215 & IEC 61730) |

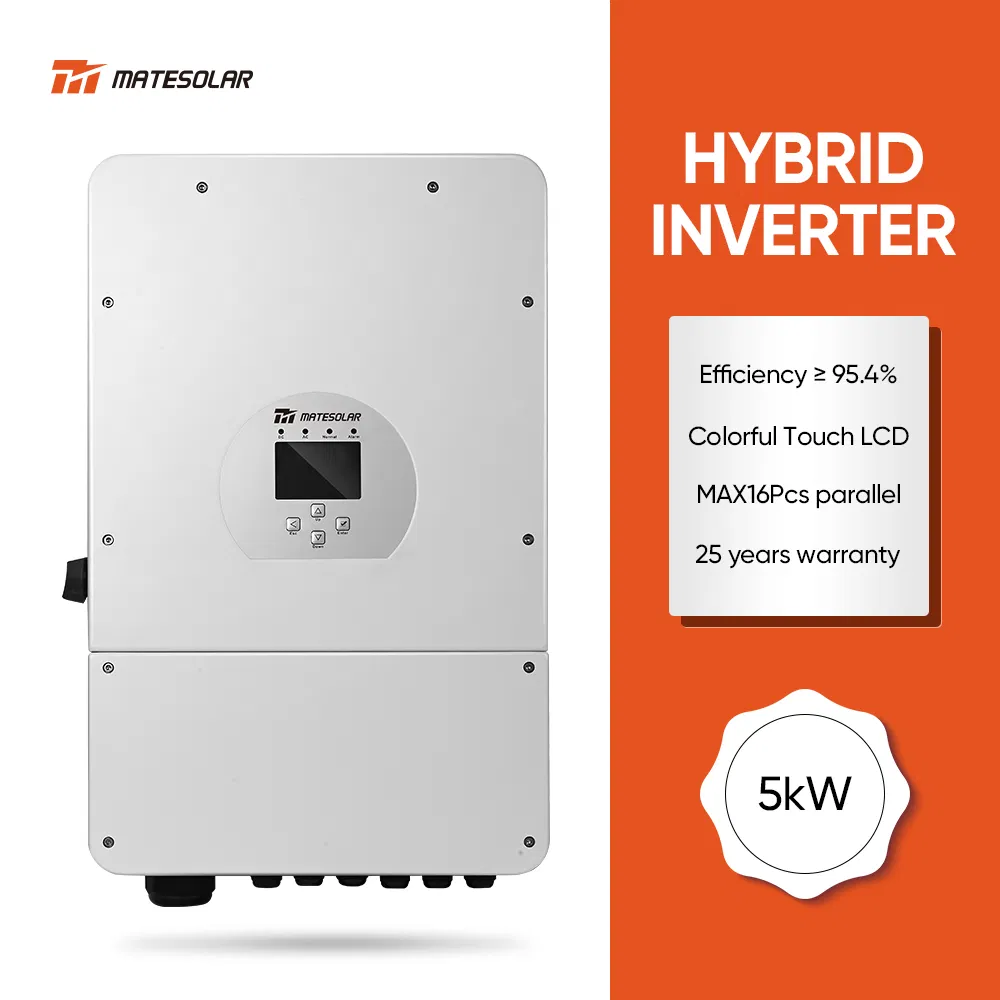

| INVERTER SPECIFICATIONS |
| Inverter Size (kW) | 5 | 8 | 10 | 12 |
| Max DC Power (W) | 6500 | 10400 | 13000 | 15600 |
| Max DC Voltage (V) | 500 | 1000 |
| Output Voltage | 220,230Vac | 220/380,230/400Vac |

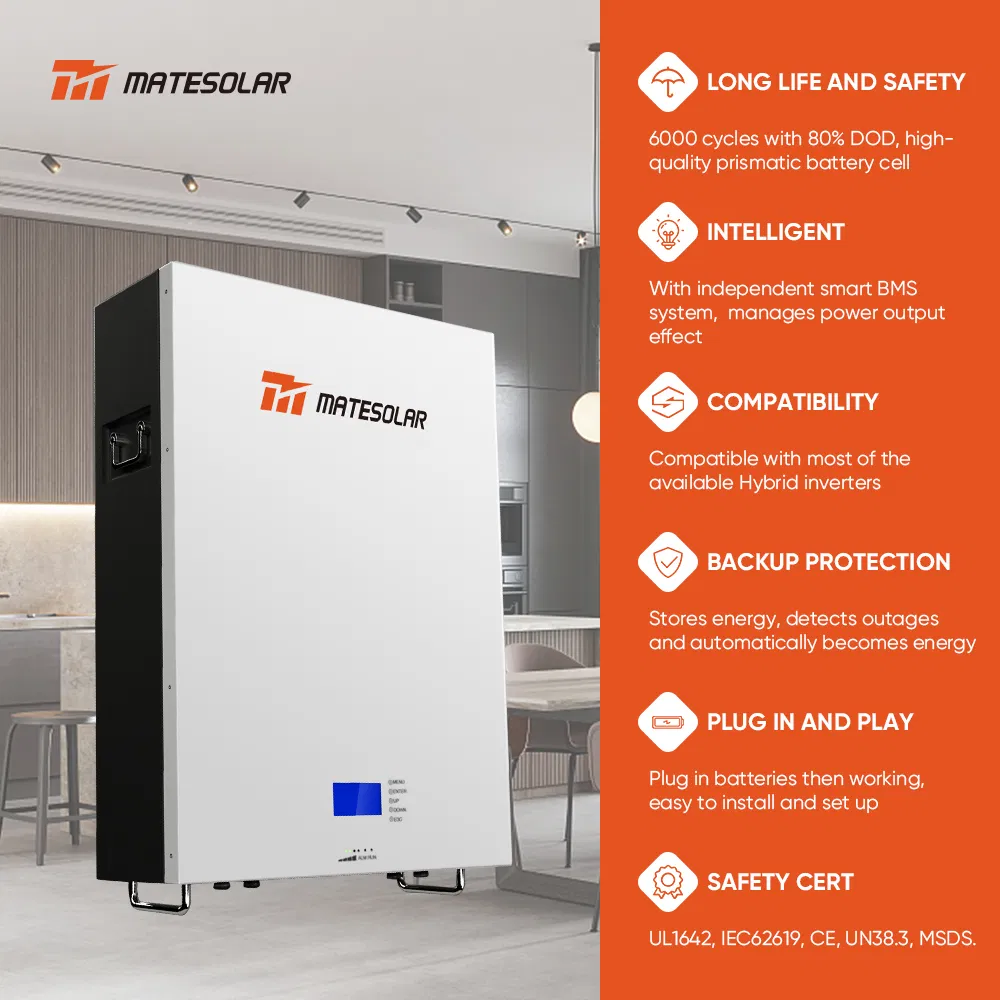

| BATTERY BANK SPECIFICATIONS |
| Battery Type | Li-Ion(LifePO4) |
| Total Batteries | 1 | 2 | 3 | 4 |
| Battery Bank Power(kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
| Number of PV Modules | 10 | 16 | 20 | 24 |

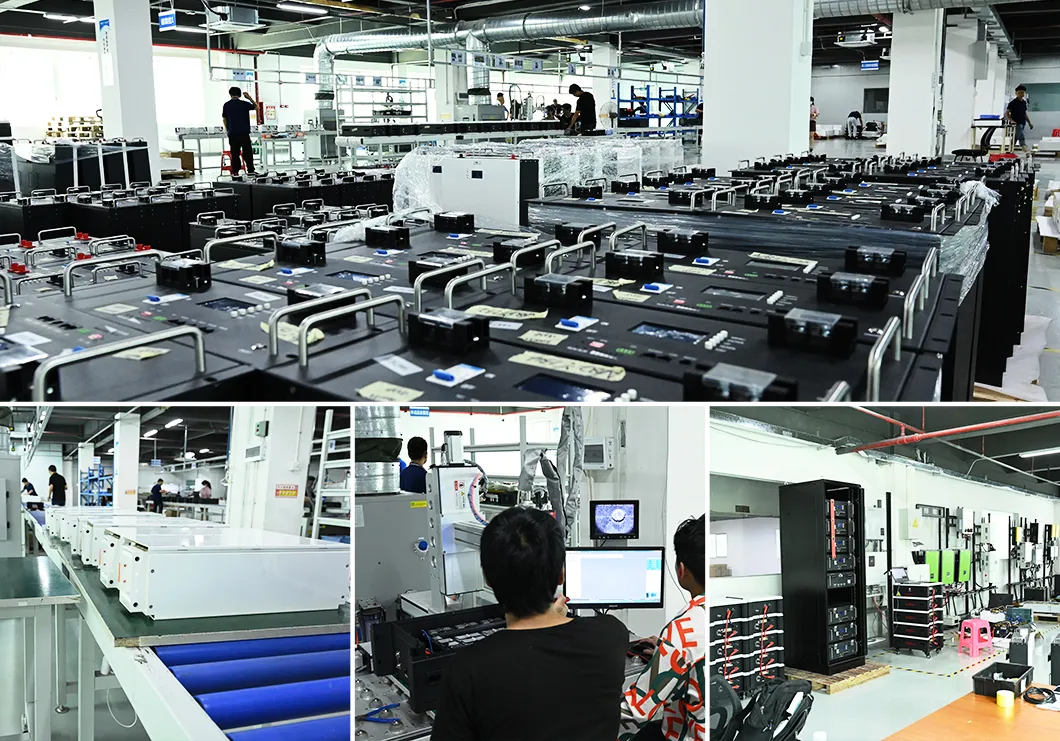

🏢 Professional Manufacturer Overview
As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels.

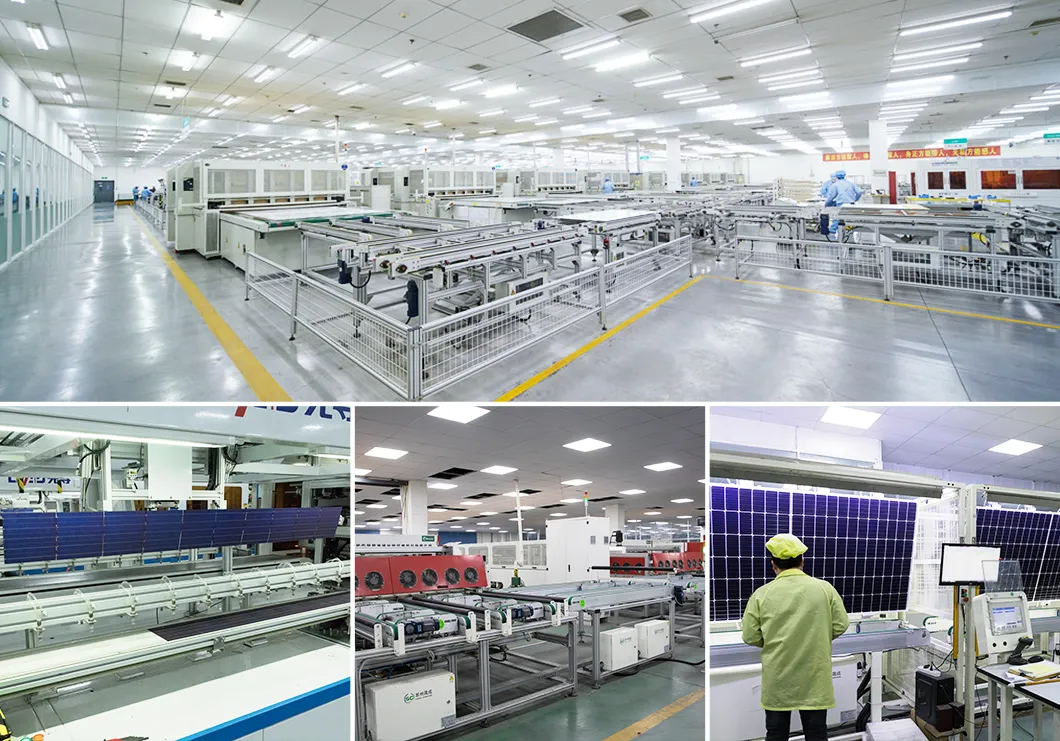

Focused on the research and manufacture of all-black solar panels since 1998, our products have been exported to 86 countries, earning a strong reputation for quality. With over 10 years of development, our facility now covers 150,000 square meters with 600 experienced employees.
❓ Frequently Asked Questions
What types of batteries are used in this solar system?
The system primarily utilizes high-efficiency LiFePO4 Lithium batteries or Lead Acid batteries, depending on the specific model and requirements.
Is the mounting structure customizable?
Yes, we provide customized mounting structures to fit different roof types or ground installation requirements for every home project.
What certifications do your solar products hold?
Our systems and components are fully certified with ISO, CE, and TUV (IEC 61215 & IEC 61730) standards to ensure safety and quality.

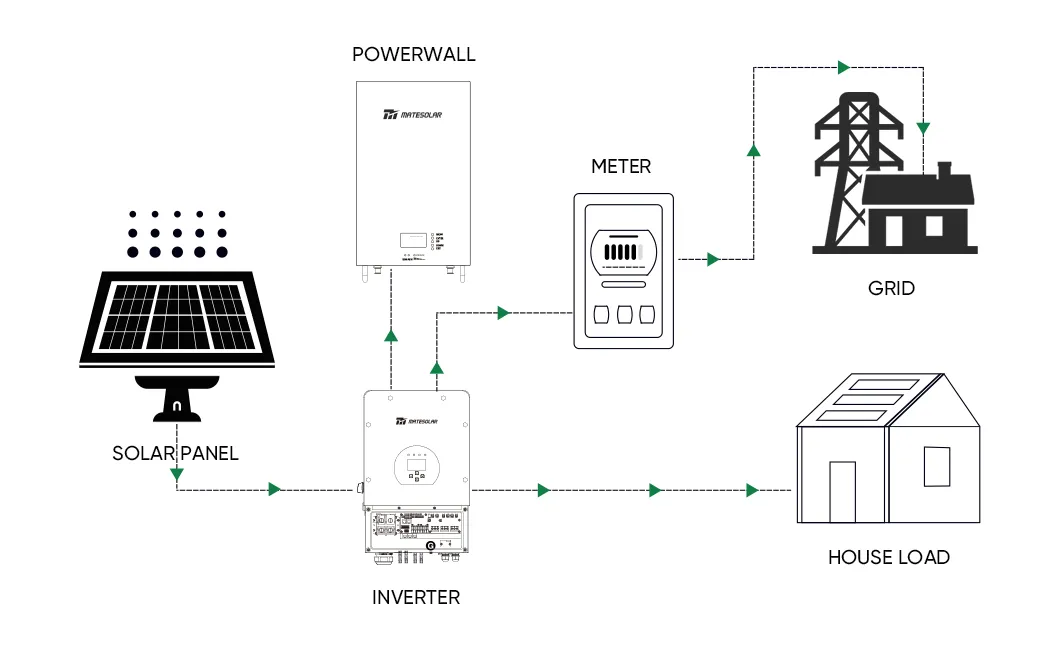

Can this hybrid system work off-grid?
Absolutely. This is an off-grid hybrid solar photovoltaic system designed to provide reliable power for homes even when disconnected from the utility grid.

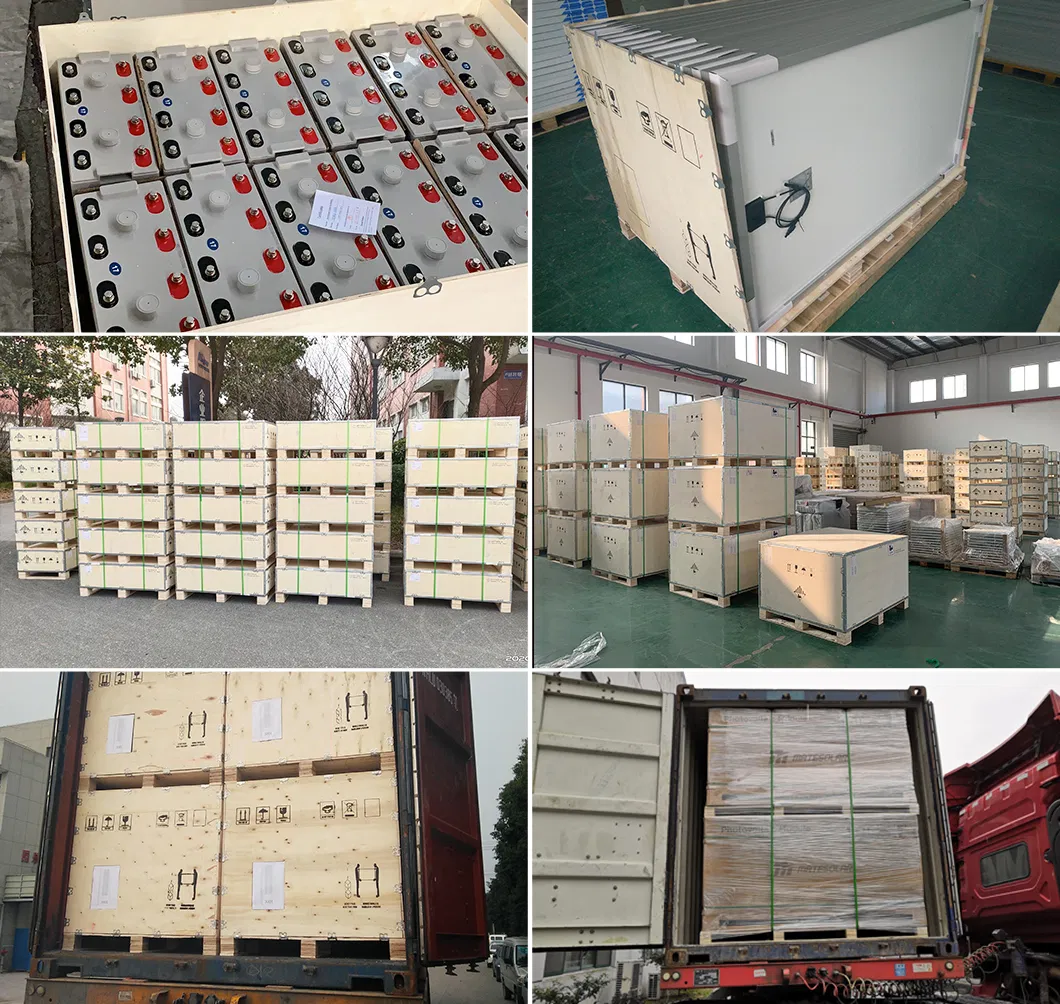

How are the products protected during international shipping?
We use professional wooden box packaging specifically designed for sea transport to prevent any damage during long-distance delivery.
What is the life expectancy of the solar panels?
Our Mono Crystalline Perc solar panels are designed for long-term durability, typically offering a performance life of over 25 years.
